Subaru 2013 BRZ User manual

2013
BRZ
Quick Reference Guide
1145810_13a_Subaru_BRZ_QRG_030812.indd 2 3/8/12 2:06 PM

Complete U.S. specications and illustrations may
not have been available at time of publication.
Specications are based on the latest product
information available at time of publication. Some
images shown are for illustration purposes only.
Some equipment shown may be optional at
extra cost. Specic options may be available
only in combination with other options. Specic
combinations of equipment or features may vary
from time to time and by geographic area. Certain
accessories and equipment may not be available at
the time of publication.
This Quick Reference Guide applies to all
BRZ models. Therefore, some explanations may
be for equipment not installed on your vehicle.
Subaru of America, Inc., reserves the right to
change or discontinue at any time, without notice,
prices, colors, materials, equipment, accessories,
specications, models and packages without
incurring any obligation to make the same or similar
changes on vehicles previously sold. Colors shown
may vary due to reproduction process.
For detailed operating and safety information,
please consult the Owner’s Manual.
Subaru, Outback, Legacy, Forester, Impreza,
WRX, WRX/STI, BRZ, BOXER, SI-DRIVE,
Lineartronic, Alcantara, Circle Surround, XM and
Sirius are registered trademarks.
All rights reserved. Contents may not be reprinted or
electronically reproduced in whole or in part without
prior written approval of Subaru of America, Inc.
© 2012 Subaru of America, Inc.
1145810_13a_Subaru_BRZ_QRG_030812.indd 3 3/8/12 2:06 PM

1145810_13a_Subaru_BRZ_QRG_030812.indd 4 3/8/12 2:06 PM

Table of Contents
Getting Started
Instrument Panel
Gauges
Personalize
Controls
While Operating
Safety/In Case of Emergency
Additional Information
2 - 3
4 - 5
6 - 7
8 - 9
10 - 19
20 - 23
24 - 25
26 - 27
1145810_13a_Subaru_BRZ_QRG_030812.indd 5 3/8/12 2:06 PM

2
Remote Keyless Entry
Getting Started
Lock/Arm
 •Presstolockalldoors
and trunk and activate the
security alarm.
 •Ifanyofthedoorsorthe
trunk are not fully closed,
an electronic chirp will
sound to alert you that the
doors or the trunk are not
properly closed.
Opening the
Trunk Lid
Press and hold to unlock the
trunk lid. An electronic chirp
will sound.
Panic Alarm
 •Pressandhold,the
horn will sound and the
hazard lights will ash.
 •Pressanybutton
on the remote
to deactivate.
Unlock/Disarm
 •Pressoncetounlock
the driver’s door.
 •Presstwice(withinve
seconds) to unlock
all doors.
 •Whenthe“Unlock/Disarm”
button is pressed, the dome
and map lights will illuminate
if the dome light switch is in
the middle position.
1145810_13a_Subaru_BRZ_QRG_030812.indd 2 3/8/12 2:06 PM

3
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
3
Getting
Started
Seating
Seat Controls
1. Forward/Backward
Pull up on the lever below the front
of the driver’s seat to move the seat
forward or backward.
2. Raise/Lower Seat Cushion
To adjust the height of the driver’s
seat, push or pull the seat height
adjustment lever located on the
lower left side front of the seat.
3. Recline Seatback
To adjust the seatback to the desired
position, pull up on the recline lever
located on the lower left side rear of the
driver’s seat or lower right side rear side
of the passenger’s seat. Do not adjust
seats while driving.
4. Seatback Fold Strap
To get in and out of the back seats, pull
the seat strap to fold the desired seat.
When nished, push the seatback until
it locks in place.
Heated Seats
(if equipped)
Switches are located on the center
console between the driver and
passengerseats.Chooselow(bottom
of switch) for normal heating or high
(topofswitch)forrapidheating.
Choose the center position to turn
off the seat heaters.
1
2
3
3
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
33
GettingGettingGettingGettingGetting
StartedStartedStartedStartedStarted
(bottom
Getting
Started
Folding Down the
Rear Seats
Lower the headrests. Open the trunk
and pull the release strap on the seat
side that you want to fold down.
To return the seatback to its original
position, raise the seatback until it
locks into place and make sure that
it is securely locked.
4
1145810_13a_Subaru_BRZ_QRG_030812.indd 3 3/8/12 2:07 PM

4

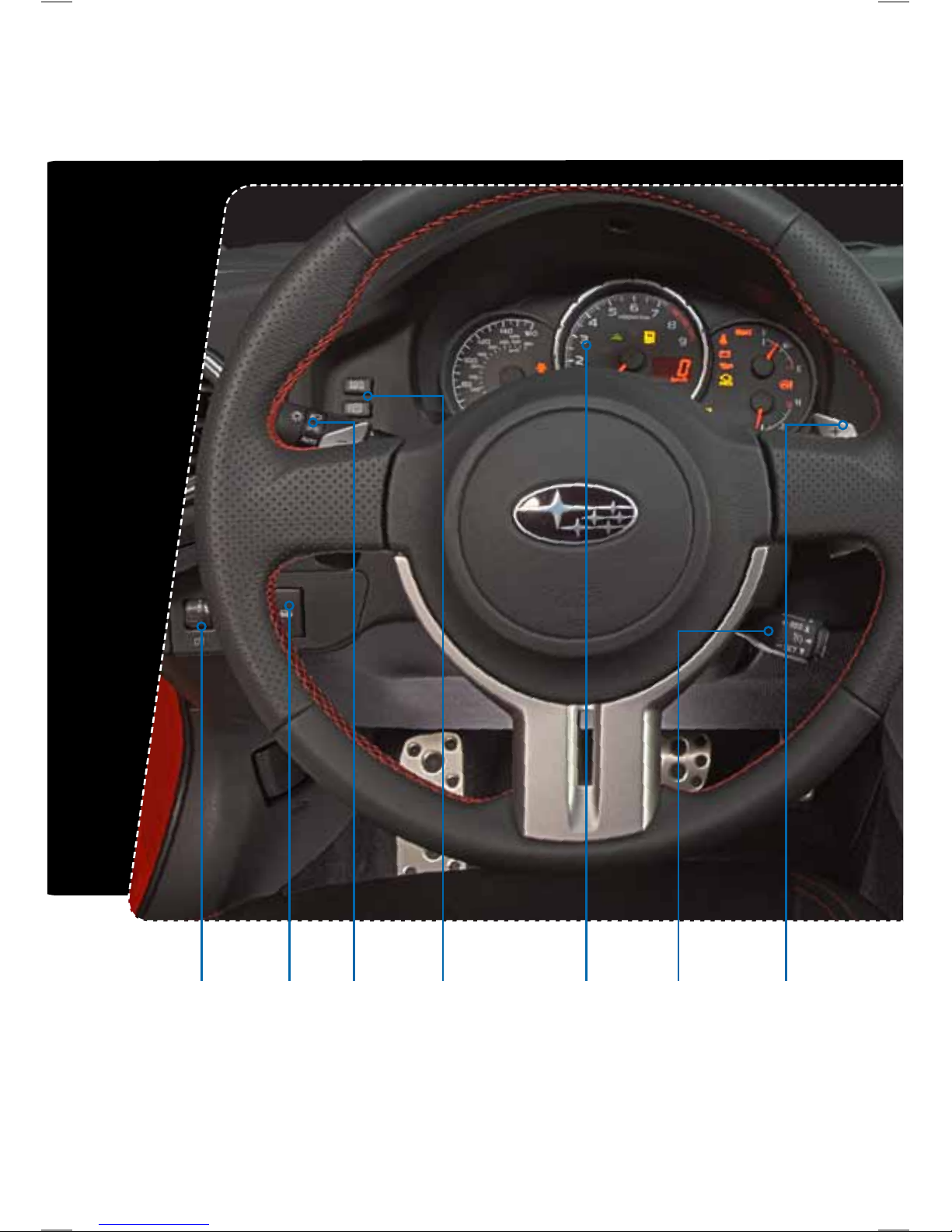

Instrument Panel
pg. 20 pg. 6-7 pg. 20pg. 10 pg. 19pg. 10 pg. 9
1145810_13a_Subaru_BRZ_QRG_030812.indd 4 3/8/12 2:07 PM

5
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
5
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
555
pg. 11 pg. 16pg. 12-15

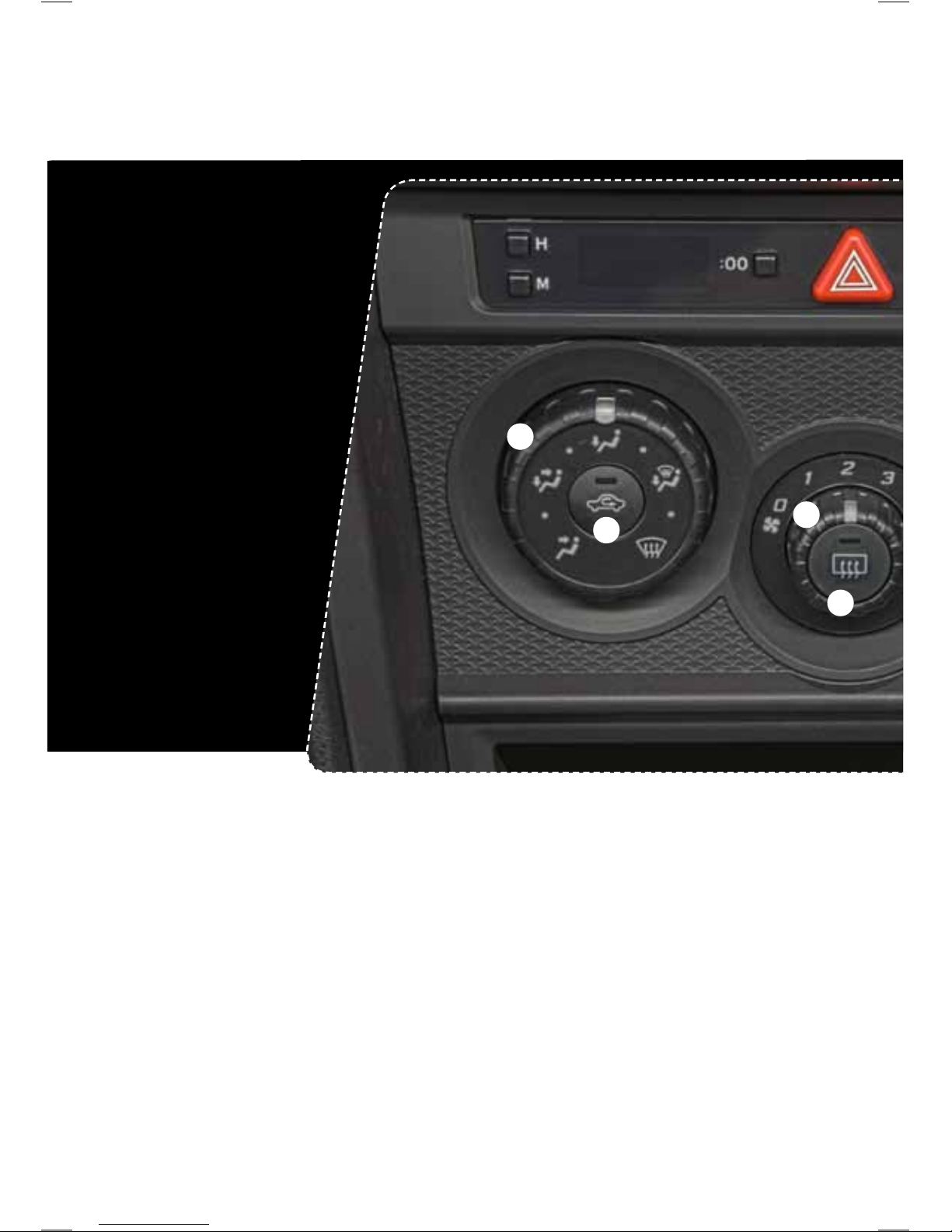

Clock
Pressthe“H”buttontoadjustthehoursand
the“M”buttontoadjusttheminutes.Vehicles
with a navigation system, please refer to
theseparatebooklet“OperatingInstructionsfor
NavigationSystem.”
Instrument
Panel
pg. 21
1145810_13a_Subaru_BRZ_QRG_030812.indd 5 3/8/12 2:07 PM

6
Gauges Immediate Attention
Speedometer
Tachometer
Outside temperature, trip meter and odometer
Caution Informational
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Engine immobilizer
indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning
REV indicator
Hotcoolanttemperature/
Cold coolant temperature
Highbeamindicatorlight
AT OIL TEMP
(AutomaticTransmission)
ABS warning
Low fuel
SNOW indicator
(AutomaticTransmission)
Slip indicator
1145810_13a_Subaru_BRZ_QRG_030812.indd 6 3/8/12 2:07 PM

7
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
7
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation

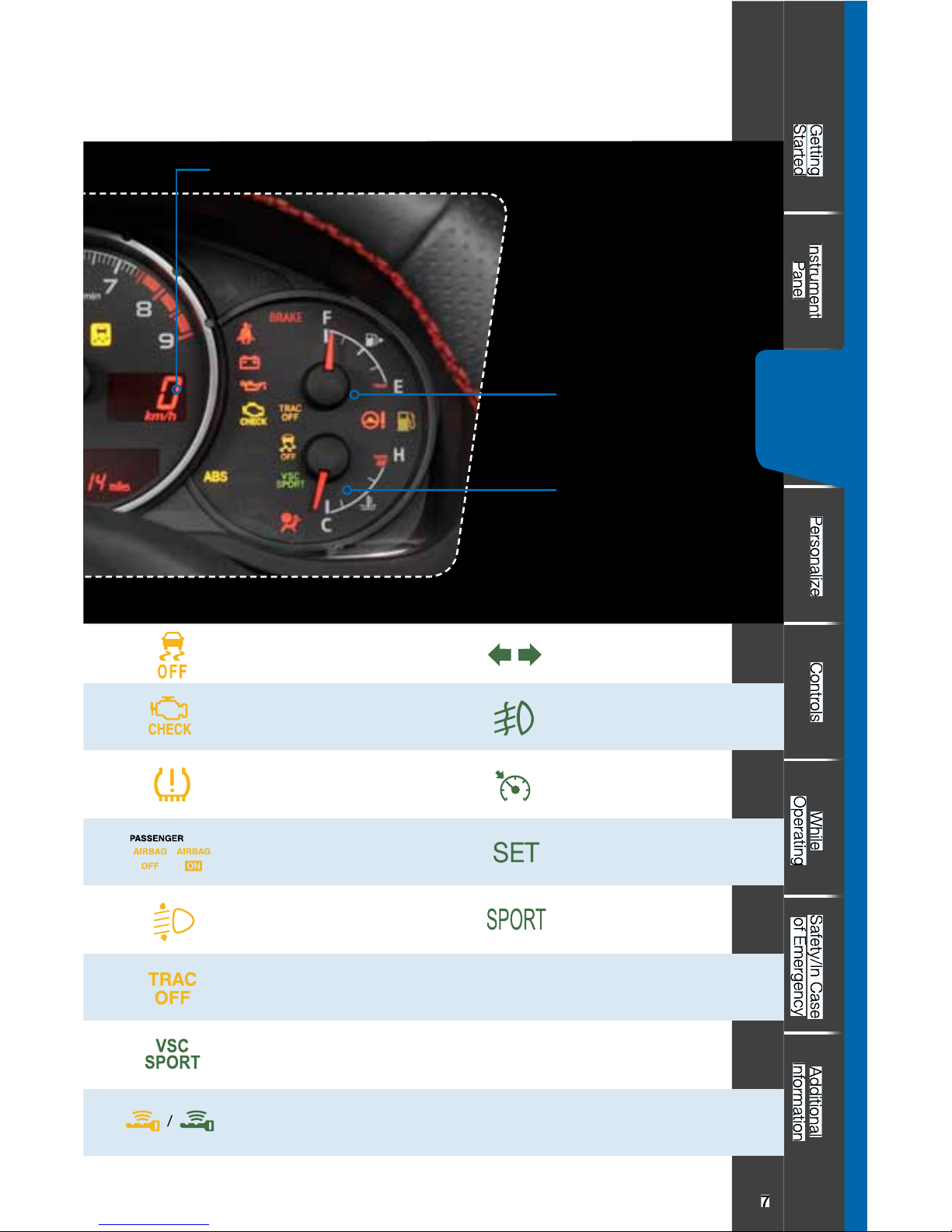

Gauges
Digital Speedometer
Informational
Temperature Gauge
Fuel Gauge
VSC off
CHECKengine/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag OFF/ON
Headlightleveler
(ifequipped)
TRAC OFF indicator
VSC SPORT indicator
Smart key system
(ifequipped)
Turn signals
Front fog light indicator
light(ifequipped)
Cruise control
indicator light
Cruise control set
indicator light
SPORT indicator
(AutomaticTransmission)
1145810_13a_Subaru_BRZ_QRG_030812.indd 7 3/8/12 2:07 PM

8
Personalize
Tilt Steering Column
Push the lever down rmly to adjust the height
position of the column; rmly push the lever
back up to lock the column in place. Do not
adjust while driving.
Power Exterior Mirrors
Turntheknobtothe“L”toadjustthe
left-handmirrorortothe“R”toadjustthe
right-hand mirror. Move the knob in the
direction you want to move the mirror. Then
return the knob to the neutral/center position.
1145810_13a_Subaru_BRZ_QRG_030812.indd 8 3/8/12 2:07 PM

9
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
9
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
Personalize
Trunk lid cancel button
Prevent unauthorized entry into the trunk
by locking the trunk release lever. Press
the trunk lid cancel button to lock the
trunk release lever. The trunk can only be
opened using the master key. Press the
button in to unlock the trunk release lever.
km/h - MPH, ODO - TRIP, DISP Buttons
1.Pressthisbuttontochangethedigitaldisplayfromkm/htoMPH.Press
again to switch back.
2. Press this button to cycle through the odometer, trip meter A, trip meter B,
setting screen for the tachometer needle or the setting screen for the
shift position indicator.
3. Press this button to cycle through the outside temperature, current fuel
consumption, average fuel consumption or the setting screen for the
REV indicator.
1
2
3
1145810_13a_Subaru_BRZ_QRG_030812.indd 9 3/8/12 2:07 PM

10
Controls
Light Controls
AUTO: The vehicle’s lights are
automatically on or off depending
on the level of the outside light.
Turns on headlights,
instrument panel
illumination, parking
lights, tail lights and
license plate lights.
Push up for right
turn signal.
Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Push down for
left turn signal.
Illumination
Brightness
Control
While the light switch
is on, rotate the dial
downward to dim
the instrument panel
illumination. Rotate the
dial upward to make
the illumination
brighter. When the
dial is fully rotated
upward, the instrument
panel illumination
becomes full bright.
Headlight Beam
Leveler
High-IntensityDischarge(HID)
headlights generate more light
than conventional halogen
headlights. Therefore, a driver
of an oncoming vehicle may
experience too much glare
when your headlight beam
height adjustment is high
because the vehicle is carrying
a heavy load. The headlight
beam leveler can be used to
adjust beam height to avoid
such a condition. To lower the
beam, turn the knob to the
higher numbers.
Turns on
fog lights
(ifequipped).
1145810_13a_Subaru_BRZ_QRG_030812.indd 10 3/8/12 2:07 PM

11
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
11
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
Controls
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for
intermittent, two levels for low, or three levels for high speed. Return the
levertothe“OFF”positiontostopthewipers.Forasinglewipe,movethe
lever up. To spray washer uid, pull and hold the lever toward you.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced
brightness high beam will be automatically turned on when the engine
has started and the parking brake is fully released or the light switch is in
the“OFF”or“ ”position.Thebrightnessoftheilluminationofthehigh
beam headlights is reduced by the daytime running light system. You must
always switch on your headlights when it’s dark outside by turning the light
switch to the position.
OFF
1
2
3
INT.
LOW
HIGH
Turns on
fog lights
(ifequipped).
1145810_13a_Subaru_BRZ_QRG_030812.indd 11 3/8/12 2:08 PM

12
Controls
Manual Climate Control
1. Air Flow Control Dial
The air ow control dial allows you to
choose the direction of air ow. Rotate the
dial for the desired air ow position.
Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air ow
control dial to the defrost position, set the
temperature control to the red position,
and set the fan speed control to the
fastest speed.
2. Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about 15
minutes. If the window clears before that
time, you can press the button again to
turn it off.
3. Fan Speed Control Dial
Rotate the fan speed control dial to select
one of four fan speeds.
4. Air Conditioning Button
Pressthe“A/C”buttontoactivatethe
air conditioning. Press it again to turn off
the air conditioning.
1
2
3
5
1145810_13a_Subaru_BRZ_QRG_030812.indd 12 3/8/12 2:08 PM

13
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
13
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
Controls
5. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. If the
button is pushed in, press it again to
draw outside air into the compartment.
TOPREVENTWINDSHIELD
FOGGING,DONOTREMAININTHE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.
6. Temperature Control Dial
Rotate the temperature control dial
from blue for cool, to red for warm.
2
4
6
1145810_13a_Subaru_BRZ_QRG_030812.indd 13 3/8/12 2:08 PM

14
Controls
Automatic Climate Control
(if equipped)
1. Automatic On and Off
This system automatically controls
outlet air temperature, fan speed, air
ow distribution, air inlet control, and air
conditioner compressor operation. Press
“AUTO”toactivate.Push“OFF”toturnoff
the system.
2. Temperature Control Dials
Rotate the dial to select a temperature
and maintain a comfortable climate within
the driver and passenger compartment.
Temperature is displayed digitally on the
screen. Separate temperature settings
can be adjusted for the driver’s side and
passenger’s side.
Operation in Manual Mode
3. Recirculated/Outside Air Switch
Push the air inlet selection button to
prevent outside air from being drawn into
the passenger compartment. Push the
button again to allow outside air into the
compartment.TOPREVENTWINDSHIELD
FOGGING,DONOTREMAININTHE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.
4. Fan Speed Control Dial
On the automatic setting, the system
determines the fan speed to achieve
1
2
3
4
5
61
1145810_13a_Subaru_BRZ_QRG_030812.indd 14 3/8/12 2:08 PM

15
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
15
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
Controls
the desired temperature or you can
manually rotate the fan speed control
dial to select one of seven fan speeds.
5. Air Flow Mode Selection Button
Press the button to select the desired
air ow mode. The selected air ow
mode is shown on the display above.
6. Dual Mode Switch
Pushthe“DUAL”switchtoactivateor
deactivate the dual mode. Dual mode
makes it possible to have separate
temperature settings for the driver’s
side and passenger’s side.
7. Air Conditioner Switch
Pushthe“A/C”switchtoactivatethe
air conditioning. Push it again to turn
off the air conditioning.
8. Front Defroster Button
Press the button to defrost or
dehumidify the windshield and front
door windows.
9. Rear Window Defogger Switch
Push the switch to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can push
the switch again to turn it off.
3
5
7
8
9
2
1145810_13a_Subaru_BRZ_QRG_030812.indd 15 3/8/12 2:08 PM

16
Controls
1
AM/FM Stereo HD Radio®
with Single Disc CD Player
and Navigation System*
Radio Functions
1. Power/Volume Control
Press the power/volume control knob
for on or off; rotate the knob to control
the volume.
2. Audio Source
Pressthe“AUDIO”buttontodisplaythe
audio screen. Touch the audio source
you want to hear. Use the arrow to scroll
down the list of available sources.
3. Sound Settings
While in an audio operations screen touch
the“Sound”key.Youwillbeabletoadjust
EQ,soundposition,SVC(SourceVolume
Control)andASL(AutomaticSound
Levelizer) settings.
CD Player Functions
4. Load
Insert a disc into the slot. The CD will
automatically be drawn in and will begin
play at the rst track.
5. Eject
Press the button to eject the disc.
5
3
4
2
*For more detailed information on audio
operation, please refer to the Navigation
Owner’s Manual.
1145810_13a_Subaru_BRZ_QRG_030812.indd 16 3/8/12 2:08 PM

17
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
17
GettingGetting
StartedStarted
InstrumentInstrument
PanelPanel
GaugesGauges
PersonalizePersonalize
ControlsControls
WhileWhile
OperatingOperating
Safety/In CaseSafety/In Case
of Emergencyof Emergency
AdditionalAdditional
InformationInformation
Controls
USB Storage Device/iPod®(if equipped)
The USB slot is located underneath the climate controls. You can connect a
USB equipped portable music player to the USB connector and hear the music
storedonitthroughthevehiclespeakers.Pressthe“AUDIO”buttonlocatedon
theaudiosystemandthentouchthe“USB”keytoselecttheUSB/iPod®mode.
Auxiliary Input Jack
The auxiliary jack is located underneath the USB slot. You can connect a
portable music player to the auxiliary jack and hear the music stored on it
throughthevehiclespeakers.Pressthe“AUDIO”buttonlocatedontheaudio
systemandthentouchthe“AUX”keytoselecttheauxiliarymode.
1145810_13a_Subaru_BRZ_QRG_030812.indd 17 3/8/12 2:08 PM
