FUJI HEAVY INDUSTRIES LTD. G2360GE1
2005 LEGACY SERVICE MANUAL QUICK REFERENCE INDEX
GENERAL INFORMATION
SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
FOREWORD FW
HOW TO USE THIS MANUALS HU
SPECIFICATIONS SPC
PRECAUTION PC
NOTE NT
IIDENTIFICATION ID
RECOMMENDED MATERIALS RM
PRE-DELIVERY INSPECTION PI
PERIODIC MAINTENANCE SERVICES PM
G2360GE.book 3 ページ ２００７年１１月２９日 木曜日 午後１時２８分

G2360GE.book 4 ページ ２００７年１１月２９日 木曜日 午後１時２８分

FOREWORD
FW
Page
1. Foreword .....................................................................................................2
G2360GE.book 1 ページ ２００７年１１月２９日 木曜日 午後１時２８分

FW-2
FOREWORD
Foreword
1. Foreword
A: FOREWORD
These manuals are used when performing mainte-
nance, repair, or diagnosis of Subaru LEGACY.
Applied model:
BL*****, BP***** from 2005MY
The manuals contain the latest information at the
time of publication. Changes in specifications,
methods, etc. may be made without notice.
G2360GE.book 2 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HOW TO USE THIS MANUALS
HU
Page
1. How to Use This Manuals ...........................................................................2
G2360GE.book 1 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HU-2
Vehicle‑id:
SIE‑id:Sa02675f69:A:HOW TO USE THIS MANUALS
〜
HOW TO USE THIS MANUALS
How to Use This Manuals
1. How to Use This Manuals
A: HOW TO USE THIS MANUALS
1. STRUCTURE
Each section consists of SCT that are broken down
into SC that are divided into sections for each com-
ponent. The specification, maintenance and other
information for the components are included, and
the diagnostic information has also been added
where necessary.
2. CONTENTS
The first page has an index with tabs.
G2360GE.book 2 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HU-3
HOW TO USE THIS MANUALS
How to Use This Manuals
3. COMPONENT
Illustrations are provided for each component. The information necessary for repair work (tightening torque,
grease up points, etc.) is described on these illustrations. Information is described using symbol.
To order parts, refer to parts catalogue.
Example:
HU-00017
(14)
(9)
(8)
(7)
(6)
(10)
(4) (10)
(22)
(11)
(19)
(17)
(15)
(13)
(12)
(18)
(16)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(11)
(10)
(9)
(12)
(13)
(19)
(18)
(20)
(17)
(16)
(24)
(10)
(25)
(5)
(4)
(4)
(4)
(3)
(3)
(3)
(2)
(1)
(21)
(15)
(23)
T7
T2
T2
T2
T2
T2
T2
T4
T5
T5
T8
T6
T6
T6
T11
T10
T1
T1
T3
T3
T3
T1
T9
T4
T5
T5 T3
T4
T3
T2
T4
T2
T1
T3
(20)
(21)
(23)
(22)
(10)
(24)
(25)
(26)
(35)
(34)
(27)
(14)
(28)
(29)
(31)
(32)
(37)
(30)
(33)
(36)
T3
T2
T1
:Selective part
:Replacement part
:Should be lubricated with grease.
:Should be lubricated with oil.
:Sealing point
:Tightening torque
....
,
G2360GE.book 3 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HU-4
Vehicle‑id:
SIE‑id:Sa02675f69:A:HOW TO USE THIS MANUALS
〜
HOW TO USE THIS MANUALS
How to Use This Manuals
4. SPECIFICATION
If necessary, specifications are also included.
5. INSPECTION
Inspections to be carried out before and after maintenance are included.
6. MAINTENANCE
• Maintenance instructions for serviceable parts describe work area and detailed step with illustration. It also
describes the use of special tool, tightening torque, caution for each procedure.
• If many serviceable parts are included in one service procedure, appropriate reference is provided for each
parts.

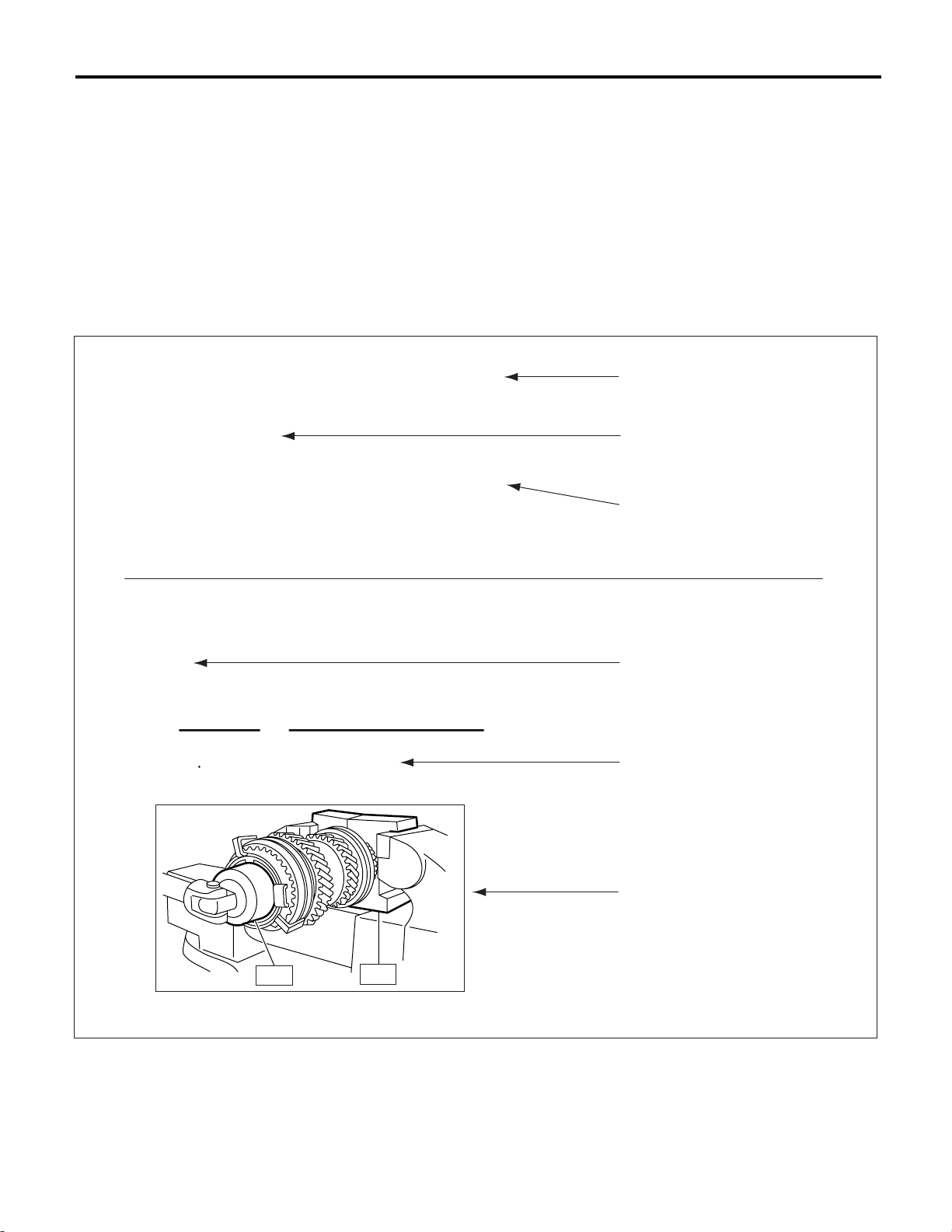

Example:
(A) Component (D) Cautions (G) Tightening torque
(B) Process (E) Tool number of special tool (H) Illustration
(C) Reference (F) Name of special tool
HU-00020
1) Remove the manual transmission assembly
from vehicie. <Ref. to MT-33, REMOVAL, Manual
Transmission Assembly.>
15.Main Shaft Assembly for Sin-
gle-Range
A: REMOVAL
11) Tighten the lock nuts to the specified torque us-
ing ST1 and ST2.
NOTE:
Secure the lock nuts in two Places affer tightening.
ST2 499987003 SOCKET WRENCH
ST1 498937000 TRANSMISSION HOLDER
(A)
(B)
(C)
(D)
(G)
(E) (F)
(H)
Tightening torque:
118 N m (12.0 kgf-m, 86.8 ft-lb)
ST1
ST2
G2360GE.book 4 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HU-5
HOW TO USE THIS MANUALS
How to Use This Manuals
7. DIAGNOSIS
Tables showing a step-by-step process make it
easy to conduct diagnosis.
8. SI UNITS
Measurements in these manuals are according to
the SI units. Metric and yard/pound measurements
are also included.
Example:
Tightening torque:
44 N
⋅ m (4.5 kgf-m, 33 ft-lb)
The figure used in these manuals are described in the SI units and conventional units are described in ( ).
Item SI units Conventional unit Remarks
Force N (Newton) kgf 1 kgf = 9.80655 N
Mass (Weight) kg, g kg, g
Capacity 2, m2or cm32or cc 1 cc = 1 cm3= 1 m2
To r q u e N ⋅m kgf-m, kgf-cm 1 kgf-m = 9.80655 N⋅m
Rotating speed rpm rpm
Pressure kPa (kilopascal) kgf/cm21 kgf/cm2= 98.0655 kPa
mmHg 1 mmHg = 0.133322 kPa
Power W PS 1 PS = 0.735499 kW
Calorie W⋅h cal 1 kcal = 1.16279 W⋅h
Fuel consumption rate g/kw⋅hg/PS⋅h1g/PS⋅h=1.3596 g/kW⋅h
G2360GE.book 5 ページ ２００７年１１月２９日 木曜日 午後１時２８分

HU-6
Vehicle‑id:
SIE‑id:Sa02675f69:A:HOW TO USE THIS MANUALS
〜
HOW TO USE THIS MANUALS
How to Use This Manuals
9. EXPLANATION OF TERMINOLOGY
•List
AAI : Air Assist Injection M/B : Main Fuse & Relay Box
A/B : Airbag MD : Mini Disc
ABS : Antilock Brake System MPI : Multi Point Injection
A/C : Air Conditioner MP-T : Multi-Plate Transfer
A/F : Air Fuel Ratio MT : Manual Transmission
ALT : Generator Non-turbo : Natural Aspiration
ASSY : Assembly NC : Normal Close (Relay)
AT : Automatic Transmission NO : Normal Open (Relay)
ATF : Automatic Transmission Fluid OP : Option Parts
BATT : Battery P/S : Power Steering
CD-R/RW : CD Recordable/Rewritable P/W : Power Window
CPU : Central Processing Unit PCD : Pitch Circle Diameter
DOHC : Double Overhead Camshaft PCV : Positive Crankcase Ventilation
DVD : Digital Versatile Disc RH : RH (Right Hand)
ECM : Engine Control Module (ECM) Rr : Rear
EGR : Exhaust Gas Recirculation SOHC : Single Overhead Camshaft
ELR : Emergency Locking Retractor SRS : Supplemental Restraint System
EX : Exhaust SSM : Subaru Select Monitor
F/B : Fuse & Joint Box ST : Special Tool
FL : Fusible Link SW : Switch
Ft : Full-time AWD TCS : Traction Control System
FWD : Front Wheel Drive TGV : Tumble Generated Valve
GPS : Global Positioning System T/M : Transmission
H/U : Hydraulic Unit ViS-C : Viscous Coupling
IG : Ignition VSV : Vacuum Switching Valve
INT : Intermittent VTD : Variable Torque Distribution
ISC : Idle Speed Control W/H : Wiring Harness
LH : LH (Left Hand) Pr : Primary
LSD : Limited Slip Differential 2ndr : Secondary
G2360GE.book 6 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPECIFICATIONS
SPC
Page
1. LEGACY......................................................................................................2
G2360GE.book 1 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-2
SPECIFICATIONS
LEGACY
1. LEGACY
A: DIMENSION
1. SEDAN MODEL
★1: With sunroof
2. WAGON MODEL
★1: With sunroof
3. OUTBACK
★1: With sunroof
Model 2.0 L SOHC 2.0 L DOHC
turbo 2.5 L SOHC 3.0 L DOHC 5AT
3.0 L DOHC
6MT
Overall length mm (in) 4,665 (183.7)
Overall width mm (in) 1,730 (68.1)
Overall height (at C.W.) mm (in) 1,425 (56.1) 1,435 (56.5)
Compartment
Length mm (in) 1,900 (74.8)
Width mm (in) 1,445 (56.9)
Height mm (in) 1,165 (45.9), 1,100 (43.3)★1
Wheelbase mm (in) 2,670 (105.1)
Tr e a d Front mm (in) 1,495 (58.9)
Rear mm (in) 1,490 (58.7)
Minimum road clearance mm (in) 150 (5.9) 155 (6.1)
Model 2.0 L SOHC 2.0 L DOHC
turbo 2.5 L SOHC 3.0 L DOHC 5AT
3.0 L DOHC
6MT
Overall length mm (in) 4,720 (185.8)
Overall width mm (in) 1,730 (68.1)
Overall height (at C.W.) mm (in) 1,470 (57.9) 1,475 (58.1)
Compartment
Length mm (in) 1,840 (72.4)
Width mm (in) 1,445 (56.9)
Height mm (in) 1,190 (46.9), 1,145 (45.1)★1
Wheelbase mm (in) 2,670 (105.1)
Tr e a d Front mm (in) 1,495 (58.9)
Rear mm (in) 1,485 (58.5)
Minimum road clearance mm (in) 150 (5.9) 155 (6.1) 150 (5.9) 155 (6.1)
Model 2.5 L SOHC 3.0 L DOHC
Overall length mm (in) 4,730 (186.2)
Overall width mm (in) 1,770 (69.7)
Overall height (at C.W.) mm (in) 1,545 (60.8)
Compartment
Length mm (in) 1,840 (72.4)
Width mm (in) 1,445 (56.9)
Height mm (in) 1,190 (46.9), 1,145 (45.1)★1
Wheelbase mm (in) 2,670 (105.1)
Tr e a d Front mm (in) 1,495 (58.9)
Rear mm (in) 1,485 (58.5)
Minimum road clearance mm (in) 200 (7.9)
G2360GE.book 2 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-3
SPECIFICATIONS
LEGACY
B: ENGINE
C: ELECTRICAL
★1: EC, EK, K4, EH, ER model
Model 2.0 L SOHC 2.0 L DOHC turbo 2.5 L SOHC 3.0 L DOHC
Engine type Horizontally opposed, liquid cooled, 4-cylinder, 4-stroke gaso-
line engine
Horizontally
opposed, liquid
cooled, 6-cylinder,
4-stroke gasoline
engine
Valve arrangement Overhead camshaft
Bore ×Stroke mm (in) 92 ×75
(3.62 ×2.95)
99.5 ×79.0
(3.917 ×3.110)
89.2 ×80.0
(3.512 ×3.150)
Displacement cm3(cu in) 1,994 (121.67) 2,457 (149.9) 3,000 (183.06)
Compression ratio MT 10.0 9.0 10.0 10.7
AT 9.5
Ignition order 1 — 3 — 2 — 4 1 — 6 — 3 — 2 —
5 — 4
Idle speed at Park or Neutral
position rpm MT 650 700 650 750
AT 650 650
Maximum out-
put kW (HP)/rpm MT 101 (137)/5,600 190 (258)/6,400 121 (165)/5,600 180 (245)/6,600
AT 180 (245)/6,400
Maximum
torque
N⋅m (kgf-m, ft-lb)/
rpm
MT 187 (19.1, 137.9)/
4,400
330 (33.7, 243.4)/
2,400 226 (23.0, 166.7)/
4,400
297 (30.3, 219.1)/
4,200
AT 310 (31.6, 228.6)/
2,400
Model 2.0 L SOHC 2.0 L DOHC
turbo 2.5 L SOHC 3.0 L DOHC
Ignition timing (at idling) BTDC 13°14°13°15°
Spark plug Type and manufacturer CHAMPION:
RC10YC4 NGK: ILFR6B
CHAMPION:
RC10YC4
NGK: PFR5B-
11★1
NGK: ILFR6B
Generator 12V — 110A
Battery Type and capacity
(5HR)
EC,
EK,
K4,
EH,
ER
MT 12V — 48AH
(55D23L) —12V — 48AH (55D23L)
12V — 48AH
(55D23L)
AT 12V — 52AH
(65D23L) —12V — 52AH
(75D23L)
12V — 52AH
(75D23L)
KA — 12V — 48AH
(55D23L) 12V — 27AH
(34B19L)
12V — 48AH
(55D23L)
KS 12V — 27AH
(34B19L) —
G2360GE.book 3 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-4
SPECIFICATIONS
LEGACY
D: TRANSMISSION
Model Sedan, Wagon
2.0 L SOHC 2.0 L DOHC turbo 2.5 L SOHC
Transmission type 4AT 5MT 5AT 5MT 4AT 5MT
Clutch type TCC DSPD TCC DSPD TCC DSPD
Gear ratio
1st 2.785 3.454 3.540 3.166 2.785 3.454
2nd 1.545 1.947 2.264 1.882 1.545 2.062
3rd 1.000 1.366 1.471 1.296 1.000 1.448
4th 0.694 0.972 1.000 0.972 0.694 1.088
5th — 0.738 0.834 0.738 — 0.825,
0.780★1
6th ——————
Rev. 2.272 3.333 2.370 3.333 2.272 3.333
Auxiliary transmission gear
ratio★2
High — 1.000 — — — 1.000
Low — 1.447 — — — 1.196
Reduction gear
(Front)
1st reduc-
tion
Type of gear Helical — Helical — Helical —
Gear ratio 1.000 — 1.000 — 1.000 —
Final
reduction
Type of gear Hypoid Hypoid Hypoid Hypoid Hypoid Hypoid
Gear ratio 4.111 4.111 3.272 4.111 4.111 3.700,
4.111★1
Reduction gear
(Rear)
Transfer
reduction
Type of gear — Helical — Helical — Helical
Gear ratio — 1.000 — 1.000 — 1.000
Final
reduction
Type of gear Hypoid Hypoid Hypoid Hypoid Hypoid Hypoid
Gear ratio 4.111 4.111 3.272 4.111 4.111 3.700,
4.111★1
Model
Sedan, Wagon OUTBACK
3.0 L DOHC 2.5 L SOHC 3.0 L
DOHC
Transmission type 5AT 6MT 4AT 5MT 5AT
Clutch type TCC DSPD TCC DSPD TCC
Gear ratio
1st 3.540 3.636 2.785 3.454 3.540
2nd 2.264 2.375 1.545 2.062 2.264
3rd 1.471 1.761 1.000 1.448 1.471
4th 1.000 1.346 0.694 1.088 1.000
5th 0.834 0.971 — 0.825 0.834
6th — 0.756 — — —
Rev. 2.370 3.545 2.272 3.333 2.370
Auxiliary transmission gear
ratio★2
High — — — 1.000 —
Low — — — 1.196 —
Reduction gear
(Front)
1st reduc-
tion
Type of gear Helical — Helical — Helical
Gear ratio 1.000 — 1.000 — 1.000
Final
reduction
Type of gear Hypoid Hypoid Hypoid Hypoid Hypoid
Gear ratio 3.083 3.900 4.444 3.900,
4.111★13.272
Reduction gear
(Rear)
Transfer
reduction
Type of gear — Helical — Helical —
Gear ratio — 1.100 — 1.000 —
Final
reduction
Type of gear Hypoid Hypoid Hypoid Hypoid Hypoid
Gear ratio 3.083 3.545 4.444 3.900,
4.111★13.272
G2360GE.book 4 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-5
SPECIFICATIONS
LEGACY
5MT: 5-forward speeds with synchromesh and 1-reverse
6MT: 6-forward speeds with synchromesh and 1-reverse
4AT: Electronically controlled fully-automatic, 4-forward speeds and 1-reverse
5AT: Electronically controlled fully-automatic, 5-forward speeds and 1-reverse
DSPD: Dry Single Plate Diaphragm
TCC: Torque Converter Clutch
★1: KA, KS model
★2: Dual range model only
E: STEERING
F: SUSPENSION
G: BRAKE
H: TIRE
★1: KA model
Model Sedan, Wagon
2.0 L SOHC 2.0 L DOHC turbo 2.5 L SOHC 3.0 L DOHC
Type Rack and Pinion
Turns, lock to lock 3.2 2.8 3.2 2.8
Minimum
turning radius m (ft) Curb to curb 10.8 (35.4)
Wall to wall 11.6 (38.1)
Model OUTBACK
2.5 L SOHC 3.0 L DOHC
Type Rack and Pinion
Turns, lock to lock 3.2
Minimum
turning radius m (ft) Curb to curb 10.8 (35.4)
Wall to wall 11.6 (38.1)
Front Macpherson strut type suspension
Rear Multi-link type suspension
Model Non-turbo 2.0 L, 3.0 L (EH) Turbo 2.0 L, 3.0 L (Except for EH)
Service brake system Dual circuit hydraulic with vacuum suspended power unit
Front Ventilated disc brake
Rear Disc brake Ventilated disc brake
Parking brake Mechanical on rear brakes
Model
Sedan, Wagon OUTBACK
2.0 L SOHC 2.0 L DOHC
turbo 2.5 L SOHC 3.0 L DOHC 2.5 L SOHC 3.0 L DOHC
Wheel size 16 ×61/2JJ 17 ×7JJ 16 ×61/2JJ
17 ×7JJ
17 ×7JJ
18 ×7JJ 16 ×61/2JJ 17 ×7JJ
Tire size 205/55 R16 89V 215/45 R17 87W 205/55 R16 89V
215/45 R17 87W
215/45 R17 87W
215/45 R18 89W
215/60 R16 95V
215/60 R16
95H★1
215/55 R17 94V
215/55 R17
93H★1
Type Tubeless, Steel belted radial
G2360GE.book 5 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-6
SPECIFICATIONS
LEGACY
I: CAPACITY
Model
2.0 L SOHC
4AT 5MT
LHD RHD LHD RHD
Fuel tank 2(US gal, Imp
gal) 64 (16.9, 14.1)
Engine
oil
Capacity (at
overhaul) 2(US qt, Imp qt) 4.5 (4.8, 4.0)
Filling amount of
engine oil
2(US qt, Imp
qt)
When replacing
engine oil and oil
filter
4.2 (4.4, 3.7)
When replacing
engine oil only 4.0 (4.2, 3.5)
Transmission gear oil 2(US qt, Imp qt) — 3.5 (3.7, 3.1)
4.0 (4.2, 3.5)★2
ATF 2(US qt, Imp qt) 8.4 — 8.7 (8.9 — 9.2, 7.4 — 7.7) —
Front differential gear oil 2(US qt, Imp qt) 1.2 (1.3, 1.1) —
Rear differential gear oil 2(US qt, Imp qt) 0.8 (0.8, 0.7)
Power steering fluid 2(US qt, Imp qt) 0.7 (0.7, 0.8)
Engine coolant 2(US qt, Imp qt) 6.3 (6.7, 5.5)
6.7 (7.1, 5.9)★1
6.4 (6.8, 5.6)
6.8 (7.2, 6.0)★16.4 (6.8, 5.6) 6.5 (6.9, 5.7)
Model 2.0 L DOHC turbo
5AT 5MT
Fuel tank 2(US gal, Imp
gal) 64 (16.9, 14.1)
Engine
oil
Capacity (at
overhaul) 2(US qt, Imp qt) 5.0 (5.3, 4.4)
Filling amount of
engine oil
2(US qt, Imp
qt)
When replacing
engine oil and oil
filter
4.2 (4.4, 3.7) 4.3 (4.5, 3.8)
When replacing
engine oil only 4.0 (4.2, 3.5)
Transmission gear oil 2(US qt, Imp qt) — 3.5 (3.7, 3.1)
ATF 2(US qt, Imp qt)
9.6 — 10.0 (10.1
— 10.6, 8.4 —
8.8)
—
Front differential gear oil 2(US qt, Imp qt) 1.4 (1.5 1.2) —
Rear differential gear oil 2(US qt, Imp qt) 0.8 (0.8, 0.7)
Power steering fluid 2(US qt, Imp qt) 0.7 (0.7, 0.8)
Engine coolant 2(US qt, Imp qt) 7.3 (7.7, 6.4) 7.4 (7.8, 6.5)
G2360GE.book 6 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-7
SPECIFICATIONS
LEGACY
★1: Model with ATF cooler (with warmer function)
★2: Dual range model only
Model
2.5 L SOHC
4AT 5MT
LHD RHD LHD RHD
Fuel tank 2(US gal, Imp
gal) 64 (16.9, 14.1)
Engine
oil
Capacity (at
overhaul) 2(US qt, Imp qt) 4.5 (4.8, 4.0)
Filling amount of
engine oil
2(US qt, Imp
qt)
When replacing
engine oil and oil
filter
4.2 (4.4, 3.7)
When replacing
engine oil only 4.0 (4.2, 3.5)
Transmission gear oil 2(US qt, Imp qt) — 3.5 (3.7, 3.1)
4.0 (4.2, 3.5)★2
ATF 2(US qt, Imp qt) 9.3 — 10.1 (9.8 — 10.1, 8.2 — 8.4) —
Front differential gear oil 2(US qt, Imp qt) 1.2 (1.3, 1.1) —
Rear differential gear oil 2(US qt, Imp qt) 0.8 (0.8, 0.7)
Power steering fluid 2(US qt, Imp qt) 0.7 (0.7, 0.6)
Engine coolant 2(US qt, Imp qt) 6.3 (6.7, 5.5)
6.7 (7.1, 5.9)★1
6.4 (6.8, 5.6)
6.8 (7.2, 6.0)★16.4 (6.8, 5.6) 6.5 (6.9, 5.7)
Model
3.0 L DOHC
5AT 6MT
LHD RHD LHD RHD
Fuel tank 2(US gal, Imp
gal) 64 (16.9, 14.1)
Engine
oil
Capacity (at
overhaul) 2(US qt, Imp qt) 7.2 (7.6, 6.3)
Filling amount of
engine oil
2(US qt, Imp
qt)
When replacing
engine oil and oil
filter
5.7 (6.0, 5.0)
When replacing
engine oil only 5.5 (5.8, 4.8)
Transmission gear oil 2(US qt, Imp qt) — 4.1(4.3, 3.6)
ATF 2(US qt, Imp qt) 9.6 — 10.0 (10.1 — 10.6, 8.4 — 8.8) —
Front differential gear oil 2(US qt, Imp qt) 1.4 (1.5 1.2) —
Rear differential gear oil 2(US qt, Imp qt) 0.8 (0.8, 0.7)
Power steering fluid 2(US qt, Imp qt) 0.7 (0.7, 0.6)
Engine coolant 2(US qt, Imp qt) 7.2 (7.6, 6.3) 7.3 (7.7, 6.4)
7.7 (8.1, 6.7)★17.8 (8.2, 6.9)★1
G2360GE.book 7 ページ ２００７年１１月２９日 木曜日 午後１時２８分

SPC-8
SPECIFICATIONS
LEGACY
J: WEIGHT
1. SEDAN MODEL
• LHD model
★1: For option code, refer to ID section. <Ref. to ID-5, MODEL NUMBER PLATE, IDENTIFICATION, Identification.>
Option code★1EC
Model
2.0 L SOHC
AWD
2.0 i
5MT (Single range model)
Curb weight
(C.W.)
Front kg (lb) 740 (1,631) 755 (1,664) 760 (1,676) 765 (1,686) 755 (1,664)
Rear kg (lb) 590 (1,301) 590 (1,301) 590 (1,301) 610 (1,345) 595 (1,312)
Total kg (lb) 1,330 (2,932) 1,345 (2,965) 1,350 (2,976) 1,375 (3,032) 1,350 (2,977)
Maximum
permissible
axle weight
(M.P.A.W.)
Front kg (lb) 1,040 (2,293) 1,040 (2,293) 1,040 (2,293) 1,040 (2,293) 1,040 (2,293)
Rear kg (lb) 1,060 (2,336) 1,060 (2,336) 1,060 (2,336) 1,060 (2,336) 1,060 (2,336)
Maximum
permissible
weight
(M.P.W.)
Total kg (lb) 1,900 (4,189) 1,900 (4,189) 1,900 (4,189) 1,900 (4,189) 1,900 (4,189)
Option
Vehicle Dynamics
Control —————
Cruise control — — ❍❍❍
McIntoshaudio—————
Leather interior — — — ❍—
Winter pack — — ❍❍❍
15-inchtire —————
17-inchtire —————
A/C — ❍❍❍❍
Side airbag ❍❍❍❍❍
Curtain airbag — — — ❍❍
Sunroof — — — ❍—
Navigation system — — — — —
Self levelizer — — — — —
G2360GE.book 8 ページ ２００７年１１月２９日 木曜日 午後１時２８分
