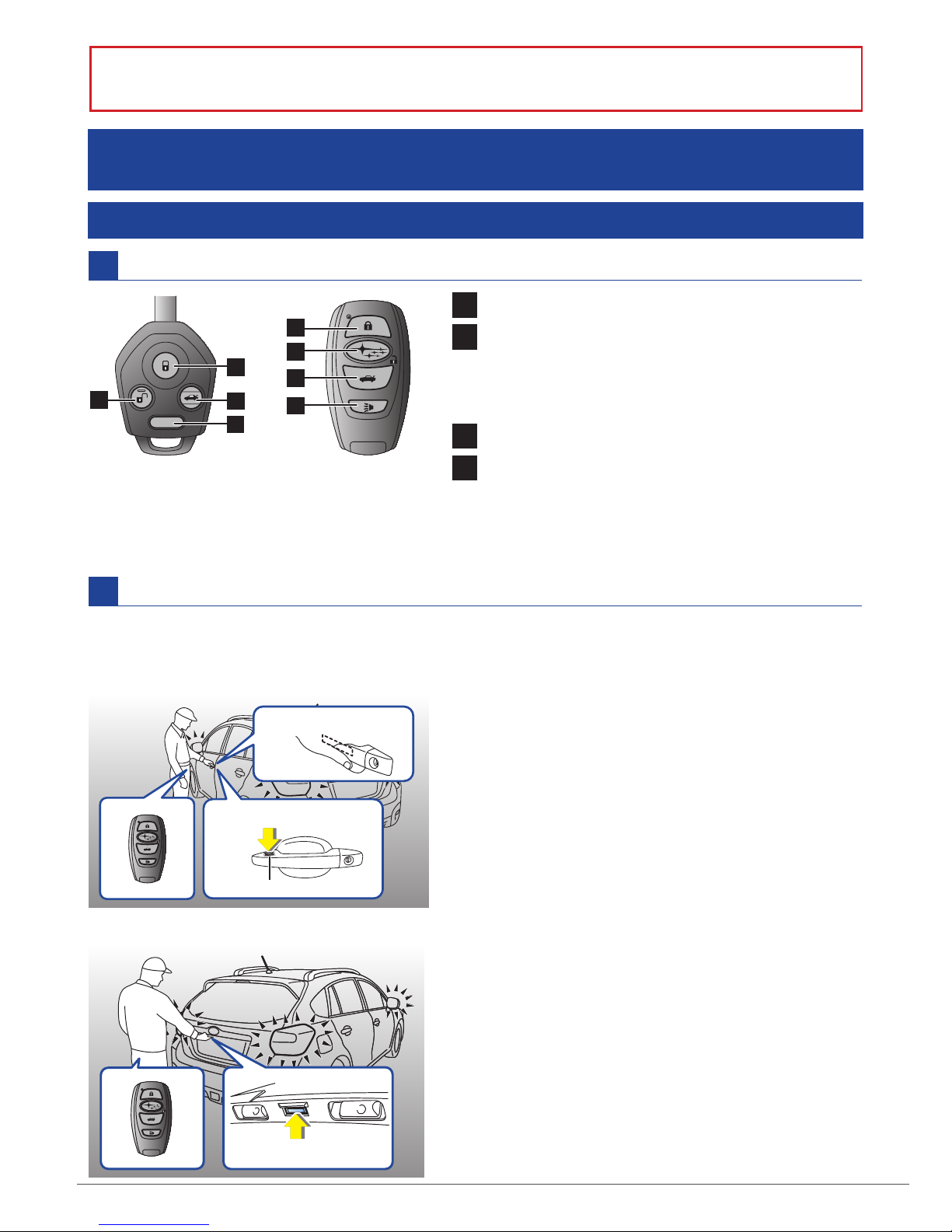

Remote keyless entry system
Remote
transmitter key
(if equipped)
Access key
(if equipped)
Lock/ Unlock doors
PANIC
BASIC OPERATION
*Grip the driver’s door handle to unlock the
driver’s door. Grip the front passenger’s door
handle to unlock all doors.
All doors and the rear gate will be locked/unlocked by the following procedures carrying the
access key on your person. (The driver should always carry the access key.)
For detailed operating and safety information, please refer to
your Owner’s Manual.
Keyless access function (if equipped)
Side door (front door handles only):
Opening rear gate
1All doors and the rear gate will be locked.
2The driver’s door will be unlocked.
(To unlock all doors and the rear gate, briey
press the button a second time within 5
seconds.)
3Press and hold to open the rear gate.
4The horn will sound and the hazard warning
ashes will ash.
23
4
1
1
2
3
4
Locking
Unlocking*
Door lock sensor
Grip
Touch
Press

3
Ignition switch must be in ACC or ON position.
1Select side to adjust
2To adjust the mirror, move the switch in the
direction of your desired position.
Adjustable components
1Forward and backward adjustment
2Seat cushion height adjustment (Driver's seat only)
3Seatback reclining adjustment
Front seat
Tilt/ telescopic steering wheel
Remote control mirror switch
1Adjust the seat position and pull the tilt/
telescopic lock lever down.
2Move the steering wheel to the desired level.
3Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
2
1
2
3
2
1 2

4
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Start/ Stop engine
To start engine:
1. Carry the access key, and sit in the driver’s seat.
2. Apply the parking brake.
3. Shift the select lever in the Pposition.
4. Depress the brake pedal until the indicator on the
push-button ignition switch turns green.
5. While depressing the brake pedal, press the
push-button ignition switch.
To stop engine:
1. Stop the vehicle completely.
2. Move the select lever to the Pposition.
3. Press the push-button ignition switch.
Every time the button is pressed without depressing the brake pedal, the power is switched
in the sequence of OFF➞ACC➞ON➞OFF.
OFF ( Turned off) ACC (Orange) ON (Orange)
The key can be turned from ACC to LOCK only
when the key is pushed in while turning it and the
select lever is in the Pposition.
Push-button ignition switch (if equipped)
Ignition switch (if equipped)
Operation
indicator

5

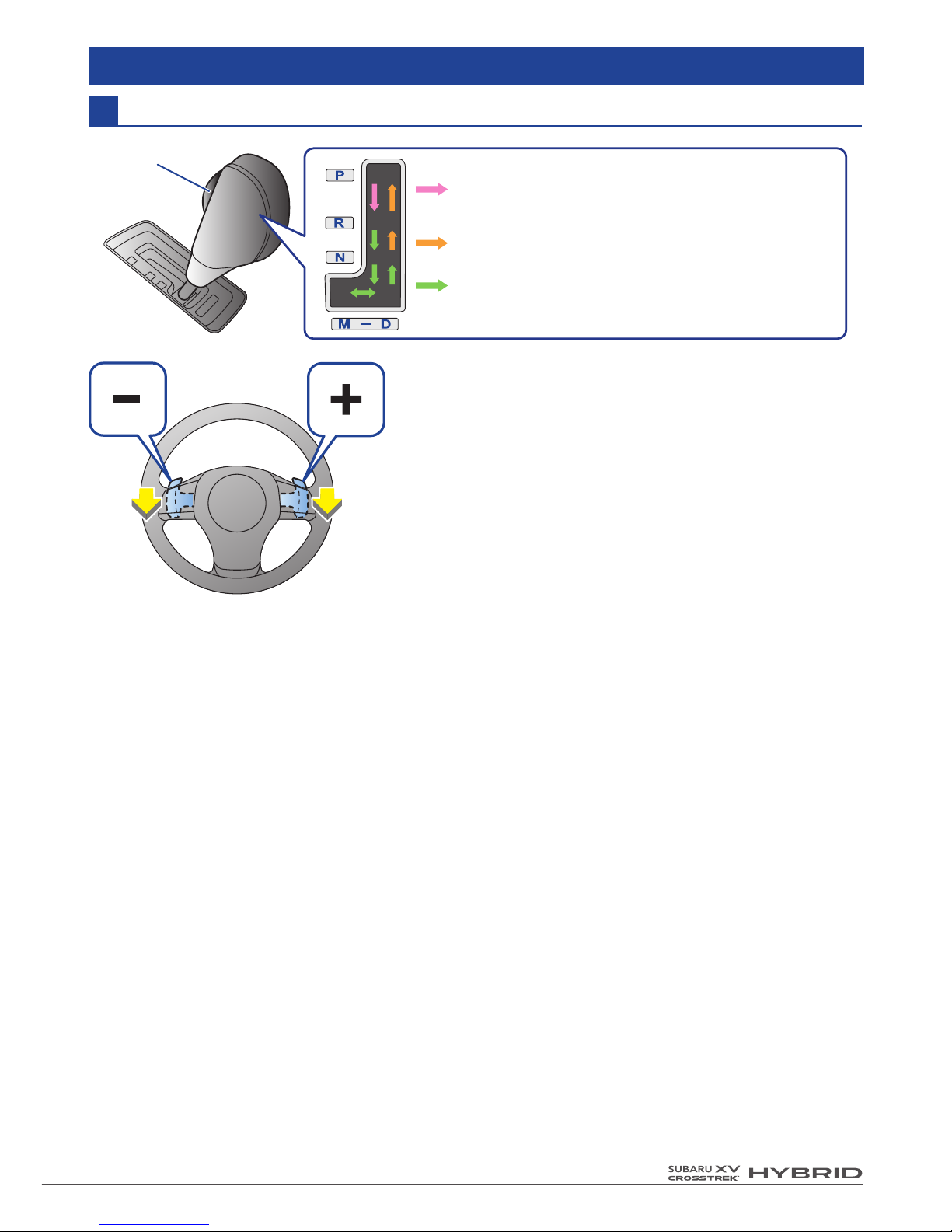

Shift paddle:
Gearshifts can be performed using the shift paddle
behind the steering wheel.
Operate Select lever/ Shift lever
M = Manual mode:
With the vehicle either moving or stationary, move
the select lever from the D position to the M position
to select the manual mode.
Continuously variable transmission
With the brake pedal depressed, shift while
pressing the button in
Shift while pressing the button in
Shift without pressing the button
Select lever button

6
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
DRIVER’S AREA

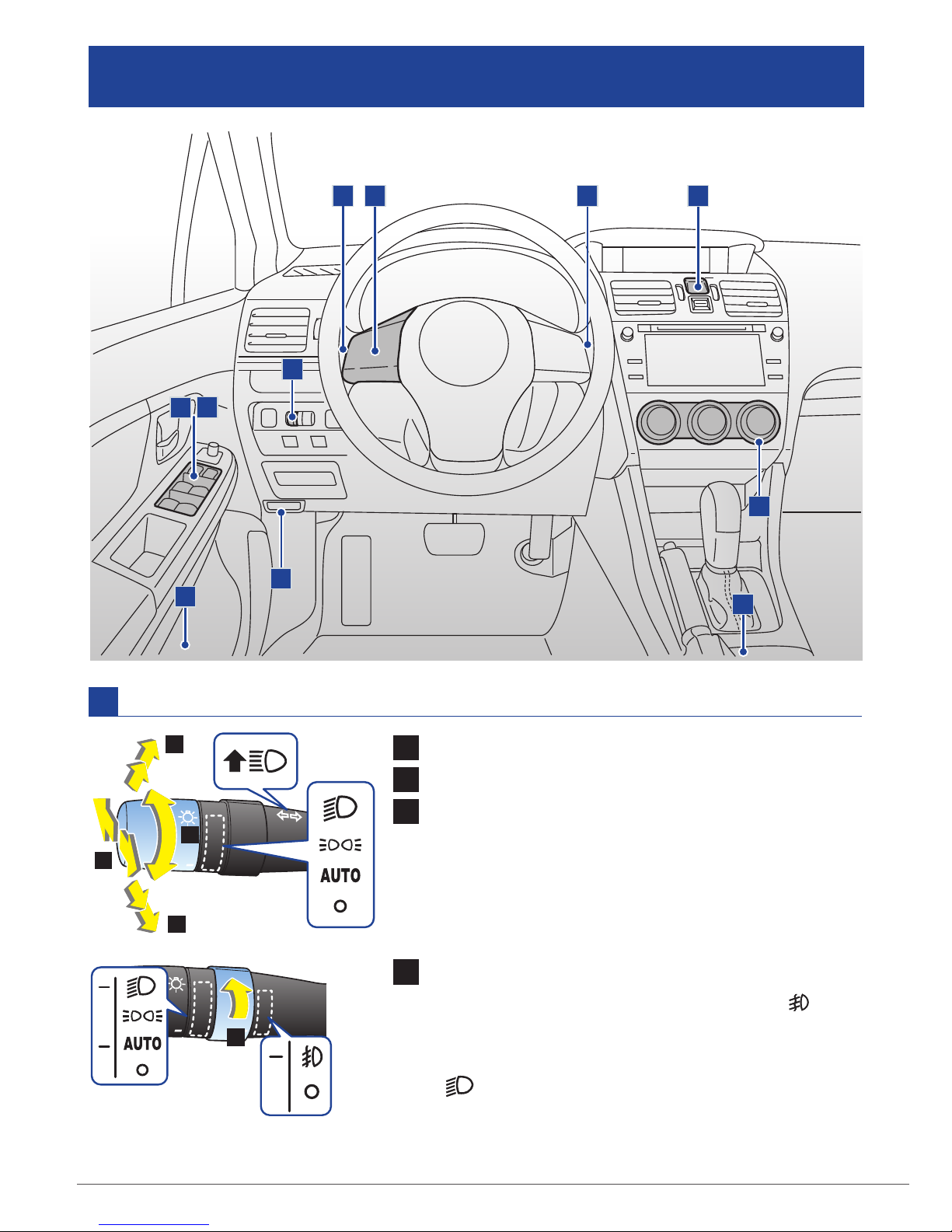

1Headlights
2 Headlightasher,High/Lowbeamchange
3Turn signal
Headlight switch/ Turn signal lever/ Front fog light switch
A
4Front fog lights (if equipped)
To turn on the front fog lights, rotate dial to .
Front fog lights operate only when headlight switch
is in...
- position.
- AUTO position and the headlights are on.
4
3
3
1
2
A K
GH
I
D
J
F
E
B C

7
1Windshield wiper
To operate the wiper, rotate knob to;
: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed
2Wiper intermittent time control
3Windshield washer
4Rear window wiper and washer
To operate the wiper, rotate knob to;
: Continuous
: Intermittent
: Off
: Washer
Rotate knob to . The washer uid sprays and the
wiper operates.
Wiper and washer switch
B
To turn on the hazard warning asher, press the button.
Use the hazard warning asher when you have to park
in emergency conditions.
 Hazardwarningasherswitch
C
Turn the dial to adjust the illumination brightness of the
instrument panel.
When the control dial is turned fully upward to
position, the illumination brightness becomes the
maximum and the automatic dimming function does not
work at all.
Illumination brightness control dial
D
*The design may be slightly different from the
illustration depending on the models.
1
2
3
4

8
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

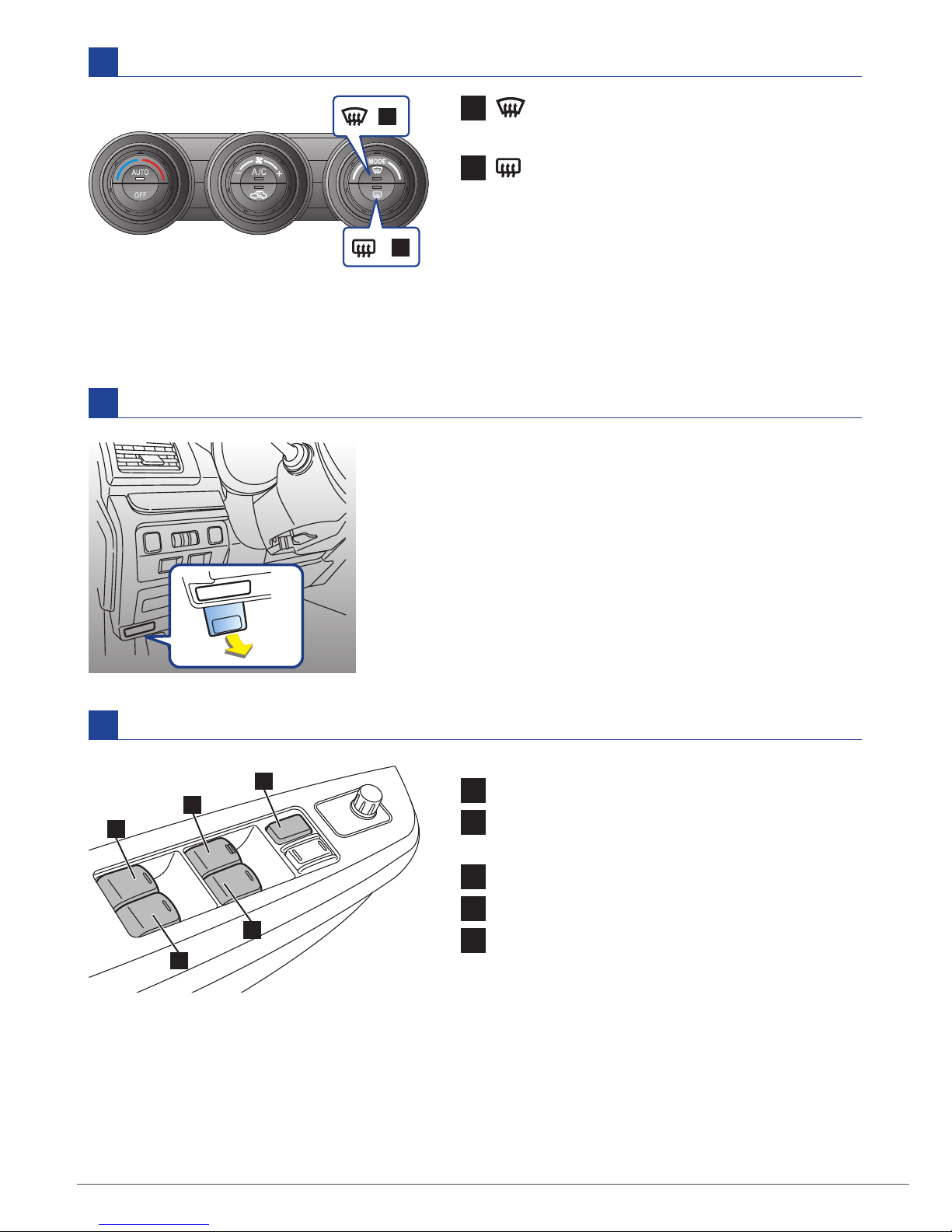

1Defroster button:
Press the button to defrost the windshield.
2Rear window defogger button:
Press the button to turn on rear window
defogger, outside mirror defogger or
windshield wiper deicer. The function will
automatically shut off after approximately
15 minutes.
*The illustration of the print is Type A.
Defroster button/ Rear window defogger button
E
1Lock switch
2For driver’s window (with one-touch
auto up and down feature)
3For front passenger’s window
4For rear left passenger’s window
5For rear right passenger’s window
Power window switches
G
Hood release knob
F
1
2
Pull
1
2
4
5
3

9

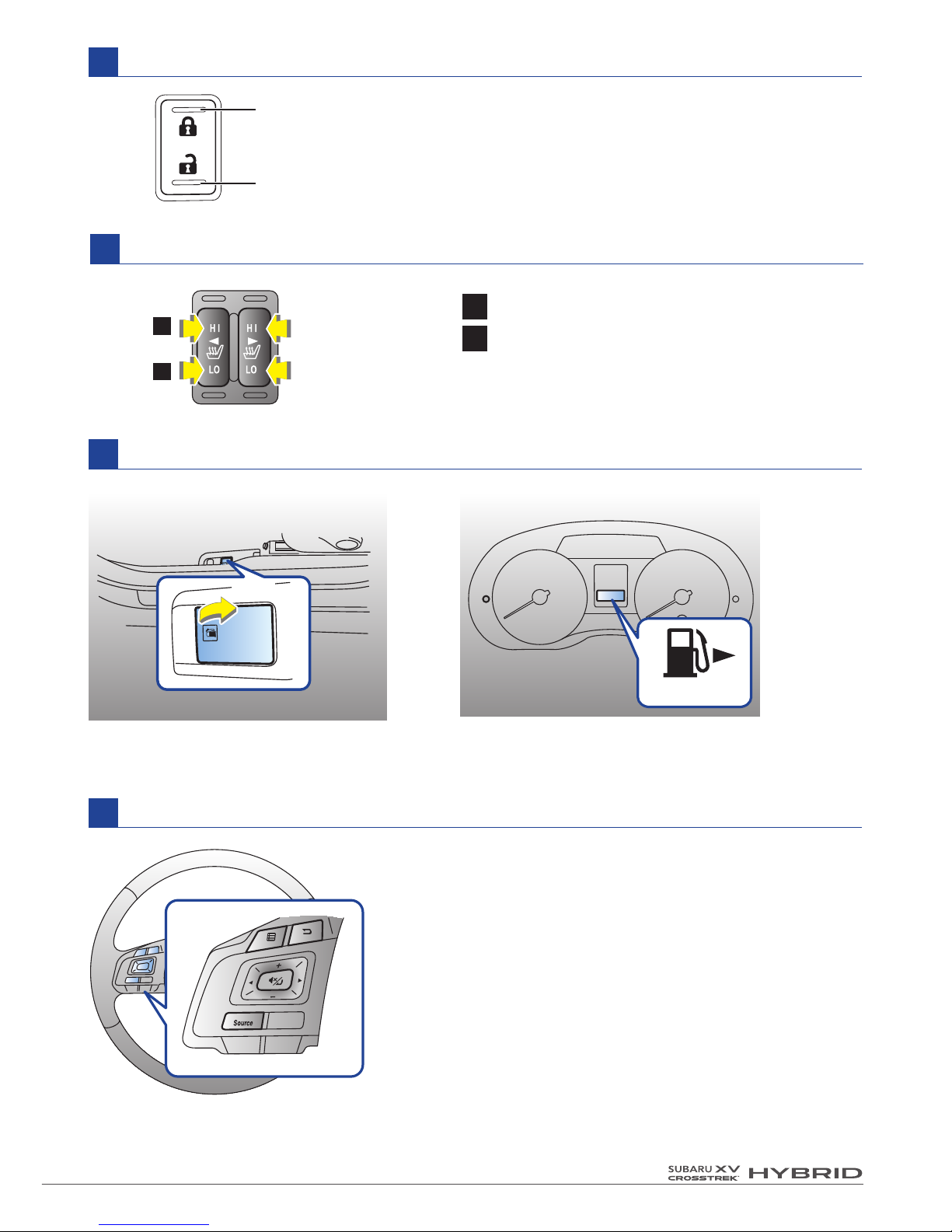

To unlock all doors and the rear gate
To lock all doors and the rear gate
Power door locking switch
H
Audio control buttons
K
These buttons allow the driver to control audio functions
without taking his/ her hands off the steering wheel.
Seat heater
I
1HI : Rapid heating
2LO : Normal heating
 Fuelllerlidreleaselever
J
This indicates that the fuel ller door (lid)
is located on the right side of the vehicle.
1
2
Right side
Pull

10
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Located on the edge of each rear door.
When the lever is in the LOCK position, the rear door
cannot be opened from the inside.
Child safety locks
Tilting Sliding
Sunroof switches
1Raise
2Lower
1Open
2Close
Push the upper part
of the anchor and
slide it down.
Front seat shoulder belt anchor height
To lower To raise
Slide the anchor up.
2
1
2
1

11

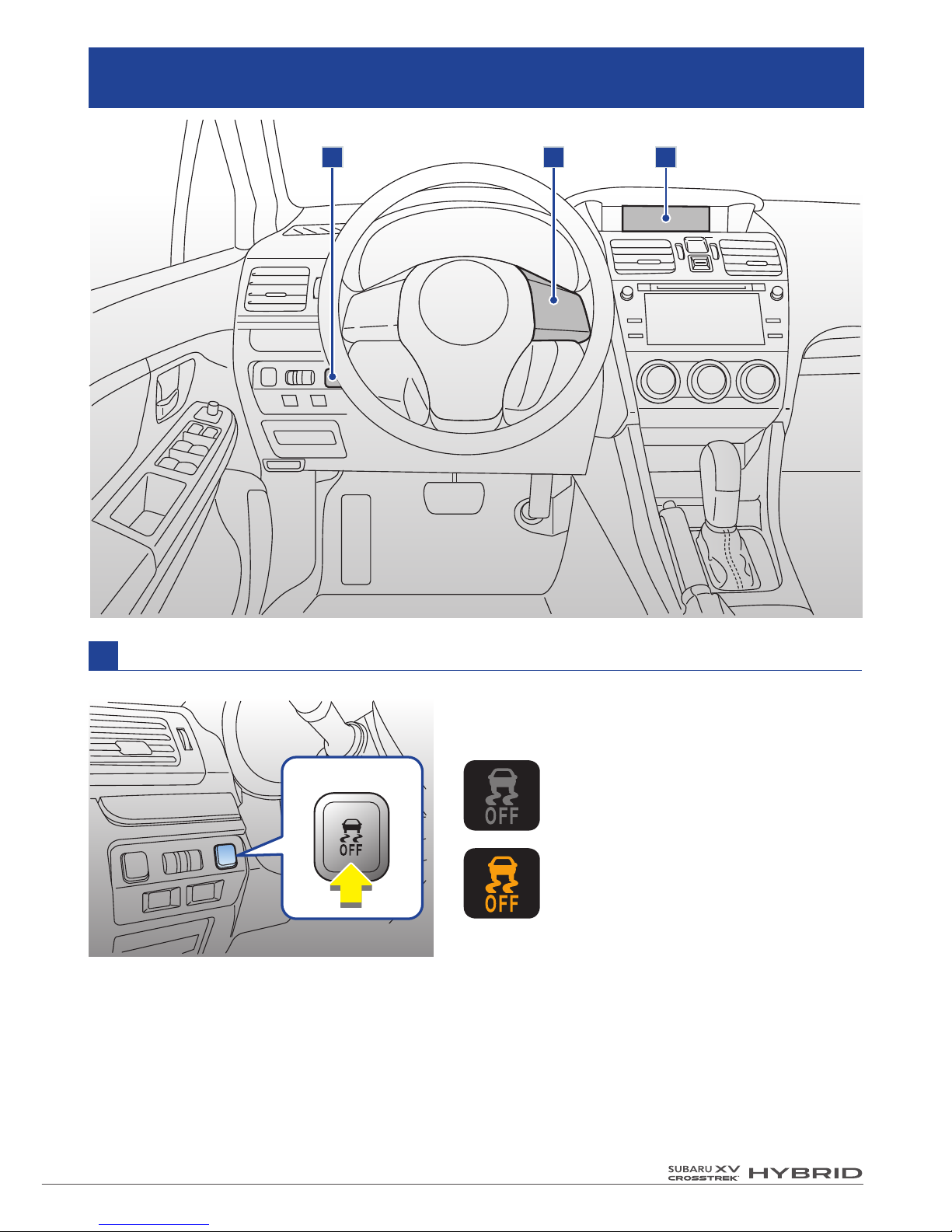

VEHICLE PERFORMANCE FUNCTIONS
Deactivating the Vehicle Dynamics Control system facilitates the following operations.
- a standing start on a steeply sloping road with a snowy, gravel-coverd, or otherwise
slippery surface
- extrication of the vehicle when its wheels are stuck in mud or deep snow
Do not deactivate the system except when absolutely necessary.
Vehicle Dynamics Control mode
Vehicle Dynamics Control OFF mode
Indicator lights on the combination meter
Vehicle Dynamics Control OFF switch
A
A B C

12
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
1Cruise control main button: To activate and
deactivate
2RES/ SET switch
▲RES/+ side: To increase the speed/ To resume
▼SET/- side: To set speed/ To decrease the
speed
3CANCEL button: To temporarily cancel
Cruise control enables you to maintain a constant
vehicle speed without holding your foot on the
accelerator pedal and it is operative when the
vehicle speed is 40 km/h or more.
Cruise control buttons
B
Multi function display
C
1Outside temperature indicator
2Information reminder:
If the information reminder appears, pull /SET
switch on the steering wheel toward you to recall
the message.
3Top display:
Displays the driving range on remaining fuel,
average fuel consumption or current fuel
consumption.
4Clock
5Driving information display:
By operating ▲or ▼of the control switch, the screens and selection items can be
switched in the following sequence.
Fuel consumption screen ECO history screen Fuel save screen Energy ow screen
Vehicle activation status screen Triple meter screen Guidance screen Clock/Calendar
screen Fuel consumption screen...
• : ▲ (backward) switch
• : ▼ (forward) switch
12
3
1 2 3 4
5
Control
switch

13

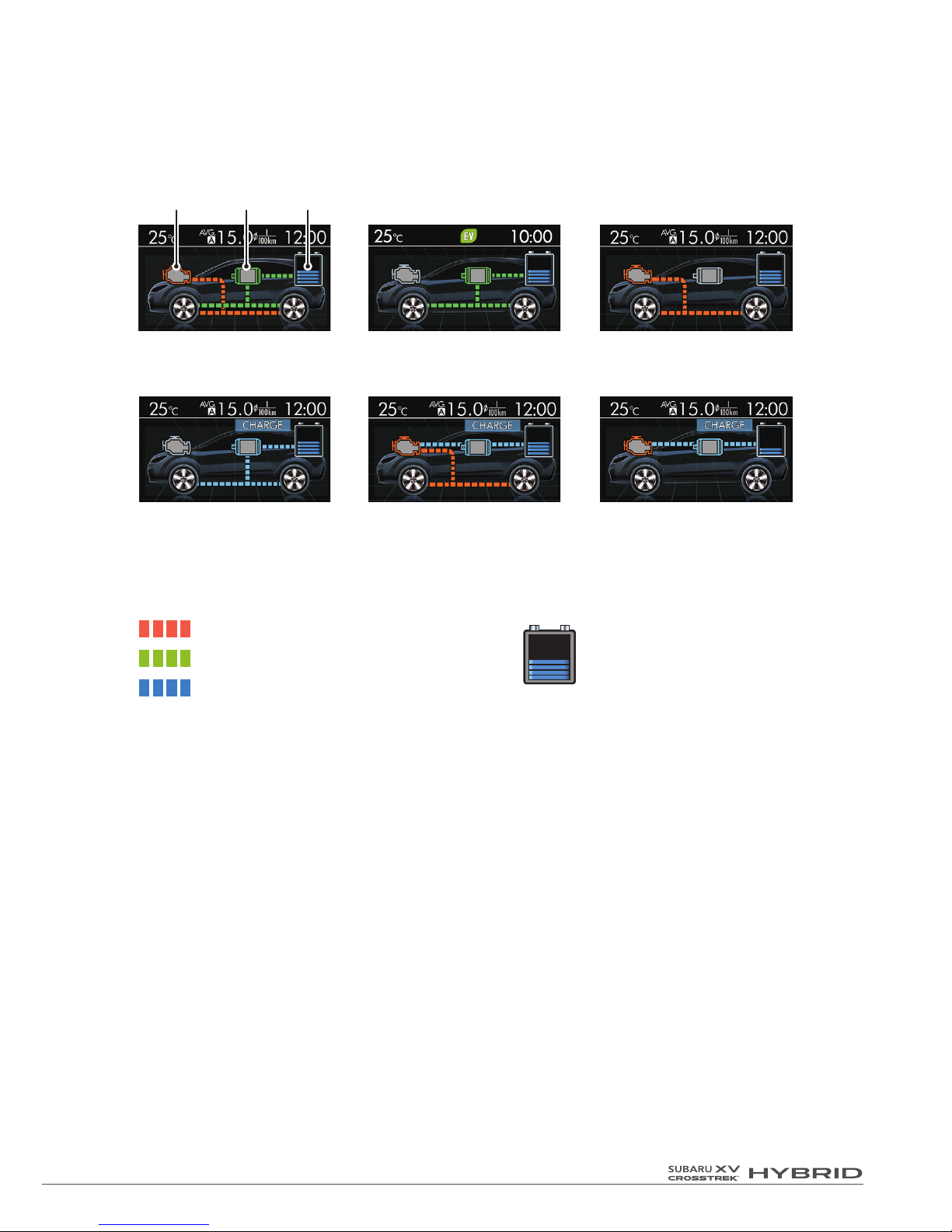

Energyowscreen:You can display the following information on the multi function display.
- Status of the high voltage battery.
- Energy ow between engine, motor, high voltage battery and wheels.
The motor is assisting
the engine
Charging the high
voltage battery with the
regenerative brakes
Driving only by the
motor power
Driving only by the
engine power
Charging the high
voltage battery by using
the engine power
Charging the high
voltage battery while
driving by using the
engine power
Power from the engine Remaining quantity of the
high voltage battery
Power from the motor
Charge to the high voltage battery
Engine Motor High voltage battery

14
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Some warning/ indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.
MAIN WARNING AND INDICATOR LIGHTS
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.

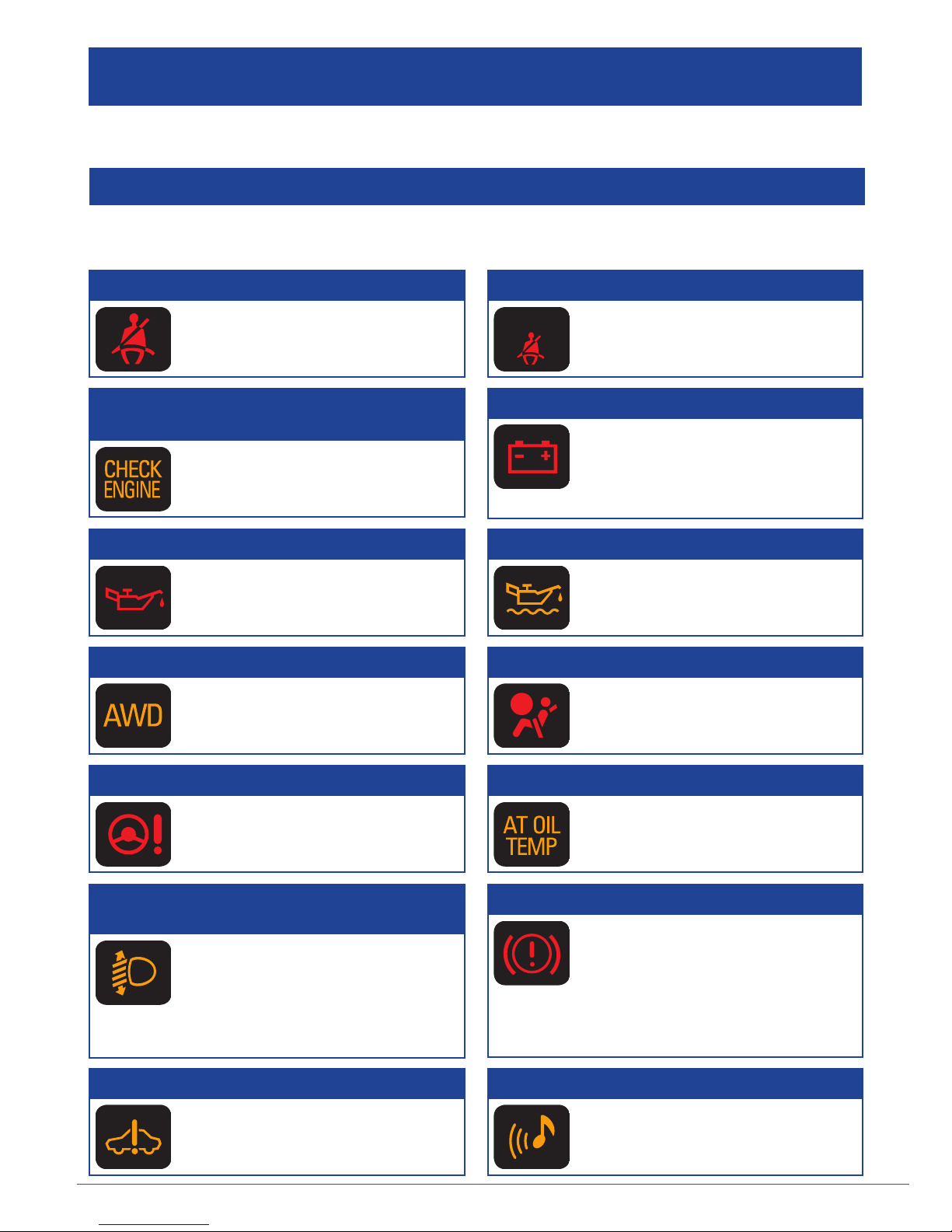

Seatbelt warning
Remind the driver to fasten
seatbelt.
Front passenger’s seatbelt warning
PASSENGER
Remind the front passenger to
fasten seatbelt. Location: next to
overhead console.
CHECK ENGINE warning/ Malfunction
indicator
Engine/ Emission control system
malfunction.
Charge warning
Charging system malfunction.
Oil pressure warning
The engine oil pressure is too
low.
Engine low oil level warning
The engine oil level decreases to
the lower limit.
All-wheel drive warning
Tires of different diameter tted/
air pressure excessively low.
SRS airbag system warning
SRS airbag system and/
or seatbelt pretensioners
malfunction.
Power steering warning
The electric power steering
system malfunction.
AT OIL TEMP warning
Transmission uid temperature
is too hot./ Transmission control
system malfunction.
Automatic headlight beam leveler
warning (if equipped)
Automatic headlight beam leveler
malfunction.
Brake system warning
Parking brake on/ Low uid level/
EBD System malfunction
(Anti-lock brake system warning
light illuminates simultaneously)/
Electronic parking brake system
malfunction.
Hybrid fail lamp
Hybrid system malfunction.
Pedestrian Alert warning light
Pedestrian alert unit malfunction.

15

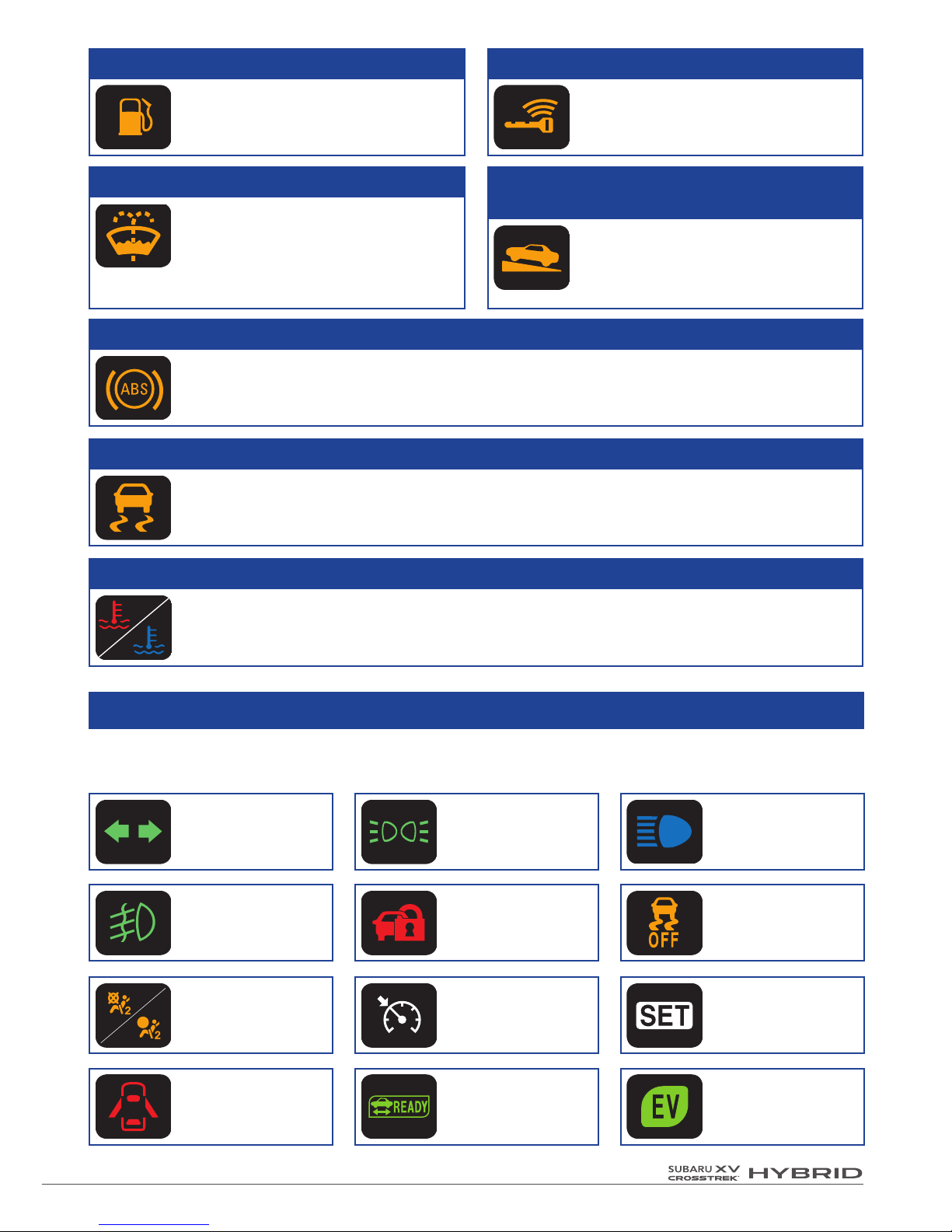

Low fuel warning
Fuel tank is nearly empty. Rell
fuel immediately.
Access key warning (if equipped)
The access key is not inside the
vehicle. For other situations,
refer to your Owner’s Manual.
ABS warning
Anti-lock Brake System malfunction/ EBD System malfunction (Brake System
warning light illuminates simultaneously).
Vehicle Dynamics Control warning/ Vehicle Dynamics Control operation indicator
Warning : Vehicle Dynamics Control system malfunction.
Indicator : Flashes during activation of the skid suppression function and the
traction control function.
Coolant temperature low indicator/ Coolant temperature high warning
llumination in BLUE : Insufcient warming up of the engine.
Illumination/ blinking in RED : Engine overheating/ almost overheating.
Blinking in RED and BLUE alternately : Electrical system malfunction.
Indicator lights
The following indicators show the current status of your car. Refer to your Owner’s Manual
for more information.
Door open
indicator
Hybrid READY
indicator light EV mode lamp
Turn signal
indicator
Headlight
indicator
High beam
indicator
Front passenger’s
frontal airbag OFF/
ON indicator
Cruise control
indicator
Cruise control
set indicator
Front fog light
indicator
(if equipped)
Security
indicator
Vehicle Dynamics
Control OFF
indicator
Windshieldwasheruidwarning
The uid level in the windshield
washer uid tank decreases to
the lower limit.
Hill start assist warning/
Hill start assist OFF indicator
Warning : Hill start assist
system malfunction.
Indicator : Hill start assist
system OFF.

All illustrations, specications, features and photographs contained in this brochure are based on product information available at the time of
its printing, and may not be completely accurate following its publication. Colours shown may vary due to reproduction variations in the printing
process, and some vehicle parts cannot be shown in certain photographs. Subaru Canada, Inc. reserves the right to discontinue or make changes
at any time, without notice or incurring obligations, to colours, materials, equipment, accessories, features, specications and models, or to change
their prices. Please visit our Web site for the latest information and specications. For detailed operating and safety information, please consult
your Owner’s Manual. For complete details on product updates, warranties or the Subaru C.A.R.E. program, please contact your Subaru dealer.
XV Crosstrek Hybrid and Subaru are registered trademarks. Printed in Canada. © 2014 Subaru Canada, Inc. 2015 model year.
subaru.ca
Environmental Management System (EMS)
ISO14001:2004certiedbySGS
www.subaru-earth.com
SUBARU CANADA, INC. / FUJI HEAVY INDUSTRIES LTD.
SBQRGXVH15E09.14
