SUMERAIN S3220CI-10 User manual

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
INSTALLATION GUIDE
Version: 1.2

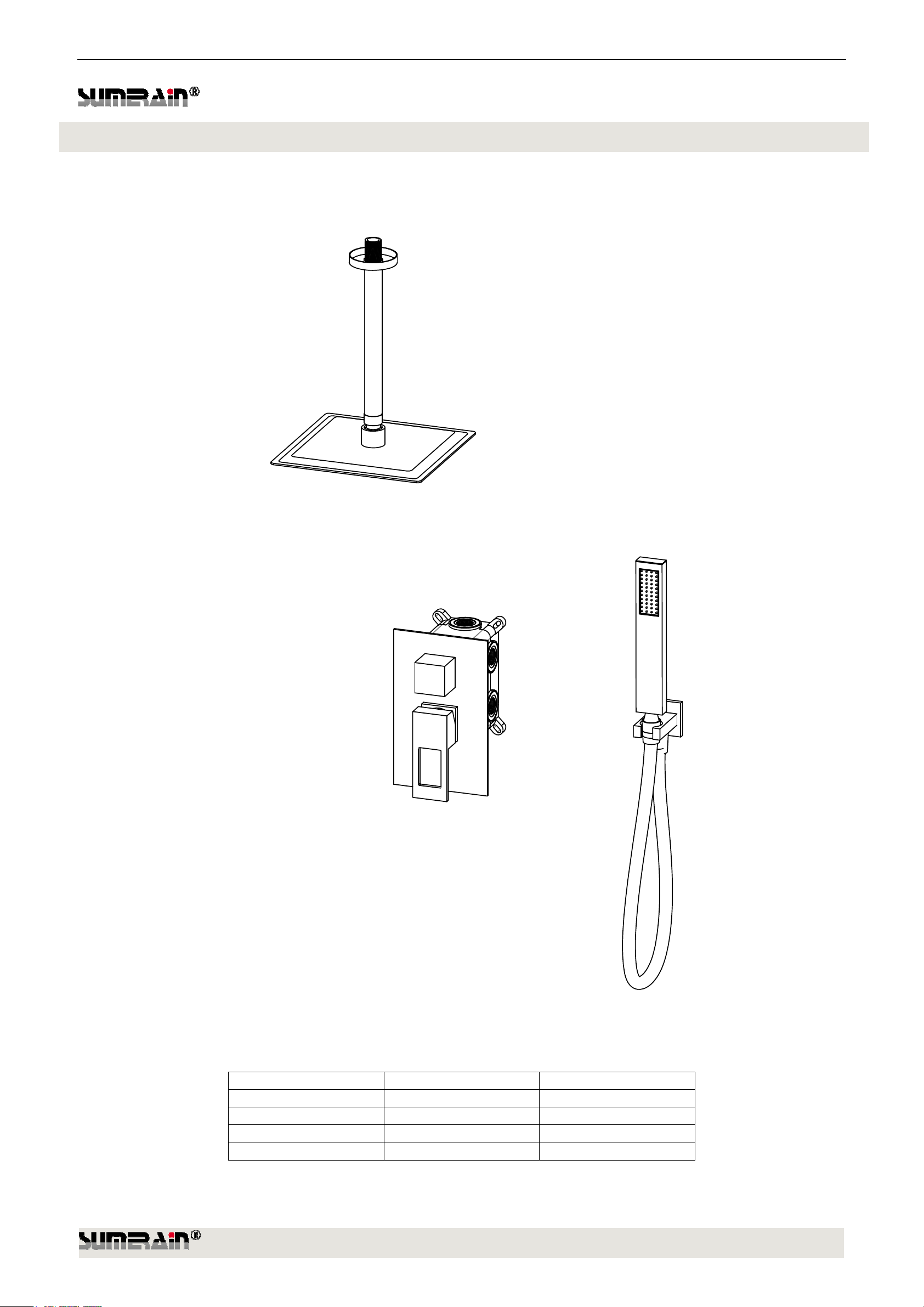

CEILING SHOWER SYSTEM
MODEL FINISH Showerhead
S3220CI-10 CHROME 10 Inch
S3220NI-10 BRUSHED NICKEL 10 Inch
S3220OI-10 OIL RUBBER BRONZE 10 Inch
S3220GI-10 GOLD 10 Inch

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
BEFORE PROCEEDING
TOOLS RECOMMENDED
THANK YOU
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere
hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered,
and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using
basic tools and our easy to follow illustrated instructions. We welcome any questions or comments you may have
and look forward to assisting you in the future. If you have any questions regarding this product, call
[phone] or email to [email protected] .
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product in its
original box until you ready to install it.
2. Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter.
if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.
3. Observe all plumbing and building codes in your area.
4. It is recommends calling professional if you are uncertain about installing this product.
Philips screwdriver Allen wrench Adjustable wrench Channel locks Thread Sealant

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
LIMITED LIFETIME CONSUMER WARRANTY
VERSION: 20160320.18.1
This product has been manufactured and tested to the highest quality standards by SUMERAIN sanitary Inc("SUMERAIN").This
warranty is limited to SUMERAIN products which are purchased by a consumer in the China after Jan 1,2010 and installed in China
or the state which has SUMERAIN technical support department locally.(visit http://www.sumerain.com/en/supportcenter.asp for
review the state list of SUMERAIN technical support department).If the faucet should leak or drip during normal use,SUMERAIN will,
free of charge, mail to the purchaser the cartridge necessary to put the faucet in good working condition. If a defect is found in
normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or
workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product
that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
SUMERAIN unable to provide replacement, SUMERAIN may elect to provide similar model upon close value.
FINISH WARRANTY
It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't warranty these
finishes after the fixture has been installed.
ELECTRONIC FAUCETS WARRANTY
SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of purchase and waterflow impeller-dynamo (generate power for
LED faucet) for six(6) months from the date of purchase.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences, if
you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty extends
for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the product for
use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of US, or if the finish is
gold, non-Vibrant or a painted or powder coated color finish this warranty extends only for one year, with respect to SUMERAIN and
commercial products.
THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper maintenance, misuse,
abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning products, or the use
of the product in any manner contrary to the product instructions. Conditions in the home such as excessive water pressure or
corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or
reinstallation of the product.
D. Accessories, connected materials and products (including but not limited in handshower flexible hose, spray flexible hose,
handshower,shower head).
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and the place of purchase.
2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the Service
Request Sheet).
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to specified address.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the exclusive
remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or liability in
connection with this product.SUMERAIN shall not be liable to purchaser or any person for any incidental, special, or consequential
damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal right, and you may have other rights which vary from state to state. You may be required by law to
give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under
the Magnusson-moss warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. if
you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this warranty, please call or
email us at [phone], [email protected]

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
FUNCTIONS AND SPECIFICATION
Faucet type Shower System
Feature Ceiling shower faucet
Theme Modern, Contemporary
Mounting type Wall mount
Number of Handles One
Handles Material Metal
Handle style Lever
Shower Arm Reach 7-7/8”(200mm)
Showerhead Width 10”(250mm)
Showerhead Length 10”(250mm)
Valve Type Φ40 Ceramic Cartridge
Faucet Body Material Brass
Escutcheon Material Brass
Diverter included Yes
Diverter location Rough-in Valve
Showerhead Type Rain shower
Showerhead shape Ultra-thin Square
Showerhead function Single function
Showerhead Material Stainless steel
Showerhead Flow rate 6.81L/M [ 1.8 GPM ]
Hand shower Flow rate 4.54L/M [ 1.2 GPM ]
Elbow Material Brass
Hand shower holder Material Brass
Hand shower Material Brass
Hand shower Height 7-7/8(200mm)
Hand shower width 1-3/8”(35mm)
Net Weight 9,47lbs [4.3KG]
Gross Weight 10,6 lbs [4.8KG]
Packing box [L x W x H] 11-7/32”(285mm)x10-13/16”(275mm)x7-7/8”(200mm)

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

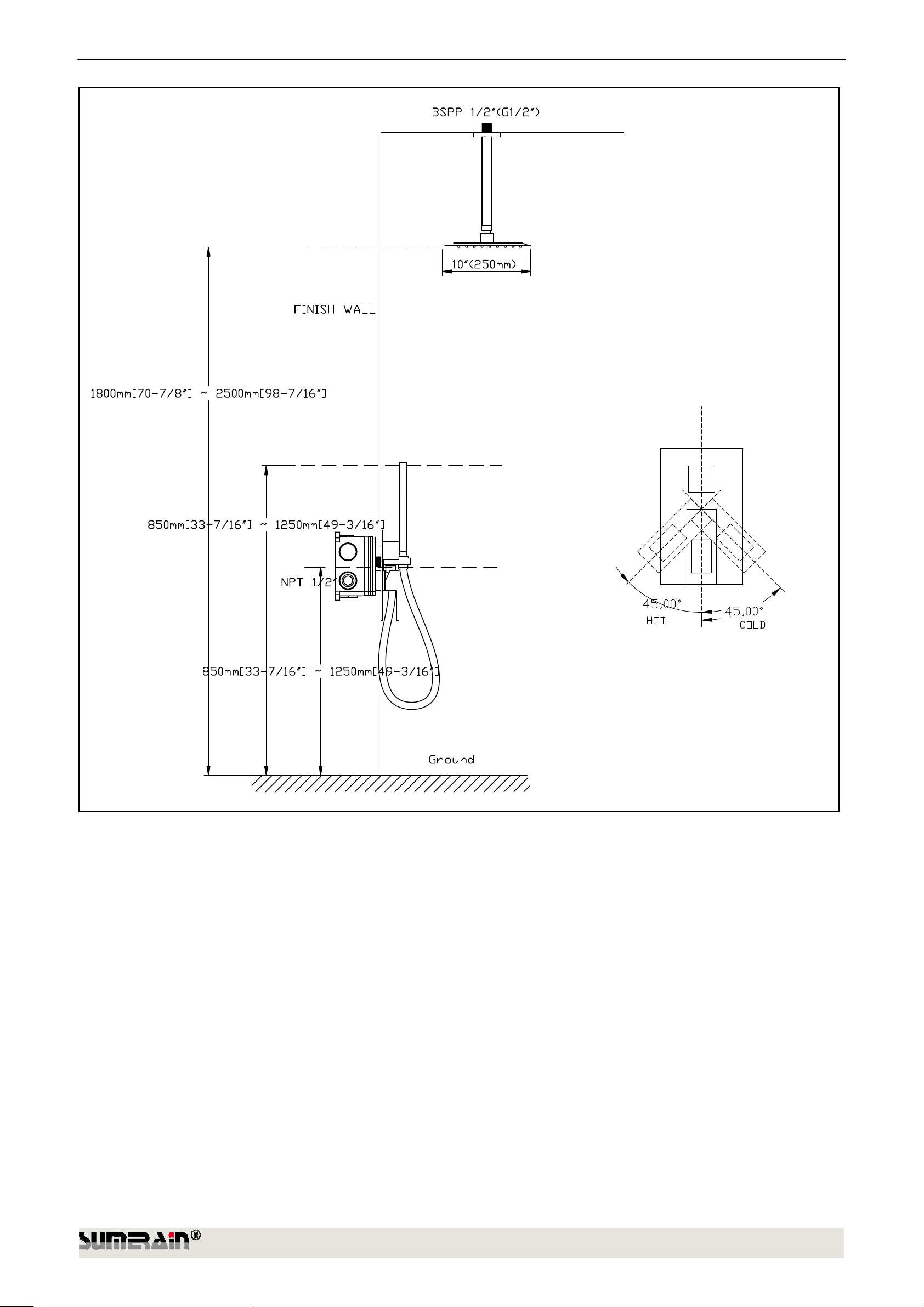

DIMENSION
FRONT VIEW OF SHOWER

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
SIDE VIEW OF SHOWER

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
INSTALLATION STEPS
1. BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding.SUMERAIN recommends calling a professional
if you are uncertain about installing this product!, this product should be installed in accordance with all
local and state plumbing and building codes.
2. SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are
replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

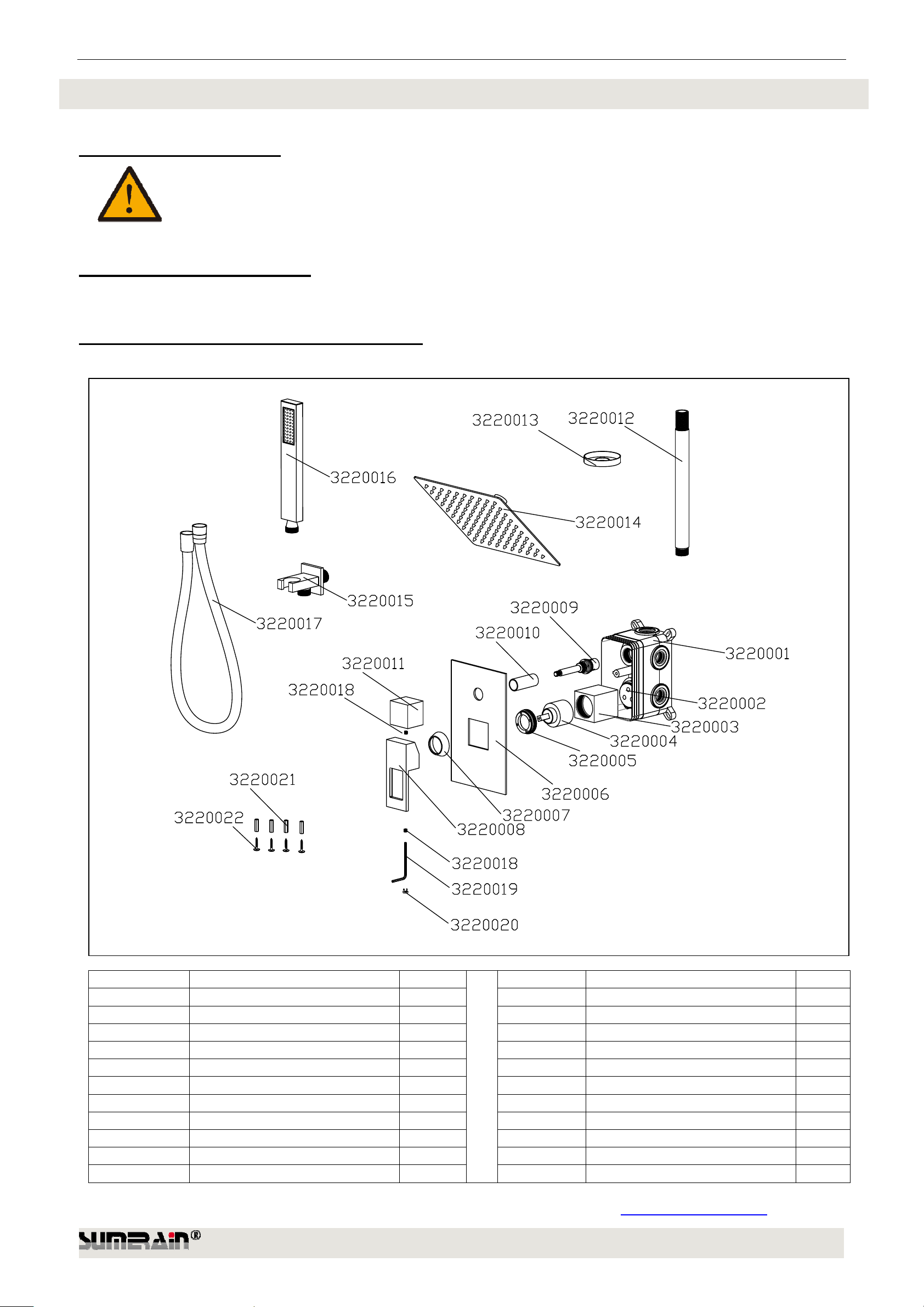

3. CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all the following items are included.
If any of these items are missing, please contact SUMERAIN consumer service by email to: [email protected].
CODE ITEM NAME QTY CODE ITEM NAME QTY
3220001 Concealed Box 1 PCS 3220002 Rough-in valve 1 PCS
3220003 Sleeve 1 PCS 3220004 Φ40 cartridge 1 PCS
3220005 Bonnet nut 1 PCS 3220006 Escutcheon 1 PCS
3220007 Flange 1 PCS 3220008 Handle(lever) 1 PCS
3220009 Diverter cartridge 1 PCS 3220010 Diverter sleeve 1 PCS
3220011 Diverter knob 1 PCS 3220012 Shower arm 1 PCS
3220013 Shower arm flange 1 PCS 3220014 Shower head 1 PCS
3220015 Wall elbow holder assembly 1 PCS 3220016 Handheld shower 1 PCS
3220017 Shower hose 1 PCS 3220018 Set screw 2 PCS
3220019 Allen wrench 2.8mm 1 PCS 3220020 Screw cover 1 PCS
3220021 Mounting screw 4 PCS 3220022 Anchor 4 PCS

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
4. PLANNING AND INSTALLATION INSTRUCTIONS
Attentions: The shower has to be installed, rinsed and checked in compliance with the applicable regulations in order
to guarantee proper shower function!
The dimensions of the shower set-up must be individually.
Operating pressure at the control valve:
Max. 1Mpa. Recommended operating pressure: 3 bar pressure.
Hot water temperature: Max 60 degree centigrade (140 Fahrenheit).
5. CONCEALED BOX ASSEMBLY INSTALLATION

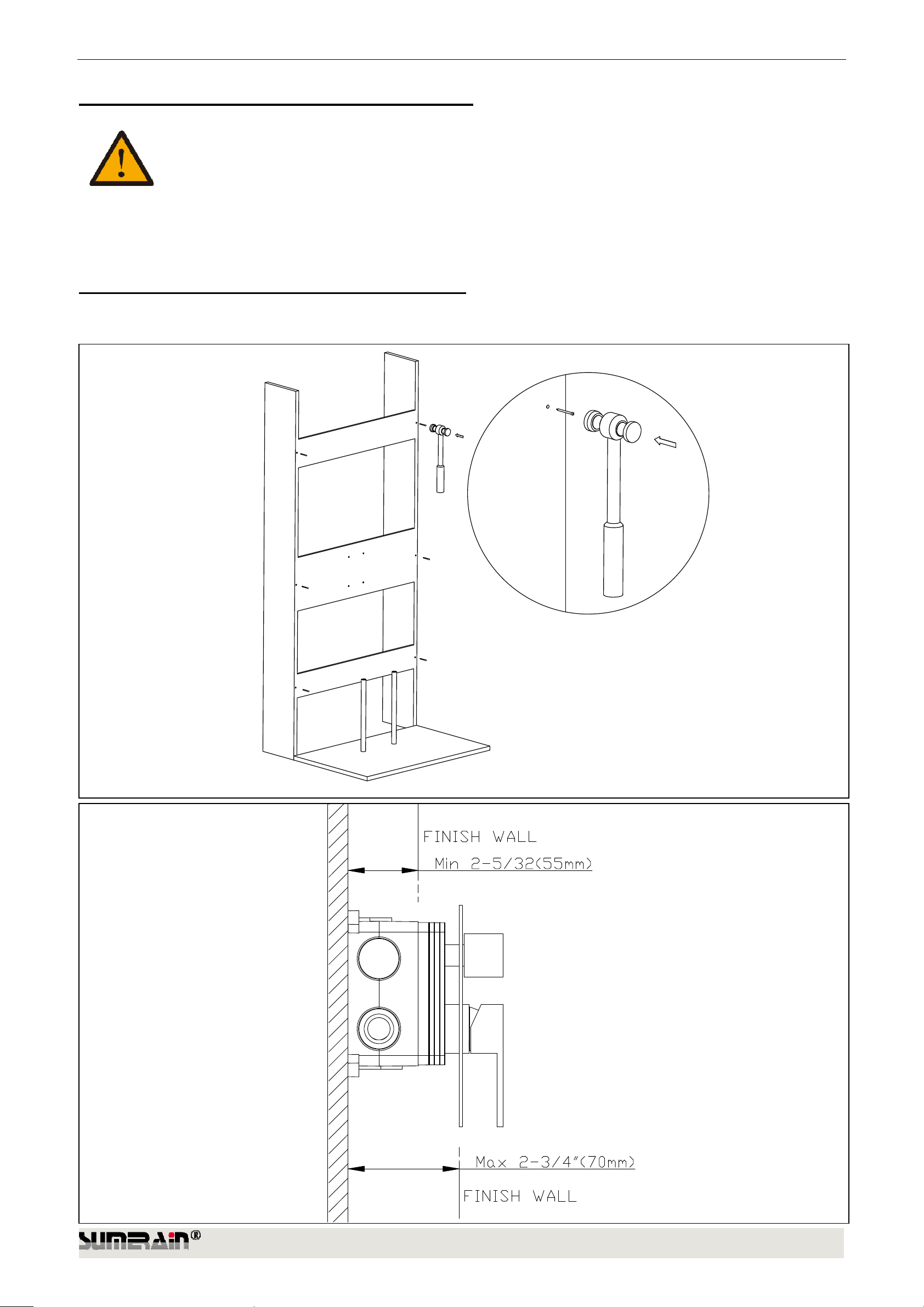

5.1 Make a mounting rack (normally use woods as materials) for preparing install the concealed box assembly .the mounting board’s
face should be Min 55mm [2-5/32"] and Max 70mm [2-3/4"] behind the finish wall surface.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
5.2 Secure the concealed box assembly to the mounting rack with screws and anchor.
6. VALVE TRIM INSTALLATION
6.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the valve body, allow the water flush
3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish.
HOTWATERSUPPLY COLDWATERSUPPLY

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

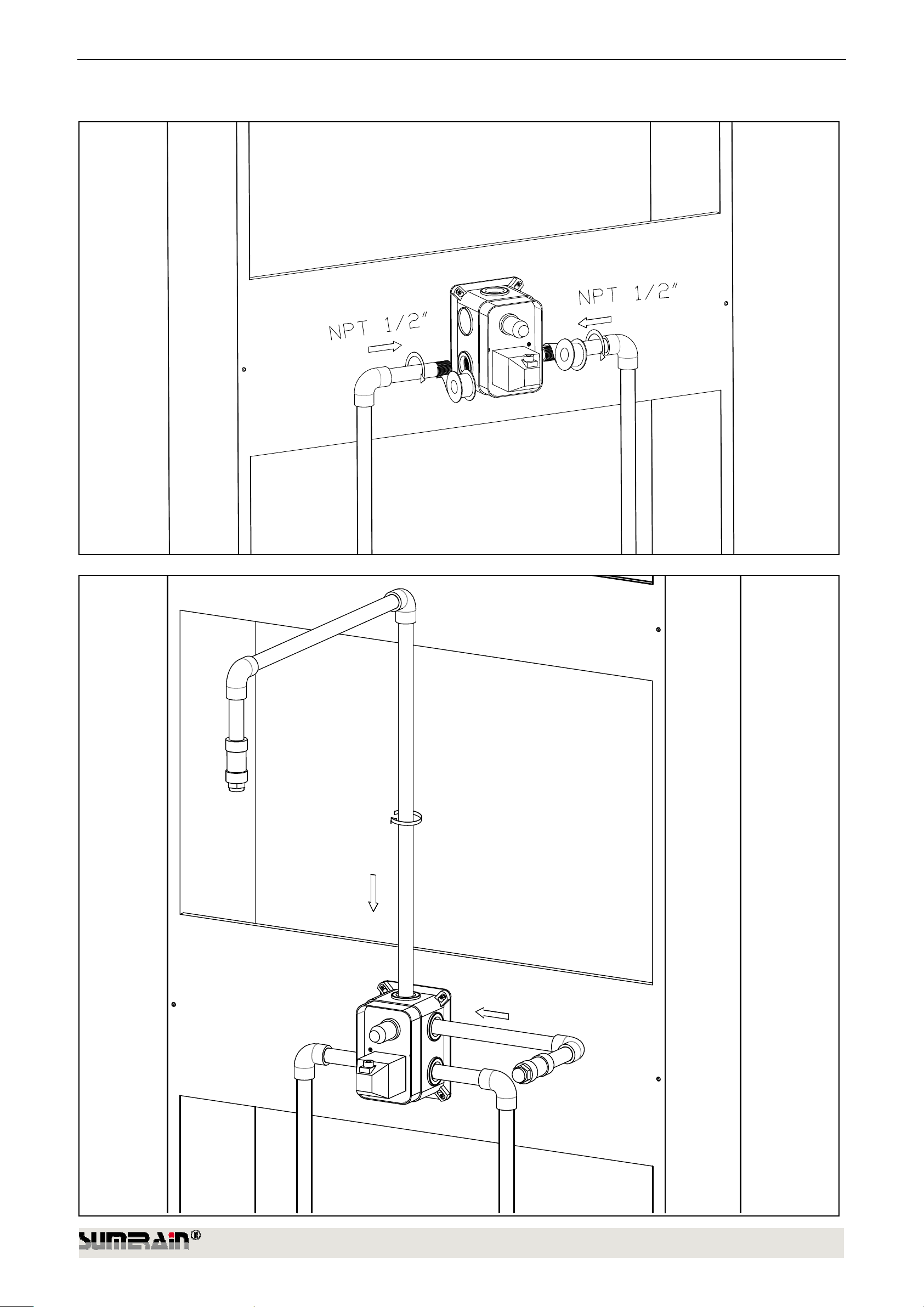

6.2 Apply Teflon tape on the thread of pipe inlet and then connect to valve inlet with elbow [hot left, cold right].
Mixer Valve Connecting thread for Hot&Cold water inlet (NPT 1/2”)
Connect to valve outlet with elbow:

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
6.3 Remove the valve sleeve by Phillips screwdriver. Turn on hold and cold water supply and check all connection for leaks
Please shut off your hot and cold water supply again if no leaking.

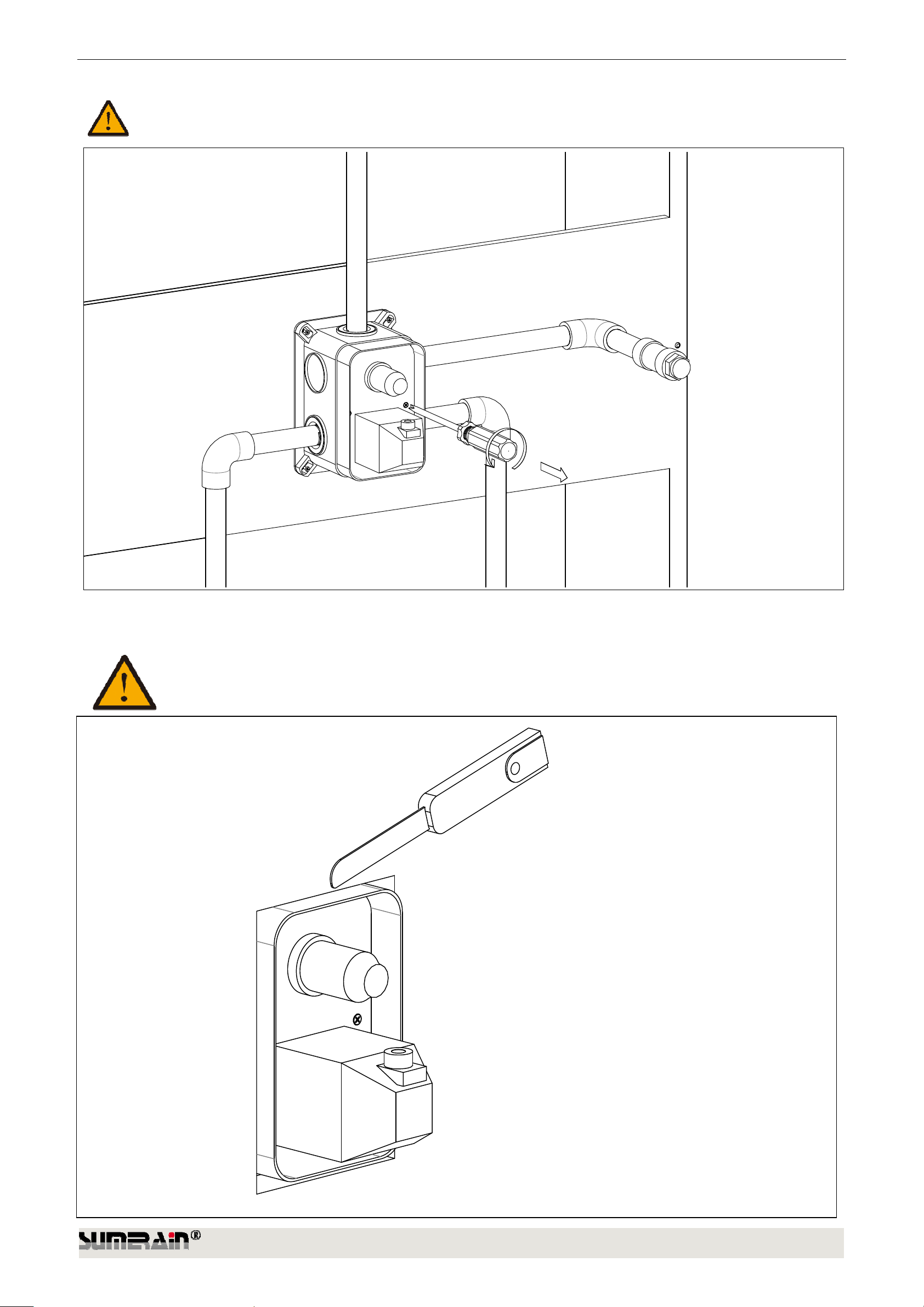

6.4 Drill the mounting holes exactly according to mixer valve and elbow position, done the finish wall.
Cut the plaster shield around the finish wall surface and seal the wall around the plaster shield with waterproof sealant
WARNING: Failure to seal the wall can lead to possible water damage.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
6.5 Remove the valve sleeve by Phillips screwdriver and hold the screw for next step (fastening battery box).

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

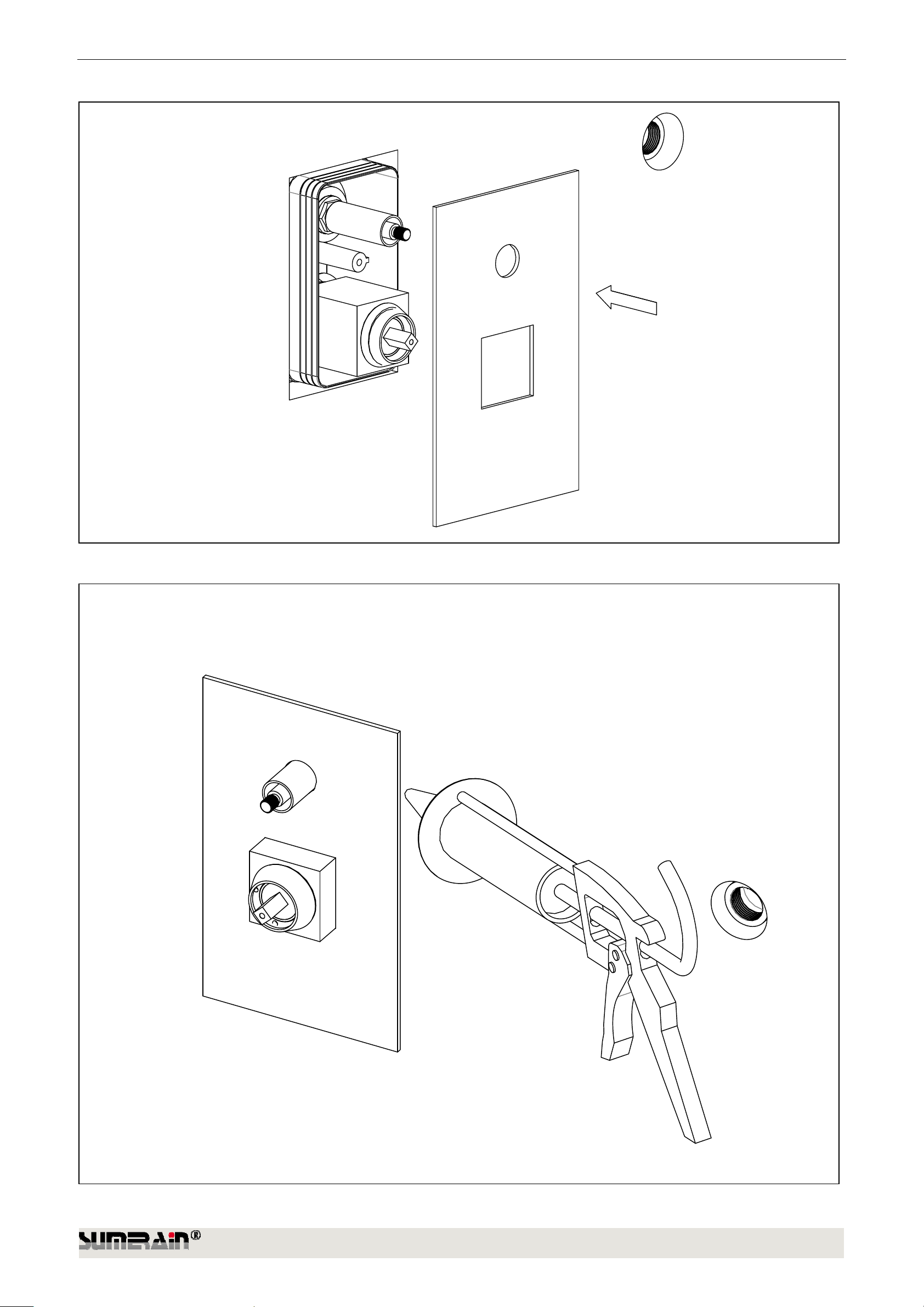

6.6 Attach the escutcheon over the valve body.
6.7 Seal the wall around the plaster shield with waterproof sealant

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

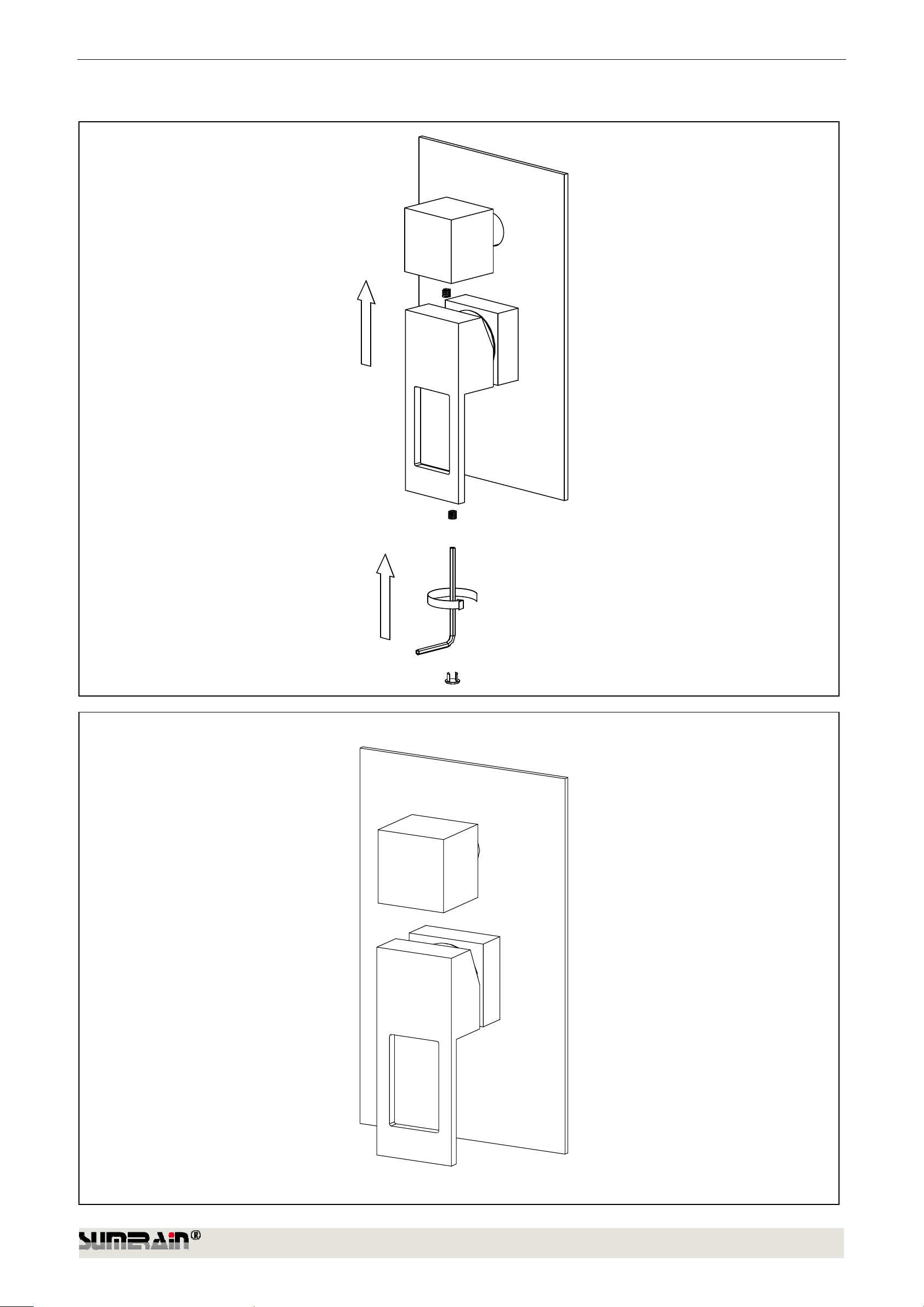

6.8 Attach handle onto the valve stem and tighten set screws by the Allen wrench that is provided. Please don’t over tighten.
Done the same procedure on diverter knob. Finally press-in the screw cover.
6.9 Valve trim install finish.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
7. SHOWERHEAD INSTALLATION
7.1 Attach Shower arm escutcheon to the shower arm and apply Teflon tape on the thread of shower arm

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
7.2 Secure the shower arm into the pipe fitting inside the ceiling by rotating clockwise.
Standard thread of Shower arm inlet: NPT1/2 (US, CA)
G1/2” [1/2 BSPP] (UK, Europe etc.)
7.3 Attach the escutcheon to the ceiling and seal with waterproof sealant

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
7.3 Put the washer into the connector of showerhead and secure the showerhead on the shower arm by hand rotating clockwise.
Missing the screen washer might lead to LED lighting shower invalid when installation LED showerhead.
8. HAND SHOWER INSTALLATION
8.1 Apply Teflon tape on the thread of nipple and screw the thread into the pipe elbow inside the wall.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

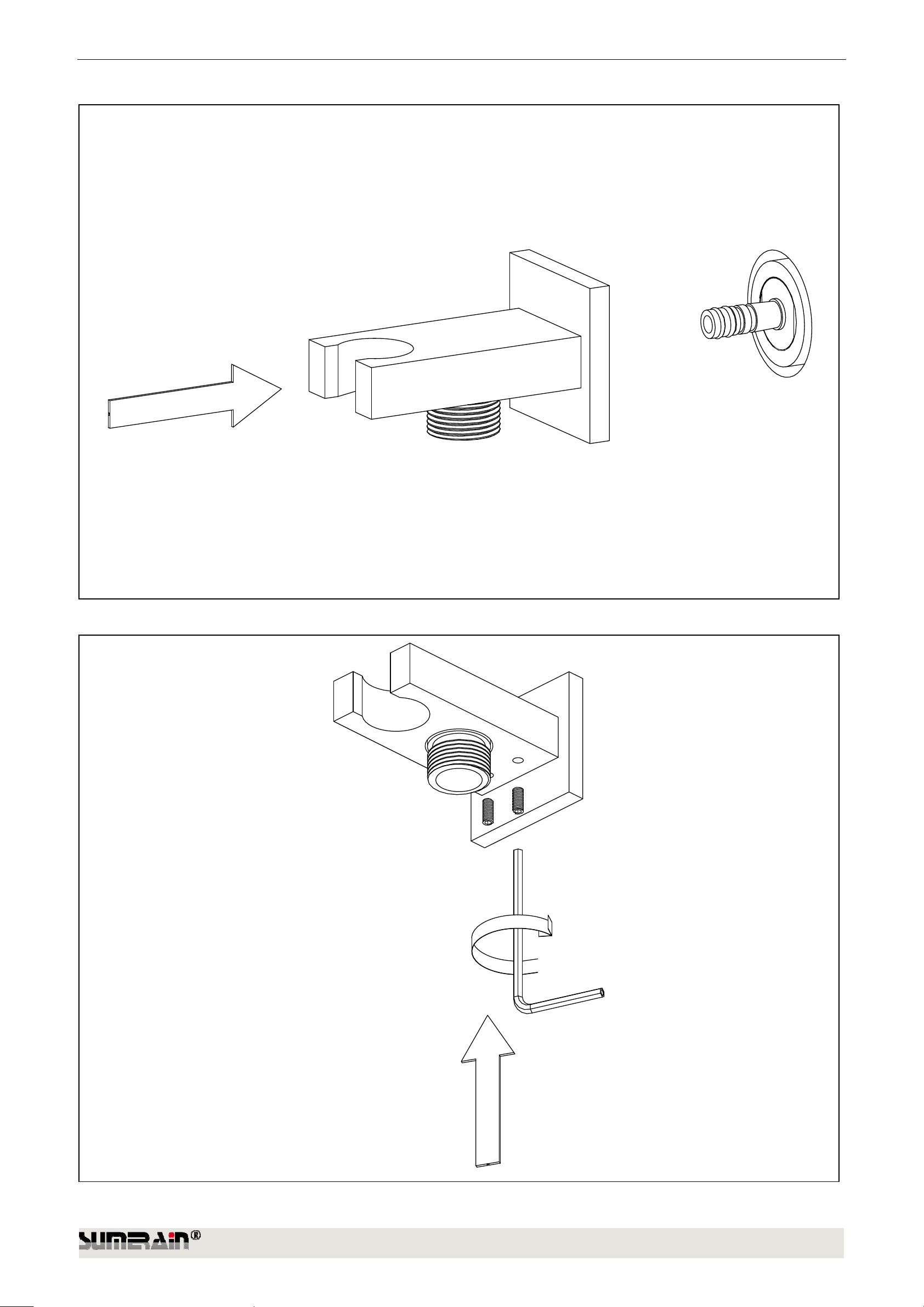

8.2 Dock the shower holder assembly to nipple.
8.3 Secure shower holder to nipple with set screw by Allen Key.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

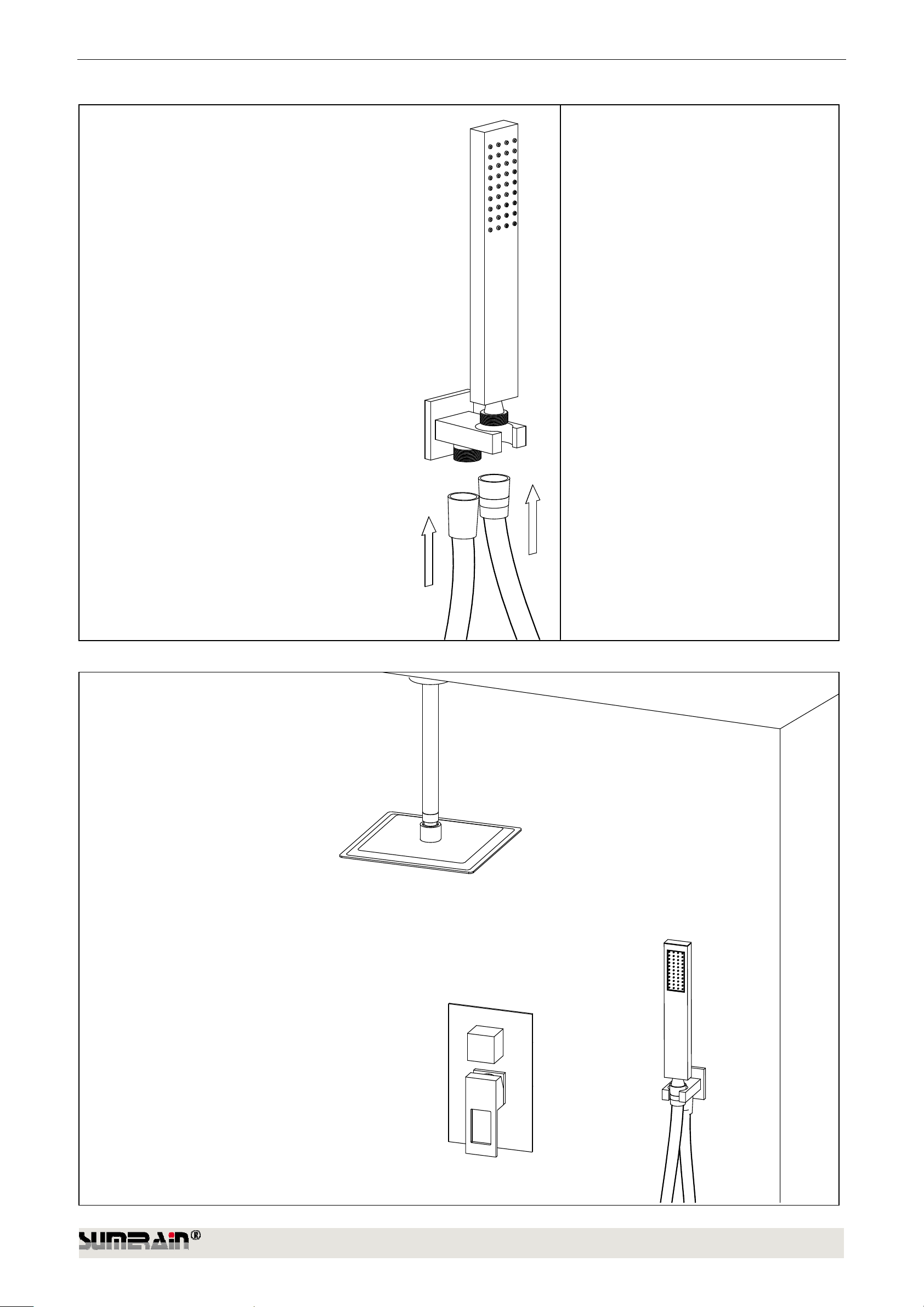

8.4. Connect the hand shower to the elbow with flexible hose.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
TROUBLESHOOTING
CLEARNING RECOMMENDATION FOR SUMERAIN PRODUCTS
9. INSPECTION
9.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.
10. FUNCTION INSPECTION
10.1 Turn on the handle, the water outflow from the showerhead.
10.2 Switch the diverter Knob, the water will rush from the hand shower.
INSTALL FINISH
Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with
regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
Cleaning Materials for faucets and showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when
cleaning faucets and showers:
■ Only use cleaning materials which are explicitly intended for this type of application.
■ Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable damage.
■ Never mix one cleaning material with another.
■ Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or micro
fiber cloths.
Cleaning instructions for faucets and showers
Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:
■ Clean the faucets and showers as and when required.
■ Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the
fixture longer than necessary.
■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it by a
commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.
■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in water until
the surface is nice and smooth, and wipe it use a small amount of chrome polish or maybe something like car wax(such as
Meguiar®,Turtle Wax®) or polish.
■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in particular
waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or stain proof. This
finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped clean and dry and use only
a cleaner specifically made for stainless steel (such as Weiman®, CLR®).
■ When using spray cleaners, spray first onto a soft cloth or sponge, never spray directly onto the faucet as droplets can enter
openings and gaps and cause damage.
■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
Symptom Solution
Not or less water come out
1st. Make sure turn on the shut-off valve
2st. Inspect all connector for ensuring no stemming inside
3st. Make sure hot and cold water both has enough water, the pressure balance valve
will stop water running suppose one of hot/cold water supply system is waterless
or only supply low water pressure water.
Leaking from handle
1st. Replace the cartridge
2st.Replace the O-ring.
Less water come out from showerhead 1st. clean the calcification in showerhead nipple
