SUMMERS®
Operator’s
Manual
MOUNTED HARROW
M94, M104 AND M106
ROLLING CHOPPERS
SUMMERS MANUFACTURING CO., INC.
WEB SITE: www.summersmfg.com
MADDOCK, NORTH DAKOTA58348........................................................ (701) 438-2855
DEVILS LAKE, NORTH DAKOTA58301................................................... (701) 662-5391
© Summers Mfg. Co., Inc. 2004 Printed in USA
IMPORTANT
THE OPERATOR IS RESPONSIBLE FOR AD-
JUSTINGTHEMACHINESINCEMACHINEDOES
NOT COME “FIELD READY” FROM FACTORY.
CAUTION
READ & UNDERSTAND OPERATOR’S MANUAL
BEFORE USING MACHINE.
Warranty
Summers warrants only products of its manufacture against operational failure caused by defective materials or workmanship which
occur during normal use within 12 months from the date of purchase by the end user from Summers’dealer.
Summers’ obligation is to replace free of charge any part of any product that Summers inspection shows to be defective excluding
transportationchargesto Maddock, ND orDevilsLake,ND and return andalsoexcluding all transportation costsfromSummers’dealerto the
dealer’s customer and all other costs such as removal and installation expense.
Summersshallnotbeliableforlossoftime,manufacturingcosts,labor,material,lossofprofits,consequentialdamages,directorindirect,
becauseof defective productswhetherdue to rightsarisingunder the contractofsale or independentlythereof,and whether ornotsuch claim
is based on contract, tort or warranty.
Written permission for any warranty claim return must be first obtained from authorized Summers’ personnel. All returns must be ac-
companied with a complete written explanation of claimed defects and the circumstances of operational failure.
Written warranty for all component parts used in the manufacture of Summers products is available upon request. Warranty of such
component parts will be determined by said component manufacturer upon their inspection of the claimed defective part.
This express warranty is the sole warranty of Summers. There are no warranties, which extend beyond the warranty herein expressly
setforth. The sales forproducts of Summersunder any otherwarranty or guaranteeexpressor impliedisnot authorized. Thiswarrantyvoids
all previous issues.
SUMMERS MANUFACTURING CO. INC.
MADDOCK, NORTH DAKOTA 58348
DEVILS LAKE, NORTH DAKOTA 58301
2/95
INTRODUCTION
This manual provides the following information about your Mounted Harrow.
ITEMS OF IMPORTANCE
A. Summers Mfg. Co., Inc. strongly recommends that each Operator READ and UNDERSTAND the Oper-
ator’s Manual before using the machine. In addition, this Operator’s Manual should be REVIEWED
at least ANNUALLY thereafter.
B. It is the policy of this company in improve its products whenever possible and practical to do so.
We reserve the right to make changes or improvements in the design or construction of parts at any
time without incurring obligations to install such changes on products previously delivered.
C. Reference to “right” and “left” in this manual is determined from a seated position in the drivers
seat.
D. Parts are referenced in each drawing with the Summers Manufacturing Part Number. Use this Part
Number when ordering replacement parts from your Summers dealer.
OWNER REGISTER
Name____________________________________ Size _________________________________________
Address _________________________________
City _____________________________________
State/Prov. ______________________________ Date Purchased______________________________
Mail Code________________________________ Dealer_______________________________________
TABLE OF CONTENTS
Safety Section .......................................................................................................................................1-5
Disk Mounted Harrow Installation Guide..............................................................................................6
Mounting Arm Assembly - M94, M104 & M106..................................................................................7

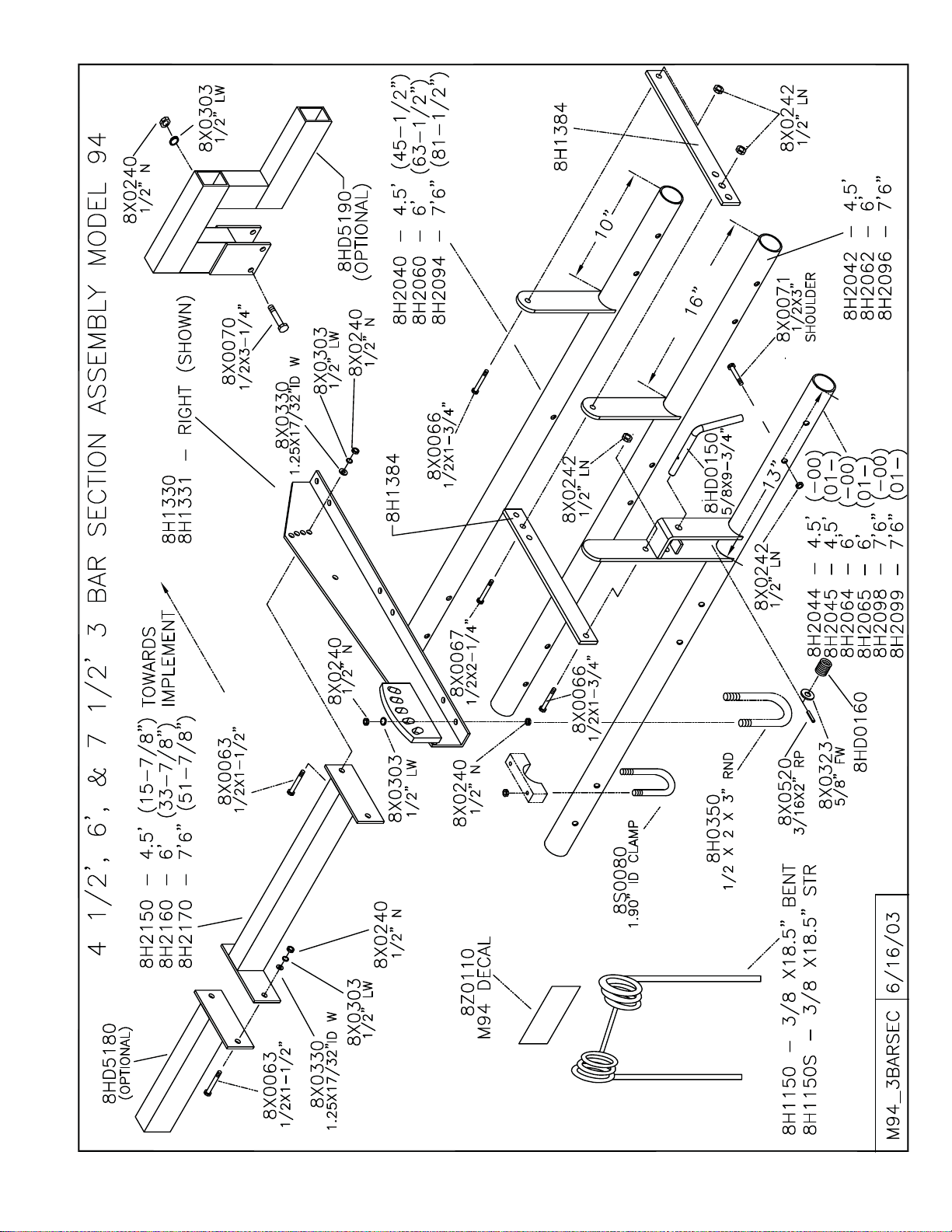

4-1/2’, 6’& 7-1/2’3-Bar M94 Section Assembly..................................................................................8
4-1/2’, 6’& 7-1/2’4-Bar M94 Section Assembly..................................................................................9
6’, 8’& 10’3-Bar M104/M106 Section Assembly...............................................................................10
6’, 8’& 10’4-Bar M104/M106 Section Assembly............................................................................... 11
Disk Brackets........................................................................................................................................12
JD510/512 Disk Ripper.........................................................................................................................13
Mounting Instructions for Cultivators, Chisel Plows & Disks...........................................................14-16
Mounting Instructions for JD1610/610 - M74......................................................................................17
Mounting Instructions for Disk Mounting Brackets.............................................................................18
Mounting Instructions for JD235 Disks - M74...................................................................................19-21
Packing Lists.........................................................................................................................................22
Rolling Chopper Assembly................................................................................................................... 23
1
SAFETY-ALERT SYMBOL
This symbol is used to denote possible danger
And care should be taken to prevent bodily
Injury. This symbol means:
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Definition of each Signal Word used in conjunction with the Safety-Alert symbol.
indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury. This signal word is to be limited to the most extreme situations.
indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
indicates a potentially hazardous situation which, if not avoided, may result in minor or moder-
ate injury. It may also be used to alert against unsafe practices.
GENERAL SAFETY PRACTICES
1. READ AND UNDERSTAND Operator’s Manual before using machine. Review at least annually
thereafter.
2. VERIFY all safety devices and shields are in place before using machine.
3. KEEP hands, feet, hair and clothing away from moving parts.
4. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait for all
moving parts to stop before servicing, adjusting, maintaining or unplugging.
5. BE CAREFUL when working around high pressure hydraulic system.
6. ALWAYS make sure that pressure is relieved from hydraulic circuits before servicing.
7. DO NOT ALLOW RIDERS.
8. USE EXTREME CARE when adjustments.
9. KEEP CHILDREN AWAY from machinery at all times.
10. NEVER ALLOW anyone to walk or work under a raised piece of equipment without installing transport
locks.
DANGER
WARNING
CAUTION
SECTION 1 - SAFETY
2
SECTION 1 - SAFETY
SAFETY DURING TRANSPORT
1. ONLY TOW at a safe speed. Use caution when making corners or meeting traffic.
2. USE a safety chain between tractor drawbar and implement hitch when transporting on public roads.
3. ALWAYS use transport locks when transporting on public roads.
4. COMPLY with local lighting, marking and maximum width regulations when transporting on highways.
SAFETY DECALS
1. KEEP SAFETY DECALSAND REFLECTORS CLEAN.
2. REPLACE missing or unreadable decals. New decals are available from your Summers dealer by
stating correct part number (PN) located in lower right hand corner.
1. TRANSPORT LOCK DECAL(PN 8Z0075)
2. GENERAL CAUTION DECAL (PN 8Z0276)
3
SECTION 1 - SAFETY
3. WING DANGER DECAL (PN 8Z0344)
4. ELECTROCUTION DANGER DECAL (PN 8Z0346)
5. PINCH POINT DECAL (PN 8Z0087)
4
SECTION 1 - SAFETY
6. AMBER REFLECTOR (PN 8Z0800)
7. RED-ORANGE REFLECTOR (PN 8Z0805)
8. RED REFLECTOR (PN 8Z0810)
5
SECTION 1 - SAFETY
GENERALASSEMBLY SAFETY PRACTICES
YOU ARE RESPONSIBLE for the safe assembly
of the machine.
DONOTALLOWCHILDRENorotherunauthorized
persons within the assembly area.
WEAR PERSONAL PROTECTIVE EQUIPMENT
which includes a hard hat, eye protection, work
gloves and steel toed boots with slip resistant
soles.
DONOTMODIFYtheequipmentorsubstituteparts
in any way. Unauthorized modification may impair
the function and/or safety of the machine.
USESUITABLELIFTINGDEVICEforcomponents
which could cause personal injury.
BLOCKUPANYRAISEDPARTofthemachine.Be
sure machine is stable after blocking.
ALWAYS INSPECT LIFTING CHAINS AND
SLINGS for damage or wear.
BE SURE LIFTING DEVICE IS RATED TO
HANDLE THE WEIGHT.
STOP ENGINE, place all controls in neutral,
set parking brake, remove ignition key and
waitforallmovingpartstostopbeforeserving
or adjusting.
BE SURE PRESSURE IS RELIEVED from
hydraulic circuits before servicing or discon-
necting from tractor.
USE EXTREME CARE when servicing or
adjusting.
GENERALASSEMBLY INSTRUCTIONS
1. READ AND UNDERSTAND Operator’s Manual before assembly of machine.
2. Reference to “RIGHT” and “LEFT” is determined when machine IS VIEWED FROM THE REAR.
3. Reference to “FORWARD” means TOWARDS THE TRACTOR.
4. Reference to “REAR” means AWAY FROM THE TRACTOR.

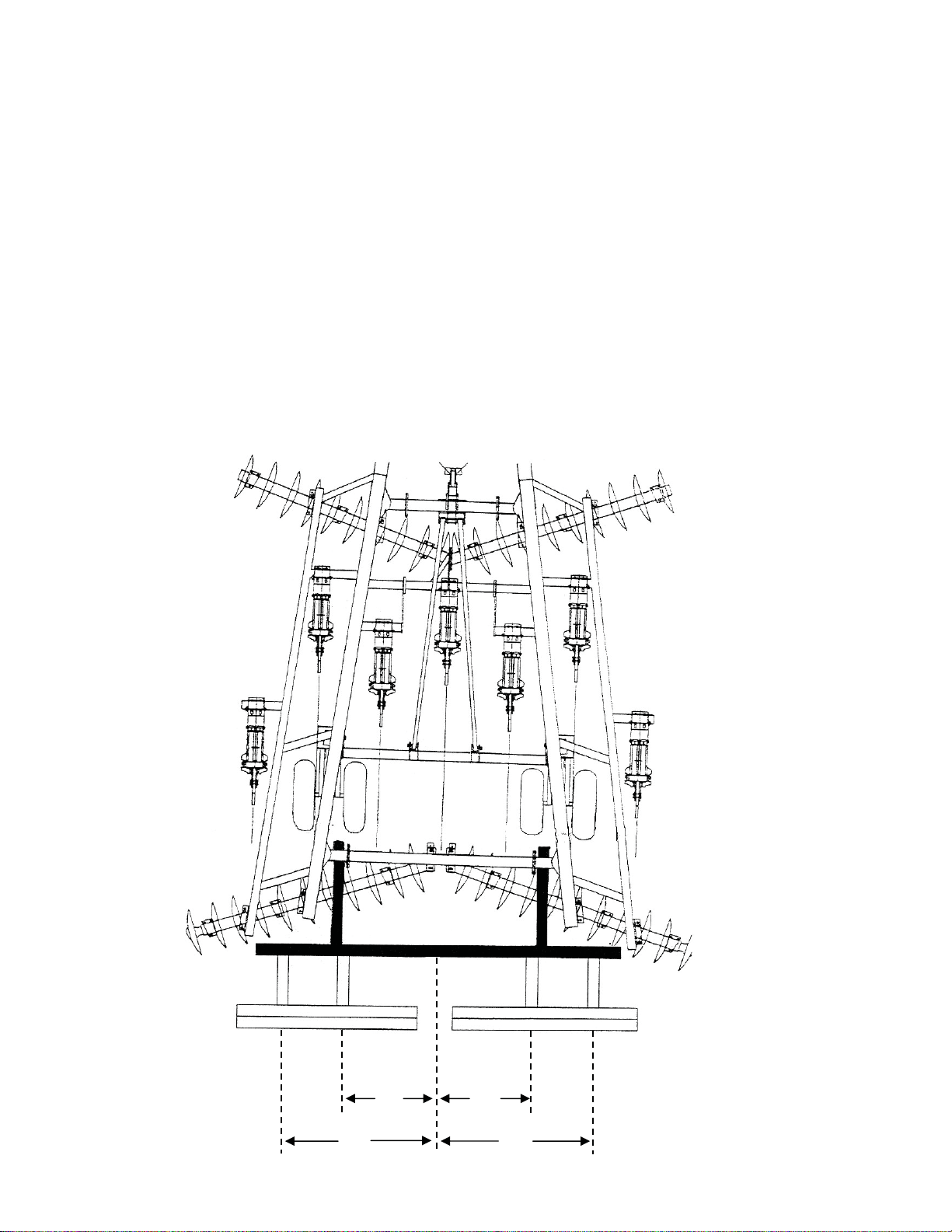

DISK MOUNTED HARROW INSTALLATION GUIDE
Disk brackets and Spacer Tubes for M94, M104 and M106 Mounted Harrow
See Pages 2.05 – 2.07 of Whole Goods Catalog for Sections Required
Use one short disk bracket with sections supported by one mounting arm. Use two short disk brackets to
mount a single harrow section across disk center. At locations other than disk center, a combination of brack-
ets and spacers (listed below) are required to attach mounted harrows to an angled implement frame.
Section First Choice Second Choice
Cross Tube
Model Width Length Brckt. 1 Brckt. 2 (C) Distance (D) Brckt. 1 Brckt. 2 (C) Distance (D)
M94 4 ½’ 16” Short Short +3” 8-9” Short Short +2” 7 –7 ½”
M94 6’ 34” Short Short +6” 17-20” Short Short +4” 11 – 14”
M94 7 ½’ 52” Short Long +3” 44 ½ -45” Short Long +2” 41 ½-44 ½”
M104/M106 6’ 23 ½” Short Short +4” 11-14” Short Short +3” 8 – 10 ¾”
M104/M106 8’ 47 ½” Short Long 35 ½-38 ½” Short Short +6” 17 – 20”
M104/M106 10’ 71 ½” Short Long +4” 47 ¾ -50 ¾” Short Long +3” 44 ½-47 ½”
UNIVERSAL DISK BRACKETS
**8H1502 – SPACER TUBE, LATERAL
HIGH CLEARANCE DISK BRACKETS
**8H – SPACER TUBE
Section
Cross Tube First Choice Second Choice
Model Width Length Brckt. 1 Brckt. 2 (C) Distance (D) Brckt. 1 Brckt 2. (C) Distance (D)
M94 4 ½’ 16” Short Short +3” 8-9” Short Short +2” 7 –7 ½”
M94 6’ 34” Short Long 26 ¼ -27” Short Short +6” 17 – 20”
M94 7 ½’ 52” Short Long +4” 38 ½-41 ½” Short Long +3” 35 ½ -38 ½”
M104/M106 6’ 23 ½” Short Short +4” 11 – 14” Short Short +3” 8 – 10 ¾”
M104/M106 8’ 47 ½” Short Long +4” 38 ½-40 ½” Short Long +3” 35 ½-38 ½”
M104/M106 10’ 71 ½” Short Long +6” 44 ¾ -47 ¾” Short Long +4” 38 ½-41 ½”
C) Spacer Tubes W/Hardware 2” = 8H1500 4” = 8H1505
3” = 8H1503 6” = 8H1507
D) Approximate centerline to centerline of Mounting Arms (8H2310) based on 18 degree rear gang angle
6
MH MNTNG ARM ASSY
1/9/2009 8H2314.iam/
A
8H1325
8X0605
8X0232
8H1320
8X0325
8H2010
8X0073
1/2 X 5"
8X0123
3/4" X 5.5"
8X0099
5/8" X 6-3/4"
8X0304
5/8" LW
8X0250
5/8" N
8H2100 8X0261
3/4" LN
8X0261
3/4" LN 8X0242
NY-LOCK 1/2" N
8X0118
3/4 X 4"
8X0014
1/4 X 3"
8X0222
1/4" LN
8X0261
3/4" LN
8H2180
8W1204
1/2 X 3 X 3"
8H2190
8H1280
ARM LENGTH
8H2132 - 34"
8H2142 - 42"
8H2144 - 52"
8H1311
8H2120
FRAME SIZES
WING-ARM TRAVEL STOP
MATCH LOCATION LETTER
ON SUPPORT ROD ASSEMBLY
WING-ARM TRAVEL STOP
DO NOT OVERTIGHTEN
ARM MUST BE FREE TO ROTATE
C
B
A
ABC
8Z0101
SMC DECAL
8Z0052
PATENT DECAL
8X0306
3/4" LW
8X0117
3/4 X 7"
8H1306
8H2130
8X0246
1/2" FN
8W1897
3"
4"
5"
6"
2 1/2"
7
8
9
10
11
MNT HRW DISK BRCKTS
1/14/2009
8H1610
DISK BRCKT LONG
W/PLATE - UNIVERSAL
8H1600
DISK BRCKT SHORT
W/PLATE - UNIVERSAL
8H1612
DISK BRCKT LONG
W/PLATE - HIGH CLEARANCE
8H1602
DISK BRCKT SHORT
W/PLATE - HIGH CLEARANCE
8X0250
5/8" N
8X0304
5/8" LW
8H1510
8H1520
8H1530
8H1510
8H1532
8H1510
8H1522
8H1510
8X0250
5/8" N
8X0304
5/8" LW
8X0250
5/8" N
8X0304
5/8" LW
SPACER TUBES
8H1499 (TUBE ONLY - 2")
8H1498 (TUBE ONLY - 3")
8H1504 (TUBE ONLY - 4")
8H1500 (2" W/HRDWR)
8H1503 (3" W/HRDWR)
8H1505 (4" W/HRDWR)
BOLT FOR SPACER TUBE
8X0096 (5/8" X 4")
8X0095 (5/8" X 5")
8X0099 (5/8" X 6.75")
(6" MAX. FRAME)
8H1512 (11" MAX. OPT.)
(6" MAX.)
8H1512 (11" MAX. OPT.)
(6" MAX.)
8H1512 (11" MAX. OPT.)
(6" MAX.)
5/8" BOLT LENGTH
AS REQUIRED
8X0093
5/8" X 2"
8X0304
5/8" LW
8X0250
5/8" N
12

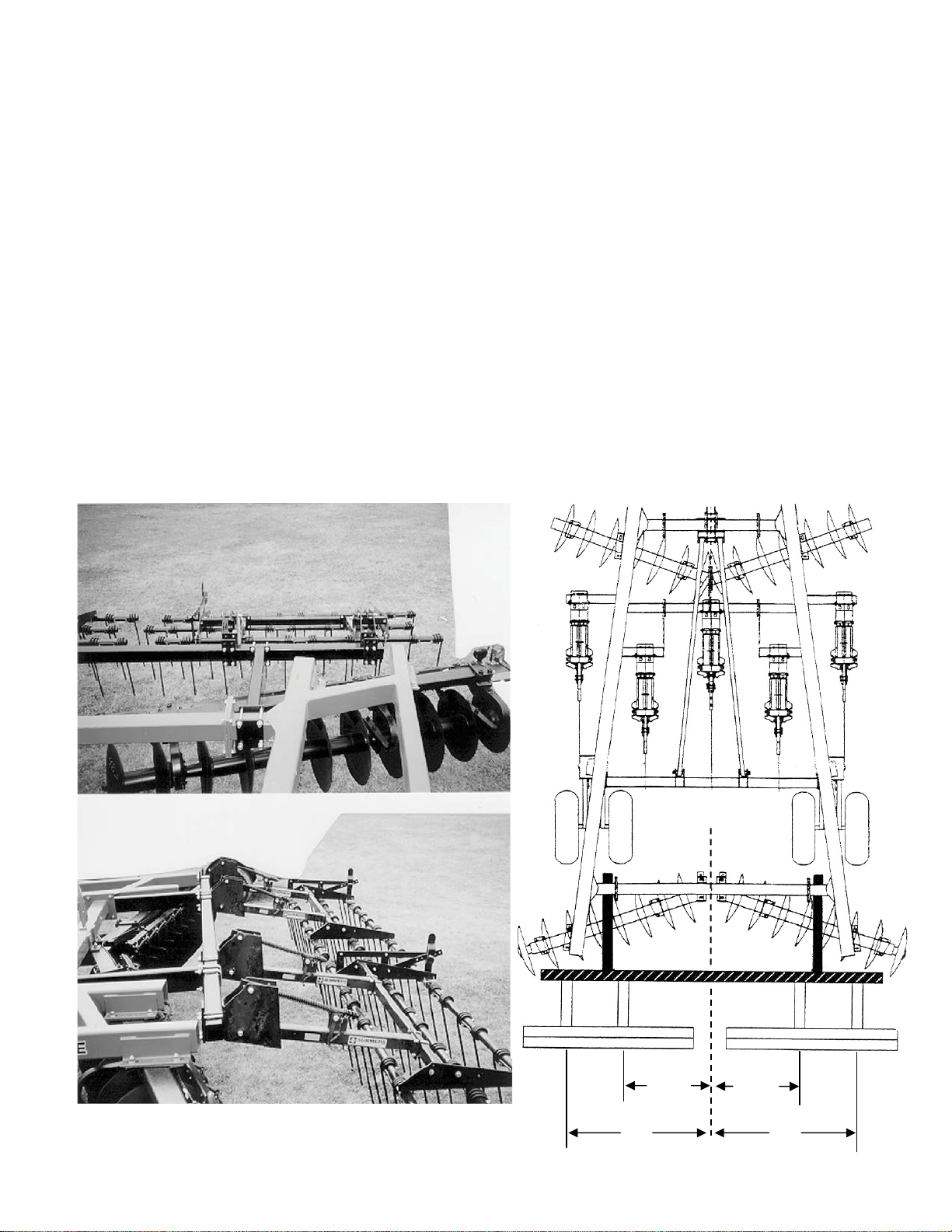

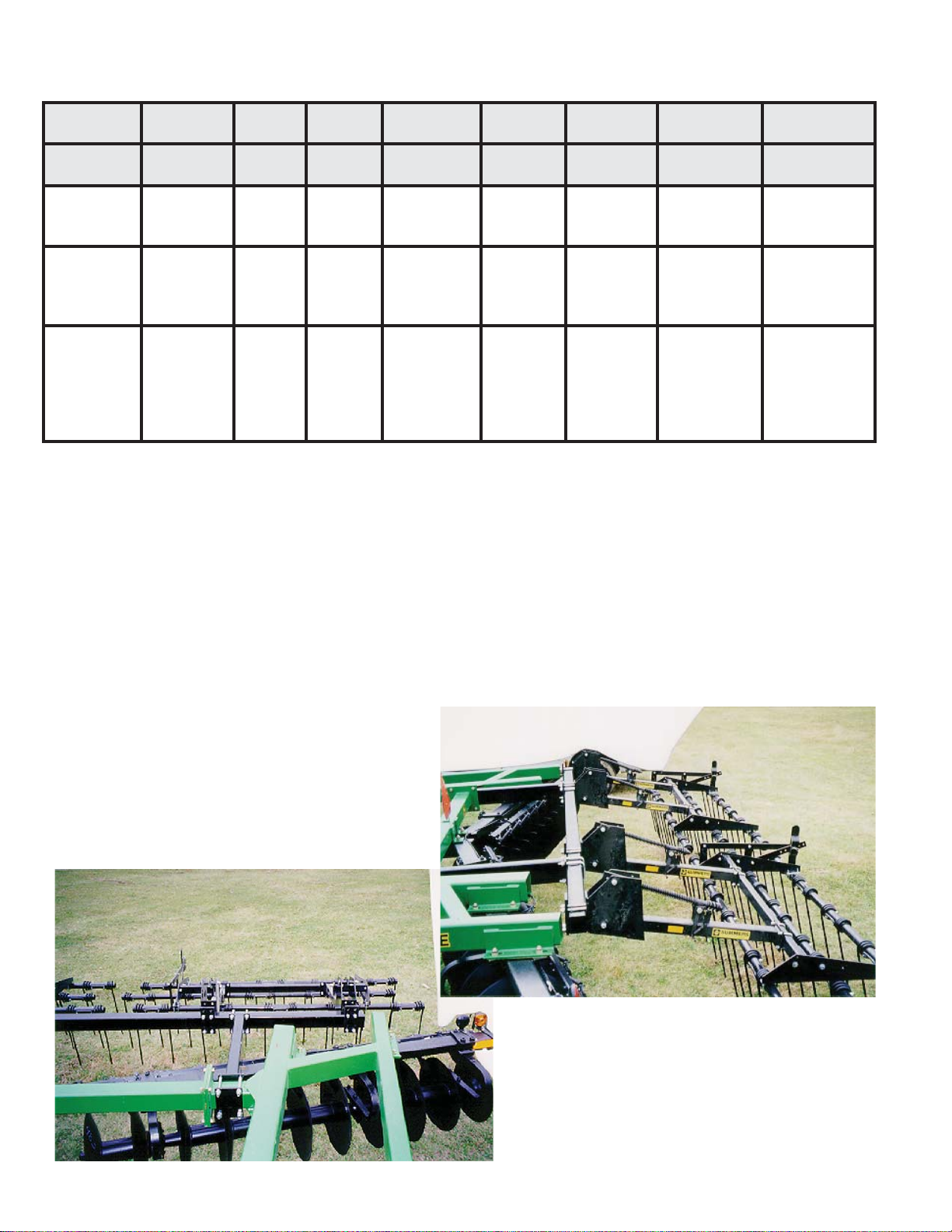

JD 510/512 DISK RIPPER WITH SUMMERS HARROWS
1. Bolt extensions to 510 main frame as shown (flush side down).
2. U-bolt 4X4 to extensions (center on machine).
3. Bolt arms to 4X4 tube.
4. U-bolt sections to arms. (Leave 12” gap in the center, between tines.)
13
WIDTH SECTIONS
REQRD 8H2310 8HD5250 8H1600 8H1505 M104 M106
CNTR
SECT WING ARM MNTNG
PKG DISK
BRCKT SPACER,
4”
5 Shank /
12 1/2’Width 2: 8’ –– 4 1 –– –– 2 - 8HD5381
4 - 8H2310
1 - 8HD5250
2 - 8HD5387
4 - 8H2310
1 - 8HD5250
7 Shank /
17 1/2’Width 2: 10’ –– 4 1 –– ––
2 - 8HD5401
4 - 8H2310
1 - 8HD5250
2 - 8HD5407
4 - 8H2310
1 - 8HD5250
9 Shank /
22 1/2’Width 1: 6’and
1: 8’ 6’
(EA) 81 4
(WING) 2
(WING)
3 - 8HD5361
1 - 8HD5381
8 - 8H2310
1 - 8HD5250
4 - 8H1600
2 - 8H1505
3 - 8HD5367
1 - 8HD5387
3 - 8H2310
1 - 8HD5250
4 - 8H1600
2 - 8H1505
13A
6800(560$18)$&785,1*&2,1&
6KDQN-''LVN5LSSHUZLWK6XPPHUV+DUURZV
¶6HFWLRQVWHHWKSHUSLSH +'0RGHO±´[´WHHWK
+'0RGHO±´[´WHHWK
±0RXQWLQJ$UPV +
±0RXQWLQJ.LW +'
%ROWH[WHQVLRQVWRIUDPHDVVKRZQ([WHQVLRQVPXVWFRQWDFWJDQJPRXQWWXEHV8VHEROW
SODWHVRQVKRZQXVH8EROWVRQ
8EROW[WXEHWRH[WHQVLRQVFHQWHURQPDFKLQH
%ROWPRXQWLQJDUPVWR[WXEH
8EROWVHFWLRQVWRDUPV/HDYH´JDSLQWKHFHQWHUEHWZHHQWLQHV
'DWDFDG+'+'GRF
3DJHRI
ò´ ò´
´ ´
13B
6800(560$18)$&785,1*&2,1&
6KDQN-''LVN5LSSHUZLWK6XPPHUV+DUURZV
¶6HFWLRQVWHHWKSHUSLSH +'0RGHO±´[´WHHWK
+'0RGHO±´[´WHHWK
±0RXQWLQJ$UPV +
±0RXQWLQJ.LW +'
%ROWH[WHQVLRQVWRIUDPHDVVKRZQ([WHQVLRQVPXVWFRQWDFWJDQJPRXQWWXEH8VHEROW
SODWHVRQXVH8EROWVRQ
8EROW[WXEHWRH[WHQVLRQVFHQWHURQPDFKLQH
%ROWDUPVWR[WXEH
8EROWVHFWLRQVWRDUPV/HDYH´JDSLQWKHFHQWHUEHWZHHQWLQHV
'DWDFDG+'+'GRF
3DJHRI
´ ´
´ ´
13C
6800(560$18)$&785,1*&2,1&
6KDQN-''LVN5LSSHUZLWK6XPPHUV+DUURZV
4W\ 31 'HVFULSWLRQ
+'0RGHO±´[´WHHWK ¶6HFWLRQWHHWKSHUSLSH
&KRLFH +'0RGHO±´[´WHHWK
+'0RGHO±´[´WHHWK ¶6HFWLRQWHHWKSHUSLSH
&KRLFH +'0RGHO±´[´WHHWK
+ 0RXQWLQJ$UPV
+' 0RXQWLQJ.LW
8EROWH[WHQVLRQV$WRIUDPHDVVKRZQ([WHQVLRQVPXVWFRQWDFWJDQJPRXQWWXEH
8EROW[WXEH%WRH[WHQVLRQV&HQWHURQPDFKLQH
,QVWDOOIRXU+GLVN
EUDFNHWV&RQZLQJV
+VSDFHUWXEHV'
DUHXVHGRQLQVLGHGLVN
EUDFNHWV
%ROWPRXQWLQJDUPV(
WR[WXEH
8EROWVHFWLRQVWRDUPV
/HDYH´JDSEHWZHHQ
WLQHVEHWZHHQVHFWLRQV
'DWDFDG+'+'GRF
3DJHRI
¶
¶ ¶
¶
´
´ ´ ´
´ ´
´
´
&
/
&
'
&
'
$
%
$
(
14
Some tillage implementshave close to 180 degreesof wing travel into transportposition. Machines like thisinclude
short wing machines with low transport height and 5 section machines (outside wings only). This type of fold
can cause interference problems with SMC Mounted Harrows. The following are steps to prevent problems:
MODEL 74:
1. If mounting brackets/arms hit in transport position, one of the 2 interfering brackets/arms must be moved.
2. If sections hit in transport position, limit travel of top section by:
a. Slide and secure lock collar down support rod a maximum of 3”.
or
b. Replace standard 8H1308 pressure spring with 8H1306.
or
c. Add third mounting arm assembly.
MODEL 94 through 106:
1. If mounting brackets/arms hit in transport position, one of the 2 interfering brackets/arms must be moved.
2. If sections hit in transport position, limit travel of top section by:
a. Slide and secure lock collar down support rod a maximum of 2.5”.
or
b. Add second mounting arm assembly.
or
c. Install travel limit 1/2” x 5” stop bolts* (8X0073) in mounting brackets (8H2120). Secure stop bolt
with 1/2” lock nuts (8X0242), do not over tighten, mounting arm MUST be free to rotate on pivot bolt.
*Stop bolts should be used as a last resort. Extensive frame damage could occur if stop bolts are incorrectly
installed or if field obstruction causes mounted harrow section to exceed travel limit.
ALWAYS raise machine slowly into transport position the first time after installing Mounted Harrows, watch for
interference and make adjustments as required.
MOUNTING
INSTRUCTIONS
FOR SUMMERS
Mounted Harrows
on Cultivators, Chisel Plows and Disk
This manual suits for next models
2
Table of contents
Other Summers Lawn And Garden Equipment manuals
