Summit FF711ES User manual

FF711ESLLF2
46" x 18.75" x 23" (H x W x D)
Two-door refrigerator-freezer in slim 18" width, with
combination lock to secure both doors
Highlights:
Combination lock secures both refrigerator and freezer
sections
Two-door design for convenience and efficiency
Slim width is ideal for space-challenged locations
Product Features:
CEE Tier II qualified Efficient design meets CEE Tier II specifications, using 25% less energy than DOE standards
require for this product category
Thin-line design Slim width under 19" for an easy fit in space-challenged settings
LLF2 lock Combination lock with key override secures both sections
Frost-free operation No-frost convenience for reduced user maintenance
Reversible doors Keep your options flexible with reversible doors that are easy to switch when your
arrangement changes
Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Clear crisper drawer Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light Automatically illuminates when you open the door
Door storage Store tall bottles and condiments right on the door for convenient access
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

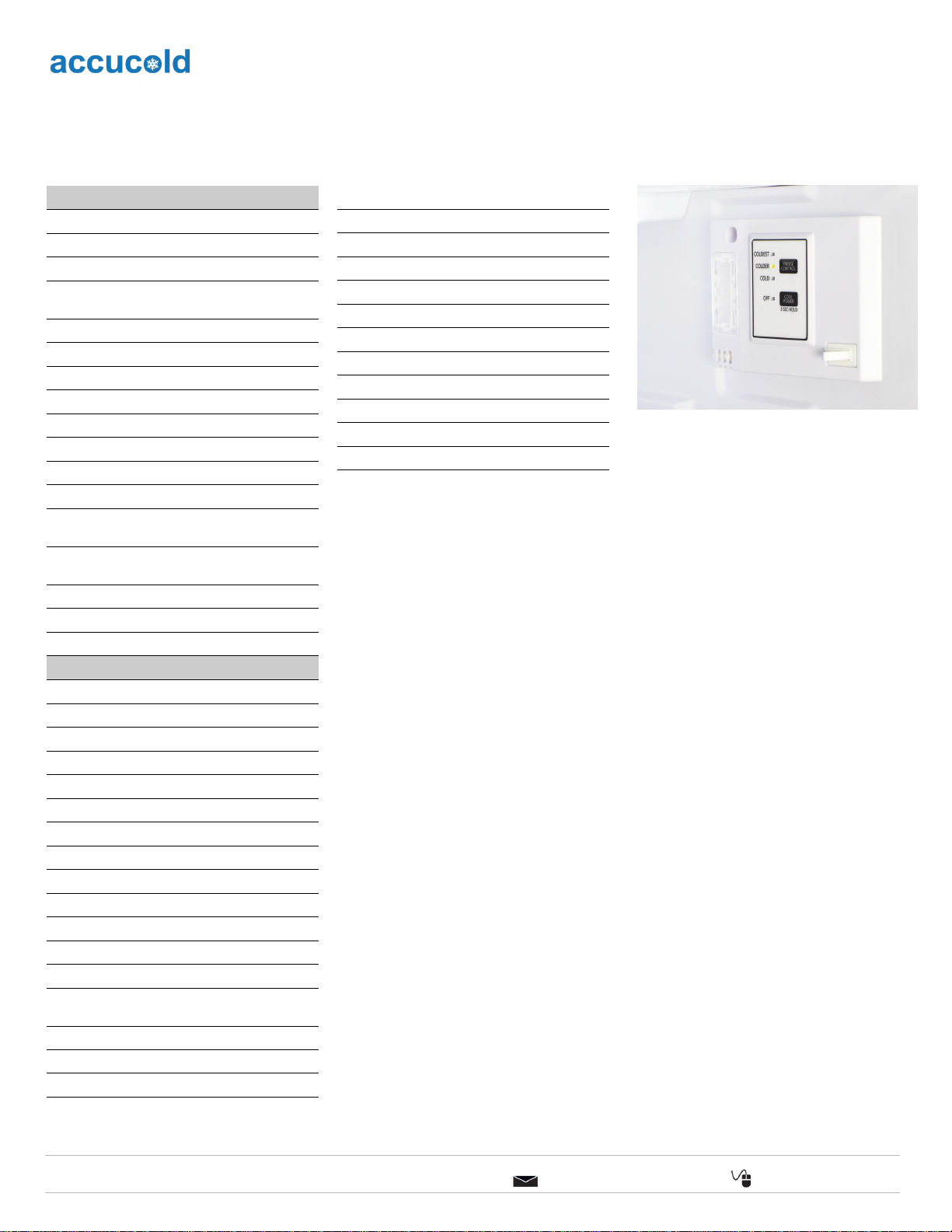

FF711ESLLF2 Specifications:
Overview
Height of Cabinet 46.0" (117 cm)
Width 18.75" (48 cm)
Depth 23.0" (58 cm)
Capacity 4.8 cu.ft. (136
L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 346.0kWh/year
Amps 0.9
Voltage/Frequency 115 V AC/60 Hz
Weight 102.0 lbs. (46
kg)
Shipping Weight 107.0 lbs. (49
kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084558
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 24.75" (63 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 15.75" (40 cm)
Refrigerator - Capacity 3.7 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door
Shelves 3
Freezer - Interior Height 13.5" (34 cm)
Freezer - Interior Width 17.88" (45 cm)
Freezer - Interior Depth 12.5" (32 cm)
Freezer - Capacity 1.1 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.2 oz.
Level Legs 2
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.5" (17 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

U.S. Government Federal law prohibits removal of this label before consumer purchase.
Refrigerator-Freezer
• Automatic Defrost
• Top-Mounted Freezer
• No through-the-door ice
Felix Storch, Inc.
Model FF711ESLLF2
Capacity: 4.8 Cubic Feet
Compare ONLY to other labels with yellow numbers.
Labels with yellow numbers are based on the same test procedures.
Estimated Yearly Energy Cost
$44
Cost Ranges
Models with
similar features
All models
$36 $53
$18 $70
346kWh
Estimated Yearly Electricity Use
•Your cost will depend on your utility rates and use.
•Both cost ranges based on models of similar size capacity.
•Models with similar features have automatic defrost, top-mounted freezer, and no
through-the-door ice.
•Estimated energy cost based on a national average electricity cost of 12.9 cents per kWh.
ftc.gov/energy

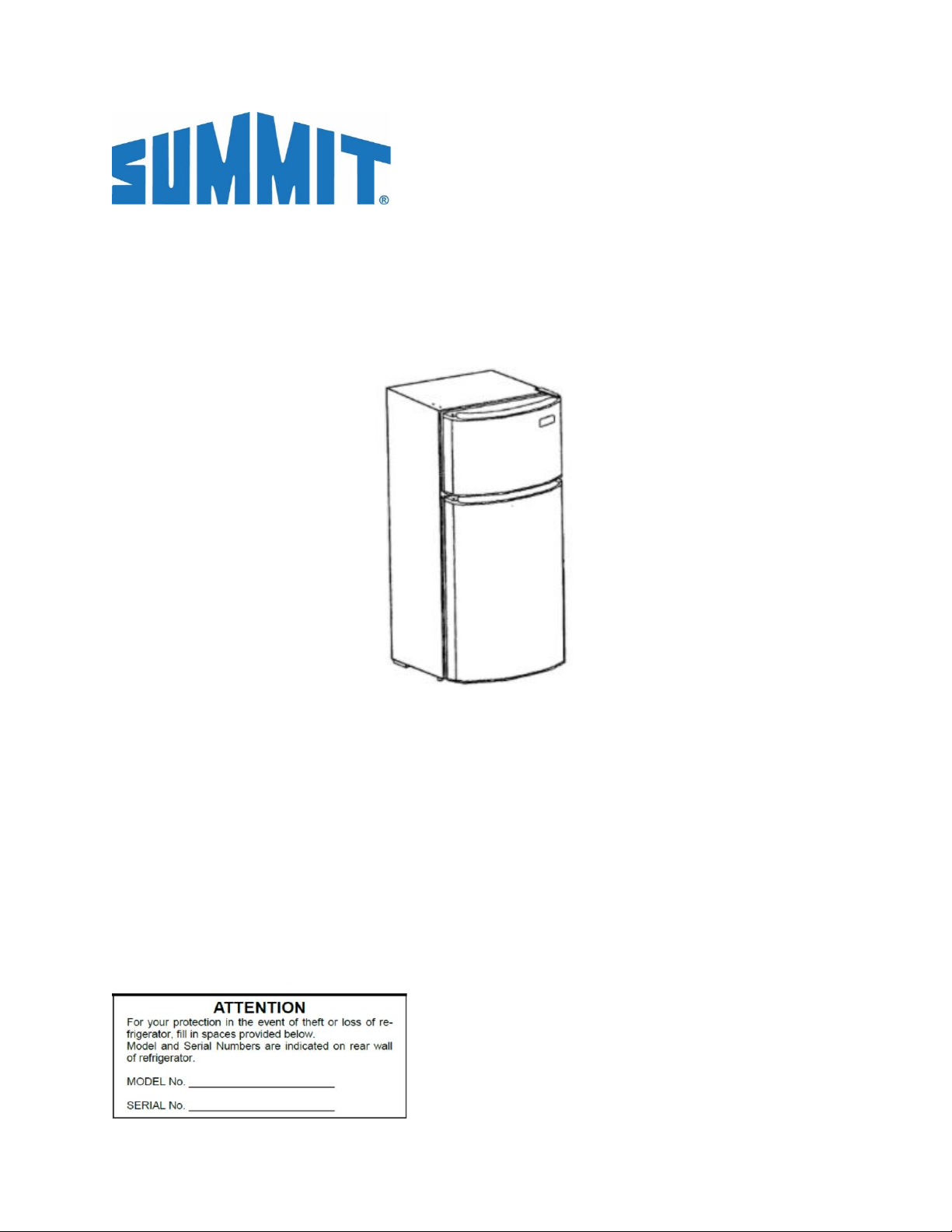

COMPACT REFRIGERATOR-FREEZER
Model: FF711ES
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com

2
TABLE OF CONTENTS
Important Safeguards 3-4
Location of Parts 5
Installing your Refrigerator 6
Test Run 6
Reversing the Door Swing 7-8
Temperature Control 8
Removing Ice Cubes from the Tray 9
Cleaning and Care 9
Troubleshooting 10
Limited Warranty 12

3
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as described in this
manual, so please read the manual carefully. To reduce the risk of fire, electrical shock, or injury
when using the appliance, follow basic precautions, including the following:
•Plug into a grounded 3-prong outlet, do not remove the grounding prong, do not use an adapter,
and do not use an extension cord.
•It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
•Never clean the freezer with flammable fluids. These fumes can create a fire hazard or
explosion.
•Do not store or use gasoline or other flammable vapors and liquids inside or in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
•Do not use inflammable sprays in the vicinity of the appliance.
•Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
•Do not attempt to repair or replace any part of your appliance, unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
•This appliance is CFC- and HFC-free and contains a small quantity of Isobutane (R600a), which
is environmentally friendly but flammable. It does not damage the ozone layer, nor does it
increase the greenhouse effect. Care must be taken during transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may
damage the eyes.
•In the event of any damage:
- Avoid open flames and anything that creates a spark,
- Disconnect from the electrical power line,
- Air the room in which the appliance is located for several minutes, and
- Contact the Service Department for advice.
- In case the power supply cord is damaged, it must be replaced by a service agent or a
similarly qualified person to avoid a potential hazard
•The more coolant there is in an appliance, the larger the room it should be installed in. In the
event of a leakage, if the appliance is in a small room, there is the danger of combustible gases
building up. For every ounce of coolant, at least 325 cubic feet of room space is required. The
amount of coolant in the appliance is stated on the data plate on the appliance. It is hazardous
for anyone other than an Authorized Service Person to carry out servicing or repairs to this
appliance.
•Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
•Replacing component parts and servicing shall be done by factory authorized service personnel
so as to minimize the risk of possible ignition due to incorrect parts or improper service.

4
•Use two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
•To ensure proper ventilation for your appliance. The front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperature above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the elements, such as wind,
rain, water spray, or drips.
•The appliance should not be located next to ovens, grills, or other sources of high heat.
•The appliance must be installed with all electrical, water, and drain connections in accordance
with state and local codes. A standard electrical supply (115V AC only, 60 Hz), properly
grounded in accordance with the National Electric Code and local codes and ordinances
required.
•Do not kink or pinch the power supply cord with the appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be levelled in order to work properly. You may need to make
several adjustments to level it. Check for leaks after connection.
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety.
•IMPORTANT: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
•IMPORTANT: Do not damage the refrigerant circuit.
•IMPORTANT: Do not use electrical appliances inside the storage compartment of the appliance,
unless they are the type recommended by the manufacturer.
•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolour the interior.
•Do not use this apparatus for other than its intended purpose.
•An empty refrigerator is a very dangerous attraction to children. Remove the gasket, latches,
lids, or doors from unused appliances, or take some other action that will guarantee the
appliance is harmless.
•CAUTION: Risk of child entrapment. Before you throw away your old refrigerator:
oTake off the doors.
oLeave the shelves in place so that children may not easily climb in.
SAVE THESE INSTRUCTIONS

5

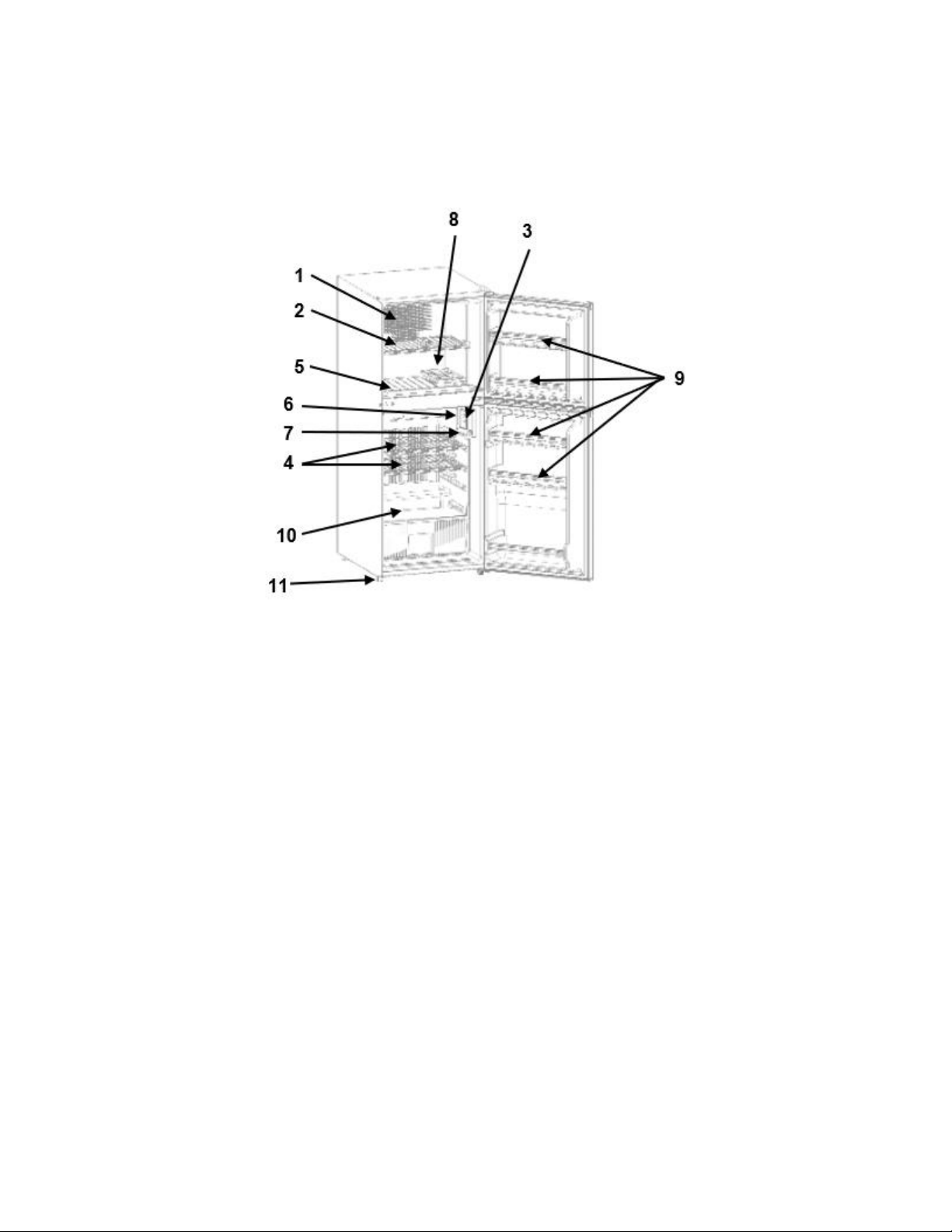

LOCATION OF PARTS
No. Part Name Description
1. Discharge Outlet Since cold air flows through this outlet into the
refrigerator, be sure to avoid blocking it with
stored food.
2. Freezer Shelf
3. Temperature Control
4. Plastic coated Shelves
5. Suction Inlet Air that circulates throughout the refrigerator
flows through this opening to regulate the
temperature inside the refrigerator.
6. Interior Light
7. Interior Light Switch
8. Ice Cube Tray
9. Panel Guard
10. Glass Shelf
11. Leveling leg

6
INSTALLING YOUR REFRIGERATOR
•This appliance is intended to be used in household or similar applications.
•To use your appliance with the most efficiency and safety, select a suitable place installation
according to the following:
1. This appliance is designed for free-standing installation only, and
should not be recessed or built-in.
2. The appliance should be installed on a strong level floor or
counter. If the floor is not quite level, adjust the leveling feet.

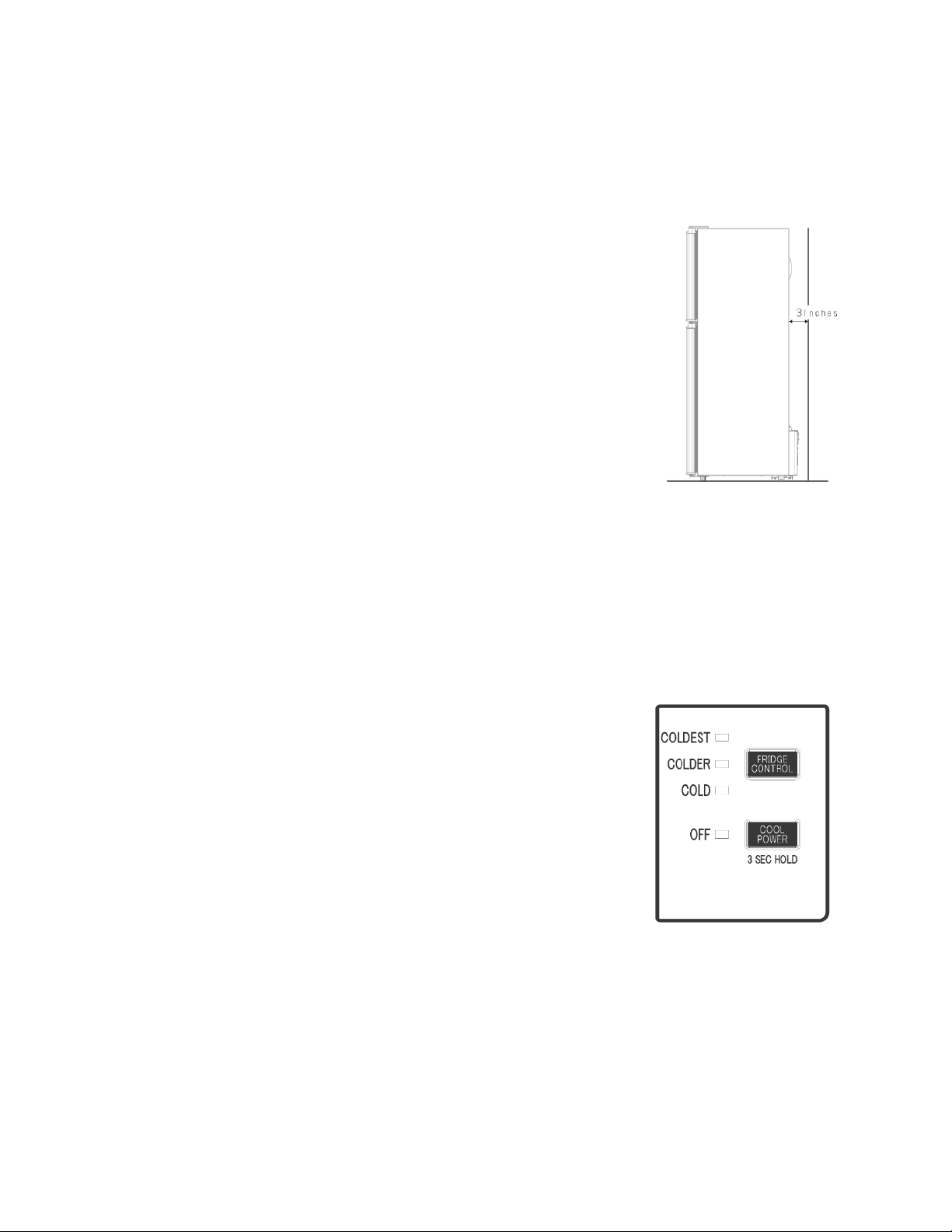

3. A minimum of 3 inches of clearance must be provided between the
rear condenser and wall. Also, allow 2 inches of space on the
sides and 12 inches on the top. If another appliance, such as a
microwave, is placed on top, allow 4 inches of space above it.
Providing greater rear wall clearance when space allows in order
to improve air circulation is recommended.
4. Avoid any direct sunlight, heat, and moisture.
5. This appliance is equipped with a three-prong plug and is
grounded to eliminate electrical hazards. In order to make it
effective, the appliance must be plugged into a ground electrical
outlet.
6. Do not use an extension cord.
TEST RUN
Before using the refrigerator, clean it and make a test run to see if the following are completed. If
not, check the electricity supply. If the cause of trouble cannot be located, contact your Summit
dealer.
1. Plug the AC cord into an electrical outlet of 115 volt, 60Hz, set
FRIDGE CONTROL to "COLDEST", and let the refrigerator operate
for 10 minutes. Cold air should flow through the discharge outlet,
and the compressor motor should run smoothly with a soft hum.
2. When the COOL POWER button is pressed for at least three (3)
seconds, the OFF-LED light turns on, and the refrigerator stops
operating. Wait at least five (5) minutes, then press COOL POWER
button for at least three (3) seconds again. The OFF-LED turns off,
and the refrigerator resumes operation. Be sure to turn off COOL
POWER OFF mode. Otherwise, the refrigerator will not operate.
3. If the FRIDGE CONTROL button is set to "COLD" after running
refrigerator for more than 100 minutes, the compressor motor will
turn off.
ATTENTION:
If the unit is turned off or unplugged, YOU MUST ALLOW FIVE (5) MINUTES BEFORE
RESTARTING OR REPLUGGING THE UNIT. The unit may not start if you attempt to restart it in
less than (5) minutes.

7
REVERSING THE DOOR SWING
Refer to the disassembly diagram, and change the door hinges in the following procedure. The
numbers in the diagram indicate the procedure order in the instructions.
1. Remove the hinge cap by twisting it off.
2. Remove the upper hexagonal head screws. The top hinge and the freezer door can now be
removed.
3. Remove the middle hexagonal head screws. The middle hinge and the refrigerator door can now
be removed.
4. Remove the cover for the middle hinge holes, and re-attach it symmetrically to the holes on the
other side.
5. Tilt the refrigerator back or lay it on its back for steps 6, 7, and 8. Use a pad or blanket to protect
the floor and to avoid scratching the painted finish.
6. Remove the leveling legs by turning them counterclockwise. Remove the lower hexagonal head
screws, two on the hinge side and one near the front corner of the other side.
7. Attach the bottom hinge symmetrically to the other side of the cabinet with the screws removed
in step 6. (Do not tighten the screws completely.)
8. Attach the left side leg and the leg spacer to the other side hole when was positioned
symmetrically.
9. Remove the upper hinge plastic pins, and insert them in the holes from which the screws were
removed in step 2.
10. Take off the hinge collar caps from both the freezer and refrigerator doors using a screwdriver
and insert them in the hinge collars on the opposite sides.

8
11. Attach the shaft to the hinge bottom. Attach the refrigerator door to the shaft.
12. Rotate the middle hinge 180o. Attach it to the refrigerator door and secure it with a screw. (Do
not tighten the screws completely.)
13. Attach the upper hinge to the freezer door. Attach the freezer door to the middle hinge and use
the screws to attach the upper hinge. (Do not tighten the screws completely.)
14. The direction in which the door opens has now been changed, however, the following points
should be checked:
a. Make sure the door is straight.
b. Make sure that there is no space between the door gasket and the refrigerator unit itself
when the door is closed.
c. Make sure that the gasket on the hinge side is not caught between the door and the unit
when the door is opened or closed. (If the door is forced closed when the gasket it caught,
the gasket may be damaged.)
When checking the above points, if it is discovered that the door is not installed properly (this is
apt to happen at the first try), loosen the screws slowly with a socket wrench. After making sure
that the door is installed correctly, tighten all the screws holding the hinge.
15. Stand the unit back in the upright position.
TEMPERATURE CONTROL
The refrigerator temperature can be regulated by adjusting the FRIDGE CONTROL. The refrigerator
temperature is the lowest when the FRIDGE CONTROL is set to “COLDEST”.
The refrigerator temperature will vary depending on the quantity of the food stored and on the
frequency with which the door is opened. Set the FIRDGE CONTROL to the “COLDEST” position
only when ice cubes are needed in a hurry.
This refrigerator may turn on and off more frequently than regular size refrigerators. This is normal
due to its compact size.
Cool Power Off
•When the COOL POWER button is pressed for three (3) seconds or more, the OFF-LED light
turns on, and the refrigerator stops operating.
•When the COOL POWER button is pressed for three (3) seconds or more again, the OFF-LED
light turns off, and the refrigerator resumes operation.
NOTE: If operation is stopped using the COOL POWER button, as described above, allow at least
five (5) minutes before restarting in order to allow the start relay to function properly.

9
REMOVING CUBES FROM THE ICE TRAY
•The ice cube tray is flexible. Twist the tray to remove ice cubes.
•Do not use boiling water or a metal instrument such as a knife or screw driver to remove ice
cubes from the tray. This may damage plastic parts.
CLEANING AND CARE
•Turn off the refrigerator and remove foods, shelves, trays, etc. Wash the interior liner with a
solution of warm water and two tablespoonfuls of baking soda per quart. Then rinse and wipe.
Do not use soaps, detergents, scouring powder, spray cleaners or the like on the liner, as these
may cause odors in the refrigerator compartment.
•Wash THE ice cube tray, drip trays and shelves in a mild detergent solution and dry with a soft
cloth.
•Wipe the exterior surface with a soft cloth dampened with soapy water and then dry with a soft
cloth. A spray appliance cleaner may be used for the exterior only.
•Use only lukewarm soapy water to clean the door gaskets.
•Never use acids, chemical thinner, gasoline, benzene or the like for cleaning any part of the
refrigerator. Boiling water and benzene may deform or damage plastic parts.
Vacation Time
•Short vacations: Leave the unit operating during vacations of less than three weeks.
•Long vacations: If the appliance will not be used for several months, remove all food and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the doors open slightly, blocking them open if necessary.
Moving Your Refrigerator
1. Remove all the food.
2. Securely tape down all loose items inside your refrigerator.
3. Tape the door shut.
4. Be sure the refrigerator stays secure in the upright position during transportation. Also protect
the outside of the refrigerator with a blanket or similar item.

10
TROUBLESHOOTING
You can solve many common freezer problems easily, saving you the cost of a possible service call.
Try the suggestions below to see if you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
The appliance does not operate.
The unit is not plugged in
The circuit breaker has tripped, or a fuse has
blown.
The appliance temperature control is set at
"OFF".
The appliance turns on and off frequently.
The room temperature is warmer than normal.
A large number of items have been added to
the appliance.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The appliance does not have the correct
clearances.
Vibrations
Check to be sure the appliance is level.
The appliance seems to make too much noise.
A rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The appliance is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
Shelves, bins, or baskets are out of position.
If your appliance shows other symptoms than those described above, or if you have checked all
items listed as the cause and the problem still exists, then call SUMMIT® Customer Service at
1-800-932-4267.

11
NOTES

12
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this unit is operated and
maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-
specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a
designated service company. Outside the 48 states, all parts are warranted for two years from manufacturing
defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable
standards and are not covered from damage during handling or breakage.
FIVE-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for five years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your equipment, to instruct you how to use your equipment, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace unit light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the unit.
6. The removal and reinstallation of your unit if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO
THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO
STATE.
Part No. ARAKUA100220 Printed in Mexico
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com

LLF2 Combination Cam Lock Instructions
I. Manufacturer’s combination
The manufacturer has set the combination code at 0-0-0-0.
II. Resetting the combination
a. Make sure the digit wheels are set at the correct code so that
the housing turns freely. The cam should be engaged so that
the doors of the appliance cannot open.
b.
Use a screwdriver or other tool to push down and hold the reset
button until you have entered your new code. (Fig. 1)
c. Turn the four digit wheels to your new combination code, then
release the reset button.
d. Make sure the housing is able to turn freely at the new setting.
Code setting is complete.
III. To lock
While the lock is in the unlocked position (i.e., the housing can be
turned by hand), randomly set the digit wheels to lock. (Fig. 2)
IV. To unlock
Turn the digit wheels to the correct code to unlock. (Fig. 3)
V. Use key to unlock
You can use the key to unlock if you forget the combination.
a. Insert key into the barrel. (Fig. 4)
b.
Turn the key 90 degrees to unlock. If the key is used to unlock,
the cam will also turn 90 degrees when the key is rotated.
However, the digit wheels will not rotate.
Randomize the
digit wheels
LLF2 combination
lock installed
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
PARTS
cam
housing
barrel
digit wheel
reset button
screwdriver
or other tool
