Sun Mountain Speed Cart V2 User manual

Speed Cart
®
V2
User's Guide
To take full advantage
of the ergonomic features
of your new Sun Mountain
Speed Cart, please read
the following information.
SUNMOUNTAIN

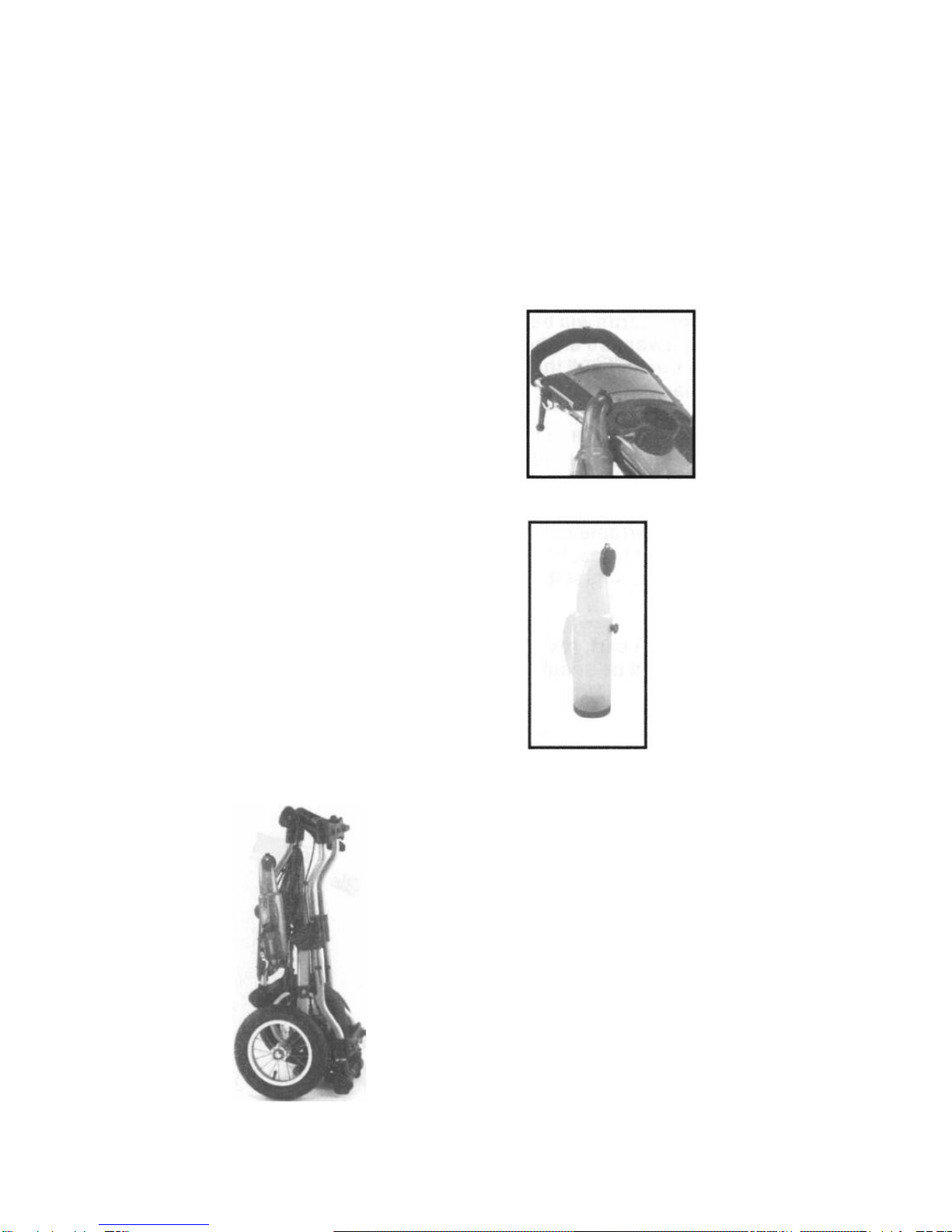

Your Speed Cart V2 has several
innovative features designed for
convenience, easy access and use.
A padded valuables box,
magnetic lid and ball
alignment marker
Sand and Seed Bottle
Folds down
in seconds to
fit in your
trunk.
1

INSTRUCTIONS FOR OPERATION OF THE SPEED
CART V2

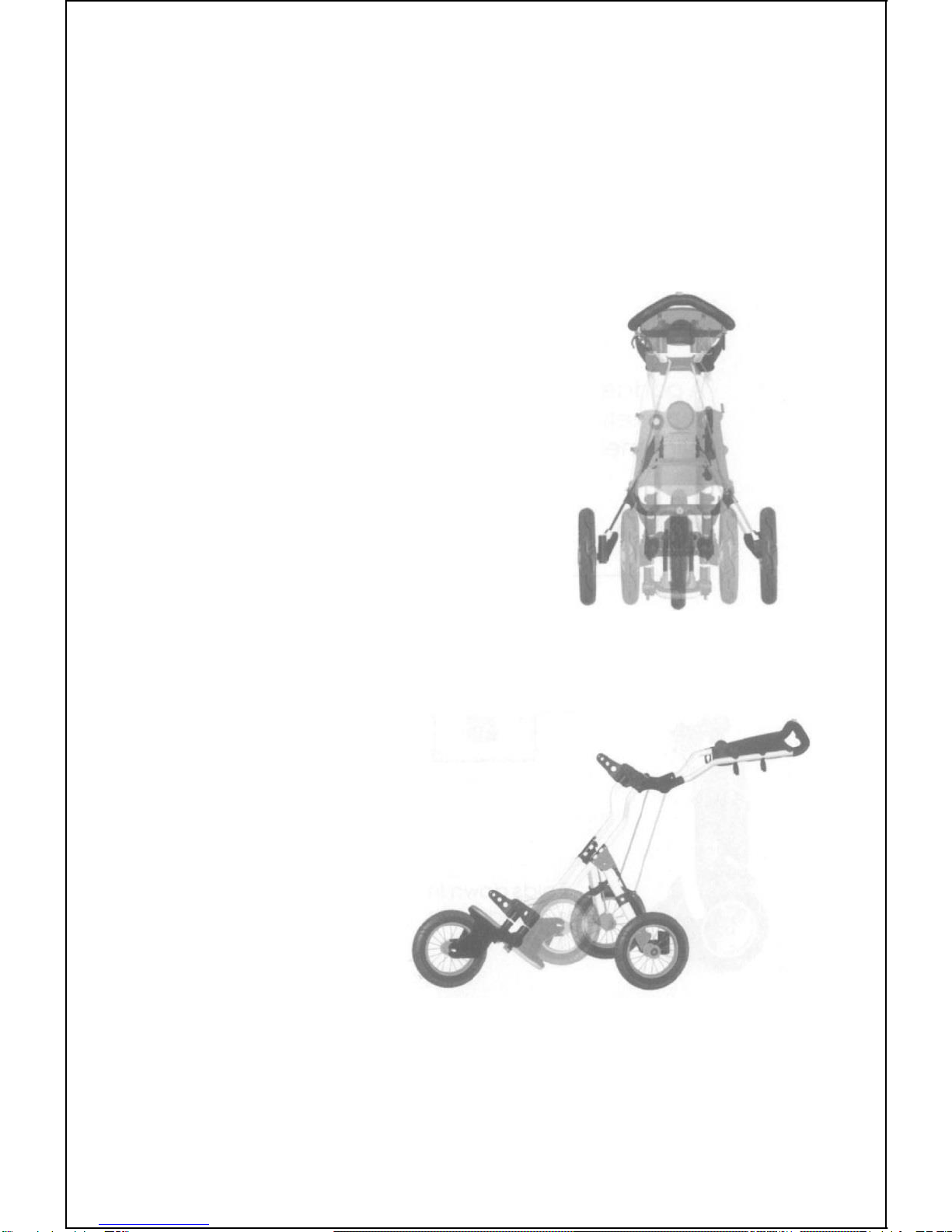

STEP ONE: UNFOLDING YOUR CART
1. To open and adjust your cart’s steering
handle, unscrew the black triangle twist
knob at the base of the handle (several
turns will be sufficient), tilt the cart
forward so all the weight rests on the
front tire and pull the handle out to
extend the back wheels.
2. To unfold the cart's front wheel, loosen
the black triangular twist knob located
on the side of the front wheel so the
wheel can pivot freely. Then fully
extend the front wheel and securely
tighten the twist knob to lock the front
wheel in position.
Tips:
1. The height of the
handle can be adjusted
at any time to a height
that is comfortable for
you. To do so, loosen
the handle twist knob
several turns, tilt the
cart forward to take
weight off the back
wheels, adjust the
handle height and
retighten the twist knob.
2. To unfold the cart,
reverse steps one and two above. Both twist knobs should
be securely tightened when the cart is folded.
2

STEP TWO: LOADING YOUR GOLF BAG ON THE CART
Unfold the upper and lower bag brackets, loosen the four thumb screws
on the side of the brackets, place your golf bag on the cart and retighten
the thumb screws until the brackets fit the size of your bag. This
adjustment only needs to be made once. The bottom of your golf bag
should be resting on the U-shaped bag support.
USING YOUR UMBRELLA HOLDER AND UMBRELLA
STORAGE LOOPS:
The Speed Cart V2 comes with an umbrella holder that is clipped on
the side of the handle tube and an umbrella holder mount that is
located on the handle grip. To use your umbrella, screw the umbrella
holder clockwise onto the umbrella holder mount. Then place your
umbrella handle inside the holder. If you are using a Sun Mountain
umbrella you can use the bungee cord to secure the umbrella handle
in the holder.
When you are not using your umbrella you may store your umbrella in the
loops attached to the side of the cart. Insert the tip of your umbrella into
the web loop behind the lower bag bracket and secure the top of the
umbrella with the Velcro® web loop near the upper bag bracket.
Umbrella
Holder
Umbrella Holder
Bungee w/ Clasp
Mount
6.4mm Washer
HandI
Tube
3

ADJUSTING THE ALIGNMENT:
All Speed Carts go through alignment testing before they are
shipped. However, if your cart is not rolling straight you can
adjust the alignment with the adjustment knob. First, loosen the
two screws beside the adjustment knob. If your cart goes right,
turn the knob clockwise. Conversely, if your cart goes left, turn
the knob counter-clockwise. When you are satisfied with the
alignment, tighten the screws to set the wheel’s position.

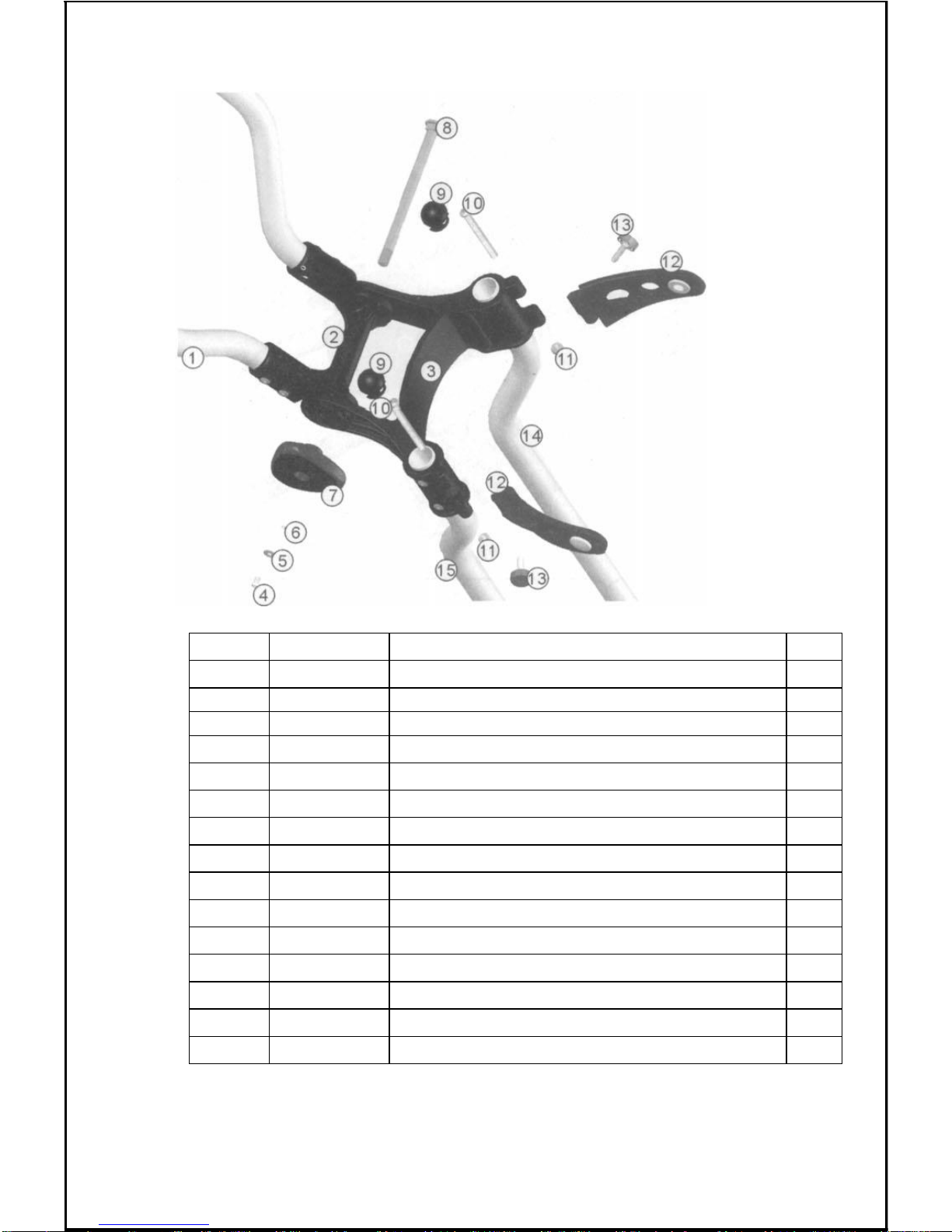

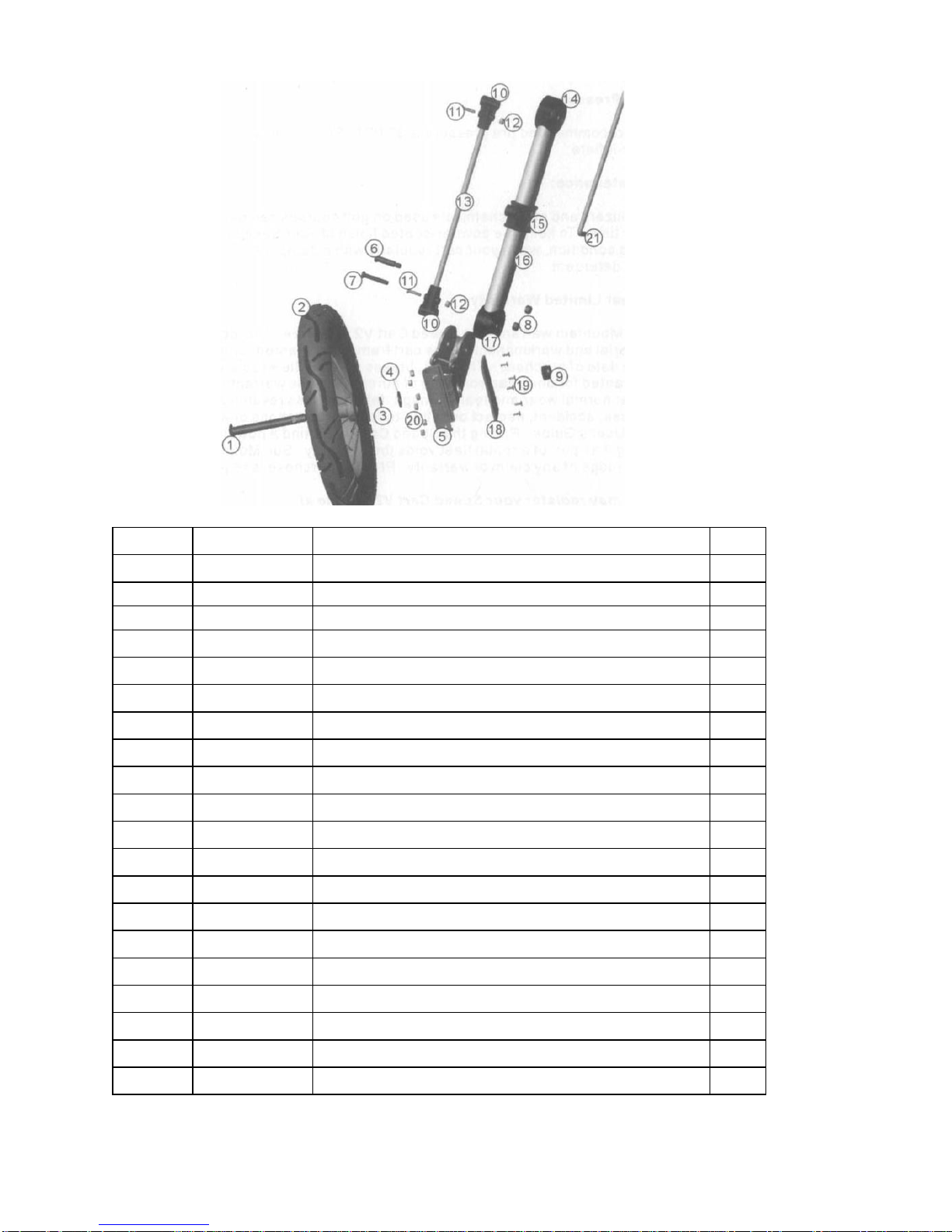

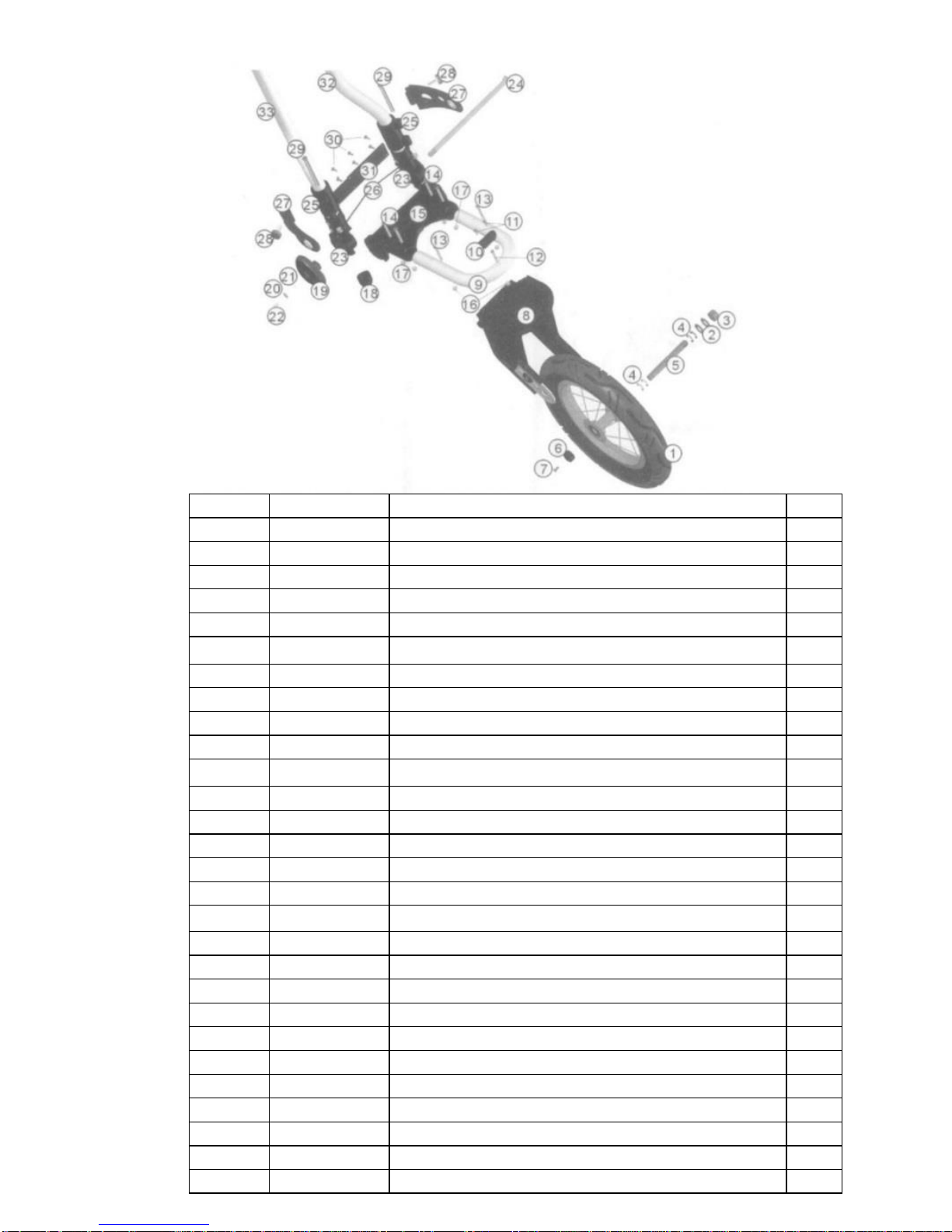

Item #
Part #
Description
Qty
1
006-001
Fork (includes tracking hardware)
1
2
005-101
M5-0.8x12mm Hex Screw
2
3
005-123
M5-0.8x15mm Hex Screw
1
4
005-102
5mm Flat Washer
3
5
005-099
Adjustment Knob
1
6
007-098
Axle Adjustment Plate
1
7
005-105
Axle Retainer Cap (color specific)
1
8
005-118
M5-0.8x8mm Phillips Pan Head Screw
1
9
005-100
Front Axle
1
10
009-505S
Foam Tire Wheel Assembly (silver rim)
1
11
MC1-233
9mm E-clip
4
12
005-106
M5 Nut Plate
1
13
SV1-221
M5-0.8 Nylock Nut
1
14
005-021a
12mm Flat Washer
2
15
005-031
M12-1.75 Nylock Nut
1
4

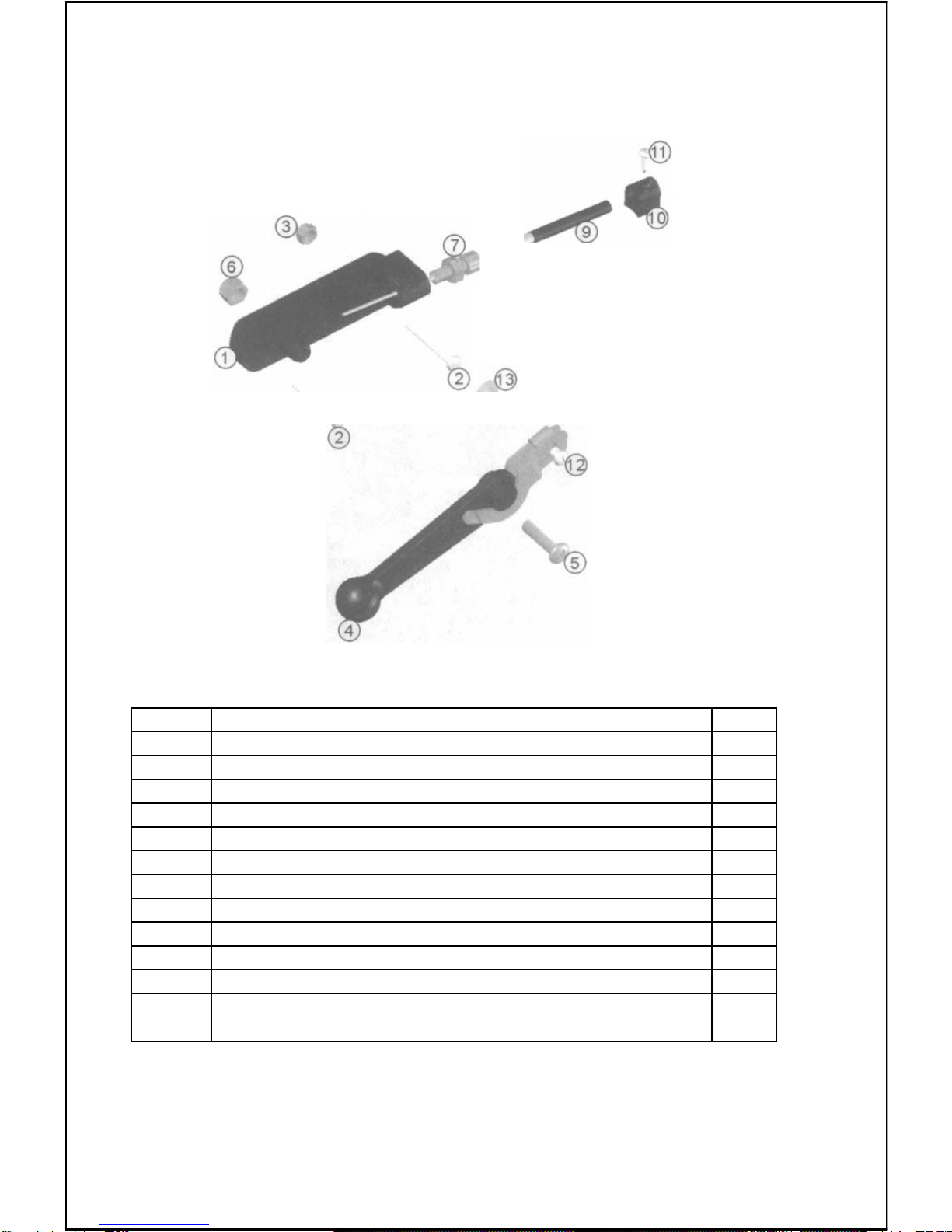

BRAKE PARTS:
®
Item #
Part #
Description
Qty
1
MC1-338
Brake Lever Mount
1
2
MC1-268
M4-0.7x35mm Phillips Pan Head Screw
2
3
SV1-225
M4-0.7 Nylock Nut
2
4
MC1-902
Brake Lever with Linkage
1
5
MC1-270
M6-1.0x22mm Phillips Pan Head Screw
1
6
SV1-202
M6-1.0 Nylock Nut
1
7
MC1-903
Brake Cable Adjustment Stud and Nut
1
8
005-420
Brake Cable Kit and Hardware
1
9
Refer to 8
Brake Cable Sheathing
1
10
SV1-306
Brake Cable Sheathing Clip
6
11
MC1-273
3x10mm Phillips Pan Head ST Screw
6
12
MC1-274
M4x5mm Phillips Pan Head Screw
1
13
MC1-275
Brake Cable Stud
1
5

The hand brake is set to hold a 50-pound load on a 25% grade. If you find
your manual brake is not holding, first check the tire pressure on the front
tire to make sure it is at 30 PSI. If the tire pressure is correct and the brake
is not holding, you may need to tighten the brake cable. To tighten, set the
brake lever to the down position, remove slack from the cable by turning
the cable adjustment bolt (item 8) counter-clockwise, then setting the nut to
hold it in place.
If all of the slack is already pulled out of the cable (the cable adjustment
bolt is turned as far counterclockwise as possible) loosen the nut on the
cable clamp bolt, turn the cable adjustment bolt clockwise until all threads
are all the way in, press the brake cam against the tire, pull all the slack out
of the cable and tighten the cable clamp bolt. You should now have
sufficient adjustment in the cable adjustment bolt/nut to properly set the
brake.
Item #
Part #
Description
Qty
ALL
007-404
V2 Full Brake Kit
1
1
Refer to kit
Brake Shaft (kit required)
1
2
007-202
Brake Cam
1
3
Refer to kit
Brake Shaft Bushing (kit required)
1
4
Refer to kit
Brake Throw (kit required)
1
5
Refer to kit
Brake Throw Bolt (kit required)
1
6
Refer to kit
Brake Cable (kit required)
1
7
Refer to kit
Brake Spring (kit required)
1
8
Refer to kit
Brake Cable Mount (kit required)
1
9
Refer to kit
Brake Throw (kit required)
1
6

Item #
Part #
Description
Qty
1
006-004_
Handle Tube (color specific)
1
2
007-402L
Full Accessory Tray
1
3
007-402L
Full Accessory Tray
1
4
007-005
Accessory Tray Lid Kit
1
5
007-005
Accessory Tray Lid Kit
1
6
007-006
M4x28mm Phillips Pan Head Screw
4
7
007-007
M4x32mm Phillips Pan Head Screw
2
8
007-008
M4 Nut Plate
4
9
SV1-903B
Umbrella Holder Clip Kit
1
10
SV1-225
M4-0.7 Nylock Nut
2
11
007-011
Umbrella Holder Mount
1
12
SV1-209
6.4mm Washer
1
13
007-013
M6.35x25.4mm Phillips Pan Head Screw
1
14
009-128
Foam Handle
1
15
005-126
Grass Seed Clip and Screw
1
16
007-019
4X10mm Phillips Pan Head Screw
11
17
007-020
M3x8mm Phillips Pan Head Screw
2
18
007-021
M3 Nylock Nut
2
19
MC1-902
Brake Lever Assembly
1
7

Item #
Part #
Description
Qty
1
006-004_
Handle Tube (color specific)
1
2
006-066
Handle Pivot
1
3
006-007
Upper Pivot Fitting
1
4
005-408C
Twist Knob/Draw Bolt Kit Required
1
5
005-408C
Twist Knob/Draw Bolt Kit Required
1
6
005-408C
Twist Knob/Draw Bolt Kit Required
1
7
005-408C
Twist Knob/Draw Bolt Kit Required
1
8
005-408C
Twist Knob/Draw Bolt Kit Required
1
9
009-019
Tube End Plug
2
10
007-034
M6x55mm Phillips Pan Head Screw
2
11
SV1-202
M6-1.0 Nylock Nut
2
12
SV1-912_
Bag Bracket (color specific)
2
13
MC1-315
Thumb Screw
2
14
NA
Main Frame Tube
1
15
NA
Main Frame Tube
1
8

Item #
Part #
Description
Qty
1
NA
Main Frame Tube (left)
1
2
NA
Main Frame Tube (right)
1
3
007-042
Mid fitting (left)
1
4
007-043
Mid Fitting (right)
1
5
007-044
Mid Fitting Brace
1
6
SV1-221
M5-0.8 Nylock Nut
4
7
SV1-202
M6-1.0 Nylock Nut
6
8
005-506C
Air Pump Clip Kit (includes pump)
2
9
MC1-273
M3x10mm Phillips Pan Head ST Screw
2
10
005-095
M5-35mm Phillips Pan Head Screw
4
11
007-054
M6x28.2+11.8mm Set Screw
2
12
009-087
M6x40mm Phillips Pan Head Screw
2
13
007-051
M6x26.4-13.6mm Set Screw
2
9

Item #
Part #
Description
Qty
1
009-505S
Silver Foam Tire Wheel Assembly
1
2
005-021A
12mm Flat Washer
2
3
005-031
M12-1.75 Nylock Nut
1
4
MC1-233
9mm E-clip
4
5
005-100
Front Axle
1
6
005-105_
Axle Retainer Cap (color specific)
1
7
005-118
M5-0.8x8mm Phillips Pan Head Screw
1
8
006-001
Fork
1
9
007-065
V2 Bag Support (includes hardware)
1
10
NA
Rubber Cushion
1
11
006-012
3x8mm Phillips Pan Head ST Screw w/washer
2
12
006-013
M4x30mm Phillips Pan Head Screw
1
13
MC1-268
M4x35mm Phillips Pan Head Screw
2
14
007-108
M5x35mm Phillips Pan Head Screw
4
15
006-017
Lower Loop Fitting
1
16
SV1-225
M4x0.4 Nylock Nut
3
17
SV1-221
M5X0.8 Nylock Nut
4
18
007-068
Rubber Stand
2
19-22
005-418C
Twist Knob, Set Screw, Washers
1
23
006-019
Lower Pivot Fitting
2
24
007-073C
Lower Milled Draw Bolt
1
25
007-075
Bag Wrap Support
2
26
SV1-202
M6-1.0 Nylock Nut
2
27-28
SV1-912G
Bag Wrap Arm (gray)
2
29
007-079
M6X70mm Phillips Pan Head Screw
2
30
006-015
3x12mm Self Tapping Screw
8
31
006-020
Lower Loop Fitting Plate
1
32-33
NA
Main Frame Tube
10

Item #
Part #
Description
Qty
1
007-081
Rear Axle
1
2
009-505S
Silver Foam Tire Wheel Assembly
1
3
MC1-233
9mm E-clip
1
4
005-021A
12mm Flat Washer
1
5
007-084P
Wheel Fitting (Left)
1
6
006-016
M6x28.2+9.3mm Set Screw
1
7
005-087
M6x38 Phillips Pan Head Screw
1
8
SV1-202
M6-1.0 Nylock Nut
2
9
005-031
M12-1.75 Nylock Nut
1
10
007-407
Parallel Rod Kit
1
11
007-097
M4-20mm Phillips Pan Head Screw
2
12
005-033A
M4-0.7 Nylock Nut
2
13
007-407
Parallel Rod Kit
1
14-17
007-407_
Outrigger Support Block (Outrigger Tube Kit )
1
18
006-021
Wheel Fitting Plate
1
19
007-020
M3x8mm Phillips Pan Head Screw
6
20
007-021
M3 Nylock Nut
6
21
007-109
Rod Link (left)
1
No Pic
007-109A
Rod Link (right)
1
No Pic
G295026
Bottle Holder (accessory)
1
11

Maintenance:
Fertilizers and other chemicals used on golf courses can be
corrosive over time. To keep the powder-coated finish of your
Speed Cart in good condition, wash your cart regularly with a damp
wash cloth and mild detergent.
Limited Warranty:
Sun Mountain warrants the Speed Cart V2 to be free of defects in
materials and workmanship. The cart frame (two parallel tubes
from the handle to the wheel) is warranted for 3 years from date of
purchase. Other parts such as the tires, brakes, handle wrap, etc.
are warranted for 1 year from date of purchase. This warranty does
not cover normal wear and tear, damage, failure or loss resulting
from misuse, accident, neglect or failure to follow instructions or
warnings in this user’s guide.
IMPORTANT!
Pulling the Speed Cart V2 behind a power cart or using it as part of
a rental fleet voids the warranty. Sun Mountain is the sole judge of
any claim or warranty. Proof of purchase is required.
Warranty Registration:
Please register your item by visiting our Customer Care section at
www.sunmountain.com
Claim Procedure:
If you have a claim covered by the warranty, please call our
customer service staff to identify and resolve the problem.
If it is deemed necessary to return your cart, a return authorization
number will be provided by the customer service agent. This
number MUST be included on the product or package being
returned.
For claim information, please call 1-800-227-9224.
12

For customer service or replacement parts
call 1-800-227-9224
Visit our web site at
www .sun mountain.com
SUNMOUNTAIN
®
301 N. 1st. Street W.
Missoula, MT 59802
