Sun-Tech STH 1500?01 Chy User manual
SunTech Portable Heater
User’sManual
ModelSTH1500‐01Chy
ModelSTH1500‐01Map
ModelSTH1500‐01Oak
ModelSTH1500‐01Wal
FORINDOORUSEONLY
120VAC15AMPDEDICATEDCIRCUIT
CarefullyandthoroughlyreadthismanualbeforeusingtheSunTech
PortableHeaterforthefirsttime.Werecommendkeepingthismanual
forregularreviewandfuturereference.
1
Introduction
SunTech Portable Heaters utilize the latest infrared heat technology. SunTech Portable Heaters
provide a safe, convenient, clean, and economical way to distribute heat throughout your home or
business without producing the deadly fumes or monoxide gases. Our heating system can
produce therapeutic infrared heat that can potentially relieve symptoms of cardiovascular
conditions and inflammatory diseases. Infrared heat technology, in general, produces rays that are
safe and highly beneficial to our bodies and health professionals have been using infrared
technology for decades to treat muscle and joint pains.
The SunTech Portable Heaters are constructed of a wood housing. They come in walnut, cherry,
oak, and maple finishes. They are equipped with nylon caster wheels for easy mobility. And the
highly efficient filter can be maintained and cleaned by simply rinsing with water.
Safety
SAVE THESE INSTRUCTIONS
Electrical safety is essential to keeping your home safe. When using an electrical appliance, basic
precautions should always be followed to reduce the risk of fire, electric shock, and injury to
persons. Please adhere to the following safety instructions:
Always read all instructions before operation.
The heater must be operated by an adult. Keep the heater out of the reach of children.
Only operate the heater when it is on the floor.
Do not operate heater near any water.
Do not plug heater into any other cord connected device such as power strip, surge
protector, multiple outlet adapter, grounding adapter, outlet-type air fresheners or extension
cords. Plug the heater cord directly into a 3-prong 120V 15 amp grounded circuit
receptacle.
Never plug heater cord into a loose fitting or broken receptacle.
Never alter the heater’s design or operation. Such actions will void warranty.
Do not operate the heater with a damaged cord or plug.
Do not operate the heater if there are signs of malfunction. If the heater has been dropped
or damaged, do not operate.
IMPORTANT INSTRUCTIONS
2
Keep combustible materials such as furniture, pillows and other bedding materials, paper(s),
clothing, curtains at least three feet away from all sides of the heater during operation.
Always unplug heater when not in use.
Do not use the heater outdoors.
Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Route cord away from traffic
area.
Do not use the heater in bathrooms, laundry rooms, or similar indoor locations.
Turn off heater before unplugging.
Do not insert any foreign object or allow foreign object to enter the ventilation opening or
exhaust opening as this may cause electric shock, fire, and/or injury.
Never block the air intake or exhaust opening in any manner as this could lead to fire.
Do not locate heater, when in use, immediately below a receptacle.
Never operate heater in or around a bathtub, shower, or swimming pool.
Only open heater if instructed by an authorized representative of the manufacture. There
are limited user-serviceable parts inside.
Use heater only as described in this manual. Any other use is not recommended by the
manufacture as it may lead to fire, electric shock, and or series physical injury.
Heater Specifications
SunTech Heater Model STH 1500-01/WI-0035
Carton Size: 18.9 in x 17.3 in x 18.1 in
Heater Size: 16.3 in x 14.8 in x 14.8 in
Net Weight: 28.6 lbs
Gross Weight: 35.2 lbs
Cabinet: ¾ ply – Cherry, Maple, Oak, Walnut
Power Cord: 8 ft / 14 gauge
“HI” Function: 1500 watts
“LOW” Function: 750 watts
Power Requirement: 120V 15 amp
BTU: 5600
Heat Type: Therapeutic Quartz Infrared Heat
Heating Elements: 4 Infrared Quartz Bulbs w/ Nickel-Chrome Filament
Heating Elements Life Expectancy Potential: Rated 20,000 – 30,000 hrs
Thermostat: Electronic Analog
Fan System: Cross Flow Fan
Fan Noise Level: 46 db
Heat Chamber with Diathermanous Copper Plate
Delayed Start Function
Remote Control
Electrostatic Washable Filter
Warranty: Limited 3-yr Parts Warranty
3
How It Works
In short, room temperature air circulates from the rear of the SunTech Portable Heater, passes
through a highly efficient filter and enters a chamber that houses the Infrared Quartz Bulbs, and
exits as heated air from the Diathermanous Copper Plate constructed on the front of the unit. And
it does all this with a noise level below 46db and can potentially heat up to 1000 square feet.
Components and Functions
A. The SunTech Portable Heater is constructed with four Infrared Quartz Bulbs. Each Infrared
Quartz Bulb rates at 375W. These bulb can produce therapeutic infrared rays that warm
the air which passes through the inner chamber. The Infrared Quartz Bulbs are constructed
with a stainless steel thermal conducting housing. The incorporated twisted style increases
the efficiency of the unit.
B. An AC Cross Flow Fan pushes air over these Infrared Quartz Bulbs. Cross Flow Fans
create a wide flow of air using a cylindrical-shaped impeller. Air is drawn inside the
SunTech Portable Heater, flows along the circumference of the chamber and over the
Infrared Quartz Bulbs, and is blown out laterally creating a uniform flow of warm air.
C. The SunTech Portable Heater has a Delay Start Function which controls the AC Cross Flow
Fan. The purpose of the Delay Start Function is to allow the Infrared Quartz Bulbs to heat
up before the fan begins to circulate the air flow. In addition, the AC Cross Flow Fan will
continue to circulate the airflow after the power is turned off to circulate the warm air from
the SunTech Portable Heater.
D. The air flow exits through the front of the SunTech Portable Heater. It travels from the
Diathermanous Copper Plate. The Diathermanous Copper Plate is constructed from red
copper making it advantageous for efficient thermal conductivity. It is a resourceful material
in reflecting the infrared rays.
E. A LED Digital Display is a convenient, stylish, and modern way to display the temperature
and timer. This attractive addition compliments the SunTech Portable Heater, in that, it
simplifies and makes controlling the unit easy. Operating the heater is logical and can be
done on the unit itself or by remote.
F. The SunTech Portable Heater was designed with safety features. One such feature is the
Overheat Automatic Shutoff that shuts the heater off should heat rise above the prescribed
4
limit. Another feature is that if for any reason there is a power outage while the heater is
operating, the heater will remain off even when the power is restored. These are all safety
feature incorporated into the design of the SunTech Portable Heater.
Unpacking the SunTech Portable Heater
1. First, check the carton to make sure there are no obvious damages that may have occurred
during shipment.
2. Open the SunTech Portable Heater packaging and remove the heater by sliding it from the
box. You may want to gently and cautiously turn the entire box upside down letting the
heater slowly slide out.
3. Remove all the protective materials from the heater. It may be a good idea to keep the
protective materials and packaging for easy storage during the off-season.
Operating Instructions
Visually inspect the SunTech Portable Heater for any damages before operation. Do not
operate the heater if any damages are detected. Contact your dealer immediately.
1) Plug the power cord directly into a conventional 120V 15 amp outlet and press the master
power button on the rear of the portable heater. Then press the power button on the front
control panel. The LED display will show the default value as 720F.
After about (5) seconds, it will switch to the current ambient temperature. (Note: If the
current ambient temperature is greater than the set temperature, the HI/LOW fan function
will not operate.)

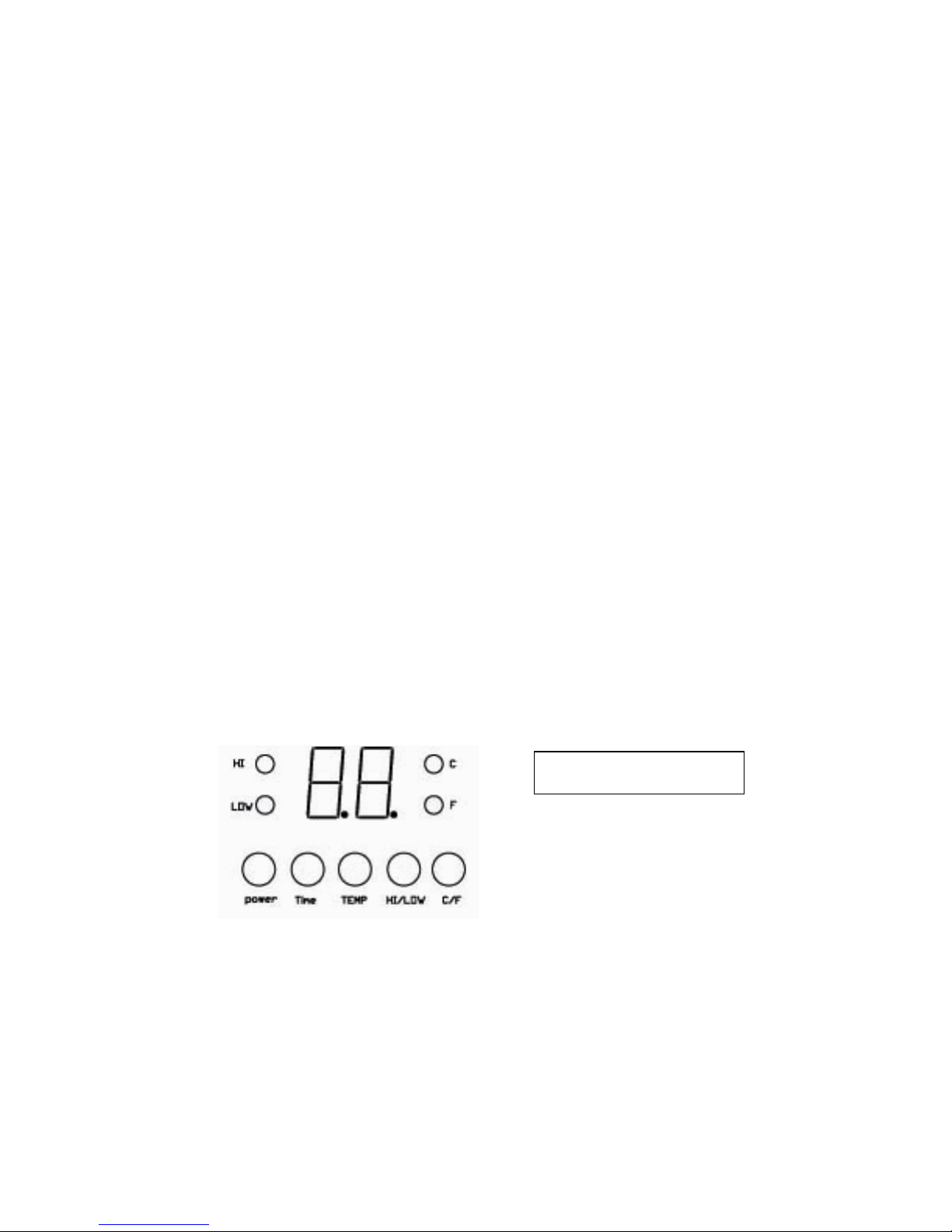

Function Display
5
2) By pressing the C0/F0button, you can switch the temperature format from Celsius to
Fahrenheit and vice versa.
3) By pressing the “TIME” button, the LED display will switch from the temperature status to
the time status. The default time displayed will be 8.0 Hr. You must press the “TIME”
button once again within (5) seconds to set the time. Each time you press the “TIME”
button, the time will increase by 0.5 Hr. The maximum value for time is 8.0 Hr. Once you
reach 8.0 Hr., the time will return to 0.5 Hr again. By holding down the “Time” button for (2)
seconds, the rotation will be quicker. If you do not press the “TIME” button within (5)
seconds, the time status will switch back to the temperature status.

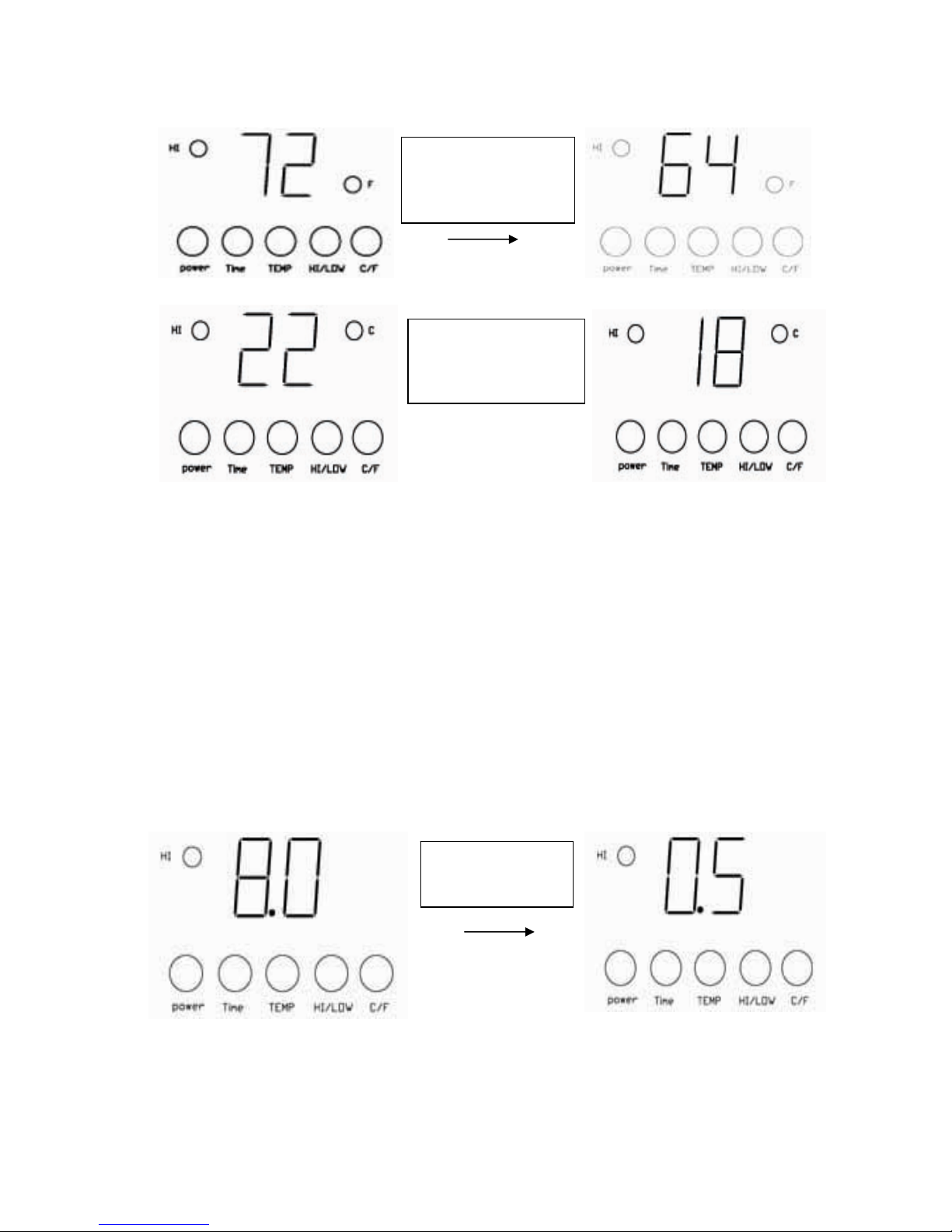

5 seconds later the
value switches to
ambient temperature
(Fahrenheit)
5 seconds later the
value switches to
ambient temperature
(Celsius)
Within (5) seconds,
Press the “TIME”
button twice.
6
4) Again, default temperature displayed on the LED display is 720F. By pressing the “TEMP”
button within (5) seconds from turning the power on, the temperature setting will increase
by 10F. If you hold the “TEMP” button for (2) seconds, the rotation will be quicker. The
maximum temperature setting is 850F (320C).
5) The default for “HI/LO” is “HI”. Press the “HI/LO” button to switch from “HI” to “LOW”.

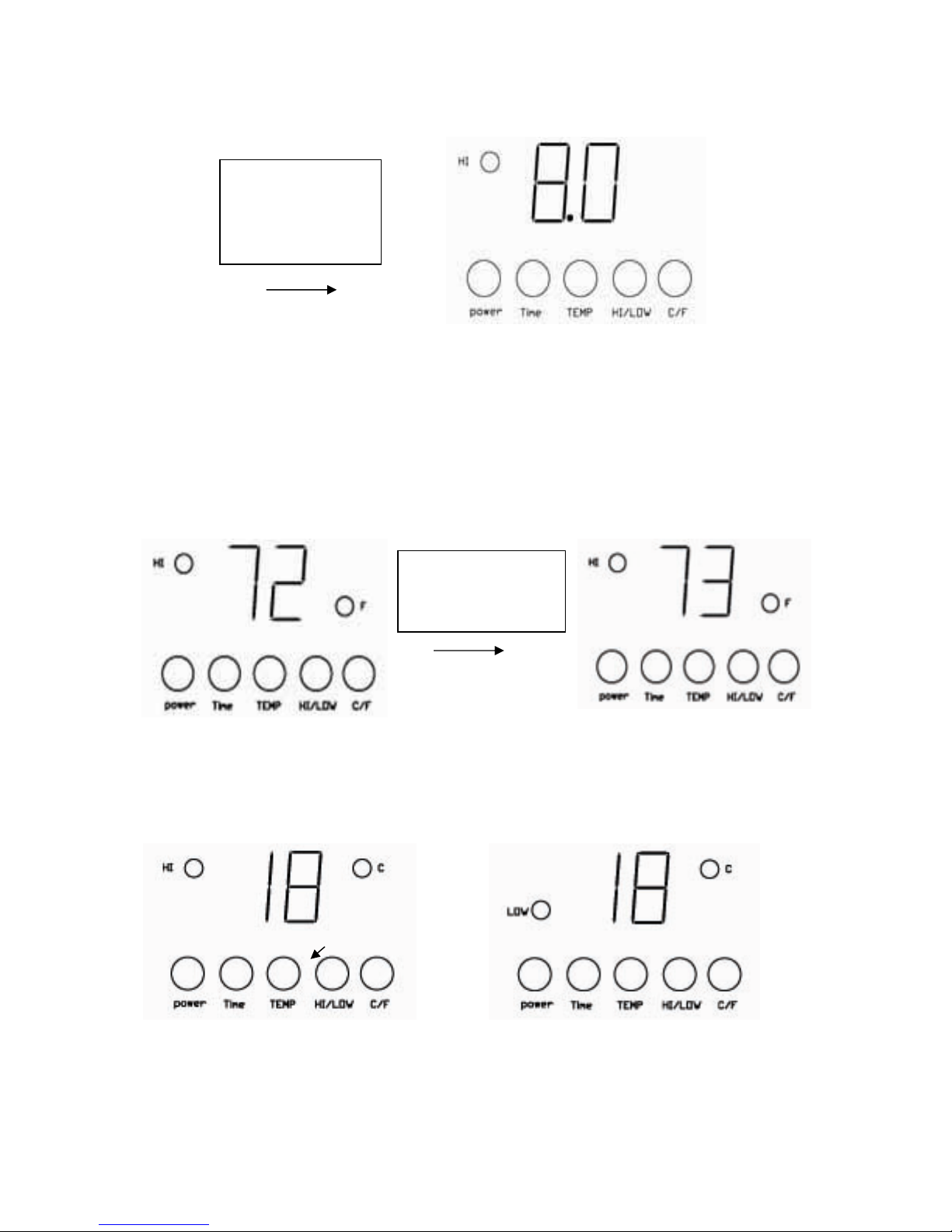

Within (5) seconds,
hold the “TIME”
button and the
rotation from 0.5 Hr to
8.0 Hr will be quicker.
Within (5) seconds,
Press the “TEMP”
button to increase by
10F or 10C.
7
6) The SunTech Portable Heater can be turned off by pressing the “POWER” button. If the
heater is left on, there will be (5) second sound alert to let you know that the time is expiring.
If no actions are taken, the heater will shut off.
Recommendations for Maximum Performance
1. The SunTech Portable Heater can heat a room up to 1000 square feet. Be sure not to
place the heater in an area where the air flow or air movement is great.
2. Direct the outflow towards the center of the room and not against a solid structure, like a
wall for example. For larger areas, place the heater within a central location.
3. The SunTech Portable Heater is designed for maximum efficiency in the 680 F to 770F
range. This is because of the ambient air moving through the heater and out constantly.
4. Existing HVAC heating system vents should be closed. This allows the heater to function in
an isolated area.
5. It is not recommended to operate heater in areas exposed to non-insulated concrete or
metal walls. Concrete floors should be covered to insulate the heat within the room.
6. If the heater filters become dirty or dusty, they must be cleaned for the heater to operate to
its maximum efficiently.
Care, Maintenance, and Storage
Before care or maintenance is applied, always unplug the cord from the receptacle. The cabinet
housing can be wiped down with water and a damp cloth or with furniture polish. The heater has a
washable filter. The filter should be cleaned regularly to provide for maximum performance. Once
the filter is removed, run warm water through and over the filter to remove dirt and dust. Shake all
water residue from the filter and replace it back in the heater. (Note: A mild soap can be applied to
assist in removing dirt and dust from the filter)
If the heater is not to be used for an extended period of time, it can be stored away. Make sure the
power is turned off and the cord is unplugged from the receptacle. Wrap the cord around the
handle on the rear of the portable heater. Cover the heater to prevent dust from accumulating on
the heater. You may want to pack it back in its original carton. Always store the heater in a dry
and dust free environment.
(Note: You may want to clean the filter prior to storing the heater away so that it is ready for
operation the next time it is put in use.)
8
Troubleshooting
1. PROBLEM:
a. If the Heat Emitter is broken or damaged
b. If the Control Panel is not responding, the temperature reading is above 850F/320C, or there
is a burning odor coming from the portable heater
c. Or if the power cord is damaged
SOLUTION: Contact the manufacture immediately. DO NOT attempt to operate the portable heater
as this may cause electric shock, fire, and/or injury.
2. PROBLEM:
a. The amount of heated air exiting the front of the portable heater is reduced.
SOLUTION: Check the electrostatic filter to make sure it is free of dust and dirt. Also
check the front grill and rear air intake to make sure it is not being blocked by any kind of
debris.
3. PROBLEM:
a. The portable heater will not turn on.
SOLUTION: First, test your outlet to make sure it has power. You can do this by plugging in
another appliance and turning the appliance on. Secondly, check the LED display to see if it is
flashing. If this is the case, press the POWER button to turn off the timer and resume normal
operation of the portable heater. Third, check the power switch to see if it is lighting up. If the outlet
does have power, the LED display is not flashing, or the power switch is not lighting up, then contact
the manufacture immediately for further troubleshooting.
4. PROBLEM:
a. The portable heater continues to operate even when the power switch is turned off.
SOLUTION: Do not unplug. The portable heater has a fan that will continue to operate even when
the power switch is turned off. This fan continues to run in order to cool down the portable heater.
Once the fan stops running, you can then unplug the portable heater.
5. PROBLEM:
a. The control panel displays no temperature or timer.
SOLUTION: First, check to make sure the power cord is not damaged, is plugged in, and the outlet
has power. Secondly, check to make sure the control panel is not damaged. If the control panel
display continues to be inoperable, contact the manufacture for furthering troubleshooting.
9
6. PROBLEM:
a. The control panel is displaying a temperature and timer, but the portable heater does not
operate.
SOLUTION: The Signal Cable or other relevant plugs may have become disconnected. Please
contact the manufacture for further troubleshooting.
7. PROBLEM:
a. The heat emitter is functioning and the air outflow is working, but the temperature displayed
on the LED panel does not increase.
SOLUTION: The temperature sensor may be damaged or has become disconnected. Please
contact the manufacture immediately for further troubleshooting.
10
Warranty
3YearLimitedWarranty:TCUnlimited,Inc.warrantiestheheatingelementsandelectronicsagainstdefectsinmaterialand
workmanshipforaperiodofthreeyearsfromtheoriginaldateofpurchase.ThisportableheaterisforINDOORuseonly.
OperatingyourportableheateroutdoorswillVOIDthiswarranty.Anydamageduetoexposuretooutdoorelementssuchasrain,
snow,sun,windorextremetemperatureswillnotbecoveredbythiswarranty.
ExtentofWarranty
ThislimitedwarrantyappliestoproductsmanufacturedordistributedbyTCUnlimited,Inc.Inc.,undertheSunTechSaunabrand
name,deliveredinthecontinentalUnitedStatesorCanadaandextendstotheoriginalpurchaseronly.Thiswarrantybecomes
validattimeofpurchaseandterminateseitherbyspecifiedtimeframelistedaboveand/orownertransfer.Yoursalesreceipt
showingthedateofpurchaseoftheproductisyourproofofpurchase.
Manufacturer Warranty
AllTCUnlimited,Inc.andSunTechproductsaremanufacturedwiththehighestqualitymaterialsandarewarrantedtobefreefrom
defectsinmaterialandworkmanshipatthetimeofpurchase.Theappliancewarrantyisextendedthroughthemanufacturerofthe
product.AllexchangedpartsandproductsreplacedunderthiswarrantywillbecomethepropertyofTCUnlimited,Inc.and/or
SunTech.TCUnlimited,Inc.andSunTechreservetherighttochangemanufacturesofanyproductparttocoveranyexisting
warranty.AnypartsdeterminedtobedefectivemustbereturnedtoTCUnlimited,Inc.toobtainwarrantyservice.Youmustprepay
anyshippingcharges,exporttaxes,customdutiesandtaxes,oranyotherchargesassociatedwiththetransportationoftheparts.
Inadditionyouareresponsibleforinsuringanypartsshippedorreturned.YoumustpresentTCUnlimited,Inc.and/orSunTech
withproofofpurchasedocuments(includingthedateofpurchase).Anyevidenceofalteration,erasingorforgeryofproofof
purchasedocumentswillbecausetoVOIDthislimitedwarranty.Productonwhichtheserialnumberhasbeendefacedorremoved
isnoteligibleforwarrantyservice.
Warranty Limitations
Thiswarrantydoesnotapplyiftheunithasbeensubjecttonegligence,alteration,fabrication,misuse,abuse,repairsbynon‐TC
Unlimited,Inc.authorizedpersonnel,inappropriateinstallations,oranycasebeyondthecontrolofTCUnlimited,Inc.invalidating
thiswarrantyincludingbutarenotlimitedto:
Useoflacquerorpaints
HeaterandotherTCUnlimited,Inc.productsaccessoriesplacedonnon‐approvedsurfaces
Outdoorapplications
Normalwearandtearorweathering
Surfacecracksarenotconsidereddefectsinmaterialorworkmanship,astheyarenormalcharacteristicsofallwood.
Disclaimers
TCUnlimited,Inc.shallnotbeliableforlossofuseofheaterorotherTCUnlimited,Inc.productsorotherincidentalor
consequentialcosts,expenseordamages.Anyimpliedwarrantyshallhavedurationequaloftheapplicablewarrantystatedabove.
UndernocircumstancesshallTCUnlimited,Inc.,SunTechoranyofitsrepresentativesbeheldliableforinjurytoanypersonor
damagetoanyproperty,howeverarising.Specificationsaresubjecttochangewithoutnoticeorobligation.
Legal Remedies
Thislimitedwarrantygivesyouspecificlegalrights.Youmayhaveotherrights,whichmayvaryfromstatetostate.
Customer Service
Forcustomerservice,contactyourauthorizeddealer.Ifyouneedadditionalinformationorassistance,pleasecontactTC
Unlimited,Inc.Inc.CustomerRelationsDepartmentat(888)810‐7555.
11
WARRANTYCARD
CongratulationsonyourpurchaseoftheSunTechPortableHeaterfromTCUnlimited,Inc.Pleasetakethe
timetocompletethefollowingWarrantyCardandmailitto:
TCUnlimited,Inc.,Inc.
4755ZinfandelCourt#D
Ontario,CA91761
Pleaseincludeacopyofyoursalesreceiptshowingdateofpurchaseasthiswillserveasproofofpurchase.
WarrantywillbeVOIDifthefollowingwarrantycardisnotmailedbackwithin60daysofpurchasedate
alongwithproofofpurchase.
**Serialnumber(S/N)islocatedontheheater’sfrontpanel,rearpanel,oronthecarton.**
DETACHHERE
WARRANTYCARD
Allfieldsmustbecompletedtovalidatethewarranty.
Name:_________________________________________
Address:_______________________________________
City:__________________________State:________ZipCode:___________
PhoneNumber:_______________________
PurchaseDate:________________________
Other manuals for STH 1500?01 Chy
1
This manual suits for next models
3
Table of contents
