Sune Technology Q-Roi User manual

SUNE TECHNOLOGY CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City
70849,TAIWAN
TEL:[phone] FAX:[phone]
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99
CarNavi-Tech

Index
1. General spec
2. System Diagram
3. Components
4. Setting up Dip S/W
5. Setting up FACTORY MENU
6. Cautions before Installation
7. Installation Diagram
8. Pin Specification of Connector
9. Installation
10.Quality Warranty
CarNavi-Tech

Do not modify, dismantle or unintended
operation this system outside Q-roi After Sales.
Damage occurred by unintended operation
may cause Q-roi After Sales service void.
Warning
Always wear seatbelt. When the vehicle is
suddenly stop can cause injury.
Remove dust, oil, and waste on the display.
Incidental damages (including, without
limitation, consequential damages due to the
use of this unit and the dead loss of business
profit, changes, loss of memory contents, etc)
will not be taken responsibility.
•Any function that requires your prolonged
attention should only be performed after
coming to a complete stop. Always
stop the vehicle in a safe location before
performing these functions. Failure to do so
may result in an accident.
The engine is off while the system operates for
long time, battery may be discharged.
This product is not a substitute for your
personal judgment. Any route suggested by
this navigation system may never supersede
any local traffic regulation. Do not follow route
suggestions if the navigation system instructs
you to perform an unsafe or illegal maneuver.
Warning
Warning / Precautions!
CarNavi-Tech

1. General Spec
OS Android 4.2.2 (Jelly Bean)
CPU Telechips TCC8930 (1GHz Cortex A9 DualCore)
Display OEM LCD
Internal Memory DDR3 1GB RAM + 8GB eMMC
External Memory SDHC Slot Support (up to 64GB)
Function
A/V Input x 3,
Rear Cam Input x 1,
CAN(Controller Area Network) x 2,
Mic x 1,
External Speaker x 1 (mono),
External Audio Out x 1(Car Aux),
Output LVDS ( thru Video Interface),
RGB (thru Sub-Board)
Touch Type Resistive Touch
GPS SiRF
Resolution 800*480 or 1024*480
USB USB 2.0 x 5 (USB x 4, OTG USB x 1)
Input Voltage 12V
Temperature operating 0 C to 60 C
Storage -20 C to 60 C
Languages multi-languages
CarNavi-Tech

2. System Diagram
Application
Processor DDR3
1GB
eMMC
Flash
Memory
8GB
Video
Decoder
Audio
Decoder
/Encoder
Image Scaler
LVDS
Transmitter
Microprocessor
With
2 CAN ports
CAN
Transceivr
CAN
Transceive
USB HUB
Audio Amp.
Touch
Screen
Controller
LCD Display
Rear Camera
DVD Player
Other Composite
Video Signal
Speakers
Touch
Screen
Button CAN
data
Steering wheel
CAN data
USB Devices
-USB memory
-Hard Disc
-Wifi dongle
-BlueTooth dongle
-3G / LTE dongle
-Other USB
Accessories
Microphone
CarNavi-Tech

3. Components
MODE switch cable* 1ea
(HARETC0001)
USB cable * 2ea
(HARETC0027)
REAR CAMERA cable * 1ea
(HARETC0002)
Speaker * 1ea
(SPEAKE0001)
AV/BT Cable * 1ea
(HAVCAB0020)
GPS Antenna * 1ea
(GPSANT0006)
Multi cable * 1ea
(HARETC0068)
Power cable 16P * 1ea
(HPOWER0041)
Microphone cable * 1ea
(MICPHO0001)
Sub-board * 1ea
(QCPASS0289)
LCD cable * 1ea
(HLCDCA0007)
TOUCH cable * 1ea
(HTOUCH0007)
LVDS cable* 1ea
(HALVDSC0024)
3G dongle * 1ea(Option)
(ETCETC0116)
WIFI dongle * 1ea(Option)
(ETCETC0110)
CarNavi-Tech

4. Setting up Dip Switch(Main board)
: C Class(W204) 2012~
Low Resolution Monitor(5.8inch)
※Please make sure to disconnect the power cable of the interface and reconnect
the power cable again to apply the dip switch setting whenever changing DIP switch.
Otherwise, DIP switch setting will not be applied.
CarNavi-Tech

5. Setting Factory Menu
※APPS→FACTORY SETTING
①Put Password and change program upgrade and set-up of
external device. (Only Installers are authorized)
※Please contact the manufacturer to get Password.
CarNavi-Tech

5. Setting up Factory Menu
①
③
②
④
⑤
①CAR MODEL : No use
②DVD TYPE : Only for DVD connected to A/V
(Connect IR-AV1 to DVD to use DVD as touch Screen)
③CMMB SELECT : Select DTV model ( Only Chinese)
④SETTING
-GEAR CHECK TYPE : Detecting rear camera via either CAN or Rear Lamp.
-REAR CAM : Put “On” –External rear camera
Put “Off “ –OEM Camera
-SAFE MODE : Either Enable or Unable to watch Video while driving
-MODE SWITCH : NO use
⑤SAVE & EXIT : Save and Reboot
CarNavi-Tech

6. Cautions before Installation
Ignition key should be taken off before starting installation, interface
power connection must be the last step in installation.
Power cable should be separated when connecting interface.
Should be no any electronic devices or magnetic pole around
installation place.
All steps of installation should be done by well-trained specialist.
Dismantling without manufacturer’s permission can not be
guaranteed, (No permission to break attached label on the board.)
Kindly check all parts are in the box, when receiving the product, if
anything missing, inform to the supplier or manufacturer.
Install GPS away from electromagnetic devices such as black boxes,
Hi-Pass and etc.
Advisable to Install GPS at the edge of dash board or a front window
or a rear window.
Install GPS antenna mounted on window or roof facing to Sky .
According to our sales policy, any problems caused by user’s
mistake, careless can not be guaranteed.
CarNavi-Tech

7. Installation Diagram
SD Card
REAR CAM
POWER
cable
GPS
SPK
Speaker
REAR (12V OUT)
GND
TOGGLE
MIC
Provided LVDS cable
POWER cable
ACC
CAN1-
H
N.C
AUX-GND
A OUT(R)
CAN2-
H
GND
N.C
A OUT(L)
CAN1-L
CAN2-L
FRONT
SAFE REAR
MMI AUX-ON
Monitor
Touch
Screen
Original LCD cable
Provided Touch In cable
Provided LCD cable
Behind of comand Control unit
※ Pull out the original LCD cable from comand control unit and connect it to LCD-IN of IF.
Connect a provided LCD cable to the port of comand control unit where the original LCD cable was pulled ou
CarNavi-Tech

8. Pin Specification of Connector
Power LVDS-OUT AV MULTI USB USB MIC
15
16
1
2
15
16
14
11
10
9
8
7
6
5
4
3
2
1
AUDIO OUT(R)
AUDIO OUT(L)
AUDIO OUT GROUND
AUX-ON
CAN2-L
CAN1-L
REAR
MMI
CAN2-H
CAN1-H
SAFE
ACC
GROUND
FRONT
AUDIO OUT(R) AUDIO R Output
AUDIO OUT(L) AUDIO L Output
AUDIO OUT
GROUND AUDIO Output GROUND
AUX-ON Not available
MMI Not available
CAN2-L Connect with
Car CAN2-Low
CAN2-H Connect with
CAN2-High
CAN1-L Connect with
Car CAN1-Low
CAN1-H Connect with
CAN1-High
REAR Connect with Car Lame
cable
SAFE Not available
FRONT Not available
ACC Connect Car ACC
GROUND Connect Car GROUND
<Power Cable>
<Multi Cable>
1
2
3132
AUDIO OUT (L)
AUDIO OUT (L)
VIDEO IN1
FRONT-C
VIDEO OUT1
AUDIO OUT (R)
AUDIO OUT (R)
FRONT-C
VIDEO OUT1
QSOL
VIDEO IN1
REAR-C
SPEAKER
QSOL
QSOL
REAR-C
VIDEO OUT2
QSOL
REAR
IR-AV2
VIDEO OUT2
SPEAKER
REAR
IR-AV1
TOGGLE
QSOL
QSOL
TOGGLE
GPS
GPS
GPS
GPS
AUDIO OUT(L) AUDIO L Input
AUDIO OUT(R) AUDIO R Inut
VIDEO IN1 VIDEO Input1
REAR-C Connect Rear Camera
VIDEO
FRONT-C Not available
VIDEO OUT2 VIDEO Output2
VIDEO OUT1 VIDEO Output1
SPEAKER Connect with Speaker
QSOL Not available
REAR Connect Rear Camera
IR-AV2 Connect external
device IR Cable
IR-AV1 Connect external
device IR Cable
TOGGLE Connect QDIS Button Cable (For switching
mode)
GPS Connect GPS Cable
32
31
29
26
22
30
28
25
21
17
27
24
20
16
12
23
19
15
11
8
18
14
10
7
5
13
9
6
4
3
2
1
<AV Cable>
BT
BT
BT
BT
BT
BT
BT
BT
AUDIO IN3(R)
VIDEO IN3
AUDIO IN3(L)
AUDIO IN2(L)
VIDEO IN2
BT
BT
AUDIO IN3(R)
AUDIO IN3(L)
VIDEO IN3
AUDIO IN2(R)
VIDEO IN2
BT Not available
AUDIO IN3(R) AUDIO R Input3
AUDIO IN3(L) AUDIO L Input3
VIDEO IN3 VIDEO Input3
AUDIO IN2(R) AUDIO R Input2
AUDIO IN2(L) AUDIO L Input2
VIDEO IN2 VIDEO Input2
1
2
1920
CarNavi-Tech

9. Installation

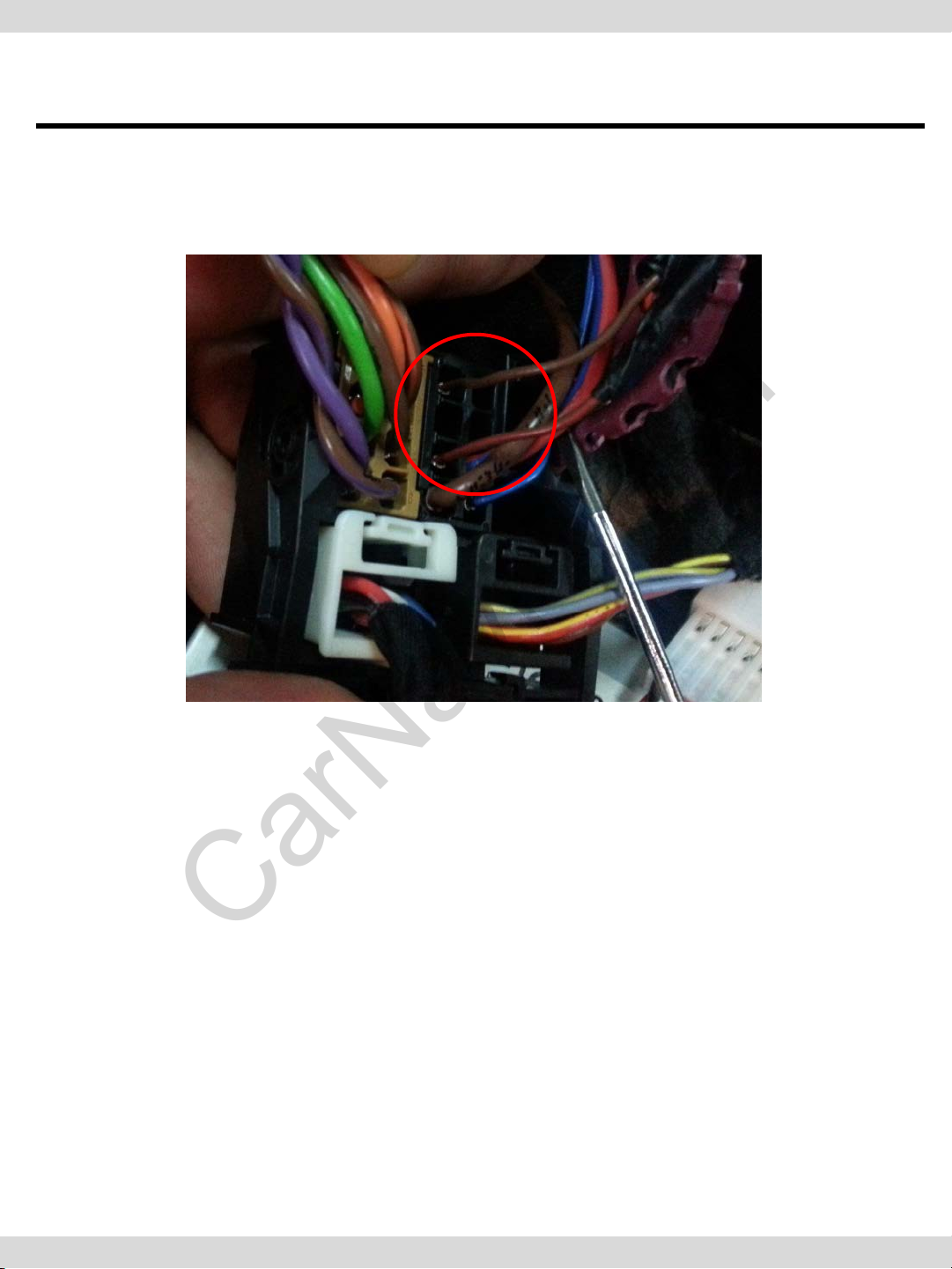

9.1 Connection of CAN Wire
* Connect CAN1-H(Yellow + White) of Provided Power cable to
CAN-High(Brown + Red) of Car.
* Connect CAN1-L(Yellow) of Provided Power cable to
CAN-Low(Brown) of Car
※You will be able to find the bunch of cable behind Comand control
unit
CarNavi-Tech

This product has been tested and have passed under our strict
quality control. If the failure occurred due to the carelessness of
workmanship within one year after the purchase, we are
responsible to repair free of charge.
Please bring this warranty to dealer whom you purchased this
product from at the repair time. Should this warranty not
presented, repair charged will be on customer. Please keep this
warranty card.
Warranty
Product
name QROI
Warranty
period
1year Purchase
date
(yy/mm/dd)
Customer
Address
TEL
Name
Dealer
Address
Name
10. Quality Warranty
