Sune BMW-STD Series User manual

Your best partner for better driving
BMW-STD
Specification & Installation
Compatible with BMW E60/61/90
Last updated: 2013.01.30
Model : QVL-BMW-STD-V2 / Product code : BM-0806-101
SUNE TECHNOLOGY ELECTRONIC CO., LTD
No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan
Tel: [phone] Fax:[phone]
Website http://www.sune-tech.com
Shop http://www.carnavi-tech.com
Skype : hsin_han99 or sune_tech
CarNavi-Tech

Contents
2
3. Troubleshooting 18
1. Before installation
1.1 Main specification
1.2 Features
1.3 System diagram
1.4 Components
1.5 Exterior
1.6 POWER cable
4
3
5
6
7
8
2. Setup
2.1 DIP switch
2.2 Factory mode
2.3 Keypad usage
2.4 Parking guide line
2.5 OSD (on screen display)
2.6 BMW Handle button NAVI setting
2.7 FMTX Frequency Setting
9
11
13
14
15
16
17
CarNavi-Tech

1.1 Main specification
3
1. Input Spec. (MULTI VIDEO INTERFACE)
-. 1 x Analog R,G,B (Sync on Green)
-. 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
-3 x A/V (NTST & PAL) Input.
-. 1 x LCD Input (Car system Input)
2. Output Spec.
-. 2 X CVBS OUTPUT (Video Out for installing Headrest monitor)
-. 1 x Audio OUTPUT
-. 1 X LCD OUTPUT(LCD Operation)
3. Electric Power Consumption
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12WATT, Max
4. Switching Mode (AV source)
- Possible to skip AV source by switching Mode (AV source) in DIP S/W
(Refer to the DIP S/W page)
- By ‘SET’ button of the OSD Keypad and Remote Control
- By Toggle Switch (Option)
- By ‘Menu’ button of the car through CAN
CarNavi-Tech

1.2 Features
4
- FMTX Module is added in the product.
(No need additional FMTX Module for Audio)
- Provide OSD Key Pad or Remote control
- Possible to move the Navi display positiion(Only on RGB mode)
- Changed OSD MENU
CarNavi-Tech

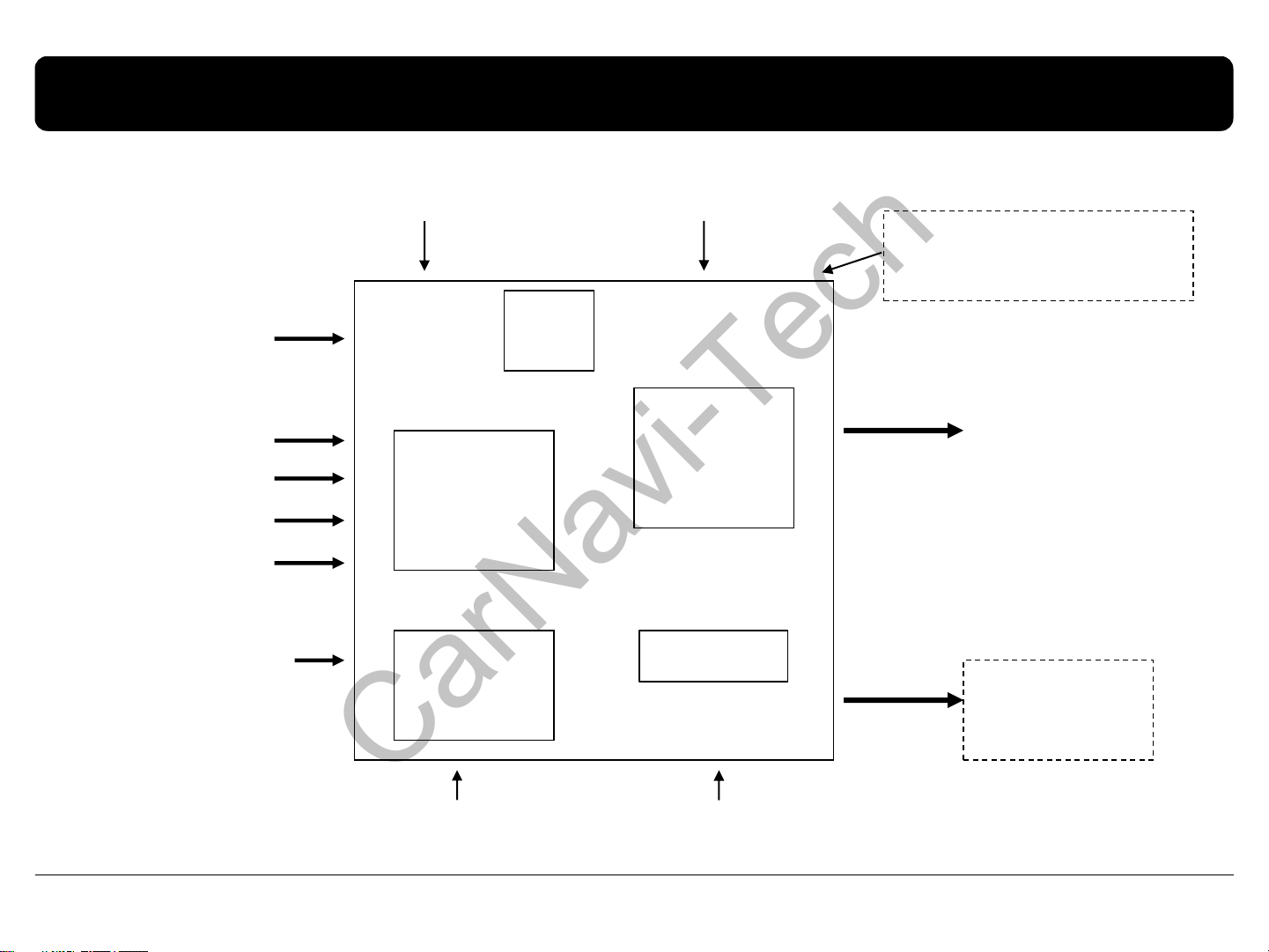

1.3 System diagram
5
DISPLAY
(CAR MAIN BOARD)
A/V 1
NAVIGATION Input
(Analog RGB)
CVBS IN
(Rear camera)
Car Screen Input
A/V 2
A/V 3
VIDEO
CIRCUIT
VIDEO MUX
MCU
Power Input
(+8VDC ~ +24VDC)
POWER
CIRCUIT
Dip S/W
A/V OUT
HEADREST
MONITOR
OSD Keypad or Remote control Switch for source toggle
OEM Navi Button (Can Intrface)
Car Installation
OEM LCD
FMTX
(Video out 2
Audio L, R1)
CarNavi-Tech

1.4 Components
6
POWER cable (6P) * 1ea
(HPOWER0001)
AV cable * 1ea
(HAVCAB0002)
RGB cable * 1ea
(HNAVIC0004))
MODE cable * 1ea
(HARETC0001) LVDS cable(F-TYPE) * 1ea
(HLVDSC0005)
CAN cable * 1ea
(HARETC0012)
OR
Keypad * 1ea
(SMTASY0063)
Ground cable * 1ea
( HGROUN0001)
IR cable (8P) * 1ea
(HIRCAB0002)
Remote control * 1ea
(REMOTE0001)
CarNavi-Tech

1.5 Exterior
7
Dimension
Horizontal length 147mm
Vertical length 92mm
Height 20mm
①②③④⑤
⑥
⑦⑧⑨⑩
①DIP switch
②KEYPAD
③RGB(IN)
④A/V(IN/OUT)
⑤POWER
⑥CAN
⑦LCD-OUT
⑧LCD-IN
⑨MODE
⑩LED
CarNavi-Tech

1.6 POWER cable
8
Blue
FMTX
I - DRV
GND
LAMP - RV
ACC
990mm
FILTER
& FUSE BOX
Orange
Black
Red
Gray
Red
Gray
Orange
Black
Blue
990mm
CarNavi-Tech

2.1.1 DIP switch
9
PIN
Function
Dip S/W Selection
1
RGB INPUT MUTE ON : RGB Mode Skip
OFF : RGB Display
2
A/V 1 MUTE ON : A/V 1 Skip
OFF : A/V1 Display
3
A/V 2 MUTE ON : A/V 2 Skip
OFF : A/V2 Display
4
A/V 3 MUTE ON : A/V 3 Skip
OFF : A/V3 Display
5
To select monitor size ON : 6.5” LCD Setting (for BMW 1 series)
OFF : 8.8” LCD Setting
6
Type of monitor
(Refer to the next page)
ON : Siemens setting (when the 5th pin is ON)
OFF : Alpine setting (when the 5th pin is ON)
ON : Operation rear monitor for New 7 (when the 5th pin is OFF)
OFF : 8.8” Setting
7
Rear Mode ON : External Rear Camera
OFF : OEM Rear Camera
8
N.C
※ON : DOWN / OFF : UP
CarNavi-Tech

2.1.2 DIP switch
10
5 6
E60 8.8” OFF OFF
E60 Alpine 6.5” ON OFF
E60 Siemens 6.5” ON ON
E60 Armrest 6.5” OFF ON
#PIN
Type of monitor
※DIP S/W Use Example
[BMW E60-6.5” Alpine]
-. Use Input Mode : A/V3(DVD), Navigation (RGB)
-. Rear Camera : When to be installed on CVBS 4
▷DIP S/W : 1 OFF
▷DIP S/W : 2,3 ON
(INPUT MODE SKIP)
▷DIP S/W : 4 OFF (enable A/V3)
▷DIP S/W : 5 ON (6.5” Alpine)
▷DIP S/W : 6 OFF
▷DIP S/W : 7 ON (enable CVBS4)
▷DIP S/W : 8 OFF
[E60 8.8”]
[E60 Alpine 6.5”]
[E60 Siemens 6.5”]
[E65 Armrest 6.5”]
CarNavi-Tech

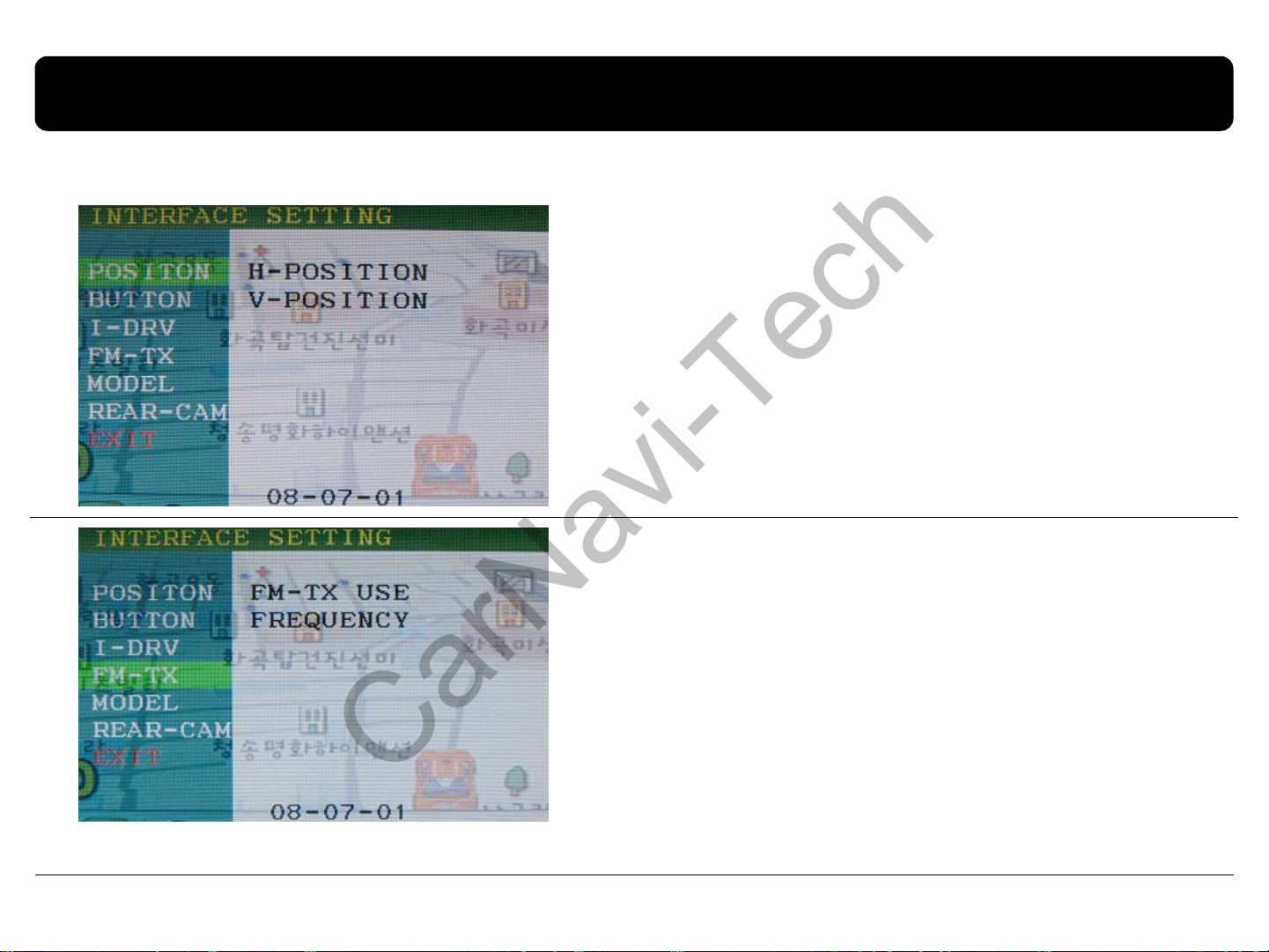

2.2.1 FACTORY mode
11
FACTORY mode : Operated with pressing UP->DOWN->UP->MENU keys of the keypad in sequent.
POSITION
–H-POSITION : adjust horizontal
direction
- V-POSITION : adjust vertical
direction
BUTTON
–FRONT –E60 : Set up for mode
change via menu buttons in E60
Front Monitor
- ARMREST –E65 : Set up for mode
change via menu buttons in E65
Armrest Monitor
I-DRV
–To control DVD, Navi by I-DRV
(Optional)
Refer to the “BMW Handle button
NAVI setting” page.
CarNavi-Tech

2.2.2 FACTORY mode
12
FM-TX
- FM-TX USE : Set up for FMTX
- FREQUENCY : FMTX Frequency
Setting. (Refer to the next ‘FMTX
frequency setting’ page)
MODEL
- For E60 : When to install on E60
(This is initially set)
- For E70 : When to install on E70
(Not available at present)
REAR-CAM
-By Rear Wire : by using provided
interface power cable, Rear View
camera setup (same with previous
version)
-By CAN-BUS : When to install Back-up
Cam by CAN wiring. In this case,
when the car is in reverse, the CAM is
detected automatically.
FACTORY mode : Operated by pressing UP->DOWN->UP->MENU keys of the keypad in sequence.
CarNavi-Tech

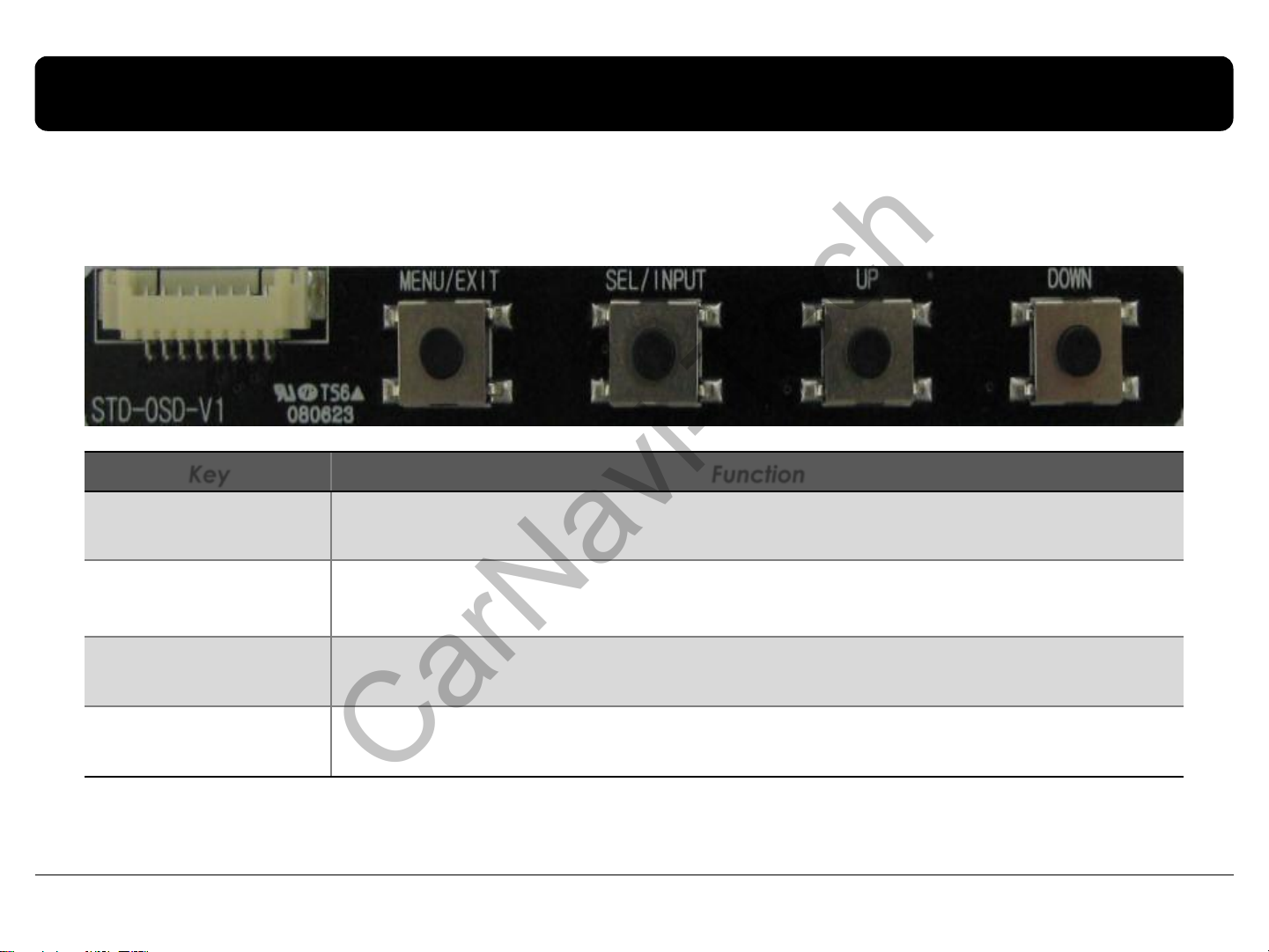

2.3 Keypad usage
13
Select one between the remote control and the keypad
FACTORY MODE (Interface setting) :
Press these buttons on OSD keypad in the following sequence; UP→DOWN→UP →MENU
Key
Function
MENU/EXIT
Activating OSD menu and Go back to the previous state after setting mode
SEL/INPUT
Making a selection and changing modes
UP
Moving leftward or upward
DOWN
Moving rightward or downward
(IF you press this button 2 seconds long, you can reset all data.)
CarNavi-Tech

2.4 Parking guide line
14
①When the car is in reverse, if
press ‘UP’ key for 2 sec, the
guide line appears on the screen.
Factory Default : DISPLAY - DISABLE
②If you need to move the line
position, press ‘SEL’ key on
the above step.
(Use ‘Up’, ‘Down’ Key of Keypad)
③On step no.2, once press “SEL”
key again, you can move the
line vertically by “UP”, “Down”
keys.
CarNavi-Tech

2.5 OSD (on screen display)
15
Analog RGB Mode
COLOR
-BRIGHTNESS
-CONTRAST
-RED
-GREEN
-BLUE
-COLOR BOX : Selecting one
among 3 color options
-SATURATION
-SHARPNESS
OPTION
-OSD H_POS
: Move of OSD window to Left,
Right
-OSD V_POS
: Move of OSD window to Up,
Down
- OSD TRANS
: OSD window transparency setting
- SCREEN MODE
: Screen Rate setting (4:3, 16:9)
- INITIAL : Initializing OSD setting
Video mode
Analog RGB Mode Video mode
CarNavi-Tech

2.6 BMW Handle Button NAVI setting
16
Overseas
Domestic
After implementing FACTORY MODE
(Interface setting), select I-DRV and press
the Sel button of Keypad, and then Navi
Setting window will be displayed as shown
on the right picture.
After select one between RGB, and AV1~3,
press the Sel button of keypad.
(It is fine to select any channel, because
selecting RGB, AV1~3 is useless. But, the
selected channel will be exempted on
next channel settings.)
After the above steps finish, left picture
will appear. ARION, NET-770, ML-100S,
ML-740T are Domestic DTV model.
Select the model you want to use, then
select channel of RGB, AV1~3.
(The channel selected on the above
steps is exempted.)
NET-770 (DTV model) is designated AV1
as shown right.
※This function is not supported at domestic NAVI, but this setting is necessary for implementing Domestic DTV.
※When DVD-IR (Black) wire of RGB-IN cable is connected to IR input wire of DTV, able to operate via handle buttons.
CarNavi-Tech

2.7 FMTX Frequency Setting
17
Get the Factory Mode Operated by pressing
UP->DOWN->UP->MENU keys of the keypad in sequence.
Set “FM-TX USE” to “ON” as shown left. (‘ON’ is Default).
Control the frequency by “UP”, “Down” keys.
At the bottom, you can see present FREQUENCY and control
it from 87.5MHZ to 108MHZ. (once pressed 0.1MHz increase)
Factory Default : FMTX USE –ON, FREQENCY –87.5MHz
※If you do not want this function, should set “FM-TX USE” to “OFF” by pressing UP->DOWN on Keypad
CarNavi-Tech

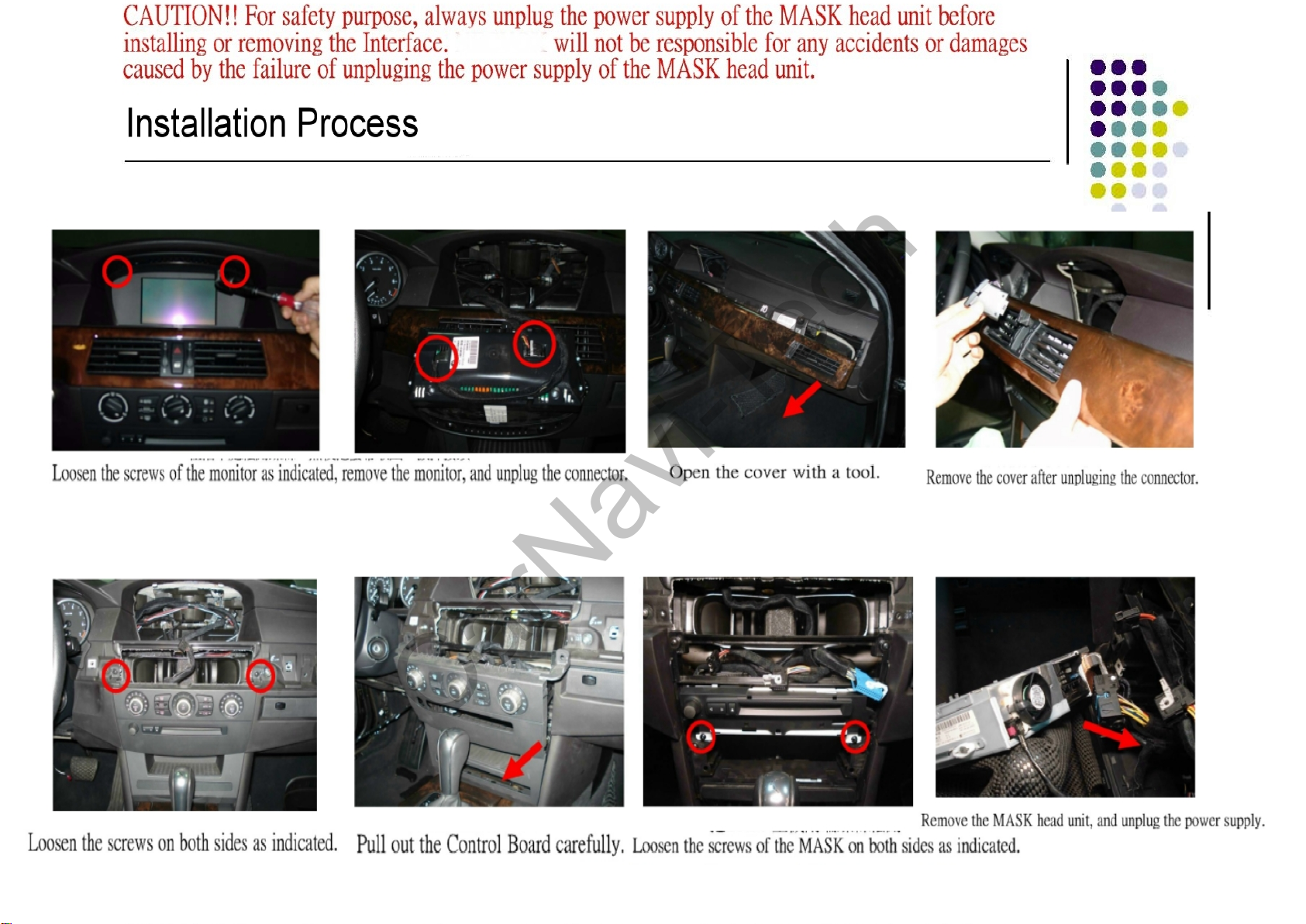

CarNavi-Tech

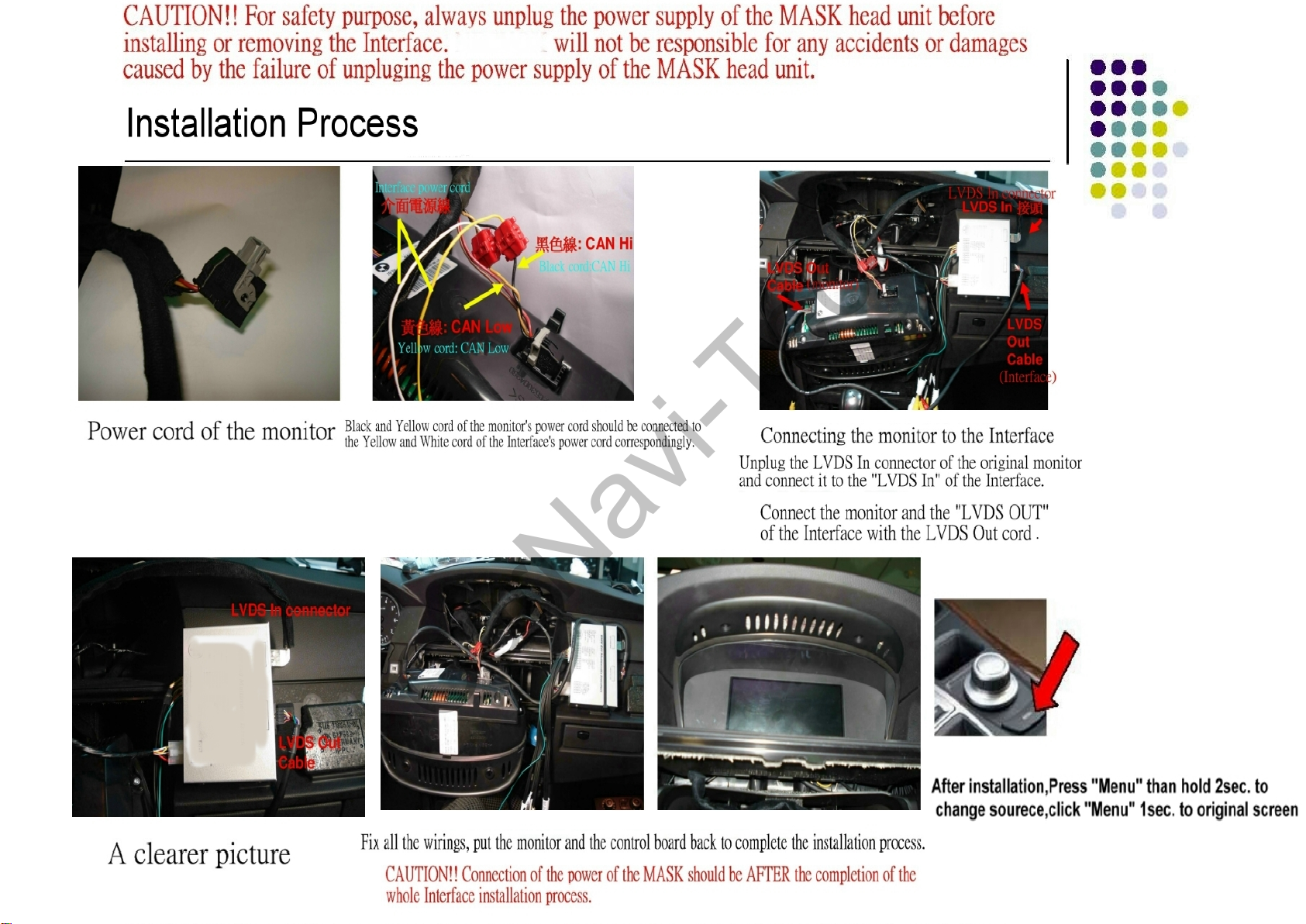

CarNavi-Tech

3. Troubleshooting
18
Q. I can not switch A/V sources
A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable.
Q. All I got on the screen is black.
A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV
sources connected works well.) Check interface connection has been done well.
Q. Displayed image color is not proper (too dim or not suitable color)
A. Try to select “INITIAL” in OSD menu, if it does not work, inform to manufacturer.)
Q. I can watch the rear camera on the screen
A. Set the DIP switch #7 as state “ON”.
Q. Unwanted A/V mode is displayed. (A/V source switching order : OEM->RGB->AV1->AV2->AV3)
A. Check DIP Switch Setting.
Q. OEM image is not displayed.
A. Check interface’s LCD In/Out cable connection. If the status keeps on, inform to manufacturer.
Q. Screen only displays white color.
A. Check LCD out cable is connected well, if this status keeps, inform to manufacturer.
Q. After setting PIP function, I got only half OEM image at the right in the screen.
A. This is not an error, just because user’s setting mistake, user should set to
“Split Screen” in the OEM menu.
Q. Rear CAM does not appear, when car is in reverse after CAN wiring.
A. Operate “FACTORY MODE” like left picture, then select “UTIL Rear Select” If it is set as “LAMP”, change it to “CAN” by remote or
keypad.
※LAMP : In case of connecting “Rear-C” wire of Power Cable to Rear Lamp in vehicle.
CAN : In case of detecting Rear Cam thru CAN signal. (CAN must be wired)
Q. After moving gear to “P” or “D” from “Reverse”, I can’t get navigation, but half PDC Image in the screen.
A. Once, you starts driving, the screen displays navigation right away, this is not an system error.
