ZOpid HC-ZB323V User manual
DSP Bluetooth Carkit
MODEL : HC-ZB323V
USER MANUAL
Speakerphone,Caller ID & Voice Prompts
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION OF THIS PRODUCT.
READ THIS INFORMATION BEFORE USING YOUR DEVICE.
Users are not permitted to make changes or modify the device in any way. Changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately
shielded, designed, or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility
where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in
accordance with applicable regulations per airline crew instructions.
Medical Devices
Hearing Aids
Some devices may interfere with some hearing aids. In the event of such interference, you may want to
consult with your hearing aid manufacturer to discuss alternatives
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is
adequately shielded from RF energy. Your physician may be able to assist you in obtaining this
information.
FCC Notice to Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Introduction
Package content
Sunvisor Mounting
Keys and Functions
Features
Pairing Procedure
Basic Functions
Missed calls Memory
Disconnect and Re-connect pairing
Answer, Hang up a call
Volume Control
Mute mic during conversation
Redial
Call Waiting
Call Transfer
Voice dialing
Make Call from Received calls or missed calls
Text to Speech Prompts
Contents
2
2
3
4
5
5
6
6
6
6
6
6
6
7
7
7
7
8
Package includes 3 parts :
lntroduction
Handsfree carkit with Speakerphone,CallerID &
Voice Prompts-Text to Speech(TTS)
Use in car, home or office.
Bluetooth version 1.2
Supports Handsfree & Headset profiles.
Package content
Car charger
Main unit
Rotating sunvisor clip

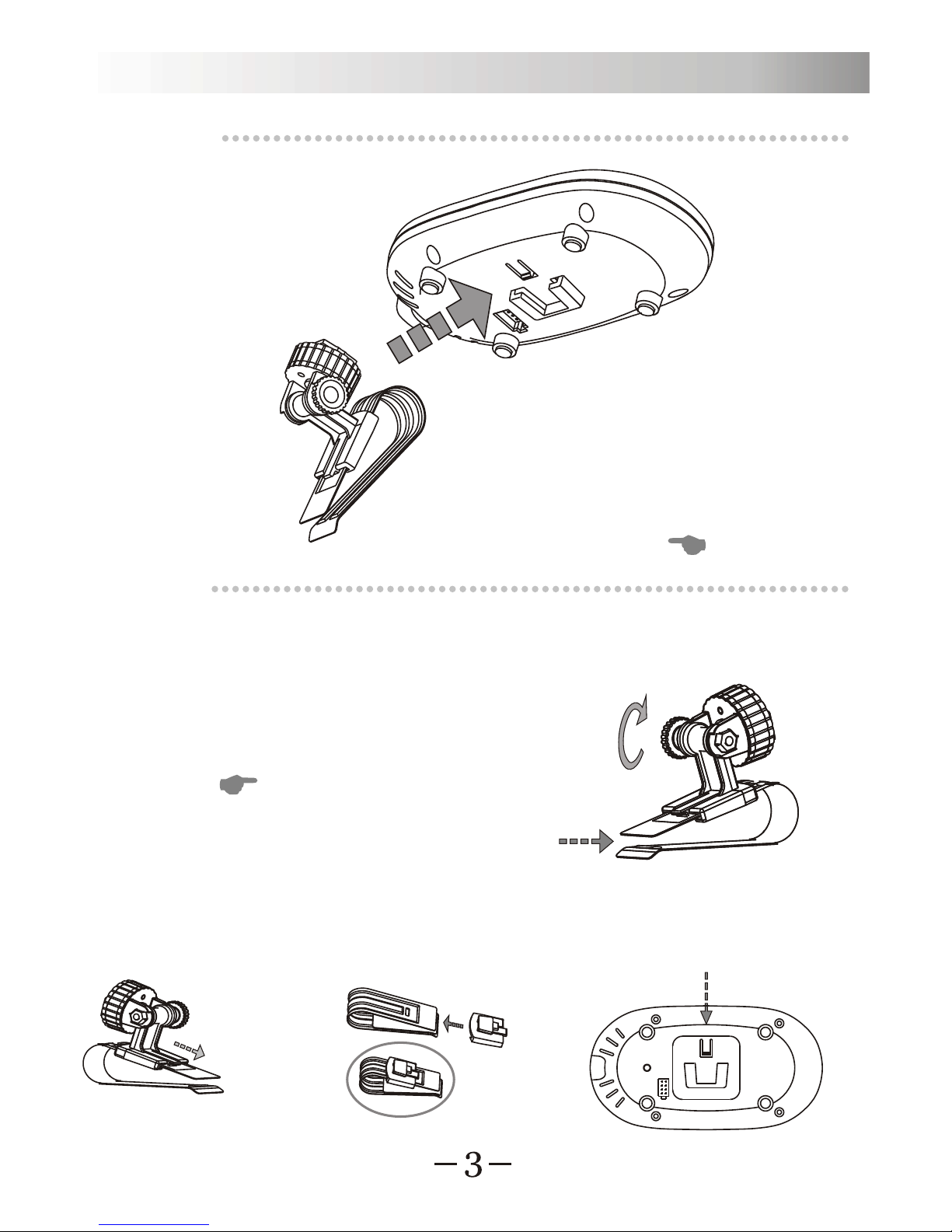

Mounting the car kit on sunvisor
Step l
Plug rotating clip
into speakerphone
bracket holder
Plug rotating clip
into speakerphone
bracket holder
Step ll
1. Slide the clip on to car`s sunvisor
2. Adjust the carkit so LCD display can be read.
3. Fasten the screw.
Slide this clip
on to the car`s sunvisor
Mounting without rotating clip
Remove the
adjustable clip
Put the plastic
adapter into clip
Photo 2.1
Slide the metal clip (photo 2.1)
into this bracket
Side view
Keys and Functions (front side)
1. LCD Display
2. Charging indicator
3. Microphone
4. Speaker
5. Volume down
6. Volume up
7. Answer Call
8. Power ON/OFF & Hang up call
Charging socket
DC 6V
Back side view
Reset button
IMPORTANT:
Press Reset button if other buttons
on the carkit do not work.
Bluetooth
Upgrade Socket
Features
Bluetooth v1.2
Digital Signal Processing (DSP)
Displays & announces caller`s phone number
Voice prompts for function status
Mute microphone on/off
Support voice dialing.
Last number redial.
10 calls memory.
Call transfer.
Battery charging indicator.
Pair-able with up to 4 devices.
Talk time : up to 10 hours
Standby time : up to 230 hours.
Step 1: Power on HC-ZB323V carkit by pressings and holding for
5 seconds or until you hear the word "Ready".
Step 2: Press and hold for 5 seconds until you hear "Pair phone now"
to activate pairing -HC-ZB323V LCD will display "Ready to Pair"
and is now discoverable by your phone.
Step 3: Activate "Bluetooth Pairing Process" on your phone-Refer to
your phone`s User Manual for detailed instructions.
Step 4: On your phone,during "search for Bluetooth Devices",
select HC-ZB323V from the list of discovered devices.
Step 5: When prompted for the pass code "1234" .
Step 6: Once pass code is accepted ,you will hear
"Pairing Success to Phone"
Step 7: HC-ZB323V display shows"connecting" and few seconds later
you will hear "connected to phone".
Step 8: HC-ZB323V display shows name of your phone (i.e.Nokia 3230,etc.)
- Carkit is now ready for use
Note : Pairing process is a one time setup for each phone - Please repeat
this process if you will be using any other phones with this carkit(carkit saves
pairing information of up to 4 phones)
Pairing procedure
6
How to disconnect
Press for 2 seconds.
How to re-connect
Press once.
Answer incoming calls
Press button.
Press phone Answer call button.
Reject and hang up a call
Press button to reject or hang up.
or press phone hang up button to end the call.
Volume up and down
Press to increase volume
Press to decrease volume
Mute Mic during conversation
Press and hold .
The display show "Mute".
Press again, the mic is on.
How to redial.
Double click .
How to power off
Press for 5 seconds.
Basic functions
How to Power On
Press for 5seconds.
7
Call waiting
While on a phone call,a beep indicates a 2nd incoming call.
Press to switch to the 2nd call and put first call on hold.
Double click to switch back to 1st call.
Call transfer
Press and hold to transfer a call from carkit to the phone.
Press once to transfer the calls from phone to carkit.
Voice dialing
Press once and you will hear a beep.
Say the name stored in phone`s address book.
If voice match is found, the phone will announce the name stored in address book
and then dial the number. If no voice match is found you will hear double beeps.
Making a call from Received calls or missed calls.
Press and hold for 2 seconds to enter into call Memory mode.
Press once to select calls.
Press once to view next recent calls.
Press to dial number shown on the display.
(Requires a phone with voice dialing feature & voice neames stored in phone`s address book)
Text to Speech (TTS) Prompts
When Voice Prompt
Power ON HC-ZB323V Ready
HC-ZB323V Ready to pair with mobile Pair phone now
Press Volume button Volume up
Press Volume button Volume down
Increase the volume to maximum Maximum volume
Decrease the volume to minimum Minimum volume
Phone connects to HC-ZB323V Connected to phone
Pairing with phone successful Pairing success to phone
Power Off HC-ZB323V Powering down
Hang up call End of call
incoming call from
12345678
Call From 123 45678
When mobile disconnected
with HC-ZB323V
Phone disconnected
8
