RVS RVS-77555 User manual

1080P HD 360° CAMERA SYSTEM
WITH BUILT-IN RECORDING
RVS-77555
Instruction Manual
VEHICLE SAFETY -
IT'S ALL WE DO.
TM

Rear View Safety
2
1. Precautions....................................................................................................................... 3
2. Features............................................................................................................................ 5
3. Standard Conguration................................................................................................... 6
4. Specications.................................................................................................................... 7
5. Wiring Diagram............................................................................................................... 8
6. Operation Instruction....................................................................................................... 9
6.1 RemoteControl...............................................................................................................9
6.2 User Interface Setup....................................................................................................... 6
7. System Contents............................................................................................................. 25
8. Installation/Calibration....................................................................................................26
9. WebApp Operating Instructions...................................................................................... 35
10. FAQs.............................................................................................................................. 40
Table of Contents

Vehicle Safety - It's All We Do.TM 3
1. Precautions
Storage and Keeping
1. Do not expose the System to excessive heat or cold.The storage temperature of this device is
-30~+80°C, and the operating temperature is -20~+70 °C.The humidity is RH 90%.
2. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool
or similar places.
3. Never use this device in environments with excessive moisture, dust or smoke.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or subject to
severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this device.
7. Do not place cables where they may be pinched or stepped on.
8.The Control Box is not designed to be waterproof.
Operating Precautions
1.The device may be powered by a 12 or 24 volt automotive battery or vehicle electrical system.
2. Make sure all cables are connected properly. Observe polarity. Improper cable connections
may damage the system. Remove the power cable connections when you do not intend to use
the unit.
Warning!
1. The opening of the case should be by professionals.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.

Rear View Safety
4
Maintenance
1. Remove all the cable connections from the control box before cleaning the device.
2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth.
3. Never use strong solvents such as thinner or benzine, as they might damage the nish of
the device.
This symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient magnitude to
constitute risk of electric shock to persons.
This symbolisintendedtoalert the usertothepresence ofimportantoperatingand
maintenance (servicing) instructions in the literature accompanying the appliance.
This symbol is intended to alert the user not to dispose of electrical and electronic
equipment.
CAUTION
You are cautioned that any changes or modications not expressly approved in this manual
could void your warranty and necessitate expensive repairs.

Vehicle Safety - It's All We Do.TM 5
2.1 Basic Features
1. 4 pcs. 190° Full HD 1080P wide-angle sh-eye cameras, horizontal view angle>170°,
Maximum of 8CH inputs.
2.Techniques of dual-core ARM Cotex-A9 and SOC development of built-in high performance
H.264 video encoding / decoding engineer core make it ecient to composite high accuracy
seamless images.
3. Supports 4 pcs. x 128G SD cards for recording storage.
4. Low-cost calibration tools, simplied calibration procedures.
5. Maximum 4CH 1080P / 30 FPS video resolution.
6. High denition 1080P HDMI video output.
7. Simplied installation steps, easy auto stitching.
2.2 Application
2. Features

Rear View Safety
6
2.3 Features
1. Panoramic image.
2. Blending seamless stitching.
3. 360° view.
4. Auto switch to reversing image when reverse wire is triggered.
5. Auto switch to left / right image when left / right wire is triggered.
6. Installation guide with pictures.
7. Automatic plane correction.
8. Supports Recording.
3. Standard Conguration
ITEM CONFIGURATION QUANTITY
1 Main control box 
2 Full HD fish-eye camera 
3 Remote control 
4 Infrared extension cable 1
5 Main harness 
6 Power Cable 
Wi-Fi Antenna 
8 20M extension cable for HD camera 
9 HDMI extension cable 
10 Monitor 

Vehicle Safety - It's All We Do.TM 7
ITEM CONFIGURATION QUANTITY
1 Main control box 
2 Full HD fish-eye camera 
3 Remote control 
4 Infrared extension cable 1
5 Main harness 
6 Power Cable 
Wi-Fi Antenna 
8 20M extension cable for HD camera 
9 HDMI extension cable 
10 Monitor 
2. Camera Parameter
4. Specications
1. Main Control Box

Rear View Safety
8

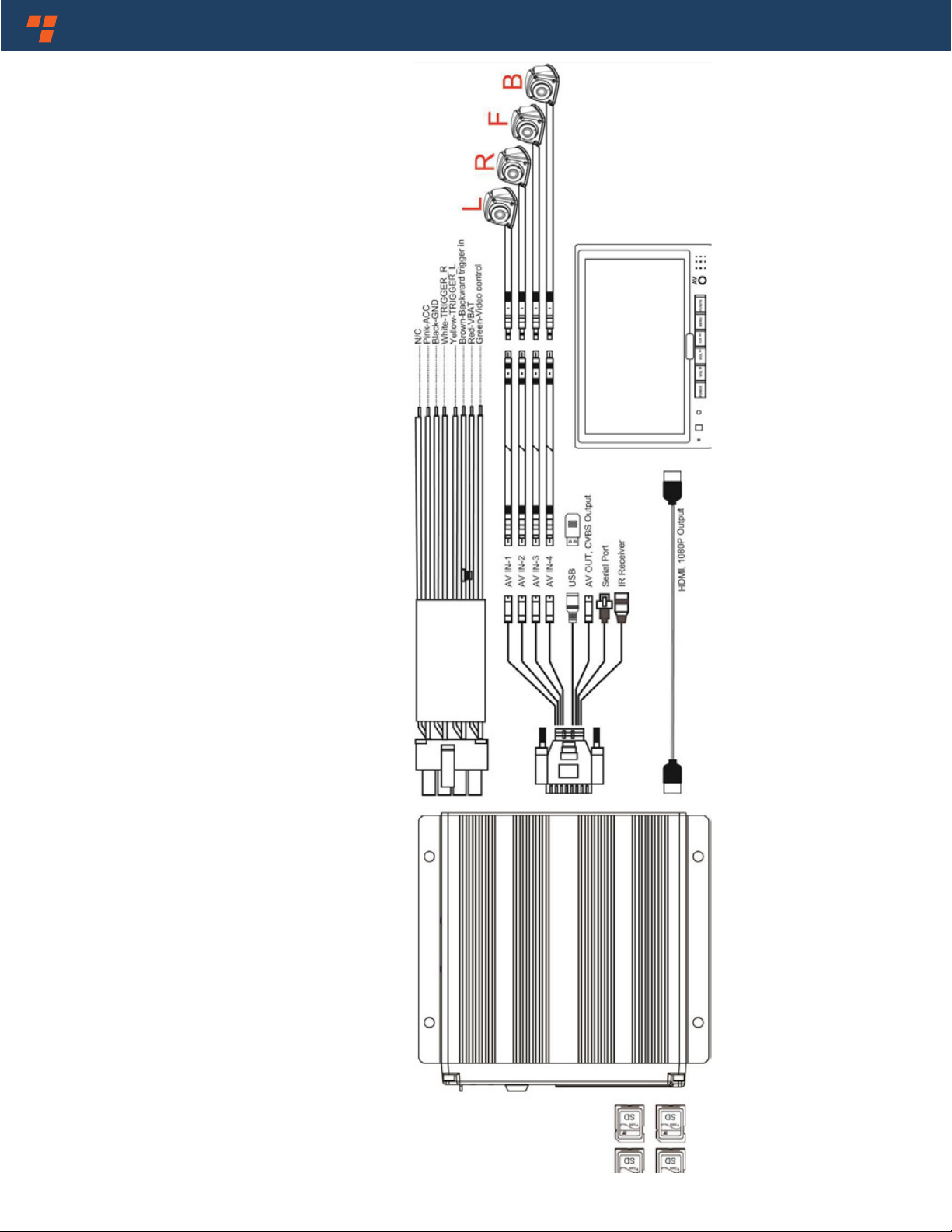

5.Wiring Diagram

Vehicle Safety - It's All We Do.TM 9
6.Operation Instruction
6.1 Remote Control
• MENU: (ENTER / MENU)
Enter into main menu or conrm menu selection.
• SYS: (ESC)
Exit main menu interface / return to main menu interface.
• V- /V+: (LEFT, RIGHT)
Left, right / Decrease, Increase button.
Shift image channel to left / right
view, or operate plus / minus in main menu interface.
• P+ / P-: (UP, DOWN)
Front / back button. Shift image channel to front / back view.
•VIEW MODE: (SHIFT)
Same function as Tab button to shift current channel to full
screen display or exit from full screen display. It's used for
switching menu selection in main menu interface.
• ON / OFF: (POWER)
Turn on / o video display.
• Number button 0-9: (0-9)
Input numbers.
• - / --: (CLEAR)
Back space button: Delete a character.
• : ( )
Press to pause recording.
• : ( )
Press to start recording.

Rear View Safety
10

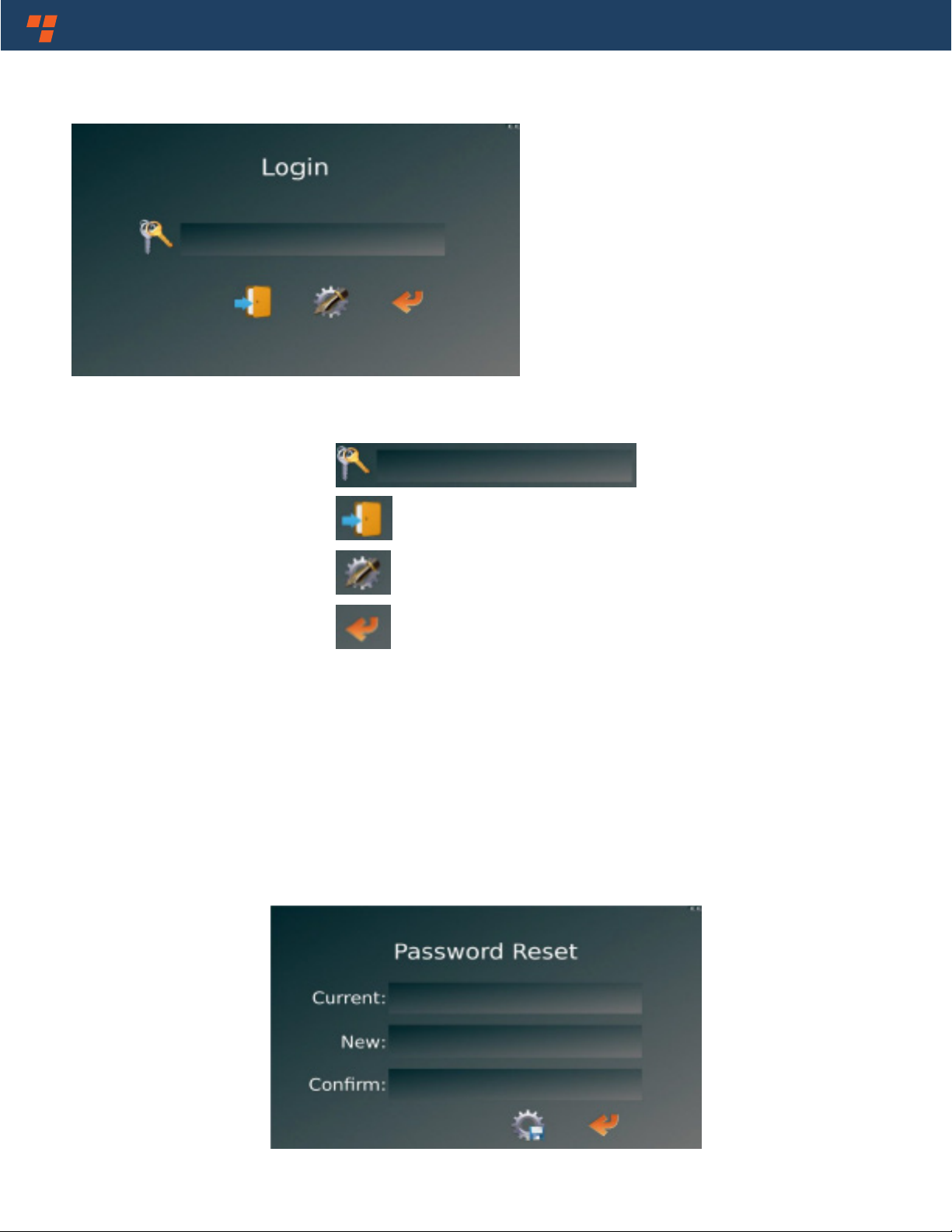

6.2 User Interface
6.2.1 User Administration
Feature Description:
1) Input password.
2) Login conrmation.
3) Change Password
4) Return to last menu
Note:
1) Initial password: 000000. Please modify password after stitching is nished.
2) If password is forgotten, input“root”to log in. Select factory default setting in Information
menu and new password will be 000000
3) The operation period lasts for 10 min after login. Password must be input again once time
out or after restart device or in sleepy mode.
Password Reset

Vehicle Safety - It's All We Do.TM 11
Note:
1) Initial password: 000000. Please modify password after stitching is nished.
2) If password is forgotten, input“root”to log in. Select factory default setting in Information
menu and new password will be 000000
3) The operation period lasts for 10 min after login. Password must be input again once time
out or after restart device or in sleepy mode.
Setting Description:
1) Current password
2) New Password
3) Input new password again
4) Save password
5) Return to last menu
6.2.2 Main menu interface
Feature Description:
1) System: Basic function setting.
2) Clock: System time setting.
3) Storage: Storage function and system log management.
4) DVR: Recording function conguration.
5) AVM: 360 panorama calibration and related operation.
6) Player: Video le playback and processing.
7) Information: Upgrade operation and local IP setting.
8) Radar: Radar conguration.
Note: 1) When UART is congured as non-Radar, the Radar icon on the main interface will be hidden.
2) Recording becomes invalid when entering player menu.
3) 0-9 Numeric Keys on remote control support Quick Positioning Function: 1 -9 stands for each menu in sequence,
e.g., press 5 to select AVM.

Rear View Safety
12

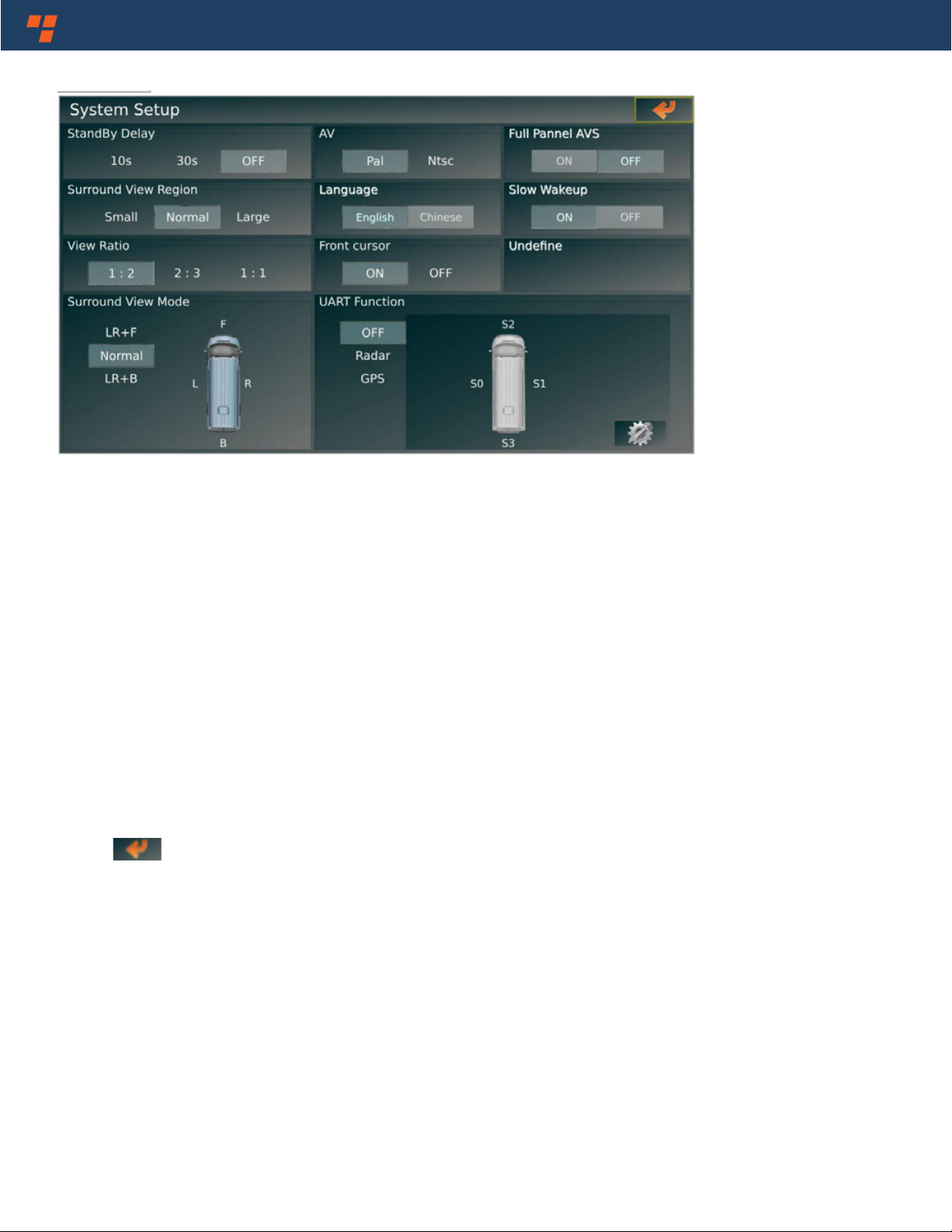

6.2.3 System Setup
Feature Description:
1) Standby Delay: Time frame can be set for standby.
2) AV: PAL / NTSC .Correspondent video output format is 1080P / 50 frames or 1080P / 60 frames.
3) Full Panel AVS: Button for full screen / panoramic display.Temporarily unavailable.
4) SurroundView Region: Surround view size selection.
5) Language: Language setting.Temporarily unavailable.
6) SlowWake up: Button for wake up in slow speed.Temporarily unavailable.
7) View Ratio: Display ratio between BirdView and Single View.
8) Front Cursor: Front view cursor selection.
9) SurroundView Mode: Surround view mode selection.
10) UART Function: UART function selection.
11) Exit the current interface and return to the main menu interface.
Operation description:
1) TAB key: Shift in menu.
2) Left / right or Up / Down: Change the selected function item parameters.
3) ESC key: Shortcut key for exit, return to the main menu.
1) When set the radar function on, it is recommended to set the radar priority
(For priority applications please refer to Radar Setup).
2) Set the four-channel radar priority, save and exit.
3) Menu setting change will be valid after reboot.When the UART Function is set as OFF, the radar settings icon will be hidden.
Note

Vehicle Safety - It's All We Do.TM 13

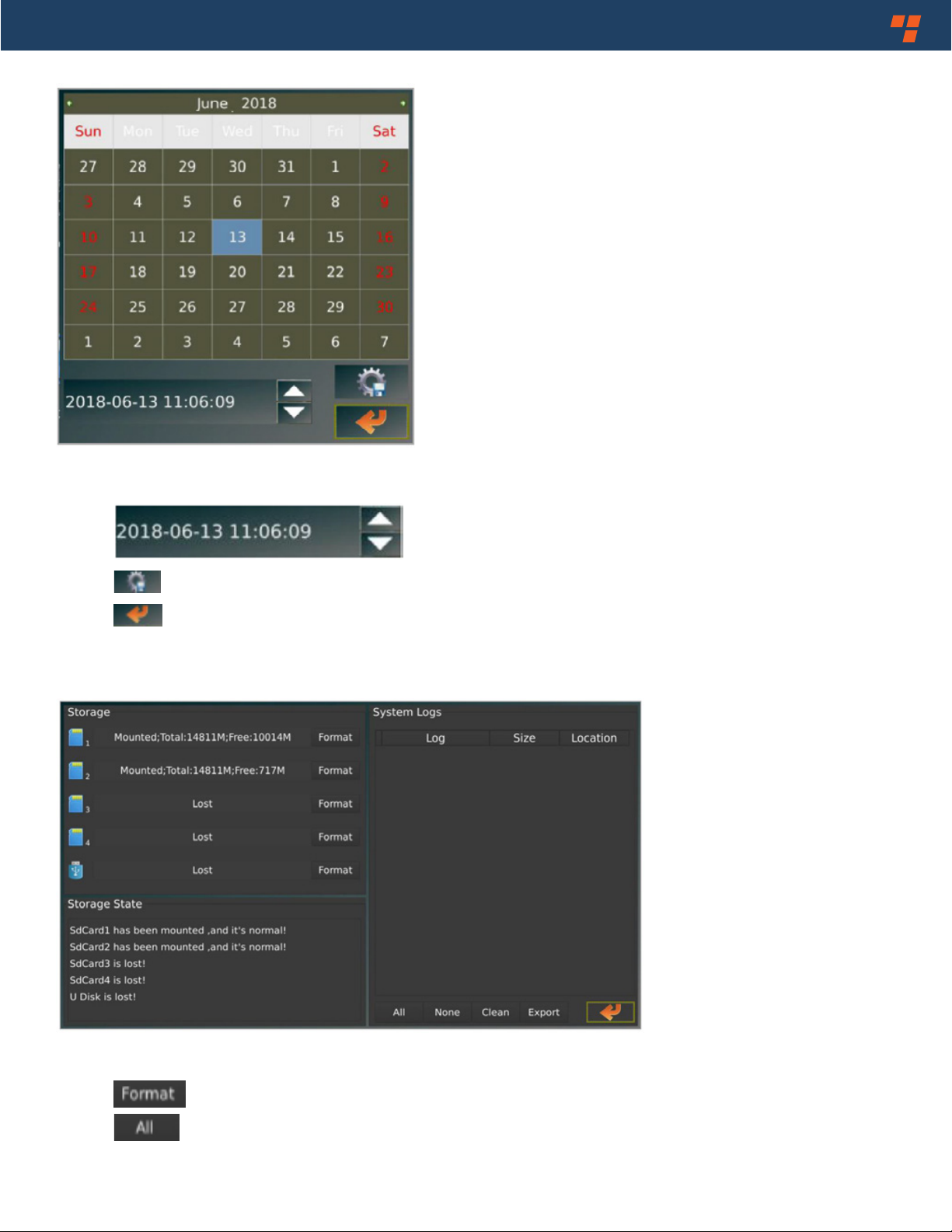

Feature Description:
1) Set calendar time.
2) Save setup time.
3) Exit menu and return to the main menu. Menu setting change must be saved to become
6.2.5 Storage
Feature Description:
1) Format SD Card or U Disk.
2) Select all system log les
6.2.4 Clock Setup

Rear View Safety
14

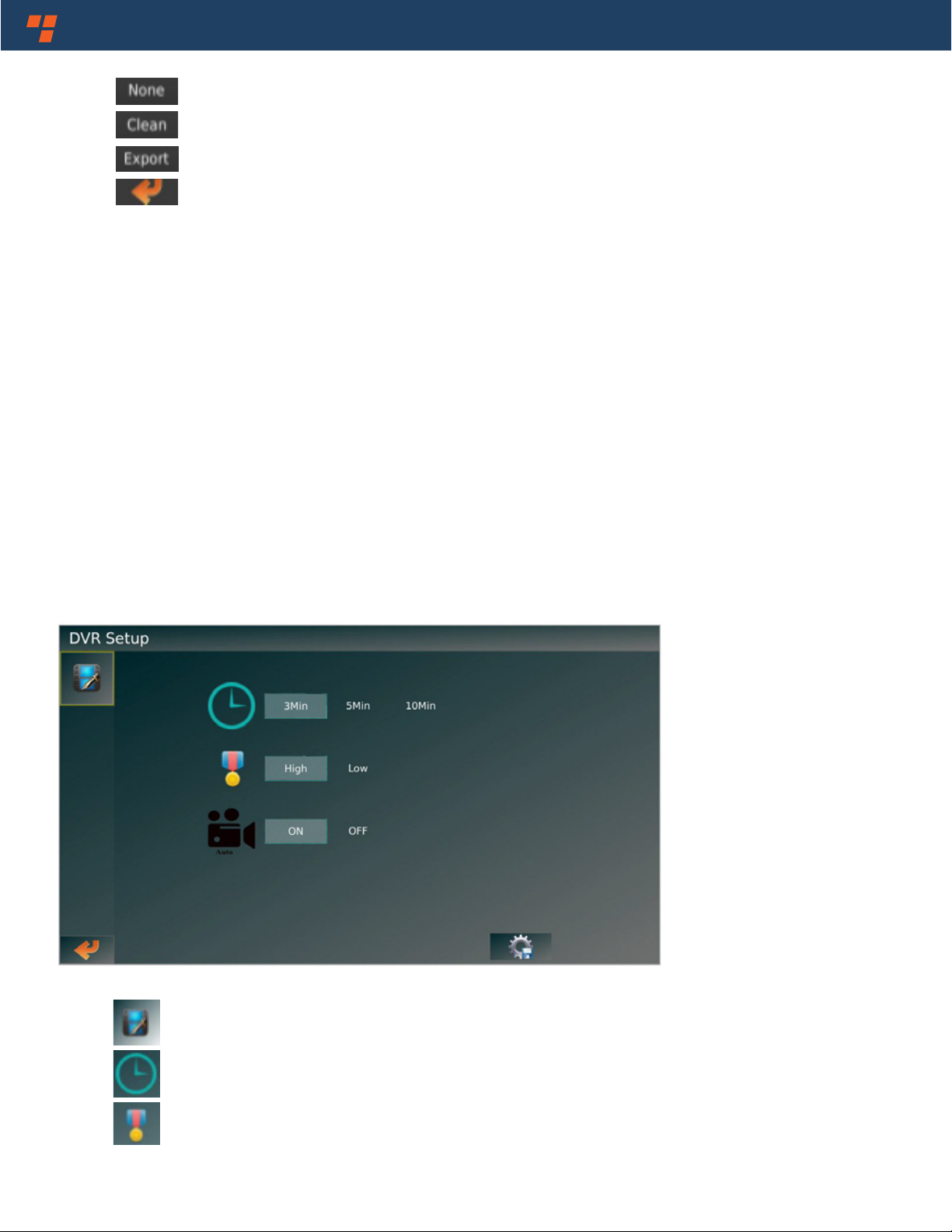

Feature Description:
1) Recording parameter settings.
2) Single video le recording time setting.
3) Video le resolution setting.
6.2.6 DVR Setup
3) Unselect all system log les.
4) Clear all old system log les.
5) Export the selected system log le.
6) Exit the Storage interface and return to the main menu.
1)When the U Disk and SD Card work abnormally, there will be a cursor prompt on the panorama display
interface and Storage menu interface. See the Storage State menu under the Storage Menu for specic
error reasons.
2) Do not remove the U Disk when performing U Disk related write operations, such as U Disk formatting,
exporting system logs, and exporting stitching results.
3) Do not remove the SD Card when performing an SD Card-related write operation, such as when the
recording is not stopped, the SD Card is formatted, or the system log is cleared.
4)The recording supports cyclic recording.. When the free space of all SD Cards in the system is less than
512M, 20 video les which are earliest created will be deleted in order to record normally.
Note

Vehicle Safety - It's All We Do.TM 15
Feature Description:
1) Length / Width / Chess Position / Grid Size: Panoramic stitching parameters.
2) Enter chessboard setting.
3) Enter image stitching menu.
4) Enter AVM Option Setup.
5) Back to parent menu.
Note:
1) Gauge is cm by default. The stitching result will be prompted by the pop up window.

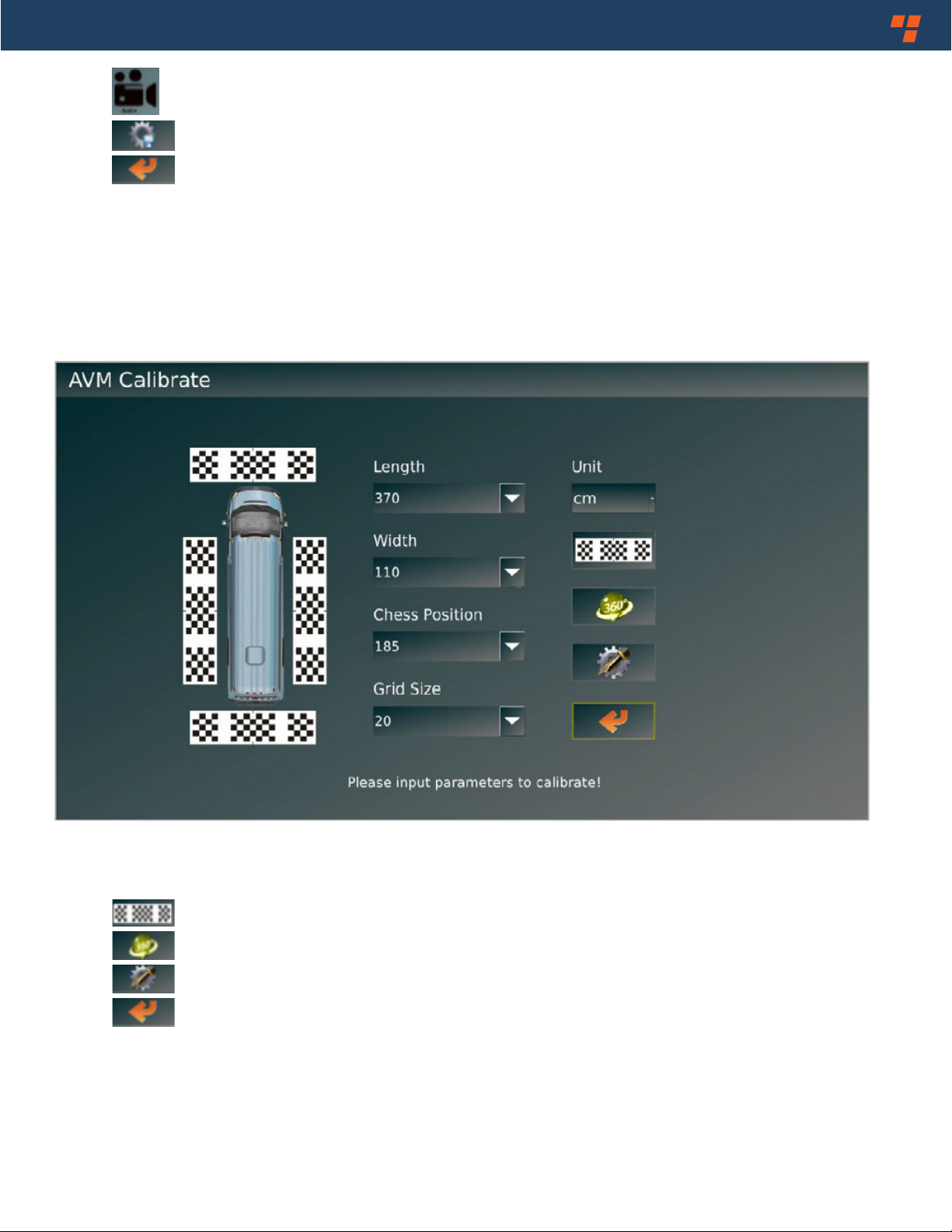

6.2.7 AVM Calibration
4) Power on automatic video recording function setting.
5) Save setting parameters.
6) Exit the DVR interface and return to the main menu. If any parameter is modied,
it must be saved before exit, otherwise the modication is invalid.
Note: When parameters are modied, saving or exit will prompt to restart.

Rear View Safety
16
Soft Keyboard
Feature Description:
1) Exit editing.
2) Delete input.
3) Capital shift.
4) Letter lock.
Note:
1) Letter lock is locked by default. Unlock to input characters.
2) Letter can only be input via soft keyboard.
Chess Board
Feature Description:
1) Layout setting of calibration cloth.
2) Save.
Note: Layout setting should be compliant with real calibration cloth.

Vehicle Safety - It's All We Do.TM 17

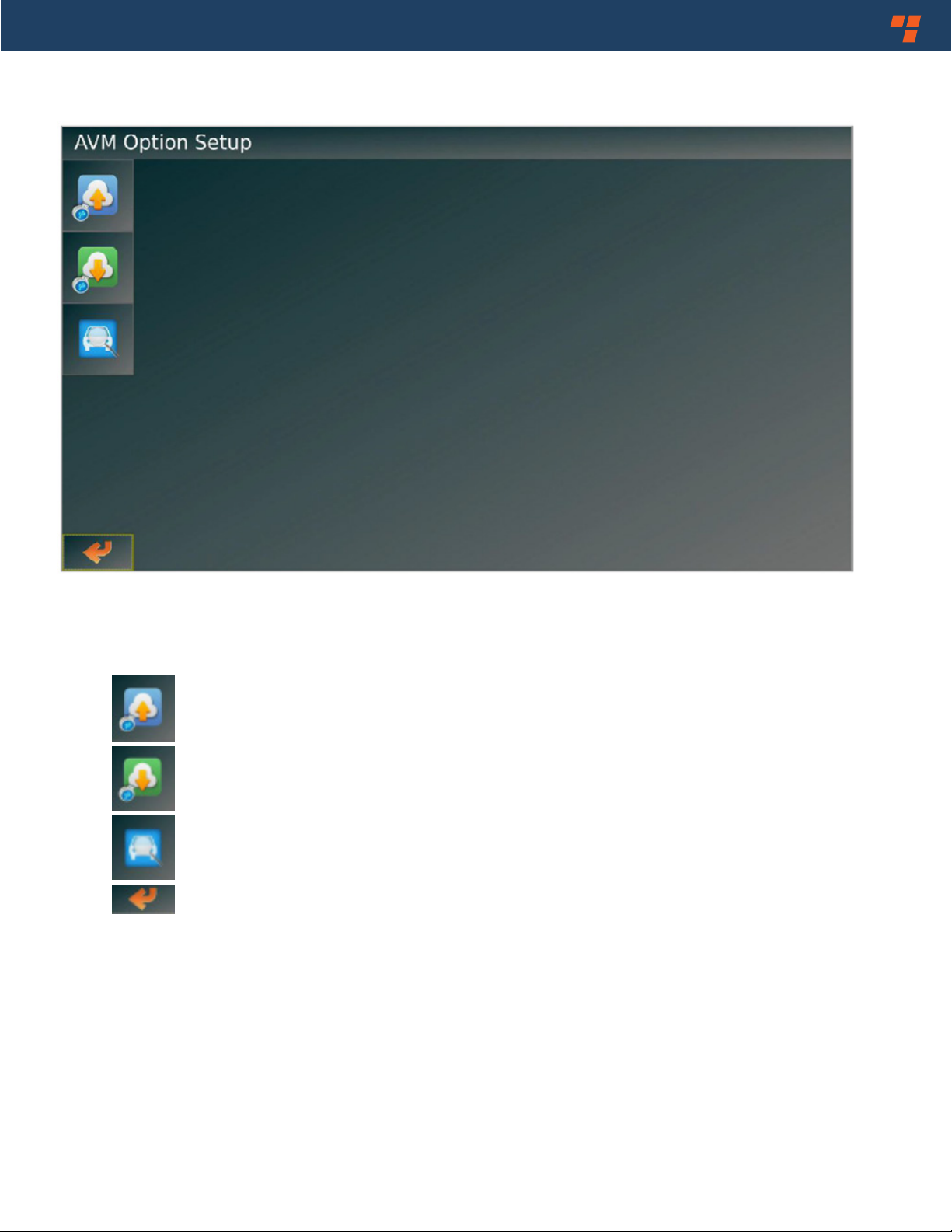

AVM Option Setup
Feature Description:
1) Upload calibration les of U Disk to system.
2) Output saved calibration les and 4CH single-view to U Disk.
3) Change vehicle models.
4) Exit Key: Get back to AVM Calibrate interface.
Note:
Calibration le applies XML extension.

Rear View Safety
18

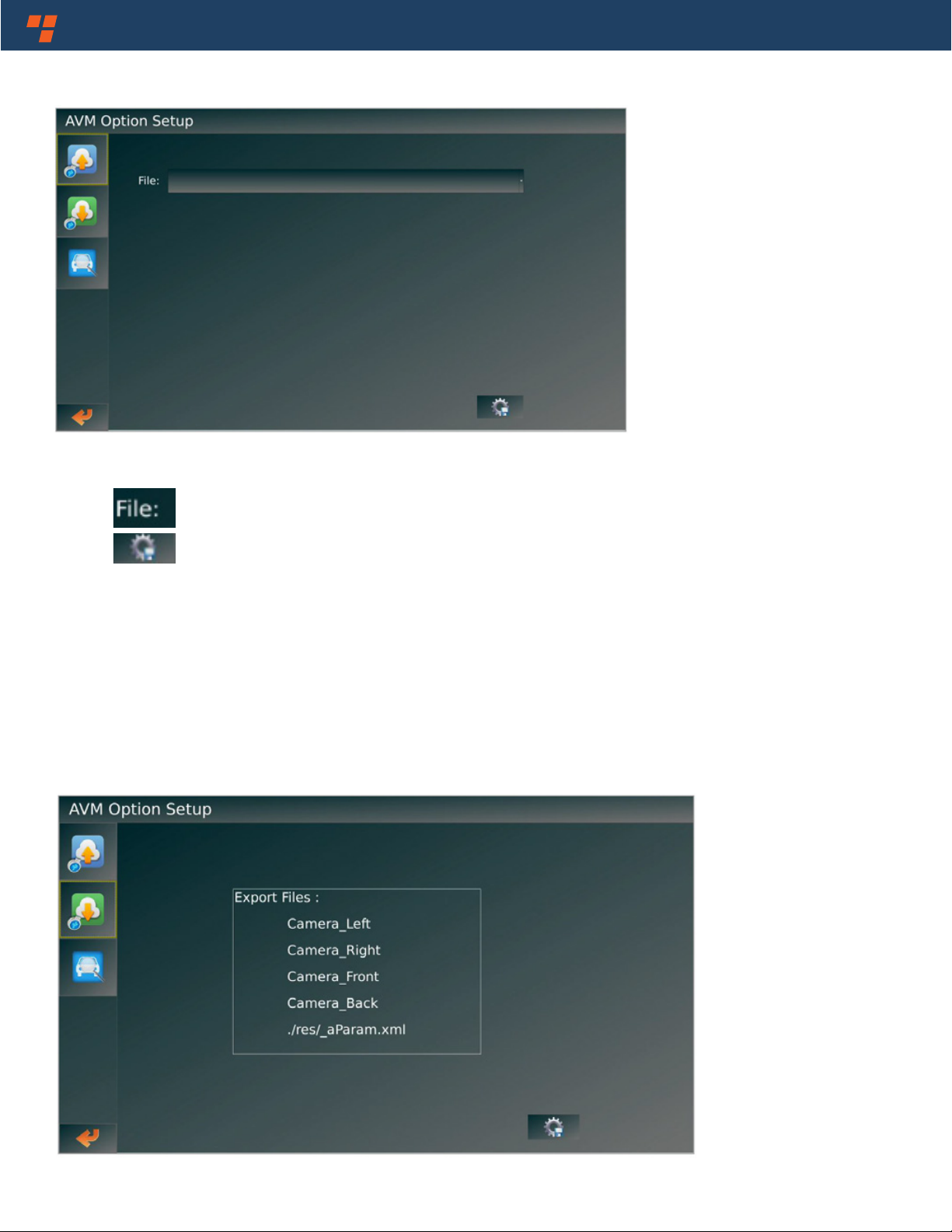

Upload Calibration Files
Output Calibration Files and 4CH Single-view Images
Feature Description:
1) Select uploaded les with XML extension.
2) Conrm selected les with XML extension.
Note:
If the preference of uploaded le is empty, please select les with XML extension from the expand list.
Once the change of XML les conrms, you are to be prompted to restart the system either save or exit.

Vehicle Safety - It's All We Do.TM 19
ChangeVehicle Models
Feature Description:
1) Select vehicle models. (Left to right: user-dened
vehicle models, bus model, truck model, car model.)
2) User-dened vehicle model picture.
3) Save selected vehicle model. If changes, will be prompted to restart the system.
Note:
1) User-dened vehicle model should be in format of PNG.
Setting Description:
1) Conrm output les.
Note:
1) Beforeoutput, make sure UDisk isconnectedand functioning normally. UDisk shouldn't bepulled
out during processing.
2) After successfully output les, name it with the time and date of the system.

Rear View Safety
20
6.2.8 Player Interface
Feature Description:
1) Calendar list: Green highlighted dates represent video les of current date. Press return key to get
back to player interface.
2) Time list: Green represents video les of current time. Press cancel key to get back to calendar
3)Video list and control key: All / none / delete / export / play key to operate video settings.
