Sunell SN-NVR10/02E3 User manual

NO:101-600-0155-01
Issue:1.0
Table 2-1 Front panel description
Port Name Description
HDD
Indicator
The hard disk of the NVR must be provided by the user. Take the
following steps to install hard disks：
Step 1 Remove the screws for fixing the cover and take down the
cover.
Step 2 Take out the screws and silicone cushion, route the screws
through the silicone cushion, and install it to the screw
holes, as shown in figure 3-1.
Figure 3-1 Installing the hard disk screws
Hard disk status indicator
This indicator flashes when data is transmitted.
KB/MOUSE Supports connection to a USB mouse and
keyboard.
BACKUP Supports connection to a USB flash drive or
USB removable hard disk.
PWR
Indicator
When the NVR is operating, the PWR indicator
is steady on.When the NVR is shut down, the
PWR indicator is turned off.
Network Video Recorder(NVR)
Quick Setup Guide
Fully understand this document before using this device, and
strictly observe rules in this document when using this device. If
you install this device in public places, provide the tip "You have
entered the area of electronic surveillance" in an eye-catching
place. Failure to correctly use electrical products may cause fire
and severe injuries.
It alerts you to moderate dangers which, if not
avoided, may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may
cause device damage, data loss, device
performance deterioration, or unpredictable results.
It provides additional information.






Strictly observe installation requirements when installing the
device. The manufacturer shall not be held responsible for
device damage caused by users' non-conformance to these
requirements.
Strictly conform to local electrical safety standards and use
power adapters that are marked with the LPS standard when
installing and using this device. Otherwise, this device may be
damaged.
Use accessories delivered with this device. The voltage must
meet input voltage requirements for this device.
If this device is installed in places with unsteady voltage, ground
this device to discharge high energy such as electrical surges in
order to prevent the power supply from burning out.
When this device is in use, ensure that no water or any liquid
flows into the device. If water or liquid unexpectedly flows into
the device, immediately power off the device and disconnect all
cables (such as power cables and network cables) from this
device.
Do not focus strong light (such as lighted bulbs or sunlight) on
Precautions
NOTE
CAUTI ON
WARNIN G
WARNING
Special Announcement
For more information, please refer to CD and website.








Avoid heavy loads, intensive shakes, and soaking to prevent
damages during transportation and storage. The warranty does
not cover any device damage that is caused during secondary
packaging and transportation after the original packaging is
taken apart.
Protect this device from fall-down and intensive strikes, keep the
device away from magnetic field interference, and do not install
the device in places with shaking surfaces or under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip the
cloth into slight neutral cleanser, gently wipe the dirt with the
cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation
instructions provided in this document when installing the device.
Keep the device away from heat sources such as radiators,
electric heaters, or other heat equipment.
Keep the device away from moist, dusty, extremely hot or cold
places, or places with strong electric radiation.
If the device is installed outdoors, take insect- and moisture-
proof measures to avoid circuit board corrosion that can affect
monitoring.
Remove the power plug if the device is idle for a long time.




All complete products sold by the manufacturer are delivered
along with nameplates, and accessories after
strict inspection. The manufacturer shall not be held responsible
for counterfeit products.
The manufacturer will update this manual according to product
function enhancement or changes and regularly update the
software and hardware described in this manual. Update
information will be added to new versions of this manual without
prior notice.
This manual may contain misprints, technology information that
is not accurate enough, or product function and operation
description that is slightly inconsistent with the actual product,
the final interpretation of company is as a standard.
This manual is only for reference and does not ensure that the
information is totally consistent with the actual product. For
consistency, see the actual product.
quick setup guide
NOTE


this device. Otherwise, the service life of the image sensor may
be shortened.
If this device is installed in places where thunder and lightning
frequently occur, ground the device nearby to discharge high
energy such as thunder strikes in order to prevent device
damage.
CAUTI ON
Open the package, check the appearance of product for no
obvious damage, and confirm the item for 1-1 is
consistent.
list table
Table 1-1 Packing list
Open Package Examination
1
2.1 Device Ports
Different device may have different ports and
, please refer to the .
multi-head
cable actual product
NOTE
Device Structure
2
2.2 Device Dimensions
Different device may have different dimensions, please refer
to the .actual product
NOTE
3Device Installation
Figure 2-1 Dimensions (Unit:mm)
PoE
Indicator
PoE network status indicator
This indicator flashes when data is transmitted.
RESET
Factory reset button
LAN
RJ45 10 /100/1000 Mbps adaptive Ethernet
interface.
Step 3 Route the screws through the holes on the base, push the
hard disk to the appropriate position on the left, as shown in
figure 3-2.
Turn the device over, and fasten the rest two hard disk
fixing screws, as shown in figure 3-3.
Step 4
Network Video Recorder
Phillips head screw
Silicone cushion
Power cord
Power adapter
Mouse
CD-ROM
Quick Setup Guide
1
Terminal block
1
12
8
1
1
1
1
2
311.8
372
44.5
KB/MOUSE BACKUP
LINE OUT/
LINE IN
Audio output and audio input
Component
HDMI
VGA Video output interface
Alarm input and alarm output
110 V/220 V AC power input interface of the
device
Connected to an external power adapter
Port Name Description
PoE PoE network interfaces
Safe ground screw of the device
Table 2-2 Rear panel description
During the instal lation, ensure that the large disc of the silicon
cushion close to the hard disk screw holes.
Please install the hard disk fixing screws on the screw holes far
away from the power supply interface.
NOTE
Figure3-2 Installing hard disk
Step 5 Install other hard disks following step 2,step 3 and step 4,
and insert the hard disk data cable and power cable, then
put on the upper cover and fasten the fixing screws.
Figure3-3 Fixing hard disk
Remark
Quantity
Optional
Optional
Front panel description of refer to table 2-1.device, please
Rear panel description of refer to table 2-2.device, please
DC 12 V

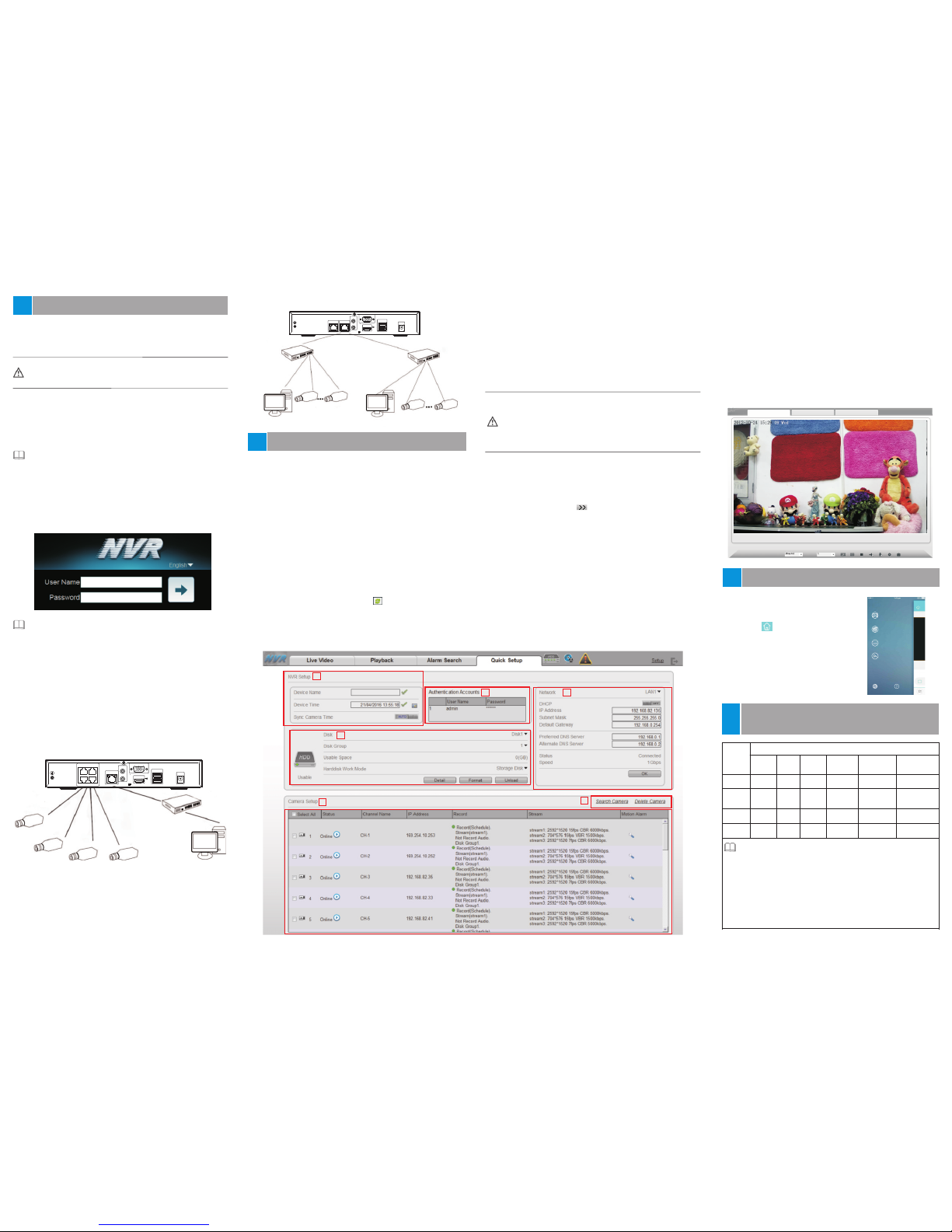

Figure 4-2 Network topology of the NVR
When the NVR is started, the power indicator becomes steady
on and the NVR starts a self-test and displays the test result on
the screen. The startup process takes about 2 minutes.
When a hardware abnormality is detected, the self-test screen
stays on. You can click continue or shutdown in the lower right
corner of the screen. If you click continue, the NVR enters the
login screen.
Hard disk detection is performed during sta rtup. If the detection
fails, possible causes include：
The hard disk is new an d unformatted. In this case, forma t the
hard disk based on“ Quick Setup”.
The hard disk is formatted, but the file system is incons istent with
the one supported by the NVR.
The hard disk is damaged.
In some environments, if the power supply is abnormal ,
the NVR may not work properly. In severe cases, the NVR
may be damaged. In these environments, you are advise d
to use regulated po wer supply.
Figure 4-1 Login
Enter the correct user name and password. The main screen of
the NVR is displayed.
4.2 Adding Webcams
4.2.1 PoE
After the PoE network interfaces are connected to IP cameras,
the NVR automatically adds the IP cameras. Figure 4-2 shows the
network topology of the NV (e.g 2 Disks,4 PoEs).R
PoE
PoE
PoE
PoE
LAN Switch
Remote client
POE
1
24
3
HDMI
DC 12V
USB
VGA
RESET
LAN
LINE OU T
LINE IN
Figure 4-3 Topology of a free network
NVR
LAN2
switch LAN1
Remote Client IP camera
HDMI
DC 12V
USB
VGA
RESET
LAN
LINE OU T
LINE IN
LAN
The NVR is embedded with a web server and supports
mainstream browsers such as Internet Explorer, Chrome, Firefox,
and Safari. Operations such as quick setup, real-time preview,
video playback, alarm search, NVR setup, and camera setup can
be performed through the web.
Open the Internet Explorer, enter the IP address of IP camera
(default value: 192.168.0.121） in the address box, and press
Enter. The login page is displayed. as shown in figure 4-1 .
5.1 Quick Setup
Quick setup provide NVR network configuration, disk
management, time setting, IP camera search, video configuration,
camera network configuration, stream configuration, and mobile
detection configuration, as shown in figure 5-1.
5.1.1 NVR Setup
 NVR basic information: You can set the device name and device
time of the NVR.
Sync Camera Time: It can be done manually or automatically. 


If the manual mode is selected, click to synchronize the time
of IP cameras. If the auto mode is selected, the NVR
synchronizes the time of IP cameras automatically.
Authentication Accounts: To log in to an IP camera, you need to
enter the correct authentication account. Only successfully
authenticated IP cameras can be managed. Double-click the
user name and password text field to modify the user name and
password.
NVR network configuration: You can enable automatic IP
address acquisition and set the IP address, subnet mask,
default gateway, DNS address of the NVR, and display the
network connection status and speed.
Hard disk management: You can manage the hard disk of the
NVR as follows:Format the hard disk; Check the status of the
hard disk (usable, abnormal, unformatted, and unavailable);
Check the used space and total space of the hard disk.
Formatting will clear all video data on the hard disk.
Use this function only when necessary.
Be sure to uninstall the hard disk before removing it
from the NVR during runtime; otherwise, the hard disk
may be damaged or data may be lost.
The NVR must be connected to a stable power supply
during runtime; otherwise, the hard disk may be
damaged or data may b e lost.
5.1.2 Camera setup
Camera search and deletion
When you need to search camera for management, click
Search Camera, the Camera Search page is displayed, then click
Scan, it will scan for the camera automatically, as shown in figure
4-1. Click , the camera selecting page is displayed, Select the
cameras you want and click , then click Ok to complete
selection of IP cameras.
To remove managed cameras, check the cameras in the camera
list and click to delect cameras.
IP camera setup
You can view the status of an IP camera and set the name, IP
address, record policy, stream parameter, and motion alarm
parameter of the IP camera.
View the status of an IP camera: The camera status may be
Online, Offline, and Incorrect account. For an online IP
camera, click to view live video.
Chang the channel name: Click a selected channel name, enter
a channel name in the Name text field.
Set a record policy: Click a selected record, the Record Policy
Configuration page is displayed. For how to set a record policy,
see the Record of Network Video Recorder (NVR) User Guide.
Figure 5-1 Quick Setup
Set a stream: Click a selected stream, the Stream page is
displayed，Set stream parameters, select On for Apply to all the
same devices, and click OK. The parameter settings are applied
to all IP cameras that have the same resolution as the
configured resolution.
Set a motion alarm: Click the motion alarm information, the
Motion Alarm page is displayed. Set the schedule and motion
area when the motion detection alarm function is enabled.
Quick Configuration(e.g IE)
5
Quick Configuration(e.g IE)
4
Component
Hazardous Su bstance or Elemen t
Plumbum
(Pb)
Mercury
(Hg) Cadmium
(Cd)
Hexavalent
Chromium
(Cr6+)
Polybromin a-
ted Biphenyl s
(PBB)
Structural
part
Board/
circuit
module
Cable
connector
Accessor-
ies
○: indicates that the concentration of the hazardous s ubstance in
all homogeneous s ubstances of the component is within the
limit specified in SJ/T 11363-2006 Requirements for
Concentration Limits for Certain Hazardous Substances in
Electronic Information Products.
×: indicates that the concentration of the hazardous s ubstance in
at least one homogeneous substance of the component
exceeds the limit specified in SJ/T 11363-2006
Requirements for Concentration Limits for Certa in
Hazardous Substances in Electronic Information Products.
×
×
×
×
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Polybromin ated
Diphenyl Eth ers
(PBDE)
NOTE
Appendix：
Hazardous Substance Declaration
5
4.1 Startup
Before starting NVR, ensure that the NVR is connected to a
power supply properly and a monitor is connected to the HDMI or
VGA interface of the NVR correctly. NVR will automatically power-
on, When it is connected to a power supply,
CAUTI ON
NOTE
NOTE
 The default user name is admin. The default password is admin.
Change the password when you log in the system for first time to ensure
system security.
You can change the system display language on the login page.
A free network includes other network devices in addition to IP
cameras and NVR. The topology of a free network can be
organized freely so long as NVR and IP cameras can
communicate with each other smoothly.
When a free network is used, the user needs to manually
search for and add IP cameras. For details, see chapter 5.1"Quick
Setup”.
4.2.2 Non-PoE
CAUTI ON
To browse a real-time video, click Live Video. The Live Video
page is displayed in figure 5-2., as shown
Figure 5-2 Live Video
Str eam Ca mera
Live Video Playback C onf igu ration
5.2 Live video
2
1
3
4
56
Mobile phone client
6
Mobile phone client supports
IOS、Android syetem，search
”Inview Pro” or “Inview Lite” in the
App store and install it.
Click icon ,the main menu is
displayed,as shown in figure 6-1.
You can perform the following
operation:
Live preview
Playback
Device Manage
Image
Figure 6-1 Main menu
Live Pre vie w
Playback
Devices
Images
Settin g Help
