Sunell SN-TPC4201AT II User manual

Thermal Imaging Integrated Network Camera
User Manual
Issue
V1.0
Date
2018-05-10

ii
Issue V1.0 (2018-05-10)

Thermal Imaging Integrated Network Camera
User Manual
Precautions
Issue V1.0 (2018-05-10)
i
Precautions
Precautions
Fully understand this document before using this device, and strictly observe rules in
this document when using this device. If you install this device in public places,
provide the tip "You have entered the area of electronic surveillance" in an eye-
catching place. Failure to correctly use electrical products may cause fire and severe
injuries. To prevent accidents, carefully read the following context:
Symbols
This document may contain the following symbols whose meanings are described
accordingly.
Symbol
Description
It alerts you to fatal dangers which, if not avoided, may
cause deaths or severe injuries.
It alerts you to moderate dangers which, if not avoided,
may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may cause
device damage, data loss, device performance
deterioration, or unpredictable results.
It provides a tip that may help you resolve problems or
save time.
It provides additional information.
To prevent electric shocks or other dangers, keep power plugs dry and clean.
Strictly observe installation requirements when installing the device. The
manufacturer shall not be held responsible for device damage caused by users' non-
conformance to these requirements.

Precautions
Thermal Imaging Integrated Network Camera
User Manual
ii
Issue V1.0 (2018-05-10)
Strictly conform to local electrical safety standards and use power adapters that are
marked with the LPS standard when installing and using this device. Otherwise,
this device may be damaged.
Use accessories delivered with this device. The voltage must meet input voltage
requirements for this device.
If this device is installed in places with unsteady voltage, ground this device to
discharge high energy such as electrical surges in order to prevent the power supply
from burning out.
When this device is in use, ensure that no water or any liquid flows into the device.
If water or liquid unexpectedly flows into the device, immediately power off the
device and disconnect all cables (such as power cables and network cables) from
this device.
Do not place the thermal imaging camera and unpackaged products at a radiation
source with a high intensity regardless of whether the device is in the normal
power-on state, for example, the sun, laser, and electric arc welder, and place the
thermal imaging camera and unpackaged products against objects with a high heat
source, for example, the sun. Otherwise, the accuracy of the thermal imaging
camera will be affected. In addition, the detector in the thermal imaging camera
may be permanently damaged.
If this device is installed in places where thunder and lightning frequently occur,
ground the device nearby to discharge high energy such as thunder strikes in order
to prevent device damage.
Unless otherwise specified in the user manual, do not use the thermal imaging
camera in an environment with the temperature lower than -10C (+14F) or higher
than 50C (+122F). Otherwise, the images displayed by the thermal imaging
camera are abnormal and the device may be damaged if working beyond the
temperature range for a long period.
During the outdoor installation, prevent the morning or evening sunlight incidence
to the lens of the thermal imaging camera. The sun shade must be installed and
adjusted according to the angle of the sunlight illumination.
Avoid heavy loads, intensive shakes, and soaking to prevent damages during
transportation and storage. The warranty does not cover any device damage that is
caused during secondary packaging and transportation after the original packaging
is taken apart.
This device is a static sensitivity device. Improper static may damage the thermal
imaging camera. ESD protection measures and reliable grounding must be well
prepared for device installation and uninstallation.
Protect this device from fall-down and intensive strikes, keep the device away from
magnetic field interference, and do not install the device in places with shaking
surfaces or under shocks.

Thermal Imaging Integrated Network Camera
User Manual
Precautions
Issue V1.0 (2018-05-10)
iii
Use a soft and dry cloth to clean the device body. In case that the dirt is hard to
remove, use a dry cloth dipped in a small amount of mild detergent and gently wipe
the device, and then dry it again. Pay special attention to the front window of the
thermal imaging camera because this is precision optics. If the front window has
water spots, use a clean and soft cloth moistened with water and wipe it. If the front
window needs further cleaning, use a soft cloth dampened with isopropyl alcohol
or detergent. Improper cleaning can cause damage to the device.
The lens window of the thermal imaging camera is designed to be applicable to an
outdoor environment. The window is coated with durable coating material, but may
require frequent cleaning. When you found lens image degradation or excessive
accumulation of pollutants, you should clear up the window in a timely manner.
Exercise caution when you use this device in severe sandstorm (such as deserts) or
corrosive environments (such as offshore). Improper use may cause surface coating
off.
Do not jam the ventilation opening. Follow the installation instructions provided in
this document when installing the device.
Keep the device away from heat sources such as radiators, electric heaters, or other
heat equipment.
Keep the device away from moist, dusty, extremely hot or cold places, or places
with strong electric radiation.
If the device is installed outdoors, take insect- and moisture-proof measures to
avoid circuit board corrosion that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Before unpacking, check whether the fragile sticker is damaged. If the fragile
sticker is damaged, contact customer services or sales personnel. The manufacturer
shall not be held responsible for any artificial damage of the fragile sticker.
Special Announcement
All complete products sold by the manufacturer are delivered along with nameplates,
operation instructions, and accessories after strict inspection. The manufacturer shall
not be held responsible for counterfeit products.
This manual may contain misprints, technology information that is not accurate enough,
or product function and operation description that is slightly inconsistent with the
actual product. The manufacturer will update this manual according to product function
enhancement or changes and regularly update the software and hardware described in
this manual. Update information will be added to new versions of this manual without
prior notice.
This manual is only for reference and does not ensure that the information is totally
consistent with the actual product. For consistency, see the actual product.

Contents
Thermal Imaging Integrated Network Camera
User Manual
iv
Issue V1.0 (2018-05-10)
Contents
1 Product Overview .................................................................................................... 1
1.1 Thermal Imaging Principles and Advantages ................................................................. 1
1.2 Device Structure............................................................................................................. 1
1.3 Cable Connection........................................................................................................... 2
1.4 Functions and Features................................................................................................... 4
2 Device Dimensions ................................................................................................. 5
3 Installation ................................................................................................................ 6
3.1 Preparations.................................................................................................................... 6
3.2 Installation Mode............................................................................................................ 6
3.3 Installation Procedure..................................................................................................... 6
4 Quick Configuration ............................................................................................. 10
4.1 Login and Logout......................................................................................................... 10
4.2 Main page layout...........................................................................................................11
4.3 Changing the Password ................................................................................................ 12
4.4 Browsing Video............................................................................................................ 13
4.4.1 Install plugins................................................................................................... 15
4.5 Setting Local Network Parameters............................................................................... 15
5 Thermal Setting...................................................................................................... 19
5.1 Temperature Parameters............................................................................................... 19
5.2 Temperature Area ......................................................................................................... 20
5.3 Schedule Linkage......................................................................................................... 24
6 Parameter Setting................................................................................................... 25
6.1 Sensor Configuration Interface..................................................................................... 25
6.2 Time Segment............................................................................................................... 25
6.3 Setting Images.............................................................................................................. 26
6.4 FFC Control ................................................................................................................. 28
6.5 Noise Reduction........................................................................................................... 30
6.6 Adjust screen................................................................................................................ 31
7 Technical Specifications....................................................................................... 34
A Troubleshooting.................................................................................................... 38

Thermal Imaging Integrated Network Camera
User Manual
Contents
Issue V1.0 (2018-05-10)
v
B Common Emission Rate....................................................................................... 40

Thermal Imaging Integrated Network Camera
User Manual
1 Product Overview
Issue V1.0 (2018-05-10)
1
1 Product Overview
1.1 Thermal Imaging Principles and Advantages
For any object, as long as its temperature is above the absolute zero (-273.15°C),
although the object does not give out light, it can radiate infrared. The infrared is also
known as thermal radiation. A temperature change occurs when the infrared radiated by
objects at different temperatures is absorbed by the infrared thermal detector, and
thereby generating an electrical effect. An electrical signal is amplified and processed
to obtain a thermal image corresponding to the distribution of heat on the surface of the
object, that is, infrared thermal imaging.
Applicable to any light environment
Traditional cameras rely on the natural or ambient light for imaging. However, the
infrared thermal imaging camera can clearly image the object with the infrared heat
radiation of the object without relying on any light. The infrared thermal camera is
applicable to any light environment and is free from glare impact. It can clearly
detect and find the target as well as identify the camouflaged and hidden target in
both day and night. Therefore, it achieves real 24-hour surveillance.
Monitoring the temperature field of the target heat distribution
The infrared thermal camera can display the temperature field of the object and
change the surface temperature distribution of the object that cannot be directly
seen by human eyes to the thermal image representing the surface temperature
distribution of the object. By monitoring the temperature field, you can
immediately identify the temperature abnormality, thereby preventing potential
risks caused by the temperature, such as fire.
Providing the cloud penetration capability
Atmosphere, dust, and clouds can absorb visible light and near infrared, but are
clear to the thermal infrared for 3 to 5 microns (medium wave infrared region) and
8 to 14 micron (long wave infrared). Therefore, it is difficult for the conventional
cameras to capture clear images under dense clouds, while the thermal imaging
camera is able to effectively penetrate the atmosphere and clouds to capture clear
images.
1.2 Device Structure

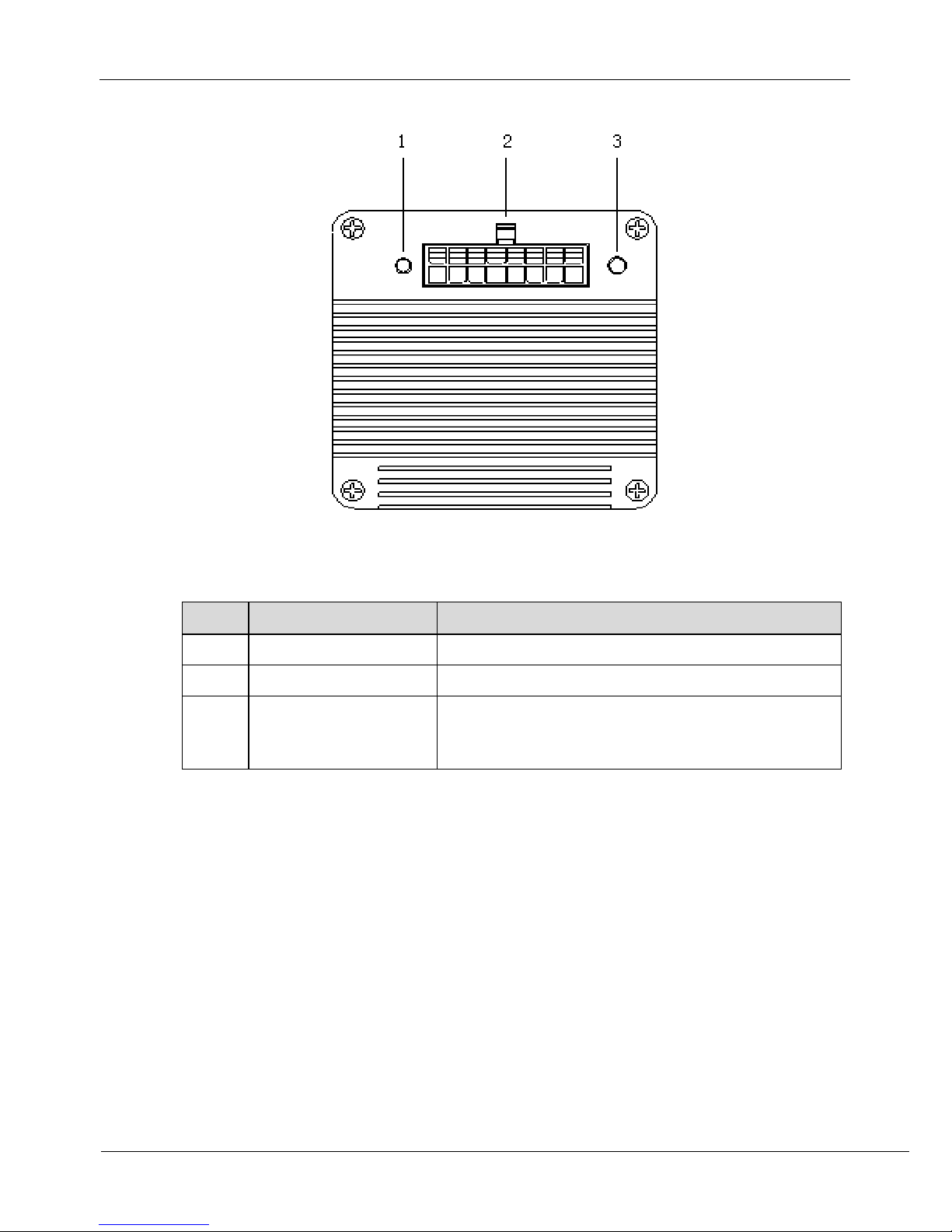

Figure 1-1 shows the rear panel of the thermal imaging integrated network camera. For
details about the interfaces, see Table 1-1.

1 Product Overview
Thermal Imaging Integrated Network Camera
User Manual
2
Issue V1.0 (2018-05-10)
Figure 1-1 Appearance and interfaces ofthe thermal imagingintegrated network camera
Table 1-1 Interfaces
No.
Physical Interface
Connection
1
Power indicator
Indicates the power status
2
Connector
Connector of multi-connector combination cable
3
Reset button
(RESET)
The configuration resumes to the factory settings
after you press the reset button for 3s. The default
value is 192.168.0.121.
1.3 Cable Connection
Figure 1-2 the multi-connector combination cable of the thermal imaging integrated
network camera. For details about the multi-connector combination cable, see Table 1-
2.

Thermal Imaging Integrated Network Camera
User Manual
1 Product Overview
Issue V1.0 (2018-05-10)
3
Figure 1-2 Multi-connector combination cable
Table 1-2 Multi-connector combination cable
ID
Functions
Connection
1
BNC video
Sends analog video signals. You can connect
the camera to a TV monitor through this port to
view analog videos.
2
Audio output
Connects to the external audio device such as
the voice box.
3
DC12V output
Connects to a fan.
4
DC12V input
Power interface, connects to the 12 V DC
power supply.
5
Focusing interface
Connects to the input interface of pan focusing
signal cable.
6
Network interface
Connects to the standard Ethernet cable.
7
Audio input port (cable
input)
Inputs the audio signal and receives the analog
audio signals from the sound pick-up device.
8
RS485RS+/-
RS485 interface, connects to the external pan
& tilt.

1 Product Overview
Thermal Imaging Integrated Network Camera
User Manual
4
Issue V1.0 (2018-05-10)
1.4 Functions and Features
Using the uncooled infrared focal plane sensor
Detecting the infrared wavelength ranging from 8 um to 14 um
400*300 pixels
High thermal sensitivity, reaching 50mK
Supporting dedicated lens for 8/15/25/35/50 mm focal distance (optional)
Supporting 17 pseudo color modes such as black hot, white hot, rainbow, iron bow
and so on
Supporting the DVE image enhancement
Supporting noise reduction and mirroring
Supporting four coding algorithms, that is, H.265,H.264 and MJPEG, and high
compatibility
In the heat setting temperature measuring points in the image or temperature area,
temperature detection and display: point temperature measurement, regional
temperature measuring, full screen, temperature measurement.
Over temperature warning and over temperature alarm
Outputting three code streams in real time, and satisfying local storage and network
transmission of the video
1-channel audio input and 1-channel audio output, supporting bidirectional voice
talkback
Supporting the local storage of the Micro SD card (the maximum capacity is 128
GB) and effectively resolving the video loss problem caused by network failure
Supporting NAS storage
Providing software and hardware watchdogs and automatic fault recovery
Linked heat dissipation structure of the metal enclosure
DC 12 V/POE power supply

Thermal Imaging Integrated Network Camera
User Manual
2 Device Dimensions
Issue V1.0 (2018-05-10)
5
2 Device Dimensions
Figure 2-1 shows the dimensions of the thermal imaging integrated network camera.
Figure 2-1 Dimensions (unit: mm)
For 25mm prime lens

3 Installation
Thermal Imaging Integrated Network Camera
User Manual
6
Issue V1.0 (2018-05-10)
3 Installation
3.1 Preparations
You may need the tools and accessories shown in Table 3-1 during the installation (you
need to prepare the tools by yourself, and the accessories are in the package of the
camera).
Table 3-1 Installation tools
Tools
Appearance
Phillips screwdriver (prepare by yourself)
3.2 Installation Mode
If the thermal imaging integrated camera is installed indoor, a bracket should be
selected; if the thermal imaging integrated camera is installed outdoor, a shield should
be selected.
NOTE
The wall where the support is mounted must be able to withstand at least three times of the
total weight of the support and the camera.
3.3 Installation Procedure
Step 1 Remove the installation block delivered with the camera. Fix the installation block on
the top or on the bottom of the camera, as shown in Figure 3-1.

Thermal Imaging Integrated Network Camera
User Manual
3 Installation
Issue V1.0 (2018-05-10)
7
Figure 3-1 Fix the installation block
Installation block

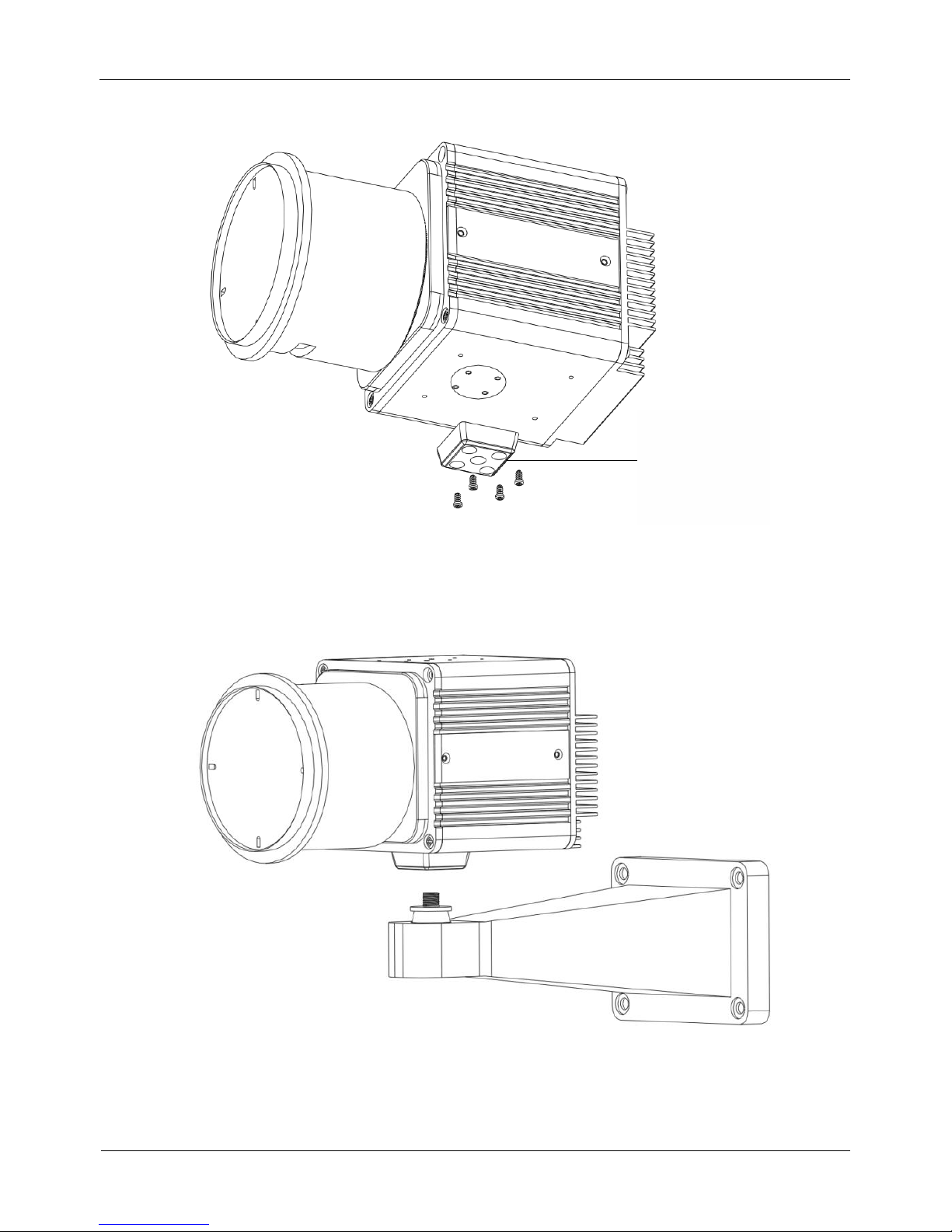

Step 2 Fix the installation block and mounting bracket, as shown in Figure 3-2.
Figure 3-2 Fixing installation block and mounting bracket
Step 3 Fix the mounting bracket on the wall, as shown in Figure 3-3.

3 Installation
Thermal Imaging Integrated Network Camera
User Manual
8
Issue V1.0 (2018-05-10)
Figure 3-3 Fix the mounting bracket
Step 4 Focusing.
(1) Focusing with focusing fixture
Grasp the handle portion of the fixture, and focus along the direction of arrows, as
shown in Figure 3-4.

Thermal Imaging Integrated Network Camera
User Manual
3 Installation
Issue V1.0 (2018-05-10)
9
Figure 3-4 Focusing with focusing fixture
(2) Focusing with focusing screw
Insert the focusing screw into the screw hole and focus along the direction of arrows as
shown in Figure 3-5.
Figure 3-5 Focusing with focusing screw
----End

4 Quick Configuration
Thermal Imaging Integrated Network Camera
User Manual
10
Issue V1.0 (2018-05-10)
4 Quick Configuration
4.1 Login and Logout
You must use Internet Explorer 6 or a later version to access the web management
system; otherwise, some functions may be unavailable.
Login system
Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value:
192.168.0.121) in the address box, and press Enter.

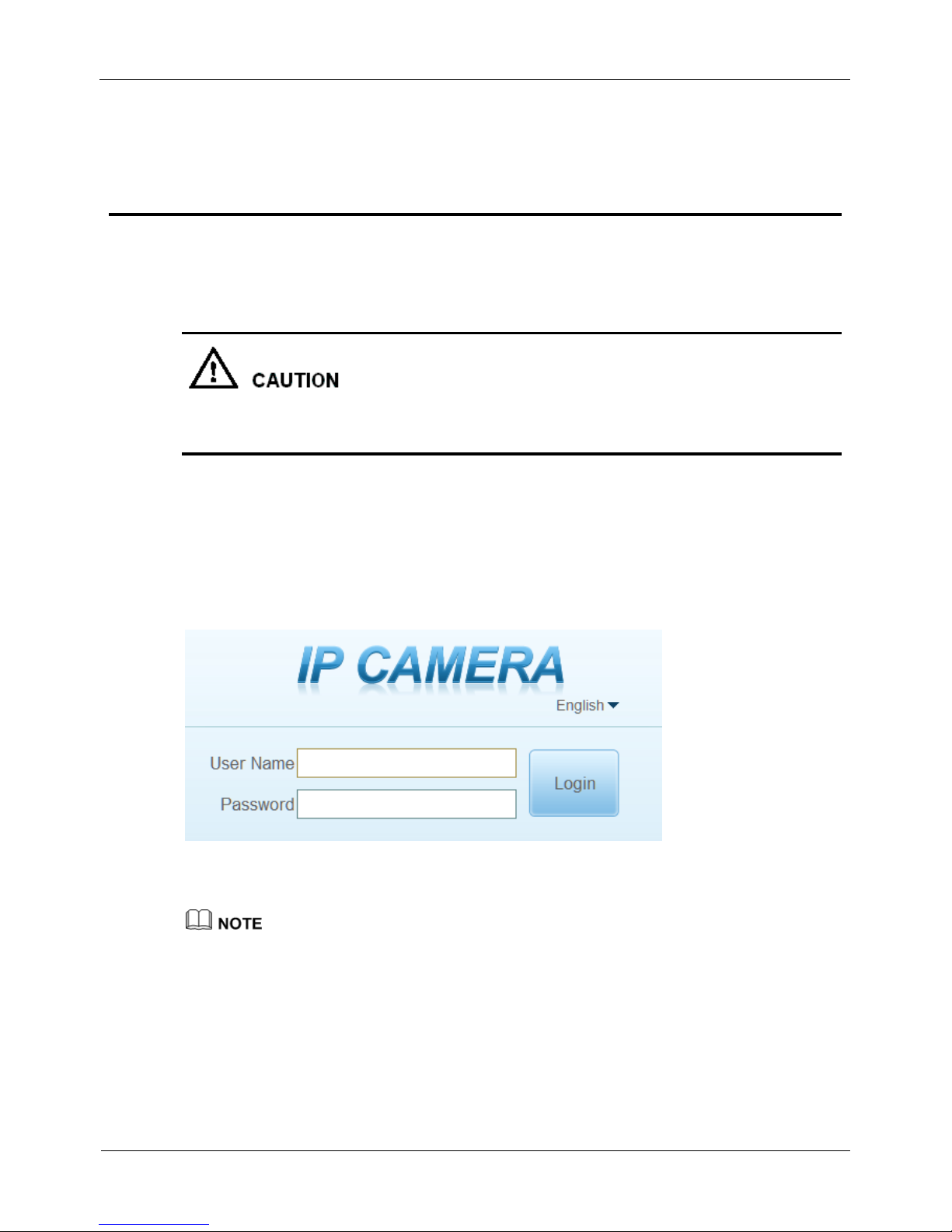

The login page is displayed, as shown in Figure 4-1.
Figure 4-1 Login page
Step 2 Input the User and password.
The default name is admin. The default password is admin. Change the password when
you log in the system for first time to ensure system security.
You can change the system display language on the login page.
Step 3 Click Login.
The main page is displayed.
----End

Thermal Imaging Integrated Network Camera
User Manual
4 Quick Configuration
Issue V1.0 (2018-05-10)
11
logout
To logout of system, click in the upper right corner of the main page, the login page
is display after you log out of the system.
4.2 Main page layout
On the main page, you can view real-time video, set parameter, Video parameter, Video
control, PTZ control, PTZ Configure and log out of the system. Figure 4-2 is shown the
main page layout. Table 4-1 lists the elements on the main page layout.

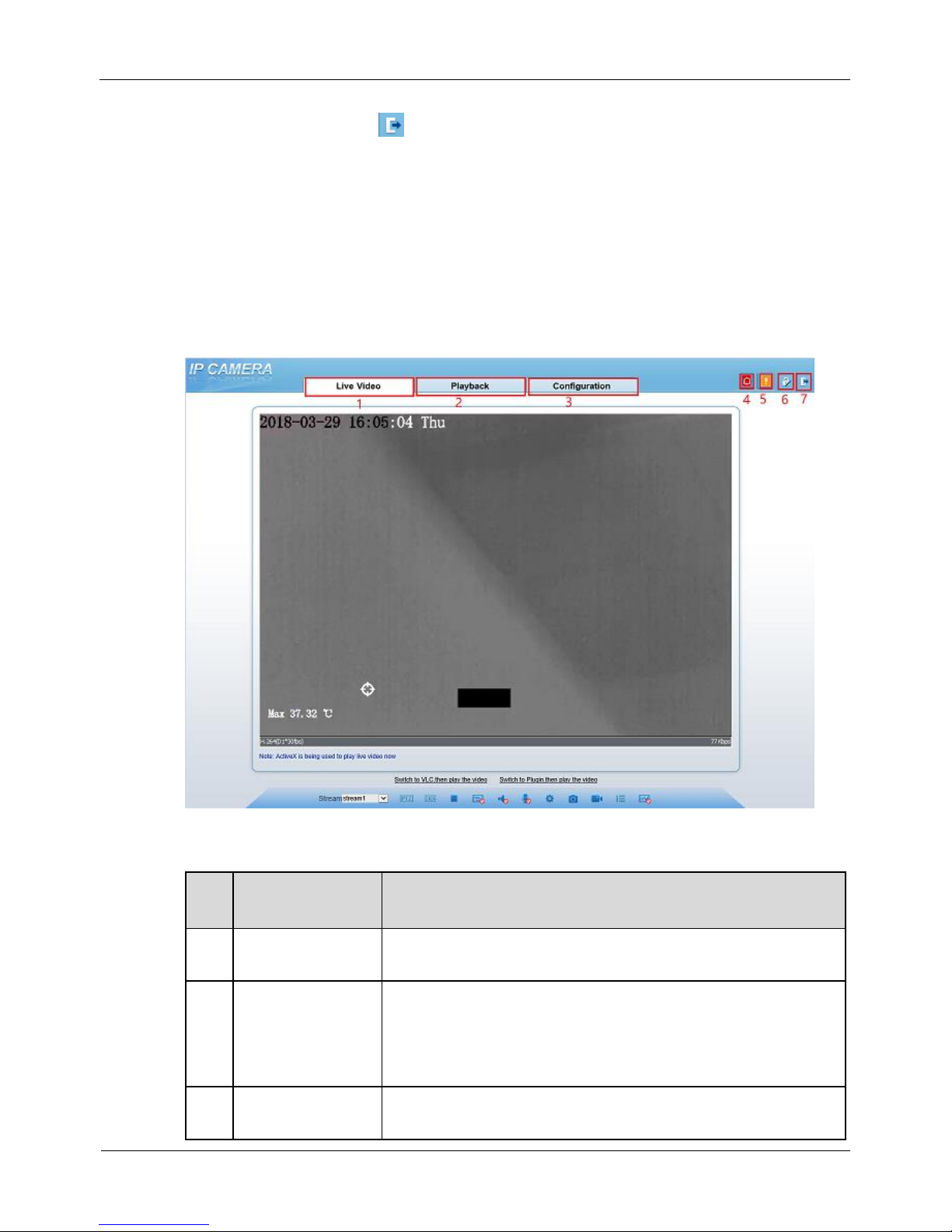

Figure 4-2 Main page layout
Table 4-1 Elements on the main page
N
O.
Element
Description
1
Real-time video
area
Real-time videos are played in this area. You can also set
sensor parameters.
2
Playback
You can query the playback videos in this area.
NOTE
Only when the SD card or NAS have videos that you can query
the playback videos.
3
Device
configuration
You can choose a menu to set device parameters,
including the device information, audio and video streams,

4 Quick Configuration
Thermal Imaging Integrated Network Camera
User Manual
12
Issue V1.0 (2018-05-10)
N
O.
Element
Description
alarm setting, and privacy mask function.
4
Alarm icon
When the device generates an alarm, the alarm icon
is displayed. You can click to view the alarm
information.
NOTE
When the device accepts an alarm signal, the alarm icon will
display within 10s in the web management system.
5
Fault icon
When the device encounters an exception, the fault icon
is displayed.
You can click to view the fault information.
6
Change
password
You can click to change the password.
7
Sign Out
You can click to return to the login page.
----End
4.3 Changing the Password
Description
You can click to change the password for logging in to the system.
Procedure
Step 1 Click in the upper right corner of the main page.
The Change Password dialog box is displayed, as shown in Figure 4-3.
