Sunex Tools SX203N User manual

Operating Instructions • Warning Information • Parts Breakdown
SPECIFICATIONS
Free Speed ..................10,000
Air Inlet (NPT)..................1/4"
Hose Size (ID)..................3/8"
Air Pressure (PSI) ................90
Air Consumption ..................4
Pad Size ............................6"
Sound Level ................91 dBA
Height..........................5-1/8"
Length ..............................10"
Shipping Wt. (Lbs.) ........4-1/2
SX203N
6" QUIET
DUAL ACTION
SANDER
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.

THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL
CAREFULLY AND UNDERSTAND ALL
INFORMATION BEFORE OPERATING
THIS TOOL.
• Always operate, inspect and maintain this
tool in accordance with American National
Standards Institute Safety Code of Portable
Air Tools (ANSI B186.1) and any other
applicable safety codes and regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at 90
psig 6.2 bar max air pressure with 3/8"
diameter air supply hose.
• Always wear impact-resistant eye and face
protection when operating or performing
maintenance on this tool. Always wear
hearing protection when using this tool.
• High sound levels can cause permanent
hearing loss. Use hearing protection as
recommended by your employer or OSHA
regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must
be physically able to handle the bulk,
weight and power of this tool.
• Air under pressure can cause severe injury.
Never direct air at yourself or others.
Always turn off the air supply, drain hose of
air pressure and detach tool from air supply
before installing, removing or adjusting any
accessory on this tool, or before performing any
maintenance on this tool. Failure to do so
could result in injury. Whip hoses can cause
serious injury. Always check for damaged,
frayed or loose hoses and fittings, and
replace immediately. Do not use quick
detach couplings at tool. See instructions for
correct set-up.
• Air powered tools can vibrate in use.
Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool if
discomfort, tingling feeling or pain occurs.
Seek medical advice before resuming use.
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
• Place the tool on the work before starting
the tool.
•Slipping, tripping and/or falling while
operating air tools can be a major cause of
serious injury or death. Be aware of excess
hose left on the walking or work surface.
• Keep body working stance balanced and
firm. Do not overreach when operating the tool.
• Anticipate and be alert for sudden changes
in motion during start up and operation of
any power tool.
• Do not carry tool by the hose. Protect the
hose from sharp objects and heat.
• Tool shaft may continue to rotate briefly
after throttle is released. Avoid direct
contact with accessories during and after
use. Gloves will reduce the risk of cuts or burns.
• Keep away from rotating end of tool. Do
not wear jewelry or loose clothing. Secure
long hair. Scalping can occur if hair is not
kept away from tool and accessories.
Choking can occur if neckwear is not kept
away from tool and accessories.
• Never mount a grinding wheel on a sander.
A grinding wheel that bursts can cause very
serious injury or death when not properly
guarded. Inspect backing pad before each
use. Do not use if cracked of damaged.
• Avoid direct contact with moving sanding
pad to prevent pinching or cutting of hands
or other body parts.
• Do not lubricate tools with flammable or
volatile liquids such as kerosene, diesel or
jet fuel.
• Don’t force tool beyond its rated capacity.
• Do not remove any labels. Replace any
damaged labels.

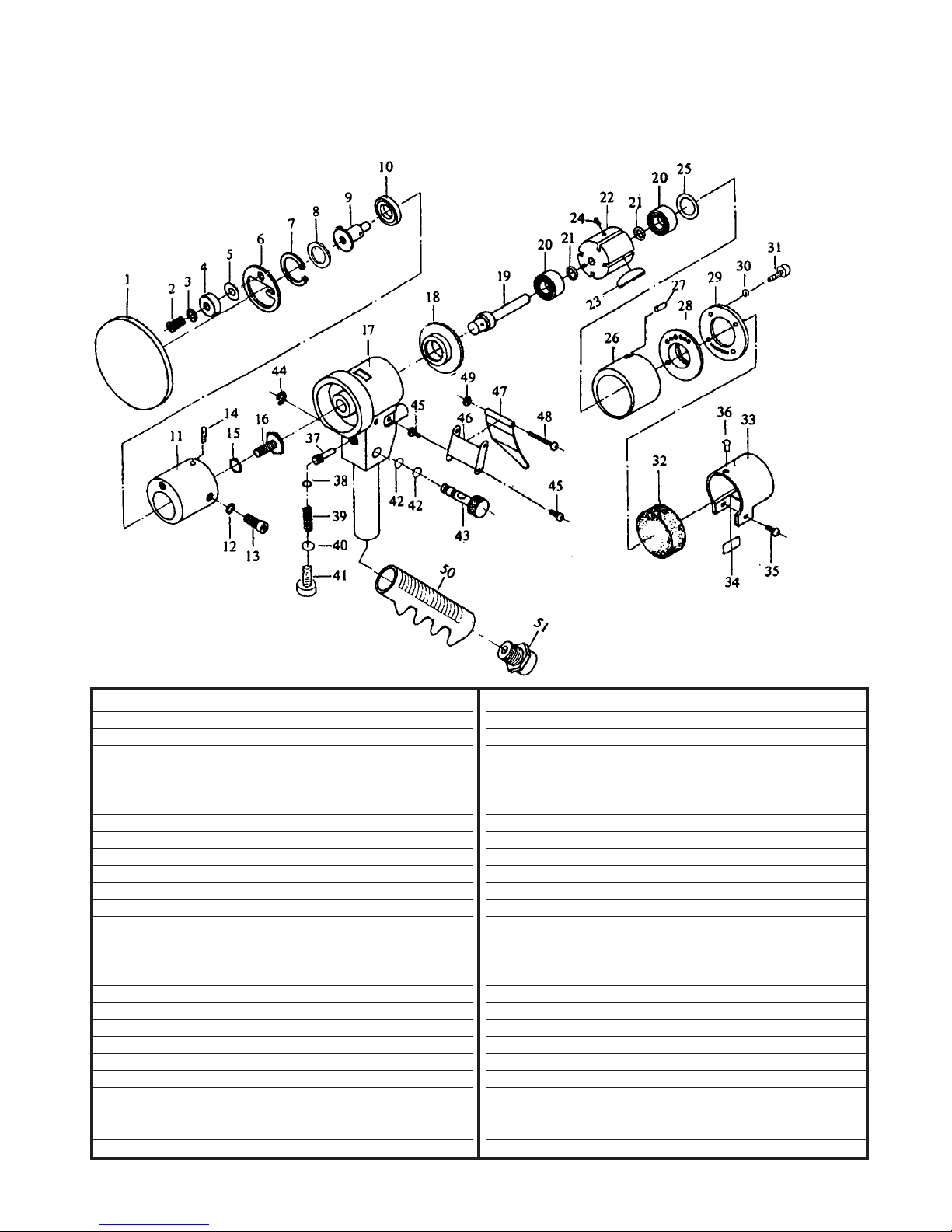

SX203N
6" Quiet Dual Action Sander
Ref. # Item # DESCRIPTION QTY.
1 87513 6" DA bonded Pad (Std.) 1
2 203N02 Cap Screw 1
3 203N03 Screw Washer 1
4 203N04 Balance Nut 1
5 203N05 Wave Washer 1
6 203N06 Drive Cover 1
7 203N07 Fixing Ring 1
8 203N08 Corrugated Washer 1
9 203N09 Sanding Pad - Std. Nut 1
10 21118 Ball Bearing 1
11 203N11 Random Balance body 1
12 203N12 Lock Washer 1
13 203N13 Socket Head Cap Screw 1
14 203N14 Slotted Set Screw 1
15 203N15 Spring Washer 1
16 203N16 Front Screw 1
17 203N17 Valve Body 1
18 203N18 Front Plate 1
19 203N19 Rotor Shaft 1
20 29120 Ball Bearing 2
21 203N21 Shim 2
22 203N22 Rotor 1
23 203N23 Rotor Blade 5
24 203N24 Set Screw 1
25 203N25 Bearing Shield 1
26 203N26 Cylinder 1
Ref. # Item # DESCRIPTION QTY.
27 203N27 Set Pin 1
28 203N28 Rear Plate 1
29 203N29 Rotor Fixing Cover 1
30 203N30 Spring Washer 1
31 203N31 Rotor Screw 1
32 203N32 Muffler 1
33 203N33 Rotor Cover 1
34 203N34 Sponge 1
35 203N35 Screw 1
36 203N36 Screw 1
37 203N37 Push Rod 1
38 203N38 O-Ring 1
39 203N39 Throttle Spring 1
40 203N40 O-Ring 1
41 203N41 Throttle Valve Plug 1
42 203N42 O-Ring 1
43 203N43 Regulaor 1
44 203N44 Retaining Ring 1
45 203N45 Screw 1
46 203N46 Lever Bracket 2
47 203N47 Lever Booster 1
48 203N48 Bolt 1
49 203N49 Nut 5
50 203N50 Handle 1
51 203N51 Air Inlet 1
Note: Optional 5" DA bonded pad available as Part # 87511

Air Supply...
Tools of this class operate on a wide range of air pressures. It is
recommended that air pressure of these tools measure 90 PSI at the
tool while running free. Higher pressure and unclean air will
shorten the tool’s life because of faster wear and may create a
hazardous condition.
Water in the air line will cause damage to the tool. Drain the air
tank daily. Clean the air inlet filter screen on at least a weekly
schedule. The recommended hookup procedure can be viewed in
Figure 1.
The air inlet (B) Figure 2, used for connecting air supply, has
standard 1/4" NPT American Thread.
Line pressure should be increased to compensate for unusually long
air hoses (over 25 feet). Minimum hose diameter should be 1/4"
I.D. and fittings should have the same inside dimensions.
(B) Air Inlet
Lubrication...
Lubricate the tool daily with a good grade of air tool oil. If no air
line oiler is used, run a teaspoon of oil through the tool. The oil can
be squirted into the tool air inlet (B) Figure 2, or into the hose at the
nearest connection to the air supply, then run the tool. A rust
inhibitive oil is acceptable for air tools.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
Troubleshooting...
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air line,
moisture or restrictions in air pipes or the use of hose connections of
improper size or poor condition may reduce air supply. Grit or gum
deposits in the tool may cut power and may be corrected by
cleaning the air strainer and flushing out the tool with gum solvent
oil or an equal mixture of SAE #10 oil and kerosene. If outside
conditions are in order, disconnect tool from hose, and take tool to
your nearest authorized service center.
Operation...
The air regulator knob can be used as an air throttle and can be
used for setting positive speed control. The air inlet used for
connecting air supply has standard 1/4" NPT thread.
Let the sander do the work. The normal weight of the machine is
sufficient for efficient sanding. Do not put additional pressure on the
machine. This will only slow down the speed of the pad, reduce
sanding efficiency and put an additional burden on the motor. Start
the sander off the work, set it down on the work evenly and move it
slowly back and forth in wide, overlapping areas. When finished
sanding, lift it off the work before stopping the motor.
(A) Air Regulator Valve
Nipple
Figure 1
Figure 2
