SUNFUNG SF-S350 User manual

Fully Automatic Digital Cutter
Sheet cutter SF-S350
Sunfung Technology Corporation Ltd
https://sunfung-tech.com

1
Preface
1. Thank you for choosing the Sunfung series fully automatic single-sheet digital cutter.
To ensure the best performance of the machine, please read this manual carefully
before operating it.
2. Although we have tried our best to provide the most detailed information, if you find
anything unclear or inaccurate, or if you have any suggestions or comments, please
contact us or our distribution network.
3. Our company is not responsible for any losses caused by incorrect placement or
operation of the machine that do not follow the instructions in this manual.
4. If there are any changes in the specifications or other related information of this
product, we will not inform separately.

2
Table of Contents
Preface -------------------------------------------------------------------------------------------- Page 01
Assembly of the machine ---------------------------------------------------------------------- Page 03
Chapter 1 Product Technical Parameters -------------------------------------------------- Page 06
Chapter 2 About the Touch Panel ------------------------------------------------------------ Page 07
2.1 Detailed Functions -------------------------------------------------------------- Page 07-29
Chapter 3 How to Install the Machine Output Plug-in ----------------------------- Page 30-38
3.1 How to Install AIDCut-LABEL-V5.0.5 --------------------------------------- Page 30-37
3.2 Plug-in Icon Details ----------------------------------------------------------------- Page 38
Chapter 4 How to Operate the Machine ---------------------------------------------------- Page 39

3
Assembly of the Machine
Notice:
Please assemble in a clean environment.
Avoid direct sunlight.
Use a power source with the correct voltage specifications.
Ensure that there is sufficient space around the machine.
Do not use thinner.
Do not use lubricating oil.
Be careful when taking the cutting tool.
When using the cutting tool, please pay attention to not extend the blade too far.

4
Assembly procedure：

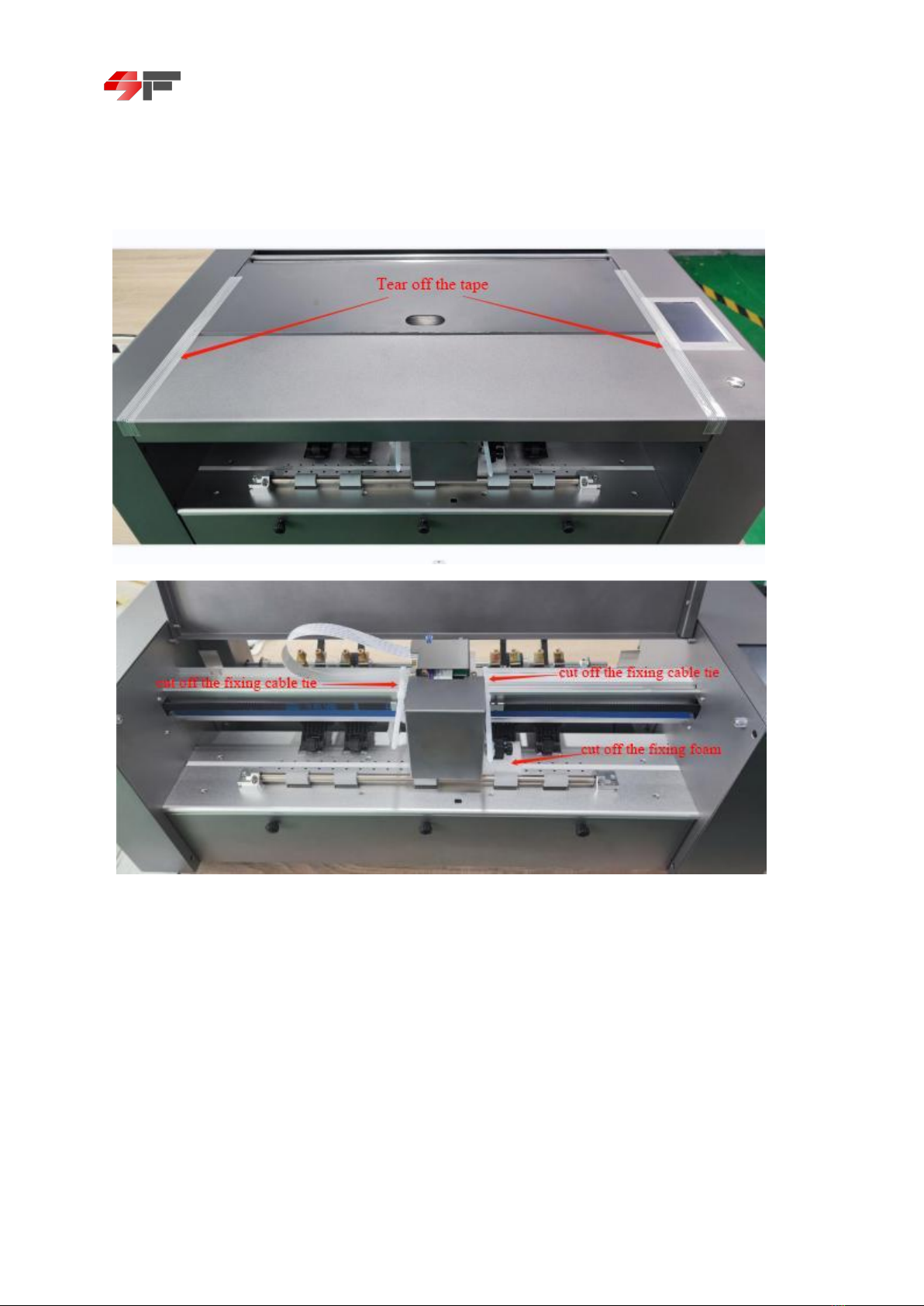

1.Please take the machine out of the carton, and place it on the table, cut off the fixing
cable ties of the cutting head and the fixing foams of the knife holder.
Let the press wheels correspond one by one to the steel wheels.

5
2. Then, install the Infeed table and fix four M5 screws to ensure the board is level with
the Paper feed rollers and without gap. And connect the induction line of Infeed table.
3. The machine is assembled, as below.

6
Chapter 1 Technical Parameters
Model
SF-S350 (Servo motor)
Max sheet size
350mm*500mm
Max cutting size
340mm*490mm
Min cutting size
180mm*200mm
Downforce
10-500G
Max cutting speed
1200mm/s
Cutting materials
Sticky note, Adhesive paper, Card, Photo Paper, Heat transfer material,
non-woven fabric and other non-metallic materials
Feed paper mode
Automatic continuous feeding
Press paper mode
Double row pinch wheel
Position mode
CCD Camera
Driver
Digital control system
Interfaces
USB, LAN, WIFI transmission or QR code with Udisk offline working
Interface mode
USB2.0 or 3.0 high-speed transmission
Machine dimension
Machine dimension: 745*432*280mm
Unfold dimension: 1025*745*625mm
Machine weight
Gross weight: 40KG/Net weight: 37KG
Package dimension
865*550*410mm
Shipping weight
About 40KG
Warranty
Two year (Parts excluded)
Software
Adobe Illustrator / CorelDRAW, C u t m a s t e r
Parts
One Knife holder, one box of blade, one Udisk, one Power cord, one USB cable

7
Chapter 2 About the Touch Panel
2.1 Detailed Functions
1. “ ”“ ” Touch icon for left and right direction. In offline
working mode, it can control the carriage to move left or right.
2. “ ”“ ” Touch icon for front and rear direction. In offline
working mode, it can control the double-row roller to move forward or backward.
3. “ ” Touch icon for reboot. Corresponding to machine reboot and
reset operations.

8
4. “ ” Touch icon for knife pressure test. Corresponding to the
machine's knife pressure test, after setting the knife pressure, move the carriage knife
holder to the material and press the "Knife Pressure Test" icon, the machine will make a
small test cut. At this point, you can tear it open to see the cutting effect. If the cutting
effect is not perfect, you need to adjust the blade tip and knife pressure until the cutting
effect is perfect.
5. “ ” Touch icon for speed/pressure. Corresponding to the machine's
cutting speed and cutting knife pressure. Click to enter the settings, as shown below:
After setting the speed/pressure, press “ ”or“ ” to return to the
main page. The corresponding area on the main page menu will also display the

9
current speed and pressure “ ”。
6.“ ” Touch icon for settings. Click to enter the internal settings, as shown
below:
6.1“ ” Touch icon for material replacement. If different materials cannot be
recognized during scanning, you can place a blank paper of the corresponding
material on the machine. After one-click paper feeding, move the carriage to the
middle of the paper, and then click the "Material Replacement" touch icon. The
machine will automatically recognize the material background color and record it.
Then the machine can recognize and scan after exiting the material. Automatic
recognition of material background color and adjustment of fill light brightness can
also be set as shown below:

10
Press “ ”or“ ” to return to the main page.
6.2“ ” Touch icon for cutting records. Click to enter the record interface, as shown
below:

11
Press “ ”or“ ” to return to the main page.

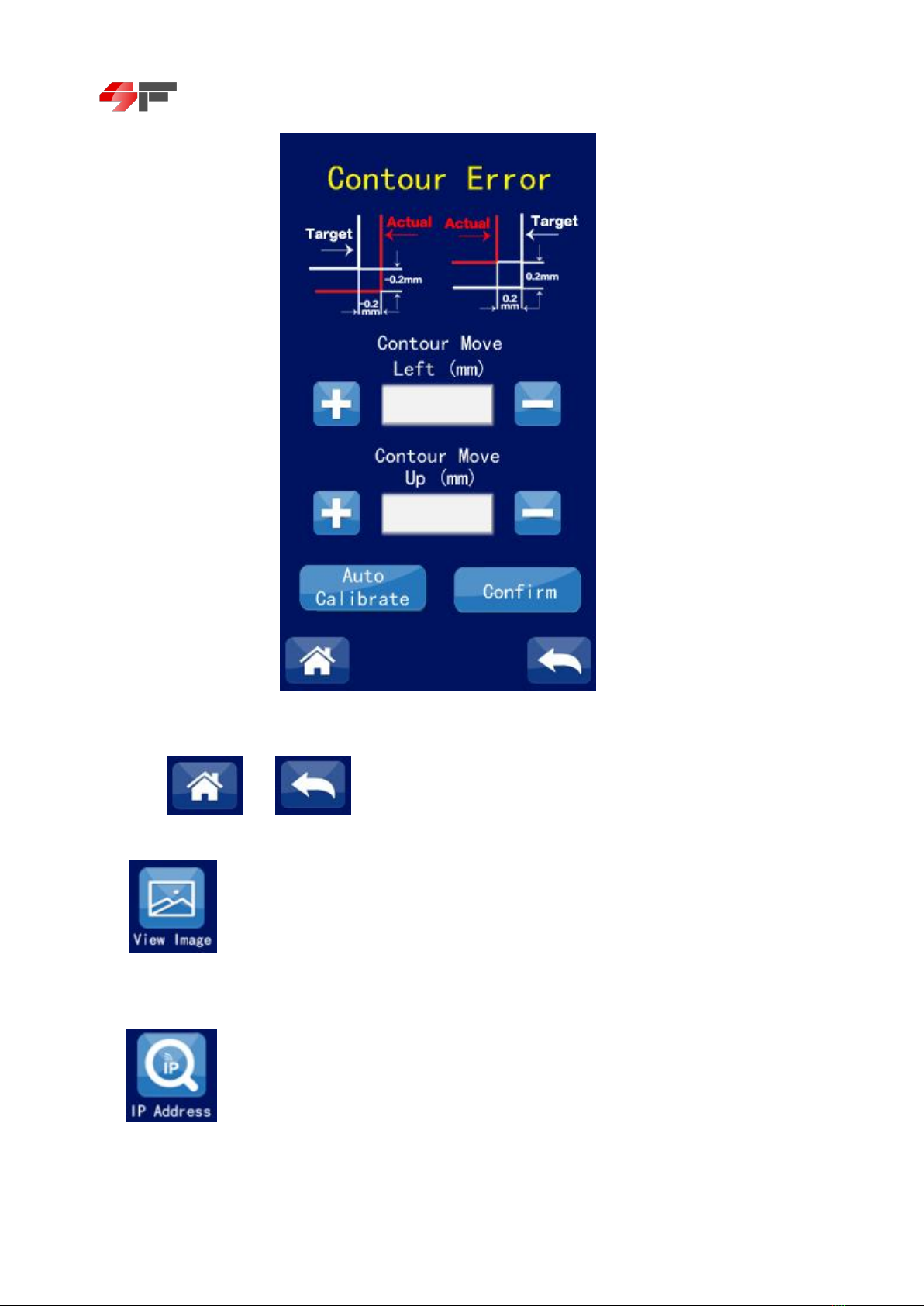

6.3“ ” Touch icon for contour error. Click to enter the debugging interface, as
shown below:

12
In this interface, automatic error correction and fine-tuning of contour deviation can be
done. The automatic error correction function is detailed in the video tutorial.
Press “ ”or“ ” to return to the main page.
6.4“ ” Touch icon for image display. Click to view the camera's field of view,
which can be used to check if the camera is damaged.
6.5“ ” Touch icon for IP address. Click to set the machine's IP output address, as
shown below:

13
Details on setting the IP address output can be found in the video tutorial.
Press “ ”or“ ” to return to the main page.

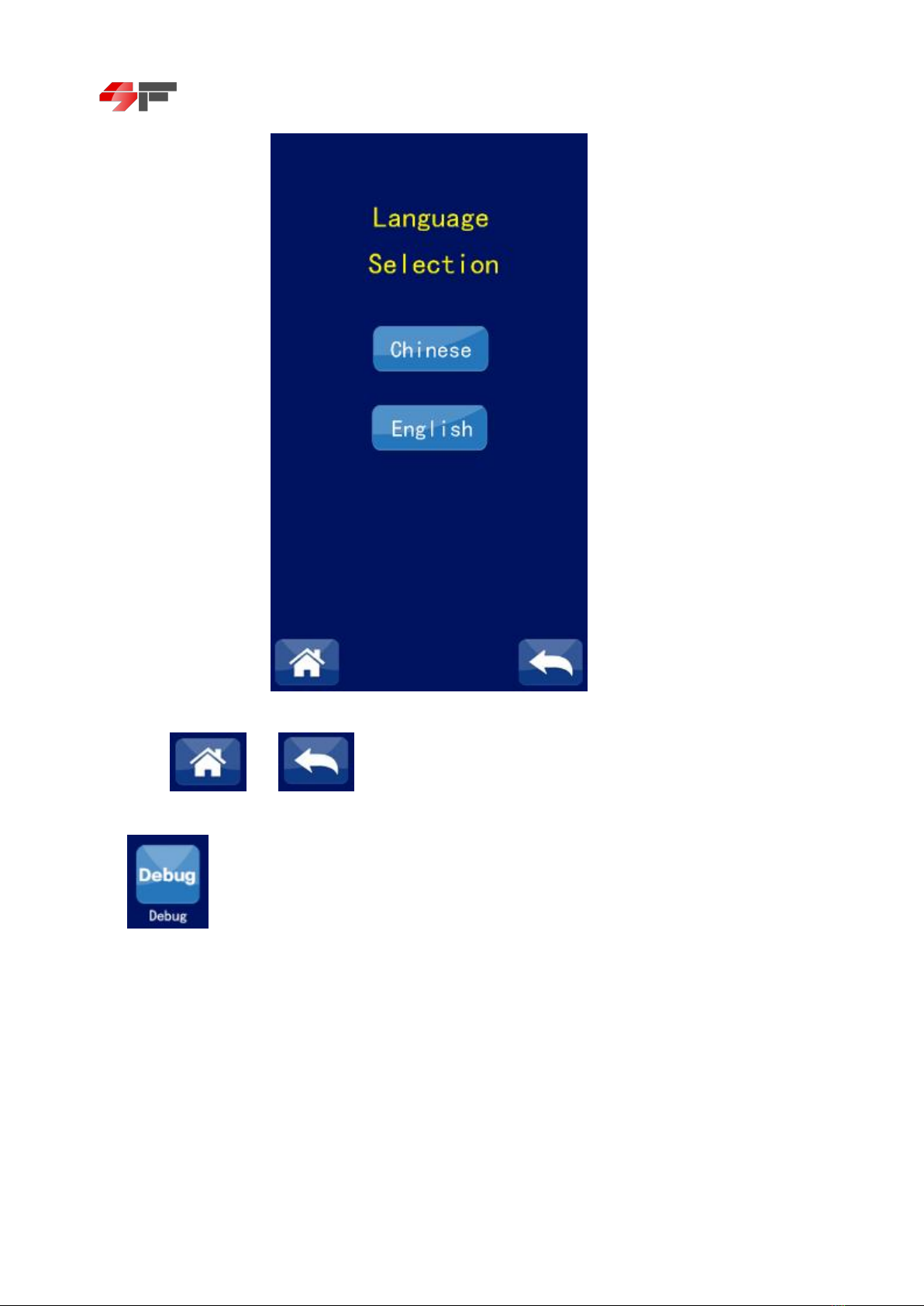

6.6“ ” Touch icon for language settings. Click to set the machine's English or
Chinese language, as shown below:

14
Press “ ”or“ ” to return to the main page.
6.7“ ” Touch icon for machine debugging. Click to enter the machine debugging
interface, as shown below:

15
In this interface, you can debug the machine's left and right movement, roller forward
and backward movement, one-click paper feeding, sensor detection, machine reboot,
and confirm return to the main interface functions. For detailed function introduction,
please refer to the video training tutorial.

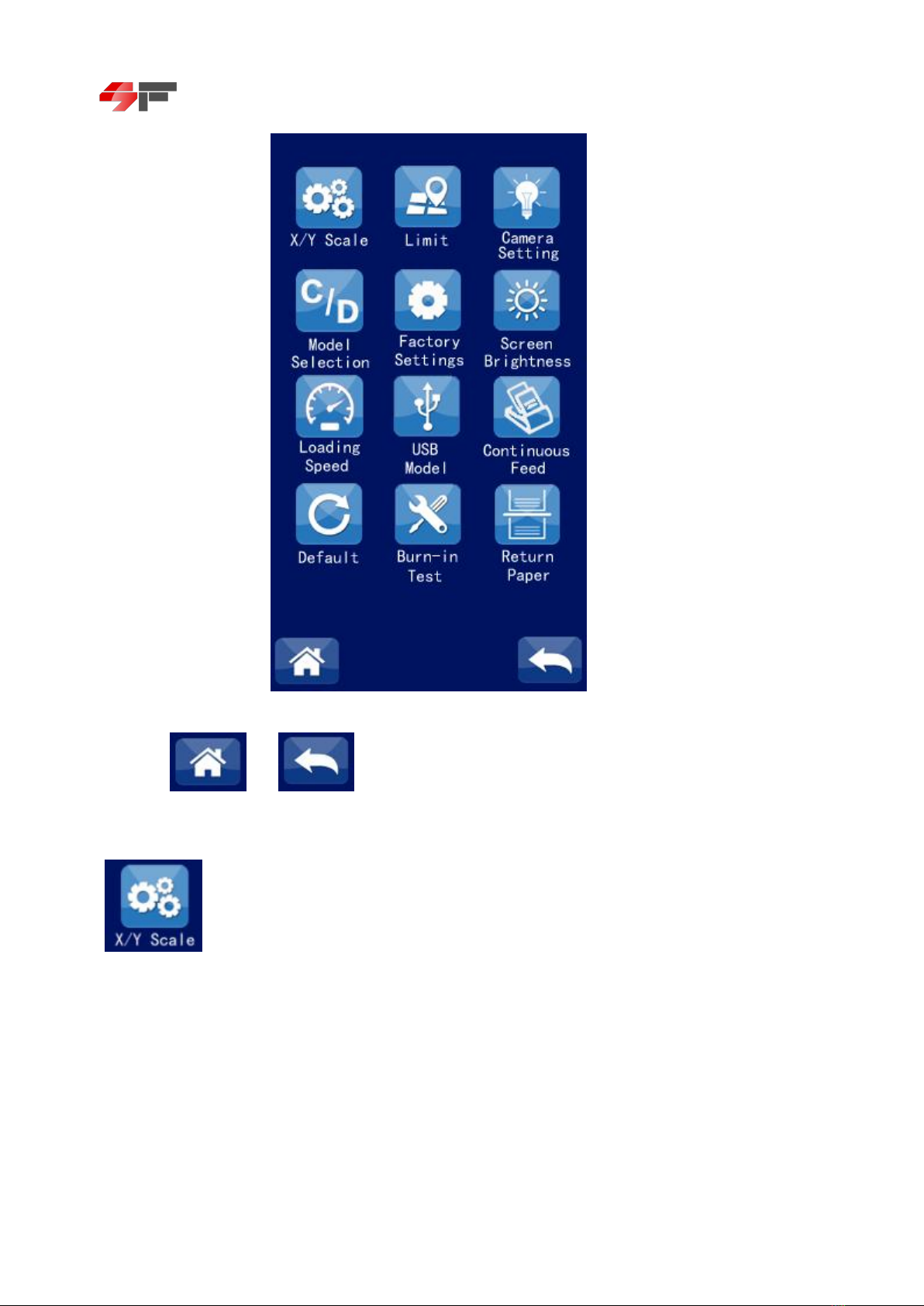

6.8“ ” "Factory Settings" touch icon, click to enter the factory settings. Password
"23" is required to access the settings. The factory settings interface is shown below:

16
Press “ ”or“ ” to return to the main page.
6.8.01

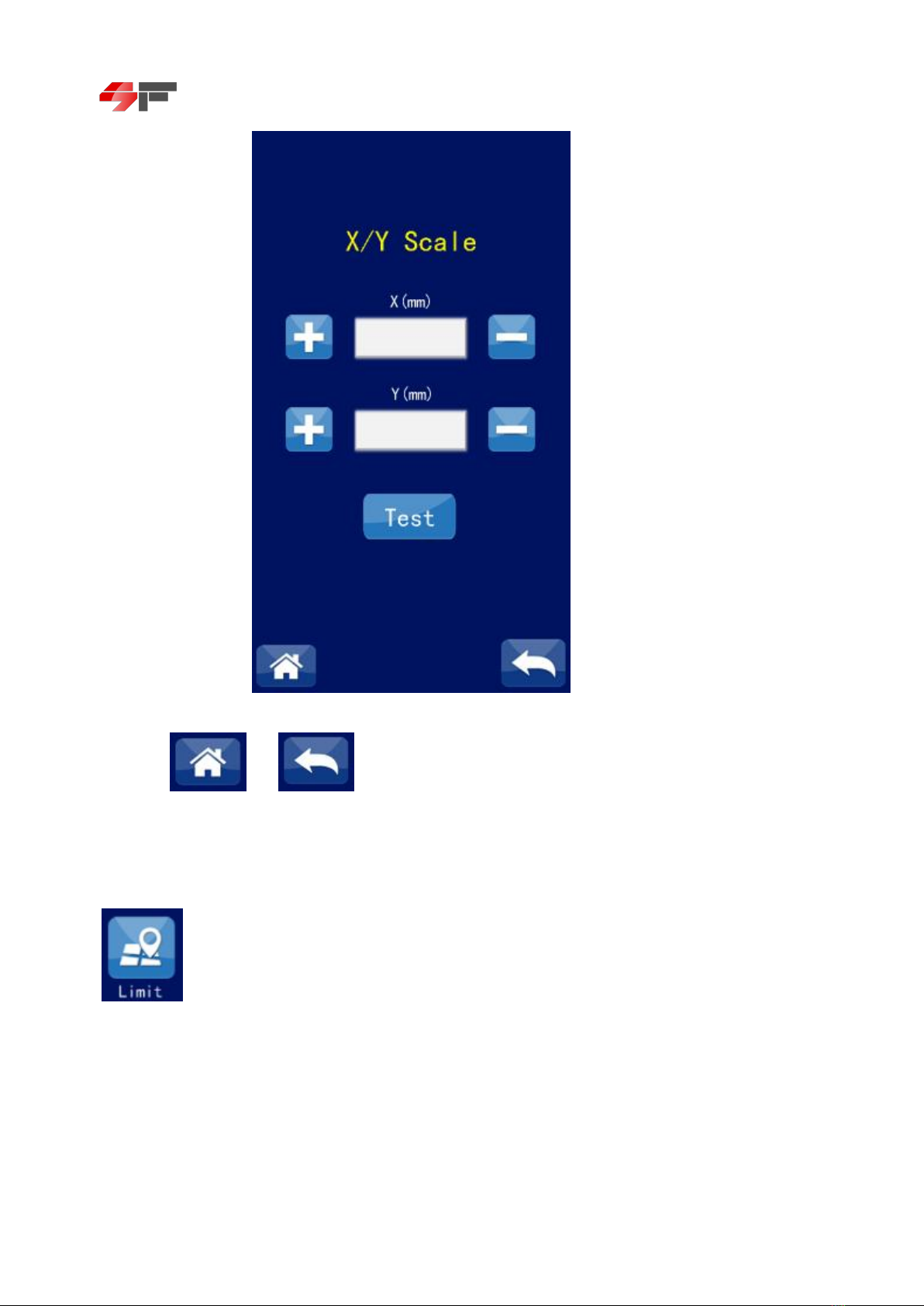

“ ” "Gear Ratio" touch icon, click to set the machine size ratio. It has been
calibrated before leaving the factory, and does not need to be adjusted unless
necessary. The function settings are shown in the figure below:

17
Press “ ”or“ ” to return to the main page.
6.8.2
“ ” "Limit Setting" touch icon, click to enter the limit setting interface, as shown in
the figure below:

18
The default limit setting is already enabled.
Press “ ”or“ ” to return to the main page.。
6.8.3
“ ” "Camera Settings" touch icon, click to enter the camera settings. The setting
interface is shown in the figure below:

19
Press “ ”or“ ” to return to the main page.
6.8.3-01
“ ” "Offset Distance Test" touch icon, mainly used to test the position of the
camera with respect to the center of the cutter holder. It has been calibrated before leaving
the factory and does not need to be adjusted unless necessary.
