IQ Power Tools iQPC912VSK User manual

iQPC912®VSK US
Operator’s Manual
Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.

M-iQPC912VSK-0M-1218

TABLE OF CONTENTS
Symbols On The Machine
Explanation Of Warning Levels
Introduction
Design And Features
iQTS244
What Is What?
Machine’s Safety Equipment
Blades
Blades For Dierent Materials
Assembling
Mounting The Support Arm
Connecting The Vacuum Motor Power
Assembling The Table Extension
Installing The Rolling Table
Blade Installation
Dust Guard Installation
Safety
Personal Protective Equipment
General Safety Precautions
Electrical Safety
Work Area Safety
Machine Use And Care
Starting And Stopping
Starting The Machine
Stopping The Machine
Vacuum Only
Laser Switch
Transport And Storage
Operating
Basic Working Techniques
General Maintenance
Daily Maintenance
Vacuum And Filter Maintence
Cleaning The Filter
Changing The Filter
Replacing The Carbon Brushes
Changing The Louvers
Adjustments
Adjusting The Top Slot
Adjusting And Squaring The Rolling Table
Adjusting The Rolling Table Upper Roller
X-Stand
Troubleshooting
Technical Data
Wiring Diagram
Warranty Policy
1
1.1
2
2.1
2.1
3
4
5
5.1
6
6.1
6.1
6.2
6.2
6.3
6.4
7
7.1
7.1
7.2
7.3
7.3
8
8.1
8.1
8.1
8.1
8.1
9
9.1
9.2
9.2
10
10.1
10.2
10.3
10.4
11
11.1
11.1
11.2
12
13
14
15
16
Topic Section

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
KEY SYMBOLS & SAFETY RULES
Symbols on the machine
WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s
manual carefully and make sure
you understand the instructions
before using the machine or
Explanation of Warning Levels
The warnings are graded in three levels.
Used if there is a risk of serious injury or death for
the operator or damage to the surroundings if the
instructions in the manual are not followed.
Used if there is a risk of injury to the operator or
damage to the surroundings if the instructions in
the manual are not followed.
Used if there is a risk of damage to materials or the
machine if the instructions in the manual are not followed.
NOTICE
1.1
performing any maintenance.
Do not expose to rain.
Never cut without using the
blade guard.
Risk of injury due to accidental
starting. Do not use in an area
where children may be present.
Unused masonry saw may
cause personal injury - Remove
this masonry saw blade when
using other accessories.
Always use manufacturer’s
approved cutting wheels.
Always wear hearing protection.
Always wear protective goggles
and/or a visor.
Should not be disposed of with general
household waste, but collected
separately for reuse or recycling.
Keep your hands and feet away
from the blade.
Additional Safety Warnings
248014
CU S

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
Safety Rules
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
3. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
4. KEEP CHILDREN AWAY. All visitors should be kept
at a safe distance from work area.
5. DON’T FORCE TOOL. It will do the job better and
safer at the rate for which it was designed.
6. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
7. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neck ties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
8. ALWAYS USE SAFETY GLASSES. Also use face
or dust mask if cutting operation is dusty. Everyday
eyeglasses only have impact resistant lenses, they
are NOT safety glasses.
SAFETY RULES
9. DON’T OVERREACH. Keep proper footing and
balance at all times.
10. MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for best and safest performance.
Follow instructions for lubricating and changing
accessories.
11. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in o position.
12. USE RECOMMENDED ACCESSORIES. Consult the
owner’s manual for recommended accessories. The
use of improper accessories may cause risk of injury
to persons.
13. NEVER STAND ON TOOL. Serious injury could
occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
14. CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function
- check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and
any other conditions that may aect its operation.
A guard or other part that is damaged should be
properly repaired or replaced.
15. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade
or cutter only.
16. NEVER LEAVE TOOL RUNNING UNATTENDED
TURN POWER OFF. Don’t leave tool until it comes to
a complete stop.
2.1

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
Dear Customer
We at IQ Power Tools™ want to congratulate you on
selecting the iQPC912®VSK Power cutter attachment
Dust Control Attachment. We are certain that you will
be pleased with your purchase. iQ Power Tools takes
pride in manufacturing the most innovative tools and
equipment in the industry.
If operated correctly, your iQPC912®VSK should provide
you with years of quality service. This owners manual
contains information you need to operate and maintain
your iQPC912®VSK safely and correctly. Please take
a few minutes to familiarize yourself with your new
iQPC912®VSK by reading and reviewing this manual.
If you should have any questions concerning
your iQPC912®VSK , please feel free to contact us at:
888-274-7744 or [e-mail]
It is our wish that you will be satisfied with your product
and that it will prove to be a valued tool for a long time.
A purchase of one of our products gives you access
to professional help with repairs and services. If
the retailer who sells your machine is not one of our
authorised dealers, ask him for the address of your
nearest service workshop.
This operator’s manual is a valuable document. Make
sure it is always at hand at the work place. By following
its content (using, service, maintenance etc.) the life
span and the second-hand value of the machine can
be extended. If you ever lend or sell this machine, make
sure that the borrower or buyer gets the operator’s
manual, so they will also know how to properly maintain
and use it.
Owner Responsibility
It is the owner’s/employer’s responsibility that the
operator has sucient knowledge about how to use
the machine safely. Supervisors and operators must
have read and understood the Operator’s Manual.
They must be aware of:
• The machine’s safety instructions.
• The machine’s range of applications and limitations.
• How the machine is to be used and maintained.
Local regulations could restrict the use of this machine.
Find out what regulations are applicable where you
work before you start using the machine.
INTRODUCTION
The Manufacturer’s Reservation
Subsequent to publishing this manual IQ Power Tools
may issue additional information for safe operation of
this product. It is the owner’s obligation to keep up with
the safest methods of operation.
iQ Power Tools has a policy of continuous product
development and therefore reserves the right to
modify the design and appearance of products
without prior notice.
For customer information and assistance,
contact us at our website: www.iQPowerTools.com
Design & Features
Values such as high performance, reliability, innovative
technology, and environmental considerations
distinguish iQ Power Tools’ products. Safe operation of
this product requires the operator to read this manual
carefully. Ask your dealer or iQ Power Tools should you
need more information.
iQPC912®VSK
The iQPC912®VSK is a dry, concrete and masonry
power cutter with an integrated dust control system.
Operated and used according to the manual, the
iQPC912®VSK will provide years of dependable service.
BLADE CAPACITY:
The iQPC912®VSK uses a 12-inch diameter laser welded
segmented diamond blades
MATERIAL TYPES:
The iQPC912®VSK can cut a variety of masonry and
concrete products, types include, wall brick, paver
brick, concrete block and concrete pipe or cylinders,
roofing tile, marble, granite, decorative rock or almost
any other non-ferrous material.
NOTE:
The iQPC912®VSK is not designed to cut plastic, wood
or ferrous (metals) materials.
2.1

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com

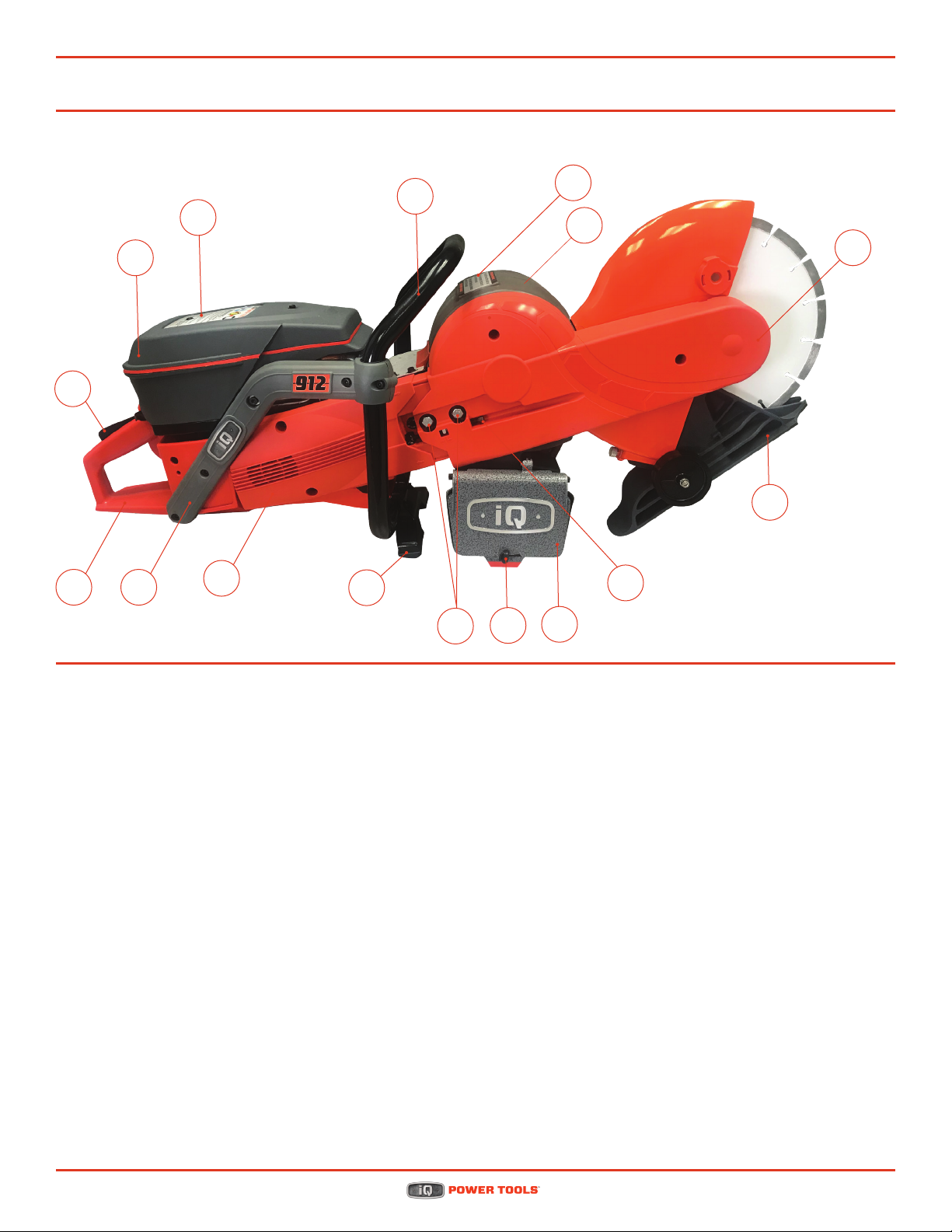

WHAT IS WHAT?
1 - Outer dust guard
2 - Inner Dust Guard
3 - Blade Bolt
4 - Blade Thrust Washer
5 - Blade
6 - Blade Guard
7 - Filter Housing
8 - Front Handle
9 - Filter Cover
10 - Decompression Valve
11 - Starter Handle
12 - Fuel Tank
13 - Filter Spin Handle
14 - Lower Dust Chamber
15 - Door Latch
16 - Door Pull Handle
3.1
1
2
3
4
56
7
8
9
13
14
15
10
11
12
16

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
WHAT IS WHAT?
1 - Throttle Lockout
2 - Air Filter Cover
3 - Warning Label
4 -Front Handle
5 - Operating Procedure Label
6 - Filter Housing
7 - Beam Cover
8 - Paver Skate
9 - Belt Tensioner Screw
10 - Dust Door
11 - Dust Door Latch Tab
12 - Beam Bolts
13 - Engine Foot Support
14 - Clutch Cover
15 - Front Handle Brace
16 - Rear Handle
3.2
1
2
3
13
6
7
16
45
15 14
12 11 10
8
9

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com

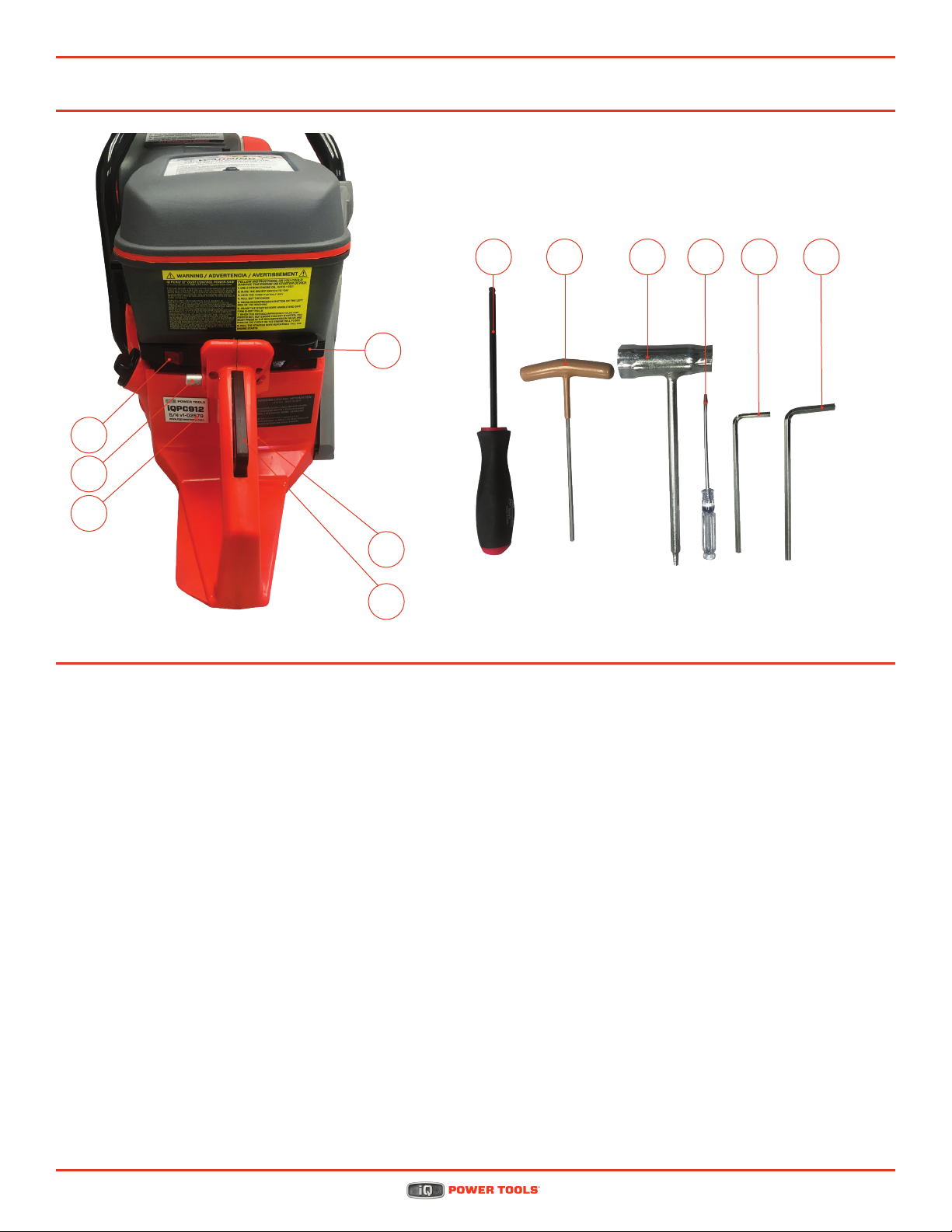

WHAT IS WHAT?
1 - Ignition on/o Switch
2 - Fast Idle Lock
3 - Serial Number Plate
4 - Throttle Trigger Control
5 - Throttle Lock Out
6 - Choke Control Lever
7 - 5mm ball end driver
8 - 6” Hex T-Handle 3mm
9 - Combination T Spanner Tool
10 - Small Screwdriver
11 - Allen Wrench 4mm
12 - Allen Wrench 5mm
3.2
121110987
1
5
4
6
2
3

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
SAFETY
WARNING!
POWER TOOLS AND CUTTING
MACHINES HAVE THE
POTENTIAL TO CREATE SPARKS. ALWAYS KEEP FIRE
EXTINGUISHERS HANDY.
WARNING!
SAWING, DRILLING AND
GRINDING GENERATES
DUST THAT COMES FROM THE MATERIAL
BEING CUT, WHICH FREQUENTLY CONTAINS
SILICA. SILICA IS A BASIC COMPONENT OF
SAND, QUARTZ, BRICK CLAY, GRANITE AND
NUMEROUS OTHER MINERALS AND ROCKS.
ALWAYS EMPLOY ENGINEERED DUST
CONTROLS AND PERSONAL PROTECTION
EQUIPMENT SUITABLE TO THE MATERIAL
BEING SAWED, DRILLED OR GROUND; SEE
OSHA (29 CFR PART 1910.1200).
NEVER EXPOSE YOURSELF OR BYSTANDARDS
TO HAZARDOUS DUST THAT EXCEEDS THE
PERMISSIBLE EXPOSURE LIMIT (PEL) AS
SET BY YOUR LOCAL JURISDICTION OR
GOVERNING AGENCY. E.G. OSHA, CSST.
6.1
WARNING!
THE USE OF PRODUCTS SUCH
AS CUTTERS, GRINDERS, DRILLS
THAT SAND OR FORM MATERIAL CAN GENERATE DUST AND
VAPORS WHICH MAY CONTAIN HAZARDOUS CHEMICALS.
CHECK THE NATURE OF THE MATERIAL YOU INTEND TO
PROCESS AND USE AN APPROPRIATE BREATHING MASK.
General
Do not use the machine unless you are able to call
for help in the event of an accident. Always have a
first aid kit nearby.
CAUTION!
LONG TERM EXPOSURE
TO NOISE CAN RESULT IN
PERMANENT HEARING IMPAIRMENT. ALWAYS USE
APPROVED HEARING PROTECTION.
WARNING!
THERE IS ALWAYS A RISK
OF CRUSH INJURIES WHEN
WORKING WITH PRODUCTS CONTAINING MOVING PARTS.
WEAR PROTECTIVE GLOVES TO AVOID BODY INJURIES.
PERSONAL PROTECTIVE EQUIPMENT
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Listen out for warning signals or shouts when you are
wearing hearing protection. Always remove your hearing
protection as soon as the motor stops.
Always use approved eye protection
• If you use a face shield then you must also
wear approved protective goggles. Approved
protective goggles must comply with standard
ANSI Z87.1 in the USA or EN 166 in EU countries.
Visors must comply with standard EN 1731.
Recommended Personal Protective Equipment:
• Hearing protection
• Breathing mask
• Protective gloves.
• Hair covering or devices to contain long hair,
i.e.: Hair Ties For Guys
Generally, clothes should be close-fitting without
restricting your freedom of movement. Be careful
as clothing, long hair, and jewelry can get caught
in moving parts.
WARNING!
USE OF THIS PRODUCT CAN
CAUSE EXPOSURE TO
MATERIALS KNOWN TO THE STATE OF CALIFORNIA TO
CAUSE CANCER AND/OR BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
WARNING!
PROTECT YOURSELF AND
OTHERS FROM OVEREXPOSURE.
REFER TO YOUR LOCAL JURISDICTION OR GOVERNING
AGENCY. E.G. OSHA, CSST.
WARNING!
A POWER CUTTER IS
A DANGEROUS TOOL IF USED
CARELESSLY OR INCORRECTLY AND CAN CAUSE SERIOUS,
EVEN FATAL INJURIES. IT IS EXTREMELY IMPORTANT THAT
YOU READ AND UNDERSTAND THE CONTENTS OF THIS
OPERATORS MANUAL.
WARNING!
THE IGNITION SYSTEM OF
THIS MACHINE PRODUCES AN
ELECTROMAGNETIC FIELD DURING OPERATION. THIS FIELD
MAY UNDER SOME CIRCUMSTANCES INTERFERE WITH
PACEMAKERS. TO REDUCE THE RISK OF SERIOUS OR FATAL
INJURY, WE RECOMMEND PERSONS WITH PACEMAKERS
TO CONSULT THEIR PHYSICIANS AND THE PACEMAKER
MANUFACTURER BEFORE OPERATING THIS MACHINE.
WARNING! This product can expose you
to chemicals , includin g Cobalt , Lead, and Silica
Dust which are known to the Stat e of Califor nia to
cause cancer or birt h defects or other reproductive harm .
For more informat ion, go to www.p65Wa rnings .ca.gov

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• People and animals can distract you causing
you to lose control of the machine. For this
reason, always remain concentrated and
focused on the task.
• Do not use the machine in bad weather such
as dense fog, heavy rain, strong wind, intense
cold, etc.
• Never start to work with the machine
before the working area is clear and you
have a stable work surface.
PERSONAL SAFETY
Never use the machine if you are fatigued, while under
the influence of alcohol or drugs, medication or anything
that could aect your vision, alertness, coordination
or judgement.
• Check that no tools or other objects have been
left lying on the machine.
• Never allow anyone else to use the machine
without proper training.
• Always shut o the machine during remove
work breaks.
• Never work alone, always ensure there is
another person close at hand.
• Learn how to use the machine and its controls
safely and learn to how to stop quickly.
Also learn to recognize the safety decals.
• Keep handles dry, clean and free from
oil and grease.
• Do not overreach. Keep proper footing and
balance at all times.
• Never stand on the machine.
MACHINE USE AND CARE
• This machine is designed and intended
for cutting hard materials like concrete and
masonry products. All other use is improper.
• Experience is very important when running
the machine. A skilled worker is highly
recommended.
• The machine is intended for use in industrial
applications by experienced operators.
• Check that the machine is assembled correctly
and does not show any signs of damage.
• Always perform daily maintenance before
starting the machine. See instructions in the
SAFETY
6.2
section “Maintenance”.
• Do not overload the machine. Overloading
can damage the machine.
• The blade shall be intended for the
material to be cut.
• If you are uncertain of what blade to use
contact your local service dealer.
• Keep tools sharp and clean in order
to enable safer work.
• Keep all parts in good working order and ensure
that all fixtures are properly tightened. Replace
all worn or damaged decals.
• Never leave the machine unsupervised with
the motor running.
• Feed the work piece against the rotation of
the blade only!
• Observe care when lifting. You are handling
heavy parts, which imply the risk of pinch
injuries or other injuries.
• Never use machine indoors. Be aware of the
dangers of inhaling engines’ exhaust fumes.
TRANSPORT AND STORAGE
Store the power cutter in a lockable area so that it is
out of reach of children and unauthorised persons. All
blades should be removed from the cutter after use and
stored carefully. Store cutting blades in dry, frost free
conditions. Inspect new blades for transport or storage
damage.
GUARD FOR THE BLADE
This guard is fitted above the cutting blade and is
designed to prevent parts of the blade or cutting
fragments from being thrown towards the user.
Check that the guard is complete and without any
cracks or deformations.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
ALWAYS THINK ABOUT YOUR WORK ENVIRONMENT
AND USE COMMON SENSE.
It is not possible to cover every conceivable situation
you can face. Always exercise care and use your
common sense. If you get into a situation where you
feel unsafe, stop and seek expert advice. Contact your
dealer, service agent or an experienced user. Do not
attempt any task or operation that makes you feel
unsure whether or not it is safe.
FUEL SAFETY
Fuel safety
(Refueling/Fuel mixture/Storage.)
• Never refuel the machine while the engine
is running.
• Make sure there is plenty of ventilation when
refueling or mixing fuel (gas and 2-stroke oil).
• Move the machine at least 10 feet from the
refueling point before starting it.
• Never start the machine:
- If you have spilt fuel on it. Wipe o
the spillage and allow remaining fuel
to evaporate.
- If you have spilt fuel on yourself or your
clothes, change your clothes. Wash
any part of your body that has come in
contact with fuel. Use soap and water.
• If the machine is leaking fuel.
Check regularly for leaks from the fuel
cap and fuel lines.
• Store and transport the machine and fuel so
that there is no risk of any leakage or fumes
coming into contact with sparks or naked
flames, for example, from electrical
machinery, electric motors, electrical
relays/switches or boilers.
• Always store fuel in an approved container
designed for that purpose.
• When storing the machine for long periods
the fuel tank must be emptied. Contact your
local gas station to find out where to dispose
of excess fuel.
• Always use a fuel container with an
anti-spill valve.
SAFETY
GENERAL SAFETY PRECAUTIONS
This section describes basic safety directions for using
the machine. This information is never a substitute for
professional skills and experience.
• Please read the operator’s manual carefully
and make sure you understand the instructions
before using the machine. Save all warnings
and instructions for future reference.
• Keep in mind that the operator is responsible
for accidents or hazards occurring to other
people or their property.
• All operators shall be trained in the use
of the machine.
The owner is responsible for ensuring that the operators
receive training.
• The machine must be kept clean. Signs and
stickers must be fully legible.
- Never allow children or other persons not trained in
the use of the machine to use or service it.
- Never allow anyone else to use the machine without
first ensuring that they have read and understood the
contents of the operator’s manual.
- Never use the machine if you are fatigued, while
under the influence of alcohol or drugs, medication
or anything that could aect your vision, alertness,
coordination or judgement.
Do not modify this product or use it if it appears to have
been modified by others.
Never use a machine that is faulty. Carry out the
safety checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the heading
Maintenance. Always use genuine accessories. Contact
your dealer for more information.
WARNING!
THE MACHINE CAN BE A
DANGEROUS TOOL IF USED
INCORRECTLY OR CARELESSLY, WHICH CAN CAUSE
SERIOUS OR FATAL INJURY TO THE OPERATOR OR OTHERS.
WARNING!
UNAUTHORIZED MODIFICATIONS
AND/ OR ACCESSORIES MAY LEAD
TO SERIOUS INJURY OR DEATH TO THE USER OR OTHERS.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
General
This section describes the machine’s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly.
VIBRATION DAMPING SYSTEM
Your machine is equipped with a vibration damping
system that is designed to minimize vibration
and make operation easier.
The machine’s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine’s handle unit.
The engine body, including the cutting equipment, is
insulated from the handles by vibration damping units.
Regularly check the vibration damping units for cracks
or deformation.
Make sure the vibration damping units are securely
attached to the engine unit and handle unit.
Keep the handles clean and dry.
STOP SWITCH
Use the stop switch to switch o the engine.
O = OFF / I = ON
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
MUFFLER
The muer is designed to keep noise levels to a
minimum and to direct exhaust fumes away from
the user.
IMPORTANT INFORMATION
For muers it is very important that you follow the
instructions on checking, maintaining and servicing
your machine. See instructions under the heading
Checking, maintaining and servicing the machine’s
safety equipment. Never use a machine that has a faulty
muer. Regularly check that the muer is securely
attached to the machine.
WARNING! NEVER USE A MACHINE THAT HAS
FAULTY SAFETY EQUIPMENT
MACHINE’S SAFETY EQUIPMENT
WARNING!
THE MUFFLER GETS VERY
HOT IN USE AND REMAINS SO
FOR A SHORT TIME AFTERWARDS. DO NOT TOUCH THE
MUFFLER IF IT IS HOT!
WARNING!
THE EXHAUST FUMES FROM
THE ENGINE ARE HOT AND
MAY CONTAIN SPARKS WHICH CAN START A FIRE. NEVER
START THE MACHINE INDOORS OR NEAR COMBUSTIBLE
MATERIAL!
WARNING!
THE INSIDE OF THE MUFFLER
CONTAIN CHEMICALS THAT
MAY BE CARCINOGENIC. AVOID CONTACT WITH THESE
ELEMENTS IN THE EVENT OF A DAMAGED MUFFLER.
THROTTLE LOCKOUT
The throttle lockout is designed to prevent accidental
operation of the throttle.
When the throttle lockout
(A) is pressed in this
releases the throttle trigger
(B). The throttle lockout
remains pressed in as long
as the throttle trigger is
pressed. When the grip
on the handle is released
the throttle trigger and
the throttle lockout both
return to their original
positions. This is controlled by two independent return
spring systems. This means that the throttle trigger is
automatically locked in the idle position.
Make sure the throttle trigger is locked at the idle
setting when the throttle lockout is released.
Press the throttle lockout and make sure it returns to
its original position when you release it.
Check that the throttle trigger and throttle lockout
move freely and that the return springs work properly.
Start the power cutter and apply full throttle. Release
the throttle trigger and check that the cutting blade
stops and remains stationary. If the cutting blade
rotates when the throttle is in the idle position you
should check the carburetor’s idle adjustment.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
SAFETY
Ensure that the working area is suciently illuminated to
create a safe working environment.
• Do not move the machine when the cutting
equipment is rotating.
• Always ensure you have a safe and stable
working position.
• Make sure that no pipes or electrical cables
are routed in the area to be cut.
CUTTING
• Start cutting with the machine running at
maximum speed.
• Always hold the machine in a firm grip with
both hands.
• Hold it so that the thumbs and fingers grip
round the handles
GENERAL CUTTING TECHNIQUE
The technique described below is of a general character.
Check information for each blade regarding individual
cutting characteristics.
• Support the work piece in such a way that it is
possible to predict what will happen, and so
that the cut remains open while cutting.
• Check that the blade is not in contact with
anything when the machine is started
• Always cut at maximum speed.
• Start cutting smoothly, allowing the machine
to work without forcing or pressing in the
blade. Move the blade slowly follow the cutting
direction arrows indicated on the blade guard.
Always cut in a downward direction to
ensure proper dust capture. It’s important to
keep the dust guard against the material
being cut for best results.
• Do not use the upper quarter of cutting
blade to cut. If the upper quarter of the
cutting blade is applied to material, the
machine can be flung back toward the
operator with great force. The machine and
the rotating cutting blade can cause severe
injury.
• Feed down the machine in line with the blade.
Pressure from the side can damage the blade
and is very dangerous.
HOW TO AVOID KICKBACK
What is kickback?
The word kickback is used to describe the sudden
reaction that causes the power cutter and cutting blade
to be thrown from an object when the upper quadrant of
the blade, known as the kickback zone or NO Cut Zone,
touches an object.
GENERAL RULES

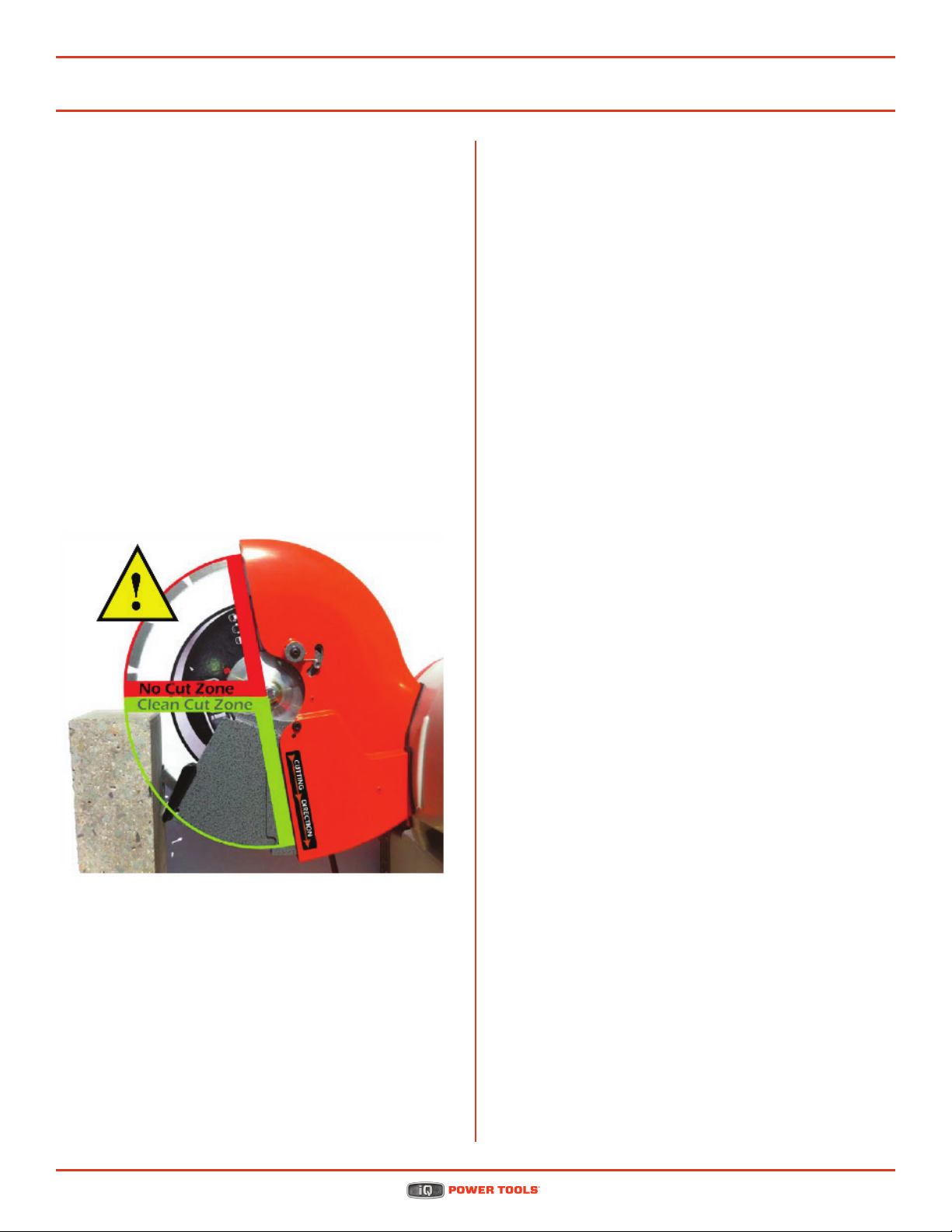

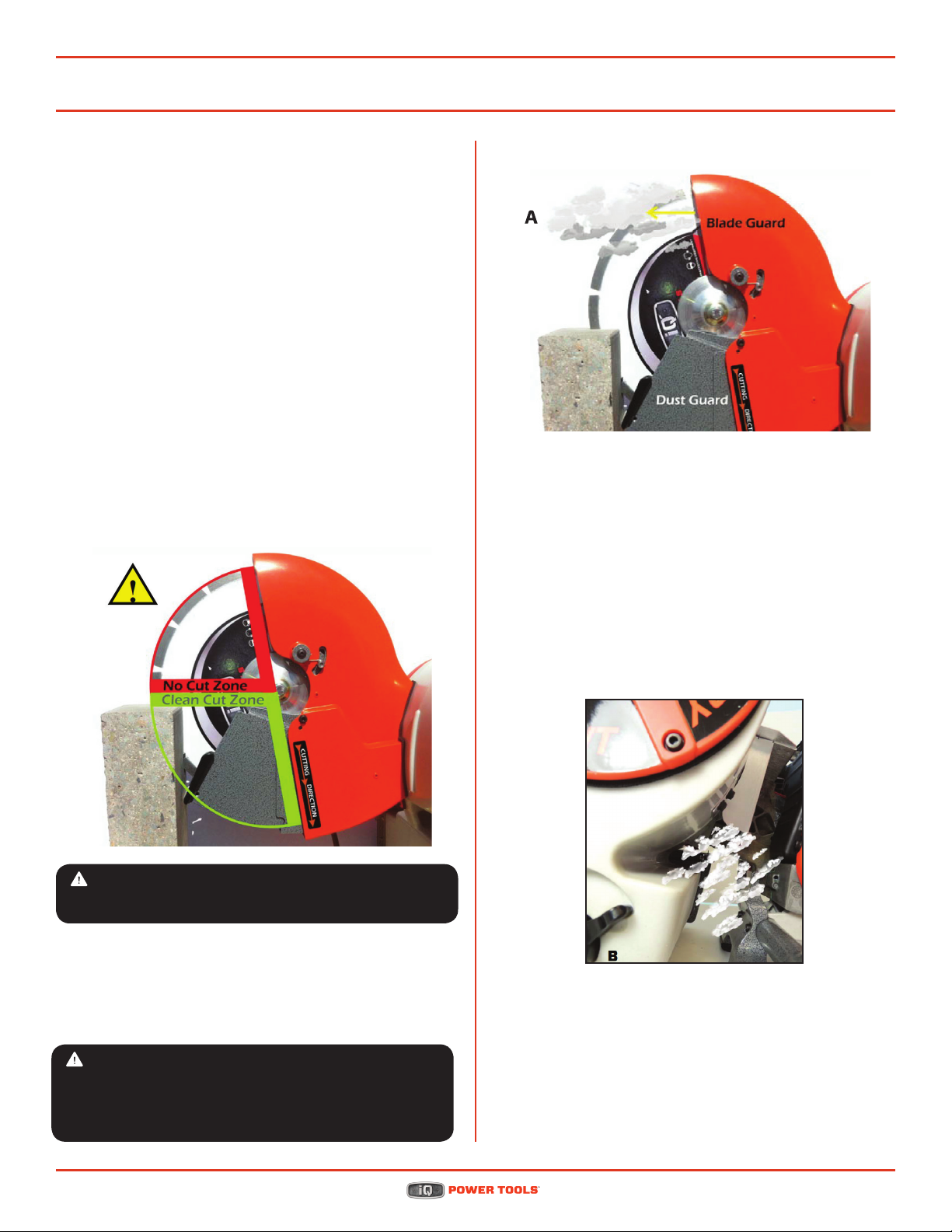

• Never start to cut with the upper quadrant of
the blade as shown in the figure, also known
as the No Cut Zone.
• Always hold the machine in a firm grip with
both hands. Hold it so that the thumbs and
fingers grip round the handles.
• Keep a good balance and a firm foothold.
• Always cut at maximum recommended speed.
• Stand at a comfortable distance from the
work piece.
• Take care when inserting the blade in an
existing cut.
• Never cut above shoulder height.
WARNING!
KICKBACK CAN HAPPEN VERY
SUDDENLY AND VIOLENTLY;
KICKING THE POWER CUTTER AND CUTTING BLADE BACK AT
THE USER. IF THIS HAPPENS WHEN THE CUTTING BLADE IS
MOVING IT CAN CAUSE VERY SERIOUS, EVEN FATAL INJURIES.
IT IS VITAL YOU UNDERSTAND WHAT CAUSES KICKBACK AND
THAT YOU CAN AVOID IT BY TAKING CARE AND USING THE
RIGHT WORKING TECHNIQUE.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
• Be alert to movement of the work piece or
anything else that can occur, which could
cause the cut to close and pinch the blade.
PULL IN
Pull in occurs when the disc’s lower section suddenly
stops or when the cut closes. (To avoid, see the heading
”Basic rules” and ”Jamming/rotation”, here below.)
PINCHING/ROTATION
If the cut is pressed together this can lead to jamming.
The machine can be pulled down suddenly
with a very powerful force.
HOW TO AVOID PINCHING
Support the work piece in such a way that the cut
remains open during the cutting operation and
when the cut is finished.
Cutting Blades
GENERAL
Use only diamond blades approved for cutting concrete
and masonry.
Do not cut metal materials.
Always remove the cutting blade when the machine is
transported.
SAFETY
Make sure that the right spacer bushing is used for the
cutting blade to be fitted on the machine.
See the instructions under the heading Assembling the
cutting blade.
High-quality blades are often most economical. Lower
quality blades often have inferior cutting capacity and
a shorter service life, which results in a higher cost in
relation to the quantity of material that is cut.
DIAMOND BLADES
Diamond blades consist of a steel body provided with
segments that contain industrial diamonds. When
using diamond blades make sure that it rotates in the
direction indicated by the arrow on the blade.
Always use a sharp diamond blade. Sharpen the blade
by cutting in a soft material such as sandstone or brick.
Diamond blades are available in several hardness
classes. A “soft” diamond blade has a relatively short
service life and large cutting capacity. It is used for hard
materials such as granite and hard concrete. A “hard”
diamond blade has a longer service life and reduced
cutting capacity, and should be used for soft materials
such as brick and asphalt.
MATERIAL
Diamond blades are ideal for masonry, concrete and
other composite materials. Diamond blades
are not recommended for cutting metal. The iQ
PowerCutter™ should never be used to cut metal.
DIAMOND BLADES FOR DRY CUTTING
Diamond blades for dry cutting are a new generation of
blades that do not require water cooling.
However, the blades will still be damaged by excessive
heat. It is most economical to allow the blade to cool by
simply lifting it out from the cut every 30–60 seconds
and letting it rotate in the air for 10 seconds.
Check that the blade is approved for the same or higher
speed as stated in the operator’s manual.
Never use a cutting blade with a lower speed rating
than that of the power cutter.
Ensure the blade it not cracked or damaged
in any other way.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
STEP UP, ADJUSTMENTS, & OPERATION
SHARPENING DIAMOND BLADES
Diamond blades can become dull when the wrong
feeding pressure is used or when cutting certain
materials such as high strength concrete. Working with
a blunt diamond blade causes overheating,
which can result in the diamond segments coming loose.
Sharpen the blade by cutting in a soft material such as
sandstone or brick.
BLADE VIBRATION
The blade can become out-of-round and vibrate if an
excessive feed pressure is used.
A lower feed pressure can stop the vibration.
Otherwise replace the blade. The blade must be of the
recommended type for the material to be cut.
CHECKING THE DRIVE AXLE AND FLANGE WASHERS
Check that the threads on the drive shaft are
undamaged.
Check that the contact surfaces on the blade and the
blade thrust washers are undamaged, of the correct
dimension, clean, and that they run properly on the drive
axle.
Do not use warped, notched, indented or dirty blade
thrust washers.
Do not use dierent dimensions of blade thrust washers.
FITTING THE CUTTING BLADE
iQ Diamond Blades are approved for hand-held power
cutters. Blades are manufactured with 1” (25.4mm)
diameter center hole .
The blade is placed on the bushing “C” between the inner
thrust washer “A” and the outer thrust washer “B” The
thrust washer is turned so that it fits on the axle.
Tightening torque for the bolt holding the blade is: 15-25
Nm (130-215 in.lb). The shaft can be locked using a
screwdriver, steel pin or the like.
This is slid in as far as possible. The blade is tightened
clockwise.
When a diamond blade is mounted on the power cutter
make sure that the diamond blade will rotate in the
direction indicated by the arrow on the blade.
When the blade is replaced with a new one, check the
flange washers and the drive axle. See instructions
under the heading Checking the drive axle and blade
thrust washers.

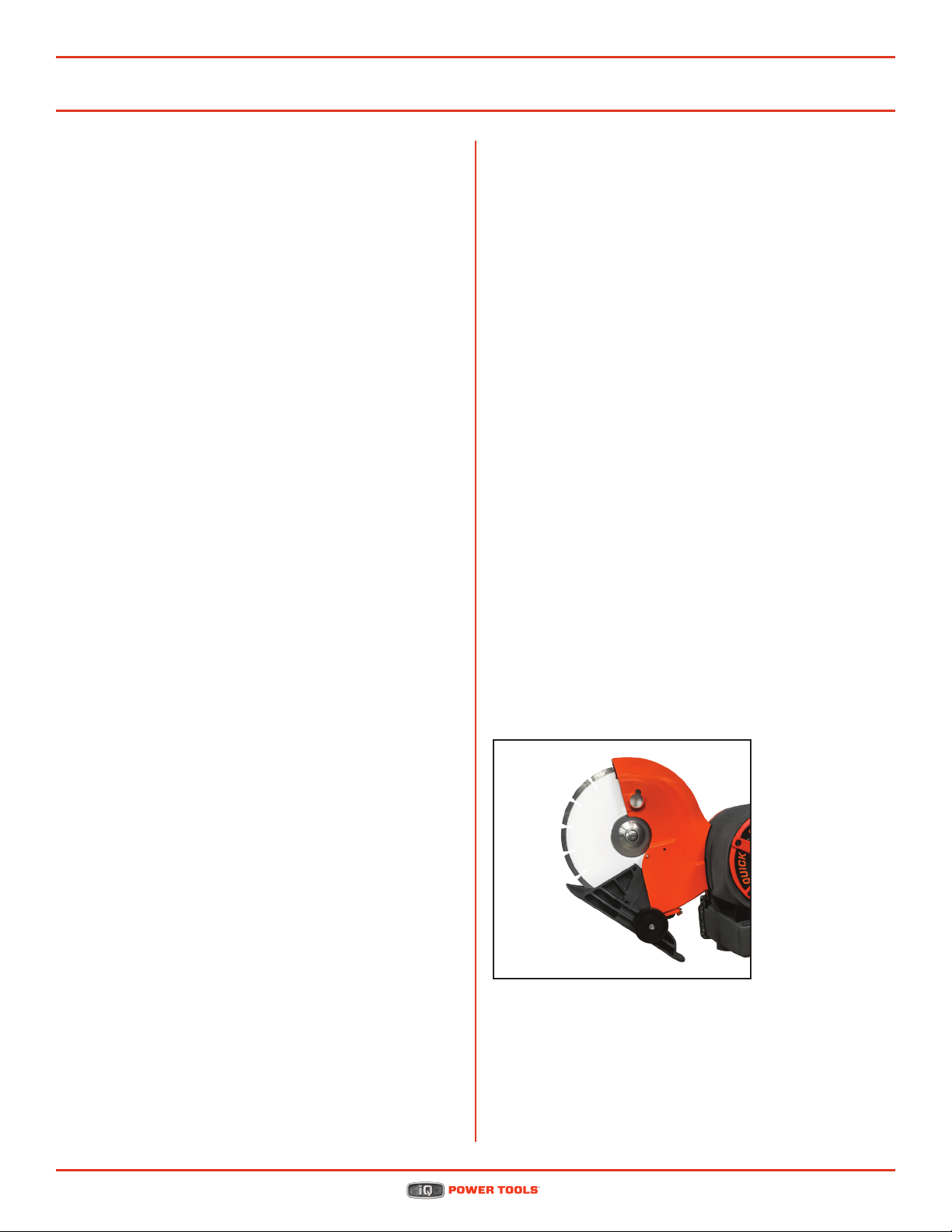

GUARD FOR THE BLADE
The guard must always be fitted on the machine.
RETRACTING DUST GUARD
The lower retracting dust guard should be inspected for
damage and wear to ensure smooth operation.
WARNING!
A CUTTING BLADE MAY BURST
AND CAUSE INJURY TO THE
OPERATOR. NEVER USE A CUTTING BLADE AT A LOWER
SPEED RATING THAN THAT OF THE POWER CUTTER. NEVER
USE A CUTTING BLADE FOR ANY OTHER MATERIALS THAN
THAT IT WAS INTENDED FOR.
WARNING!
OVEREXPOSURE TO VIBRATION
CAN LEAD TO CIRCULATORY
DAMAGE OR NERVE DAMAGE IN PEOPLE WHO HAVE
IMPAIRED CIRCULATION. CONTACT YOUR DOCTOR IF
YOU EXPERIENCE SYMPTOMS OF OVEREXPOSURE TO
VIBRATION. THESE SYMPTOMS INCLUDE NUMBNESS,
LOSS OF FEELING, TINGLING, PRICKING, PAIN, LOSS OF
STRENGTH, CHANGES IN SKIN COLOR OR CONDITION.
THESE SYMPTOMS NORMALLY APPEAR IN THE FINGERS,
HANDS OR WRISTS.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
FUEL MIXING INSTRUCTIONS
FUEL
CAUTION! The machine is equipped with a two-stroke
engine and must always be run using a mixture of petrol
and two stroke engine oil. It is important to accurately
measure the amount of oil to be mixed to ensure that the
correct mixture is obtained. When mixing small amounts
of fuel, even small inaccuracies can drastically aect the
ratio of the mixture.
Use good quality unleaded or leaded gasoline.
The lowest octane recommended is 90 (RON). If you run
the engine on a lower octane grade than 90 so-called
knocking can occur. This gives rise to a high engine
temperature, which can result in serious engine damage.
TWO-STROKE OIL
• For best results and performance use
two-stroke engine oil, which is specially
formulated for air cooled two-stroke engines.
• Never use two-stroke oil intended for water-
cooled engines, sometimes referred to as
outboard oil (rated TCW).
• Never use oil intended for four-stroke engines.
MIXING RATIO
1:50 (2%) with two-stroke oil.
Gas, gallons Two-stroke oil, ounces
2% (1:50)
12.6 (1/3 cup)
513 (1-2/3 cup)
10 26 (3-1/4 cups)
15 39 (4-7/8 cups)
20 52 (6-1/2 cups)
MIXING
• Always mix the gas and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the
gas to be used. Then add the entire amount
of oil. Mix (shake) the fuel mixture. Add the
remaining amount of gas.
• Mix (shake) the fuel mixture thoroughly before
filling the machine’s fuel tank. Do not mix
more than one month’s supply of fuel at a time.
• If the machine is not used for some time the
fuel tank should be emptied and cleaned.
FUELING
• Keep the handle dry and free from oil and fuel.
• Ensure that the fuel is well mixed by shaking
the container before filling the tank.
• Always exercise care when refilling the fuel.
Move the machine at least 10 feet from the
fueling area before it is started. Check that the
fuel cap is tightened correctly.
• Clean around the fuel cap. Clean the fuel tank
regularly. The fuel filter should be changed at
least once a year. Contamination in the tanks
causes malfunction.
WARNING!
WARNING! TAKING THE
FOLLOWING PRECAUTIONS,
WILL LESSEN THE RISK OF FIRE: DO NOT SMOKE OR
PLACE HOT OBJECTS NEAR FUEL. ALWAYS SHUT OFF THE
ENGINE BEFORE REFUELING. WHEN REFUELING, OPEN THE
FUEL CAP SLOWLY SO THAT ANY EXCESS PRESSURE IS
RELEASED GENTLY. TIGHTEN THE FUEL CAP CAREFULLY
AFTER REFUELING. ALWAYS MOVE THE MACHINE AWAY
FROM THE REFUELING AREA BEFORE STARTING..
WARNING!
UNDER ALL CIRCUMSTANCES
AVOID GRINDING USING THE SIDE
OF THE BLADE; IT WILL ALMOST CERTAINLY BE DAMAGED,
BREAK AND CAN CAUSE IMMENSE DAMAGE. ONLY USE THE
CUTTING SECTION.
DO NOT PULL THE POWER CUTTER TO ONE SIDE, THIS
CAN CAUSE THE BLADE TO JAM OR BREAK RESULTING
IN INJURY TO PEOPLE.
CAUTION!
CAUTION! IF THE DIAMOND
BLADE SHOWS SIGNS OF
FATIGUE CRACKING, REPLACE THE BLADE BEFORE
STARTING WORK.
WARNING!
ONLY USE THE MACHINE IN
AREAS WITH GOOD VENTILATION.
NEGLECT CAN RESULT IN SERIOUS INJURY OR DEATH.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
Starting A Cold Engine
Ignition: (A) Press the ignition switch to the on position.
I = ON / O = OFF
Choke: (B) Pull the choke control fully out.
Fast idle lock: (C)
(1) Press in the throttle lockout.
(2) Press the throttle trigger control
(3) and then press the fast idle lock
Release the throttle trigger control and it is locked in the
fast idle position. The fast idle lock releases when the
throttle trigger control is pressed in fully.
STARTING & STOPPING INSTRUCTIONS
Decompression valve: (D)
Press in the decompression valve every time you pull the
starter cord to reduce the pressure in the cylinder, this is
to assist starting the power cutter. The decompression
valve should always be used when starting.
WHY IS THIS REQUIRED?
The iQ PC912TM is a high performance 93 cc high
compression engine that requires the operator to press
the decompression valve every time the starter cord is
pulled. Failure to engage the decompression valve will
damage the pull start assembly and cause injury.
STARTING
(1) Grip the front handle with your left hand.
(2) Put your right foot on the lower section of the rear
handle pressing the machine against the ground.
(3) Grip the starter handle. Press the decompression
valve with your right thumb.
(4) Slowly pull out the cord with your right hand until
you feel some resistance (the starter pawls grip), now
quickly and powerfully pull the cord.
Never twist the starter cord around your hand. Once
the engine pops or fires, push the choke control fully in.
Press the decompression valve and the engine should
start on next pull. When the engine starts, quickly apply
full throttle to automatically disengage fast idle

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
Starting A Warm Engine
Use the same starting procedure as for a cold engine but
without setting the choke control in the choke position.
When the engine starts, quickly apply full throttle to
automatically disengage fast idle.
CAUTION! Do not pull the starter cord all the way out and
do not let go of the starter handle when the cord is fully
extended. This can damage the machine.
STOPPING
The engine is stopped by pressing the ignition switch to
the o position.
Spin Filter Instructions
Spin the filter handle once after each cut.
When making longer cuts, stop every 12 inches and
allow the blade to stop, spin the filter handle three times
around then continue cutting.
Keeping the filter clean is essential for proper operation
and eective dust capture.
DUMPING DUST AND DEBRIS
After cutting approximately 5 feet or cycling the filter
five times the lower dust collection chamber will be full
and must be dumped.
DUST COLLECTION SYSTEM INSTRUCTIONS
(A) Using a suitable
container to hold dust
( 5 gallon bucket or similar)
- With engine idling hold
the iQPC912 at a 45° angle
over the container.
(B) Release the dump
door latch
(C) Pull the dump door
lever to open dump door.
- Wait a few seconds to
allow dust and debris
to slide out of the lower
dust chamber.
- Spin the filter handle a
few times to ensure
the filter is clean allowing
dust and debris to fall into the lower dust chamber.
Pull the dump door lever
to open (D) the dump door
again allowing any residual
dust and debris to slide out.
- Visually inspect no more
dust or debris is coming
out, release the door pull
lever allowing the dump
door to return to its closed position.
(E) Rotate the dump door
latch to the right or locking
position.
Continue cutting
WARNING!
KEEPING THE FILTER CLEAN
AND DUST CHAMBER EMPTIED
IS ESSENTIAL FOR PROPER OPERATION AND EFFECTIVE
DUST CAPTURE. FAILURE TO DO SO WILL RESULT IN POOR
DUST COLLECTION PERFORMANCE AND EXPOSURE TO
HARMFUL DUST.

iQPC912VSK
Operator’s Manual
888-274-7744
www.iqpowertools.com
MAINTENANCE & TROUBLE SHOOTING
OVERVIEW
The iQPC912VSK power cutter is a innovative tool
that integrates a power cutter and a dust collection
vacuum and filtration system. Because the IQPC912VSK
incorporates a vacuum system the operator needs
to clearly understand how the system works, proper
cutting techniques and managing the filtration and
debris dumping procedure. Like any professional tool
understanding the proper operational procedures
is essential to the safe and eective use of the
iQPC912VSK power cutter.
PROPER CUTTING TECHNIQUE
Always cut with the bottom quadrant of the blade known
as the Clean Cut Zone. Cut in a downward direction or
following the indicated cutting direction arrows on the
lower blade guard.
Never cut with the upper quadrant of the blade known as
the No Cut Zone.
DUST GUARD
It’s important to keep the Dust Stop and retracting
Dust Guard against the material being cut for proper
dust capture.
IF YOU SEE DUST ESCAPING
(A) If you see dust escaping from the top of the blade
guard, that means vacuum airflow has been restricted.
The following items need to be checked.
1. The spin filter needs to be spun more often.
2. The filter cleaning tab is not engaging the
filter pleats enough to clean properly. You
should hear a popping sound each time the
filter tab pops over a filter pleat.
3. The lower dust chamber needs to be emptied
of dust and free of dust and debris blockage.
4. The filter may be past its operational life of
100 hours or 90 days.
(B) If you see dust escaping from between the engine
and filter housing the following needs to be checked.
1. The filter may be past its operational life of
100 hours or 90 days and should be replaced.
WARNING!
TO AVOID POTENTIAL KICKBACK
INJURY AND DUST EXPOSURE
DO NOT CUT WITH THE UPPER QUADRANT OF THE BLADE.
WARNING!
KEEPING THE FILTER CLEAN
AND DUST CHAMBER EMPTIED
IS ESSENTIAL FOR PROPER OPERATION AND EFFECTIVE
DUST CAPTURE. FAILURE TO DO SO WILL RESULT IN POOR
DUST COLLECTION PERFORMANCE AND EXPOSURE TO
HARMFUL DUST.
