Sungale PF1501+ User manual

PF1501+
14

Set-Up ....................................................................... 9
Selecting Which Media to View ................................. 9
Viewing Photos .......................................................... 9
Adjust Speed of Slideshow ........................................ 10
Adjust the Slide Mode ................. .............................. 10
Listen to Music ........................................................... 11
Music Play Mode ....................................................... 11
View Videos ............................................................... 12
Video Play Mode ........................................................ 12
Copy Files Between Memory Cards / Internal Memory 13
Delete Files From Memory Cards / Internal Memory 13
Change the Display Language .................................. 14
Set the Date and Time .............................................. 14
Set the Alarm ............................................................. 15
Setup Power On / Off Timer ...................................... 15
Before Operation
Basic Operation
Operating Instructions
16
16
17
18
19
8
7
6
6
2
3
3
7
17
Customer Management
Question & Answer
Troubleshooting
Specifications
FCC and Safety information ......................................
Limited Warranty .......................................................
....................................................
.........................................................
............................................................
Support .....................................................................
Photo Frame Overview
Remote Control
Power Connection
Insert a memory card ................................................
.............................................
.........................................................
.....................................................
Connect to PC............................................................
Product Introduction.
Safety Precautions
Package Contents
.................................................
....................................................
.....................................................

Safety Precautions

Remove the protective film covering the LCD.
Remove the plastic insulator from the battery on the remote control.
Getting Started

Remote Control
MUSIC
EXIT
MENU
ENTER
OSD
VIEW
ROTATE
16:9/4:3
STEP
SHOW
SLIDE
SHOW
1
9
2
3
12
4
10
8
13
14
11
5
7
1. Power On / Off
2. SlideShow
3. Enter
4. Up, Down, Left, Right Arrows -
Use arrow keys to navigate your way
throught various menus
5. Exit - Returns to the previous menu
6. Zoom
7. OSD - On Screen Display
8. View
9. Aspect Ratio - 16:9 / 4:3
10. Music
11. StepShow - Advance to next photo
12. Rotate
13. Volume + / Volume -
14. Menu - Takes you to the main menu
14 LCD Screen"
Remote Sensor
6
ENTER
LEFT
RIGHT
DOWN
UP
EXIT
POWER
SD / SDHC
Card Slot
3.5mm earphone jack
Mini USB Port
USB Host Port
Power Adapter Port Frame Stand
Speakers

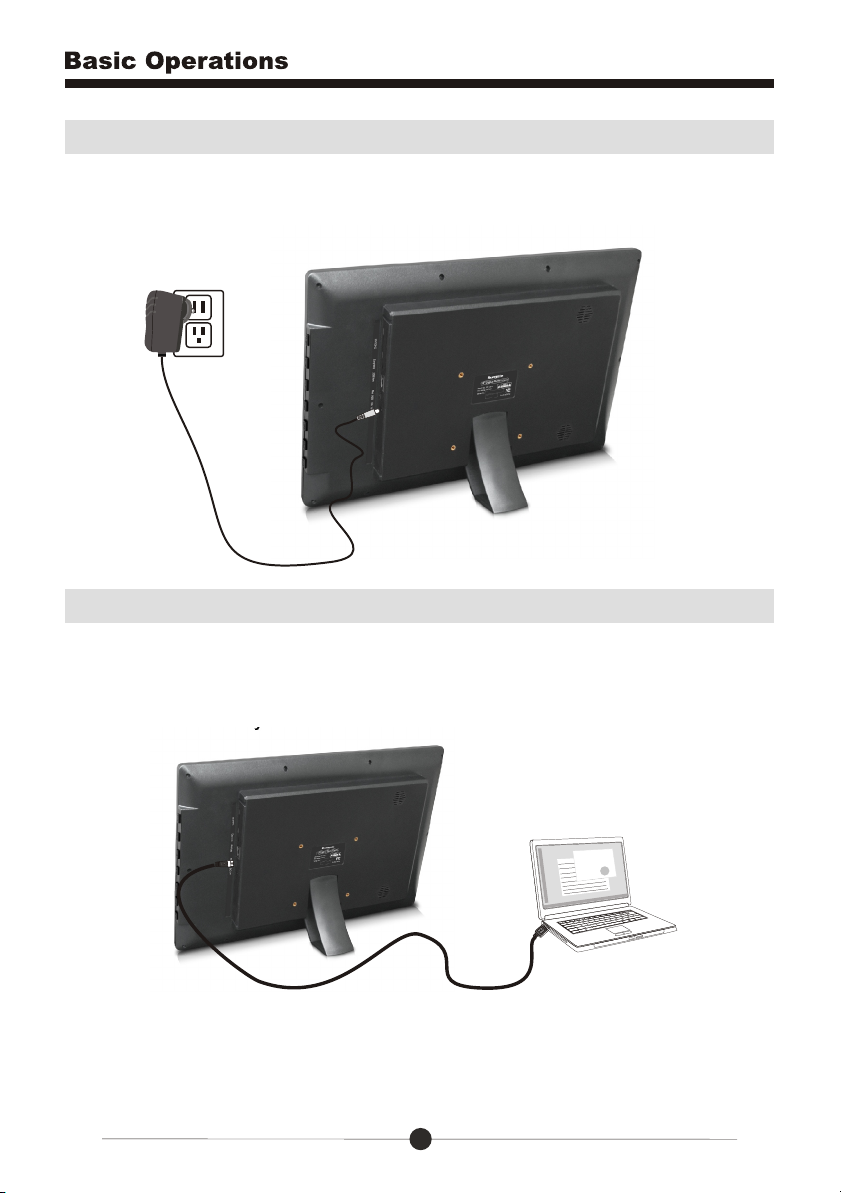

Connect to PC
Connect the device to computer with the USB cable. Copy and paste the files
to the storage of unit. After the file transferring, please safely remove hardware
from the PC. Then directly unplug the USB connection. Then find and enjoy the
files from the Memory menu.
Note: For the first time you connect this device to your computer, you might
be asked to install driver of your device so that it can be recognized by your
computer. Please follow the installation guide or contact your computer
service provider for help.
7
Insert the AC Adaptor to the frame, then connect the adaptor power
cord to a standard wall outlet.
Power Connection

SD/SDHC card is compatible with this unit.
8
SD/SDHC
USB

Operating Instructions
Set-Up
STEP 1: Plug the power adapter in then turn the power switch on.
STEP 2: Please insert your memory card (SD / SDHC) at this time. You may
also insert a USB thumb / flash drive into the on-board USB 2.0 port which will
be detected automatically. Slideshow will start automatically when the card is
inserted. (The slideshow will start from the internal memory if no memory card
is detected)
Selecting Which Media to View
Press the “Menu” button until you can view the media you have inserted into
your picture frame or the included memory in the main menu.
To create a custom slideshow with pictures in a particular order, please copy
one picture at a time to the memory card as the order is determined by the
time stamp of the file when it is copied.

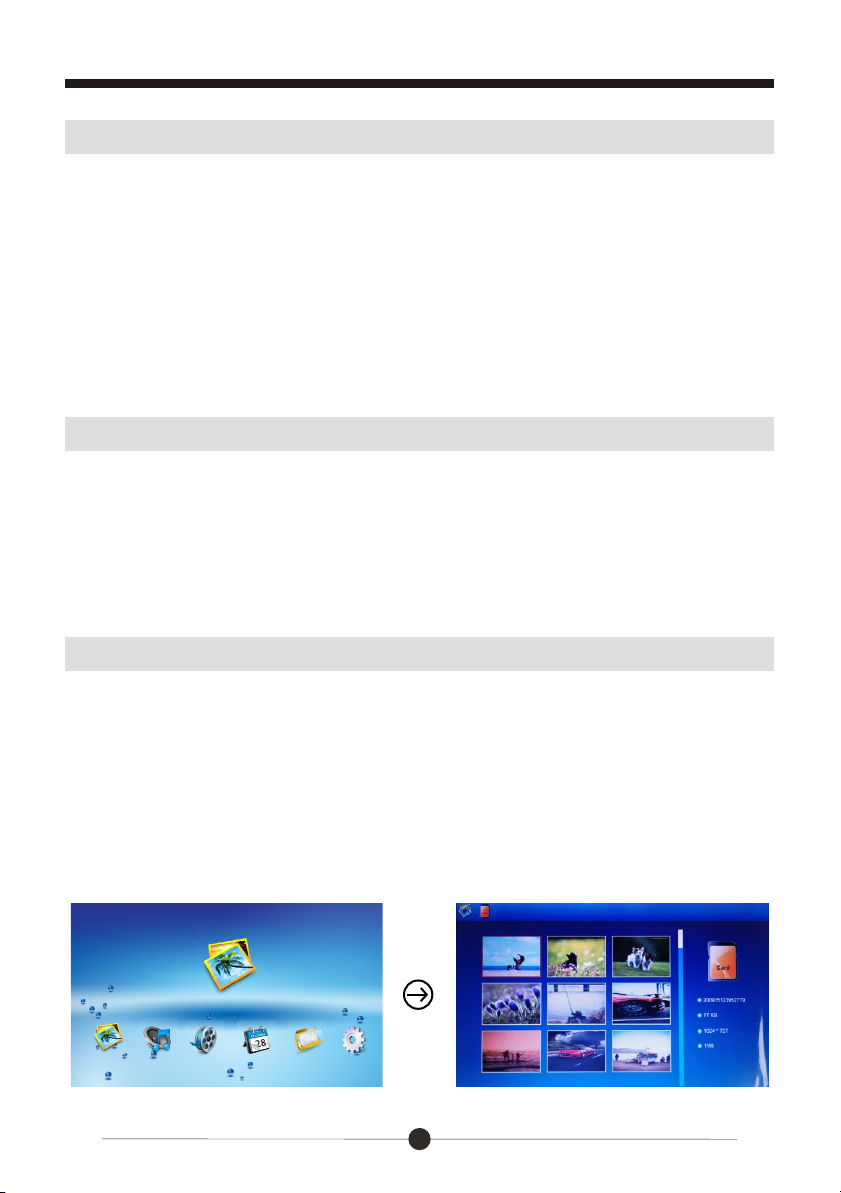

Viewing Photos
1. Select the “Photo” icon on the screen.
2. Select the photo you desire by using the up and down keys on your remote
control.
3. Once you have selected your photo press “Enter”.
4. You may zoom in on your photos by pressing the “Zoom” button on the
remote. You may also reposition the photo using the up, down, left and right
buttons on the remote once you zoom in for detailed viewing. You may also
rotate the picture by pressing the “Rotate” button on the remote.
5. You can also press the “OSD” button for more viewing options.
9
Note: You must disconnect the USB cable from your computer after transferring. You
will not be able to scroll with the remote while the USB connection is established.
Music Video Calendar File SettingPhoto

Operating Instructions
You may adjust your photo viewing options settings including: Speed interval
for slideshow, and multiple slide transition options by entering the “Setting”
menu from the main menu.

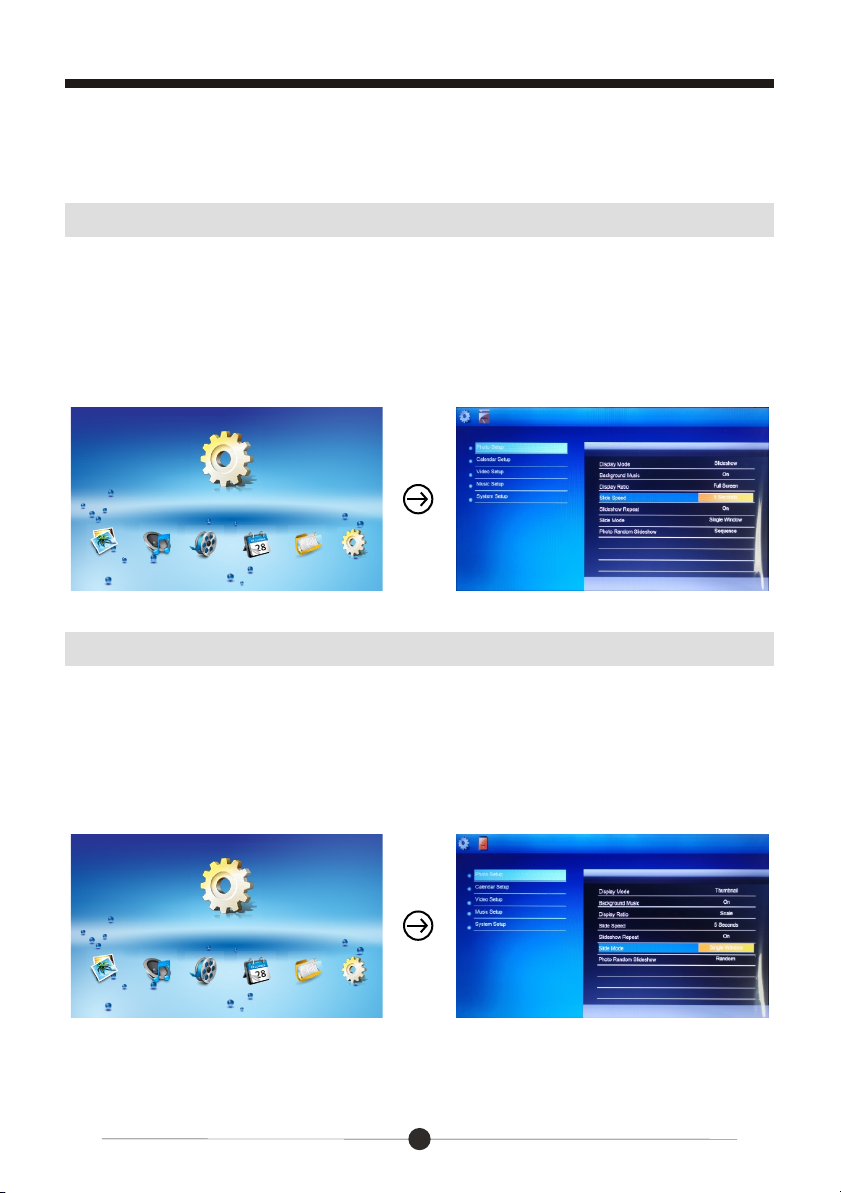

Adjust Speed of Slideshow
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Photo Setup” and press “Enter”.
3. Use the up or down key to select “Slide Speed”.
4. Use the left or right key to select the time interval from 3sec to 1hour then
press “Enter”.
5. Press “Menu” to return to the main menu.
Adjust the Slide Mode
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Photo Setup” and press “Enter”.
3. Use the up or down key to select “Slide Mode”.
4. Use the left or right key to select “Single Window”, “Two Window”,
“Triple Windows”, or “Four Windows” then press “Enter”.
5. Press “Menu” to return to the main menu.
10
Setting
Setting
Music Video Calendar FilePhoto
Setting
Setting
Music Video Calendar FilePhoto

Listen to Music
1. Select the “Music” icon on the screen.
2. A list of MP3 files stored on your media will appear on the screen. Use the
up and down keys on the remote control to select the desired song then
press “Enter”. You can press the “Enter” to pause / play.
3. The next song will play automatically on the song list. You may also select
another song using the up and down keys on your remote control.
Music Play Mode
Operating Instructions
11
Setting
Music
Music Video Calendar FilePhoto
Setting
Setting
Music Video Calendar FilePhoto
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Music Setup” and press “Enter”.
3. Use the up or down key to select “Play Mode”.
4. Use the left or right key to select “Repeat One”, “Repeat All”,
“Sequence”, “Random”, or “Random Repeat” then press “Enter”.
5. Press “Menu” to return to the main menu.

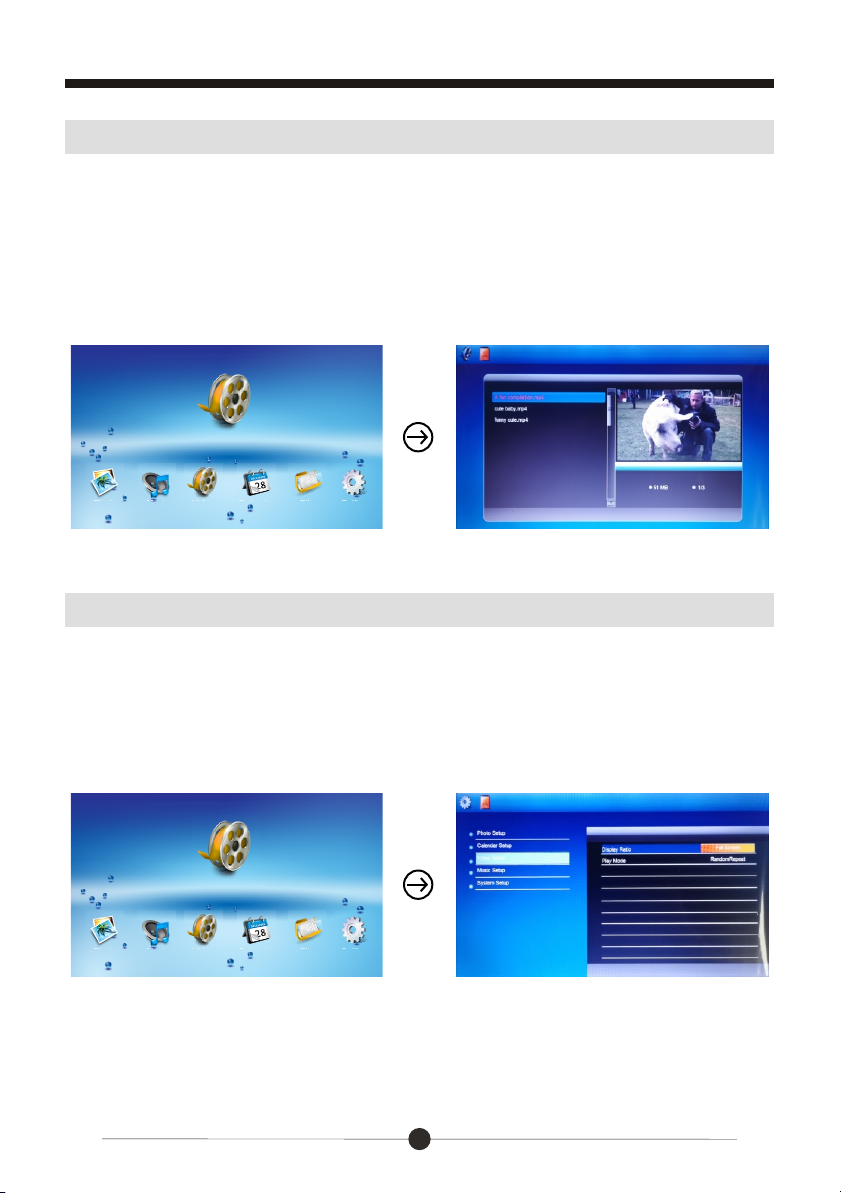

View Videos
1. Select the “Movie” icon on the screen.
2. A list of video files stored on your media will appear on the screen. Use the
up and down keys on the remote control to select the desired video then
press “Enter”. You can press the “Enter” to pause / play.
3. You may zoom in on the video by pressing the “Zoom” button on the remote.
4. The next video will play automatically on the list. You may also select another
video using the up and down keys on your remote control.
Video Play Mode
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Video Setup” and press “Enter”.
3. Use the up or down key to select “Play Mode”.
4. Use the left or right key to select “Repeat One”, “Repeat All”,
“Sequence”, “Random”, or “RandomRepeat” then press “Enter”.
5. Press “Menu” to return to the main menu.
Operating Instructions
12
SettingMusic Video Calendar FilePhoto
Video
SettingMusic Video Calendar FilePhoto
Video

13

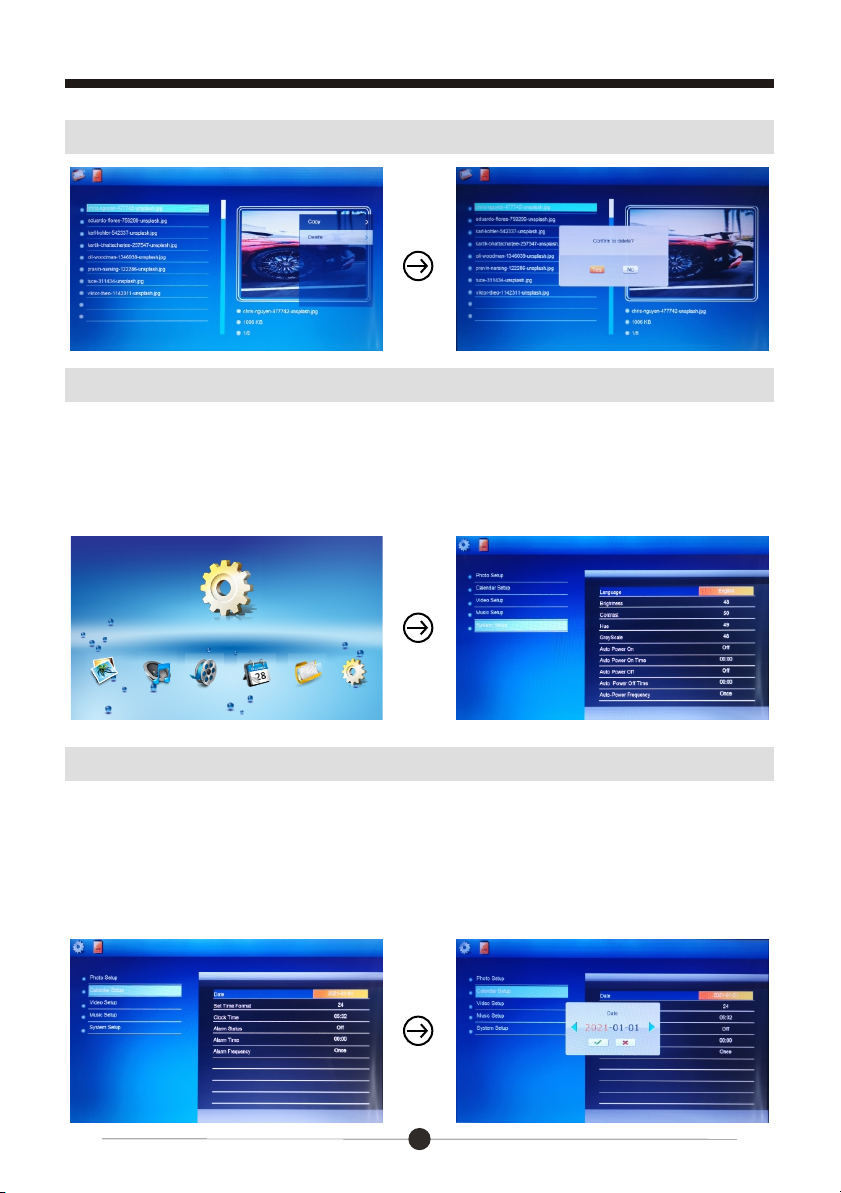

Copy Files Between Memory Cards / Internal Memory
1. Select the “File” icon on the screen.
2. Select the photo you want to copy using the up and down keys on your
remote control and press the “ ” key.
3. Select “Copy” and press “Enter” on the remote.
4. Select “Yes” and press “Enter”, then you see “Copy Succeeded”.
1. Select the “File” icon on the screen.
2. Select the photo you want to delete using the up and down keys on your
remote control and press the “ ” key.
3. Select “Delete” and press “Enter” on the remote.
4. Select “Yes” and press “Enter”, then you see “Delete Succeeded”.
Delete Files From Memory Cards / Internal Memory
Operating Instructions
SettingMusic Video Calendar FilePhoto
File
SettingMusic Video Calendar FilePhoto
File

14
Change the Display Language
Set the Date and Time
Operating Instructions
Delete Files From Memory Cards / Internal Memory
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “System Setup” and press “Enter”.
3. Use the up or down key to select “Languge”.
4. Use the left or right key to select the desired language then press “Enter”.
5. Press “Menu” to return to the main menu.
Setting
Setting
Music Video Calendar FilePhoto
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Calendar Setup” and press “Enter”.
3. Use the up or down key to select “Date”.
4. Use the left or right key to select what you want to change and use the up
or down key to change to the correct value then press “Enter”.
5. Press “Menu” to return to the main menu.

15

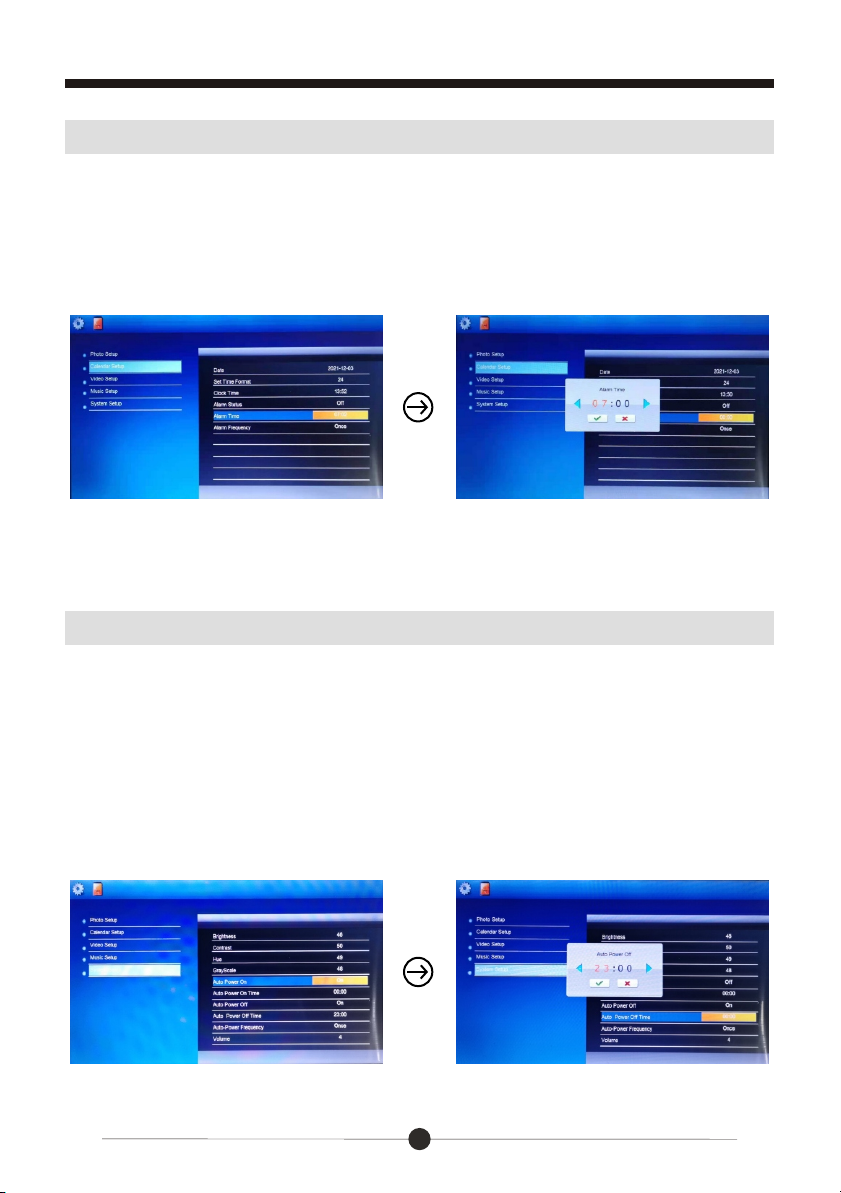

Set the Alarm
Setup Power On / Off Timer
Operating Instructions
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “Calendar Setup” and press “Enter”.
3. Use the up or down key to select “Alarm Time”.
4. Use the left or right key to select what you want to change and use the up
or down key to change to the correct value then press “Enter”.
5. Press “Menu” to return to the main menu.
The last item is the Alarm Frequency “Once”, “Every Day”,“Workday”,
“Weekend”.
1. Select “Setting” and press “Enter” from the main menu.
2. Use the up or down key to select “System Setup” and press “Enter”.
3. Use the up or down key to select “Auto Power On” or “Auto Power Off”.
4. Use the left or right key to select the “On” or “Off” then press “Enter”.
5. Use the up or down key to select “Auto Power On Time” or
“Auto Power Off Time”.
6. Use the left or right key to select what you want to change and use the up
or down key to change to the correct value then press “Enter”.
7. Press “Menu” to return to the main menu.

SD/SDHC card
16
, BMP

17
TFT LCD type: Digital
Screen dimension: 14 inches (16:9)
Resolution: 1366x768 pixels
Internet Memory: 4GB
Photo file formats: JPEG, BMP
Audio player: WMA
Video player: AVI
Memory cards supports: SD/SDHC
USB connection: 1 x USB host, 1 x USB device
Power supply: AC 110~220V, DC 12V
2. Contact Sungale Support team
1. Visit the support site.
For manual download and FAQs: www.sungale.com
Toll Free Call in the USA: 800-473-5156
Service email: [email protected]
Support
Specifications

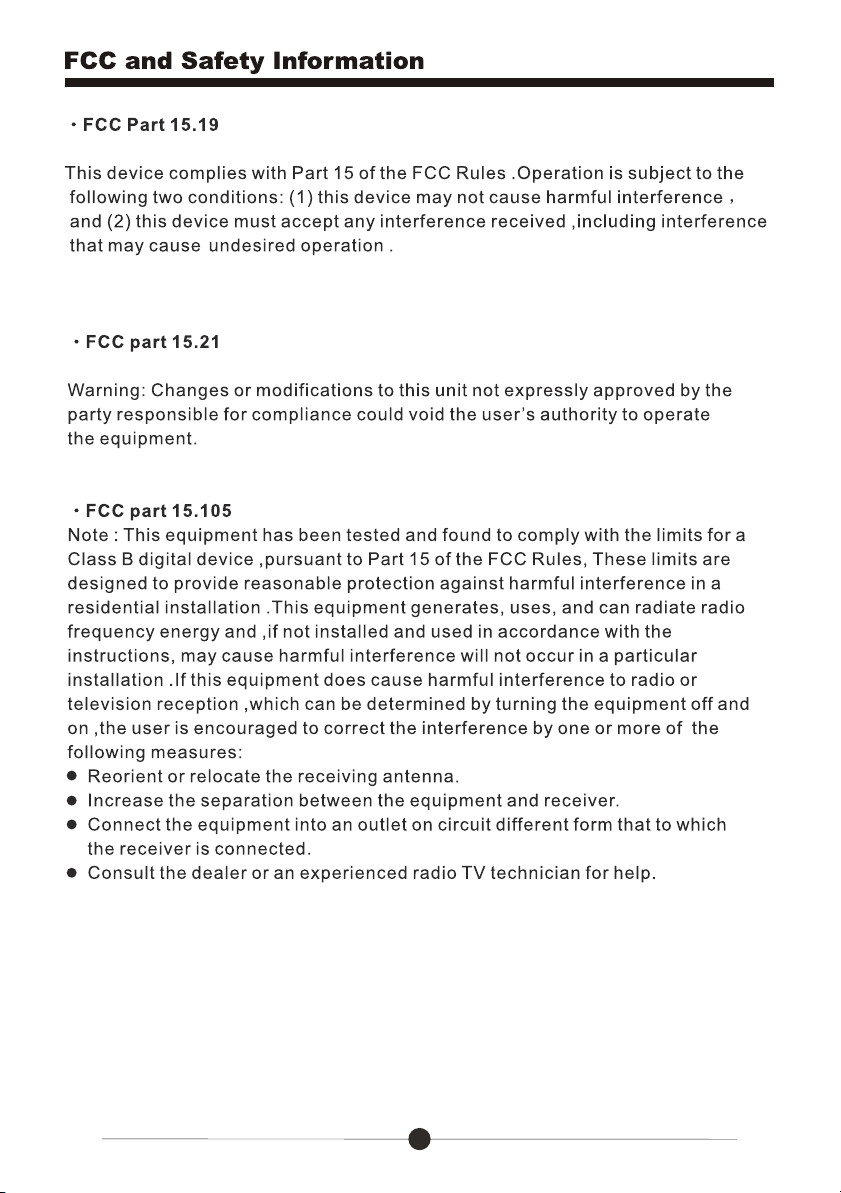

18

19
