SUNGOLD POWER Hybrid BluePower TP6048 User manual

Sun Gold Power Co.,Ltd www. sungoldpower.com
Hybrid BluePower TP6048
INVERTER / CHARGER
User Manual

Sun Gold Power Co.,Ltd www. sungoldpower.com
Table Of Contents
ABOUT THIS MANUAL ......................................................................................................................1
Purpose............................................................................................................................................................1
Scope...............................................................................................................................................................1
SAFETY INSTRUCTIONS ...................................................................................................................1
INTRODUCTION ...............................................................................................................................2
Product Overview.............................................................................................................................................3
INSTALLATION.................................................................................................................................4
Unpacking and Inspection................................................................................................................................4
Preparation ......................................................................................................................................................4
Mounting the Unit.............................................................................................................................................4
Battery Connection ..........................................................................................................................................5
AC Input/Output Connection............................................................................................................................6
PV Connection.................................................................................................................................................7
Final Assembly.................................................................................................................................................8
Communication Connection.............................................................................................................................9
Dry Contact Signal...........................................................................................................................................9
OPERATION....................................................................................................................................10
Power ON/OFF ..............................................................................................................................................10
Operation and Display Panel.........................................................................................................................10
LCD Display Icons .........................................................................................................................................11
LCD Setting....................................................................................................................................................12
Display Setting...............................................................................................................................................18
Operating Mode Description..........................................................................................................................23
SPECIFICATIONS ...........................................................................................................................27
TROUBLE SHOOTING .....................................................................................................................28
Appendix I: Parallel function .........................................................................................................29
Appendix II: BMS Communication Installation .............................................................................39
Appendix III: Approximate Back-up Time Table ...........................................................................46
Appendix IV: The Wi-Fi Operation Guide in Remote Panel............................................................47

1
Sun Gold Power Co.,Ltd www. sungoldpower.com
ABOUT THIS MANUAL
Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.
SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and
keep this manual for future reference.
1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all
appropriate sections of this manual.
2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.
Other types of batteries may burst, causing personal injury and damage.
3. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.
Incorrect re-assembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.
Turning off the unit will not reduce this risk.
5. CAUTION –Only qualified personnel can install this device with battery.
6. NEVER charge a frozen battery.
7. For optimum operation of this inverter/charger, please follow required spec to select appropriate cable
size. It’s very important to correctly operate this inverter/charger.
8. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop
a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.
9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please
refer to INSTALLATION section of this manual for the details.
10. Fuses are provided as over-current protection for the battery supply.
11. GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded
wiring system. Be sure to comply with local requirements and regulation to install this inverter.
12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input
short circuits.
13. Warning!! Only qualified service persons are able to service this device. If errors still persist after
following troubleshooting table, please send this inverter/charger back to local dealer or service center
for maintenance.
I

2
Sun Gold Power Co.,Ltd www. sungoldpower.com
INTRODUCTION
This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery
power.
Hybrid inverter
Battery Load
Figure 1 Basic hybrid PV System Overview
Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV
solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within acceptable
range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and
charge battery. Never connect the positive and negative terminals of the solar panel to the ground.
See Figure 1 for a simple diagram of a typical solar system with this hybrid inverter.
Distribution Box
PV module
Electric grids

3
Sun Gold Power Co.,Ltd www. sungoldpower.com
Product Overview
NOTE: For parallel model installation and operation, please check separate parallel installation guide for the
details.
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input connectors
8. AC output connectors (Load connection)
9. PV connectors
10. Battery connectors
11. RS-232 communication port
12. Remote LCD panel communication port
13. Parallel communication port (only for parallel model)
14. Current sharing port (only for parallel model)
15. Dry contact
16. USB communication port
17. LED indicators for USB function setting / Output source priority timer / Charger source priority setting
18. BMS communication port: CAN, RS-485 or RS-232

4
Sun Gold Power Co.,Ltd www. sungoldpower.com
INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
Inverter unit Software CD Manual RS-232 cable
Preparation
Before connecting all wirings, please take off bottom cover by removing four screws as shown below.
Mounting the Unit
Consider the following points before selecting where to install:
⚫ Do not mount the inverter on flammable construction materials.
⚫ Mount on a solid surface.
⚫ Install this inverter at eye level in order to allow the LCD display to be
read at all times.
⚫ The ambient temperature should be between 0°C and 55°C to ensure
optimal operation.
⚫ The recommended installation position is to be adhered to the wall
vertically.

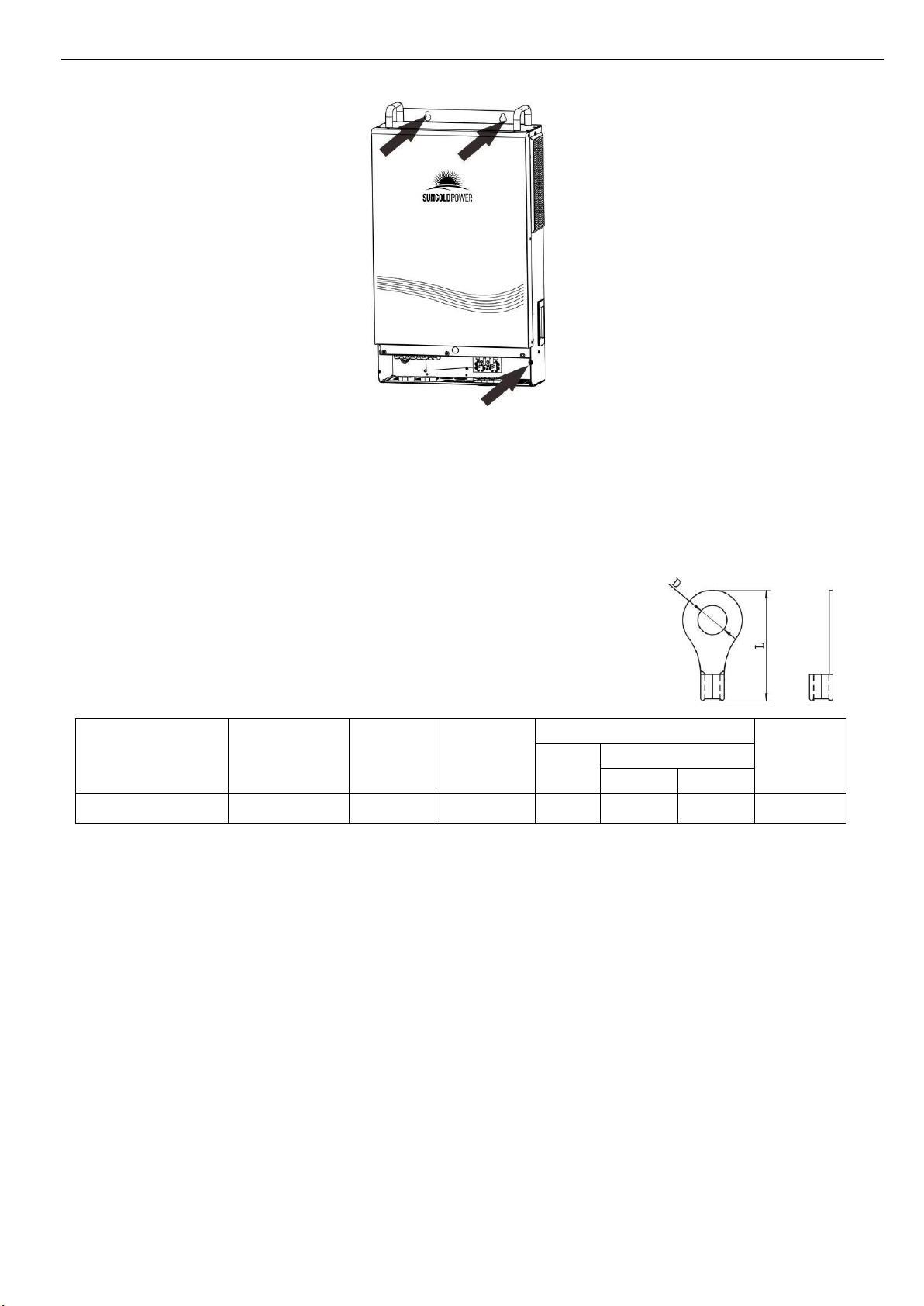

⚫ Be sure to keep other objects and surfaces as shown in the right
diagram to guarantee sufficient heat dissipation and to have
enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER
NON-COMBUSTIBLE SURFACE ONLY.

5
Sun Gold Power Co.,Ltd www. sungoldpower.com
Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.
Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current
protector or disconnect device between battery and inverter. It may not be requested to have a disconnect
device in some applications, however, it’s still requested to have over-current protection installed. Please refer
to typical amperage in below table as required fuse or breaker size. Ring terminal:
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.
Recommended battery cable and terminal size:
Model
Typical
Amperage
Battery
Capacity
Wire Size
Ring Terminal
Torque
Value
Cable
mm2
Dimensions
D (mm)
L (mm)
BluePower TP6048
137A
200AH
1*2AWG
38
6.4
33.2
2~3 Nm
Please follow below steps to implement battery connection:
1. Assemble battery ring terminal based on recommended battery cable and terminal size.
2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the nuts are
tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly
connected and ring terminals are tightly screwed to the battery terminals.

6
Sun Gold Power Co.,Ltd www. sungoldpower.com
WARNING: Shock Hazard
Installation must be performed with care due to high battery voltage in series.
CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring
terminal. Otherwise, overheating may occur.
CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are connected
tightly.
CAUTION!! Before making the final DC connection or closing DC breaker/disconnector, be sure
positive (+) must be connected to positive (+) and negative (-) must be connected to negative (-).
AC Input/Output Connection
CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between
inverter and AC input power source. This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input.
CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input
and output connectors.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input
connection. To reduce risk of injury, please use the proper recommended cable size as below.
Suggested cable requirement for AC wires
Model
Gauge
Torque Value
BluePower TP6048
10 AWG
1.2~ 1.6 Nm
Please follow below steps to implement AC input/output connection:
1. Before making AC input/output connection, be sure to open DC protector or disconnector first.
2. Remove insulation sleeve 10mm for eight conductors.
3. Insert AC input wires according to polarities indicated on terminal
block and tighten the terminal screws. Be sure to connect PE
protective conductor ( ) first.
→Ground (yellow-green)
L1→LINE (black)
L2→LINE (brown)
N→Neutral (blue)

7
Sun Gold Power Co.,Ltd www. sungoldpower.com
WARNING:
Be sure that AC power source is disconnected before attempting to hardwire it to the unit.
4. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws.
Be sure to connect PE protective conductor ( ) first.
→Ground (yellow-green)
L1→LINE (black)
L2→LINE (brown)
N→Neutral (blue)
5. Make sure the wires are securely connected.
PV Connection
CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter
and PV modules.
WARNING! All wiring must be performed by a qualified personnel.
WARNING: Please switch off the inverter before you connect PV modules. Otherwise, it will damage the
inverter.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV
module connection. To reduce risk of injury, please use the proper recommended cable size as below.
Model
Typical
Amperage
Cable Size
Torque
BluePower TP6048
27A
10AWG
2.0~2.4Nm
PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.
Solar Charging Mode
INVERTER MODEL
BluePower TP6048
Max. PV Array Open Circuit Voltage
450 Vdc
PV Array MPPT Voltage Range
120~430Vdc
MPP Number
1
Please follow below steps to implement PV module connection:
1. Remove insulation sleeve 10 mm for positive and negative conductors.
2. Check correct polarity of connection cable from PV modules and PV input
connectors. Then, connect positive pole (+) of connection cable to positive
CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required
to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a
short time, it will cause damage to your connected appliances. To prevent this kind of damage, please check
manufacturer of air conditioner if it’s equipped with time-delay function before installation. Otherwise, this
inverter/charger will trig overload fault and cut off output to protect your appliance but sometimes it still causes
internal damage to the air conditioner.
CAUTION: Important
Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause
utility short-circuited when these inverters are worked in parallel operation.

8
Sun Gold Power Co.,Ltd www. sungoldpower.com
pole (+) of PV input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV
input connector.
Recommended PV module Configuration
PV Module Spec.
Total solar input power
Solar input
Q'ty of modules
(reference)
1500W
6 pieces in series
6 pcs
- 250Wp
2000W
8 pieces in series
8 pcs
- Vmp: 30.7Vdc
2750W
11 pieces in series
11 pcs
- Imp: 8.15A
- Voc: 37.4Vdc
3000W
6 pieces in series
12 pcs
- Isc: 8.63A
2 strings in parallel
- Cells: 60
4000W
8 pieces in series
16 pcs
2 strings in parallel
5000W
10 pieces in series
20 pcs
2 strings in parallel
6000W
12 pieces in series
24 pcs
2 strings in parallel
Final Assembly
After connecting all wirings, please put bottom cover back by screwing four screws as shown below.

9
Sun Gold Power Co.,Ltd www. sungoldpower.com
Communication Connection
Serial Connection
Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and
follow on-screen instruction to install the monitoring software. For the detailed software operation, please
check user manual of software inside of CD.
Wi-Fi Connection
Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users
have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module
with SolarPower APP, available for both iOS and Android based device. All data loggers and parameters are
saved in iCloud. Refer to Appendix IV for detailed operation.
Dry Contact Signal
There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external
device when battery voltage reaches warning level.
Unit Status
Condition
Dry contact port:
NC & C
NO & C
Power Off
Unit is off and no output is powered.
Close
Open
Power On
Output is powered from Utility.
Close
Open
Output is
powered
from
Battery or
Solar.
Program 01
set as SUB
Battery voltage < Low DC warning
voltage
Open
Close
Battery voltage > Setting value in
Program 21 or battery charging
reaches floating stage
Close
Open
Program 01
is set as
SBU
Battery voltage < Setting value in
Program 20
Open
Close
Battery voltage > Setting value in
Program 21 or battery charging
reaches floating stage
Close
Open

10
Sun Gold Power Co.,Ltd www. sungoldpower.com
OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
(located on the button of the case) to turn on the unit.
Operation and Display Panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
power information.
Setting LED 1
Function keys
Setting LED 3
Setting LED 2 LCD display
Status
indicators
Function keys
On/off switch
LED Indicators
LED Indicator
Messages
Setting LED1
Green
Solid On
Reserved
Setting LED2
Green
Solid On
Reserved
Setting LED3
Green
Solid On
Reserved
Status
Indicator
Green
Solid On
Output is powered by utility in Line mode.
Flashing
Output is powered by battery or PV in battery mode.
Green
Solid On
Battery is fully charged
Flashing
Battery is charging.
Red
Solid On
Fault mode
Flashing
Warning mode

11
Sun Gold Power Co.,Ltd www. sungoldpower.com
Function Keys
Function Key
Description
ESC
Exit the setting
Reserved
Reserved
Reserved
Reserved
Up
To last selection
Down
To next selection
Enter
To confirm/enter the selection in setting mode

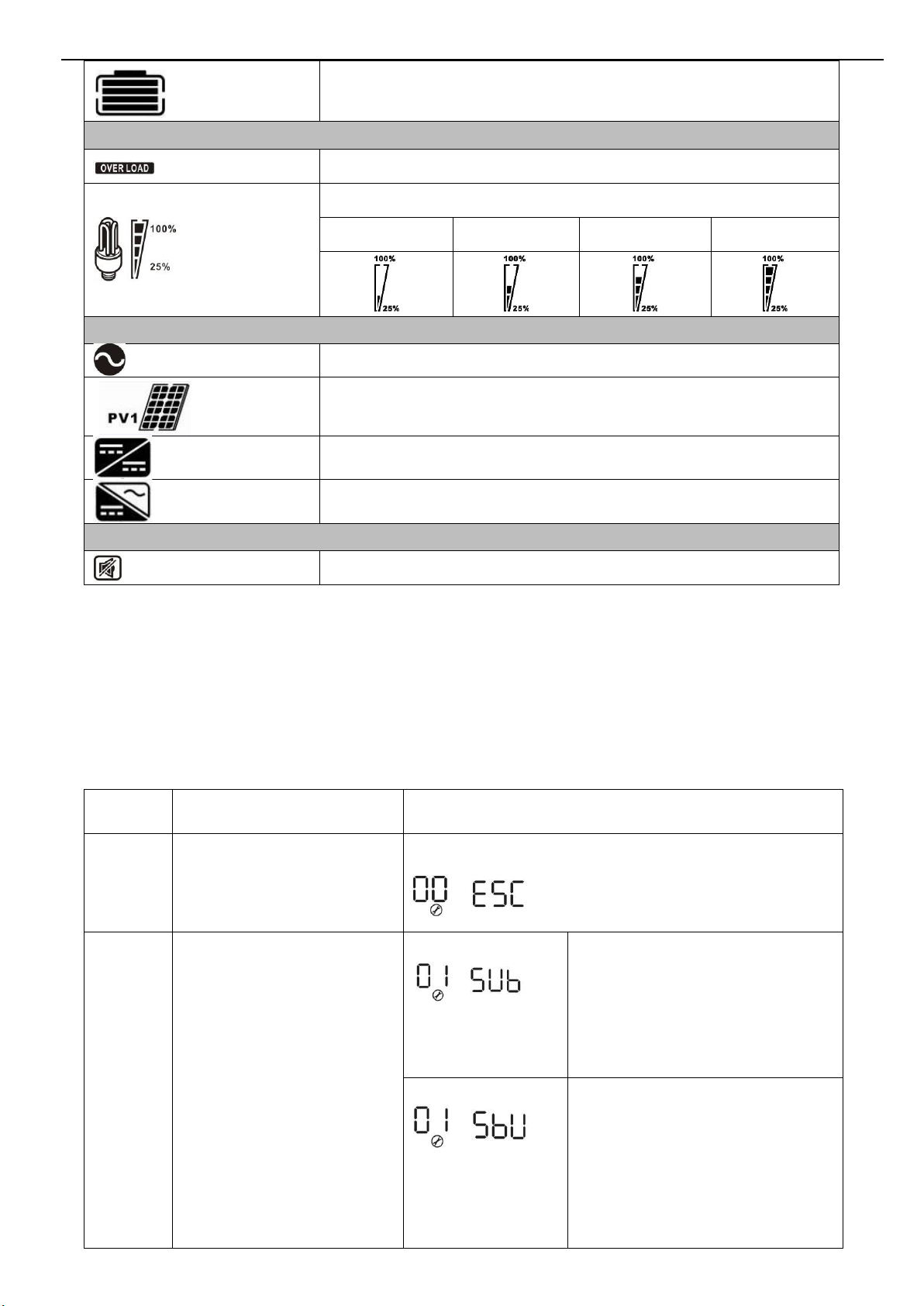

LCD Display Icons
Icon
Function
Input source information
Indicates the AC input
Indicates the PV1 panel input
Left digital display information
Indicate input voltage, input frequency, battery voltage, PV voltage,
charger current
Middle digital display information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: Flashing with warning code
Fault: display with fault code
Right digital display information
Indicate the output voltage, output frequency, load percent, load VA, load
W, PV charger power, DC discharging current.
Battery information

12
Sun Gold Power Co.,Ltd www. sungoldpower.com
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% and
charging status.
Load information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74%, and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Mode operation information
Indicates unit connects to the mains.
Indicates unit connects to the 1st PV panel
Indicates the solar charger is working
Indicates the DC/AC inverter circuit is working.
Mute operation
Indicates unit alarm is disabled.
LCD Setting
After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN”
button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to
exit.

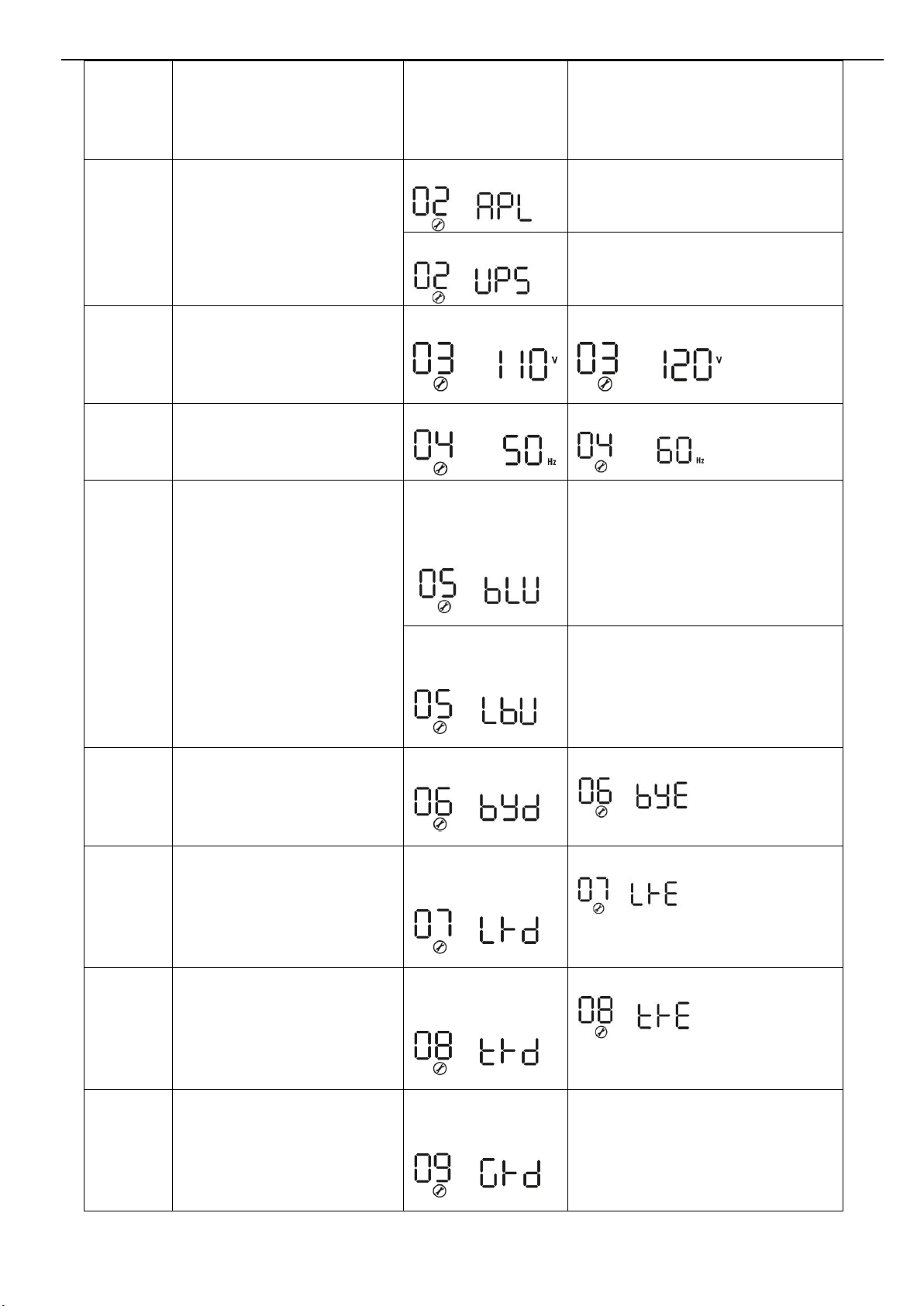

Program
Description
Selectable option
00
Exit setting mode
Escape
01
Output source priority selection
SUB(default)
Solar energy provides power to the
loads as first priority.
If solar energy is not sufficient to
power all connected loads, Utility
energy will supply power to the loads
at the same time.
SBU
Solar energy provides power to the
loads as first priority.
If solar energy is not sufficient to
power all connected loads, battery
energy will supply power to the loads
at the same time.
Utility provides power to the loads

13
Sun Gold Power Co.,Ltd www. sungoldpower.com
only when battery voltage drops to
either low-level warning voltage or
the setting point in program 20 or
solar and battery is not sufficient.
02
AC input voltage range
Appliances (default)
If selected, acceptable AC input
voltage range will be within
65-140VAC.
UPS
If selected, acceptable AC input
voltage range will be within
95-140VAC.
03
Output voltage
110Vac
120V (Default)
04
Output frequency
50Hz
60Hz (default)
05
Solar supply priority
Power to charge
battery as
first(default)
Solar energy provides power to
charge battery as first priority.
Power to the loads as
first
Solar energy provides power to the
loads as first priority.
06
Overload bypass:
When enabled, the unit will
transfer to line mode if overload
occurs in battery mode.
Bypass disable
Bypass enable (default)
07
Auto restart when overload
occurs
Restart disable
(default)
Restart enable
08
Auto restart when over
temperature occurs
Restart disable
(default)
Restart enable
09
Solar energy feed to grid
configuration
Feed to grid
disable(default)
Solar energy feed to grid disable.

14
Sun Gold Power Co.,Ltd www. sungoldpower.com
Feed to grid enable
Solar energy feed to grid enable.
10
Charger source priority:
To configure charger source
priority
If this inverter/charger is working in Line, Standby or Fault
mode, charger source can be programmed as below:
Solar first
Solar energy will charge battery as
first priority.
Utility will charge battery only when
solar energy is not available.
Solar and Utility
(default)
Solar energy and utility will charge
battery at the same time.
Only Solar
Solar energy will be the only charger
source no matter utility is available or
not.
If this inverter/charger is working in Battery mode or Power
saving mode, only solar energy can charge battery. Solar
energy will charge battery if it's available and sufficient.
11
Maximum charging current:
To configure total charging
current for solar and utility
chargers.
(Max. charging current = utility
charging current + solar
charging current)
60A (default)
The setting range is from 10A to
120A. Increment of each click is 10A.
13
Maximum utility charging
current
30A (default)
The setting range is from 10A to
120A. Increment of each click is 10A.
14
Battery type
AGM (default)
Flooded
User-Defined
If “User-Defined” is selected, battery
charge voltage and low DC cut-off
voltage can be set up in program 17,
18 and 19.
Pylontech battery
If selected, programs of 11, 17, 18
and 19 will be automatically set up.
No need for further setting.
WECO battery
If selected, programs of 11,17 , 18,
19 and 20 will be auto-configured per
battery supplier recommended. No
need for further adjustment.
Programs of 20 and 21 parameters
refer to SOC of battery.

15
Sun Gold Power Co.,Ltd www. sungoldpower.com
14
Battery type
Soltaro battery
If selected, programs of 11, 17, 18
and 19 will be automatically set up.
No need for further setting.
LIb-protocol
Select “ LIb” if using Lithium battery
compatible to Lib protocol. If
selected, programs of 11, 17, 18 and
19 will be automatically set up. No
need for further setting.
3rd party Lithium
battery
If selected, programs of 11, 17, 18
and 19 will be automatically set up.
No need for further setting. Please
contact the battery supplier for
installation procedure.

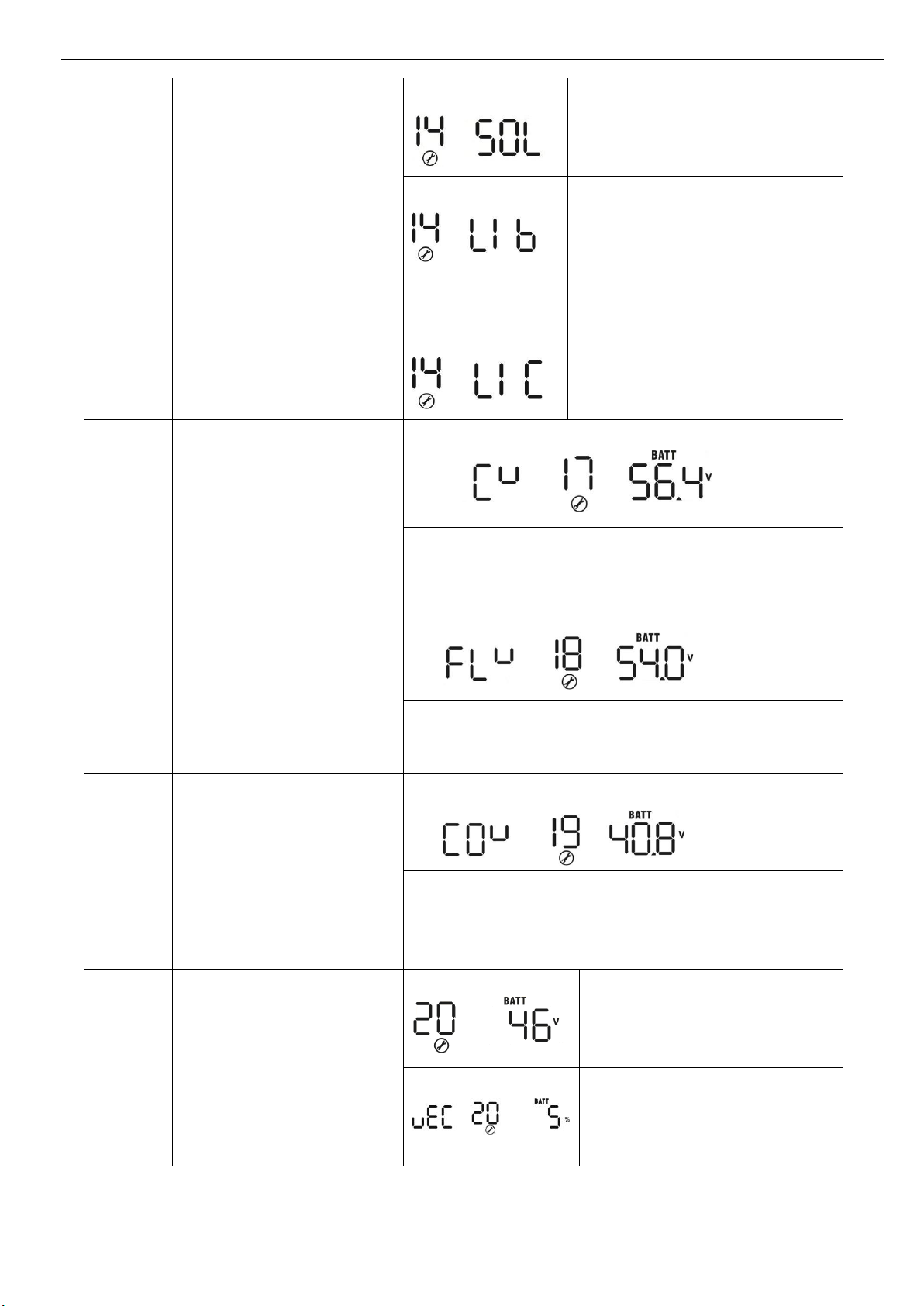

17
Bulk charging voltage
(C.V voltage)
Default setting: 56.4V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 48.0V to 64.0V. Increment of
each click is 0.1V.
18
Floating charging voltage
Default setting: 54.0V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 48.0V to 64.0V. Increment of
each click is 0.1V.
19
Low DC cut off battery voltage
setting
Default setting: 40.8V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 40.8V to 48.0V. Increment of
each click is 0.1V. Low DC cut-off voltage will be fixed to
setting value no matter what percentage of load is connected.
20
Battery stop discharging
voltage when grid is available
default setting: 46V
Setting range is from 44V to 51V
and increment of each click is 1V.
5% (default)
If “WECO battery” is selected in
program 14, the parameter will be
fixed at 5% SOC of battery.

16
Sun Gold Power Co.,Ltd www. sungoldpower.com

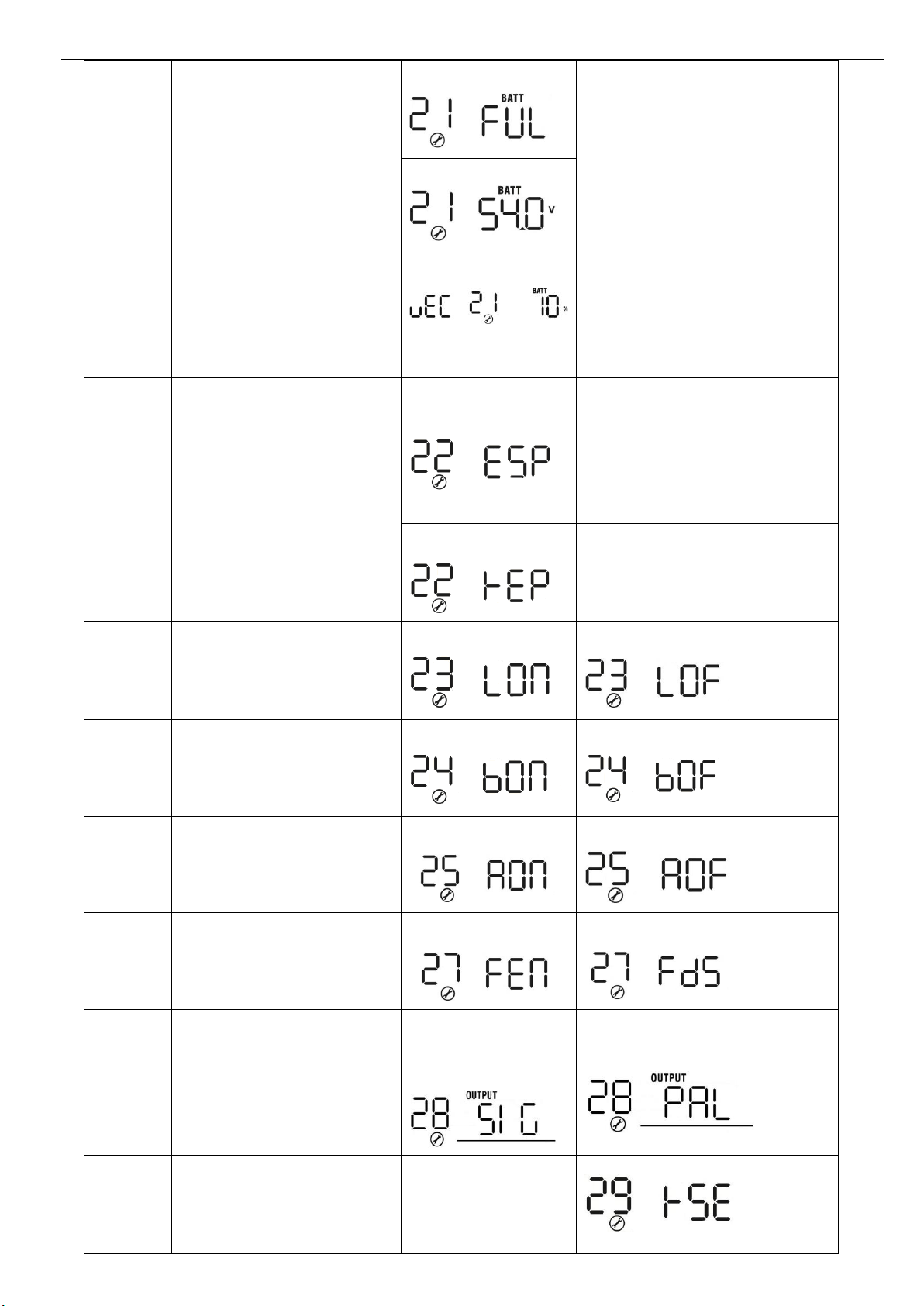

21
Battery stop charging voltage
when grid is available
Battery fully charged
The setting range is from 48V to
58V and increment of each click is
1V.
Default setting: 54V
10% (default)
If “WECO battery” is selected in
program 14, this parameter will
refer to the SOC of battery and
adjustable from 10% to 100%.
Increment of each click is 5%.
22
Auto return to default display
screen
Return to default
display screen (default)
If selected, no matter how users
switch display screen, it will
automatically return to default
display screen (Input voltage
/output voltage) after no button is
pressed for 1 minute.
Stay at latest screen
If selected, the display screen will
stay at latest screen user finally
switches.
23
Backlight control
Backlight on (default)
Backlight off
24
Alarm control
Alarm on (default)
Alarm off
25
Beeps while primary source is
interrupted
Alarm on (default)
Alarm off
27
Record Fault code
Record enable
Record disable (default)
28
AC output mode
*This setting is only available
when the inverter is in standby
mode (Switch off).
Single: When selected,
the unit is used in
single operation.
Parallel: When selected, this inverter
is operated in parallel system. The
maximum parallel unit is 9.
29
Reset PV energy storage
Not reset(Default)
Reset

17
Sun Gold Power Co.,Ltd www. sungoldpower.com
30
Start charging time for AC
charger
00:00 (Default)
The setting range of start charging time for AC charger is from
00:00 to 23:00, increment of each click is 1 hour.
31
Stop charging time for AC
charger
00:00 (Default)
The setting range of stop charging time for AC charger is from
00:00 to 23:00, increment of each click is 1 hour.
32
Scheduled time for AC output
on
00:00 (Default)
The setting range of scheduled Time for AC output on is from
00:00 to 23:00, increment of each click is 1 hour.
33
Scheduled time for AC output
off
00:00(Default)
The setting range of scheduled Time for AC output off is from
00:00 to 23:00, increment of each click is 1 hour.
95
Time setting –Minute
For minute setting, the range is from 00 to 59.
96
Time setting –Hour
For hour setting, the range is from 00 to 23.
97
Time setting–Day
For day setting, the range is from 00 to 31.
98
Time setting–Month
For month setting, the range is from 01 to 12.
99
Time setting –Year
For year setting, the range is from 16 to 99.

18
Sun Gold Power Co.,Ltd www. sungoldpower.com
Display Setting
The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable
information is switched as below order: input voltage, input frequency, PV voltage, charging current, battery
voltage, output voltage, output frequency, load percentage, load in Watt, load in VA, load in Watt, DC
discharging current, main board firmware version and SCC firmware version.
Select item
LCD display
Input1 voltage and output1 voltage
(Default Display Screen)
Input1 Voltage=120V, output1 voltage=120V
Input2 voltage and output2 voltage
(Default Display Screen)
Input2 Voltage=120V, output2 voltage=120V
Input1 frequency and output1 frequency
Input1 frequency=60.0Hz, output1 frequency=60.0Hz
