OPERATOR’S MANUAL
CORDLESS TILLER + CULTIVATOR –
TOOL ONLY
24-VOLT MAX* | 6" STEEL TILLING BLADES

© 2021 by Snow Joe®, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS
A Division of Snow Joe®, LLC 24V-TLR-CT-RM Form No. SJ-24V-TLR-CT-RM-880E-M
R
OPERATOR’S MANUAL
CORDLESS TILLER + CULTIVATOR –
TOOL ONLY
24-VOLT MAX* | 6" STEEL TILLING BLADES
2
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
You and any other operator of this cordless tiller + cultivator
must read, understand, and follow these instructions in their
entirety. Failure to follow these instructions may result in
ELECTRIC SHOCK, FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol mused in this
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
parts immediately.
3. Keep children, bystanders, and pets away –
All spectators, including pets, should be kept a safe
distance away from the work area.
4. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
5. Use the right tool – Do not use this machine for any job
except that for which it was intended.
6. Dress properly – Do not wear loose clothing or jewelry as
such articles can become caught in moving parts.
Wear a protective covering to contain long hair.
Wearing rubber gloves and substantial non-slip footwear
is recommended when working outdoors.
7. Avoid accidental starting – Do not carry the cordless
tiller + cultivator with your nger on the switch.
mCAUTION! Moving parts will continue to run for several
seconds after turning o the machine.
8. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
9. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
10. Do not overreach – Keep proper footing and balance at
all times.
If the cordless tiller + cultivator strikes a foreign object,
follow these steps:
• Stop the cordless tiller + cultivator.
• Inspect for damage.
• Repair any damage before restarting and
operating the tool.
11. Use safety glasses – Also use safety footwear,
snug-tting clothing, protective gloves, hearing, and head
protection.
12. Remove the battery – Remove the battery from the
cordless tiller + cultivator when it is not in use,
before servicing it, when changing accessories,
and when performing any other maintenance task.
13. Store idle tool indoors – When not in use, the cordless
tiller + cultivator should be stored indoors in a dry and
high or locked-up place out of the reach of children.
14. Maintain the cordless tiller + cultivator with care –
Keep the cutting edges sharp and clean for optimal
performance and to reduce the risk of injury.
Keep the handles dry, clean, and free from oil and grease.
Follow the additional recommendations described in the
maintenance section of this manual.
15. Avoid dangerous environments – Do not use the tiller
+ cultivator in rain or in damp or wet locations. Do not
operate the tiller + cultivator in gaseous or explosive
atmospheres or use the tiller + cultivator near ammable
or combustible liquids. Motors in these tools normally
spark, and the sparks might ignite fumes.
16. Stay alert – Watch what you are doing. Use common
sense. Do not operate the cordless tiller + cultivator when
you are tired or under the inuence of drugs, alcohol, or
other medication.

3
17. Check for damaged parts – Before further use of the
appliance, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may aect its operation. A guard or other part that
is damaged should be properly repaired or replaced.
Contact the Snow Joe®+ Sun Joe®customer service
center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
Training
• Read, understand, and follow all instructions on the
cordless tiller + cultivator and in the manual before
operating this unit. Thoroughly familiarize yourself with the
controls and the proper use of the equipment. Know how to
stop the unit and disengage the controls quickly.
• Children should never be allowed access to the equipment.
Adults should never operate the equipment without carefully
reading and understanding these instructions.
• Keep the area of operation clear of all persons,
particularly children or pets.
• Exercise caution to avoid slipping or falling.
• Always plan your cultivating path to avoid discharge of
material toward people, pets, and property (e.g. windows,
cars, etc.). Thrown objects can cause serious personal
injury and property damage. Do not allow anyone in front of
a running machine.
• Keep people, pets, and property at least 25 feet from the
cordless tiller + cultivator while it is in operation.
Stop the cordless tiller + cultivator if people or pets enter
the discharge area.
• Always observe the surface conditions in order to avoid
slipping, falling, and unexpected objects.
Preparation
• Always inspect the area where the tiller + cultivator is to
be used. Remove all objects (i.e. stones, sticks, wires, and
other foreign materials) that could be thrown by the blades
or cause the operator to trip.
• Thrown objects can cause serious injury to the eyes and
exposed body. Always wear safety glasses or eye shields
during operation and while making an adjustment or repair.
• Always operate the cordless tiller + cultivator wearing
adequate garments. Do not wear jewelry or other loose
clothing, which could become entangled in moving parts.
Wear non-slip footwear to ensure proper footing.
• Observe any noise-prevention regulations and laws.
• Inspect the cordless tiller + cultivator for worn, missing,
or damaged parts and safety labels. See maintenance
section for detailed instructions.
Operation
• Do not operate the machine while under the inuence of
alcohol or drugs.
• Keep all safety devices in place and in proper working order.
Do not operate with missing or damaged components.
• Ensure the controls (start/stop) function properly before
cultivating.
• Hold onto the cordless tiller + cultivator with both hands
during operation. Ensure the grips are dry.
• Contact with rotating parts can amputate hands and feet.
Keep hands and feet away from all rotating parts.
• Only operate the cordless tiller + cultivator when there is
good visibility or light and dry conditions. Always watch
your footing and keep a rm hold on the grips.
Walk; don't run!
• Do not operate the cordless tiller + cultivator on slippery
surfaces. Check your footing during use.
• Exercise caution when changing direction and operating the
tool on slopes. Always keep feet and legs a safe distance
away from the machine. Look for hidden obstacles or
hazards.
• Do not overload machine capacity by attempting to
cultivate too deeply. It will cause excessive resistance.
• Stop the cordless tiller + cultivator and remove the battery
before leaving the operating position (behind the handles)
to adjust or inspect the unit. Wait until the blades have
come to a complete stop.
• If the cordless tiller + cultivator should start to vibrate
abnormally, stop the machine and inspect thoroughly for
damage.
• Turn the machine OFF when moving to a new work area.
Allow the blades to completely stop rotating before
transporting the unit.
• Always use proper care and good judgment when you
are confronted with a situation that is not covered in
this manual. If you are unsure of what to do, contact
your authorized Snow Joe®+ Sun Joe®dealer or call
the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563).
• Do not use in rain or wet conditions.
• Do not grasp the exposed cutting blades or cutting edges
when picking up or holding the appliance.
Stopping Work
• Always turn the cordless tiller + cultivator OFF and remove
the battery when stopping work or when changing work
areas. Never leave the machine running when unattended.
• The blades will continue to rotate for a short period after
turning OFF the cordless tiller + cultivator. Wait until the
blades have completely stopped before lifting the machine
or conducting inspection and maintenance.

4
• The motor housing remains hot for a short period after the
machine is turned OFF. Allow the motor housing to cool
completely before touching or storing near combustible
material.
Maintenance + Storage
• Maintain or replace safety and instruction labels.
• Disengage all controls, stop the engine, and wait until the
blades come to a complete stop before cleaning, repairing,
or inspecting the tiller + cultivator.
• Regularly check the following:
i) Blades are clear and can rotate freely –
Accumulation of debris around the blades could impair
performance or damage the motor. Inspect and clean
the area around the blades before every use.
ii) Safety devices are operating properly –
Do not tamper with or adjust safety devices.
iii) Bolts and screws are properly tightened –
Visually inspect the machine for any damage and ensure
that the cordless tiller + cultivator is in safe working
condition.
iv) Use only identical replacement parts –
Always replace damaged parts with original equipment
manufacturer’s (OEM) parts only. Replacement parts
that do not meet the original equipment specications
may lead to improper performance and compromise
safety.
Battery & Charger
Safety Instructions
NOTE: This unit is the tool only. The battery and the charger
are not included. They must be purchased separately.
Model 24V-TLR-CT-RM is compatible with the iON+ 24V
System batteries and chargers. See page 17 for more
information.
We pay a great deal of attention to the design of every battery
pack to ensure that we supply you with batteries that are safe,
durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.
This data is then used exclusively to be able to assemble the
best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.
IMPORTANT! Analyses conrm that incorrect use and poor
care of high-performance batteries are the main factors
responsible for personal and/or product damage.
mWARNING! Use only approved replacement batteries;
other batteries may damage the power tool and cause it to
malfunction, which can lead to serious personal injury.
mWARNING! Do not use a battery pack or appliance that
is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re, explosion or risk
of injury.
Do not modify or attempt to repair the appliance or the battery
pack except as indicated in the instructions for use and care.
Have your battery pack serviced by a qualied repair person
using only identical replacement parts. This will ensure that the
safety of the battery pack is maintained.
mCAUTION! To reduce the risk of injury, charge the
iON+ 24V lithium-ion battery pack only in its designated
iON+ 24V lithium-ion charger. Other types of chargers present
risk of re, personal injury and damage. Do not wire a battery
pack to a power supply plug or car cigarette lighter. Such
misuse will permanently disable or damage the battery pack.
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence of
explosive atmospheres (gaseous fumes, dust or ammable
materials) because sparks may be generated when inserting
or removing the battery pack, which could lead to a re.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper
ventilation. Do not allow smoking or open ames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery is
41°F (5°C) to 105°F (40.5°C). Do not charge the battery
outside in freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the charger,
pull the plug, not the cord, from the receptacle to reduce
the risk of damage to the electrical plug and cord.
Never carry the charger by its cord or yank it by the cord
to disconnect it from the receptacle. Keep the cord away
from heat, oil and sharp edges. Make sure the cord will not
be stepped on, tripped over or subjected to damage or
stress when the charger is in use. Do not use the charger
with a damaged cord or plug. Replace a damaged charger
immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of re and electric shock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger.
Make sure that the extension cord is in good electrical
condition.
• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in risk of
re, electric shock or personal injury.
• Unplug charger when not in use – Make sure to remove
battery packs from unplugged chargers.

5
mWARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning
or maintenance. Do not allow water to ow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock
hazards.
• Do not burn or incinerate battery packs –
Battery packs may explode, causing personal injury or
damage. Toxic fumes and materials are created when
battery packs are burned.
• Do not crush, drop or damage battery packs –
Do not use the battery pack or charger if they have
sustained a sharp blow, been dropped, run over or have
been damaged in any way (i.e. pierced with a nail, hit with a
hammer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, re or exposure to toxic
battery chemicals. If the battery or charger are damaged,
contact an authorized Snow Joe®+ Sun Joe®dealer or
call the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals,
use rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery uids, wash the aected area with
soap and water and rinse with vinegar. If eyes are exposed
to battery chemicals, immediately ush with water for
20 minutes and seek medical attention. Remove and
dispose of contaminated clothing.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place a
battery pack near anything that may cause a short circuit,
such as paperclips, coins, keys, screws, nails and other
metallic objects. A short-circuited battery pack poses a risk
of re and severe personal injury.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 105ºF (40.5ºC), such as in direct
sunlight or inside a vehicle or metal building during the
summer.
Information about the battery
1. The battery pack supplied with your cordless power tool is
only partially charged. The battery pack has to be charged
completely before you use the tool for the rst time.
2. For optimum battery performance, avoid low discharge
cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at
59°F (15°C) and fully charged.
4. Lithium-ion batteries are subject to a natural aging
process. The battery pack must be replaced at the latest
when its capacity falls to just 80% of its capacity when
new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your cordless
tiller + cultivator, and therefore pose a safety risk.
5. Do not throw battery packs into an open re as this poses
a risk of explosion.
6. Do not ignite the battery pack or expose it to re.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most
common cause of exhaustive discharge is lengthy storage
or non-use of partially discharged batteries. Stop working
as soon as the performance of the battery falls noticeably
or the electronic protection system triggers. Place the
battery pack in storage only after it has been fully charged.
8. Protect batteries and the tool from overloads.
Overloads will quickly result in overheating and cell
damage inside the battery housing even if this overheating
is not apparent externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than
3 feet (1 meter) or those that have been exposed to violent
shocks, even if the housing of the battery pack appears to
be undamaged. The battery cells inside the battery may
have suered serious damage. In such instances,
please read the waste disposal information for proper
battery disposal.
10. If the battery pack suers overloading and overheating,
the integrated protective cuto will switch o the
equipment for safety reasons.
IMPORTANT! Do not press the ON/OFF trigger any more
if the protective cut-o has been activated. This may
damage the battery pack.
11. Use only original battery packs. The use of other batteries
poses a re risk and may result in injuries or an explosion.
Information about the charger and the
charging process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating
plate. Never connect it to a dierent mains voltage.
2. Protect the battery charger and its cord from damage.
Keep the charger and its cord away from heat, oil and
sharp edges. Have damaged cords repaired without delay
by a qualied technician at an authorized Snow Joe®+
Sun Joe®dealer or call the Snow Joe®+ Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack(s) and the cordless
tool out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.

6
7. Do not overcharge batteries. Do not exceed the maximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries in the charger for
days on end.
8. Never use or charge batteries if you suspect that it has
been more than 12 months since the last time they were
charged. There is a high probability that the battery pack
has already suered dangerous damage (exhaustive
discharge).
9. Charging batteries at a temperature below 41°F (5°C) will
cause chemical damage to the cells and may cause a re.
10. Do not use batteries that have been exposed to heat
during the charging process, as the battery cells may have
suered dangerous damage.
11. Do not use batteries that have suered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing,
cracking, etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging
of the battery cells.
Protectionfromenvironmentalinuences
1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the cordless tool or the battery charger near
vapors and ammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 41°F – 105°F
(5°C – 40.5°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 104°F (40°C).
In particular, do not leave the battery charger in a car that
is parked in the sunshine.
6. Protect batteries from overheating. Overloads,
overcharging and exposure to direct sunlight will result
in overheating and cell damage. Never charge or work
with batteries that have been overheated – replace them
immediately, if possible.
7. Store the charger and your cordless tool only in dry
locations with an ambient temperature of 40°F – 105°F
(4.5°C – 40.5°C). Store your lithium-ion battery pack in a
cool, dry place at a temperature of 50°F – 68°F
(10°C – 20°C). Protect the battery pack, charger and
cordless tool from humidity and direct sunlight. Only place
fully charged batteries in storage.
8. Prevent the lithium-ion battery pack from freezing.
Battery packs that were stored below 32°F (0°C) for more
than 60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic charge.
Electrostatic discharges can damage the electronic
protection system and the battery cells.
Avoid electrostatic charging and never touch the battery
poles.

7
Safety Symbols

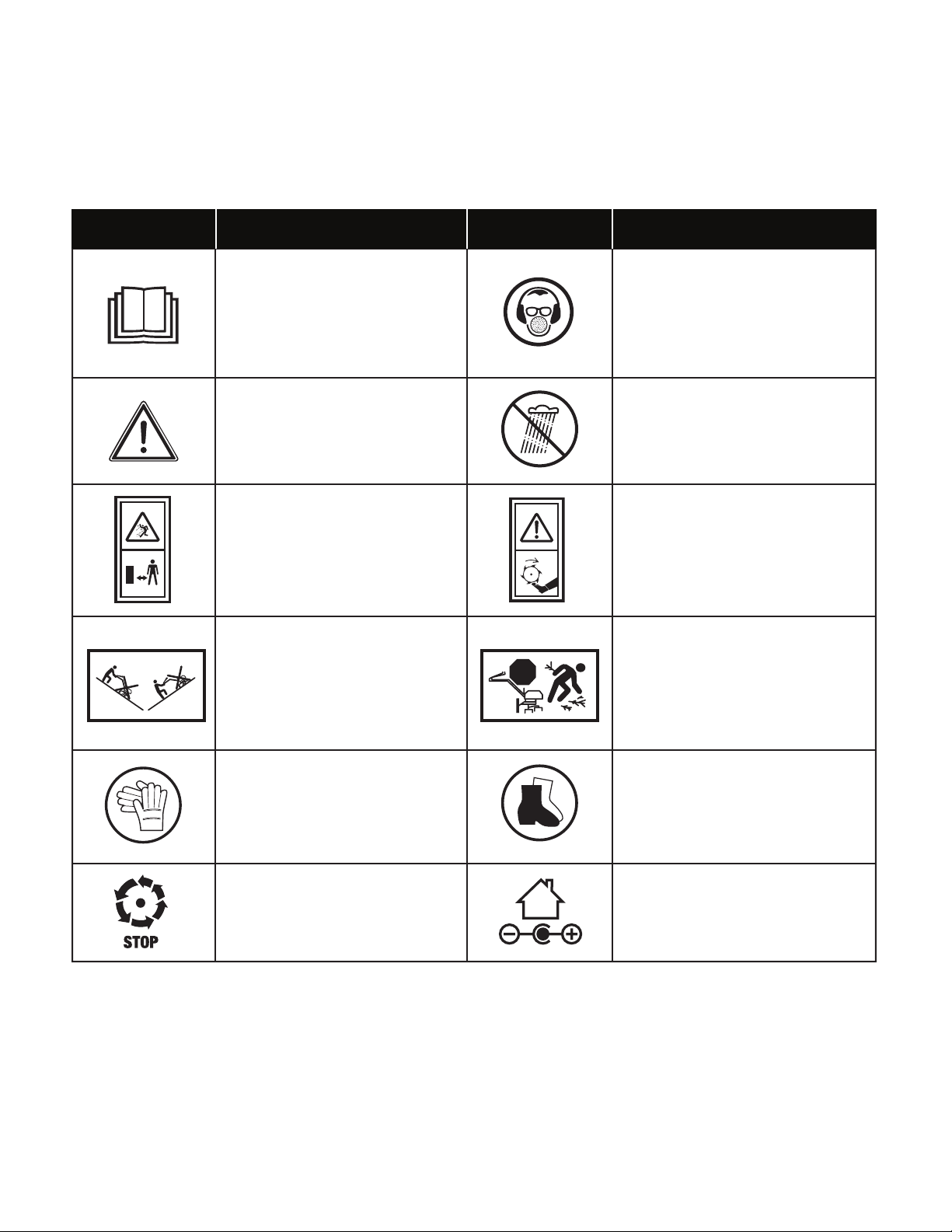

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates
a precaution, a warning, or
a danger.
WARNING! Do not expose the unit
to rain or wet conditions.
WARNING! Rotating parts may
cause serious injury. Make sure the
blades come to a complete stop
before transporting the machine
or before inspecting, cleaning, or
conducting any other maintenance.
Wear eye protection, breathing
protection, and ear protection
(i.e. safety goggles, dust masks, and
ear defenders).
Inspect the work area prior to
use and remove all objects that
could be thrown by the appliance. If
a hidden object is discovered while
working, stop the engine and remove
the object.
Work across slopes; never work up
and down such surfaces.
Symbols SymbolsDescriptions Descriptions
Beware of foreign objects
that could be thrown from the
appliance. Keep bystanders a
safe distance away from the
work area.
The rotating part will continuously
run for several seconds after you
turn o the machine.
Wear safety footwear at all times to
provide protection against objects
that may accidentally fall on feet.
Wear safety gloves during use to
protect hands.
Indoor use only. Only use battery
charger indoors.
STOP

8
Know Your Cordless Tiller + Cultivator
Read the owner’s manual and safety instructions carefully before operating the cordless tiller + cultivator. Compare the illustration
below to the cordless tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
1
2
5
7
8
9
11
13
14
10
6
4
3

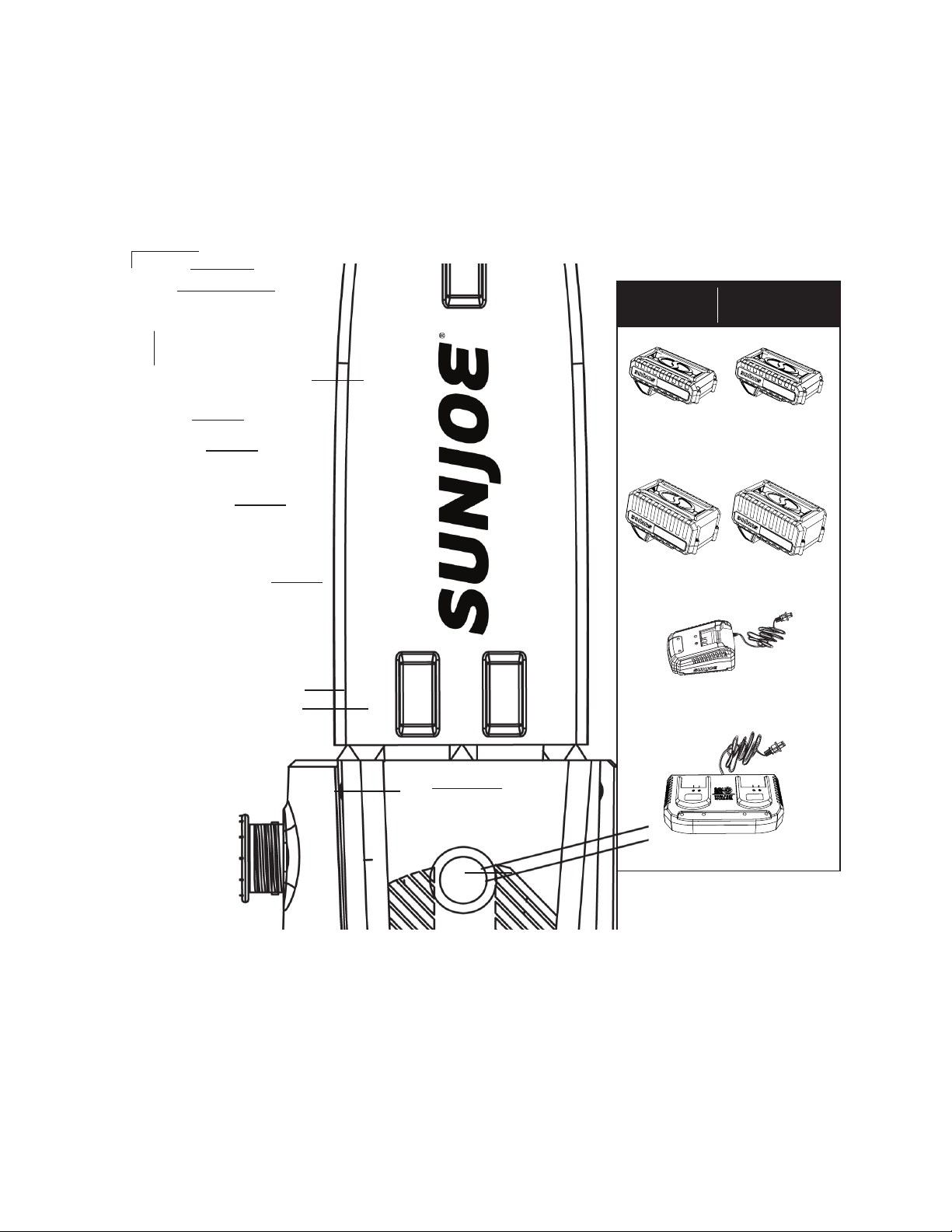

1. Soft grip
2. Safety lock switch
3. ON/OFF trigger
4. Battery compartment
5. Auxiliary handle
6. Handle knob
7. Upper pole
8. Telescoping lock
9. Telescoping pole
10. Tiller + cultivator head lock
11. Releasing tabs (2)
12. Air vents
13. Tiller + cultivator head
14. Steel blade (2)
12
SOLD
SEPARATELY
Battery + Charger
options available at
sunjoe.com
24VBAT
24VBAT-LTE 24VBAT-LT
24VBAT-XR
24VCHRG-QC
24VCHRG-DPC

9
Technical Data
Motor............................................................................... 150 W
Battery Voltage Max*................................................... 24V D.C.
Battery Capacity .................................. See page 17 for battery
options and specications
Battery Runtime Max ........................... See page 17 for battery
options and specications
Charging Time ...................................... See page 17 for battery
options and specications
Cultivating Width Max ...................................... 4.1 in. (10.4 cm)
Cultivating Depth Max ........................................ 6 in. (15.2 cm)
Blades ................................ 2 steel 6 in. (15.2 cm) tilling blades
No Load Speed ............................................................ 280 rpm
Telescoping Pole Length ................................ 28.3 in. – 37.3 in.
...........................................................................(72 cm – 95 cm)
Weight (without battery)...................................... 5.1 lbs (2.3 kg)
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage
under typical load is 21.6 volts.
Unpacking
Carton Contents
• Tiller + cultivator head
• Tiller + cultivator pole assembly
• Manual with registration card
NOTE: In order to operate this cordless tiller + cultivator you
will need iON+ 24V System batteries and chargers. See page 17
for battery options and specications, or visit sunjoe.com.
1. Carefully remove the cordless tiller + cultivator and check
to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store.
Please call the Snow Joe®+ Sun Joe®customer service
center at 1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the cordless tiller +
cultivator. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suocation risk!
Battery Pack Operation
The equipment is powered by a lithium-ion battery.
The battery pack is completely sealed and maintenance free.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read o the
battery charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is at. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
NOTE: If the charge level button does not appear to be
working, insert the charger and charge as needed.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells “recover” some of their
charge after resting.
In order to operate this cordless tiller + cultivator you will
need a iON+ 24V System battery and charger. See page 17
for battery and charger options and specications, or for
more information visit sunjoe.com.
TOOL ONLY
BATTERY + CHARGER SOLD SEPARATELY
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
Light IndicatorsLights

10
Charger Operation
mWARNING! Charge only iON+ 24V lithium-ion battery
packs with its compatible iON+ 24V lithium-ion charger.
Other types of batteries may cause personal injury and
damage. To reduce the risk of electric shock, do not allow
water to ow into the charger's AC/DC plug.
When to Charge the iON+ 24V
Lithium-iON Batteries
NOTE: The iON+ 24V lithium-ion battery packs
do not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before inserting the charger plug.
• Use the battery indicator lights to determine when to charge
your iON+ 24V lithium-ion battery pack.
• You can "top-o" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Push the push lock buttons on the battery to pull the
battery pack out from the battery compartment (Fig. 1).
2. Depending on your Snow Joe®+ Sun Joe®charger
model, how to recharge your lithium-ion battery will vary.
You may either insert your 24-volt battery into the
24VCHRG-QC Quick Charger (sold separately) or the
24VCHRG-DPC Dual Port Charger (sold separately)
(Figs. 2 – 3).
3. The battery indicator LEDs will illuminate one by one
during the charging process. Unplug the charger
immediately when the 3 LEDs are all illuminated.
4. The 24VCHRG-QC Quick Charger (sold separately) and
the 24VCHRG-DPC Dual Port Charger (sold separately)
are also equipped with additional charging indicating
lights which will indicate the charging status (Figs. 2 – 3).
mCAUTION! FIRE HAZARD. When disconnecting the
charger from the battery, be sure to unplug the charger from
the outlet rst, then disconnect the charger from the battery.
mWARNING! The chargers do not automatically turn
owhenthebatteryisfullycharged.Please take care not
toleavethebatterypluggedintothecharger.Switchoor
unplug the charger at the mains when charging is complete.
In order to operate this cordless tiller + cultivator you will
need a iON+ 24V System battery and charger. See page 17
for battery and charger options and specications, or for
more information visit sunjoe.com.
TOOL ONLY
BATTERY + CHARGER SOLD SEPARATELY
Fig. 1
Push lock button
Fig. 2 Battery pack
24VCHRG-QC
quick charger
(Sold separately)
red
Charging
green
Fully
Charged
Fig. 3 Battery pack
24VCHRG-DPC
dual port charger
(Sold separately)
red
Charging
green
Fully
Charged

11
5. Timely recharging of the battery will help prolong the
battery's life. You must recharge the battery pack when
you notice a drop in the equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the
battery.
6. When charging is complete, remove the battery from the
charger by pulling the push lock button and sliding the
battery backward to unlock it from the charger.
Assembly
mWARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidental starting
and serious personal injury.
mWARNING! To prevent serious personal injury,
make sure the battery is removed, and the blades have come
to a complete stop before inspecting, cleaning, or servicing
the unit.
mWARNING! The product must be fully assembled
before operation. Do not use a product that is only partially
assembled or assembled with damaged parts.
Follow the assembly instructions step-by-step and use the
pictures provided as a visual guide to easily assemble the
product.
Assembling + Fitting the Head

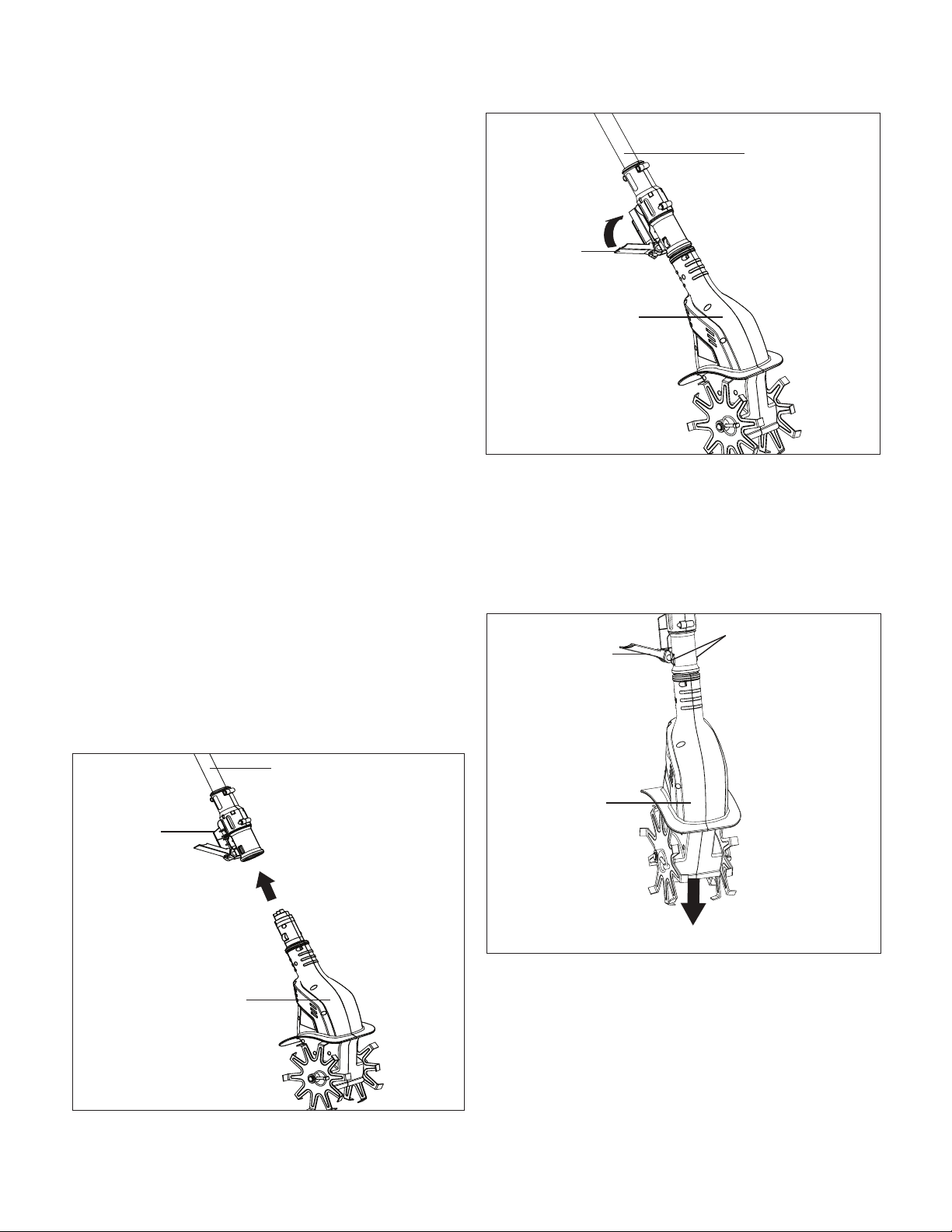

1. Remove the black cover on the tiller + cultivator head.
With the tiller + cultivator head lock unlocked, insert the
tiller + cultivator head into the end of the pole assembly
until it clicks in place (Fig. 4).
2. Flip up the tiller + cultivator head lock to lock the tiller +
cultivator head in place (Fig. 5).
mWARNING! Make sure nuts, screws and locks are
properly tightened before using the cordless tiller + cultivator.
3. To disassemble the tiller + cultivator head from the
pole assembly, unlock the tiller + cultivator head lock,
then press in the releasing tabs on each side, and at the
same time pull the tiller + cultivator head out from the
pole assembly (Fig. 6).
Operation
Intended Use
The 24V-TLR-CT-RM cordless tiller + cultivator is designed for
small gardens and ower beds: this cordless tiller + cultivator
eectively loosens and turns over new soil. It may also be used
to mix coarse soil with fertilizer, peat, and compost.
This product may not be used to till extremely dry or wet soil.
The use of this product in rain or wet conditions is prohibited.
Fig. 4 Pole assembly
Tiller +
cultivator
head lock
Tiller +
cultivator
head
Fig. 5
Pole assembly
Tiller +
cultivator
head lock
Tiller +
cultivator
head
Fig. 6 Releasing tabs
Tiller +
cultivator
head lock
Tiller +
cultivator
head
PULL OUT

12
For safety reasons, it is essential to read the entire instruction
manual before rst use and to observe all the instructions
contained within this manual.
This product is intended for private domestic use only. It is not
intended for any commercial trade use. It must not be used for
any purposes other than those described.
Telescoping Pole Adjustment
mWARNING! Always switch the product o and remove
the battery before making any adjustments.

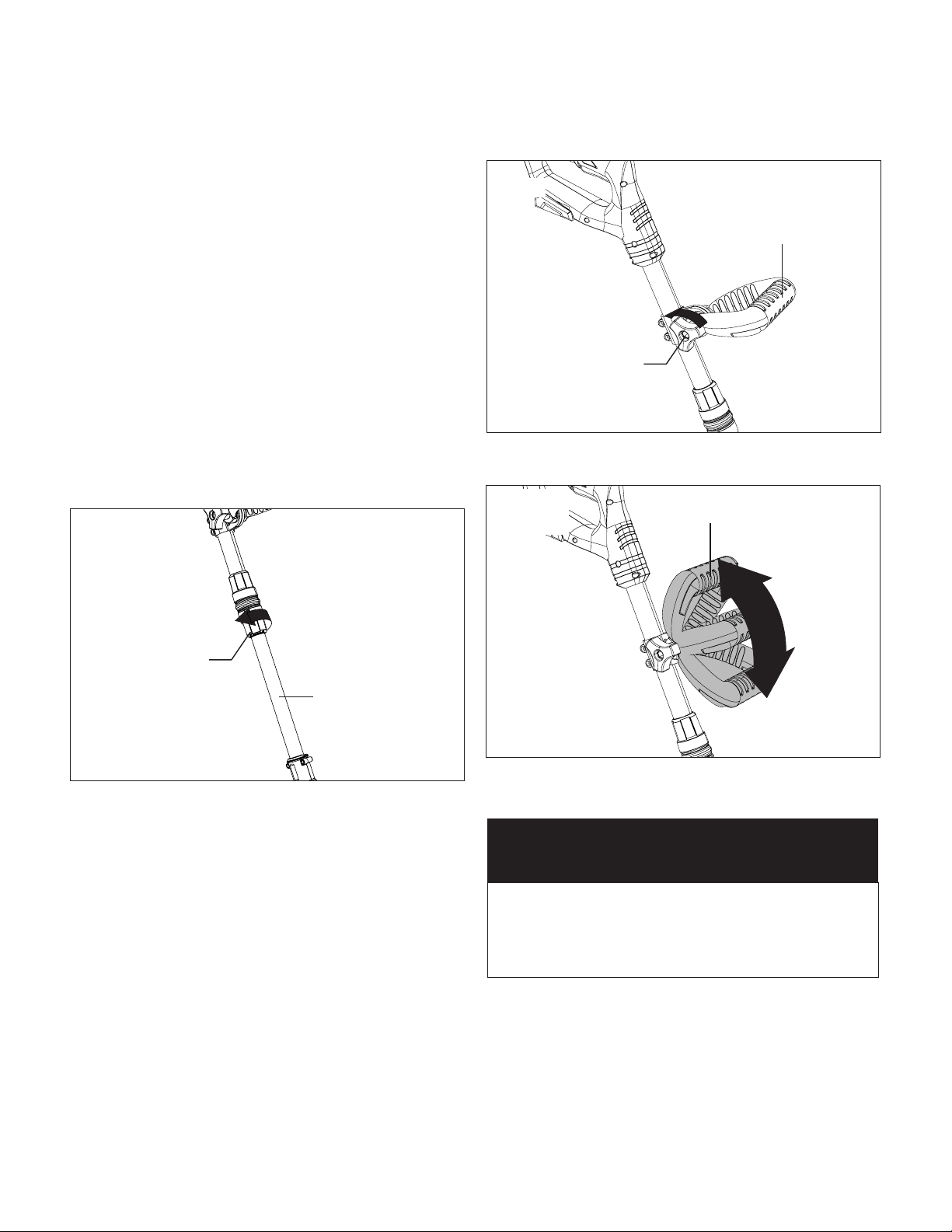

This product is equipped with a telescoping pole that can be
adjusted. To adjust the pole, follow the instructions below.
1. Unlock the telescoping pole by turning the telescoping
lock clockwise. Extend the pole to the desired length
(Fig. 7).
NOTE: Push poles toward each other to shorten the pole
or pull them away from each other to lengthen the pole.
Only extend the pole to the minimum length required to
reach the ground.
2. Lock the telescoping pole in position by turning the
telescoping lock counterclockwise, and ensure that the
pole is secured.
mWARNING! Always ensure the telescoping pole is
securely locked. Do not attempt to use the product with the
pole unlocked.
Auxiliary Handle Adjustment
mWARNING! Always switch the product o and remove
the battery before making any adjustments.
NOTE: For maximum comfort and control, adjust the auxiliary
handle to t your height. Shorter users adjust the auxiliary
handle to a lower position (away from your body).
Taller users adjust the auxiliary handle to an upper position
(towards to your body). Make sure your forearm is straight
when using the machine.
1. Loosen the auxiliary handle by turning the handle knob
counterclockwise (Fig. 8).
2. Adjust the auxiliary handle to a comfortable working
position (Fig. 9).
3. Turn the handle knob back to lock the auxiliary handle in
position.
Starting + Stopping
mWARNING! Rotating blades may cause serious injury.
The blades will continue to turn for a few seconds after the
tool has been switched OFF. Do not touch the rotating blades.
Contact with hot components (i.e. motor housing, gear box,
etc.) on the machine may cause burns. Allow the machine to
cool before handling.
Fig. 7
Telescoping lock
Telescoping pole
Fig. 8
Handle knob
Auxiliary handle
Fig. 9 Auxiliary handle
In order to operate this cordless tiller + cultivator you will
need a iON+ 24V System battery and charger. See page 17
for battery and charger options and specications, or for
more information visit sunjoe.com.
TOOL ONLY
BATTERY + CHARGER SOLD SEPARATELY

13

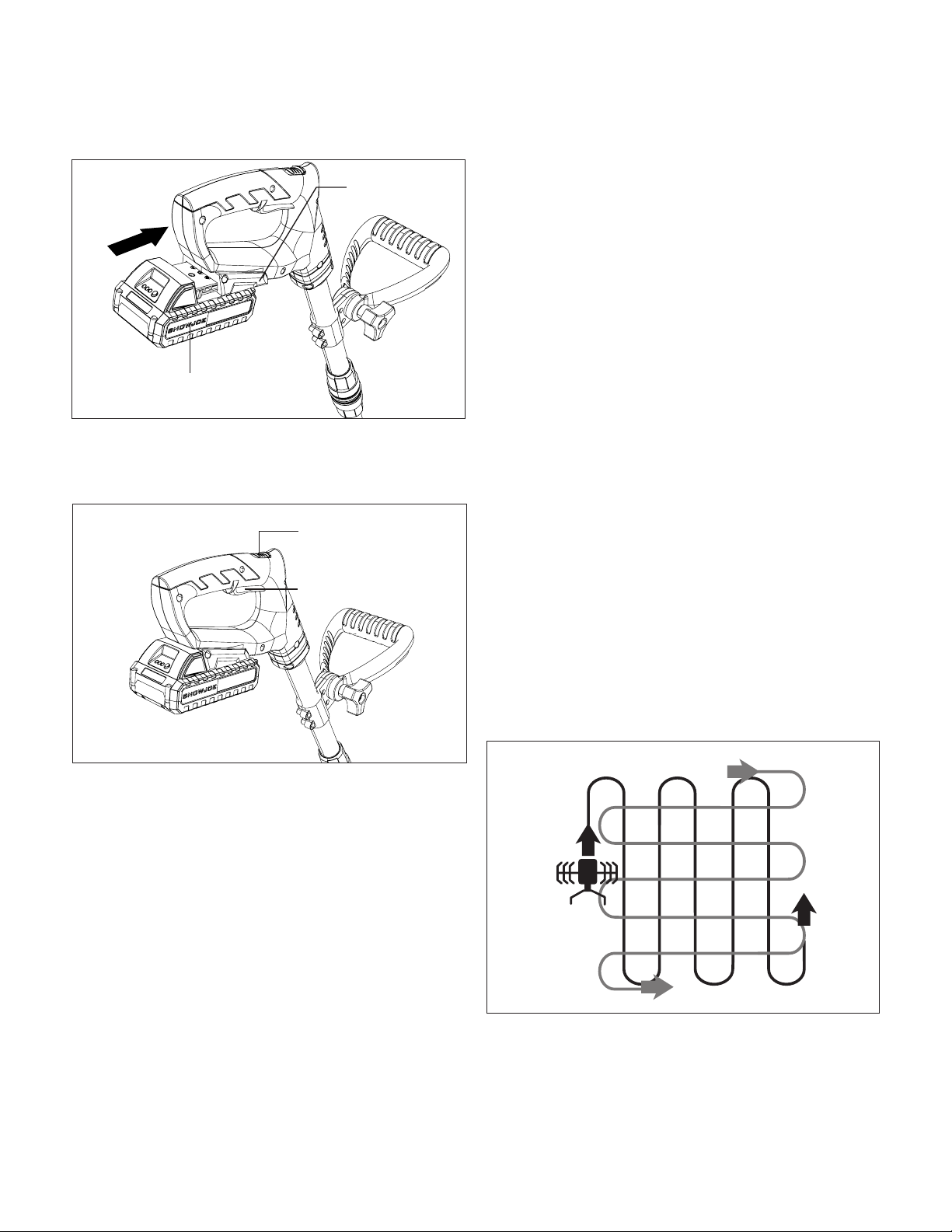

1. Slide the battery in the battery compartment until it clicks
and locks into position (Fig. 10).
2. To turn the tool ON, push and hold the safety lock switch
while squeezing the ON/OFF trigger. Once the tool is
running, release the safety lock switch (Fig. 11).
3. To switch OFF, release the ON/OFF trigger (Fig. 11).
Operating Tips
• Before each use, check the product, the battery, and any
other accessories for damage. Do not use the product if it is
damaged or shows wear.
• Double check that the accessories and attachments are
properly tted.
• Always hold the product by its handles. Keep the handles
dry to ensure a secure grip.
• Ensure that the air vents are always unobstructed and clear.
Clean them if necessary with a soft brush. Blocked air vents
may lead to overheating and damage the product.
• Switch the product o immediately if you are disturbed
while working by other people entering the working area.
Always let the product come to a complete stop before
averting your attention.
• Do not overwork yourself. Take regular breaks to ensure you
can concentrate on the task at hand and have full control
over the product.
mWARNING! In some municipalities, regulations dene
restrictions for use of such products, including the times and
days when operation is permissible. Ask your community for
detailed information and observe these regulations in order
to preserve a peaceful neighborhood and avoid committing
administrative oenses.
Tilling
• Make sure that the work area is clear of stones, sticks, wire,
or other objects that could damage the product or its motor.
• Do not till very wet soil because wet soil tends to stick to
the working tool, preventing proper blade rotation; it could
also cause you to slip and fall.
• Always maintain a rm grip on the product. For better
guidance, apply light pressure to the handles.
mWARNING! Do not place hands, feet, or any other part
of the body or clothing near the rotating blades or any other
moving part. The blades begin to rotate forward once the
ON/OFF trigger is depressed. The blades continue to rotate
until the ON/OFF trigger is released. Failure to avoid contact
with the rotating blades could cause serious personal injury.
• Do not try to till too deeply or force the product into soil that
is extremely hard or resistant.
• Walk the product through the soil at a normal pace and in
as straight a line as possible.
• Till in slightly overlapping rows. To till most eectively,
follow the pattern indicated in Fig. 12. Start by moving the
tiller + cultivator up and down in vertical lines, then work
horizontally from left to right. This will keep the rows even
and ensure that all the ground is tilled without missing any
spots.
• Pay special attention when changing direction.
Apply light pressure to the handle in order to lift the blades
and facilitate the turn. Turn the product around using the
wheels as a guide. Gradually release pressure on the handle
and move the blades back to the ground.
Fig. 10 Battery
compartment
Battery
Fig. 11 Safety lock switch
ON/OFF trigger
Fig. 12

14
mWARNING! Stop the motor if the product strikes a
foreign object. Switch the product o, remove the battery,
and let it cool completely. Inspect the product thoroughly for
damage and have any damage repaired before restarting.
Extensive vibration of the product during operation is an
indication of damage. Immediately stop the motor and
promptly inspect and repair the tool.
After Use
• Switch the product o, remove the battery, and let it cool
completely.
• Check, clean, and store the product as described in
Care + Maintenance.
Care + Maintenance
The Golden Rules for Care
mWARNING! Always switch the product o, remove the
battery, and let the product cool completely before inspecting,
cleaning, or performing any other maintenance task.
• Keep the product clean. Remove any debris after each use
and before storage.
• Regular and proper cleaning will help ensure safe use and
prolong the life of the product.
• Inspect the product before each use for worn and damaged
parts. If you nd broken and/or worn parts, do not use the
tool.
mWARNING! Only perform the repairs and maintenance
work described in this manual. Any other work must be
performed by a qualied technician.
General Cleaning
• Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
• Be sure to clean the air vents after every use with a cloth
and brush.
• Remove stubborn dirt with high pressure air (max. 3 bar).
NOTE: Do not use chemical, alkaline, abrasive, or other
aggressive detergents or disinfectants to clean this product as
such substances might damage the tool's surfaces.
• Check for worn or damaged parts. Replace worn parts as
necessary or contact the Snow Joe®+ Sun Joe®customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for repair before using the product again.
Cleaning the Underbody + Working Tool
mWARNING! Wear safety gloves when working on or
near the working tool. Use appropriate tools (e.g a wooden
stick) when necessary; never use your bare hands!
• Keep the underbody and blades clean and free of debris.
Use a brush or another implement to remove soil from the
working tool.
• All nuts and bolts must be checked periodically for
tightness before operation. After prolonged use, especially
in sandy soil conditions, the working tool will become worn
and lose some of its original shape. Tilling eciency will be
reduced and the working tool should be replaced.
• Have worn or damaged working parts replaced with new
ones of the same type by a qualied technician.
• To prolong the life span of the working tool and the product,
lubricate the blades after each use.
mWARNING! Unexpected blade movement may cause
personal injury. Before servicing, repairing, or inspecting the
unit, turn the motor OFF and remove the battery. Wait for
the blades to completely stop rotating before conducting
inspection, cleaning, or maintenance.
Before and after each use, check the product and accessories
(or attachments) for wear and damage. When necessary,
only use identical replacement parts that are approved by the
manufacturer.
IMPORTANT!
• Wear protective gloves when cleaning or maintaining the
machine.
• Do not use cleaning uids or solvents or spray the
machine down with water (especially water under
pressure) when cleaning the machine.
NOTE: After each use, follow these steps to properly clean
the unit:
1. Remove soil, dirt, and foliage stuck in the blades, drive
shaft, tool surface, and vents with a brush or dry cloth.
2. Spray or rub biodegradable oil onto the blades.
3. Clean soiled grips with a damp cloth.
Always inspect the machine for damaged and worn parts after
each use. Check that safety features (i.e. labels, guards, etc.)
are in place. Check that nuts, bolts, and screws are tight.
Replace the Tilling Blades
The machine is tted with two 10 tine steel tilling blades that
can easily be changed. Only use the original replacement part
specied for this tiller + cultivator.
You can purchase replacement blades (Model 24V-TLR-BLD)
and other genuine replacement parts by visiting us online at
sunjoe.com or calling our toll-free customer service helpline
at 1-866-SNOWJOE (1-866-766-9563). The use of parts
that do not meet the original equipment specications may
lead to improper performance of the tiller + cultivator, may
compromise operator safety and will void the manufacturer's
warranty.
mWARNING! The tilling blades are sharp and can
cause severe personal injury if handled incorrectly. Wrap the
blades or wear protective gloves, and use extra caution when
handling.

15

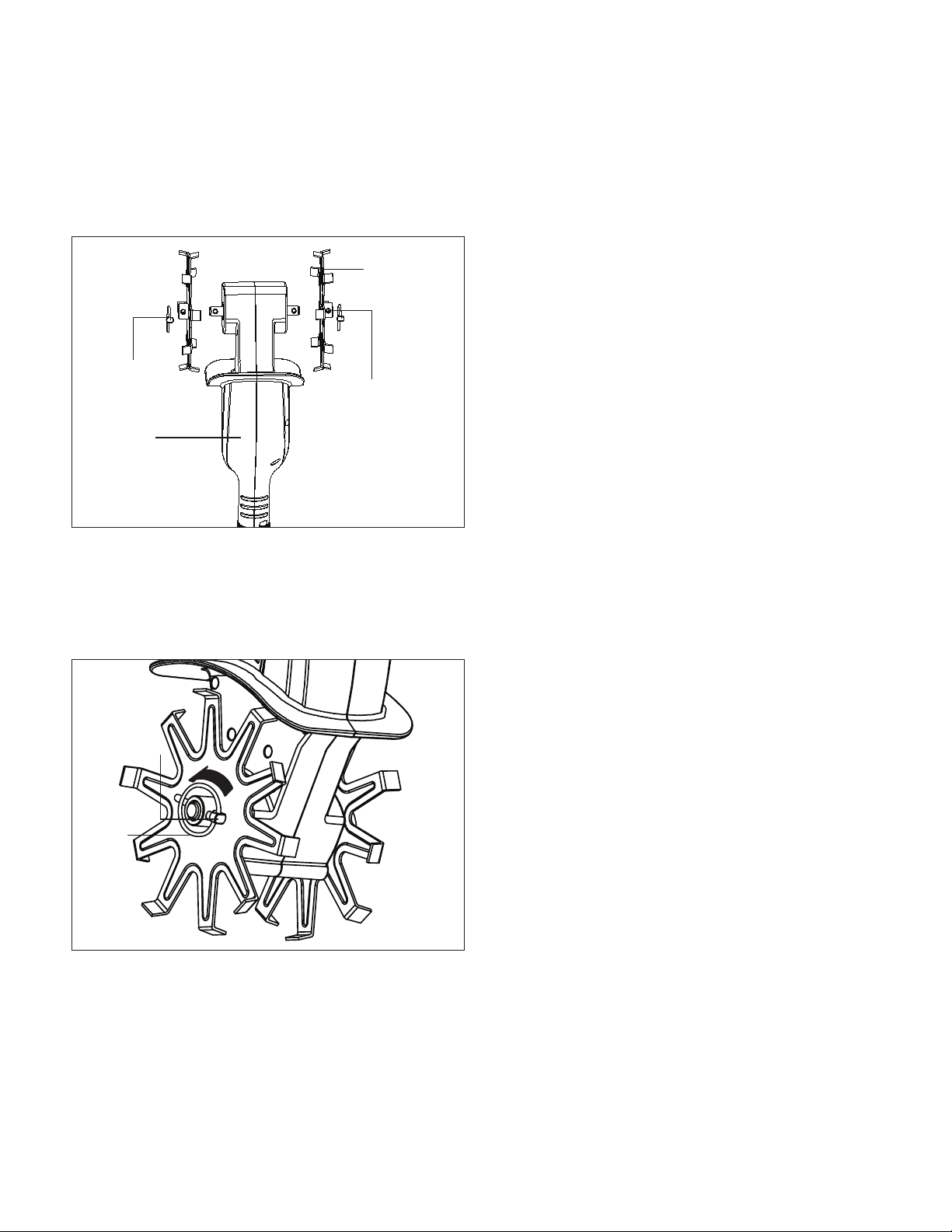

To replace the blades, follow the steps below:
1. Turn o the unit, remove the battery and wait until the
blades have come to a standstill.
2. Open the ring on the lock pin, then slide the pin out of the
hole on the old blade. Then, remove the old blade from
the motor shaft (Fig. 13).
3. Insert the new blade onto the motor shaft. Make sure to
align the notches on the blade's hole with the notches on
the motor shaft (Fig. 13). Then, slide the lock pin into the
holes of the blade and motor shaft to keep the blade in
place. Close the ring over shaft to lock the pin. Insert the
battery and resume working (Fig. 14).
Repair
This product does not contain any parts that can be repaired
by the consumer. Contact an authorized Snow Joe®+
Sun Joe®dealer or call the Snow Joe®+ Sun Joe®customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
Storage
• Examine the cordless tiller + cultivator thoroughly for worn,
loose, or damaged parts. Should you need to repair or
replace a part, contact an authorized Snow Joe®+
Sun Joe®dealer or call the Snow Joe®+ Sun Joe®customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
• Remove the battery from the cordless tiller + cultivator
before storing.
• Clean the product as described in Care + Maintenance.
• Store the product and its accessories in a dark, dry,
frost-free, and well-ventilated place.
• Always store the product in a place that is inaccessible to
children.
• The ideal storage temperature is between 50ºF (10°C)
and 86ºF (30°C).
• We recommend using the original package for storage or
covering the product with a suitable cloth or enclosure to
protect it against dust.
Battery+ChargerO-SeasonStorage
1. Do not expose your battery pack or charger to water,
rain or allow them to get wet. This could permanently
damage the charger and the battery pack. Do not use oil
or solvents to clean or lubricate your battery pack as the
plastic casing can become brittle and crack, causing a
serious risk of injury.
2. Store the battery pack and charger at room temperature
away from moisture. Do not store in damp locations where
corrosion of terminals may occur. As with other battery
pack types, permanent capacity loss can result if the pack
is stored for long periods of time at high temperatures
(over 120ºF/49ºC).
3. iON+ 24V lithium-ion battery packs maintain their charge
during storage longer than other battery pack types.
As a general practice, it is best to unplug the battery
charger and remove the battery pack when they are not
in use. Recharge the battery pack every 6 months to 50%
capacity during o-season storage to maintain optimal
battery performance.
Transportation
• Switch the product o.
• Always carry the product by its handle.
• If you are transporting the tiller + cultivator in a vehicle,
brace it properly to protect it from heavy impact or strong
vibrations.
• Secure the product to prevent it from falling over or
slipping.
Fig. 13
Tiller +
cultivator head
Steel blade
Blade notch
Motor notch
Lock pin
Fig. 14
Ring
Pin

16
Recycling + Disposal
The product comes in a package that protects it against
damage during shipping. Keep the package until you are
sure that all parts have been delivered and the product is
functioning properly. Recycle the package afterwards or keep
it for long-term storage.
WEEE symbol. Waste electrical products should not
be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority
or local store for recycling regulations.
Battery Caution + Disposal
Always dispose of your battery pack according to federal,
state, and local regulations. Contact a recycling agency in your
area for recycling locations.
mCAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover the
terminals to prevent the battery pack from shorting,
which could cause a re or explosion.
mWARNING! To reduce the risk of injury or explosion,
never burn or incinerate a battery pack even if it is damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual
for specic information.
2. Install only new batteries of the same type in your product
(where applicable).
3. Failure to insert batteries in the correct polarity,
as indicated in the battery compartment or manual,
may shorten the life of the batteries or cause batteries to
leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium, Nickel Metal Hydride,
or Lithium-Ion) batteries.
6. Do not dispose of batteries in re.
7. Batteries should be recycled or disposed of as per state
and local guidelines.
Service + Support
If your Sun Joe®24V-TLR-CT-RM cordless tiller + cultivator
requires service or maintenance, please call the Snow Joe®+
Sun Joe®customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Model + Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into
the space provided below.
Record the following numbers from the housing or handle of your
new product:
Model #:
Serial #:
24V-TLR-CT-RM

17

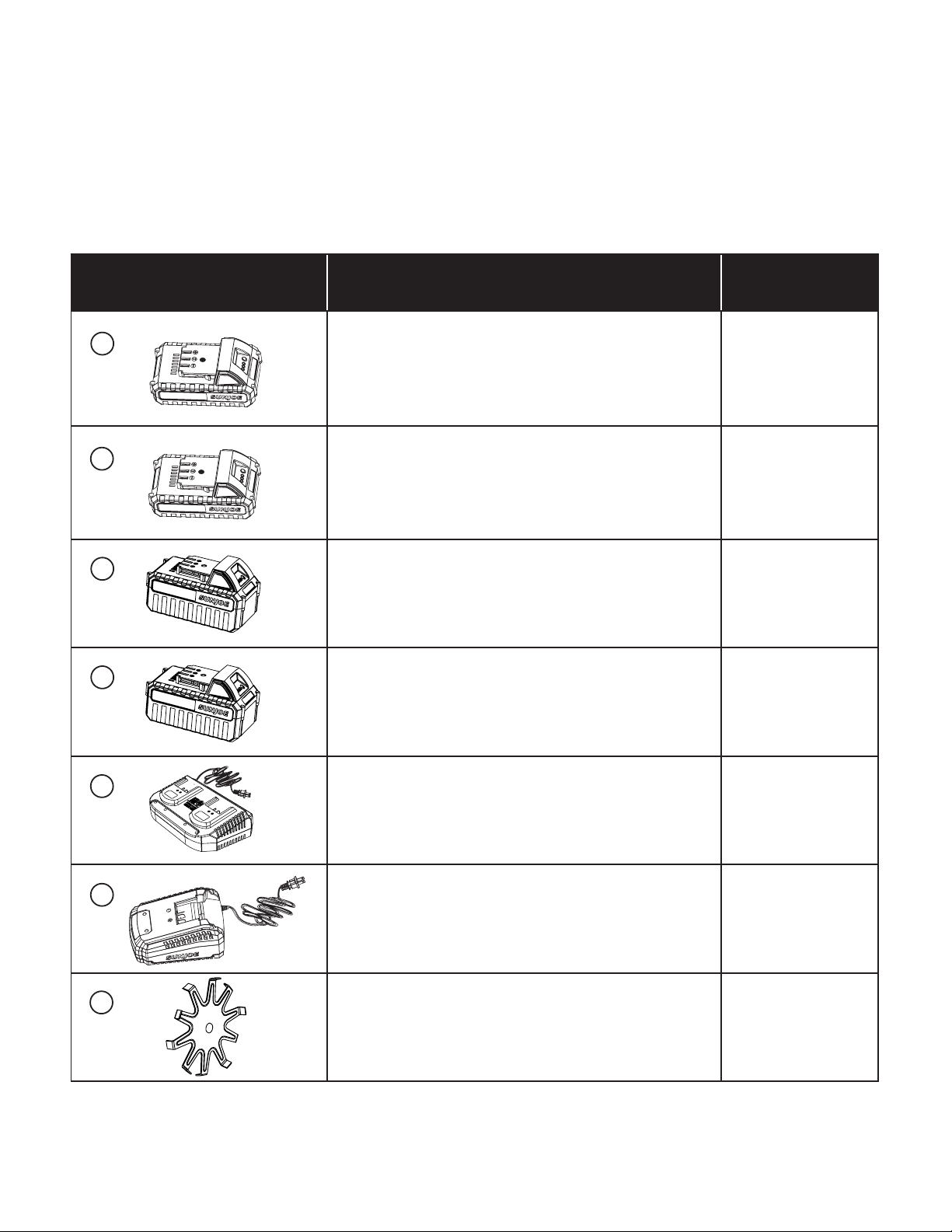

Optional Accessories
mWARNING! ALWAYS use only authorized Snow Joe®+ Sun Joe®replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this cordless tiller + cultivator. Contact Snow Joe®+ Sun Joe®
if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless tiller + cultivator. The use
of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe®+ Sun Joe®. Accessories can be
ordered online at sunjoe.com or via phone by contacting the Snow Joe®+ Sun Joe®customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Accessories Item Model
1iON+ 24V 2.0 Ah Lithium-Ion Battery
Charge times vary by charger. See website for details.
Battery Runtime Max: 30 min (excavates up to 125 sq ft of 4 in. dirt)
24VBAT-LTE
2iON+ 24V 2.5 Ah Lithium-Ion Battery
Charge times vary by charger. See website for details.
Battery Runtime Max: 35 min (excavates up to 160 sq ft of 4 in. dirt)
24VBAT-LT
3iON+ 24V 4.0 Ah Lithium-Ion Battery
Charge times vary by charger. See website for details.
Battery Runtime Max: 55 min (excavates up to 255 sq ft of 4 in. dirt)
24VBAT
4iON+ 24V 5.0 Ah Lithium-Ion Battery
Charge times vary by charger. See website for details.
Battery Runtime Max: 65 min (excavates up to 320 sq ft of 4 in. dirt)
24VBAT-XR
5
iON+ 24V Lithium-Ion Battery Dual Port Charger 24VCHRG-DPC
6
iON+ 24V Lithium-Ion Battery Quick Charger 24VCHRG-QC
7
Replacement Blade 24V-TLR-BLD

18
NOTES

SNOW JOE®+ SUN JOE®REFURBISHED GOODS WARRANTY
GENERAL CONDITIONS:
Snow Joe®+ Sun Joe®operating under Snow Joe®, LLC warrants
this refurbished product to the original purchaser for 90 days
against defects in material or workmanship when used for normal
residential purposes. If a replacement part or product is needed,
it will be sent free of charge to the original purchaser except as
noted below.
The duration of this warranty applies only if the product is put to
personal use around the household. It is the owner’s responsibility
to correctly perform all maintenance and minor adjustments
explained in the owner’s manual.
HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:
To obtain a replacement part or product, please visit
snowjoe.com/help or email us at [email protected] for
instructions. Please be sure to register your unit beforehand
to speed up this process. Certain products may require a serial
number, typically found on the decal afxed to the housing
or guard of your product. All products require a valid proof
of purchase.
EXCLUSIONS:
• Wearing parts like belts, augers, chains and tines are
not covered under this warranty. Wearing parts can be
purchased at snowjoe.com or by calling 1-866-SNOWJOE
(1-866-766-9563).
• Batteries are covered in full for 90-days from the date of
purchase.
Snow Joe®+ Sun Joe®may from time to time change the design of
its products. Nothing contained in this warranty shall be construed
as obligating Snow Joe®+ Sun Joe®to incorporate such design
changes into previously manufactured products, nor shall such
changes be construed as an admission that previous designs
were defective.
This warranty is intended to cover product defects only.
Snow Joe®, LLC is not liable for indirect, incidental or
consequential damages in connection with the use or misuse of
the Snow Joe®+ Sun Joe®products covered by this warranty.
This warranty does not cover any cost or expense incurred
by the purchaser in providing substitute equipment or service
during reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Some states do not allow exclusions of incidental or consequential
damages so the above exclusions may not apply in all states. This
warranty may give you specic legal rights in your state.
HOW TO REACH US:
We’re here to help Monday through Friday from 9AM to 7PM EST
and Saturday and Sunday 9AM to 4PM. You can reach us at
1-866-SNOWJOE (1 866-766-9563), online at snowjoe/com, via
email at [email protected] or tweet us @snowjoe.
EXPORTS:
Customers who have purchased Snow Joe®+ Sun Joe®
products exported from the United States and Canada should
contact their Snow Joe®+ Sun Joe® distributor (dealer) to obtain
information applicable to your country, province or state. If for
any reason, you are not satised with the distributor’s service,
or if you have difculty obtaining warranty information, contact
your Snow Joe®+ Sun Joe®seller. If in the event your efforts are
unsatisfactory, please reach out to us directly.
19

sunjoe.com
