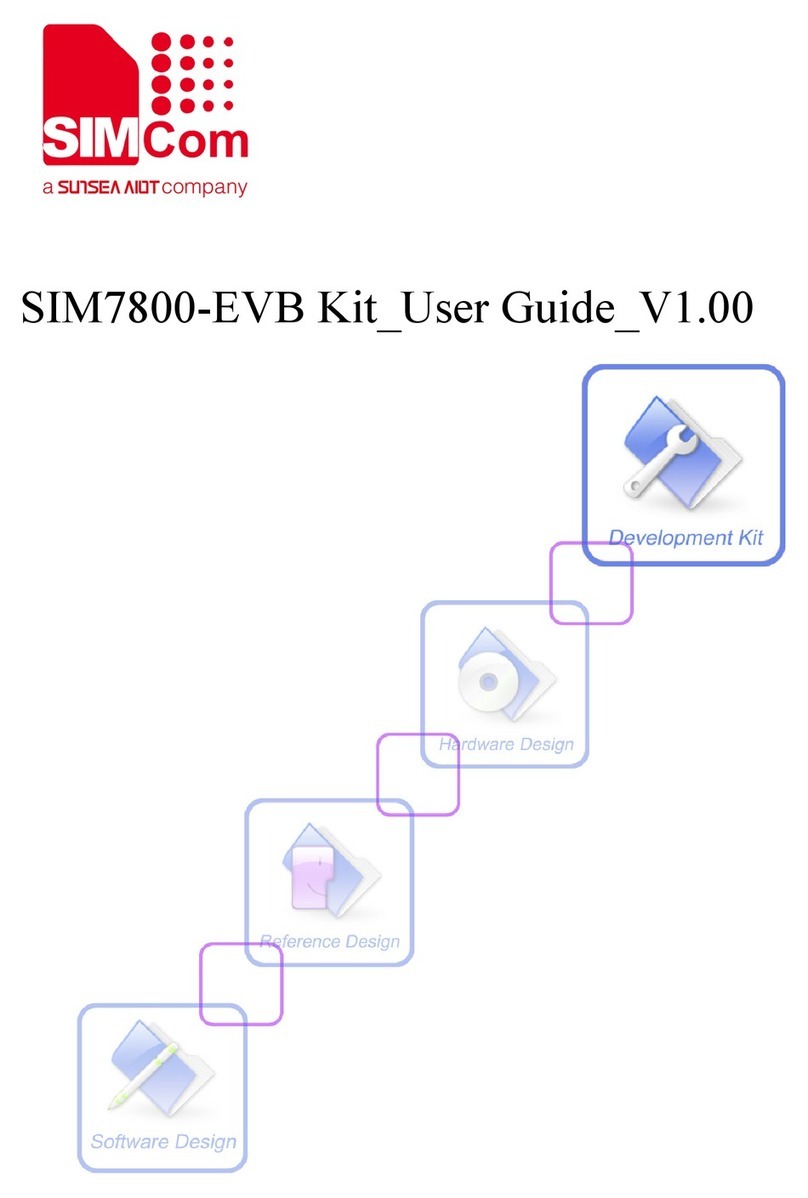

Sunsea AIoT SIMCOM User manual

SIMCOM
EVB Kit User Guide
SIMCom Wireless Solutions Limited
Building B, SIM Technology Building, No.633, Jinzhong Road
Changning District, Shanghai P.R. China
Tel: [phone]
[e-mail]
www.simcom.com

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 2 / 22
Document Title:
SIMCOM_EVB Kit_User Guide
Version:
V1.02
Date:
2020-04-22
Status:
Released
GENERAL NOTES
SIMCOM OFFERS THIS INFORMATION AS A SERVICE TO ITS CUSTOMERS, TO SUPPORT
APPLICATION AND ENGINEERING EFFORTS THAT USE THE PRODUCTS DESIGNED BY SIMCOM.
THE INFORMATION PROVIDED IS BASED UPON REQUIREMENTS SPECIFICALLY PROVIDED TO
SIMCOM BY THE CUSTOMERS. SIMCOM HAS NOT UNDERTAKEN ANY INDEPENDENT SEARCH
FOR ADDITIONAL RELEVANT INFORMATION, INCLUDING ANY INFORMATION THAT MAY BE IN THE
CUSTOMER’S POSSESSION. FURTHERMORE, SYSTEM VALIDATION OF THIS PRODUCT
DESIGNED BY SIMCOM WITHIN A LARGER ELECTRONIC SYSTEM REMAINS THE RESPONSIBILITY
OF THE CUSTOMER OR THE CUSTOMER’S SYSTEM INTEGRATOR. ALL SPECIFICATIONS
SUPPLIED HEREIN ARE SUBJECT TO CHANGE.
COPYRIGHT
THIS DOCUMENT CONTAINS PROPRIETARY TECHNICAL INFORMATION WHICH IS THE PROPERTY
OF SIMCOM WIRELESS SOLUTIONS LIMITED COPYING, TO OTHERS AND USING THIS DOCUMENT,
ARE FORBIDDEN WITHOUT EXPRESS AUTHORITY BY SIMCOM. OFFENDERS ARE LIABLE TO THE
PAYMENT OF INDEMNIFICATIONS. ALL RIGHTS RESERVED BY SIMCOM IN THE PROPRIETARY
TECHNICAL INFORMATION ，INCLUDING BUT NOT LIMITED TO REGISTRATION GRANTING OF A
PATENT , A UTILITY MODEL OR DESIGN. ALL SPECIFICATION SUPPLIED HEREIN ARE SUBJECT TO
CHANGE WITHOUT NOTICE AT ANY TIME.
SIMCom Wireless Solutions Limited
Building B, SIM Technology Building, No.633 Jinzhong Road, Changning District, Shanghai P.R.China
Tel: [phone]
Email: [e-mail]
For more information, please visit:
https://www.simcom.com/download/list-863-en.html
For technical support, or to report documentation errors, please visit:
https://www.simcom.com/ask/ or email to: [e-mail]
Copyright © 2020 SIMCom Wireless Solutions Limited All Rights Reserved.

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 3 / 22
Version History
Date
Version
Description of change
Author
2016.07.12 1.00 Origin shijie.yuan
2016.08.17 1.01 1. Update earphone shijie.yuan
2. Add LED indicator for Status shijie.yuan
2020.04.22 1.02 Modify the Format Xiong Yuqing

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 4 / 22
Contents
Version History.....................................................................................................................................3
Contents................................................................................................................................................4
Figure Index..........................................................................................................................................5
SCOPE...................................................................................................................................................6
1. SIMCom-EVB Overview ................................................................................................................7
2. EVB Accessory.................................................................................................................................9
3. Accessory Interface .......................................................................................................................10
3.1 Power Interface..............................................................................................................................10
3.2 Audio Interface...............................................................................................................................10
3.3 SIM Card Interface......................................................................................................................... 11
3.4 USB Interface ................................................................................................................................ 11
3.5 Power Switch.................................................................................................................................12
3.6 POWER_ON Button ......................................................................................................................12
3.7 RF Switch ......................................................................................................................................12
3.8 LED Indicator.................................................................................................................................12
4. Test Interface..................................................................................................................................13
4.1 Test Point A....................................................................................................................................13
4.2 Test Point B....................................................................................................................................14
4.3 Test Point C ...................................................................................................................................15
4.4 Test Point D ...................................................................................................................................16
4.5 Test Point E....................................................................................................................................17
5. Illustration.......................................................................................................................................19
5.1 SIMCom TE installation and uninstallation ....................................................................................19
5.2 Power on Module:..........................................................................................................................20
5.3 Registering Network and Making a Call.........................................................................................20

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 5 / 22
Figure Index
FIGURE1: SIMCOM-EVB TOP VIEW...........................................................................................................7
FIGURE2: SIMCOM-EVB BOTTOM VIEW...................................................................................................7
FIGURE3: EVB ACCESSORY......................................................................................................................9
FIGURE4: AUDIO INTERFACE ..................................................................................................................10
FIGURE5: VIRTUALSERIAL PORT............................................................................................................ 11
FIGURE6: TEST INTERFACE OVERVIEW................................................................................................13
FIGURE7:TEST POINTA...........................................................................................................................13
FIGURE8: TEST POINT B..........................................................................................................................14
FIGURE9: TEST POINT C..........................................................................................................................15
FIGURE10: TEST POINT D........................................................................................................................16
FIGURE11: TEST POINT E........................................................................................................................17
FIGURE12: TE ASSEMBLY........................................................................................................................19

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 6 / 22
SCOPE
THIS DOCUMENT DESCRIBES HOW TO USE SIMCOM-EVB TO DO TEST; USER CAN GET USEFUL
INFO ABOUT THE SIMCOM-EVB QUICKLY THROUGH THIS DOCUMENT.
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 7 / 22
1. SIMCom-EVB Overview
Figure1: SIMCom-EVB TOP view
Figure2: SIMCOM-EVB BOTTOM view

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 8 / 22
A: USB jack
B: Powerkey
C: Reset
D: Power switch
E: RF switch
F: TE connector
G: TE connector
H: SIMcard holder 1
I: LED indicator for Netlight
J: LED indicator for Power
K: Test Point
L: Studs and nuts
M: mark of TE Module direction
N: LED indicator for Status
O: Handset jack
P: Power jack
Q：SIMcard holder 2
R：Earphone jack

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 9 / 22
2. EVB Accessory
Figure3: EVB Accessory
A: SIMCOM-EVB
B: 5V DC adapter
C: USB Cable
D:GSM/WCDMA /LTE antenna

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 10 / 22
3. Accessory Interface
3.1 Power Interface
Pin Signal I/O Description
1 Adapter input I 5V/2.0A DC source input
3.2 Audio Interface
Figure4: Audio Interface
Headset interface:
Pin
Signal I/O Description
1
MICN I Negative microphone input

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 11 / 22
2
SPKN O Negative receiver output
3 SPKP I Positive receiver output
4 MICP O Positive microphone input
3.3 SIM Card Interface
SIMCard holder 1(J202) is the main holder, SIM2(J203) is for special module which supports dual sim.
3.4 USB Interface
EVB USB interface (A) could be imaged to two virtual ports.
Figure5: Virtualserial port
Enhanced COM port: AT communication
Standard COM port: Debug
CP2105 driver is available here:
http://www.silabs.com/products/interface/usb-bridges/Pages/usb-bridges.aspx

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 12 / 22
3.5 Power Switch
After 5V Adapter inserted ,switch S201 on, then power LED (D201) willbe solid on.
3.6 POWER_ON Button
After give power to EVB,press the POWER_ON button for more than 1.5 seconds, the module will be
turned on, the network LED light (D401) will blink.
3.7 RF Switch
RF switch (S401) could control module RF on or off. That’s hardware control of flight mode. When RF on,
flight mode is off, when RF switch off, flight mode is on.
3.8 LED Indicator
LED light work’s behaviour as below.
Name
Description Status
D201 Power ON/OFF indicator
Bright
：
EVB Power ON;
Extinct: EVB Power OFF
D401 NET status indicator Blinking at a certain frequency according various net status
D402 Module status indicator Bright: Module runs normally
Extinct: System is powered down

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 13 / 22
4. Test Interface
Figure6: Test interface overview
4.1 Test Point A
Figure7:Test Point A
Test point A Pin description:
Pin
Signal I/O Description
1
PWRKEY I Power on key
2
RESET I Reset key
3 DBG_RXD I Receive data
4 DBG_TXD O Transmit data
5
RI O Ring Indicator
6 DCD O Data carrier detection
7 DTR I Data Terminal Ready
8 RXD I Receive data
9
CTS O Clear to Send
10
RTX I Request to Send
11 TXD O Transmit data

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 14 / 22
12
CHG_IN I Charge in detect
13 ADC1 I ADC input
14 TEMP_BAT I Temperature detect
15 VBACKUP P Battery for RTC
16
NETLIGHT O LED indicator for NET Light
4.2 Test Point B
Figure8: Test Point B
Test point B Pin description:
Pin
Signal I/O Description
1 STATUS O Module working on indicate
2 NC17
3
KBC0 I KEYPAD input
4
5
6 KBC1 I KEYPAD input
7
KBC2 I KEYPAD input
8
GPIO11 I/O GPIO
9 KBC3 I KEYPAD input
10 KBC4 I KEYPAD input
11
GPIO12 I/O GPIO
12
KBR0 I KEYPAD input
13 KBR1 I KEYPAD input
14 KBR2 I KEYPAD input

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 15 / 22
15
SIM1_DET I SIM detect
16 KBR3 I KEYPAD input
4.3 Test Point C
Figure9: Test Point C
Test point C Pin description:
Pin
Signal I/O Description
1
KBR4 I KEYPAD input
2 SPI_CS O SPI Chip Select
3 SPI_MOSI O SPI Data output
4
DSR O Data Set Ready
5
SPI_MISO I SPI Data input
6 SPI_CLK O SPI Clock output
7 PWM1 O PWM output
8
PWM2 O PWM output
9
VDD_EXT P Power output from Module
10 GND P GND
11 3V3 P 3.3V Power
12
1V8 P 1.8V Power
13
SD_VDD P Power for SD Card
14 ADC2 I ADC input
15 SD_DET I SD detect

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 16 / 22
16
2.8 P 3.3V
4.4 Test Point D
Figure10: Test Point D
Test point D Pin description:
Pin
Signal I/O Description
1 GPIO43 I/O GPIO
2
GPIO41 I/O GPIO
3
ISINK AI Ground-referenced current sink.
4 COEX1 O RF synchronizing between Wi-Fi and LTE
5 F LIGHT O Flight mode
6
SIM2_DET I SIM detect
7
COEX2 O RF synchronizing between Wi-Fi and LTE
8 HOST_WAKE O HOST WAKEUP
9 NC1
10
COEX3 O RF synchronizing between Wi-Fi and LTE
11
12 PCM_CLK O PCM data bit clock
13 PCM_IN I PCM data input
14
PCM_OUT O PCM data output
15
PCM_SYNC O PCM data frame sync signal
16 NET_STATUS O NET status

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 17 / 22
4.5 Test Point E
Figure11: Test Point E
Test Point E Pin description:
Pin
Signal I/O Description
1 NC12 I/O GPIO
2 WAKEUP_IN I/O GPIO
3 NC11 AI Ground-referenced current sink.
4 RESERVED O RF synchronizing between Wi-Fi and LTE
5 NC16 O Flight mode
6 NC3 I SIM detect
7 NC4 O RF synchronizing between Wi-Fi and LTE
8 NC15 O HOST WAKEUP
9 NC5
10 NC10 O RF synchronizing between Wi-Fi and LTE
11 NC6
12 NC7 O PCM data bit clock
13 NC9 I PCM data input
14 NC8 O PCM data output
NOTE

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 18 / 22
please refer to specified TE schematic for test point if there has difference.

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 19 / 22
5. Illustration
5.1 SIMCom TE installation and uninstallation
Figure12: TE assembly
Install TE board:
1) there have four studs on board near connectors. It’s easy to put TE in correct position without making
mistake.
2) take care of TE SMA connector direction;
3) take care of the mark for TE direction on EVB board.
Uninstall and replace TE board:
1) it’s a little hard to remove TE board from EVB connector, because they are connected closely.
2) Take care with power to remove from SMA connector side slowly.

SIMCOM_EVB Kit_User Guide_V1.02
www.simcom.com 20 / 22
5.2 Power on Module:
1) Connect the SIMCOM-TE to the 2x60pins connector on EVB, plug in 5V DC adapter, switch S201 to
“ON” state; keep S401 to “ON” position.
2) Press the POWER_ON button for more than 1.5 second and then release, SIMCOM module power
on.After the module is on, the LED light D402 will be bright ,and the LED light D401will blink at a certain
frequency. Through the state of LED, you can judge registering status of the module. For detailed
description, please refer to SIMCOM HD document.
5.3 Registering Network and Making a Call
1) Install antenna to TE board, insert SIM card.
2) Connect the USB cable to the USB jack; launch the Hyper Terminal in computer.
3) Check the serial port number from Device Manager list.
4) Use the Hyper Terminal to make a call from module as following:
a) Launch hyper terminal
