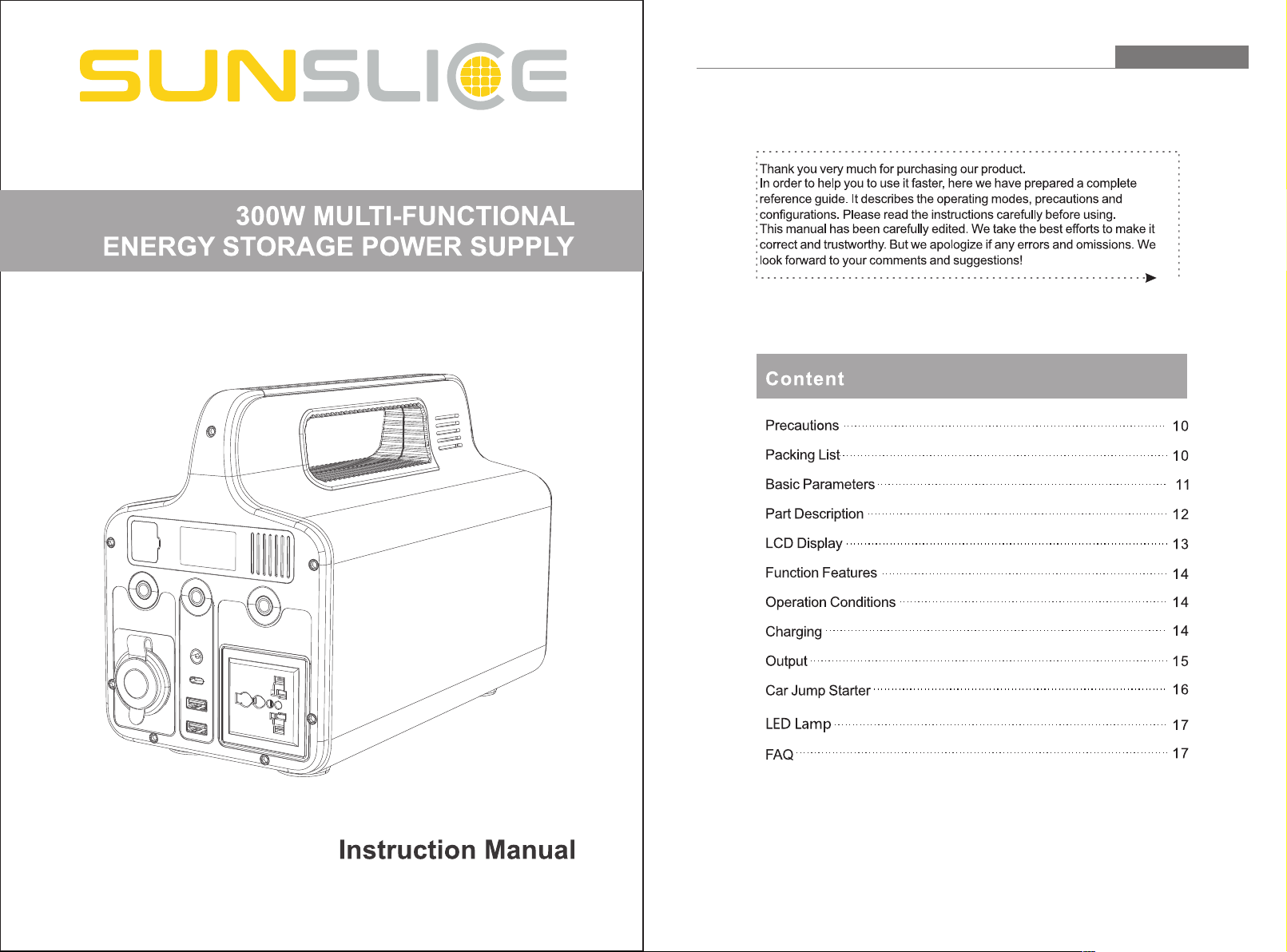

SUNSLICE GRAVITY 432 User manual

Energy anywhere
GRAVITY 432

10
1pcs 300W Power Station
1pcs User Manual
1pcs AC/DC Adapter
1pcs Car Jump Starter Cable
Packing list
300W Power Station AC/DC Adapter
User Manual
Instruction Manual
11
Car Jump Starter Cable
300W Multi-functional Energy Storage Power Supply 300W Multi-functional Energy Storage Power Supply
Precautions
When using this product, you should follow the basic precautions,
please read all instructions.
The product includes an AC/DC adaptor with input AC voltage from 100V to 240V. It’s
prohibited to connect voltages that do not meet the required specifications to the
adaptor .
Please only use the attached adaptor to charge the product.
Please use the recommended solar panel (optional) for optimal performance.
Do not damage or drop the product as it may damage the battery and internal circuit.
Do not attempt to disassemble, or modify the internal and external structure of the
product.
Do not connect the positive and negative terminals of the product with metal objects.
Do not exposure the product into water or rain. It may cause circuit failure and lead to
abnormal chemical reactions, heat, smoke, explosion or fire.
Do not use or place the product near a fire or any other heat sources (over 80 °C).
Do not store the product in a high temperature environment (>45 °C) for a long time.
If the product is not used for a long time, please charge the battery to over 60%
capacity, and recharge the battery within 6 months.
Basic Parameters
Item
Model
Shell Material
Internal Battery
Battery Type
Charging
Solar Charger
Car Charger
AC Output
DC Output
Power
2x USB-A QC3.0
Wave Form
Voltage
Frequency
1x USB-C PD
1x DC5521
Floodlight
Net Weight
Product Dimensions
Operation Temp
Operation Humidity
Storage Temp
Certifications
Spec
PS300
432Wh (10.8V 40Ah)
Aluminum Alloy + ABS + PC
Lithium Ion
12V-24V/5A Max
12V-32V/5A Max
300W
5V/3A, 9V/2A (18W Max)
Pure Sine Wave
100V/110V or 220V/230V
60Hz 50Hzor
5V/3A, 9V/12V/15V 3A, 20V/2.25A (45W Max)
12V/3A
5.8 kg
5W(High/Low)
L292xW144xH208mm
0 ~ 90%
0 ~ 40℃
-20℃ ~ 40℃
CE, PSE, RoHS, FCC, UN38.3
Adaptor 14.6V/5A
Jump Starter 12V/300A

12
Part Description
13
K
L
A
B
C
D
E
F
J
I
H
G
LED Lamp Switch Button:
DC Output Switch Button:
Press 0.5 seconds to turn on the DC output;
Press 0.5 seconds again to turn off the DC output
Press 0.5 seconds to turn on the AC output,
Press 0.5 seconds again to turn off the AC output
AC Output Switch Button:
Press 0.5 seconds to turn on the LED lamp for soft lighting;
press 0.5 seconds again to turn on the LED light for strong lighting;
Press 0.5 seconds again turn off the LED lamp.
Note: When any button is push to turned on, the LCD display will light up and indicate “OUT”.
Car Jump Starter Output Port
Digital Display
QC3.0 USB Output Port
AC Output Switch Button
DC5521 12V Output Port
AC Output Outlet
DC 12V Car Port
A
C
E
G
I
K
B
D
F
H
J
L
LED Lamp Switch Button
Type-C Output Port
DC Output Switch Button
LED Lamp DC Input Port Function
DC Output
AC Output
DC Charging
Battery
Recovery
Restart
Fault reason elimination
over load for overall system
Failure Phenomenon
battery column icon flashes 9 times
DC button indicator flashes 2 times
DC button indicator flashes 2 times
AC button indicator flashes 2 times
AC button indicator flashes 3 times
AC button indicator flashes 5 times
AC button indicator flashes 6 times
IN icon flashes 2 times
IN icon flashes 3 times
battery column icon flashes 2 times
battery column icon flashes 3 times
battery column icon flashes 4 times
battery column icon flashes 5 times
battery column icon flashes 6 times
AC button indicator flashes 9 times
AC button indicator flashes 8 times
battery column icon flashes 7 times
AC button indicator flashes 4 times
Cause of Issue
DC12V over current protection
USB output over current protection
AC output overload protection
AC bus over voltage protection
AC over temperature protection
PV charging input over voltage protection
PV charging input under voltage protection
Battery charging over temperature protection
Battery discharge over temperature protection
Battery charging low temperature protection
Battery discharge low temperature protection
Battery pack over voltage protection
AC communication error
AC output low voltage protection
Battery pack under voltage protection
AC bus under voltage protection
AC output short circuit protection
LCD Display
Battery Capacity
Input
Fault Warning
Output
1. When power station outputs are standby or discharges
2. When power station is charged by AC/DC adaptor or solar panel
3. When power station is charged and discharged at the same time
4. When LCD indicates fault warming , the failure may come from below reasons.
As long as the power station is working, the LCD display indicates below information.
Restart
Restart
Restart
Restart
Restart
Restart
Restart
Restart
Charge the battery
Fault reason elimination
Fault reason elimination
Fault reason elimination
Fault reason elimination
Fault reason elimination
Fault reason elimination
Fault reason elimination
300W Multi-functional Energy Storage Power Supply 300W Multi-functional Energy Storage Power Supply

Function Features
14 15
Charging
Three charging methods
Operation Conditions
1. Operation Environment: indoor or outdoor (non-waterproof)
2. Operating Temperature: 0～45℃
3. Storage Environment: -20～45℃
AC→DC
AC220/110V
1. AC220V/110V via included AC/DC adaptor
6-7 hours for full charging
Features
One-batch forming strong aluminum alloy shell with unbreakable handle
Compact, portable and lightweight
Internal high energy density long cycle life lithium ion battery
LCD indicates battery capacity, charging status and inverter output
Independent switches of main on/off , inverter output and bright floodlight
AC 300W inverter powers various digital products and electrical devices, like desktop PC, fan,
TV, lamp, etc
High current jump starter for vehicles with maximum 4.0L displacement
DC 12V cigarette port supports car on-aboard devices, like car refrigerator, car vacuum, car
inflator, etc
DC5525 12V/3A port supports some 12V powered devices, like LED lamp, DC fan, DC TV, etc
Dual USB QC3.0 ports charge most USB-enabled devices, like cellphone, Bluetooth, wearable
watch, etc
USB Type-C port supports most USB-C devices, like laptop, tablets, smart phone, etc
360° rotatable 5 watts LED floodlight with 25+ hours long lighting, SOS function, and wider
lighting coverage
Unique charging functionality supports voltage from DC 12V to 32V
Three ways to recharge by solar panel, car cigarette included AC/DC adaptor
Integrated circuit design improves product safety, quality, efficiency and function performance
2. Solar Charging
3. Car Charging
AC Output
USB Fast Charge Output
12V Car Port
45W Type-C Output
Output
DC5521 12V 3A
Car Ignition Cable
DC12V-32V
DC→DC
min 6 hours for full charging
DC→DC
6-7 hours for full charging
Six types of AC and DC outputs
1. DC 12V cigarette lighter output port for car devices or used 12V as battery equipment;
2. AC 220V (110V) AC output outlets for desktop computers, electric fans, electric tools and
other home appliances;
3. USB-A QC3.0 port for smart phones, MP3 players, digital cameras, e-readers, tablet, etc;
4. Type-C output port supports fast charging mobile phones, laptops and other devices;
5. DC 5521 output port for routers or use 12V as battery equipment;
6. Jump starter output save your car for starting up when car battery fails.
300W Multi-functional Energy Storage Power Supply 300W Multi-functional Energy Storage Power Supply

16
Fan(60W)
6-7 Hours
Mini Fridge(200W)TV(60W)
1~3 Hours 6-7 Hours
CPAP Machine(40W)
10-15 Hours
Rice Cooker(300W)
1-1.5 Hours
Desktop PC(200W)
2-2.5 Hours
AC Output
Table Lamp(40W)
8-12 Hours
Laptop(50Wh)
7-9 Times
GoPro(14.5Wh)
25-30 Times
Drone(60W)Camera(30Wh)
6-8 Times 12-15 times
iPad(15Wh)
25-30 Times
Phone(12Wh)
35-40 Times
DC Outout
Electric Blanket(40W)
8-12 Hours
Projector(65W)
5-6 Hours
1２ ３ ４
Car Jump Starter
17
Connect the clips to the
car battery; red clip to
battery positive electrode
and black to negative
electrode
Connect the other
end with plug into
power station
Starting the car
as usual
Remove the jump
starter cable from
power station and
car battery
Note: the product can only start up cars with 12V battery and within 4L displacement.
LED Lamp
1.
Hold the handle
and put finger into
LED lamp buckle
2.
Turn the LED lamp
panel toward outside,
then open it upward
3.
Adjust the angle
of LED lamp
4.
Push the lamp switch
button to turn on
How to use LED Lamp
How to turn off LED Lamp
FAQ (Frequently Asked Questions)
1. What device can be powered by the product?
Please check specification label of your device and make sure the power rating,
voltage range meets the output of the product. For example, the AC output outlet can
power most of device with power rating lower than 300W and the USB-A ports powers
most of USB-enabled devices.
2. How long can the battery be stored after one charge?
The internal battery can keep capacity for 1 years after full charge. But it’s strongly
suggested to recharge the battery every 6 months.
3. Can the product be charged and discharged/output at the same time?
Yes, the product can be charged by solar panel or AC/DC adaptor and power your
device simultaneously.
4. Is the internal battery replaceable?
It's not replaceable for an end user unless you have professional knowledge of lithium
ion battery and power supply products. Once you open the product shell, the warranty
will be invalid.
2.
Press hose
into top groove
3.
Lead lamp panel
into side groove
1.
Turn off the switch
4.
Push lamp panel
into groove
