Sunstech PLF-77TD User manual

CAUTION: Before servicing the chassis, read the “IMPORTANT SERVICE SAFETY INFORMATION” section on
page 2 of this manual.
SPECIFICATIONS
lGENERAL SPECIFICATION
l7” ACTIVE-MATRIX TFT TYPE.
lDVD, VCD, CD, CD-R, CD-RW, MP3, DIVX, HDCD
SUPPORTS.
lUSB FUNCTION
l16:9 / 4:3 PICTURE SELECT.
lHIGH BRIGHTENNESS.
lHIGH CONTRAST.
lWITH LOGO OPENING SCREEN.
lSLOW MOTION ½, 1/4, 1/8, 1/16
lF.B / F.F x2, x4, x8, x16 SPEED.
lANGLE MENU.
l20 TRACK PROGRAM FOR CD PLAYING.
lZOOM x 2, 3, 4.
lREMOTE CONTROL.
lS. VIDEO OUTPUT (for Ext. TV Monitor)
lHEADPHONE OUT x 1.
lAUDIO OUTPUT 0.5W x 2/8 ohm.
lLONG BATTERY TIME OF OVER 2HRS.
lDIMENSION :
212(L) x 170(W) x 430(H)mm(excluding battery)
lAC POWER SOURCE:
ADAPTER:230V
lDC POWER SOURCE: BATTERY PACK: 7.2V
lFEATURES FOR DVB-T TUNER (FREE ON AIR)
lFREQUENCY RANGE :
VHF CH5 –CH12 (174MHZ –230MHZ)
UHF CH21-CH69 (470MHZ –862MHZ)
l1,000 PROGRAMMABLE FAVORITE CHANNELS
l9 PICTURES FOR PROGRAM AUTO-SCAN
lEPG FUNCTION SUPPORT (TELE-TEXT OPTION)
lPROGRAM LIST WITH PROGRAM PREVIEW AFTER
TUNER POWER ON
lOSD TRANSPARENT ADJUSTMENT.
lFULL FUNCTION REMOTE CONTROL
CONTENTS
IMPORTANT SERVICE SAFETY INFORMATION................2
DISASSEMBLY FOR REPAIR .................................................3
WIRING DIAGRAM……………………………………....……4
BLOCK DIAGRAM....................................................................5
CIRCUIT DESCRIPTION .............................……………...6~14
PARTS LIST ..........................................…………............ 15~28
EXPLODEDVIEW (CABINET)............................................. 29
EXPLODED VIEW (DVB-T).................................................. 30
SCHEMATIC DIAGRAMS.................................................31~39
PRINTED CIRCUIT BOARDS.......................................... 40~57
Note:Follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
TFT PORTABLE DVB-T/DVD PLAYER
SUNSTECH PLF-77TD
SERVICE MANUAL
2006-PRINTED IN
R598MB

2
1. SAFETY PRECAUTIONS
Before returning a unit to the customer, always make a safety check
of the entire unit, including, but not limited to the following items:
a. Be sure that no built-in protective devices are defective and/or have
been defeated during servicing.
(1) Protective shields are provided to protect to protect both the
technician and the customer. Correctly replace all missing protective
shields including any removed for servicing convenience.
(2) When reinstalling the chassis and/or other assemblies in the
cabinet, be sure to put back in place all protective devices, including, but
notlimited to, nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields and isolation resistor
capacitor networks. Do not operate this unit of permit it to be operated
without all protective devices correctly installed and functioning.
b. Be sure that there are no cabinet openings through which an adult
or child might be able to insert their fingers and contact a hazardous
voltage. Such openings include, but are not limited to, excessively wide
cabinet ventilation slots, and an improperly fitted and/or incorrectly
secured cabinet back cover.
c. Leakage Current Hot Check -With the unit completely
reassembled, plug the AC line cord directly into a AC outlet. (Do not
use an isolation transformer during this test.) Use a leakage current
tester or a metering system that complies with American National
Standards institute (ANSI) C101.1 “Leakage Current for Appliances”
and Underwriters Laboratories (UL) 1410, (50.7). With the unit AC
switch first in the ON position and then in the OFF position, measure
from a known earth ground (metal water pipe, conduit, etc.) to all
exposed metal parts of the unit (antennas, handle bracket, metal cabinet,
screwheads, metallic overlays, control shaft, ect.), especially any
exposed metal parts that offer an electrical return path to the chassis.
Any current measured must not exceed 0.5 milliamp. Reverse the unit
power cord plug in the outlet and repeat test.
ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED
HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT
MUST BE ELIMINATED BEFORE RETURNING THE UNIT TO
THE CUSTOMER.
DEVICE
UNDER
TEST
TEST ALL EXPOSED
METAL SURFACES
AC LEAKAGE TEST
2-WIRE CORD ALSO
TEST WITH PLUG
REVERSED (USING AC
ADAPTER PLUG A
REQUIRED)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
(READING
SHOULD
NOT BE
ABOVE
0.5mA)
d. Insulation Resistance Test Cold Check
(1) Unplug the power supply cord and connect a jumper wire
between the two prongs of the plug.
(2) Turn on the power switch of the unit.
(3) Measure the resistance with an ohmmeter between the jumpered
AC plug and each exposed metallic cabinet part on the unit, such as
screwheads, antenna, control shaft, handle brackets, etc. When the
exposed metallic part has a return path to the chassis, the reading
should be between 1 and 5.2 Megohm. When there is no return path to
the chassis, the reading must be “infinite”. If it is not within the limits
specified, there is the possibility of a shock hazard, and the unit must
be repaired and rechecked before it is returned to the customer.
2. PRODUCT SAFETY NOTICE
Some electrical and mechanical parts have special safety related
characteristics which are often not evident from visual inspection, nor
can be protection they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage, etc. Parts that have
special safety characteristics are identified by a ¡I on schematic and
parts list. Use of a substitute replacement that does not have the same
safety characteristics as the recommended replacement part might create
shock, fire, and/or other hazards. Product Safety is under review
continuously and new instructions are issued whenever appropriate.
3. SERVICING PRECAUTIONS
CAUTION: Before servicing the unit covered by this service manual
and its supplements, read and follow the SAFETY PRECAUTIONS on
this page. NOTE: If unforeseen circumstances create a conflict between
the following servicing precautions and any of the safety precautions,
always follow the safety precautions. Remember: Safety First.
General Servicing Precautions.
a. Always unplug the unit’s AC power cord from the AC power
source before:
(1) removing or reinstalling any component, circuit board, module, or
any other unit assembly.
(2) disconnecting or reconnecting any unit electrical plug or other
electrical connection.
(3) connecting a test substitute in parallel whit an electrolytic
capacitor in the unit.
Caution: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explosion hazard.
b. Do not defeat any plug/socket B+ voltage interlocks with which
the unit covered by this service manual might be equipped.
c. Do not apply AC power to this unit and/or any of its electrical
assemblies unless all solid-state device heat sinks are correctly installed.
d. Always connect a test unit ground lead to the unit chassis ground
before connecting the test unit positive lead. Always remove the test
instrument’s ground lead last.
4. LASER PRECAUTIONS
WARNING!
1. When servicing (in case it is necessary to confirm Laser Beam
Emission), be sure not to place your eyes any closer than 1 ft or 30cm
from the surface of the Object Lens on the Optical Pickup Block.
HANDLING THE LASER PICKUP
2. Laser diodes are extremely susceptible to damage from static
electricity. Even if a static discharge does not ruin the diode, it can
shorten its life or cause it to work improperly. When replacing the
pickup, use a conductive mat on the floor and desk and wear a wrist
IMPORTANT SERVICE SAFETY INFORMATION
OM
ANTENNA
TERMINAL
EXPOSED
METAL
PART OHMMETER

3
band connected to ground through a 1M ohm resistor to protect the
laser diode from static damage. If the lens should get dusty, blow off the
dust carefully from the object.
3. There are no adjustable parts in the pickup assembly. If it is
defective, replace the whole pickup assembly.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DANGER:
IF INTERLOCK FAILS OR IS DEFEATED, THE LASER LIGHT
IS ABLE TO FUNCTION. THE LASER IS INVISIBLE, AVOID
DIRECT EXPOSURE TO BEAM.

4
DISASSEMBLY FOR REPAIR
TO DISASSEMBLY THE BOTTOM METAL CABINET
1. Remove the 14screws (A) from bottom metal cabinet.
TO REMOVE THE INNER PANEL
2. Remove the 6 screws (B) from the inner panel and out panel.

5
WIRING DIAGRAM

BLOCK DIAGRAM

6
4
3
1
2
5
6
8
7
B +INPUT
B -INPUT
B OUTPUT
V +
A -INPUT
A +INPUT
V -
A OUTPUT
CIRCUIT DESCRIPTION
100m? Power Distribution Switches: RT9701CB (U7)
NiMH BATTERY CHARGER CONTROLLER: LS2964S (U6)
DUAL OPERATIONAL AMPLIFIER: RC4558D (U7,16)
1
2
3
4
8
7
6
5
Timer
LED
OSC
GND
VDD
PWM
Vdet
Idet

7
CIRCUIT DESCRIPTION
PROGRESSIVE SCAN DVD PLAYER COMBO CHIP: MT1389DE/B-L(U5)
VIDEO PROCESSOR FOR MIDDLE SIZE LCD PANEL:VX1828 (U1)

8
CIRCUIT DESCRIPTION
2-WIRE SERIAL EEPROM:AT24C02BN-10SU-1.8 (U6,U12)
DUAL LOW-VOLTAGE POWER AMPLIFIER:NJM2073M (U3)

9
CIRCUIT DESCRIPTION
24-BIT, 96 KHZ STEREO D/A CONVERTER FOR AUDIO: CS4340 (U15)
DUAL COMPARATORS: LM393DR (U10)
SINGLE-SUPPLY DUAL HIGH CURRENT OPERATIONAL AMPLIFIER:NJM3414AM-TE1(U3)

10
CIRCUIT DESCRIPTION
4-CHANNEL BTL MOTOR DRIVER FOR CD-ROM: AT5654H (U4)
300/500MA LOW DROPOUT LINEAR VOLTAGE REGULATOR: RP1101-19CXL( U1), RP1102-
33CGL (Q2)

11

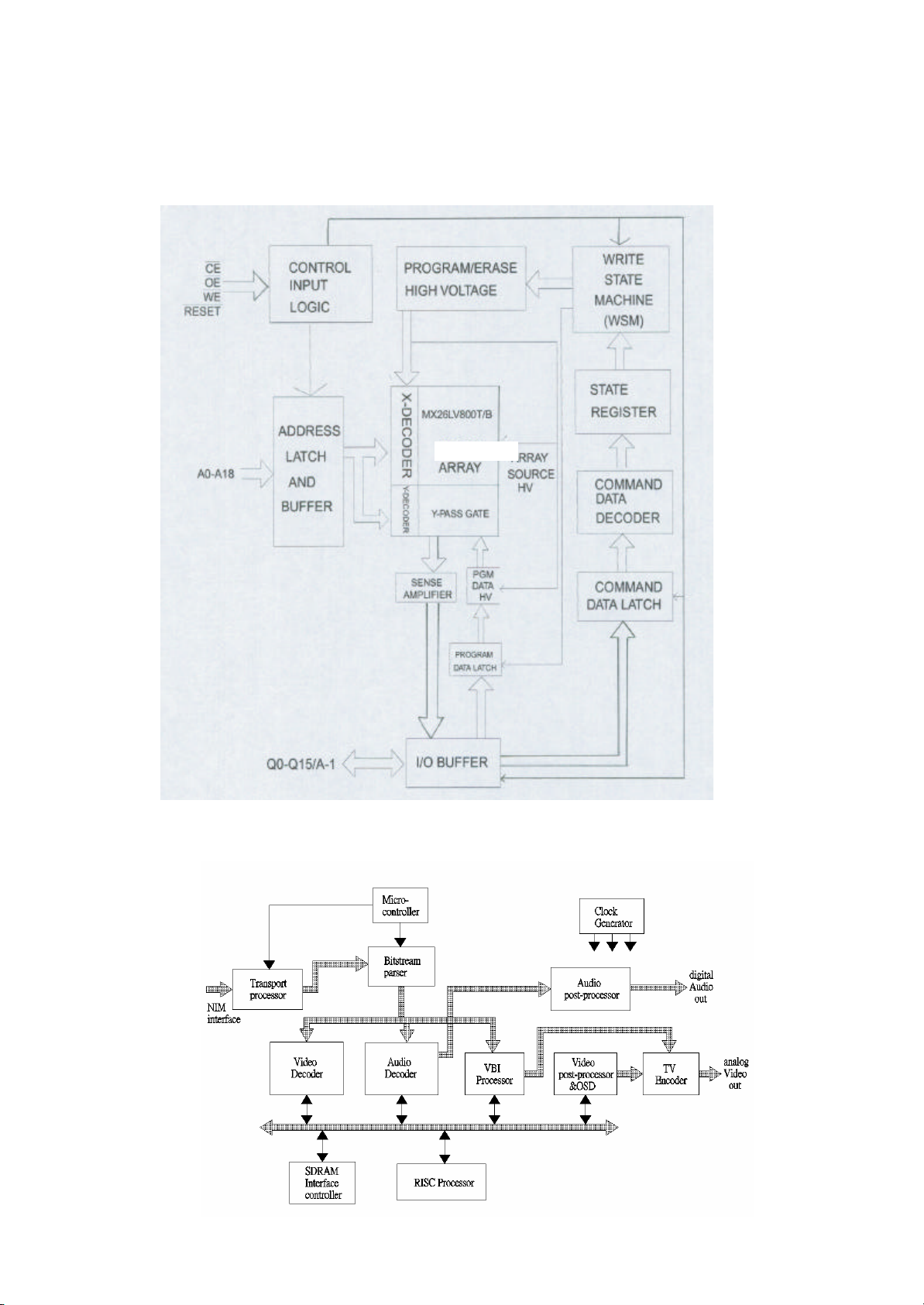

CIRCUIT DESCRIPTION
8M/16M-BIT CMOS SINGLE VOLTAGE 3V ONLY HIGH SPEED FLASH:AT49BV163A-70TU
(U11) ,S29AL008D70TFI020 (U4)
DIGITAL TV STB BACKEND PROCESSOR:CT212T(U3)
AT49B

12
CIRCUIT DESCRIPTION
2 BANKS X 512K X 16 BIT SYNCHRONOUS DRAM : K4S641632H-UC75 TSOP-54 (U1,U9)
INFRARED REMOTE CONTROL TRANSMITTER : SC6122-001 (IC1)
1
KI/O19
66KI7
DD
SS
SEL
REM
OSCI
OSCO
V
V
1411
12 13
8
10
9
717
16
15
18
7
KI/O
LMP
4
KI/O
KI/O
KI/O6
5
KI/O3
2
4
KI
KI
KI
KI
KI
33
54
5
21
222
20
21
24
23 0
CCS
KI/O
KI/O0
1
KI
KI

13
CIRCUIT DESCRIPTION
2A STEP DOWN DC TO DC CONVERTER:MP9141ES-LF-Z(U8,9)
10-pin, 24-Bit, 192 kHz Stereo D/A Converter: CS4345 (U5)

14
CIRCUIT DESCRIPTION
25V STEP-UP CONVERTER IC:MP1522ET (U1)
DIGITAL TV STB BACKEND PROCESSOR: B1117N-ADJ (U10)

Ref. No Parts No. Description QTY
2772M-STD-31 2772MB 120-230V VDE APP. STD
ASSY 1
059-05202-100-
102 SW.ADAPTOR(SPEC LIN)VDE:EN60065;W/M.I.C
SW0901500-W02(GP)
100~240V;TUV/CE;ROHS
1
HS-R598MB-GY-
410 R598MB H/S CHASSIS W/COSMETIC ASSY(ROHS)
L.GY.MNC7-0 "SUNSTECH PLF-
77TD" (48 KEY)
1
001-04050-710
N405M REMOTE CONTROL P.C.B.
(48 KEY) (ROHS) 1
IC 1 002-06122-330 IC SC6122-001 (SILAN) SOP-24
(SMT) (ROHS) 1
Q1 003-24081-140 CHIP TRANSISTOR 2SC4081(RS)-
TLB (ROHM)(ROHS) 1
004-01122-600 INFRARED EMITTING DIODES
EL-1L2 (ROHS) 1
R1 005-52109-301 CHIP RESISTOR 1 OHM +-5%
(1608) (ROHS) 1
C2,3 006-72181-250 CERAMIC CHIP CAP 180 PF +-5%
50V (1608) (ROHS) NPO 2
C1 009-10476C510 ELECT CAP 47 UF +80%-20% 10V
(ROHS) (PIN LENGTH 9MM) 1
X1 028-00455-011 CERAMIC FILTER ZTB455E
(MEC) (2 PINS) (ROHS) 1
041-04051-002 N405 HANDSET BATTERY
PLATE (+) (ROHS) 1
041-04052-002 N405 HANDSET BATTERY
SPRING (-) (ROHS) 1
104-04050-0956 N405M H/S BOTTOM CAB.
(L.GREY MN7-0) (ROHS) 1
111-04050-0956 N405M H/S BATTERY DOOR
(L.GREY MN7-0) (ROHS) 1
125-04050-004M593MB H/S
MEM.SW.PLATE(ROHS)W/RED
032C/ SIL.8001C/GN.375C
2X/SIL.GY.8403C/WH.SK.
1
FOR HENDSET 144-11405-402 SCREW 1.4 X 5 KB 7
Ref. No Parts No. Description QTY
(D=2.5MM);ROHS
R519MB-SIL-
KNOB R519MB SILVER KNOB VERSION ASSY(ROHS) 1
127-04625-1974 R519MB POWER KNOB
(SP.SIL.SS9-1/ABS) (ROHS) 1
127-04627-1974 R519MB PANEL OPEN KNOB
(SP.SIL.SS9-1/ABS) (ROHS) 1
128-05180-0974 R519MB BUTTON 'A'
(LEFT/RIGHT) (ROHS)
(SP.SIL.SS9-1)
1
128-05181-0974 R519MB BUTTON 'B' (UP/DOWN)
(ROHS) (SP.SIL.SS9-1) 1
128-05182-0974 R519MB BUTTON
'C'(SETUP/DIS./TITLE/MENU)
(SP.SIL.SS9-1) (ROHS)
1
128-05183-0974 R519MB BUTTON 'D' (SKIP
F.F./F.R.) (SP.SIL.SS9-1) (ROHS) 1
128-05184-0974
R519MB BUTTON 'E' (STOP/PAUSE)
(SP.SIL.SS9-1) (ROHS) 1
128-05185-0974 R519MB BUTTON 'F' (PLAY)
(SP.SIL.SS9-1) (ROHS) 1
128-05189-0974 R519MB DISC.OPEN BUTTON
(SP.SIL.SS9-1) (ROHS) 1
129-05180-000 M518 DOOR BRACKET;ROHS 2
129-05189-000 M518 DISC DOOR OPEN
BRACKET;ROHS 1
M462-CAR-
ADAPTOR-09 R598MB CAR ADAPTOR ASSY (OUTPUT DC 9V,1.2A) 1
001-35000-400 3500MC CAR BAT SUPPLY P.C.B.
(ROHS) 1
D1-4004-05401-300 RECTIFIER IN-5401 (ROHS) 4
R1 005-10152-314 RESISTOR 1.5 K +-5% 1/4W
(ROHS) 1
C1 006-10203-550 CERAMIC CAP 0.02 UF +80%-20%
50V(ROHS) 1
C2 009-10107-525 ELECT CAP 100 UF +80%-
20% 25V
(ROHS) 1
D10 019-12000-110 L.E.D. DIAMETER 3MM(RED)
SEL-2110R (ROHS) 1
031-02600-040-JUMPER WIRE AWG22UL 60MM 1
1
5
PARTS LIST

Ref. No Parts No. Description QTY
001 RED (ROHS)
031-10500-100-
001 JUMPER WIRE AWG22UL 50MM BLACK(ONE SIDE 4MM,ONE
SIDE 10MM)(ROHS)
1
043-20192-
300
T409 DC CORD 75"#20 WH/BLK
(2P)W/BUSHING &DC PLUG
(Y001-D19102C458505Q)(Y.C.)
(ROHS)
1
050-05020-201 2A/250V GLASS FUSE 5X20 FAST
ACTING;ROHS BUSSMANN/S500
UR/VDE/SEMKO/IMQ/BSI APP.
1
101-97030-010 9703 CAR ADAPTOR FRONT
CABINET (BLACK) (ROHS) 1
102-97030-010 9703 CAR ADAPTOR REAR
CABINET (BLACK) (ROHS) 1
105-97030-010 9703 CAR ADAPTOR CAP
(BLACK) (ROHS) 1
133-97031-311 GT9839 (9703) CAR ADAPTOR
SPRING PLATE T=1.0MM (ROHS)
1
133-97035-304 9703 CAR ADAPTOR SPRING
T=0.4MM (ROHS) 1
133-97036-352 9703 CAR ADAPTOR PLUG
(GENERAL TECHNIC) (ROHS) 1
FOR CAR ADAPTOR
FRONT CABINET 144-12608-111 SCREW 2.6 X 8RT (BLACK) (ROHS) 4
20MM X 1(D5)202-10005-002TINNED CCS WIRE (DIA.
0.5MM);ROHS (TIN PLATE WIRE
W/STEEL)
0.0000
65
R572M-DVD-
LOADER R572M LOADER (SONY KHM313AHC) SUBASS'Y 1
MAIN PCB (J1) TO
LOADER 025-10006-149 6P J.WIRE #30UL 100MM (2P 2MM) JST;ROHS 1
037-45251-245 24P FILM CABLE 5+250+5 UL
(P=0.5MM)(ROHS) 1
FOR LOADER 145-69912-100 PVC WASHER W/HOLE (L=9MM
W=6.5MM T=1MM DIA.=3.3MM)
(ROHS)
2
160-00313-001 DVD MECHANISM SONY
KHM313AHC (ROHS) (SLIM 1
Ref. No Parts No. Description QTY
TYPE/BALL CLAW)
161-03102-001 KHM-310 INSULATOR
(IIR,HARDNESS=40 DEG)
(SILICON RUBBER) ;ROHS
4
M519M-
CASING-02 M519M CASING ASSY (W/049- 00706-007) (ROHS) 1
029-02808-202-
001 28MM SPEAKER 8 OHM NOR.:0.5W;MAX.:1W BLK
CLOTH ON BACK (SMDC
NO.:DS28-39) (ROHS)
2
FOR LCD GROUNDING 039-30005-000 SOLIDING LUG 5.5MM (DIA.
1.7MM);ROHS 1
041-04621-002 M462 BATTERY CONTACT
PLATE (+);ROHS 1
041-04622-002 M462 BATTERY CONTACT
PLATE (-);ROHS 1
041-04623-002 M462 BATTERY PLATE SPRING
(+/-);ROHS 2
049-00706-009TFT DISPLAY AT070TN07 V.A
(INNOLUX);ROHS (7" TFT-LCD
MODULE W/O LED DRIVER BD.)
1
129-04629-010 M462 BATTERY CONTACT
BRACKET (L)
(BLACK/POM);ROHS
1
129-04629-110 M462 BATTERY CONTACT
BRACKET (R)
(BLACK/POM);ROHS
1
129-04629-210 M462 DISC DOOR OPEN SWTICH
ADAPTOR (BLACK/POM);ROHS
1
130-04624-110 M462 DISPLAY ADAPTOR RING
(BLACK/POM)(ROHS) 1
133-04099-302 T409 HOOK SPRING(ROHS) 1
133-04621-115 M462 METAL PLATE(D) (IRON)
(T=1.5 MM)(ROHS) 1
133-04623-115 M462 METAL BRACKET (A)
(IRON) (T=1.5 MM)(ROHS) 1
133-04623-125 M462 METAL BRACKET (B)
(IRON) (T=1.5 MM)(ROHS) 1
FOR CD DOOR SW. X 1 133-04624-306 M462 SW. SPRING(ROHS) 2
1
6

Ref. No Parts No. Description QTY
FOR TFT SW. X 1
133-04625-360 M462 METAL PIN(A)
(STEEL)(DIA.=6 MM)(ROHS) 1
FOR BATTERY LOCK 133-04626-103 M462 METAL PLATE (A) (IRON)
(T=0.3 MM)(ROHS) 1
FOR BOTTOM CAB. 133-04629-305 M462 BATTERY PLATE SPRING
FOR BOTTOM CAB. (ROHS) 2
FOR MAIN P.C.B.
GROUNDING X 1
FOR CONTROL P.C.B.
GROUNDING X 1
133-04629-303 M462 P.C.B. SPRING (B) (STEEL
T=0.3)MM(ROHS) 2
FOR P.C.B. GROUNDING 133-04629-305-
002 M462 P.C.B. SPRING (A) (STEEL) (DIA.=0.5) (ROHS) 1
133-05189-305-
001 M518M DOOR BRACKET SPRING (DIA.=0.5MM)(ROHS) 1
133-05589-306 R558 CD DOOR SPRING
(T=0.6MM) (STEEL) (ROHS) 1
FOR BOTTOM CAB. 136-10015-480 RUBBER FOOT (DIA.4.8X1.5) MM
W/ONE SIDE TAPE(ROHS) 1
FOR BOTTOM CAB. 136-10020-480 RUBBER FOOT (DIA.4.8X2)MM
W/ONE SIDE TAPE(ROHS) 1
FOR BOTTOM BATTERY
CAB. USE 136-10510-050 RUBBER 5 X 5 X 1MM (W/ONE SIDE TAPE) (ROHS) 2
FOR BATTERY USE 136-10530-100 RUBBER 10 X 5 X 3MM (W/ONE
SIDE TAPE) (ROHS) 4
FOR 7" TFT USE 136-10540-100 RUBBER (10*5*4)MM W/ONE
SIDE TAPE(ROHS) 2
FOR BATTERY SET 136-11501-200 RUBBER 20 X 15 X 1.5MM
(W/ONE SIDE TAPE) (ROHS) 4
FOR BATTERY SET 136-21060-120
RUBBER 6 X 10 X 12MM (W/TWO
SIDE TAPE) (ROHS) 1
FOR 24P FLAT WIRE ON
LOADER 136-21503-200 RUBBER 15 X 2.5 X 20MM(W/TWO SIDE TAPE)
(ROHS)
1
FOR TFT FRONT CAB. 136-80020-040 PANEL RUBBER FOOT
(DIA.3.6X2.2)MM (GREY) (ROHS) 2
138-04624-010 M462 DISC DOOR HOOK
(BLACK/POM);ROHS 1
FOR TFT FRONT CAB. 144-11405-201 SCREW 1.4X5 TB SILVER;ROHS 2
144-11706-402 SCREW 1.7X6 KB;ROHS 12
Ref. No Parts No. Description QTY
FOR BATTERY CAB. 144-11706-412 SCREW 1.7X6 KB (BLACK) ;ROHS 3
FOR TFT SPRING USE 144-12004-511 SCREW 2X4 CWB (BLACK)
HARDEN (D=5MM
T=0.5MM)(E6D8011-0) ;ROHS
2
FOR DOOR BRACKET 144-12006-300 SCREW 2*6 PWT (A);ROHS 1
FOR HINGE SHAFT 144-12606-111 SCREW 2.6X6 RT (BLACK) ;ROHS 1
FOR DISPLAY 144-21702-201 SCREW 1.7X2 BM;ROHS 1
144-52005-122 SCREW 2X5 STR (TB)
SILVER;ROHS 6
FOR BOTTOM CAB. 144-52008-112 SCREW 2X8 STR (TB)
BLACK;ROHS 10
FOR BOTTOM CAB. 144-52010-112 SCREW 2*10 STR (TB) BLACK
(SFBPN20100SM)(ROHS) 2
145-24620-000 M462 METAL WASHER (A)
(IRON) (T=1.0 MM)(ROHS) 7
FOR TFT FRONT CAB.X 1
FOR TOP CAB. X 1
146-50409-001 T409 MAGNET (NDFEB)
20X3.5X5MM "SMDC" (ROHS) 2
M593MB-
BATT-ASSY-02
R598MB DVD BATTERY PACK
CHASSIS ASSY(W/998-00000-
090)
(ROHS)
1
103-05930-001 M593MB BATTERY CASY TOP
(BLACK/ABS)
(SP.MATT.BLACK)
W/SIL.877C SK. ;ROHS
1
104-05930-001 M593MB BATTERY CASE
BOTTOM (BLACK/ABS) (ROHS) 1
117-05930-0618 M593MB SENSOR FRONT COVER
LENS (DARK SMOKY
801691/ABS) (ROHS)
1
117-05931-0618 M593MB SENSOR REAR COVER
LENS (DARK SMOKY
801691/ABS) (ROHS)
1
FOR TUNER-KEY P.C.B. 125-04092-003 T409 X'FORMER PC CUT SHEET
(35X22X0.5)MM(ROHS) 1
129-05933-010 M593MB SENSOR HOLDER
(BLACK/ABS) (ROHS) 1
129-05939-010 M593MB BATTERY BACKET
(BLACK/ABS) (ROHS) 1
130-55268-040 M526MB BATTERY LOCKER 1
1
7

Ref. No Parts No. Description QTY
(BLK./ABS) (SP.MATT.BLK.)
(ROHS)
133-04629-306-
001 M462 BATTERY HOOK SPRING (BLACK/STEEL) (DIA.=0.6MM)
(ROHS)
1
133-05939-306 M593MB SENSOR SPRING
(DIA.:0.6MM)(ROHS) 1
144-11704-411 SCREW 1.7X4 KT (BLACK) ;ROHS 2
FOR SENSOR COVER 144-51407-110 SCREW 1.4*7 STR (TA)
BLACK;ROHS 2
FOR BOTTOM CAB. 144-52005-112 SCREW 2X5 STR (TB) BLACK
(SFBPN205R0SM);ROHS 3
FOR BOTTOM CAB. 144-52010-112 SCREW 2X10 STR (TB) BLACK
(SFBPN20100SM);ROHS 2
FOR BOTTOM CAB. 144-52012-112 SCREW 2*12 STR (TB)
BLACK;ROHS 3
998-00000-090 EPT NI-MH RECH.BATT. 7.2V
1500MAH (ROHS) EPT-
50AA150H6S;2P 120MM
WIRE+JST-XHP-2P
2
R598MB-C-0410 R598MB DVD "SUNSTECH"
COSMETIC ASSYSPRAY
MATT.BLACK COLOR (ROHS)
1
103-05180-902 R598MB TOP CAB(INJ.GY.MN7-
0/ABS) (EMI.SP. SIL.SS9-1)
W/D.GY.433C/ENTER(W/USB)RO
HS
1
104-04623-903 M526MB BOTTOM
CAB.(INJ.BLK./ABS) (W/USB)
ROHS (EMI SP.MATT.BLK.)
W/SIL.877C/AV IN/OUT
1
108-04622-9410 M526 INNER P."SUNSTECH"
(INJ.L.GY.MN7-0) (EMI SP.SIL.SS9-
1/MATT.BK.)426C SK;ROHS
1
108-05180-9410 R598 OUTER
PANEL"SUNSTECH"(INJ.GY.MN7
-0/ ABS)(EMI.SP.SIL.SS9-
1)W/D.GY.433C (ROHS)
1
113-05180-004 R598 DVD DOOR
(INJ.GY./ABS#PA-777D) 1
Ref. No Parts No. Description QTY
ROHS(SP.SIL.SS9-1)
W/D.GY.433C(DIVX/DVBT)SK.
117-04620-0931 M462 SENSOR LENS (SEMI-
TRANS.WHITE/PMMA);ROHS 1
117-04621-0931 M462 LED LENS (SEMI-
TRANS.WHITE/PMMA);ROHS 1
130-04624-1887 M518MB DISPLAY SWITCH
ADAPTOR (L.GREY MNC7-
0/POM);ROHS
1
FOR FRONT CAB X 2
FOR CD DOOR BRACKET
X 2
144-12005-401 SCREW 2X5 KT;ROHS 4
FOR BOTTOM CAB. X 2
FOR METAL PLATE X 1
FOR TFT RING X 1
144-12005-411 SCREW 2X5 KT (BLACK) ;ROHS 4
180-04624-010 M462 METAL BOTTOM
CABINET (BLACK) ;ROHS 1
R598MB-P-0410 R598MB DVD "SUNSTECH PLF-
77TD" PACKING TO GERMANY
(ROHS)
1
015-80593-001 M593 DVB-T ANTENNA TQJ-V/U-
BT4 (BOBOTO) VHF174-
230/UHF470-862MHZ;ROHS
1
043-26102-541 1P RCA CABLE #26UL 1M (2 SIDE
RCA PLUG) YELLOW (Y001-
D100U182549B) (YIP
CHUN) ;ROHS
1
043-26102-542 2P RCA CABLE #26UL 1M (2P
SIDE RCA PLUG) WHITE/RED
(Y001-D10025622637A49B)
(Y.C.) ;ROHS
1
FOR BATTERY BOTTOM 136-70010-100 RUBBER FOOT (DIA.10X1)MM
NITTO 500 TAPE MATERIAL:
PORON #HH48C;ROHS
2
998-00000-093 BATTERY CR2025 3V
(YUFENG);(ROHS) 1
MI-M598MB-
001 R598MB (MI) DVD MAIN/CONT/TUNER BD. ASSY
(W/LINE SELECT) (ROHS)
1
MI-04620-100-15 R598MB (MI) DVD MAIN 1
1
8
PARTS LIST

Ref. No Parts No. Description QTY
BD.CHASSIS ASSY(W/LINE
SELECT SWITCH)(FOR
KHM313AHC)
Q37 003-03906-100 TRANSISTOR 2N3906
(MOTOROLA) (PNP TO-92) 1
Q45 003-08050-393 TRANSISTOR 8050C (KEC) 1
R200 005-10121-314 RESISTOR 120 OHM +-5% 1/4W
(ROHS) 1
CE14 009-10477-510ELECT CAP 470 UF +80%-20% 10V
(ROHS) 1
CE3,7,9,10,19,46,63,70,71,77
97,98,103, 105,107 009-30106-425 ELECT CAP 10 UF +-20% 25V (SS 4X7) (ROHS) 15
CE1,11,12,26,45,47,83,85,86,
89,90 009-30107-410 ELECT CAP 100 UF +-20% 10V (SS 5X7) (ROHS) 11
CE2,4,5 009-30107-416 ELECT CAP 100UF +-20% 16V (SS
6.3X7) (ROHS) 3
CE62,73 009-30227-410 ELECT CAP 220 UF +-20% 10V (SS
6.3X7) (ROHS) 2
CE52,57 009-30475-450 ELECT CAP 4.7 UF +-20% 50V (SS
4X7) (ROHS) 2
CE8,16,17,18,21,22,58 009-30476-410 ELECT CAP 47 UF +-20% 10V (SS
4X7) (ROHS) 7
CE6,87,88 009-30476-416 ELECT CAP 47 UF +-20% 16V (SS
5X7) (ROHS) 3
CE13,20,23,25,125,126 009-69107-406 ELECT CAP 100 UF +-20% 6.3V
(SM 5X5) (ROHS) 6
CE24 009-80107-410-
C02 ELECT CAP 100 UF +-20% 10V (CEC) LF TAPING 5MM
(K101MBPN0507O) 5*7 (ROHS)
1
VOL1 010-20103-161 ROTARY VOL. R1016G21B1-A10K
(DOUBLE) 10KA (SAME
PROPIT) ;ROHS
1
L40,41 015-00003-101 CHOCK COIL 2 3/4 T NO.:R0157-
CB33-858688 (ROHS) 2
L32,34,37,38 015-00011-001 TOROID COIL R142-880928 11T
(COILS) (ROHS) 4
L19 015-00100-506 CHOKE COIL 10 UH DIA.6
(RADIAL TYPE) (CW65-100K)
(ZHONGSHAN) ;ROHS
1
L18 015-00150-106 CHOKE COIL 15 UH DIA.6 1
Ref. No Parts No. Description QTY
(RADIAL TYPE) (CW65-150K)
(ZHONGSHAN) ;ROHS
L30 015-00331-106 CHOCK COIL 330 UH (CW45-
331K) (RADIAL TYPE) ;ROHS 1
L1,4,15,17 015-00470-106 CHOKE COIL 47 UH DIA.6
(RADIAL TYPE) (CW65-470K)
(ZHONGSHAN) ;ROHS
4
D25 019-12000-304 LED 3MM (RED) 304H (EVER
CHANNEL) (ROHS) 1
D22,23 019-15000-340 L.E.D. DIAMETER 3MM (GREEN)
L-34GDLK KINGBRIGHT(ROHS) 2
SW1 020-12203-151 SWITCH SK-22D03-VG3 (NS)
(SEIKO) ;ROHS 1
S1 020-14204-112 SWITCH SK-42D01EG4 (SEE-
PLUS) ;ROHS 1
S5,6 020-31100-061 DETECTOR SWITCH SPPB512300
(ALPS) ;ROHS 2
J9 021-23505-101 STEREO JACK EJS-3-0935B
(DAIICHI) BLACK(ROHS) 1
J10 021-23505-106 STEREO JACK ST-35072-02 (SEE-
PLUS) BLACK(ROHS) 1
J8 021-23505-107 ST.P/H JACK ST-3531HW
(WHITE) (5 PINS) (SEE-PLUS)
(ROHS)
1
J6 021-23506-105 STEREO JACK ST-3531HY (SEE-
PLUS) YELLOW (ROHS) 1
J7 021-34503-101 DC JACK 3PINS (DC-014)
SEIKO;ROHS 1
MAIN PCB (CON3) TO
TFT PCB (YC) 025-10003-148
3P #30UL D.SHIELD WIRE 220MM
(2P 1.25MM) JS-1146-03*2
(KARSON 920-333-00) ; ROHS
1
MAIN PCB (J4) TO USB
BD. J4A 025-10004-154
4P #28UL D.SHIELD WIRE 200MM
(2P 1.5MM)(ROHS) 1
MAIN PCB (J5) TO USB
BD. J5A 025-10006-155 6P #28UL J.WIRE 150MM (2P 1.5MM) JST (WHITE) ;ROHS 1
MAIN PCB (CON1) TO
TFT PCB (XS03) 025-10016-009 16P UL J.WIRE #32*16 230MM (2P 1MM) JST SHR-16V-S-B*2
(HOUSING +/-);ROHS
1
J4A 025-20004-109 4P WAFER H-TYPE (1.5MM
PITCH) JST(ROHS) 1
19
