SunSun NEO Series User manual

Operation Manual
Pond Pump NEO-Series
51000–51011

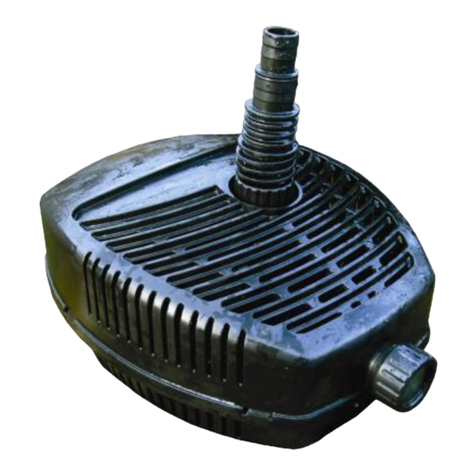

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. tten-
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus-
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 2
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

ntroduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety guideline
Beware
The use of this device is only allowed in standing water bodies, garden ponds or swimming ponds and
their surrounding areas with a fault current protection-switch with a triggering nominal current up to
30=m (according to VDE 0100 rticle 702 and 738).
The device is not suitable for use in swimming pools, paddling pools and other water bodies, where
people might be during operation. Operating the device while people are within the danger zone is not
allowed. sk your electrician!
The device is not intended for use by people (including children) with impaired or limited physical,
sensory and mental abilities or lack of experience and/or knowledge, unless they are supervised by a
person responsible for their safety or follow the instructions stated by this person on how to use the
device correctly.
Children should be supervised to make sure that they do not play with the device.
Attention!
Run a visual inspection of the device before every use. Do not use the device if the safety ap-
pliances are damaged or worn out. Never override safety regulations.
Use the device exclusively according to the intended purpose stated in these instructions.
You are responsible for the safety of the working environment.
If the cable or the plug is damaged due to external influences the cable must not be repaired!
It has to be replaced with a new one. This work may only be carried out by an electrician.
The voltage indicated on the type label of the device of 230=V C has to correspond to the ex-
istent mains voltage.
Never lift, carry or fixate the device by its power cable.
Make sure that the electrical plug connection is protected from flood and moisture.
Before working on the pond pump, disconnect the appliance by taking the plug out of the
socket.
void exposing the appliance to a direct water jet or rain.
The user is responsible for the compliance with local specific safety and installing regulations.
( sk an electrician.)
Damage arising from flooded rooms caused by dysfunctions of the appliance must be avoided
by means of the appropriate measures (e.=g. by installing an alarm system, a reserve pump).
In case of malfunction, the repair work can only be carried out by a qualified electrician.
The appliance must not run dry or with a completely closed intake line. The manufacturer’s
warranty is no longer valid if the damage is caused by dry running.
The appliance must not be used for swimming pools.
The device cannot be employed for potable water circuits.
Warning
Read all safety notes and the instructions thoroughly. Non-compliance with the safety rules and regu-
lations can lead to an electric shock, fire and/ or serious injury. Keep the instructions and the safety
notes in a safe place for future reference.
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 3
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

Stability
The temperature of the transported liquid should not exceed +35°C in permanent operation.
The transport of aggressive fluids (acids, alkalis, etc.) as well as of abrasive substances (e.=g. sand)
must be avoided.
Electrical connection
The electrical connection takes place via an electrical safety socket 230=V ~ 50=Hz. Fuse pro-
tection at least 10= .
The engine is protected against overloading or blocking by means of an integrated motor pro-
tection. In case of overheating the pump is turned off automatically due to the integrated over -
heating protection and after the pump has cooled down, it starts automatically.
Power connection
The pond pump is equipped with a safety plug. The device is designed to be connected to an isolated
ground receptacle with 230 V ~ 50=Hz. Make sure that the socket outlet is sufficiently fused (at least
6= ) and safe. Insert the plug in the socket outlet and the pond pump is ready for use.
Note: nstallation
Please position the pump under water and make sure that no water gets into the socket.
Fig. 1: The pump is to be installed as follows: in a fixed position with a fixed or flexible hose.
Use as Submersed Pump (see fig. 1)
Immerse the pump into the pond water, so that it fills with water.
To avoid the premature clogging of the filter, position the pump above the pond sludge.
The pump is started by plugging it into the mains plug.
Commissioning
fter reading the installation instructions carefully, the pump can be started considering the following
aspects:
Check if the pressure pipes have been installed properly.
Make sure that the electrical connection is 230=V ~ 50=Hz.
Check if the socket is in proper working order.
Make sure that moisture or water never reaches the mains connection.
void the pump from operating dry.
Do not use the pump without a filter basket, as this protects the pump from large debris which
can lead to blockage of the pump.
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 4
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

Maintenance notes
The pond motor pump is a maintenance-free and a practice-proven quality product that was subjected
to rigorous final inspections. For a long working life and continuous operation we recommend regular
checking and proper care.
Winter Storage
1. Take the pump out of the water and disconnect it from the power supply.
2. Clean the pump, as described in the instructions.
3. Check the pump for damage, such as cracks in the housing.
4. Please store the pump under frost-free conditions, if possible in a container filled with water.
Construction of the Pump
№ Name № Name
1Nut 10 Bearing housing
2Large o-ring 11 Motor
3Stepped hose nozzle 12 Rubber stopper
4daptor 13 Fastening clip
5Small o-ring 14 Upper filter cage
6Pump housing 15 Motor bracket
7Impeller 16 Inlet guard
8Impeller o-ring 17 Lower filter cage
9Impeller bearing 18 Upper filter cage ring
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 5
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

1. Unfasten the four clips on the upper filter
housing and gently pull to remove it.
2. If an inlet stepped hose nozzle is required,
remove the inlet guard.
3. ssemble and fit the inlet adaptor and
stepped hose nozzle as shown.
4. Replace the upper filter cage and fasten
the clips.
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 6
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH Item 51000–51011 Page 7
http://www.WilTec.de
http://www.aoyue.eu 12 2020-1
http://www.teichtip.de

EG-Konformitätserklärung
Declaration of Conformity / Déclaration de Conformité
(gemäß den Richtlinien 2014/35/EU NSR-Richtlinie)
Reference Nummer: 3163765.02AOC
Firma / Company / Société WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler, Deutschland
erklärt, dass das Produkt: Gartenpumpe, Teichpumpe
Type: NEO- 2800, NEO- 3800, NEO- 4800,
NEO- 5800, NEO- 5000, NEO- 6000,
NEO- 7000, NEO- 8000, NEO-10000,
NEO-12000, NEO-14000, NEO-16000,
rtikel: 51000, 51001, 51002, 51003,
51004, 51005, 51006, 51007, 51008,
51009, 51011
Verwendungszweck: Umwälzen und Filtern von Wasser
mit den folgenden EG-Rats-Richtlinien übereinstimmt:
This appliance is in conformity with the following European directives:
Cet appareil est conforme aux directives européennes=:
2014/35/EU
Es ist nach folgenden harmonisierten Normen geprüft worden:
It has been tested with the following harmonised standards:
Il a été testé à partir des normes harmonisées suivantes=:
EN60335-2-41:2003+ 1:2004+ 2:2010
EN60335-1:2012+ 11:2014
EN62233:2008
Eschweiler, 29. November 2016
__________________________
Bernd Wildanger
Geschäftsführer
