SunSun SuperEco JTP Series User manual

Operation Manual
SunSun SuperEco Filterpump
JTP- und JTP-R-Serie
51634-61645
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
T

The information contained in this document may be altered at any time without prior notice. opying or
spreading any part of this document in any way without prior written permission is prohibited. All rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operation manual, including the diagrams and figures contained within.
Even though, the WilTec Wildanger Technik GmbH has undergone the utmost effort to ensure that this
operation manual is complete, faultless and up to date, mistakes cannot be entirely avoided. We are
looking forward to hearing from you in case of you finding any mistakes or wishing to submit sugges-
tions for improvement.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us in advance
or to place your order via our webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. Atten -
tion! In order to allow for a smooth processing of your complaint or return, it is important to contact our
customer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: service wiltec.info
Tel:[phone]
Fax: [phone]
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 2
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this product. Please read this operation
manual carefully and make sure you have understood its content.
Keep this operation manual safe and accessible at all times.
CAUTION:
On standing water, garden and swimming ponds and in their vicinity, use of the unit is only permitted
with a residual current circuit breaker with a tripping rated current of up to 30 mA (according to VDE
0100 parts 702 and 738).
The unit is not suitable for use in swimming pools, paddling pools of any kind and other bodies of wa-
ter in which people may be present during operation. Operation of the unit while people are in the
danger zone is not permitted. onsult your electrician!
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervi-
sion or instruction concerning use of the appliance by a person responsible for their safety.
hildren should be supervised to ensure that they do not play with the appliance.
ATTENTION:
Perform a visual inspection of the appliance before each use. Do not use the appliance if
safety devices are damaged or worn. Never override safety devices.
Only use the appliance in accordance with the intended use specified in these instructions for
use.
You are responsible for safety in the work area.
If the power cord or electrical plug is damaged due to external influences, do not repair the
cable but replace it with a new one. This work may only be carried out by a qualified electri-
cian.
The voltage of 230 V A indicated on the unit's rating plate must correspond to the existing
mains voltage.
Never lift, transport or fasten the unit by the power cord.
Make sure that the electrical plug connections are protected from moisture and flooding.
Always disconnect the plug before working on the unit.
Avoid exposing the unit to a direct jet of water or rain.
The operator is responsible for compliance with local safety and installation regulations. on-
sult a qualified electrician if necessary.
The user must take suitable measures (e.g. installation of an alarm system, standby pump,
etc.) to prevent damage caused by flooding of rooms in the event of a malfunction of the unit.
In the event of a failure of the unit, repair work may only be carried out by a qualified electri-
cian.
The unit must never run dry or be operated with the intake line completely closed.
The unit must not be used for operating swimming pools.
The unit must not be installed in the drinking water circuit.
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 3
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

WARNING:
Read all safety notices and instructions. Failure to comply with safety notices and instructions may
result in electric shock, fire and/or serious injury.
Keep all safety notices and instructions for future reference.
Resistance
The maximum temperature of the pumped liquid should not exceed +35 in continuous oper℃-
ation.
Avoid pumping aggressive liquids (of acids, alkalis, silo leachate, etc.) and liquids with abras-
ive (rubbing-off) substances (e.g. sand).
Electrical connection
The electrical connection is made to an earthed socket 230 V ~ 50 Hz. Fuse protection at least
6 A.
The motor is protected against overloading or blocking by the built-in thermal motor protection.
In case of overheating, the overheating protection of the motor automatically switches off the
pump and after cooling down, the pump switches on again automatically.
Mains connection
The pond pump you have purchased is already equipped with a protective contact plug. The pump is
intended for connection to a 230 V~50 Hz earthed socket. Make sure that the socket is sufficiently
fused (min. 6 A) and in perfect condition. Insert the pump plug into the socket; the pump is then ready
for operation.
Notice:
Installation
Please position the pump under water and ensure that no water can get into the socket.
Features
New and clear design with variable frequency technology, low power consumption, high flow rate,
large capacity, good noise insulation, can be used in water and on land.
The ceramic shaft is wear-resistant, rust-proof and durable.
Suitable for fresh and salt water as it contains no copper
All components can be disassembled for easy cleaning.
With stepped hose nozzle, suitable for connecting hoses with different diameters.
Rotor blockage protection with immediate power cut-off in case of pump impeller blockage.
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 4
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

Technical data
Model Item no. Voltage Power (W) Max. head (m) Output (ℓ⁄h)
JTP-1800 51634
230 V/50 Hz
11 2,2 1800
JTP-2800 51635 18 3,0 2800
JTP-3800 51636 25 3,8 3800
JTP-4800 51637 32 4,5 4800
JTP-4000R 51638 25 3,2 4000
JTP-5000R 51639 30 3,6 5000
JTP-6000R 51640 40 4,0 6000
JTP-7000R 51641 50 4,4 7000
JTP-8000R 51642 60 4,8 8000
JTP-10000R 51643 80 6,0 10000
JTP-12000R 51644 100 6,5 12000
JTP-14000R 51645 120 7,0 14000

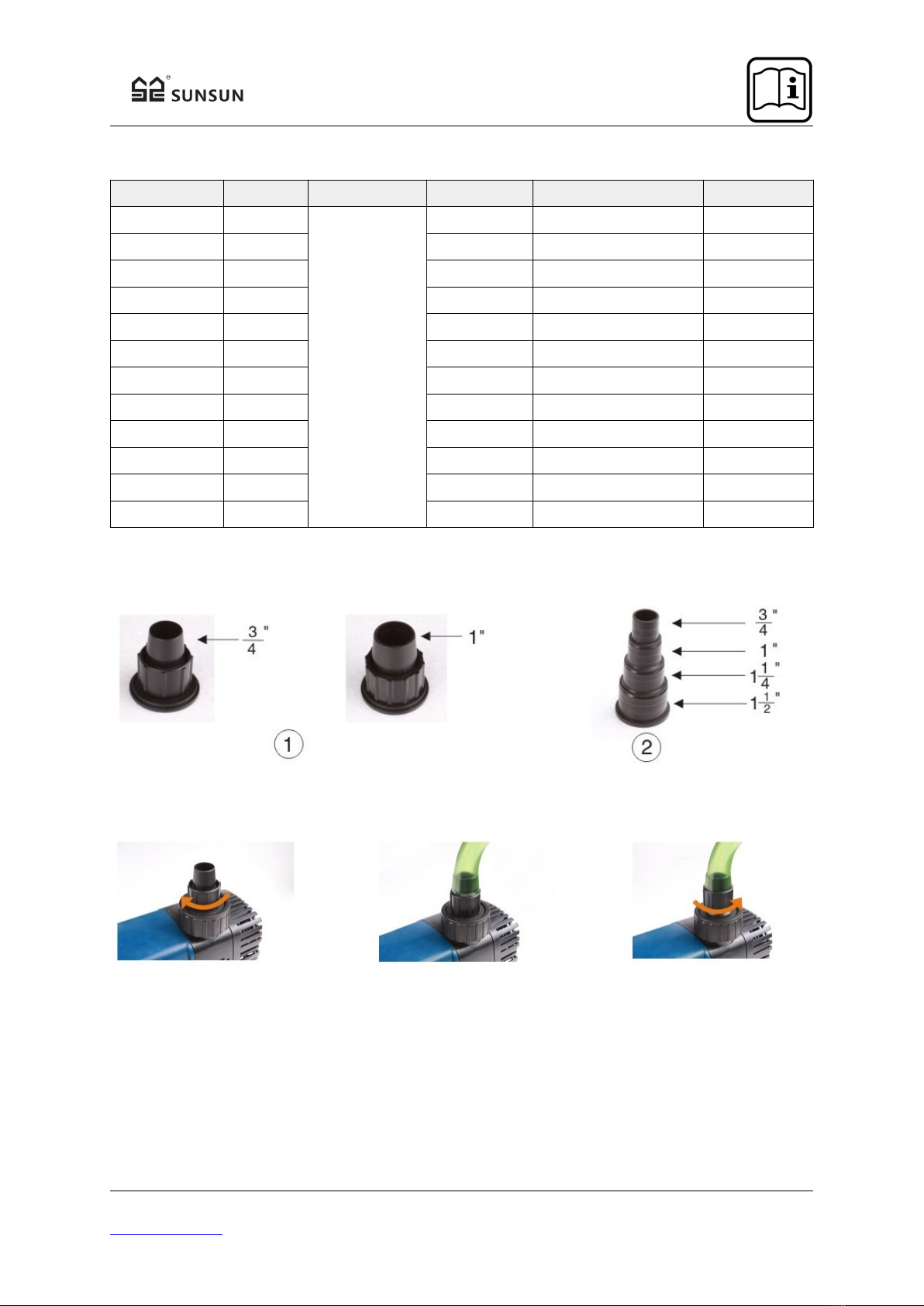

Notice!
There are 2 types for connection to inlet and outlet:
Type 1:
1. Loosen the screw nut clockwise.
2. onnect the hose. 3.
3. Tighten the screw nut anticlockwise.
Type 2 (multi-stage connections):
1. Select the right size for the connection and cut off the smaller connections.
2. onnect the hose.
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 5
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

Parts list and operating instructions
JTP-1800-2800-3800-4800
No. Designation No. Designation
1ontrol valve 6Bearing
2Filter casing 7Housing
3Impeller cover 8Rear cover
4Rotor 9able seal
5O-sealing ring 10 Base plate
Fig. 1: Set the flow rate using the rotary control.
Fig. 2: Open the filter housing by turning it in the direction of the arrow and then pulling it off.
Fig. 3: Move the snap lock on the base plate in the direction of the arrow.
Fig. 4: Remove the base plate.
Fig. 5: Turn the motor housing in the direction of the arrow and remove it.
Fig. 6: Pull the impeller and pump shaft out of the housing to clean or replace them.
Fig. 7: Make sure that the sealing ring is properly refitted before reassembling the pump.
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 6
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

JTP-4000R-5000R-6000R-7000R-10000R-12000R-14000R
No. Designation No. Designation
1Filter housing 6Bearing
2ontrol valve 7Housing
3Impeller cover 8Back cover
4Rotor 9Base plate
5O-sealing ring
Fig. 1: Set the flow rate with the help of the control dial.
Fig. 2: Open the filter housing by turning it in the direction of the arrow and then pulling it off.
Fig. 3: Remove the control valve in the direction of the arrow.
Fig. 4: Move the snap lock on the base plate in the direction of the arrow.
Fig. 5: Loosen the base plate.
Fig. 6: Turn the motor housing in the direction of the arrow and remove it.
Fig. 7: Pull the impeller and the pump shaft out of the housing to clean or replace them.
Fig. 8: Make sure that the sealing ring is properly refitted before reassembling the pump.
© by WilTec Wildanger Technik GmbH Item 51634-51645 Page 7
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registered in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this operation
manual require the written permission of WilTec Wildanger Technik GmbH.
