SunSun CUP-129 User manual

Operation Manual
UV Clarifier/Fountain Pumpe
CUP-129 – 50116
CUP-359 – 50342
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. tten-
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus -
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 2
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

Introduction
Thank you for purchasing this quality product. To minimize the ri k of injury we urge that our cli-
ent take ome ba ic afety precaution when u ing thi device. Plea e read the operation in-
truction carefully and make ure you have under tood it content.
Keep these operation instructions safe.
Safety in truction
CAUTION:
With standing water, garden and swimming ponds and in their vicinity, the device may only be used
with a residual current circuit breaker with a rated current of up to 30=m (according to VDE 0100 parts
702 and 738 – ssociation for electronical, eletrotechnical and informational technologies).
This device is not intended to be used by persons (including children) with limited physical, sensory or
mental capabilities or a lack of experience and / or knowledge, unless they are supervised by a person
responsible for their safety or have received by such a person instructions on how to use the device
properly.
Children should be supervised to ensure that they do not play with the device.
ATTENTION:
Perform a visual inspection of the device before each use. Do not use the device if safety
devices are damaged or worn. Never override safety devices.
Only use the device in accordance with the intended use specified in these operating instruc-
tions.
You are responsible for the safety in the work area.
If the cable or the plug is damaged due to external influences, the cable must not be repaired!
It must be exchanged for a new one. This work may only be carried out by a qualified electri-
cian.
The voltage of 230=volts C indicated on the nameplate of the device must correspond to the
existing mains voltage.
Never lift, transport or suspend the device by the power cord.
Make sure that the electrical plug connections are protected from flood and moisture.
Pull the power plug before working on the device.
void exposing the device to direct water jets.
The operator is responsible for compliance with location-specific safety and installation regula-
tions. If necessary, ask a qualified electrician.
The user must take appropriate measures to prevent consequential damage from flooding of
rooms in the event of malfunctions on the device (e.=g. installation of an alarm system,
standby pump, etc.).
If the device fails, repairs may only be carried out by a qualified electrician.
The device must never run dry or be operated with the suction line fully closed. The manufac-
turer’s guarantee is void for damage to the device caused by running dry.
The device must not be used to operate swimming pools.
The device must not be installed in the drinking water circuit.
The device may only be installed outside of the water.
Set up the device so that it is not exposed to direct sunlight.
The device must be fastened horizontally to a suitable mounting point using screws.
If necessary, the hose sleeves are to be shortened according to the hose diameter.
ttach hoses and hose clamps.
lthough ultraviolet radiation is the least energetic of the ionizing radiation, it can be danger-
ous for humans and other organisms. UV radiation with a longer wavelength can also destroy
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 3
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

chemical bonds in organic molecules. It is therefore advisable to use technical UV sources re-
sponsibly.
Only operate the tube in a closed, unbroken housing.
WARNING:
Read all afety warning and in truction . Failure to follow the safety instructions and instructions
could result in electric shock, fire and / or serious injury.
Keep all safety notices and instructions for future use.
Re i tance
The maximum temperature of the pumped liquid should not exceed +35°C in continuous operation.
No flammable, gas-forming or explosive liquids may be transported with this pump. This pump must
not be used for other liquids, especially not for engine fuels, cleaning agents and other chemical
products!
Electrical connection
The electrical connection hast to be made to a 230=V ~ 50=Hz protective contact socket. Fus-
ing at least 10 amps.
The device is switched on and off with the built-in on / off switch (depending on the respective
model).
Caution:
The devices of the CUP series are UV clarifiers with an integrated pump. They consist of a pump and
a UV lamp. They must not be used if they are damaged or open, as the UV rays can damage the eyes
and skin.
This device should be placed under water. Make sure that the device is completely sub-
merged in the water. The depth should not exceed 2 m.
Do not switch on the device before it is in the water. Damage can occur if the device is oper-
ated without water.
Please ensure that the device is on a solid surface and does not fall. Violent vibrations can
damage the quartz glass sleeve which it contains.
Only use the device if there is no evidence of damage to the cable or to the device itself.
The device must not be operated when people are in the water.
The maximum operating pressure of the device is 2 bar.
Area of application / functionality
This UVC device ensures healthy fish and clear water. You can use it in ponds as well as in aquari-
ums. The water is pumped through the UVC device with a pump. There it flows past a UV lamp and is
exposed to ultraviolet radiation which destroys the bacteria, pathogens and algae floating in the water.
This will clarify the water.
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 4
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

Operation
Turn on the pump and wait for the device to fill with water. Check all connections for leaks. The device
is put into operation by inserting the mains plug.
CUP-129/139
1. Filter cage
2. Sponge
3. Protective cover
4. Screw
5. Quartz glass sleeve
6. Fixation
7. Seal
8. Connection
9. Screw
10. Seal
11. UV lamp
12. Main unit
13. Floater
14. Bearing
15. Ceramic seal
16. Magnet
17. Ceramic axis
18. Bearing
19. Impeller cover
20. Water outlet
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 5
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

1. Filter cage cover
2. Filter cage
3. Sponge
4. Protective sleeve
5. Screw
6. Quartz glass sleeve
7. Fixation
8. O ring
9. Cover
10. Seal
11. UV lamp
12. Base plate
13. Water outlet
14. Top part
15. Ceramic seal
16. Magnet
17. Ceramic axis
18. O ring
19. Impeller
20. Impeller cover
21. Seal
22. Valve
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 6
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

Maintenance/cleaning
lways pull the power plug before maintenance and cleaning work. The device should be cleaned
once a year. The UVC lamp should be renewed annually as the output is only around 50% after one
year.
1. Pull out the power plug.
2. Switch off the pump and make sure that it cannot be switched on again accidentally.
3. Carefully loosen the screw connection at the end of the mains plug input of the UVC device (the
large housing screw, not the one on the cable). Remove the large screw on the top of the lamp
and pull out the device knob; then you can change the lamp.
4. Detach the main unit from the filter cage.
5. You can then start cleaning.
6. We recommend cleaning the quartz glass with a damp cloth. Please only use water for cleaning,
never sharp objects (screwdrivers, knives, etc.).
7. Check the envelope for possible damage before reinstalling it.
8. Return all parts to their original position. Finally, the O-ring is placed in the correct position through
the clamping plate screw.
9. When you reassemble the quartz glass, please make sure that there is no water in it. Please hold
the glass with a dry cloth.
10. When inserting the new hose, please remove the clip; this can protect the clip from breaking. If the
O-ring is broken, it must be replaced.
11. Please make sure that all sealing parts are cleaned and in their correct place, especially the O-
ring.
12. Finally, switch on the power supply to the pump again and then switch on the device.
Wintering
1. Clean the pump as described above.
2. Store the pump out of the water in a place protected from frost.
3. Check the pump for damage before starting it up again.
WARNING:
The device must be disconnected from the power supply for all maintenance work.
Do not use the device until it is COMPLETELY assembled.
Do not perform any work on a running device.
Never carry the device by the cable.
Demount the device in case of frost.
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 7
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

Di po al regulation
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 8
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

EG-Konformität erklärung
(gemäß den Richtlinien 2006/95/EC (LVD))
Hersteller / verantwortliche Person WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler, Deutschland

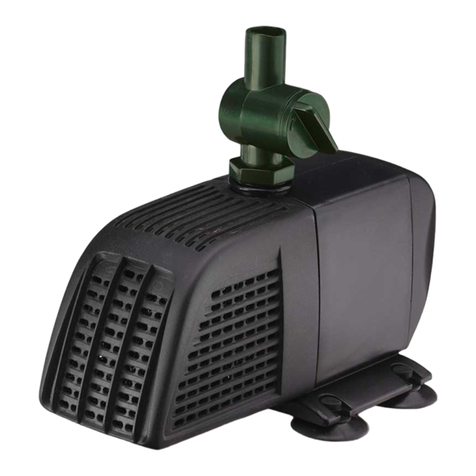

erklärt, dass das Produkt: UVc- Springbrunnenpumpe
Type: CUP-129, CUP-359
bei bestimmungsgemäßer Verwendung den grundlegenden nforderungen und den
weiteren entsprechenden Vorgaben gemäß den Richtlinien
2006/95/EC (LVD)
aufgrund seiner Konzipierung und Bauart sowie der von uns in Verkehr gebrachten usführung ents-
pricht.
Bei der Bewertung des Produkts hinsichtlich der nforderung der Richtlinien kamen die folgenden
Standards zur nwendung:
EN 60335-1:2002+ 1+ 11+ 12+ 2+ 13
EN 60335-2-41:2003+ 1
EN 62233:2008
Bei einer Änderung des Produktes verliert diese Erklärung Ihre Gültigkeit.
Eschweiler, 06.06.2012
__________________________
Bernd Wildanger
Geschäftsführer
© by WilTec Wildanger Technik GmbH Item 50116, 50342 Page 9
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
