Operation Manual

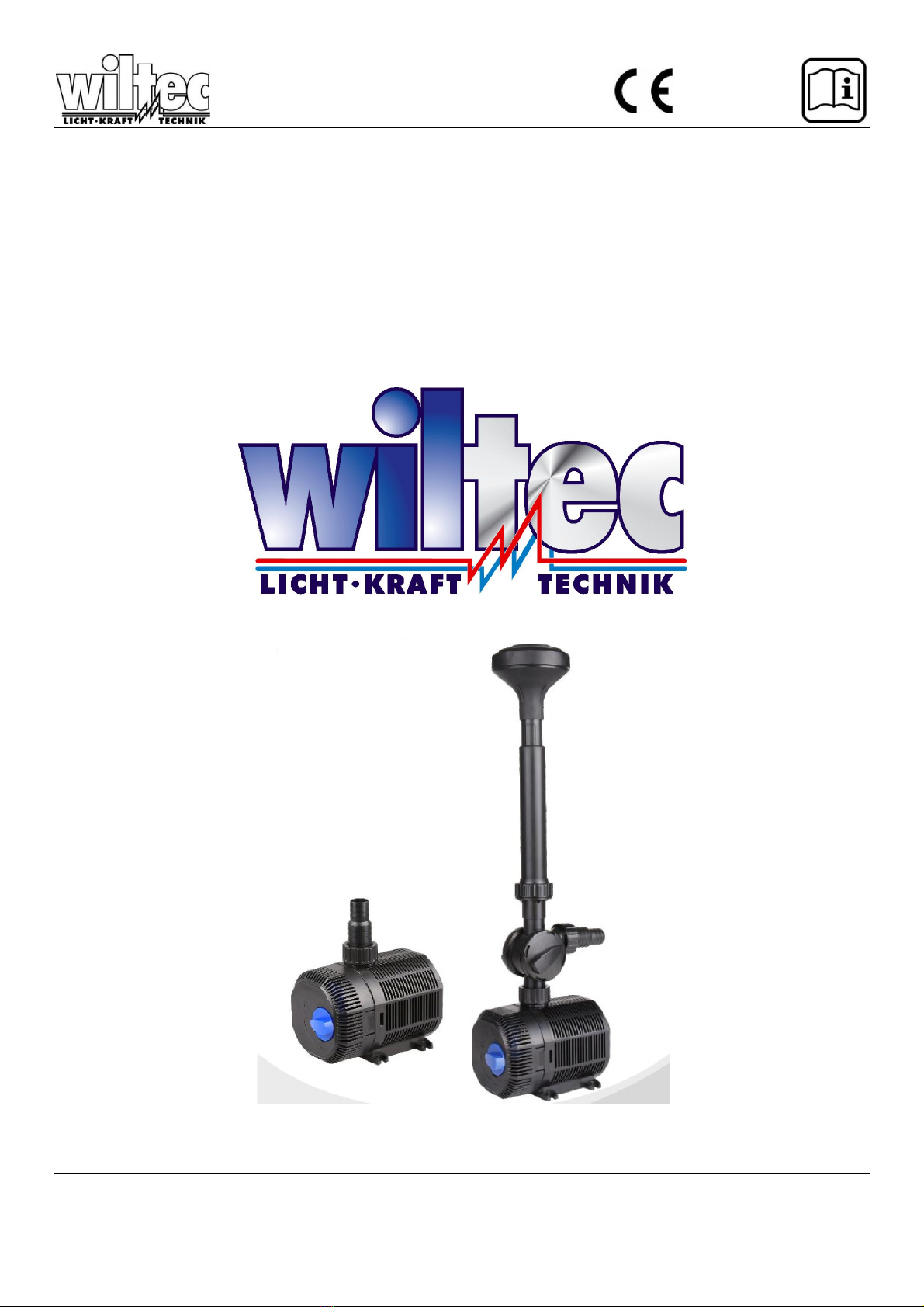

Fountain- Pond Pump
ARTICLE CQB 2003/2503 50337/50338
CQB 2000/2500 50248/50249
Read and follow the operating instructions and safety information before using for the first time.

© by WilTec Wildanger Technik GmbH Seite 23
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignifi-
cantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
The information contained in this document is subject to change without prior notice. No part of
this document can be copied or duplicated in another form without the prior written consent of Wil-
tec Wildanger Technik GmbH. The Wiltec Wildanger Technik GmbH assumes no liability for any
errors in this user manual or the connection diagram.
Although Wiltec Wildanger Technik GmbH has made every effort to make sure that this user man-
ual is complete, accurate and updated, errors cannot always be avoided. In the event of problems
with this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mistakes:
___________________________________________________________________
Customer Service Wiltec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ [phone]
Introduction

© by WilTec Wildanger Technik GmbH Seite 24
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or
electric shock we urge that our clients take some basic safety precautions when using this device.
Please read the operation instructions carefully and make sure you have understood its content.
Always use a grounded power connection with the appropriate mains voltage. You can find the
corresponding mains voltage on the type plate. If you have any doubts about the connection being
grounded, have it checked by a qualified professional. Never use a faulty electric cable.
Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when
you are wet yourself and protect it from direct sunlight. Install this device in a safe location so that
nobody can step on the cable, fall over or damage it. Make sure additionally you provide sufficient
cooling through the ambient air and avoid heat accumulation. Disconnect the power plug before
cleaning it and use only a damp cloth for cleaning.
The electric part of the device contains no parts that can be inspected or serviced by the user.
Leave the maintenance, adjustment and repair to qualified technical personnel. In case of unau-
thorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
Safety guideline
BEWARE:
The use of this device is allowed on standing bodies of water, garden ponds’ water or swimming
ponds and their surrounding areas only with fault current protection-switch with a triggering nomi-
nal current up to 30mA (according to VDE 0100 Article 702 and 738).
The device is not suitable for use in swimming pools, paddling pools and other bodies of water in
which during operation people. The operation of the device during the stay of people in the danger
zone is not allowed. Ask your electrician.
The device is not intended for use by persons (including children) with impaired or limited physical,
sensory and mental abilities or lack of experience and/or real knowledge, unless they are super-
vised by a person responsible for their safety or you follow the instructions made by this person
how to use the device correctly.
Children should be supervised to make sure that they do not play with the device.
ATTENTION:
•Run a visual inspection of the device before every use. Do not use the device if the safety
appliances are damaged or worn out. Never override safety regulations.
•Use the device exclusively according to the intended purpose stated in the instructions for
use.
•You are responsible for the safety of the working environment.

© by WilTec Wildanger Technik GmbH Seite 25
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
•If the cable or the plug is damaged due to external influences the cable must not be re-
paired! It has to be replaced with a new one. This work can be carried out only by an elec-
trician.
•The voltage indicated on the type plate of the device of 230 Volt alternating voltage has to
correspond to the existent mains voltage.
•Never lift, carry or fixate the device by using the power cable.
•Make sure that the electrical plug connection is placed in a flood-proof area and is protect-
ed from moisture.
•Before working on the pond pump disconnect the appliance by taking the plug out of the
socket.
•Avoid exposing the appliance to a direct water jet or rain.
•The user is responsible for the compliance with location specific safety and installing regu-
lations. (Ask an electrician).
•Consequential damage arising from flooded rooms caused by dysfunctions of the appliance
must be avoided by means of the appropriate measures. (installing an alarm system, reser-
ve pump).
•In case of malfunction the repair work can be carried out only by a qualified electricial or the
WilTec-service.
•The appliance must not run dry or with a completely closed intake port. The manufacturer’s
guarantee is no longer valid if the damage is caused by dry running.
•The appliance must not be used for swimming pools.
•The device cannot be employed for potable water circuits.
WARNING:
Read carefully all the safety guidelines and the instructions.
Non-compliance with the safety rules and regulations can lead to an electric shock, fire and/or se-
rious injury. Keep the instructions and the safety guidelines in a safe place in case you need them
in the future.
Stability
The max. temperature of the conveyed liquid should not exceed +35°C in permanent operation.
The conveyance of aggressive fluids (acids, bases, etc.) as well as of abrasive substances (for
example sand) must be avoided.
Electrical connection
•The electrical connection takes place via an electric safety socket 230 V ~ 50 Hz. Fuse protec-
tion at least 6 Amperes.
•The engine is protected against overloading or blocking by means of a built-in motor protection.
In case of overheating the pump is turned off automatically due to the overheat protection and
after the cooling the pump is automatically started.
Power connection
The pond pump is equipped with a safety plug. The device is designed for connection to an isolat-
ed ground receptacle with 230 V~50 Hz. Make sure that the socket outlet is sufficiently fused (at
least 6A) and safe. Insert the plug in the socket outlet and the pond pump is ready for use.

© by WilTec Wildanger Technik GmbH Seite 26
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
Note:
Installation
The Pump has to be installed under water. Make sure that moisture or water never reaches the
mains connection.
The pump is to be installed as follows: in a fixed position with fixed or flexible hose.
Take care, that there are no bubbles in the hoses.
Immerse the pump into the pond water (min 20cm), so that it is filled with water.
To avoid the premature clogging of the filter, position the pump above the pond sludge.
Install the supplied filter sponge to keep the pump inlet free.
The pump is started by plugging in the mains plug.
Commissioning
After reading the installation instructions carefully, you can start the new pump if you note the fol-
lowing aspects:
•Connect the rubber feet with the Motor Body and Filter Basket.
•Check if the pressure pipes have been installed properly.
•Make sure that the electrical connection is 230V~50Hz.
•Check if the socket is in proper working order.
•Make sure that moisture or water never reaches the mains connection.
•Install the Pump under the Water surface.
•Avoid that the pump operates dry.

© by WilTec Wildanger Technik GmbH Seite 27
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
Warranty Information
Not covered by warranty:
•Damaging the mechanical seal due to dry running or pumping cleaning agents or other chemical
substances.
•Damages in transit
•Damages caused by unauthorised interference
•Parts subjects to wear (propeller, sealing flange) do not fall under warranty.
Hints for maintenance!
The pond motor pump is a maintenance-free and a practice-proven quality product that was sub-
jected to rigorous final inspections. For a long working life and continuous operation we recom-
mend regular checking and proper care.
Maintenance and Cleaning
Overload protection:
The pump has an integrated overheat protection. After the pump is stopped it has to cool down for
a while due to the overheat control device, before it runs again. In case it does not run again by
itself, the following checks shall be conducted:
Could the pump cool down sufficiently due to the overheat protection after being stopped?
Is the water supply sufficient? > Improve the water supply!
Is the filter clogged? > If necessary rinse the filter!
Is there dirt in the pump housing? > Perform cleaning!
Is the hose or the pipe clogged? > Clear the hose/pipe!
Is the hose broken, too long? > Check, replace, shorten!
Technical specifications:
Modell SunSun CQB
2000/2500
Abmessungen(mm) 175 x 105 x 100
Motor Synchron
Eingangsspannung 230VAC ~50Hz
Leistungsaufnahme 45 Watt
Maximale Förderhöhe 2,4 m
Max. Fördermenge in l/h 2700
Modell SunSun CQB-2003
/ CQB 2503
Dimensions(mm) 193 x 99 x 99
Motor Synchron
Eingangsspannung 230VAC ~50Hz
Leistungsaufnahme 35 Watt
Maximale Förderhöhe 2 m
Max. Fördermenge in l/h 2300
Schlauchanschluss Ø / Zoll 19 mm (3/4“) 25mm (1“)

© by WilTec Wildanger Technik GmbH Seite 28
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017

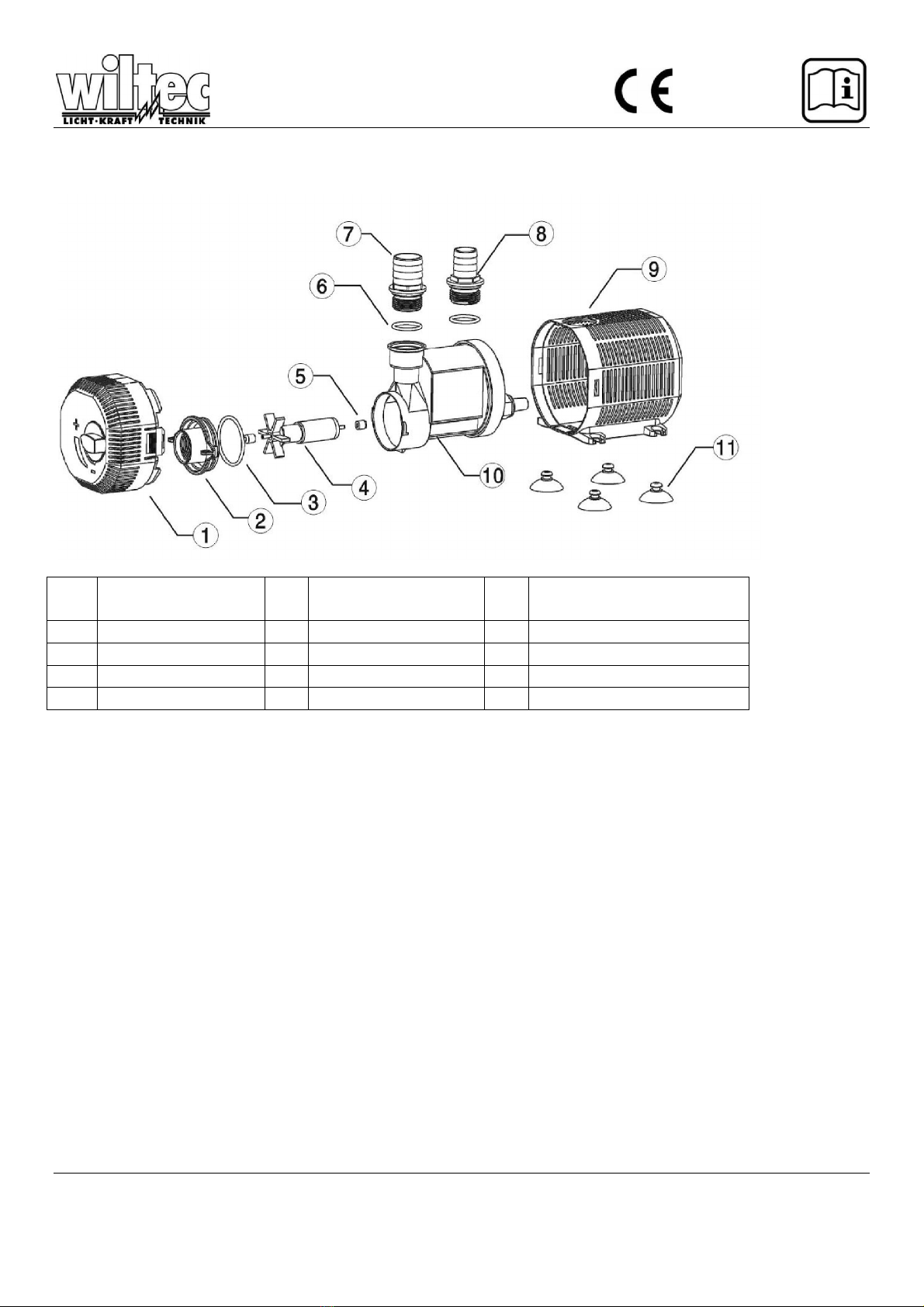

Construction of the pump:
CQB 2000/2500 50248/50249
No. Name No
. Name No . Name
1 Front Filter 5 Rubber Bearing 9 Big Filter
2 Impeller Cover 6 O-Ring 2 10 Motor
3 O-Ring 1 7 Big outlet 11 Rubber feet
4 Impeller/ Rotor 8 Small outlet
Maintenance and cleaning of the pump:
Disconnect the pump!
Pull the Front Filter away from the Motor body. Now you can see the Motor body. Pull the Impeller
out of the Motor body and clean everything by using a sponge with water.
Assembly:
Introduce the rotor/impeller assembly carefully in the motor housing/pump body. Make sure that
the rotor is properly placed and can rotate freely.
Connect the Pump housing with the Filter basket and place them onto the Motor body. Then the
pump is ready to use.

© by WilTec Wildanger Technik GmbH Seite 29
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
ARTIKEL CQB 2003/2503 50337/50338
No. Name No. Name No. Name
1 Fountain Head 7 Front Filter 13 Rubber feet
2 Press Nut 8 Impeller Cover 14 Big Filter
3 Riser Stem 9 Rubber Bearing 15 Outlet Nut
4 Connect Part 10 Rotor/ Impeller 16 Outlet
5 Piverter Valve 11 Shaft 17 Gasket
6 Connect Part 2 12 Motor 18 Water bell/ Fountain
Head

© by WilTec Wildanger Technik GmbH Seite 30
http://www.wiltec.de
http://www.aoyue.eu
http://www.teichtip.de Version 6. 2017
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2002/96/EC) were im-
plemented in the law related to electrical and electronic equipment and appliances.
All Wiltec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with
the domestic waste.
The company Wiltec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances (intended for use in the countries of the Eu-
ropean Union and other European countries with a separate collection system for these applianc-
es).
The logo on the article or on its packaging points out that this article must not be treated as nor-
mal household waste but must be disposed to a recycling collection point for electronic and elec-
trical waste equipment. By contributing to the correct disposal of this article you protect the envi-
ronment and the health of your fellow men. Environment and health are threatened by inappropri-
ate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instruc-
tions manual require the written permission of Wiltec Wildanger Technik GmbH.
