Hybrid Parity (Super) Inverter
WITH STORAGE V 1.02
USER MANUAL
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street,
Kwun Tong, Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
www.sunsynk.com [email protected] www.globaltechhk.com
8.8KW PLUS PARALLEL VERSION

Web: www.sunsynk.com Email: [email protected]
2
Index Page
Section 1 Safety
1.01 System overview
Section 2 Product Information
Section 3 Installation
3.01 Installing the inverter
3.02 Mounting the inverter
3.03 Battery connection
3.04 AC connection
3.05 Installing the CT coil
3.06 Connecting the PV
Section 4 Operation
4.01 The display
4.02 Switching on/off
4.03 Home page
4.04 Status page
4.05 Set up page
4.06 Basic set up
4.07 Time set
4.08 Power shaving
4.09 Factory reset
4.10 Battery set up
4.11 Generator and battery set up
4.12 Battery discharge
4.13 Smart load
4.14 Wind turbine
4.15 Grid set up page and timers
4.16 Sell control
4.17 Grid supply page
4.18 Solar power produced data
4.19 Grid power data
Section 5 Fault Diagnostic
Section 6 Examples of modes of operation
6.01 On-grid no PV
6.02 On-grid with PV
6.03 On-grid with UPS
6.04 Off-grid with Solar
6.05 Off-grid and smart load
6.06 Off-grid with generator
Section 7 Advanced Circuits
7.01 Circuit design of an auto-start for a generator
7.02 Advanced wiring: 24KW 3-phase system layout
7.03 80KW system with 10 inverters in parallel
A1-11 Appendix

Web: www.sunsynk.com Email: [email protected]
3
1 Safety
WARNING !! HIGH RISK OF FIRE OR ELECTROCUTION.
The Sunsynk Parity Hybrid inverter can only be installed by a qualied
licensed electrical contractor this is NOT a DIY product.
• Be sure to read this manual thoroughly before installation.
Do not attempt to install the inverter by yourself. Installation work must be performed in accordance with
national wiring standards by authorised personnel only. Do not turn on the power until all installation work
is complete.
• Always use a separate power supply line protected by a circuit breaker operating on all wires with a
distance between contact of 3mm for this unit.
• The unit must be correctly grounded and the supply line must be equipped with a suitable breaker and
RCD in order to protect the persons.
• The units are not explosion proof and therefore should not be installed in explosive atmosphere.
• Never touch electrical components immediately after the power supply has been turned off. Electric shock
may occur. After turning off the power, always wait 5 minutes before touching electrical components.
• This unit contains no user-serviceable parts. Always consult authorised service person for repairs.

Web: www.sunsynk.com Email: [email protected]
4
1.01 System Overview
The Sunsynk Hybrid Parity Inverter is a highly efcient power management tool that allows the user to hit
those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and
generator and then effectively storing and releasing electric power as the utilities require.
The Inverter has many uses and is recommended for the following applications:
• Marine (vessel power management)
• Power shedding (home/ofce/factory)
• UPS (fuel saving systems)
• Remote locations with solar and wind generators
• Building sites
• Military locations
• Telecommunication sites
FEATURES
•
220V single phase, pure sine wave inverter
•
Self consumption and feed-in to the grid
•
Auto re-start while AC is recovering
•
Programmable supply priority for battery or grid
•
Programmable multiple operation modes; on-grid/off-grid & UPS
•
Configurable battery charging - current/voltage based on applications by LCD setting
•
Configurable AC / solar / generator charger priority by LCD setting
•
Compatible with mains voltage or generator power
•
Overload/over-temperature/short-circuit protection
•Smart battery charger designer optimised battery protection
•
Limit-function installed to prevent excess power overflow to grid
•
Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
•Smart settable 3-stage MPPT charging for optimised battery performance
•
Time of use function
•
•
Smart load function
•Parallel function on-grid & off-grid

Web: www.sunsynk.com Email: [email protected]
5

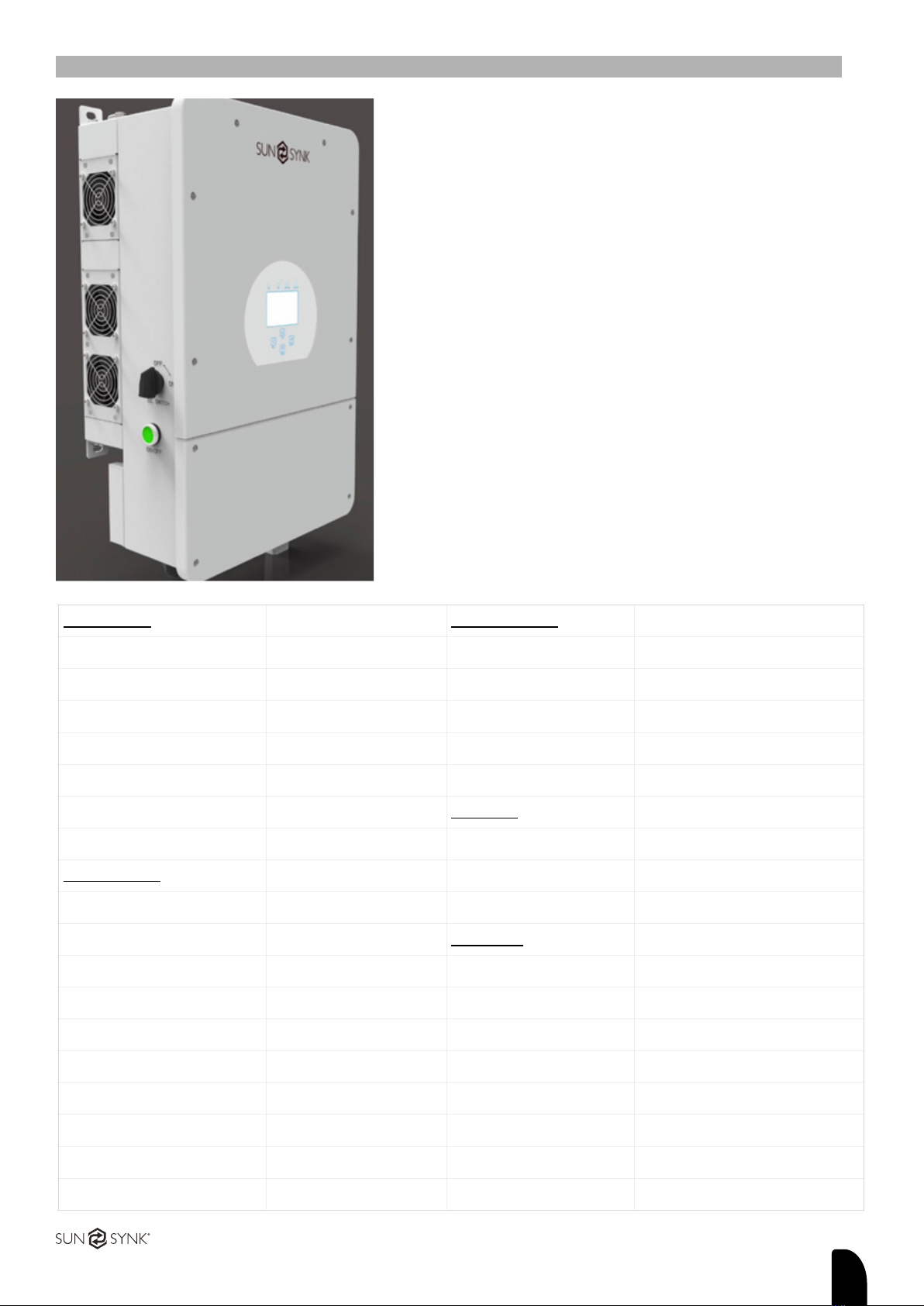

2.00 Product Information
Battery Data AC Output Data
Type: Lead-acid or Li-Ion Rated AC Output & UPS: 8,000W
Battery Voltage Range (V): 40V-60V (Norm. 48V) Peak Power Off-Grid: 12,000W(10 sec)
Max. Charging Current (A): 185 Amps Max AC Current ( I ): 33 Amps
Max. Discharging Current (A): 185 Amps Output Frequency: 50 / 60 Hz
AGM Charging Curve: 3-Stage / Equalisation THD: <3%(Linear Loading<1.5%)
External Temperature Sensor: Optional Efficiency
Charging for Li-Ion Battery: Self-adaption to BMS Max. Efficiency: 97.6%
PV Input Data Euro Efficiency: 97%
Max. DC Input Power (W): 10,000W MPPT Efficiency: 99.9%
Max. DC Input Voltage (V): 500V Protection
MPPT Range (V): 125-425V PV Arc Fault Detection: PV Input lighting protection
Start Up Voltage (V): 150V Anti-Islanding Protection: PV reverse polarity protection
Max. Input Current (A): 18A + 18A Insulation Resistor: Residual Current Monitoring Unit
Number of MPPT Trackers: 2Output Over Current: Output short circuit protection
Number of Strings per MPPT: 2+2 Output Over Voltage: -
Operating Temperature: -25℃to 60℃
Weight: 32Kg Noise (db): <30 db
Size (width x height x depth): 640 x 420 x 233mm Communication with BMS RS485: CAN

Web: www.sunsynk.com Email: [email protected]
6
3.00 Installing the Inverter
3.01 Installing the Inverter
Do not install the unit in the following areas:
• Area with high salt content, such as marine environment. It will deteriorate metal parts, causing the parts
to fail or the unit to leak water.
• Area lled with mineral oil or containing a large amount of splashed oil or steam, such as a kitchen. It will
deteriorate plastic parts, causing the parts to fail or the unit to leak water.
• Area that generates substances that adversely affect the equipment, such as sulphuric gas, chlorine gas,
acid, or alkali. It will cause the copper pipes and brazed joints to corrode, which can cause refrigerant
leakage.
• Area that can cause combustible gas to leak, contains suspended carbon-bre or ammable dust, or vola
tile inammables such as paint thinner or gasoline.
• If gas leaks and settles around the unit, it can cause a re.
• Any area where animals may urinate on the unit or ammonia may be generated.
• Do not install at an altitude above 2000 meters above sea level.
• Do not install in an environment of precipitation or humidity above 95%
• Do not Install the unit where drainage is problematic. ALSO CONSIDER :-
• Install the indoor unit, outdoor unit, power supply cable, transmission cable, and remote control cable at
least 1 m away from a television or radio receivers. The purpose of this is to prevent TV reception
interference or radio noise.
• (Even if they are installed more than 1 m apart, you could still receive noise under some signal conditions.)
• If children under 10 years old may approach the unit, take preventive measures so that they cannot reach
the unit.
• Install the indoor unit on the wall where the height from the oors more than 1800 mm.

Web: www.sunsynk.com Email: [email protected]
7
3.02 Mounting the Inverter
Fixing the inverter to a wall
Select installation locations that can properly support the weight of the unit.
Install this inverter at eye-level in order to allow the LCD display to be read at all times.
The ambient temperature should be between -25~60°C to ensure optimal operation.

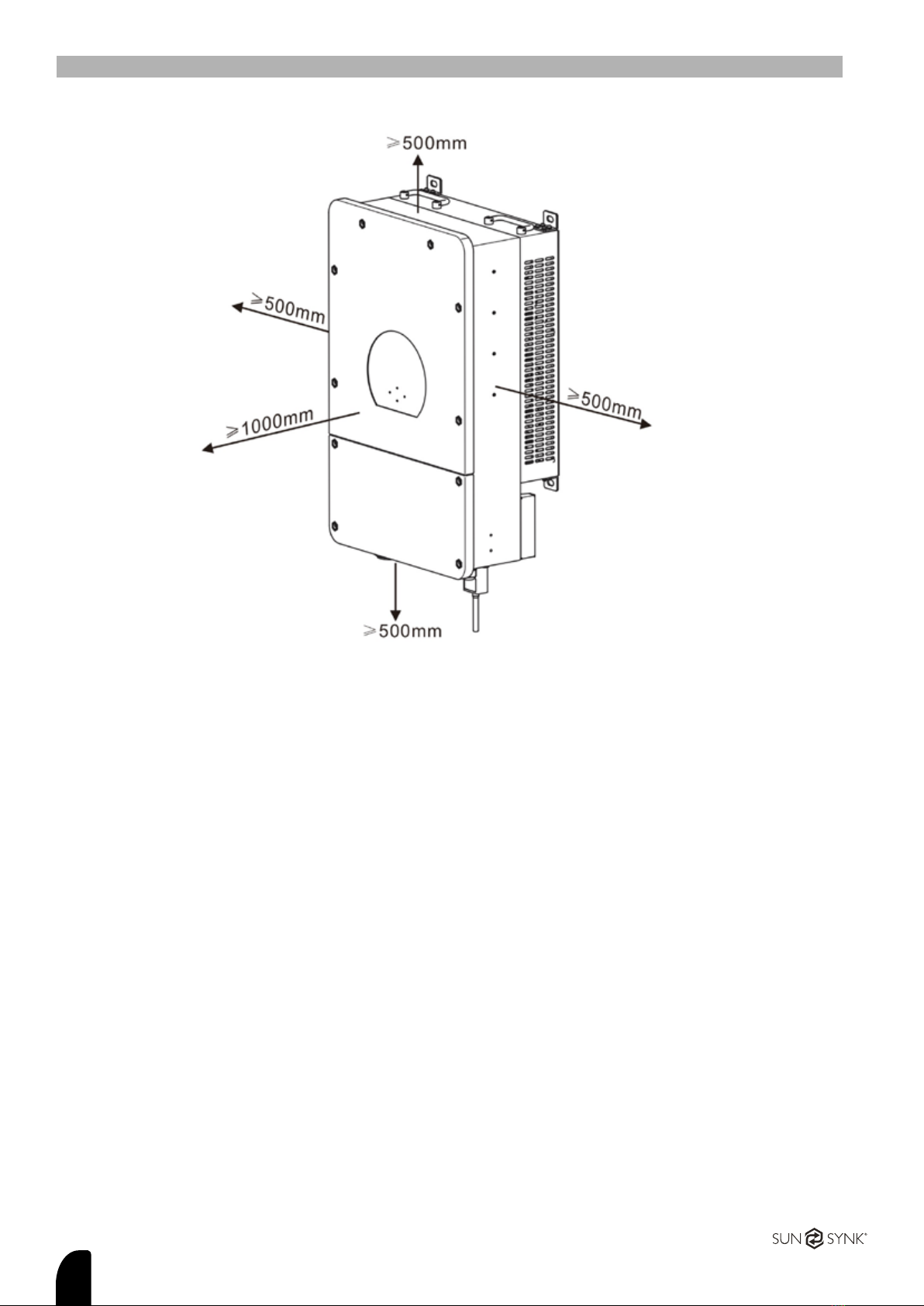

Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and have enough
space for removing wires.
For proper air circulation to dissipate heat, allow a clearance of approx. 50cm to the side.
Remember that this inverter is heavy! Please be careful when
lifting out from the package.
removing the inverter from the packaging and mounting onto
the wall

Web: www.sunsynk.com Email: [email protected]
8
3.03 Battery Connection
For safe operation and compliance, a separate DC over-current protector or disconnect device (see next page) is
required between the battery and the inverter. In some applications, switching devices may not be required but
over-current protectors are still required.
Recommend minimum battery cable size of 5.5kW 35mm diameter and 8.8kW 50mm diameter.
Before making the nal DC connection or closing DC breaker / disconnection; ensure the inverter is wired to the
correct. Reverse polarity connection on battery will damage the inverter.

Web: www.sunsynk.com Email: [email protected]
9
Recommend use a suitable fuse and DC Isolator
Battery hook up cable 50mm
Isolator switch 250/350 Amp
DC fuse 250 Amp
v+ v-
+ -

Web: www.sunsynk.com Email: [email protected]
10
3.04 AC Connection
AC connection single inverter
Ensure suitable disconnection
devices and RCDs are tted.
Cable sizing should be used
as per the countries code of
practice.
All wiring must be in accordance with the country wiring regulations and
code of practices
Gen:- This is for connection of a generator controlling a micro-inverter or smart-load.
Load:- This is the off-grid inverter and can be used as a UPS.
Grid:- This is the on-grid (parity) export limiting the grid tie inverter.

Web: www.sunsynk.com Email: [email protected]
11

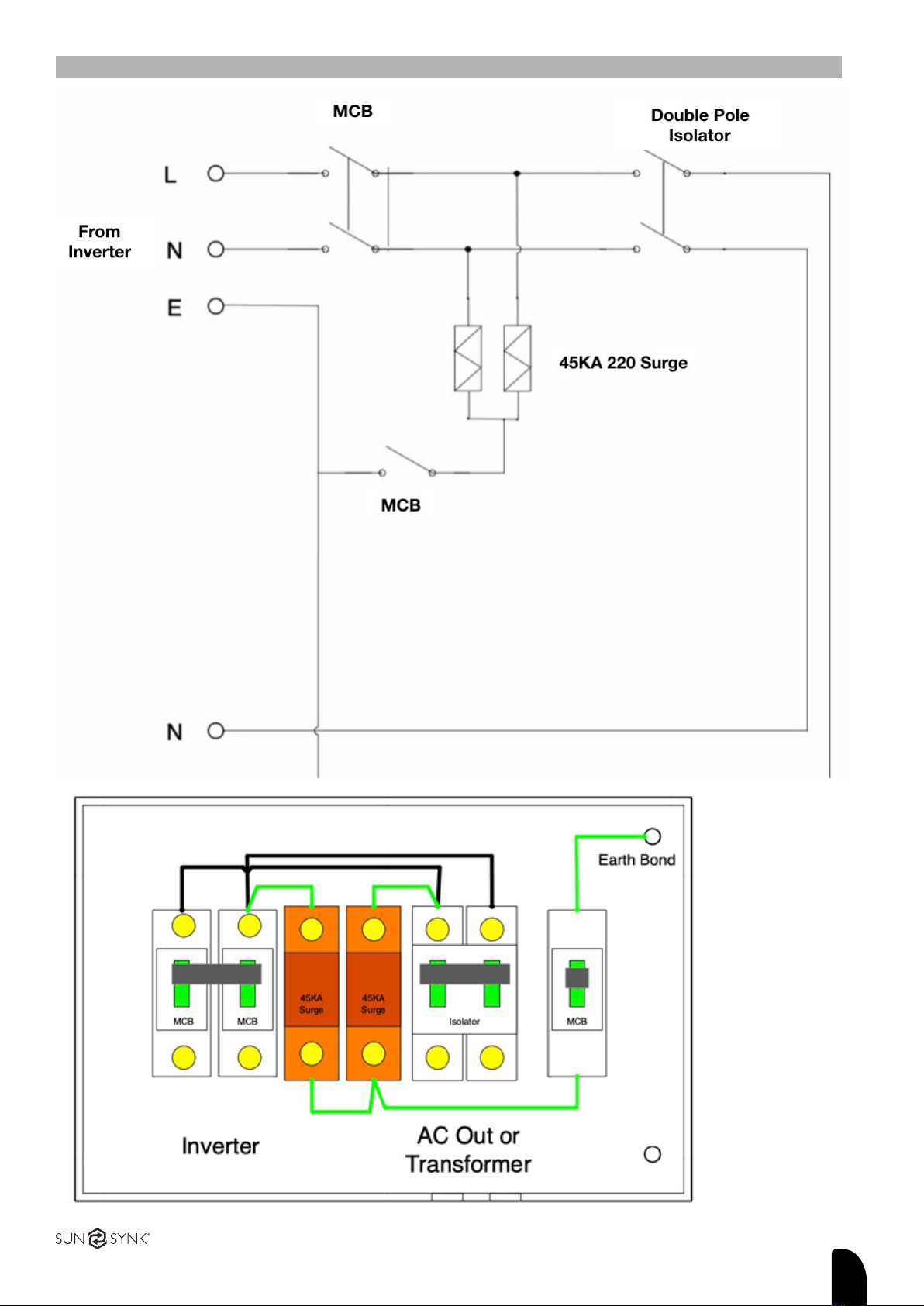

Recommend Using a Suitable AC Surge Protector Circuit

Web: www.sunsynk.com Email: [email protected]
12

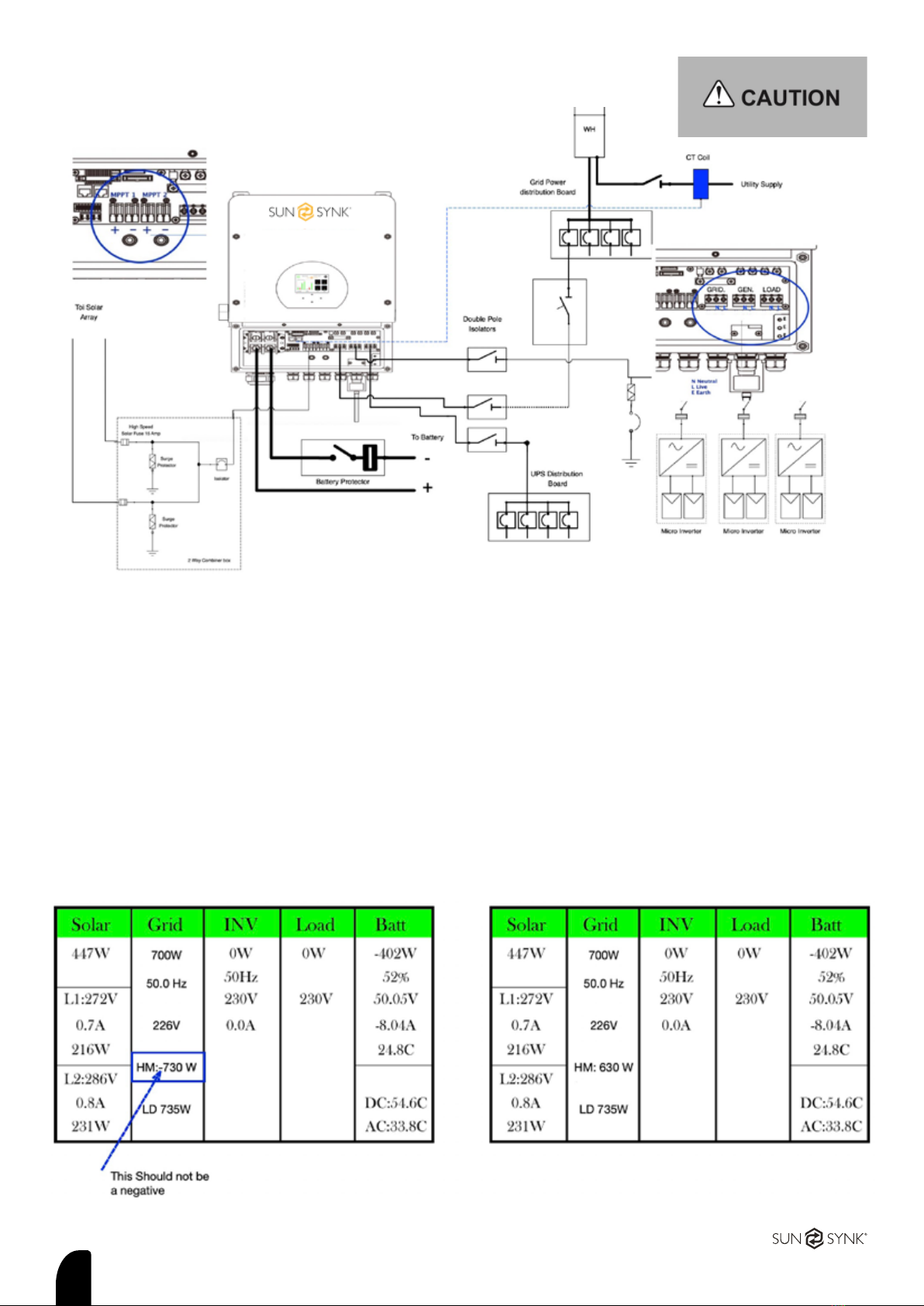

3.05 Installing the Coil
The CT coil is one of the most important parts of the Sunsynk parity inverter, this is the device that senses
any export power and reduces the power of the inverter to obtain zero export.
Fit the coil (sensor) around the live cable on the main fuse feeding the building (see below) and run the
cable back to the inverter, this cable can be extended up to an extra 10 metres using similar cable.
Connect the other end of the CT coil into the inverter terminals marked CT coil (see the pic below to the
right).
IMPORTANT Check the coil is tted correctly less the battery icon to see the screen below.
If the CT coil is tted backwards it will show on the HM power a negative value will be shown on the screen
below, if this is the case turn the CT coil by 180’ (re - check).

Web: www.sunsynk.com Email: [email protected]
13
The inverter has two built-in MPPT controllers; MPPT 1 and MPPT 2, which can connect two sets of panels in
parallel with a maximum current of 18 Amp (as above). Before connecting to PV modules, install a separate
DC circuit breaker between the inverter and PV modules. To avoid any malfunction, do not connect any PV
modules with possible current leakage to the inverter. For example, grounded PV modules will cause current
leakage to the inverter. Open circuit voltage (Voc) of PV modules not exceeds max. PV array open circuit
voltage open circuit voltage (Voc) of PV modules should be higher than min. start voltage.

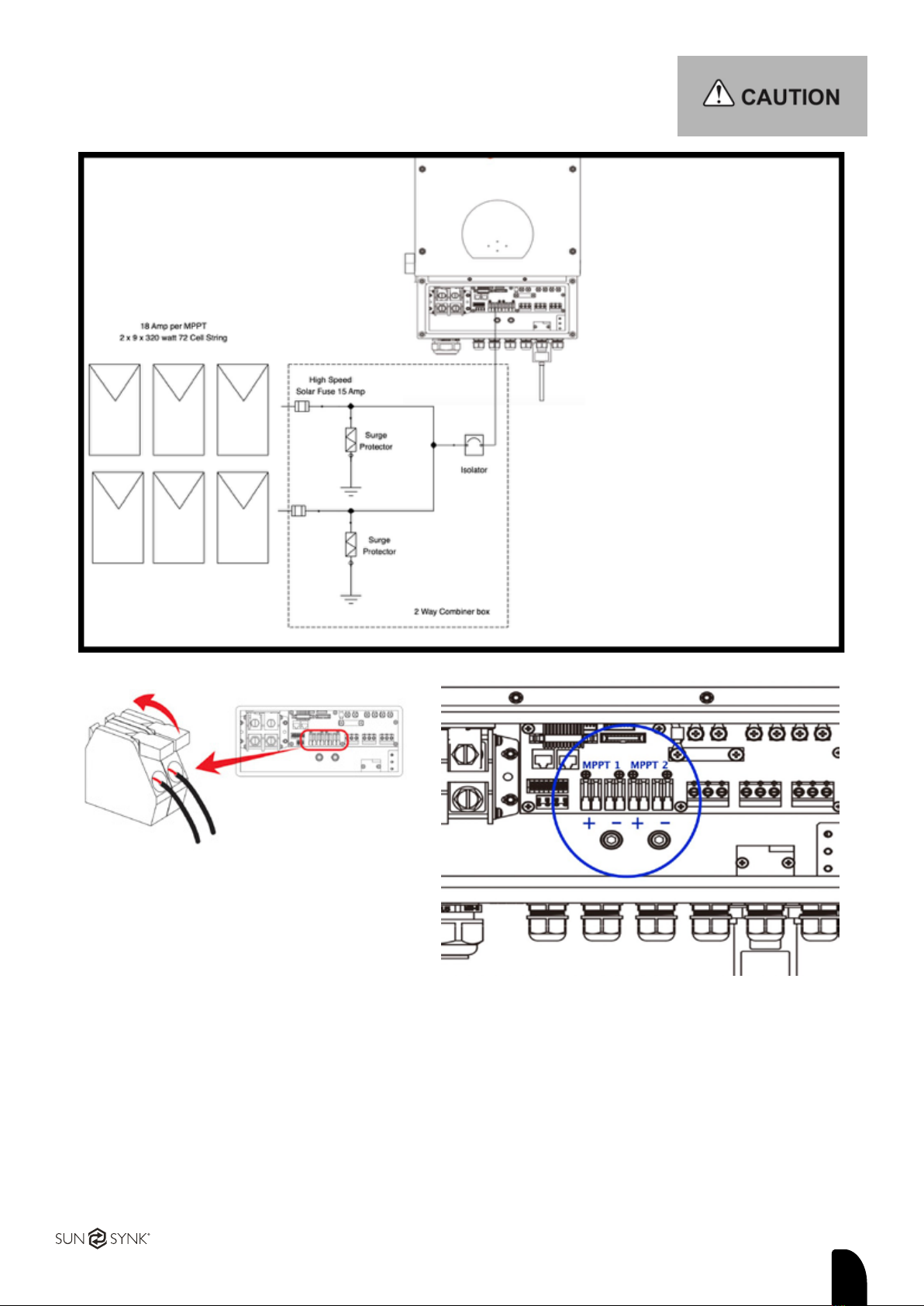

3.06 Connecting the PV
Connecting PV panels
The inverter has two built-in MPPT controllers
MPPT 1 can connect two sets of panels in
parallel with a max. current of 18 Amp, while
MPPT 2 can connect one set of panels with a
max. current of 9 Amp
Before connecting to PV modules, install a separate DC circuit breaker between the inverter and PV modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter.
For example, grounded PV modules will cause current leakage to the inverter.
Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage
Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage.
The inverter has two built-in MPPT controllers
MPPT 1 can connect two sets of panels in
parallel with a max. current of 18 Amp, while
MPPT 2 can connect one set of panels with a
max. current of 9 Amp
Before connecting to PV modules, install a separate DC circuit breaker between the inverter and PV modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter.
For example, grounded PV modules will cause current leakage to the inverter.
Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage
Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage.

Web: www.sunsynk.com Email: [email protected]
14
4.00 Operation

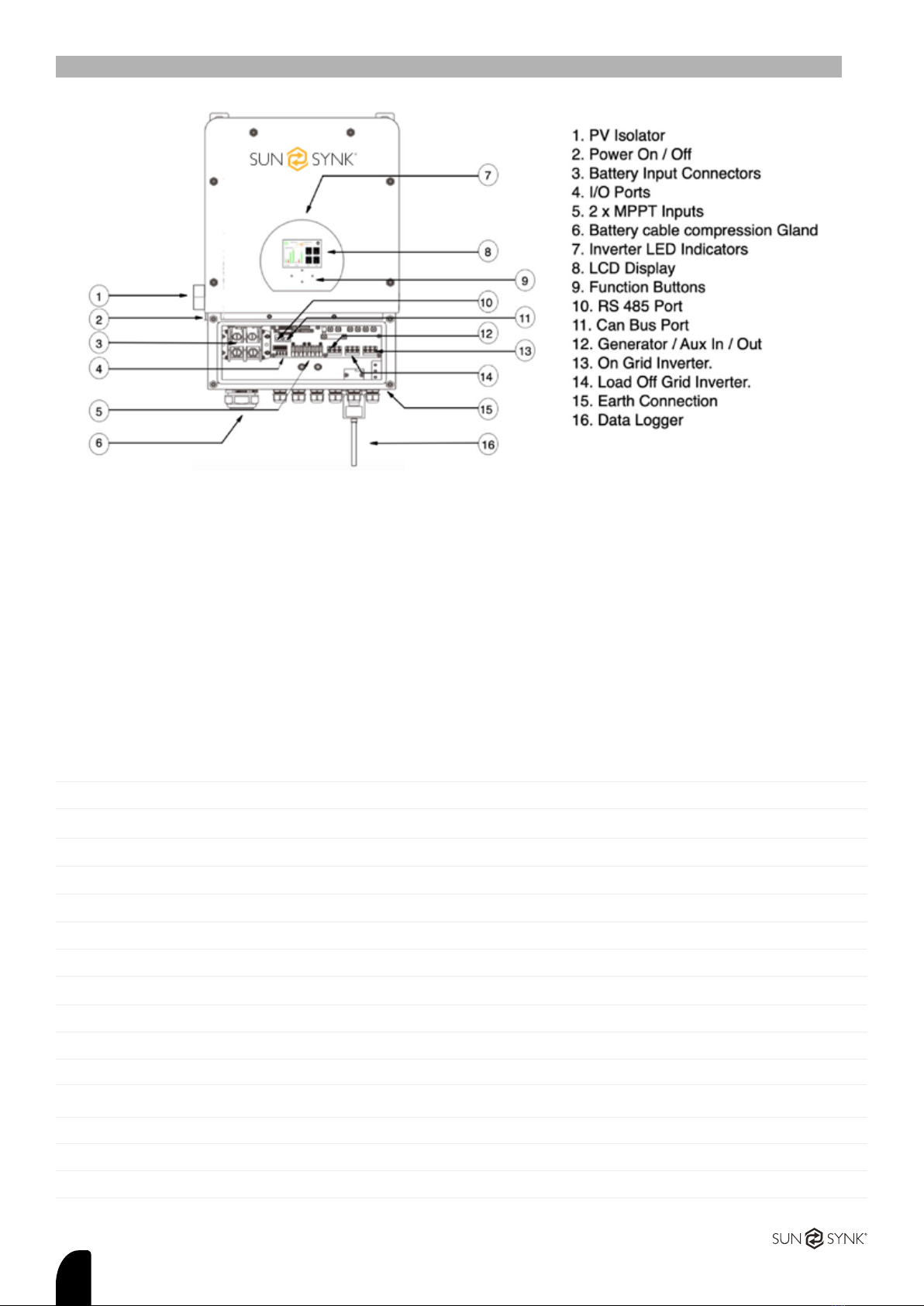

4.01 the display
4.02 Switching ON/OFF
Once the unit has been properly installed and the batteries are connected press on/off button (located on
the left side of the case) to turn on the unit.
When the system is connected without a battery but connected with either PV or grid and on/off button is
switched off, LCD will still light up (display will show off). In this condition, when switch on on/off button and
select no battery, the system can still work.
LED Indicator Meaning
DC Green LED solid light PV connection normal
AC Green LED solid light Grid connection normal
Normal Green LED solid light Inverter functioning normally
Alarm Red LED solid light Fault
Function Key Description
Esc To exit the previous mode
Up Increase value of a setting
Down Decrease value of a setting
Enter Confirm setting change (If not pressed each time, the setting will not save)

Web: www.sunsynk.com Email: [email protected]
15
4.03 Home Page
Press Esc button from any page to access
What this page displays
• Total daily power into the battery (kWh)
• Total daily power out of the battery (kWh)
• SOC (State of change of the battery) (%)
• Total daily solar power produced in (kWh)
• Total hourly usage of the generator (Time)
• Total daily power sold to the grid (kWh)
• Total daily power bought from the grid (kWh)
• Real time solar power in (kW)
• Real time load power in (kW)
• Real time battery charge power in (kW)
• Real time grid power in (kW)
• Serial number
• Time date
• Fault condition
What this page displays
• Access stats pages
• Access status page
• Access fault diagnostic page
• Access stats pages

Web: www.sunsynk.com Email: [email protected]
16
4.04 Status Page
Press battery icon on home page to access
What this page displays
• Total solar power being produced
• MPPT 1 solar power voltage / current / Watts
• MPPT 2 solar power voltage / current / Watts
• Grid power
• Grid frequency
• Grid volage
• Grid current
• Inverter power
• Inverter frequency
• Inverter volage
• Inverter current
• Load power
• Load voltage
• Battery power charge/discharge
• Battery SOC
• Battery voltage
• Battery current
• Battery temperature (temperature sensor must be tted)
Solar Column: Shows total PV power at the top and then details of each of the two MPPT’s below L1 & L2
voltage.
Grid Column: Showing grid total power, frequency, voltage and current. When selling to grid the power is
negative. When receiving from grid the power is positive. If the sign of the grid and HM powers are not the
same when the PV is disconnected and the inverter is only taking energy from the grid and using the HM CT
connected to Limit-2 then please reverse the polarity of the HM current sensor. Important: See section on CT
coil.
Inverter Column: Showing inverter total power, frequency, L1, L2, voltage, current and power.
Load Column: Showing total load power, load voltage and power on L1 and L2.
Battery Column: Showing total power from the battery, battery SOC, battery voltage, battery current
(negative means charge, positive means discharge) battery temperature (shows zero if the battery
temperature sensor is not connected). DC transformer temperature and AC heatsink temperature (When the
temperature reaches 90°C it will show in red and start derating when it reaches 110°C. After that the
inverter will shut down to allow it to cool.

Web: www.sunsynk.com Email: [email protected]
17
4.05 Set-Up Page
Press top right hand button on home page to access
What this page displays
• Serial number
• Software version
• Time & date
• MCU
What you can do from this page
• Access the basic set up page (press basic setup)
• Access the battery setup page (press battery setup)
• Access the system alarms page (press system alarms)
• Access the grid set up page (press grid setup)
Press the icon to access the various pages

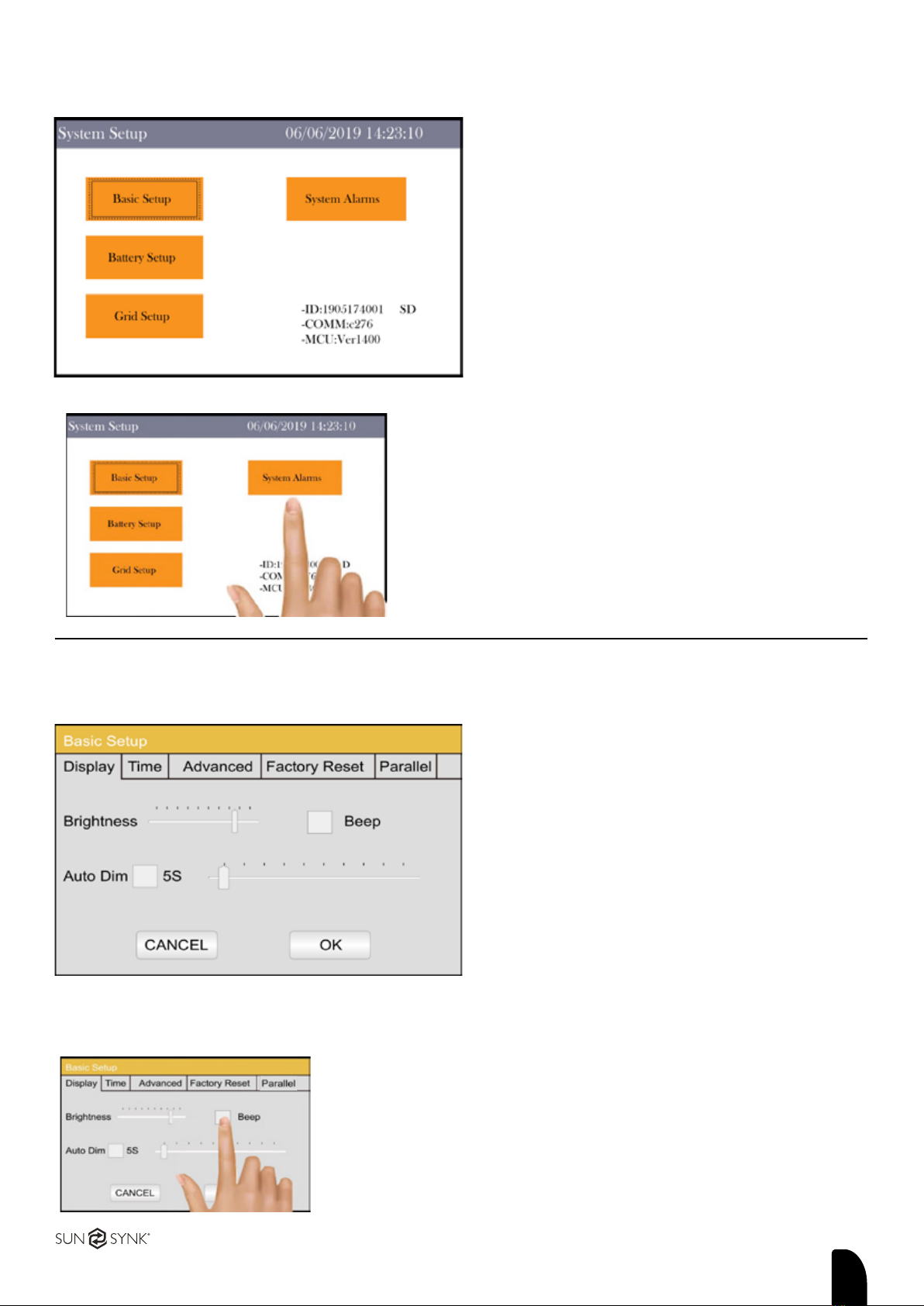

4.06 Basic Set-Up Page
Access from set-up page
What this page displays
• The basic set-up page
• Display brightness level
• Display if bleep / buzzer is on or off
• Display if auto dim is on / off
• Display the auto dim off time
What you can do from this page
• Switch beeper on or off by ticking box
• Adjust brightness level
• Switch auto dim mode on or off by ticking box
• Adjust auto-dim time
• Press ok to set
Auto Dim: If selected you can control the LCD display to dim after
time selected.
Beep: By selecting this application the inverter will alarm by beeping
to give warning signals in case the inverter has a fault. Please check
the fault code on the LCD if beep occurs.
*There is a ‘Parallel’ function in this inverter

Web: www.sunsynk.com Email: [email protected]
18

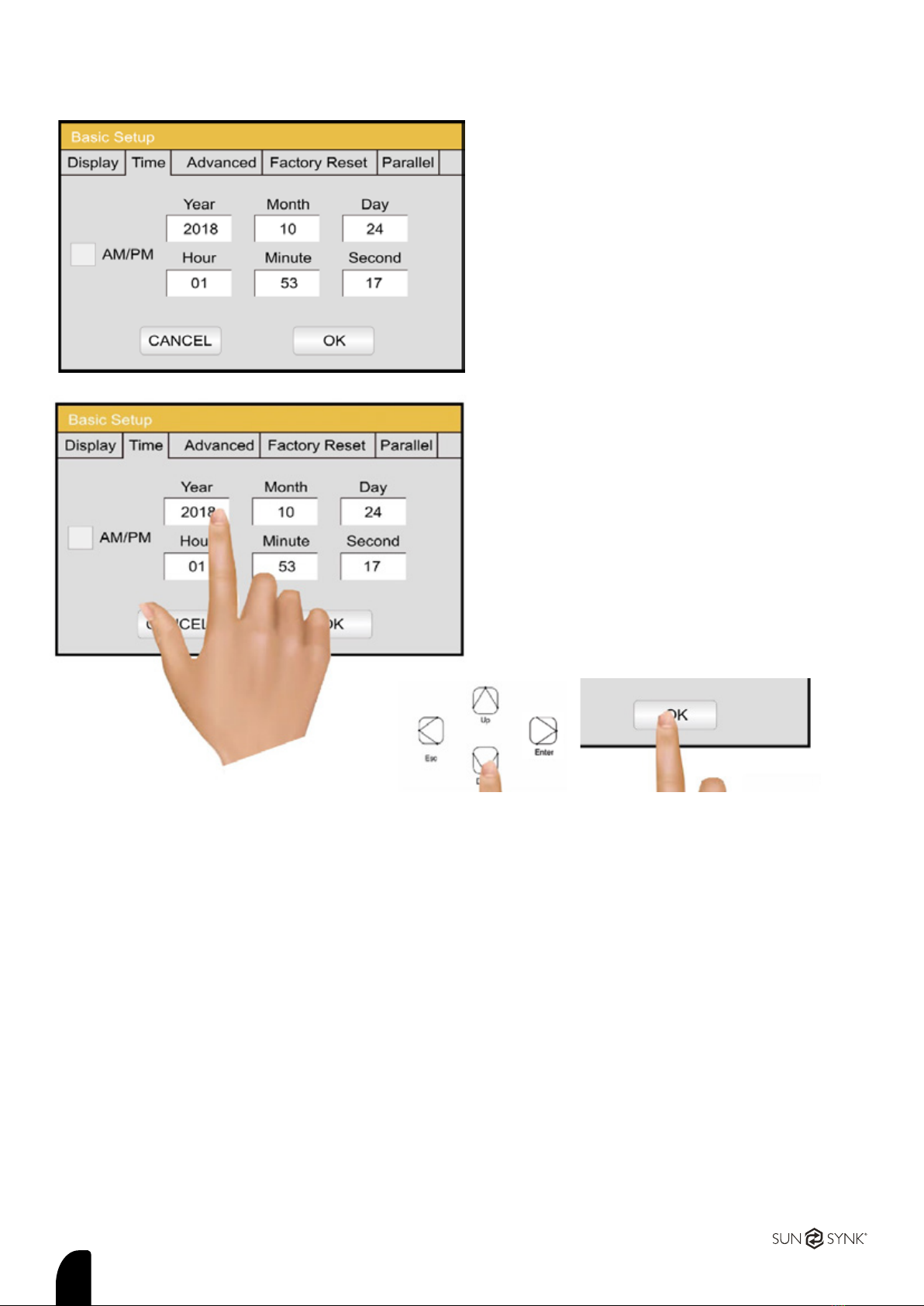

4.07 Set Time (Clock)
Access from set-up page
What this page displays
• Time
• Date
• AM/PM
• Touch the screen where you wish to
change
• Then move the number up and down
via the up down buttons
• Press ok to set
What you can do from this page
• Adjust / set time
• Adjust / set date
• Adjust / set AM/PM

Web: www.sunsynk.com Email: [email protected]
19
Peak Shaving: This is a technique that is used to reduce electrical power consumption during periods of
maximum demand on the power utility. Thus saving substantial amounts of money due to peaking charges.
4.08 Power Shaving
Access via setup page
What this page displays
• Solar arc fault is on/off
• Generator peak shaving is on/off
• Grid peak shaving is on/off
What you can do from this page
• Switch on solar arc fault and clear solar arc fault.
This indicates a favour if the solar cables have a
poor connection, this can help prevent re risk.
• Switch on generator and or grid peak power
saving and set the power level with the power
shaving will operate.

Web: www.sunsynk.com Email: [email protected]
20

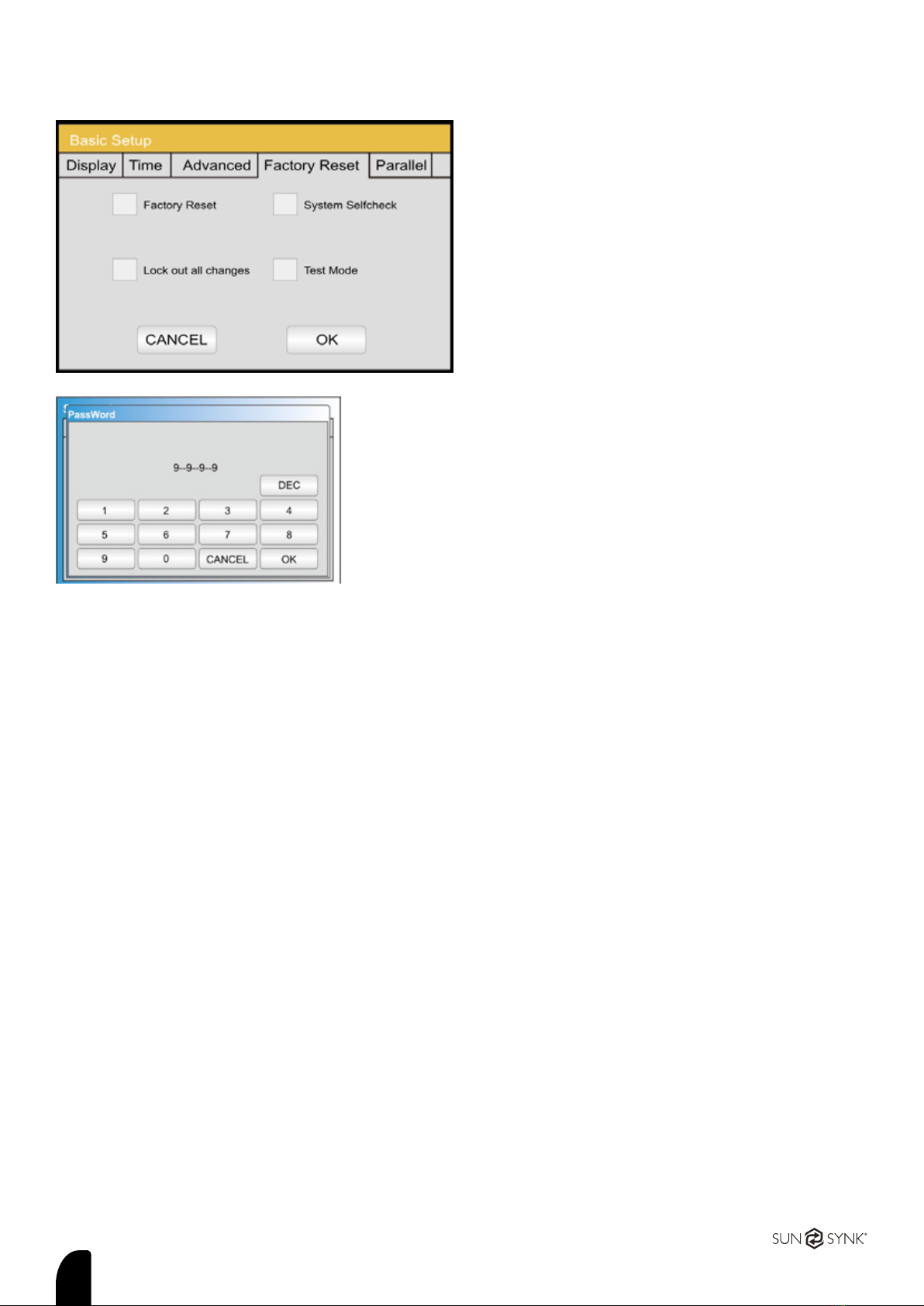

4.09 Factory Reset and Lock Code
Access via setup page
What this page displays
• Reset status
• If lock code is used
What you can do from this page
• Full factory reset
• System diagnostics
• Self test
• Change or set lock code
Factory reset: Reset all parameters on inverter
Lock out all changes: Enable this menu for setting parameters
which require locking and cannot be reset. System self check and
test mode reserve engineers only.
Before conducting a successful factory reset and locking the system
to keep all changes you need to type in a password to enable the
setting. Password for factory settings is 9999 and for lockout it is
7777.
• Press ok to set
