SUNTAO SD Series Operational manual

1
The User Manual is suitable for qualified person & expert users who may need to view technical information
SUNTAO-SD Series
Product User Manual
.

2
SD Series User manual
1. Introduction
AONTSU Series lithium iron phosphate battery is composed of lithium iron phosphate cell, battery
management system (BMS), housing and related components. The high-performance battery
management system (BMS) can protect batteries from overcharge, over discharge, over current,
short circuit, and temperature anomalies. It can communicate with intelligent devices such as
computers, realize remote centralized monitoring, and monitor various operating parameters and
status of single batteries in real time.
The product by its integration, miniaturization, light-duty, intelligent centralized monitoring, battery
maintenance and management, unattended, safe and convenient to use, energy conservation,
environmental protection and other characteristics are widely used in network equipment, remote
switches, mobile communication equipment, transmission equipment, such as communications
satellite ground station, microwave communications equipment as a backup power supply.
Installation, operation and maintenance of the SD Series lithium iron phosphate battery system
should only be performed by trained and qualified professionals. Before installing and using the
product, read the safety precautions and related operation instructions carefully; otherwise,
personal injury or product damage may occur. The precautions mentioned in this manual are
common. If you find special operating conditions or conditions, contact the technical personnel of
the battery manufacturer.
2. Product features
●Using the high performance lithium iron phosphate ( LiFePO4) as positive materials, the cycle
life is more than 4000 times, floating life up to 10 years, prolongs the service life of backup power
supply system.
●Using the intelligent management system, realize the monitoring and control of battery system
under charge, discharge, floating and standby, make sure the system is always in under ideal
state of health.
●Built with comprehensive monitoring system, the battery voltage, current, temperature,
volume, state of health is under monitoring.
●The built-in intelligent balance module, to ensure that the consistency of battery capacity , to
extend the service life.
●Intelligence-design, meet the national standard requirements, remote-measurement,
remote-communication, remote-control and remote-adjustment.
●Working state and alarm display directly on control panel.
●System with intelligent thermal management devices, which insure the system work in a wide
range of temperature, -20 ℃~+60 ℃.
●With good electromagnetic compatibility and can be matched with standard communication
equipment compatibility.

3

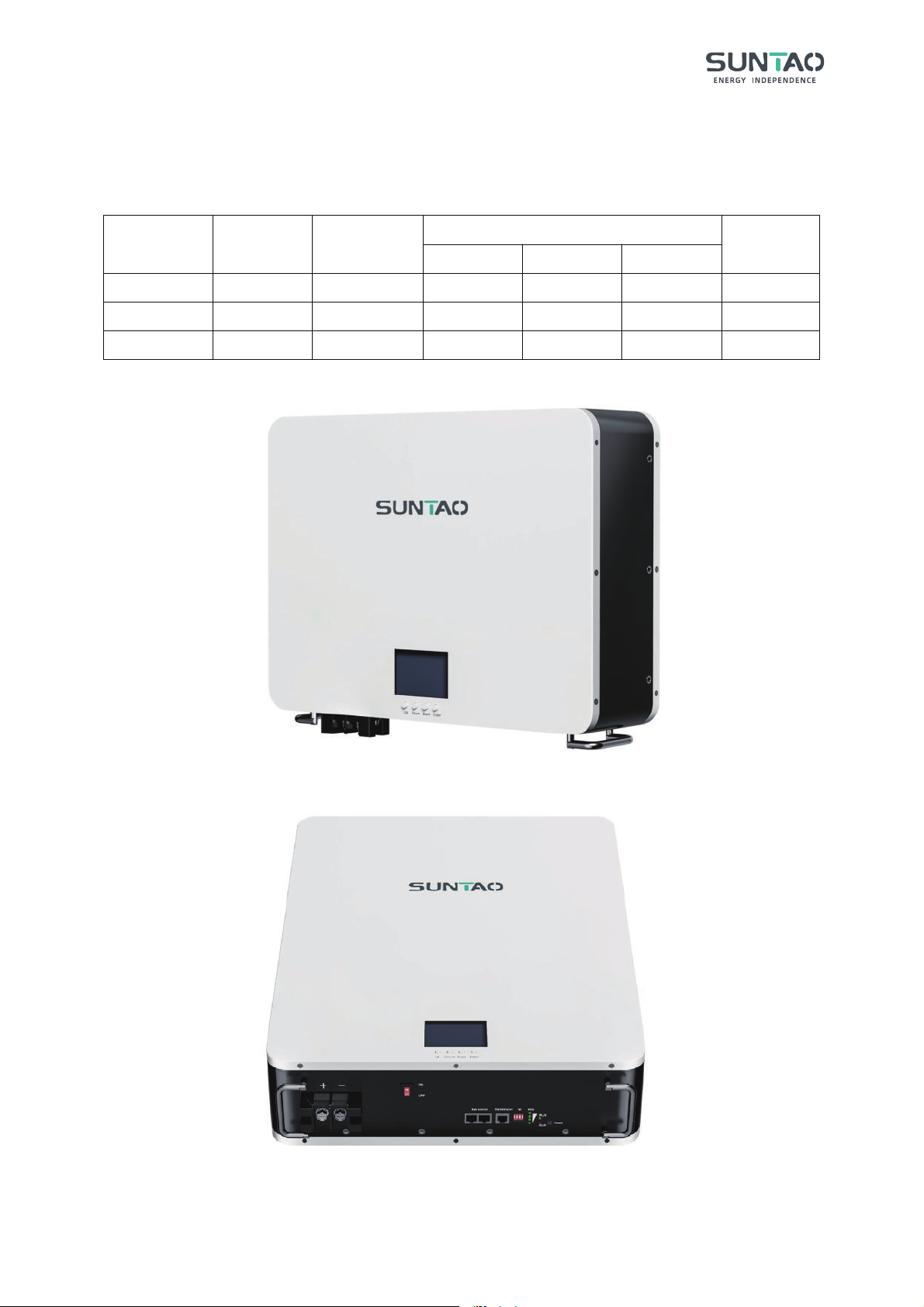

3.Product parameters
3.1 Model Type
Voltage(V) Capacity(Ah) Size Weight /kg
Width/mm Depth/mm
Height /mm
25.6 100 442 330 126 25.5
51.2 100 442 550 126 47.5
51.
Model Type
SD 25.6-100
SD 51.2-100
SD 51.2-200 2 200 442 650 130 89.0
SD25.6-100
SD51.2-100

4
SD51.2-200
3.2 Product appearance
NO. Name Function Remarks
1 RS485 RS485 communication ports communication between batteries,See
Table 3.1
2 RS485/CAN RS485/CAN communication ports communication between inverters,
See Table 3.1
3 ID Assign address of every model See Table 3.2
4 SOC The state of charge Four small green LED
4
5
123
867
5

5
5 ALM Alarming indicates LED See Table 3.3
6 RUN Operating indicates LED Always brightly when operating
7 Reset Reset the battery system
8 ON/OFF The switch of the battery

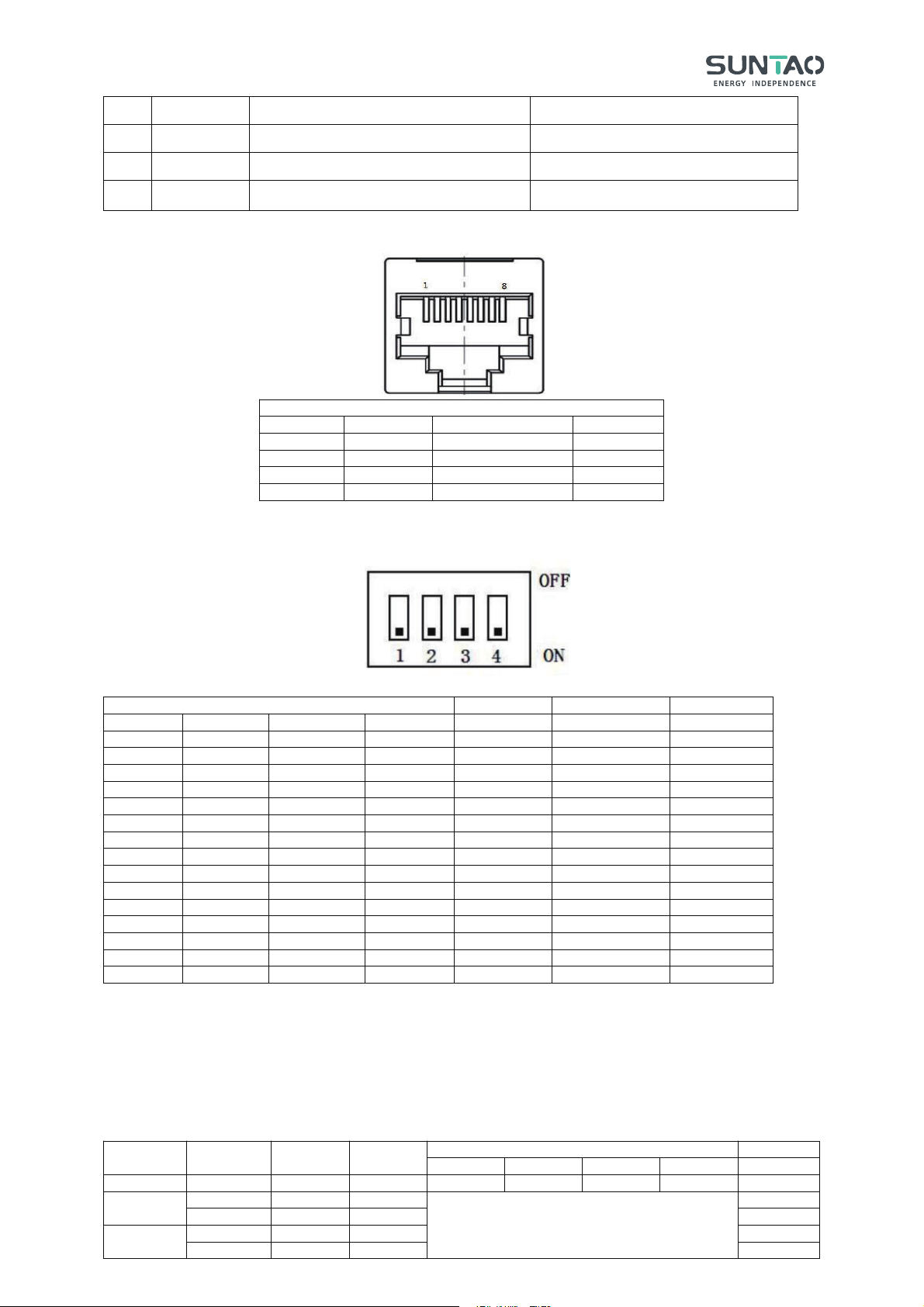

Table 3.1 RS485 Pins and definitions
RS485
RJ45 Pins Definitions RJ45 Pins Definitions
1 RS485-B 5 CAN-L
2 RS485-A 6 NC
3 GND 7 RS485-A
4 CAN-H 8 RS485-B
Table 3.2 Assignments of ID address
8421
Code
Address Assign Remarks
ON ON ON ON 16
Model 16
ON ON ON OFF 1 Model 1
ON ON OFF ON 2 Model 2
ON ON OFF OFF 3 Model 3
ON OFF ON ON 4 Model 4
ON OFF ON OFF 5 Model 5
ON OFF OFF ON 6 Model 6
ON OFF OFF OFF 7 Model 7
OFF ON ON ON 8 Model 8
OFF ON ON OFF 9 Model 9
OFF ON OFF ON 10 Model 10
OFF ON OFF OFF 11 Model 11
OFF ON OFF ON 12 Model 12
OFF OFF ON OFF 13 Model 13
OFF OFF OFF ON 14 Model 14
OFF OFF OFF OFF 15 Model 15
Note: In the table 3.2, code bits are in accordance with the control panel ID code corresponding to the
binary digit, dial up stands for "OFF ", dial down stand for " ON ", the right dial is low digit, the left dial is high
digit, encoding in the range of 0~15, which can support up to 16 modules cascade. All coded according to
the table, followed by analogy. If you need more modules in parallel, please tell us, we will design it to meet
your requirement.
Table 3.3 LED indicator description
State Normal RUN ALM SOC LED
Definition
25% 50% 75% 100%
Shutdown OFF OFF OFF OFF OFF OFF
Standby Normal ON OFF
Indicator as the battery capacity
Protection OFF ON
Charge Normal Flash1 OFF
Protection OFF ON

6
Discharge Normal Flash2 OFF
Protection OFF ON
Battery
Full Normal ON OFF
Note ：The SOC means "state of charge", there are 4 LED for SOC, From bottom to top, each light
indicates increment of 25% SOC. When the battery is shut down, all the lights go out, when the battery start
to work, the green "RUN" LED is always bright. When the battery is protected, the red LED"ALM" is always
bright.
Note: Flash 1——0.5s ON and 0.5s OFF; Flash 2——1.0s ON and 1.0s OFF.
3.3 BMS parameters
NO. Type Function Setting value Remarks
1
Voltage
Charge Cell Voltage Protection 3.80V Protection Recover at 3.5V
2 Total Voltage Protection 60V Protection Recover at 55.2V
3Discharge Cell Voltage Protection 2.2V Protection Recover at 2.7V
4 Total Voltage Protection 43.2V Protection Recover at 48.0V
5
Current
Charge
Normal ≤50A
6 Limit ＞55A
7
Discharge
Normal ≤100A
8 Over current protection 1 105A<current<115A Delay 30s
9 Over current protection 2 400A<current<500A，Delay 3s
10
Temp
Cell
Temperature protection
Charging Range -20℃~60℃
Discharging Range-30℃~70℃
Charging recover：
＞-15℃or ＜55℃
11 Environment Charging Range﹣20℃~60℃
Discharging Range-30℃~70℃
Discharge
recover：
＞-25℃or ＜65℃
12 PCB ≤95℃
13 SOC Discharge Warning
Warning signal appear when
SOC＜5% and battery in
discharge state
ALM led、RUN led
Flash 0.6s

7
4. Installation and Testing
4.1 Prepare to install
The installation, operation and maintenance of SD Series lithium iron phosphate battery must
be performed by trained and qualified professional personnel. Before installation and use,
please carefully read the product safety precautions and related operating rules. Strictly abide
by the following safety rules and local safety regulations, otherwise may cause personal injury
or damage to the product.
●Make sure that the telecom equipment to be connected with the battery system is in good
condition and free from defects;
●Before installation, make sure that the power supply system is under shut down state, while
the battery system is also under shut down state;
●All the electricity cables must have corresponding grade of insulation, Please ensure that
no exposed cables;
●Make sure that the battery and power system are reliable grounding.
4.1.1 Requirement Of Installation Environment
Type Requirement
Working Temperature
Working Range：-10℃ ～+60℃
Storage Temperature
‐10℃～+60℃
Relative Humidity ＜95%
Atmospheric Pressure
86kPa～106kPa
Site Requirements
No conductive dust and corrosive gas, no
vibration. Keep away from heat and flame
4.1.2 Tools and Materials
Name Name
User manual
Oblique mouth clamp
Screw driver multimeter
Wrench Ammeter
Pincers Insulating tape
Wire stripping pliers Electrostatic prevention Bracelet
Wristband Clamp band

8
4.1.3 Site Survey
4.1.3.1 Equipment Inspection
●Check that the equipment connected with batteries are right and in good conditions.
●Check the DC interface position of the equipment. Check and confirm the output voltage is in
the range.
●Check DC device interface, make sure the maximum output current is matched with the
selected battery.
●Check the maximal working current of devices backed by the battery , make sure that the
current is less than the maximum discharge current of the products.
4.1.3.2 Ground Check
Check and confirm the electrical grounding position of power system room.
4.1.4 Battery Check
●On the installation site, check the battery packaging to make sure it's intact;
●Check battery box according to the packing list, make sure all the material is complete, if
any damaged, please fill in the receipt;
●Please be careful while handling batteries, avoid any damage.
4.2 Installation
4.2.1 Cautions
●When begin to install the battery system, you should pay attention to the following matters:
●Installation space and load bearing. Make sure that there are sufficient fixed components to
install the battery system, and to ensure that the battery mounting bracket or the cabinet be
strong enough to bear the weight.
●Cable specifications. To ensure that the use of the connection of the power supply line can
meet the maximum current requirements of equipment operation.
●Project layout. Ensure the whole construction process of power equipment, batteries and
other reasonable layout.
●Wiring layout. Ensure that the wiring reasonable, orderly; and consider the moisture-proof,
corrosion prevention.
●The whole installation process should wear anti-static wristband.
●The installation site should be at least two or more peoples to operate.
Caution：Please ensure the installation site safe before installation.

9
4.2.2 Installation step
Step NO. Name Definition
1 Turn off power supply The system should be powered off, to ensure that
there is no electric in installation process
2 Electrical installation
1.The base installation
2.Battery installation
3.Power line installation
4.Communication line installation
3 Electrical commissioning Power system commissioning
Step 1. Interruption Of Power Supply
Before installation, please ensure the battery is powered off, at the same time, shutdown the
equipment which need to connect to the battery.
Step 2. Electrical Installation

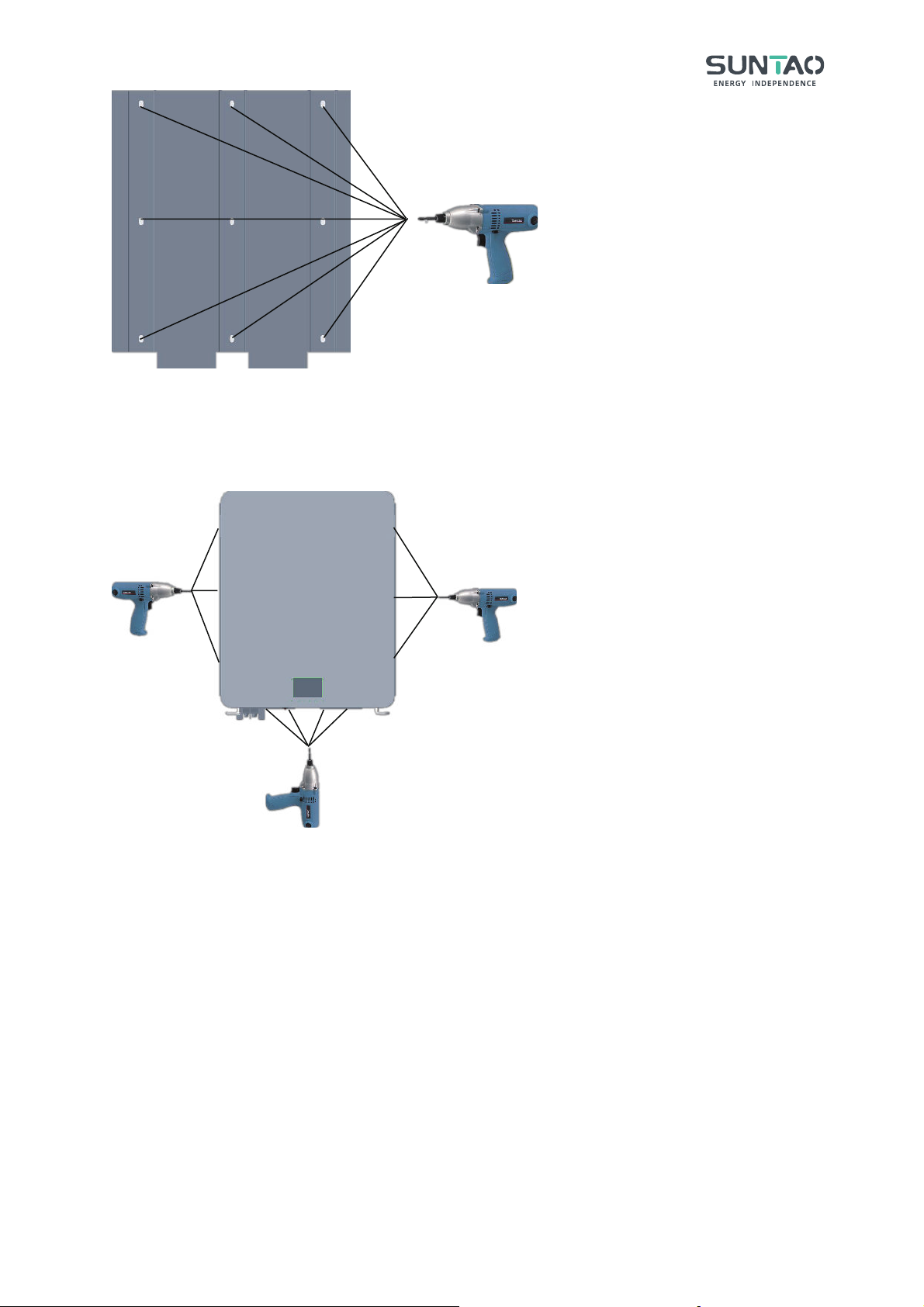

①. The base installation
Separate the base from the battery;
Insert the expansion screw (M8*40) through the mounting hole of the base with an electrical batch
and fix the base to the wall
Battery
The base

10
②. Battery installation
Place the battery on the base, and secure the base and the battery together with an electrical
screwdriver and screws (M5*8)
③. Power line installation
The positive terminal of the battery is connected with the positive terminal of the inverter;
Connect the negative terminal of the battery with the negative terminal of the inverter;
When installing the connecting equipment, make clear the position of the positive and
negative terminal posts of the system, connect the positive terminal with red wire, and
connect the negative terminal with black wire to ensure that there is no wrong connection.

11
④.Communication line installation
Connect the RJ-RS485 /CAN port of the battery to the BMS communication port of the
inverter using a network cable.Dial the ID to "1" (see Table 3.2).
If a single battery is used, follow this step. If multiple batteries are used in parallel, set each
battery's address code according to Table 3.4, and connect the RJ-45 to RS485
communications ports in sequence. Connect the RS485 port on the first or last battery module
to the BMS communication port on the inverter.
Caution: If there is any problem during installation, please contact the
factory technicians in time to avoid damaging the equipment or causing safety
accidents.
Inverte
Inverte
r
+
-
-
+
Battery
Battery
Battery Battery
Inverte
Inverte
Network cable
Network cable

12
Step 3. Electrical Commissioning
When these steps are completed, press the ON/OFF button to start the battery, then boot on the
whole power system, complete the installation.
Caution：If the battery does not start , please disconnect the power line
inspection and reinstall the start, if still cannot solve please the technical staff
of the battery manufacturer, avoid damage to equipment or cause accidents.
5.Transportation, storage, use and maintenance
5.1 Transportation and Storage
5.1.1 According to the provisions of the product can be used in general means of conveyance,
but should avoid throwing, rain fall, strong radiation and corrosion erosion. during transportation,
please prevent the collision and strong vibration.
5.1.2 Storage device in the indoor storage, the ambient air temperature is 0 ℃to + 30℃, the
average monthly relative humidity of not more than 90%, the ambient air without corrosive and
flammable and explosive gas; storage warehouse should be ventilated, free of alkaline, acidic
substances and other corrosive gases, without a strong mechanical vibration, shock, and without
strong electromagnetic field and direct sunlight. Capacity was maintained at 50% to 60% stores,
and charging the battery every 3 months.

13
5.2 Common faults and Solutions
NO. Fault phenomenon Analysis Solution
1 No DC output Low voltage protection Charge the battery and try again
2
Power supply time
is too short
Battery capacity lack or not
full power
Re-discharge after being fully charged
or replace the battery
3
Battery can not be
charged to full
Power system DC output
voltage falls below the
minimum charge voltage
Regulating DC output
voltage power
supply to battery suitable charging
voltage
4
There is a spark in
the wiring after the
power is switched
on
Short circuit of power cable
connection
Disconnect the power supply, check
the circuit and troubleshoot the fault
Cacccccc Caution:If you have some special technical problems which not
mentioned above, please contact the technical staff of the battery
manufacturer.
5.3 Safety instructions
Please read and comply with the following conditions of installation and use of the battery,
incorrect installation using the battery may cause personal injury or damage to the
product.
●DO NOT throw the battery into water. Store batteries in a cool and dry environment
when not in use.
●DO NOT put the battery into fire or heat the battery, so as to avoid explosion or other
dangerous events.
●When charge the battery,please choose specialized charging equipment,and follow

14
the correct procedures,do not use unqualified chargers.
●DO NOT reverse positive and negative terminals,do not connect the battery directly to
AC power,avoid battery short circuit.
●DO NOT using batteries from different manufacturers or different kinds, types
together ,and do not mixed use old batteries and new batteries.
●DO NOT use the battery when it become hot,bulges,deforms or leaks.
●DO NOT puncture the battery by nail or other sharp objects; Do not throw,stamp
on,impact or hit the battery.
●DO NOT open or try to repair the battery when it is defective. Warranty invalid if the
battery repaired or disassembled.
●Batteries are half charged before shipment,Don’t use the battery if it’s hot,bulge,or
smell abnormal and so on,and contact the battery manufacturer immediately.
●If you need storage the battery for a long time,please charge and discharge the battery
every three months to ensure the best performance,and the best state of charge for
storage is between 50%～60%.
●Please use the battery in the temperature range which defined in the manual.
●The state of charge of batteries is 50% before shipment,please charge the battery
before use or test.
