Suntronic GSCAT5-AV User manual

Features:
Through the VGA Extender, you can use one PC
to display identical image and extension of VGA
signal up to 180/300 meter on monitors.
Equalization length is adjustable.
VGA signal gain is adjustable.
Package Contents:
VGA-L+-PRO Local Unit
VGA-R-PRO Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable
(
HD-15 Male to Male
)
Function GSCAT5-AV
VGA In Connector HD-15 Female x 1
VGA Out Connector HD-15 Female x 1
RJ-45 Connector 1
Max. Resolution 1920x1440 60Hz
Cable Distance 300 m (Max.)
Power Adapter (Min.) DC 12V 600mA
Housing Metal
Weight 290g
Dimensions (LxWxH) mm 118x75x29
EMAIL: [email protected] • WEB: www.SuntronicLCD.com
Specifications:

1. CAT.5 (RJ-45 Connector)
2. Power LED
3. Power jack

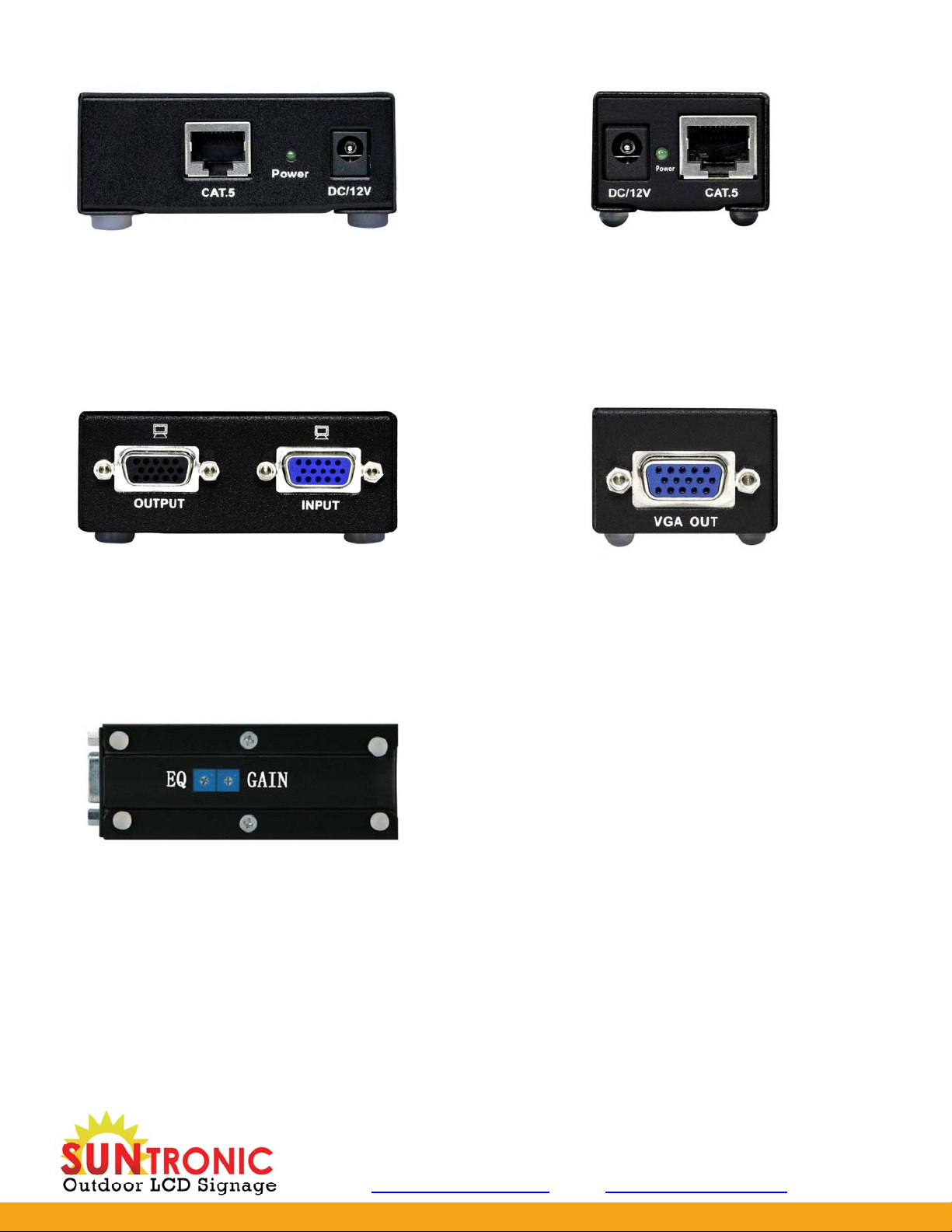

Local Front View
Local Rear View
1. VGA Input (HD-15 Female Connector)
2. VGA Output (HD-15 Female Connector)
3. Power LED
4. Power jack
Remote Front View
1. Power jack
2. Power LED
3. CAT.5
(
RJ-45 Connector
)
Remote Rear View
1. VGA Output (HD-15 Female Connector)
Remote Bottom View
1. EQ – Equalization length adjust (Adjust it and
weak characters be sharp)
2. GAIN – Adjust brightness
Installation
1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female
input connector with HD-15 male to male
cable from PC.
3. Connect VGA-Extender Local Unit HD-15 female
output connector with HD-15 male to male
cable from monitor.
4. Connect VGA-Extender Local and Remote Unit with
CAT.5 cable.
5. Connect VGA-Extender Remote Unit HD-15 female
connector with HD-15 male to male cable
from monitor.
6. Connect the power cord on each side.
7. Turn on the monitor and PC.
EMAIL: [email protected] • WEB: www.SuntronicLCD.com

Additional Options
Select any additional options you may require.
1. Power adapter-USB to DC 12V plug which supply power via PC to VGA-L/VGA-L-PRO Local Unit.
(Item No: PUD125P)
2. It provides perfect skew delay correction, we suggest when distances over 150M it is needed.
(Item No: SK-101)
EMAIL: [email protected] • WEB: www.SuntronicLCD.com

Distances and Resolutions for CAT.5/5E and CAT.6
Cables
50M 2048x1536
100M 1280x1024
180M 1024x768
200M 800x600
CAT.5/5E
300M 640x480
30M 1920x1440
50M 1280x1024
CAT.6
1000M 800x600
PS. We suggest to use CAT.5 cable because the performance is better than others.
Wiring Information & Coding
Conductor Identification RJ45 Pin Assignment Color Code for Conductor
5 White-Blue
Pair 1 4Blue
1White-Orange
Pair 21 2Orange
3 White-Green
Pair 3 6 Green
7 White-Brown
Pair 4 8 Brown
