INSTALLATION
MANUAL
HDBaseT EXTENDER
B-520-TX-230-IR
B-520-TX-330-IR

2
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of re or electric shock, read and follow all instructions and
warnings in this manual. Keep this manual for future reference.
1. Do not expose this apparatus to rain or moisture. Do not expose this equipment
to dripping or splashing, and ensure that no objects lled with liquids, such as
vases, are placed on the equipment. Do not use this apparatus near water.
2. Do not remove cover.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s
instructions.
5. Do not install near any heat sources, such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding plug. A
polarized plug has two blades, one of which is wider than the other. A grounding
plug has two matching blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched, particularly at the
plug end and where the power cord is attached to the apparatus.
8. Only use attachments and accessories specied by the manufacturer.
9. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord
or plug is damaged, liquid has been spilled on or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, the apparatus
does not operate normally, or it has been dropped.
10. To completely disconnect this equipment from power, disconnect the power
supply cord from the power outlet.
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION
TOREDUCE THERISK OF ELECTRICAL
SHOCK:
DONOT REMOVE COVER. NOUSER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TOQUALIFIED
SERVICEPERSONNEL.

3
CONTENTS
1. Product Overview ...............................................................................................................4
2. Features ....................................................................................................................................4
3. Package Contents .................................................................................................................5
4. Device Layout .........................................................................................................................6
5. Installation ...............................................................................................................................8
6. Applications ............................................................................................................................8
6.1. HDBaseT Link (RJ45) Connection ........................................................................9
6.2. IR Control Connections ............................................................................................10
6.2.1. Point-to-Point IR Control -IR Receiver In Using 3.5mm (1/8”) Stereo .11
6.2.2. Control System - IR Receiver In Using 3.5mm (1/8”) Mono ...........11
6.2.3. IR Flasher Out - 3.5 mm Mono ...................................................................11
6.3. Firmware Update Operation .................................................................................12
6.4. HDMI Out (Transmitter) ...........................................................................................12
6.5. EDID Conguration ....................................................................................................12
6.5.1. Auto EDID .........................................................................................................12
6.5.2. HDBT EDID .......................................................................................................12
6.6. Thread-Locking Power Supply ...............................................................................13
7. Specications .........................................................................................................................14
8. Support ....................................................................................................................................16
9. Warranty ..................................................................................................................................16

4
1. PRODUCT OVERVIEW
Welcome to Binary™. This product is engineered to provide years of exceptional
reliability. We appreciate your business, and we stand committed to providing our
customers with the highest degree of quality and service in the industry.
This device extends HDMI over a single category cable using HDBaseT technology
allowing video and audio transmission to remote displays. In addition, the device is
equipped with bidirectional IR over the same category cable.
This unit supports all HDMI dened audio and video formats, up to 4K2K@30 Hz.
Additionally, the design has been improved to solve the clock-stretching issue that
can arise with cable boxes when used with HDBaseT extenders.
2. FEATURES
• Improved design to support clock-stretching issue
• Extends all HDMI formats up to:
B-520-TX-230-IR B-520-TX-330-IR
Resolution Cat 5e/6 Cat 6a/7 Cat 5e/6/6a/7
1080i/720p 24-bit color 200' 230' 330'
Full HD 1080p 24-bit color 200' 230' 330'
Full HD 1080p 36-bit color 200' 230' 330'
Ultra HD 4K2K@30 Hz 115' 130' 330'
• Supports all HDMI supported audio formats, including DTS-HD Master and
Dolby TrueHD
• Two selectable EDIDs options: Auto/HDBaseT output
• Bi-directional IR
3. PACKAGE CONTENTS
• 1x B-520-TX-230-IR / B-520-TX-330-IR Transmitter
• 1x 12V DC, 2A Power Supply
• 2x Mounting Ears
• 2x Mounting Screws
• 4x Rubber Feet
• 1x Installation Manual
• 1x Power Supply Label

5
4. DEVICE LAYOUT
4.1. B-520-TX-230-IR/B-520-TX-330-IR Transmitter
A C D E F G H I JB
HDMI IN HDMI OUT
IR
Receiver
IR
Flasher
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO 12V DC
INPUT
HDBaseT
1
ON
2
FIGURE 1: Transmitter Layout
A. IR Flasher
IR output to connect to IR Flasher
B. IR Receiver
IR input to connect to IR Receiver or to output of a control system
C. HDMI In
HDMI Input to connect to the HDMI output of a source
D. HDMI Out
HDMI Output to connect to the HDMI input of a sink (display)
E. DIP Switches
IR RCVR PWR OFF/ON
ON to connect to IR Receiver | OFF to connect to control system
AUTO EDID/HDBT EDID
AUTO to set EDID to lowest common resolution | HDBT to set EDID to
resolution of sink at receiver
F. Update (mini USB port)
To connect mini USB cable when updating rmware
G. HDBaseT RJ45
To connect to the HDBaseT RJ45 port on receiver
H. Link LED
Lights up green when synced with receiver
I. Power LED
Lights up blue when the unit has power
J. Thread-locking Power Connector
Connect to the included 12V DC, 2A power supply

6
5. INSTALLATION
CAUTION: Do not connect power to the device until all other connections are made
and the unit is installed.
5.1. B-520-TX-230-IR / B-520-TX-330-IR Installation
1. Run category cable from the location of the transmitter to the remote location
of the receiver.
2. Mount the transmitter in the desired location.
3. Connect HDMI In on the transmitter with an HDMI cable from HDMI Out of
Source.
4. Connect HDMI Out on the transmitter with an HDMI Cable to HDMI In of local/
remote TV.
5. Connect an IR receiver and/or IR asher if being used. Refer to Section 6.2.
6. Connect the 12V DC, 2A power supply to the thread-locking power jack. Do not
plug the power supply into an AC outlet until receiver installation is completed.
6. APPLICATIONS
v
HDTV
PLAY
HDTV
HDMI IN HDMI OUT
IR
Receiver
IR
Flasher
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO 12V DC
INPUT
HDBaseT
1
ON
2
12V DC
INPUT
OFF
12V DC
IR FLASHER
LEVEL
HDMI OUT
IR
Receiver
IR
Flasher

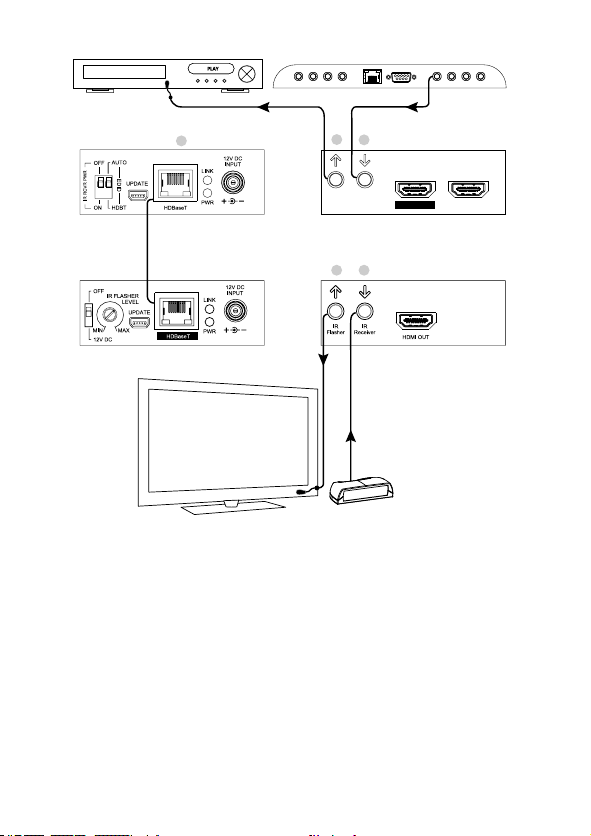

FIGURE 2: Application Diagram
HDMI Source
AC
Power
AC
Power
Back Front
B-520-RX-x30-IR Receiver
B-520-TX-x30-IR Transmitter

7
6.1. HDBaseT Link (RJ45) Connection
This device is specied to operate with Cat 5e/6/6a/7 cables for communication
between the transmitter and receiving unit. The transmission path may include a
maximum of two keystones and two patch cables, as long as the total length does
not exceed certain lengths. For B-520-TX-230-IR, max. is 200' for Cat5e/6 and 230'
for Cat6a/7. For B-520-TX-330-IR, max. is 330' for Cat5e/6/6a/7
Pin 1White/OrangePin 5White/Blue
Pin 2OrangePin 6Green
Pin 3White/Green Pin 7White/Brown
Pin 4BluePin 8Brown
TIA/EIA Standard 568-B (Gold Pins Facing Up)
FIGURE 3: RJ45 Connections
6.2. IR Control Connections
Bidirectional IR signals can be transmitted between transmitter and an HDBaseT
receiver through category cable. The IR signal can be generated either from a
powered receiver or from a control system. The following section describes these
two use cases.
CAUTION: Pinout congurations for IR receivers and control systems vary.
Before connecting to this input, review this section carefully in order to match the
pinouts for the device.

8
IR Inputs IR Outputs
HDTV
HDMI IN HDMI OUT
IR
Receiver
IR
Flasher
1
ON
2




FIGURE 4: IR Connections
NOTE: Arrow direction indicates signal ow.
AIR Receiver In 3.5 mm (1/8") Mono - See Section 6.2.2
BIR Receiver In 3.5 mm (1/8") Stereo - See Section 6.2.1
CIR Flasher Out 3.5mm Mono - See Section 6.2.3
DHDBaseT Link Cat 5e/6/6a (RJ45) - See Section 6.1
6.2.1. Point-to-Point IR Control - Stereo (3.5mm) IR Receiver
When using a powered IR receiver, the IR RCVR PWR DIP switch should be set to
ON. In this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to
the receiver.
B-520-TX-x30-IR Transmitter
HDMI Source IR Processor / Controller
Back
Back
Front
Front
B-520-RX-x30-IR Receiver
IR Flasher
IR Receiver
HDBaseT

9
CAUTION: Do not connect a mono cable to this connection as damage may
occur.
FIGURE 5: Point-to-Point IR Settings
6.2.2. Control System - Mono (3.5mm) IR
When using a control system that generates the signal through a mono jack, the IR
RCVR PWR switch should be in the OFF position.
FIGURE 6: Control System IR Settings
6.2.3. IR Flasher Out-3.5mm Mono
The IR Flasher level adjusts the intensity of the IR Flasher output (select extenders
only).
FIGURE 7: IR Flasher Out
6.3. Firmware Update Operation
Detailed instructions and updated rmware will be posted to www.SnapAV.com as
they are released.
6.4. HDMI Out (Transmitter)
We recommend using an HDMI cable that is 1 meter or less to ensure the highest
signal quality. This HDMI Out is used to connect to local TV/displays.
Pinout Conguration
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO
1
ON
2
IR Signal (Tip)
GND (Ring)
9V DC(Sleeve)
DIP Switches
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO
1
ON
2
Pinout Conguration
IR Signal (Tip)
GND (Sleeve)
DIP Switches
IR Signal (Tip)
GND (Sleeve)
Pinout Conguration

10
6.5. EDID Conguration
There are two EDID operating modes available for HDMI loopout. The EDID setting
determines if the source connected to the HDMI input chooses the EDID from the
display connected to the HDMI out on the transmitter and/or the display connected
to the HDMI out on the HDBaseT receiver.
6.5.1. Auto EDID
When the EDID DIP switch is set to AUTO, the lowest common EDID setting
between the display connected to the transmitter and the display connected to the
HDBaseT receiver will be applied to both displays.
FIGURE 8: Auto EDID Mode
6.5.2. HDBT EDID
When the EDID DIP switch is set to HDBT, the EDID from the display connected to
the HDBaseT receiver will be applied to both displays.
FIGURE 9: HDBT EDID Mode
6.6. Thread-Locking Power Supply
This transmitter is powered by the included power supply.
CAUTION: Do not connect the power supply to the device until it is
completely installed and all connections have been made.
CAUTION: Do not connect a third party power supply to the device unless
the voltage and amperage matches the power supply provided with the
transmitter.7.
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO
1
ON
2
DIP Switches
OFF
IR RCVR PWR
EDID
ON HDBT
AUTO
1
ON
2
DIP Switches

11
SPECIFICATIONS
Technical
HDMI Compliance HDMI 3D
HDCP Compliance Yes
Video Bandwidth 10.2 Gbps
B-520-TX-330-IR
HDMI over UTP
Transmission
Cat 5e/6/6a/7 1080i/720p 24-bit color: 330'
Full HD 1080p 24-bit color: 330'
Full HD 1080p 36-bit color: 330'
Ultra HD 4K2K@30 Hz 330'
Input TMDS Signal 1.2V (peak-to-peak)
Input DDC Signal 5V (peak-to-peak, TTL)
ESD Protection (1) Human body model: ±5kV (air-gap discharge) & ±8kV
(contact discharge) (2) Core chipset — ±8kV
IR Signal
(Bidirectional)
Carrier frequency: 20–60kHz
Connections
HDBaseT Link 1x RJ45z
HDMI 1x HDMI Type A (19-pin female)
IR Receiver (In) 1x 3.5mm Mono/Stereo
IR Flasher (Out) 1x 3.5mm Mono
Power Thread-Locking
Controls
DIP switch 1 IR RCVR PWR OFF/ON
DIP switch 2 EDID – AUTO/HDBT EDID

12
Mechanical
Housing Metal enclosure
Dimensions 6.25"x3.1"x1.3"
Weight 1.1 lbs.
Power Supply 12V DC, 2A
Power Consumption 12W (max)
Operation
Temperature
32–104°F
Storage Temperature -4–140°F
Relative Humidity 20–90% RH (no condensation)
Certications and
Compliance
Product: CE, FCC, RoHS
Power Supply: CE, FCC, RoHS, UL
8. SUPPORT
Need Help? Contact Tech Support!
If you need further clarication, please call tech support at 866.838.5052, or
email [e-mail]. For other information, instructional videos, support
documentation, or ideas, visit our website and view your item’s product page at
www.SnapAV.com.
9. WARRANTY
2-Year Limited Warranty
This Binary™ product has a 2-Year limited warranty. This warranty includes
parts and labor repairs on all components found to be defective in material or
workmanship under normal conditions of use. This warranty shall not apply to
products that have been abused, modied or disassembled. Products to be repaired
under this warranty must be returned to SnapAV or a designated service center
with prior notication and an assigned return authorization (RA) number.
Rev: 150806-1300
© 2015 Binary
