SUNVILLA 2127623 User manual

Questions, problems, or missing parts?
Before returning to the store please visit sunvilla.com,
or contact our Customer Service Department
at @sunvilla.com or call
1-888-690-9800
8am - 5pm PST Monday - Friday
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
THE ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY,
NOT FOR COMMERCIAL USE.
1

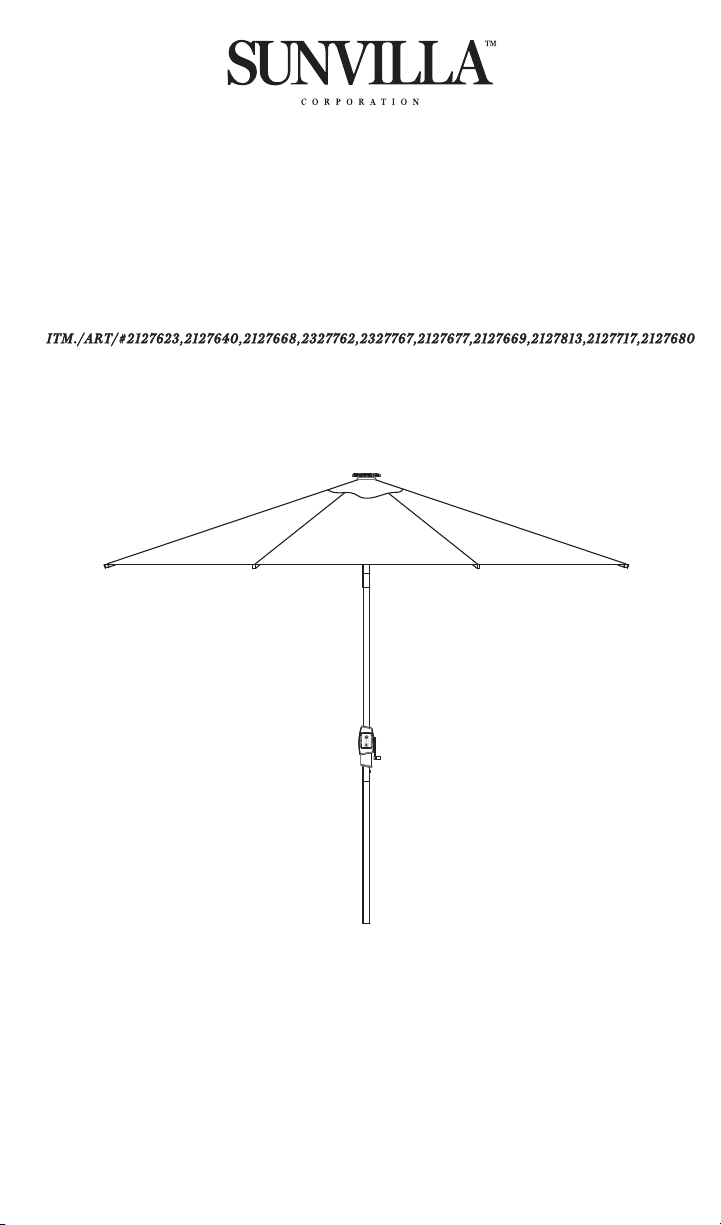

Assembly Instructions
3m / 10ft Market Umbrella
with 56 LED Lights

Contents
Safety Instructions
Care & Maintenance
3
3
Parts List 4
Assembly 5
Warranty 9-10
IMPORTANT: RETAIN FOR FUTURE REFERENCE,
AND READ CAREFULLY.
2

Safety Information
Prepare
Before beginning to assemblethis product, make sure all parts are present.
Compare parts with package contents list and hardware contents list. If any parts
are missingordamaged, do not attempt to assemble this product. Stop and call our
customer service center at 1-888-690-9800.
Please read and understand this entire manual before attempting to assemble or
install the product. It should not beused as a toy or tool. Children should not
engage in the operation, assembly, removal, or disassembly of theproduct.
•The purpose of the umbrella is to provide shade from the sun.
•Never leave unattended, fully opened, or use in windy conditions, gusts
or storms.
•It is best to remove the umbrella from the base and store when not in
use and also in the oseason.
•The manufacturer or retailer is not liable for any loss, damage tothe
product, or other items due tothe failure of not removing theumbrella
from an umbrella base duringwindy-stormy conditions.
Important Safety Information
• Allow a wet canopy to dry intheopen position in the sunlight.
•Store in a dry place during the oseason.
• Keep the umbrella away from fire or heat sources.
• Not recommended for Commercial use.
Care & Maintenance
• To spot clean, use mild soap with lukewarm water, rinse, and air dry.
• Do not clean with bleach or solvents.
• To maintain lifeoffabric, store indoors when not in use.
Fabric Care
3

Parts List
Estimated assembly time: 10 minutes.
No tools required for assembly.
Note:
AC Adapter:
Input: 100-240V AC, Output: 5V DC. AC adapter can be used for both indoor
and outdoor. Please note that plug needs to be covered to prevent water entering
when charging.
PART NO. QTYDESCRIPTION
1
1
1
Battery Pack 1
A
B
C
D
Bottom Pole
Upper Frame
with Canopy
Solar Panel
4
1
AC Adapter 1
EAC Adapter 1
The Battery Pack (Part D) includes twolithium ion batteries. Donot attempt to open
the battery pack or replace the batteries. For issues with the battery pack orLED lights,
pleasecontact Customer Service.

Step 1
Remove the small cap fromthe top of the umbrella by rotating it counter
clockwise. This cap can be kept to reuse in the future.
Step 2
Insert the Solar Panel (A) into the top of the umbrella, and rotate 90 degrees
to lock it into place.
B
A
Assembly
5
Step 3
Insert Bottom Pole (C) into the Upper Frame and lock into place.
Press
C
Press

Step 4 - Opening and Closing
Assembly (cont.)
6
Step 5
Once fully opened, continue turning the crank to tilt the umbrella.
Note: The umbrella will stop tilting at the maximum tilt of 30 degrees.
Do not force the crank to continue past this stopping point.
Secure the umbrella into an appropriate umbrella base (not included).
Before opening, gently pull apart and separate the umbrella ribs.
Turn the crank handle clockwise and continue turning until the umbrella is
fully opened.
Placethe Battery Pack (D) into thecrank housing.
D

Pull down the collar to rotate the umbrella 360 degrees. Stop at the desired
position and release the collar.
Step 6 - 360 Degrees Rotation
Assembly (cont.)
7
Step 7 - Solar Lights
Light Control Button
Power Display Button
Press the Light Control Button located on the battery pack to turn on the solar
lights. Continue to press this button to adjust the light brightness. Press and hold
the button for 2 seconds to turn othe solar lights.
Press the Power Display Button to display the current battery charge.
Note:The umbrella must be fully charged beforefirst use. It can be chargedwith 8
hours ofsunlight or 5 hours with the included AC adapter.
The battery can be discharged if it is left uncharged for a long period oftime.
Failure to charge the battery will result in dim lighting.
For normal operation, turn othe LED's when not in use, and to charge the batteries
in the daytime via the solar panel.

Step 8
Assembly (cont.)
8
Note: The included AC adapter can be used to charge the lithium ion batteries indoors
.sroodtuoro
WARNING:
This may cause an electric shock.
Prevent water contact with power adaptor.
AC Adapter
Remove the Battery Pack from the umbrella crank, connect the AC adapter to the
Battery pack to start charging.
Step 9
Use the attached ties to secure your umbrella when not in use.
Screw on the small cap from Step 1 after removing the Solar Panel to store umbrella.

9
Contact Customer Service at 1-888-690-9800
*WARNING: Read and understand all instructions. Failure to follow all
instructions may result in fire and/or serious personal injury.
*WARNING: Risk of fire and burns. Do not disassemble or incinerate.
Keep battery out of reach of children and in original package until ready
to use. Dispose of used batteries promptly according to local recycling or
waste regulations.
*Recharge only with the chargers specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a rise of
fire when used.
*Do not place battery pack near fire or heat. This will reduce the risk of
explosion or possible injury.
*Do not dispose of the batteries in a fire. The cells may explode. Check
with local codes for possible special disposal instructions.
*Do not open or mutilate the battery. Released electrolyte is corrosive
and may cause damage to the eyes or skin. It may be toxic if swallowed.
*Do not crush, drop, or damage the battery pack. Do not use a battery
pack or charger that has been dropped or received a sharp blow. A
damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
*In the event of a cell leaking, do not allow the liquid to come in contact
with the skin or eyes. If contact has been made, wash the aected area
with copious amounts of water and seek medical advice.
*Do not charge the battery in a damp or wet location. Following this rule
will reduce the risk of electric shock.
*For best results, your battery should be charged in a location where the
temperature is greater than 0° C and less than +50° C.
*Wipe the cell or battery terminals with a clean dry cloth if they
become dirty.
*Do not leave a battery on prolonged charge when not in use.
*Remove the battery pack from the pole when not in use for a long time.
Appropriately store in the dry environment of 0° C to +40° C.

10
Contact Customer Service at 1-888-690-9800
*his device complies with part 5 of the  Rules. peration is subect to the
following two conditions  this device may not cause harmful interference
andthis device must accept any nterference received including interference that
may cause undesired operation.
* his euipment has been tested and found to comply with the limits for a
lass  digital device pursuant to art 5 of the  Rules. hese limits are designed
to provide reasonable protection against harmful interference in a residential
installation. his euipment generates uses and can radiate radio freuency energy
and if not installed and used in a ccordance with he instructions may cause harmful
interference to radio communications. owever. there is no guarantee that
interference will not occur in a particular installation. f this euipment does cause
harmful interference to radio or television reception which can be determined by
turning the euipment off and on the user is encouraged to try to correct the
interference by one or more of the following measures
 Reorient or relocate the receiving antenna.
 ncrease the separation between the euipment and receiver.
onnect the euipment into an outlet on a circuit different from that to which the
receiver is connected.
 onsult the dealer or an eperienced radio technician for help.
*Warning hanges or modifications to this unit not epressly approved by the party
responsible for compliance could void t he uses authority to operate the euipment.
Warnings

Outdoor Furniture
2-YEAR LIMITED WARRANTY PROGRAM
For a period of two (2) years after date of purchase, the Manufacturer will either repair or replace defective
components in accordance with this Limited Warranty. This warranty is between the Manufacturer andthe
originalpurchaser and is valid only when accompanied by the original purchaser’s sales receipt showing
originaldate of purchase and location of purchase. Replacements under this warranty revert back tothe
date of original purchase for future warranty.
The manufacturer or its authorizeddealer can accept or reject warranty claims based on its findings. This
warranty applies in normal residential use only and is not intended for commercial use. The Manufacturer
can make substitutions as required of materials, components, and sub-components of comparable value
and utility. This warranty is limited to product repair or replacement (to be determined solely by the
This limitedwarranty covers only manufacturing defects and does not cover normal wear and tear, damage
due toacts of nature (such as, but not limited to freezing or high winds), abuse or misuse, including
chemical damage from suntan oil or other chemicals, exposure to extreme heat or cold,abrasion or excessive
weight. This product is intended to be used in standard installations only. This warranty is void
if the product is not used for its intended purpose. The Manufacturer disclaims liability for any aspect of
installation and any inconvenience caused by a defective part of a component.
Certain items are not covered by this warranty.These include, but are not limited to thefollowing:
1. Components subjected to abuse, including abuse intended to simulate failure.
2. Damages caused by retailer, shipper or installation crew (such as scratches, dents,tears, chips, etc.).
3. Any part which merely exhibits normal wear yet functions essentially as new, including chips, scratches
or stretching of materials and stitching.
4. Tears, punctures,scratches or any damage caused by improper installation or use.
5. Damage toframes/welds resulting from improper assembly or exposure towater and/or sub-freezing
temperatures is not covered. General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposuretothe elements,
chemicals, oils, fluids or any othercause are not covered.
7. Umbrella bases are not covered under any circumstances.
8. Itemssold “as is” or floor models.
To make a claim, call the toll-free number below. Please have available a copy of the original sales receipt
along with a brief description of the problem. Please also provide your email address and daytime telephone
or cell phone number. All items may be charged actual freight costs plus $15 for handling. Repairs or
replacement will be made at the Manufacturer’s option. Sales and use taxes, plus shipping and handling
charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER
NEITHER MAKES NOR IS RESPONSIBLE FOR ANY OTHER WARRANTIES, EITHER EXPRESS OR
IMPLIED, INCLUDING THOSE OF RETAILING DEALERS. THIS EXCLUSIVE REMEDY IS LIMITED
TO RECEIPT OF A CREDIT IN CONNECTION WITH THE REPAIR OR REPLACEMENT OF ANY
PRODUCT OR COMPONENT DEEMED TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS
AS STATED IN THIS WARRANTY. NEITHER THE PRODUCT MANUFACTURER NOR ITS AGENTS
SHALL BE LIABLE IN ANY CASE FOR INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCEPT AS OTHERWISE MAY BE REQUIRED BY LAW, THERE ARE NO OTHER
EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED HEREIN, AND
ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED.
Contact Customer Service at 1-888-690-9800
Warranty
11

uestions roblmes ices manuantes
Avant de retourner le produit che le dtaillant consulter
sunvilla.com appeler notre service  la clientle
au 1 888 690-9800 en semaine entre 8 h et  h
 ou nous crire  servicesunvilla.com.
RA  R A  RR R
A RR. RD D   A
RR D .  D  
A RA.
1
nstrtions e ontage
araso e ar e    i
ae airage   

ae es atires
Consignes de sécurité
Entretien
3
3
Liste des pièces 4
Montage 5
Garantie 9-10
    
   
2

onsignes e srit
réparation
 e parasol sert  protger du soleil.
 e pas laisser le parasol sans surveillance lorsuil est entirement ouvert
ni lutiliser par temps venteu ou orageu.
 l vaut mieu retirer le parasol de sa base et le ranger lorsuil ne sert pas et
pendant la saison morte.
 e fabricant et le dtaillant ne sont pas responsables des pertes ni des
dommages occasionns au produit ou  un autre obet si le parasol est
laiss sur sa base par temps venteu ou orageu.
Avant de commencer le montage sassurer uil ne manue aucune pice en comparant le
contenu de lemballage avec la liste des pices et des lments de uincaillerie. il manue
une pice ou si une pice est endommage ne pas monter le produit appeler le service  la
clientle au  888 0 800.
ire attentivement le prsent guide au complet avant de monter ou dinstaller le produit. l ne
sagit ni dun ouet ni dun outil. es enfants ne doivent pas actionner monter dplacer ou
dmonter le produit.
Consignes de sécurité iportantes
 i la toile est mouille la faire scher en ouvrant le parasol au soleil.
 Ranger le parasol au sec pendant la saison morte.
 enir le parasol loign des flammes et des sources de chaleur.
 tilisation commerciale dconseille.
Entretien
 ettoyer les taches avec du savon dou et de leau tide rincer et laisser scher.
 e pas utiliser deau de avel ni de solvants.
 our ue le tissu dure plus longtemps ranger le parasol  lintrieur lorsuil ne sert pas.
Entretien du tissu
3

iste es ies
eps de ontage estié  
inutes ucun outi nécessaire
o D  DR
1
1
1
locpile 1
A
B
C
D
at infrieur
at suprieur et
toile
anneau solaire
4
1
1
EAdaptateur A 1
A
Note:
e blocpile pice D comporte deu piles au ions lithium. e pas tenter de louvrir ni de
remplacer les piles. n cas de problme avec le blocpile ou les D communiuer avec le service 
la clientle.
daptateur C
ntre  00  40 A sortie  5 . adaptateur A sutilise  lintrieur comme  letrieur.
a fiche doit tre recouverte pour empcher leposition  leau durant le chargement.

tape 
Dvisser le capuchon au haut du parasol. arder le capuchon pour le rutiliser au
besoin.
tape 
nsrer le panneau solaire A sur le haut du parasol et le tourner dun uart de
tour 0 pour le blouer en place.
B
A
ontage
5
tape 
nsrer le mt infrieur  dans le mt suprieur et le blouer en place.
Appuyer
C
Appuyer

tape   uerture et ereture
ontage site
6
tape 
ontinuer  tourner la manivelle pour incliner le parasol.
  inclinaison maimale est de 0 la manivelle se blouera  cet angle
ne pas la forcer audel.
nsrer le blocpile D dans le boitier de la manivelle.
ier le parasol dans une base approprie non comprise. Avant de louvrir
sparer doucement les baleines.
ourner la manivelle dans le sens horaire usu ce ue le parasol soit
compltement ouvert.
D

irer le collet vers le bas pour faire tourner le parasol sur 0. ne fois le parasol
dans la position dsire relcher le collet.
tape   otation sur 
ontage site
7
tape   cairage soaire
nterrupteur
outon dindication
de charge
Appuyer sur linterrupteur situ sur le blocpile pour allumer lclairage solaire. ontinuer
dappuyer pour rgler lintensit. aintenir linterrupteur enfonc pendant  secondes pour
teindre lclairage. Appuyer sur le bouton dindication de charge pour afficher la charge des piles.
..  Recharger compltement le parasol avant la premire utilisation en le plaant 8 heures au
soleil ou en branchant ladaptateur A compris pendant 5 heures.
Dans le cadre dune utilisation normale teindre les D uand elles ne servent pas et pendant
la recharge  lnergie solaire. es piles peuvent se dcharger si elles ne servent pas pendant une
longue priode. clairage sera alors plus faible.

tape 
ontage site
8
Adaptateur A
Retirer le blocpile du boitier de la manivelle et y connecter ladaptateur A pour le
charger.
  adaptateur A compris peut servir  recharger les piles au ions lithium  lintrieur ou 
letrieur.
EEME  viter tout contact de ladaptateur A
avec leau car cela pourrait provouer une dcharge lectriue.
tape 
tiliser les attaches pour retenir le parasol lorsuil ne sert pas.
Avant de ranger le parasol retirer le panneau solaire et revisser le capuchon tape .

Service àla clientèle: 1 888 690-9800 9
Avertissements concernant le bloc-ie
* AVERTISSEMENT
: Lire attentivement les instructions. Leur non-respect pourrait
causer un incendie ou des blessures graves.
* AVERTISSEMENT : Risque d’incendie et de brulure. Ne pas démonter ni bruler le
bloc-pile. Le garder hors de la portée des enfants et dans son emballage jusqu’à son
utilisation. Une fois usé, le jeter rapidement conformément aux règlements locaux
d’élimination ou de recyclage.
*Utiliser uniquement les chargeurs recommandés par le fabricant. Tout autre
chargeur pourrait causer un incendie.
*Tenir le bloc-pile loin des flammes etdes sources de chaleur pour r é duire le risque
d’explosion oude blessure.
*Ne pas jeter le bloc-pile au feu. Les piles pourraient exploser. Vérifier la méthode
d’élimination prévue dans les règlements locaux.
* Ne pas ouvrir ou endommager lespiles. L’électrolyte qu’elles contiennent est
corrosif etpourrait causer des blessures oculaires ou cutanées. Ilest aussi
toxique en cas d’ingestion.
*Ne pas é craser, é chapper ou endommager le bloc-pile. Ne pas utiliser unbloc-pile
ou un chargeur qui est tombéou a reçu un coup violent. Une pile endommagée
pourrait exploser. Jeter immédiatement etconvenablement le
bloc-pile s’il est tombéou s’il estendommagé.
*Si une pile fuit, é viter tout contact du liquide avec la peau ou les yeux.
En cas de contact, laver la région touchée à grande eau et consulter un
médecin.
*Ne pas charger les piles dans un endroit humide ou mouill é . Cette consigne réduit
le risque d’électrocution.
*Pour un résultat optimal, il est recommandé de charger les piles dansun endroit
où la température se situe entre 0et 50°C.
*Essuyer les bornes sales des piles ou du bloc-pile avec un linge propre et
sec.
*Ne pas laisser le bloc-pile branché sur le chargeur pendant de longues périodes
d’inutilisation.
*etirer e oie  at si e araso eere intiis enant e onges
rioes e ranger aateent  n enroit se  ne teratre aant e  
 
