SUNWARD SA210 User manual

-
SA210 ROTARY DRILLING RIG
（833600000000）
OPERATOR’S MANUAL
SUNWARD INTELLIGENT EQUIPMENT CO., LTD

-
Foreword
This manual will help users to operate and maintain the machine correctly.
It is particularly important that the machine operator should read these instructions carefully
not only prior to using the machine for the first time (in order to become acquainted with its
operation and special features), but also to take full advantage of its capabilities during use,
or for lubricating and servicing operations. Otherwise accidents or damage may occur.
The manual should be regarded as the permanent part of machine and kept in the cab for
consultation at any time. And the manual should be attached when the machine is transferred
or sold.
The machine is designed according to the metric system, all the data presented are metric
and only metric parts and apparatus can be used.
Position definition: RIGHT and LEFT always mean the left and right of an operator seated
correctly in the machine. The drive sprockets of undercarriage are located at the rear.
Sunward guarantees to keep machine in good repair in term of service. The service details
are showed in Maintenance Card supplied by distribution.
Maintenance Card guarantees can you get service or not in service period.
In some
conditions, even if machine is out of service term, Sunward can also supply the in site free
service in normal. Warranty claims will not be considered provided：1. Reassemble and
repair machine without any notice to Sunward; 2.Disaassemble, welding and add parts in
machine; 3.Use the parts which is not from Sunward or do not get approval by Sunward;
4.Assemble, operate, park the machine which do not follow the operator’s manual; 5. Fuel
oil and lubricating grease is not fit for the manual request; 6.Do not complete routine
maintenance base on the manual.
Possible warranty claims may be considered only provided that all operations are made by
qualified operator and scheduled inspections are made at the specified times by qualified
technician.
Regarding SAFETY in particular, we recommend carefully reading the SAFETY RULES in
this manual and complying with all the safety rules.
The equipment covered by this manual meets the applicable technical specifications
effective as of its date of issue. The manufacturer SUNWARD reserves the right to make
from time to time and without prior notice any modification or amendment of any nature,
deemed useful or necessary, to any machine component, without any obligation to amend
the content of this manual accordingly. Pictures and data contained in this manual are not
binding. Consequently, no claim raised in this respect will be considered.
Sunward Intelligent Equipment Co., Ltd

-
CONTACT WAY
Thanks for your choosing Sunward full hydraulic rotary drilling rig, contact
way is as following for your calling us at any moment.
Address: No.16 LiXiang Road, Xingsha economic and technologic
development district, Changsha, Hunan
Post Code：410100
Sales Hot-line
：
0086-0731-84020688
Service Hot-line
：
400-887-8230（for question）
400-878-6230（for complaining）
Web：http://www.sunward.com.cn

OPERATOR’S MANUAL SA210
1
TABLE OF CONTENTS
1 Safety Rules .................................................................................................................................................. 4
1.1 Safety Precaution................................................................................................................................. 4

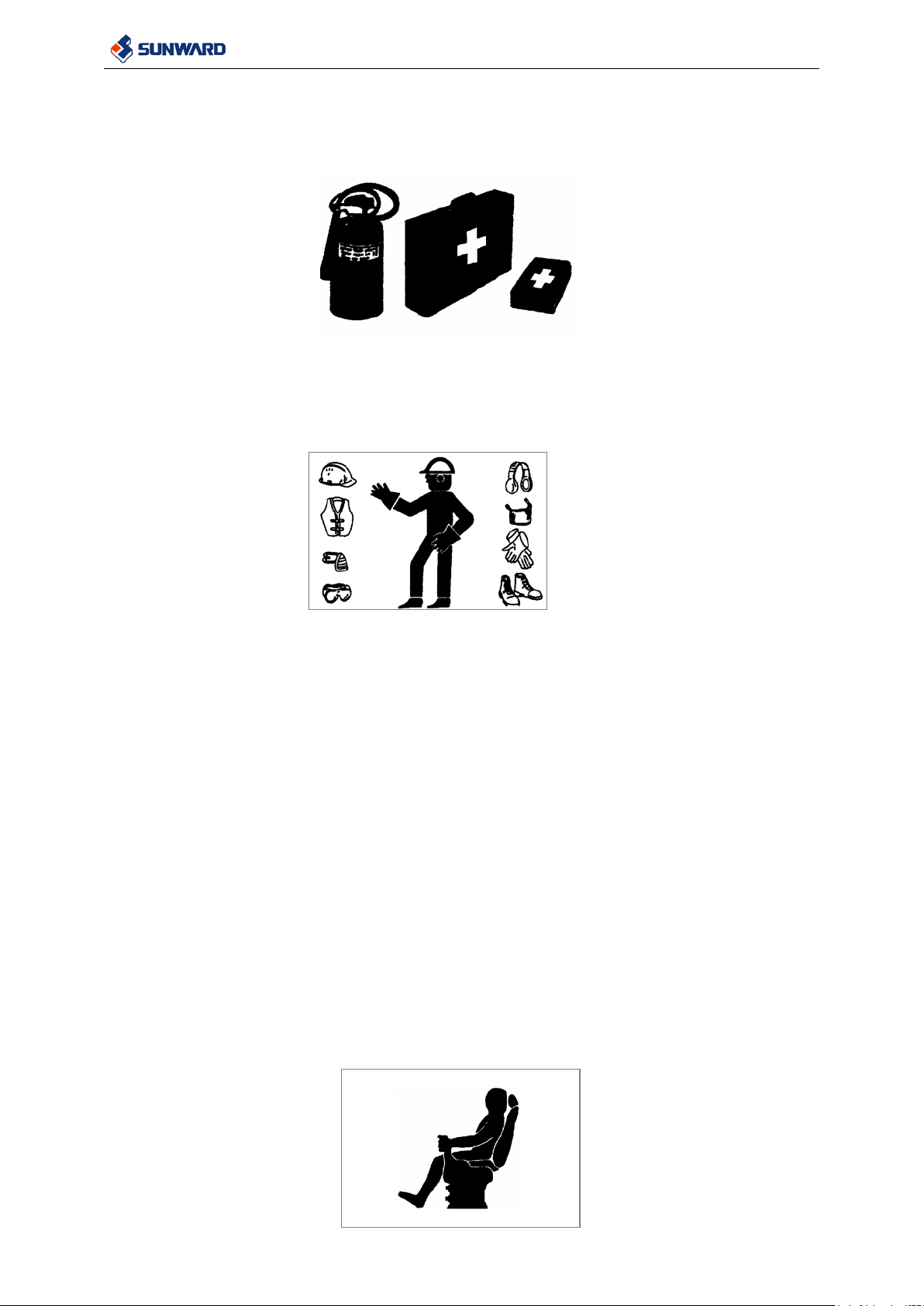

1.2 Preparation for Emergency.................................................................................................................. 4
1.3 Wear Safety ......................................................................................................................................... 5
1.4 Enter or Leave Machine Correctly......................................................................................................5
1.5 Adjust Operator Seat ........................................................................................................................... 5
1.6 Start Engine Correctly......................................................................................................................... 6
1.7 Before Operating Machine.................................................................................................................. 6
1.8 Machine Operating.............................................................................................................................. 6
1.9 Notice for Machine High-efficiency Work..........................................................................................7
1.10 Keep Machine Away From Power Line ............................................................................................7
1.11 Move Machine Safely........................................................................................................................ 7
1.12 Allowable Traveling Grade of Slope.................................................................................................8

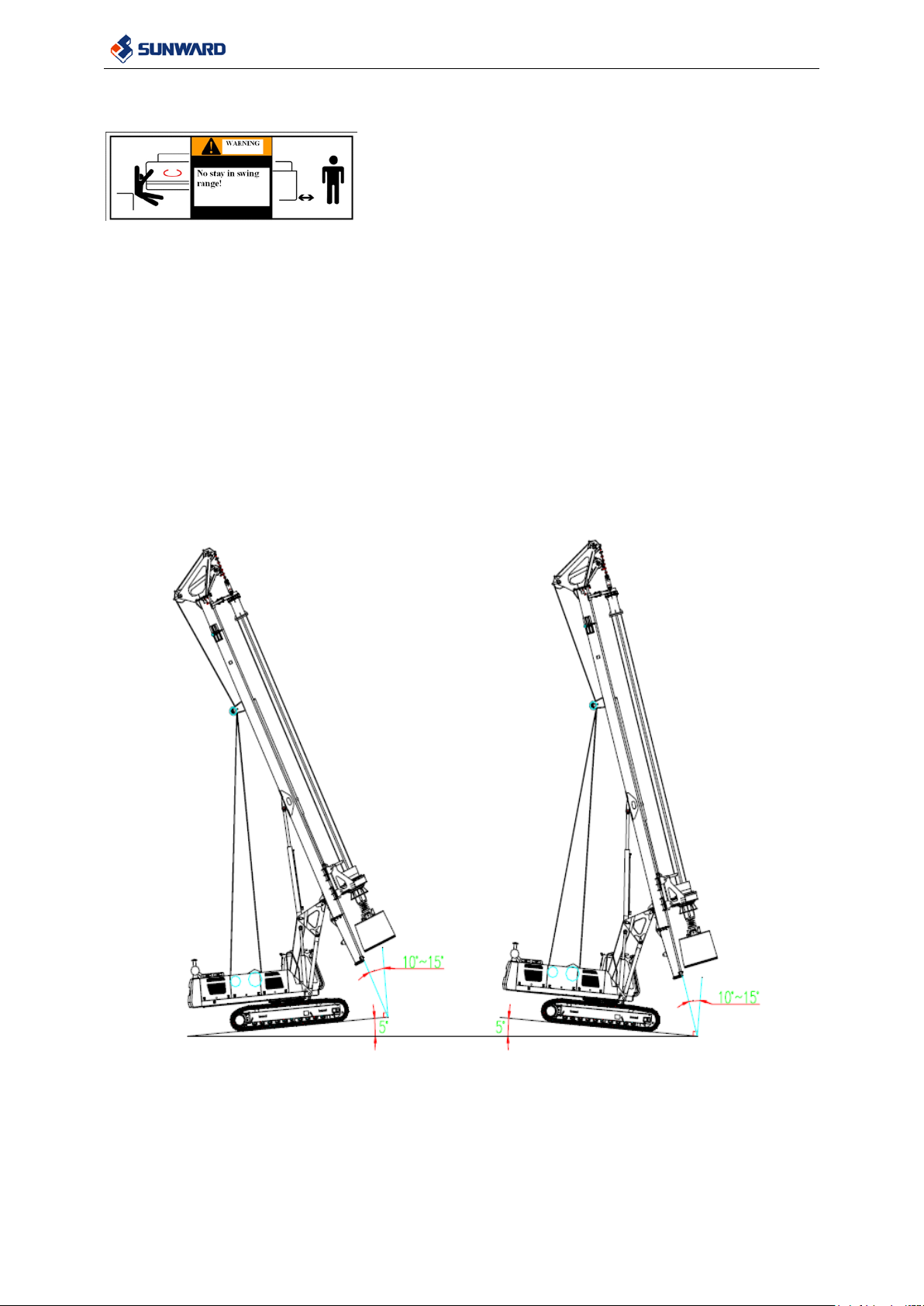

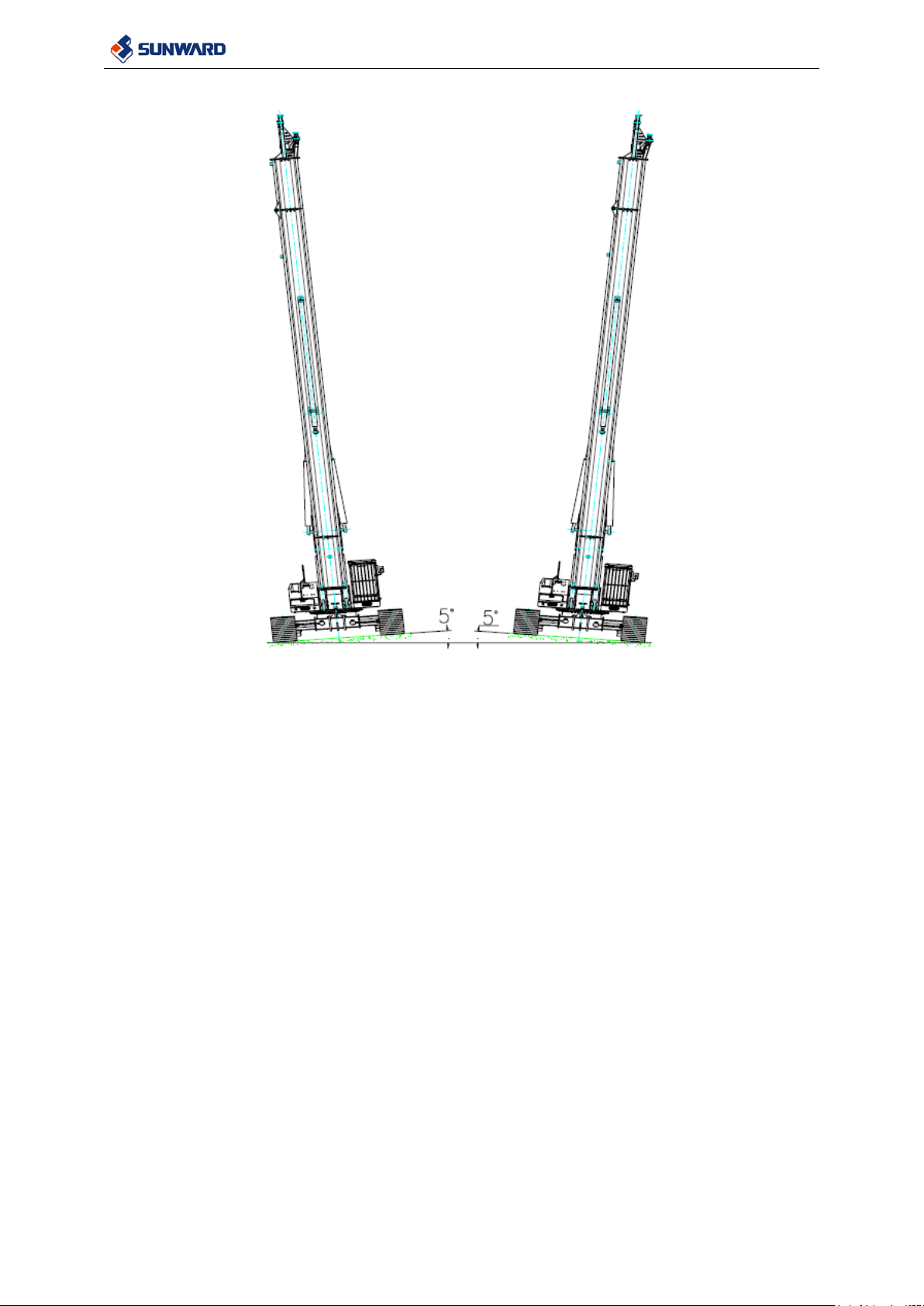

1.13 Allowable Work Grade of Slope........................................................................................................ 9
1.14 Park Machine Safely ....................................................................................................................... 10
1.15 Winch Work..................................................................................................................................... 11
1.16 Safety Maintenance......................................................................................................................... 11
1.17 Clean Trash from Machine.............................................................................................................. 11
1.18 Prevent Battery Explosion............................................................................................................... 12
1.19 Prevent Inhaling Asbestos Dust....................................................................................................... 12
1.20 Be Careful of Pressured Liquid....................................................................................................... 12
1.21 Avoid Heating Near A Pressured Oil Pipe....................................................................................... 13
1.22 Avoid Heating Flammable Liquid Pipe........................................................................................... 13
1.23 Remove Paint Before Welding or Heating......................................................................................13
1.24 Liquid Disposal............................................................................................................................... 13
1.25 Chemical Disposal........................................................................................................................... 13
1.26 Fire Prevention................................................................................................................................ 13
1.27 Emergency Exit............................................................................................................................... 14
1.28 Noise Proof In The Machine ........................................................................................................... 14
2 Description.................................................................................................................................................. 15
2.1 Model Definition............................................................................................................................... 15
2.2 Applicable Range .............................................................................................................................. 15
3 Technical Characteristics............................................................................................................................. 16

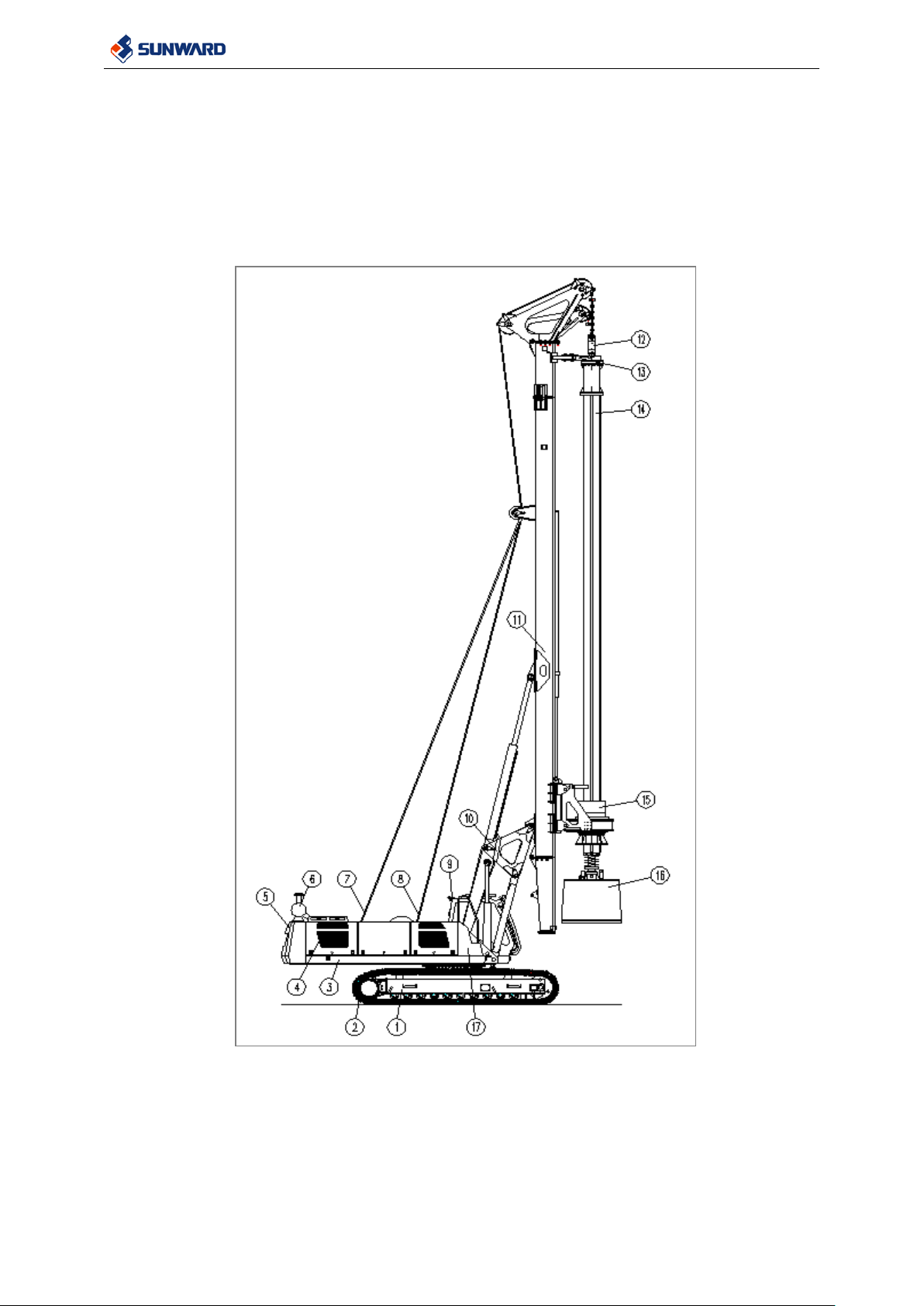

3.1 Machine Structure ............................................................................................................................. 16
3.2 Main Technical Data.......................................................................................................................... 17
4 Main Structural Features............................................................................................................................. 18
4.1 Under-carriage................................................................................................................................... 18
4.2 Upper-carriage................................................................................................................................... 20
4.3 Engine System................................................................................................................................... 21
4.4 Parallelogram System and Drill Mast................................................................................................21
4.5 Rotary Head....................................................................................................................................... 23
4.6 Kelly Bar, Drill Tools........................................................................................................................ 23
5 Hydraulic System........................................................................................................................................ 27

OPERATOR’S MANUAL SA210
2
5.1 Under-carriage Hydraulic System.....................................................................................................27
5.2 Upper-carriage Hydraulic System.....................................................................................................27
5.3 Pilot Control System ......................................................................................................................... 28
5.4 Oil Filter............................................................................................................................................ 28
5.5 Hydraulic Oil..................................................................................................................................... 29
6 Electrical System......................................................................................................................................... 30
6. 1 Description....................................................................................................................................... 31
6.2 DESARS Intelligent Control System ................................................................................................ 33
6.2.1 Main Operating Interface ........................................................................................................ 33
6.2.2 Leveling interface.................................................................................................................... 34
6.2.3 Drill Work Interface ................................................................................................................ 35
6.2.4 System Debug Panel................................................................................................................ 36
6.2.5 Monitor Interface..................................................................................................................... 37
6.2.6 Setup Panel.............................................................................................................................. 39
6.2.7 Recording Panel ...................................................................................................................... 40
6.3 Electrical System Structure............................................................................................................... 41
6.4 Electrical System Function................................................................................................................ 41
6.4.1 Start Switch ............................................................................................................................. 41
6.4.2 Fuel Control Button................................................................................................................. 42
6.4.3 Emergency Switch................................................................................................................... 42
6.4.4 Engine Failure Indicating Light...............................................................................................42
6.4.5 Rotary Head Adjusting Button（option）.............................................................................. 43
6.4.6 Wane Switch............................................................................................................................ 43
6.4.7 Machine Work Mode............................................................................................................... 44
6.4.8 Interlocking and Safe Protection............................................................................................. 46
6.4.9 Engine Malfunction Indication and Error Code Chart ............................................................47
7 Operation..................................................................................................................................................... 49
7.1 Preparation and Check-up Before Operation ....................................................................................49
7.2Operation and Gauges........................................................................................................................ 49
7.3 Operation........................................................................................................................................... 49
7.3.1 Machine Positioning................................................................................................................ 49
7.3.2 Machine Assembling............................................................................................................... 50
7.3.3 Depth scaling........................................................................................................................... 52
7.4 Machine Work................................................................................................................................... 54
7.4.1 Rig Running-in........................................................................................................................ 54
7.4.2 Drill Tools Choosing ............................................................................................................... 54
7.4.3 Hole Opening and Barrel Installation...................................................................................... 54
7.4.4 Drilling.................................................................................................................................... 55
7.4.5 Machine Move......................................................................................................................... 57
7.4.6 LCD Monitor, Warning Icon ................................................................................................... 57
7.4.7 Machine Stop and Emergency Stop......................................................................................... 58
7.4.8 Steps to Exit from Drilling Mode to Transportation Mode .....................................................58
7.5 Application of Air Conditioner.......................................................................................................... 59
7.5.1 Attention.................................................................................................................................. 59
7.5.2 Main Technical Parameter.......................................................................................................60
7.5.3 Daily Maintenance .................................................................................................................. 60
7.5.4 Maintenance Rules.................................................................................................................. 60

OPERATOR’S MANUAL SA210
3
7.5.5 Failure Troubleshooting and Solutions.................................................................................... 61
8 Maintenance and Service ............................................................................................................................ 62
8.1 Bolt Torque........................................................................................................................................ 62
8.2 Fuel Oil.............................................................................................................................................. 62
8.3 Hydraulic Oil..................................................................................................................................... 62
8.4 Lubricating Oil (Grease) ................................................................................................................... 63
8.5 Coolant.............................................................................................................................................. 64
8.6 Steel Wire Rope................................................................................................................................. 64
8.7 Check and Maintenance .................................................................................................................... 66
8.8 Maintenance and Service................................................................................................................... 67
9 Transportation ............................................................................................................................................. 72
9.1 Trailer Transportation........................................................................................................................ 72
9.2 Break-down Transportation............................................................................................................... 73
10 Trouble-Shooting....................................................................................................................................... 74
10.1Common Failure and Solution .........................................................................................................74
10.2 Accident and Treatment During Drill.............................................................................................. 76

OPERATOR’S MANUAL SA210
4
1 Safety Rules
1.1 Safety Precaution
Disobey the safety rules may cause accidents during operation and maintenance. We
recommend that operators should pay much attention to the operation safety,
Before use and maintain machines, please carefully read the SAFETY RULES in this manual
For using machines safely, there are various labels at various places on the machine indicating
various risks, such as Danger, Warning, Attention, etc (right figure), they have the following
meaning:
Danger---indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Warning---indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Attention---indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
Always keep the safety labels clean. Change any lost or damaged labels with new ones. If the
labels or manual are lost, you can contact the dealer and indicate the model of machine to
purchase.
WARNING: Do not operate and move machine before read and understand the safety instructions. If
you do not follow the safety rules or warnings, accidents or damage may occur and you should be
responsible for the all by yourself.
1.2 Preparation for Emergency
All personnel related to operating the machine should pay attention to prevent accidents from
happening, Always keep a first-aid kit and fire extinguisher nearby. Have phone numbers of a

OPERATOR’S MANUAL SA210
5
doctor, ambulance, hospital, and fire department with you in case of emergency.
1.3 Wear Safety
Before operation, always wear protective gear as the work requires, this includes: Tight work
clothes, Hard hat, Safety gloves, Safety glasses, goggles, or shield, Dust mask or respirator etc.
1.4 Enter or Leave Machine Correctly
◆Check and clean pedals and armrest before enter the machine；
◆Only get up/down the machine by pedal or armrest;
◆Always face the machine when you use the steps and hand-holds to enter or leave machine;
◆Never enter or leave the machine in its working or moving；
◆Use ropes to hoist and fall tools and material from rig, do not try to take them during getting
up and down the machine.
Warning！！！
Never use any operating rod as armrest in getting up/down the machine.
When the machine is in operation or traveling, no passenger is allowed to stay on or in the machine
except the operator.
1.5 Adjust Operator Seat
You may adjust seat to suit yourself, Lean your back on the back of seat and let your feet reach
the pedals.

OPERATOR’S MANUAL SA210
6
1.6 Start Engine Correctly
The operator must sit on cab seat to start engine.
Never start engine by connecting start terminal or accumulator linking to start terminal, which
will seriously damage electric parts. Prevent short-circuit from electrical system damage;
If “No START” is showed in start button or control rod, do not start or operate engine;
Before starting engine, keep all control rod in “HOLD” position; push hydraulic control rod in
“LOCKED” position；
Engine emission gas can cause diseases and even death. If machine is operated at indoor, it’s
necessary to open door and windows to ventilate. Or you can also use lengthened discharge
pipe to discharge exhaust gas to outside.
1.7 Before Operating Machine
Clean all obstacles in machine running way;
Excepting operators, other person should leave machine and stay far away from running range;
Familiar with complicated terrain, such as cable trench, refill soil etc. dangerous site；
Adjust back mirror to optimum，pay attention to the machine side and rear position；
Ensure horn and all warning devices in machine are in good condition;
Before moving machine, check the position of travel device. Its correct direction: tension roller
is under cab front, drive roller is in the back；
Check controller and safety devices are in good condition;
Make sure to follow all safety rules.
1.8 Machine Operating
Operator must sit in cab seat to control machine;
Lower mast must be kept in the height 10cm over ground level in rig rotating and mast up；
Pay attention to any failure and solve it in time during rig working;
Please do not drive machine near cliff, collapsing range;
When machine is unbalance in rotary head pressurization or hoisting drill, stop work
immediately；
Prevent machine out of control and do not work over rated bearing capacity;
Do not change direction in slope which may make machine tilt or slide；
Machine may sink in loose road, insert wood or steel plate under crawler;
It is better move along longitudinal slope and prevent horizontal direction;
Please obey national and local construction safety regulations for obstacle minimum distance;

OPERATOR’S MANUAL SA210
7
After hole forming, fill it or cover and mark it in time.
1.9 Notice for Machine High-efficiency Work
Generally, the machine can use drill tool and stabilizer to lower casing, and also can be fit
casing driver to fall it; then it can pull out casing by main& service winch or crane. Operate it
slowly and evenly. Do not use winch to hoist and fall casing suddenly and shock which can
damage machine.
If fall and hoist casing by above mentioned methed is difficult, please use special equipment
such as twisting machine, hammer drill etc.
When lower drill rod, operator should always observe lowering depth and extend length for
each section rod to prevent “ rod lock”, “rod loosen” and “rod break”.
During falling drill rod, operator should always observe steel rope stress to prevent over falling
winch steel rope because of drills lock.
Stop falling winch in upper hole base 1-3M , open free fall and make drills touching hole base;
Prevent steel rope over falling.
Before lifting drill rod, anti-clockwise rotate rotary head to delete occlusal between each
section drill rod. Always observe lifting depth and drill rod connection to prevent “rod lock”,
“rod break”.
Choose different drill tools according to different stratums during drilling; Change drill teeth
angle and amount to advance drill efficiency. Please contact our after-sales for technical
support in necessary.
When in-hole collapse accident is occurring, it should lift winch immediately and hoist drill
tool quickly to prevent drills embedding; When drill rod is dropping into hole because of steel
rope cutting, it should pull rod out by other device in time to prevent drills embedding.
1.10 Keep MachineAway From Power Line
Know your machine maximum height and extend range. Machine and attachment should keep
a safety distance from power line; Keep the machine more than 3 meters away from 50000V
power line；If voltage is over 50000V, safety distance should be increased more.
Warning！！！
If you do not follow the safety rules or ignore warnings, you should be responsible for all.
1.11 Move Machine Safely
Before the machine travels or swings, warn other people by tapping the horn. Ensure no other
people is in the work range.
Operate the mast backward 10°～15° to prevent machine tilting because of rough terrain.
When traveling and starting in narrow area, hand signal should be used, and agree upon the
hand signals before machine start-up. Before operate machine, make sure helpers is in safety
range. Only know and understand helpers signal, can operate rig.

OPERATOR’S MANUAL SA210
8
Enough light should be provided in moving machine.
1.12 Allowable Traveling Grade of Slope
Warning！The allowable grade of slope is calculated in the rigid ground without any ascend, so when
the machine is in the rough and loose ground, the valve should be reduced。
Travel carefully and slowly in falling gradient, and check the ground status before running。
Forbid to travel over the allowable value so as to prevent the tilting danger。
Warning！
When travel in falling gradient，grade of slope in longitudinal must be no more than 5°，and adjust the
mast backward no less than 10°～15°.
When travel in up grade，grade of slope in longitudinal must be no more than 5°, and adjust the mast
backward no less than 10°～15°.
WARNING!
Grade of slope in cross direction must be no more than 5° in traveling.

OPERATOR’S MANUAL SA210
9
1.13 Allowable Work Grade of Slope
Warning: Forbid work over the allowable grade of slope, so as to prevent tilting danger.
Machine can work in all position of the grade of slope no over 2° in longitudinal.

OPERATOR’S MANUAL SA210
10
1.14 Park Machine Safely
When park machine for a short time(such as in rest time), it should be parked in safety range
and lay drill tools down, loosen steel rope.
Stop machine according to the following steps：
Place machine on flat hard ground, fall drill mast to bracket support position;
Put machine in safety range;
Idle running engine for 5 minutes, cooling machine;
Turn the ignition key to “OFF” position and take off the key.
Switch off pilot control switch.
Clean cab.
Close and lock window, sky window, cabin
WARNING!! Never load in machine when it is in park mode.

OPERATOR’S MANUAL SA210
11
1.15 Winch Work
Winch in rig is only used for hole-forming(such as lifting rod，bit and other drills etc.).
If use winch to complete other work (such as lifting heavy load), Sunward will not be
respinsible for it.
Hoisting load, and load is just in front of mast; angle between steel rope and mast should not
over 15°；If load is in front side, rotate rig to prevent tilting.
Warning！！！
Winch in rig is the special equipment for drilling hole, never use it as crane or other loading device.
1.16 Safety Maintenance
Before maintenance, stop diesel engine, take off ignition key, show “ Machine out of duty” in
control platform.
Before maintenance, cut off power supply and release pressure in hydraulic system at first.
Make sure all parts temperature is normal. Do safe protection in treating elastic parts(such as
springs).
When technical staff diagnoses and evaluates failure, it needs to operate machine and check its
actions; Technical staff must ensure:
Operators and technical staff can see each other, understand and exchange signal clearly；
Technical staff can hear and reply operator clearly;
Service person must be in safety range before rig running; only operators fully understand
service person, can they operate machine.
In maintenance, enough light must be provided in site.
Wear protective gloves in maintenance.
Warning!!!
Before maintenance, read and understand the safety and maintenance rules.
Never service and repair machine when it is not safely parked.
1.17 Clean Trash from Machine
Keep the engine, radiator, battery, hydraulic line, fuel tank, and cabin clean。
After stopping engine, the engine temperature may rise immediately. Open engine compartment
Machine
out of
duty

OPERATOR’S MANUAL SA210
12
doors to cool engine as soon as possible and clean engine apartment.
Clean machine at regular intervals, eliminate excess lubricant and other trash.
Do not spray water or vapor into cabin. Do not spray high pressure water to engine, hydraulic
and electric parts.
Do not put your personal goods, tools in machine cabin and other location.
1.18 Prevent Battery Explosion
Battery connection must be correct, incorrect connection will cause explosion and hurt. Battery
liquid is corrosive, please wear protective device in checking and repair accumulator. Only
professional people can complete it. Safety is the most important that operators should be
cared.
Never put metal between terminals to test accumulator charging status. It must be tested by
voltage mater or hydrometer.
Never charge freezing accumulator, otherwise, which will lead to explosion.
Warning!!!
Forbid fire or flame and welding close to the battery. You would bear all responsibility if do
not follow safety rules and warning.
1.19 Prevent Inhaling Asbestos Dust
Prevent inhaling possible asbestos dust. The asbestos fiber may cause lung cancer。
Some seals contain asbestos fiber. In these components, normally, the asbestos is in the resin
or kept closed. If the asbestos containing parts don’t cause dust, there isn’t any danger in
normal disposal.
In order to prevent dust, don’t clean with compressed air, and avoid brushing and grinding
asbestos-contained materials. In maintenance work, wear regulated respirator, and use a
special dust collector to clean asbestos. If dust collector is not available, use a little oil or
water to damp the asbestos-contained material. Comply with working area rules and asbestos
disposal rules. Keep other people from entering in working area.
1.20 Be Careful of Pressured Liquid
Liquids in high pressure can penetrate through skin, causing GBH.
Release pressure before disconnecting any pipes to avoid the danger.
Operate control lever many times to release pressure.
Before pressurizing, tighten all the connections.
Inspect leakage with cardboard. Pay attention to protect your hand and body.
If accident occurs, see a doctor at once.
Any liquid penetrating the skin must be cleaned within a few hours, otherwise it will cause
tissue decay.

OPERATOR’S MANUAL SA210
13
1.21 Avoid Heating NearA Pressured Oil Pipe
To prevent severe burns, do not weld or flame cut near pressured oil pipe or other flammable
materials.
A temporary fireproof protection cover should be provided when welding, flame cutting or gas
welding taking place.
1.22 Avoid Heating Flammable Liquid Pipe
Pipes with flammable liquid are not permitted to be welded. Pipes or hoses must be cleaned
completely with incombustible solvent should any welding be required on those pipes.
1.23 Remove Paint Before Welding or Heating
Prevent potential poisonous gas and dust.
When paint is heated up by welding or other methods, it will produce poisonous gas.
Remove paint by the following methods before welding or heating:
Wear a regulated mask to prevent inhaling dust when removing paint with abrasive
paper or sand wheel.
Remove paint with solvent or paint remover. Clean paint remover with soap and water
and wait for about 15 minutes for solvent to evaporate before welding.
Paint removal work should be conducted outdoors or in a well ventilated area.
1.24 Liquid Disposal
All fuels, most lubricants, and some coolants are flammable. These flammable liquids should be
stored away from fire. Do not burn or punch any liquid containers.
Dispose of fuel carefully; stop engine before adding fuel; prohibit smoking while adding fuel.
Add fuel outdoors.
Do not put oil-containing rags on the machine to ensure the machine stays clean.
1.25 Chemical Disposal
Touching harmful chemicals directly will cause serious injury to the human body. The
chemicals used in this machine, such as lubricant, coolant, paint, and adhesive may be harmful.
Before using harmful chemicals, check and understand its danger; know how to use them safely
1.26 Fire Prevention
Following these steps to prevent fire:
Prevent fire caused by leakages of fuel, hydraulic oil and lubricant.
Inspect clamps and ensure they are intact, check hoses and pipes to see they are in the right
position; check hydraulic oil cooler, connections; check leakage using a piece of cardboard;
never check leakage by hand to prevent pressure oil pierce skin and result in injured.

OPERATOR’S MANUAL SA210
14
Tighten, repair, or replace any clamps, pipes, hose, oil cooler, and flange bolts of oil cooler.
Do not twist or punch any high-pressured pipe.
Do not use any twisted or damaged pipe or hose.
Inspect short circuits. Short circuiting of the electric system can cause fire.
Check cables and wires before every shift or after 8 hours operation.
Check connectors before every shift or after 8 hours operation.
Tighten, repair, or replace any loosened or damaged cables, wires and connectors before
operation. Do not operate the machine if the cables and wires are not in good condition.
Check key switch and engine emergency stop switch before everyday operation. Repair
immediately if they are not functioning.
Fire might be even worse or GBH might happen if engine can not be stopped in case
Clean out flammable materials
Spilled fuel, excessive coal dust, and other flammable materials may cause fire. Keep the
machine clean every day to prevent fire.
1.27 Emergency Exit
There is a small hammer in the left side of operator which will be used in emergency（see the
fig）.
Once danger occurs or cab door locked，operator can use the hammer to crack glass and escape
from the window，or open sky window to escape.
1.28 Noise Proof In The Machine
It should do the noise test in normal running status for the machine。
Engine and other rotating parts should be in the high rev.
The noise in operator’s seat should meet the standard ISO/DIS11201: LP= 80dB
Machine noise meets standard ISO4872: Lw= 112dB
Attention：
Operator should wear ear shield before work.

OPERATOR’S MANUAL SA210
15
2 Description
SA210 rotary drilling rig is designed for cast-in-drilled-hole construction and widely used in
foundation construction of roads, bridges, and high-rise buildings with many features like high
torque, high mobility and high efficiency. Equipped with long or short auger, drilling bucket,
core barrel or hydraulic hammer, it can be used in drilling clay, sand, gravel or medium
weathered rock layers. The machine can be suit for large part of area soil condition in our
country, and can be widely used in the subway, bridge, dock, high building construction.
2.1 Model Definition
SA210
SW——SUNWARD
DM——Drilling Machine
20——Rotary Head Torque 20 T·m
2.2 Applicable Range
Use short auger for clayed soil, silty soil, backfilling, medium density sand and weathered rock
layers above water table.
Use drilling bucket with slurry for clayed soil, silty soil, sand, backfill, gravel and weathered
rock layers below water table.
Use rock auger for gravel, medium hard rock and weathered rock layers.
Use core barrel for weathered rock layer and cracked rock layer.
Use hydraulic hammer for construction foundation prefabricate concrete.

OPERATOR’S MANUAL SA210
16
3 Technical Characteristics
3.1 Machine Structure
Fig 3-1
①frame ② craw ler travel system ③ turntable ④car shed
⑤counterw ei g ht ⑥pow er system ⑦service winch ⑧main winch
⑨cabi n ⑩paral l el og ram system ⑾dr ill m a s t ⑿sw ing joint
⒀ follow ing fram e ⒁ kelly bar ⒂rotary head ⒃ drill tool ⒄ tool box

OPERATOR’S MANUAL SA210
17
3.2 Main Technical Data
Item Unit Parameter
Max. drilling
diameter
With casing mm ∅1500
Without casing
mm ∅1800
Max. drilling depth m 60(5 section)/48(4 section)
Dimension Work mode m 8.6×4.2×20.3
Shipping mode m 14.9×2.9×3.4
Total weight（work mode）T 58
Engine
Model QSB6.7-C260
Rated power
kw/rpm 194/2200
Max. torque
N.m/rpm 990/1500
Hydraulic system Max working pressure MPa Main pump 34
Service pump
26
Max. flow L/min 395 99
Rotary head Max torque kN.m 200
Rev.
r/min 6～26
Pressurized
cylinder
Max. pressurization KN 185
Max.lift capacity
KN 210
Max. stroke
mm 5000
Main winch
Max. force KN 170
Max. speed m/min 75
Steel wire rope diameter mm ∅28
Service winch
Max. force KN 80
Max. speed m/min 55
Steel wire rope diameter mm ∅20
Mast tilt
Left and Right inclination °±5
Forward inclination
°5
Backward inclination
°90
Turntable Swing angle °360
Swing speed
r/min 3.2
Chassis
Max. travel speed km/h 1.63
Max. gradeability °15
Crawler width mm 700
Track gauge mm 2900～4200
Grounding pressure kPa 97.7
***
Technical data changing because of product improvement will not be noticed in advance.
