OPERATIONS & PARTS MANUAL
AT-16 TRACK BUGGY
REVISION: 05.2018 | PART #: 056800

056841 - 01/2013
This manual, or a copy of it, must be kept with the machine at all times.
There is a manual storage container located on the machine for your convenience.

Track Buggy
OPERATIONS - PARTS MANUAL
Page i
This manual covers the products listed below:
Part No. Description
056800 BUGGY, TRACK AT-16 ELECTRIC START
Copyright © 2013 Allen Engineering Corporation
All rights reserved
All information, specications, and illustrations in this manual are subject to change without notice and
are based on the latest information at the time of publication. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the
express written permission of Allen Engineering Corporation (AEC). AEC assumes no responsibility or
liability for any errors or inaccuracies that may appear in this manual.
Allen Products are covered under one or more of the following patent numbers:
U.S. Design Patents: 344,736; 400,542; 400,544; 402,998; 402,999; 403,332; 404,041; 404,042;
410,931; 413,127; 416,564; 465,897; 466,909; 474,203.
U.S. Utility Patents: 5,108,220; 5,238,323; 5,328,295; 5,352,063; 5,405,216; 5,476,342; 5,480,257;
5,480,258; 5,533,831; 5,562,361; 5,567,075; 5,613,801; 5,658,089; 5,685,667; 5,803,658; 5,816,739;
5,816,740; 5,890,833; 5,934,823; 5,967,696; 5,988,938; 5,988,939; 6,019,433; 6,019,545; 6,048,130;
6,053,660; 6,089,786; 6,106,193; 6,857,815; 5,288,166; 6,582,153 B1, 7,108,449; 7,114,876;
7,316,523; 7,690,864 B2
Canadian Patents: 2,039,893.
First Issue: January 2013
Amended: July, 2017
May, 2018 - MN 18-012, 18-015, 18-017, 18-034, 18-052, M. Wesley
AEC Manual Part No.: 056841
Printed in U.S.A.
056841 - 01/2013

056841 - 01/2013
LIMITED WARRANTY and LIMITATION OF LIABILITY
Allen Engineering Corporation (“Allen”) warrants its products to be free of defects in material or workmanship for the following
periods:
A. New Machines and Parts............................................................................................One Year
Warranty period begins on first day of use by End User. This first day of use is established by the date of a completed Allen
Warranty Card or a Bill of Sale to the End User. All warranty is based on the following limited warranty terms and conditions,
including the disclaimer of implied warranties and consequential damages.
1. Allen’s obligation and liability under this warranty is limited to repairing or replacing parts if, after Allen’s inspection, there is
determined to be a defect in material or workmanship. Allen reserves the choice to repair or replace.
2. If Allen chooses to replace the part, it will be at no cost to the customer and will be made available to the Allen Distributor,
Dealer, or Rental Center from whom the End User purchased the product.
3. Replacement or repair parts, installed in the product, are warranted only for the remainder of warranty period of the product
as though they were the original parts.
4. Allen does not warranty engines. Engine warranty claims should be made directly to an authorized factory service center
for the particular engine manufacturer.
5. Allen’s warranty does not cover the normal maintenance of products or its components (such as engine tune-ups and oil &
filter changes). The warranty also does not cover normal wear and tear items (such as belts and consumables).
6. Allen’s warranty will be void if it is determined that the defect resulted from operator abuse, failure to perform normal main-
tenance on the product, modification to product, alterations or repairs made to the product without the written approval of
Allen. Allen specifically excludes from warranty any damage to any trowels resulting from an impact to the rotors.
7. Impact damage is not covered under the Allen Gear Box warranty.
8. Allen will pay shop labor on warranty items at the Allen Shop Labor Rate in existence on the date of the warranty claim.
An Allen Labor Chart will determine the time allowed to complete a repair and will govern the shop labor hours that will be
allowed.
9. Allen will pay freight on warranty replacement parts at worldwide standard ground rates. No warranty replacement parts
will be shipped air freight at the expense of Allen. Allen only pays outbound freight charges when sending warranty replace-
ment parts to the customer via ground service. Allen does not pay any inbound freight. However, if Allen determines this to be
a warranted item, only then will Allen reimburse the customer for inbound freight at standard ground rates.
10. ALLEN ENGINEERING CORPORATION’S WARRANTY POLICY WILL NOT COVER THE FOLLOWING: TAXES;
SHOP SUPPLIES; ENVIRONMENTAL SURCHARGES; AIR FREIGHT; TRAVEL TIME; LOSS OF TIME; INCONVENIENCE;
LOSS OF RENTAL REVENUE; RENTAL COSTS OF EQUIPMENT USED TO REPLACE THE PRODUCT BEING REPAIRED;
LOSS OF USE OF THE PRODUCT; COMMERCIAL LOSS; OR ANY OTHER CHARGES WHATSOEVER OR ANY LIABILI-
TIES FOR DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE OR DELAY.
11. ALLEN ENGINEERING CORPORATION MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED. THIS LIMITED
WARRANTY IS IN LIEU OF THE WARRANTY OF MERCHANTABILITY AND FITNESS. THERE ARE NO OTHER
WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THIS DOCUMENT.
12. No Allen employee or representative is authorized to change this warranty in any way or grant any other warranty unless
such change is made in writing and signed by an officer of Allen Engineering Corporation.
Page ii
Limited Warranty

056841 - 01/2013 Page iii
Table of Contents
Sect No. Title Page
... Limited Warranty ii
... Table of Contents iii
... Information Contained In This Manual v
... Dealer Information vi
... Ordering Parts vii
... Model Number - Serial Number Codes viii
... Unit Identification ix
... Technical specifications x
... Engine Specifications xi
... Machine Dimensional Specifications xii
1.0 Safety 1-1
... State Regulations 1-2
... Federal Regulations 1-3
1.1 Safety Information 1-4
1.2 Safety Symbols 1-5
1.3 General Safety 1-6
1.4 Transportation Safety 1-15
2.0 Operations 2-1
Pre-Operating Instructions 2-2
Starting 2-4
Operating 2-5
Bucket Capacity 2-9
3.0 Service 3-1
Maintenance Instructions 3-2
Air Filter Maintenance 3-3
Engine Oil Maintenance 3-5
Maintenance Schedule 3-6
Filter Replacement 3-7

056841 - 01/2013
Page iv
Table of Contents - Continued
Sect No. Title Page
4.0 Parts 4-1
Factory Service Information 4-2
Replacement Part Procedure 4-3
Track Tensioner and Wheel Assembly 4-4
Track Roller Assembly 4-6
Track Bogey Assembly 4-7
Left Track Assembly 4-8
Right Track Assembly 4-10
Lever Assembly 4-12
Hydraulic Tank Assembly 4-18
Hydraulics 4-20
Electrical Schematic 4-26
Cabinet Assembly 4-28
Engine Mount Assembly 4-30
Stand Assembly 4-32
Track Assembly 4-34
Fuel Assembly 4-36
Control Panel Assembly 4-38
Bucket Assembly 4-40
Skid Plate Assembly 4-42
Handle Bar Assembly 4-43
Decal Layout - Right 4-44
Decal Layout - Left 4-45

056841 - 01/2013
Information Contained in this
Manual
This manual provides information and procedures to safely operate and maintain the Allen Machine.
For your own safety and protection from personal injury, carefully read, understand, and observe the
safety instructions described in this manual. Keep this manual or a copy of it with the machine at all
times.
Always operate this machine in accordance with the instructions described in this manual. A well main-
tained piece of equipment will provide many years of trouble free operation.
This manual is divided into the following sections:
SECTION 1
SAFETY
SECTION 3
SERVICE
SECTION 2
OPERATIONS
SECTION 4
PARTS
Complete any warranty requirements as specified by the engine manufacturer in their instructions
found inside the manual box located on the operator’s control panel.
Your engine is not manufactured by Allen Engineering Corporation, Inc, and therefore is not covered
under Allen Engineering Corporation, Inc warranty.
Your engine manufacturer should be contacted if you wish to purchase a parts manual or a repair
manual for your engine.
Refer to enclosed owners engine manual for complete O&M instructions. See your battery manufac-
turer for battery warranty.
Page v

056841 - 01/2013
Dealer Name: _____________________________________________________________
Phone #: (____) - ____ - ____________________________________________________
Address: ________________________________________________________________
City:__________________________________State:________ Zip:___________________
Salesman: _______________________________Mobile Phone _____________________
Additional Comments: ______________________________________________________
________________________________________________________________________
________________________________________________________________________
Your Dealer has Allen Engineering Corporation trained mechanics and original Allen replacement parts.
Always contact the Allen Dealer who sold you this machine for Allen Certified repairs and replacement
parts.
Place Allen Dealer information below for future reference.
Dealer Information
Page vi

056841 - 01/2013
Ordering Parts
Page vii
Section 4.0 contains illustrated parts lists for help in ordering replacement parts for your machine. Fol-
low the instructions below when ordering parts to insure prompt and accurate delivery:
1. All orders for service parts - include the serial number for the machine. Shipment
will be delayed if this information is not available.
2. Include correct description and part number from the “PARTS” section of this
manual.
3. Specify exact shipping instructions, including the preferred routing and complete
destination address.
4. DO NOT return parts to AEC without receiving written authorization from AEC. All
authorized returns must be shipped pre-paid.
5. When placing an order, please contact the AEC dealer nearest you.
All information, specifications, and illustrations in this manual
are subject to change without notice and are based
on the latest information at the time of publication.
VISIT US!!! www.alleneng.com
LIKE US!!! www.facebook.com/AllenEngineering
FOLLOW US!!! @alleneng
WATCH US!!! www.youtube.com/AllenMachinery

056841 - 01/2013
Page viii
Model Number - Serial Number Codes
Manufacturer’s Codes:
When ordering parts or requesting service information, you will always be asked to specify the model
and serial numbers of the machine. The legends below specifically defines each significant character
or group of characters of the Model Number and Serial Number codes.
Model Number
AT 16
Series
16 - Bucket Size (16 ft3)
Allen Track
Serial Number
The serial number found on the identification plate is a ten digit format. The model number identifies
your machine and will ensure that you receive the correct replacement parts.
Serial Number Example
AT 16 03 12 02
Series
16 - Bucket Size (16 ft3)
Allen Track
Month
Year
Sequence Number

056841 - 01/2013 Page ix
Unit Identification
Unit Identification Plate Location:
An identification plate listing the model number and the serial number is attached to each unit and is
located on the bottom left hand corner of the operator control panel. See image below for serial number
plate number location. This plate should not be removed at any time.
Please record the information found on this plate below so it will be available should the identification
plate become lost or damaged. When ordering parts or requesting service information, you will always
be asked to specify the model and serial numbers of the machine.
FILL IN FOR FUTURE REFERENCE
Model Number:____________________________
Serial Number:____________________________
Date Purchased:___________________________
Purchased From:___________________________
Serial # Plate Location

056841 - 01/2013
Page x

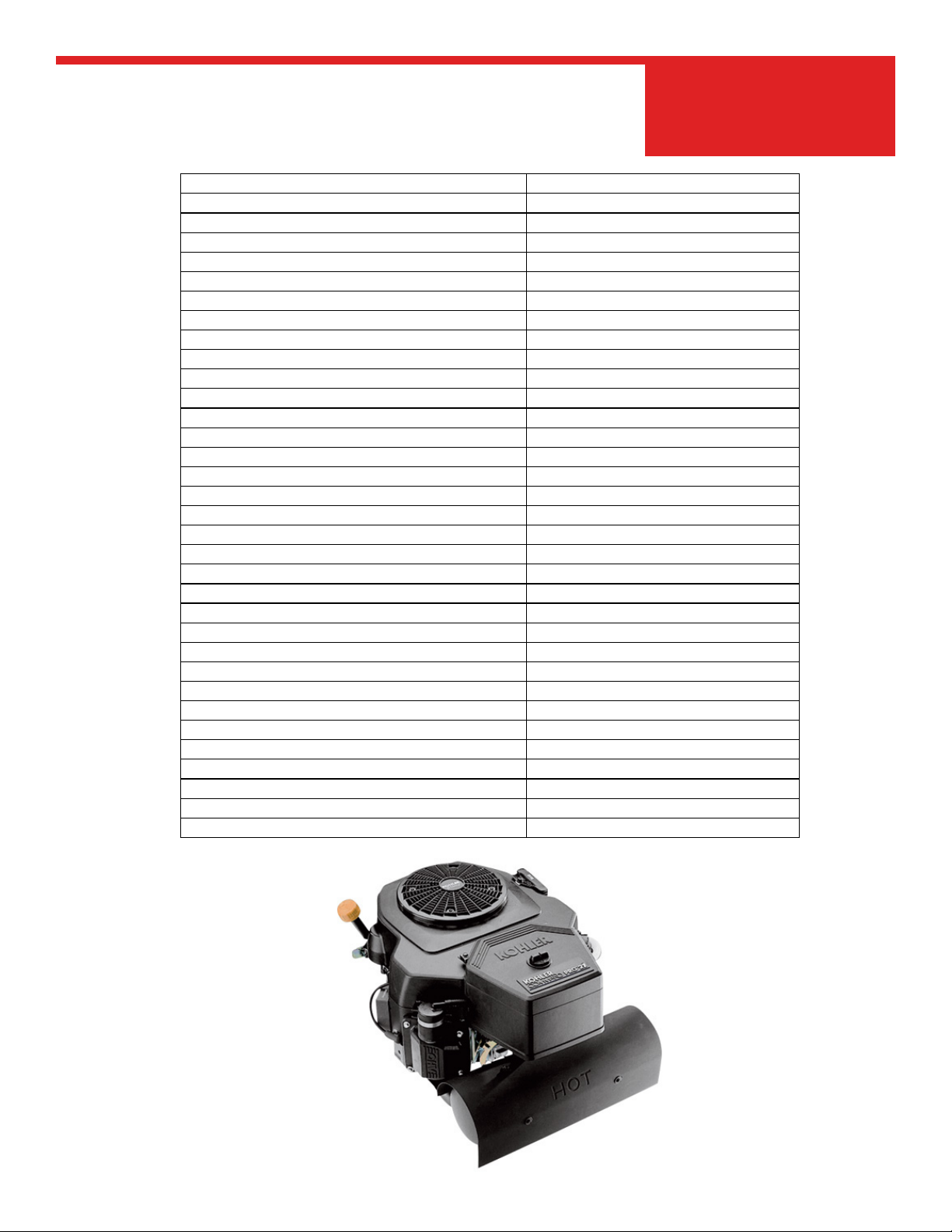

Technical Specifications
MODEL AT16
Engine Kohler (27 hp) Electric Start
Payload 2,500 lb. (1,134 kg)
Dimensions (L x H) 97 in. x 50 in. (246 x 127 cm)
Length (with Platform Up) 88.5 in. (225 cm)
Dimensions (Width) 47 in. (119 cm)
Wheelbase / Track Length 51 in. (130 cm)
Bucket Capacity 16 cu. ft. (0.45 cu. m)
Weight 1,475 lb. (669 kg)
Lift Cylinder 2” Diameter (51 mm)
Dump/Return Speed Empty 8 Seconds
Top Speed 6 mph (8 kph)
Fuel Capacity 6 gal. (22.7 L)
The Allen AT-16 Track Drive Power Buggies, are intended for the transportation of concrete and ma-
terial handling. The Track Buggy is equipped with a low dump height which provides clearance and
enables the operator to maneuver over any form height. In addition the Track Buggy has a unique tub
design that reduces concrete splatter outside the polyethylene tub (bucket).
A low center of gravity has been added into the Track Buggy’s design which will provide safety when
maneuvering the buggy in tight areas. A 6-gallon fuel tank allows for extended uninterrupted use. Maxi-
mum speed of the Track Buggy is rated at 6 MPH.
All Track Buggy operators must have training instructions before operating the buggy. For your safety,
warnings are on the buggy and in this manual. Failure to obey these warning can cause severe injury
or even death.
Understand the operation and features of the Track Buggy and what conditions it will be operated in.
Know the rated load capacity, speed range, braking and steering characteristics, turning radius and
operating clearances. Remember that the rain, snow, ice, loose gravel, soft ground, etc., can change
the operating characteristics and capabilities of the Track Buggy.
Inspect the surface over which you will travel. Look for holes, drop offs and obstacles. Look for rough
spots. Look for weak spots on docks, ramps or floor. Look for oil spills, wet spots and slippery surfaces.
Look for soft soil, deep mud and standing water. Watch for anything that might make you lose control or
cause the buggy to tip over.
If, during pre-operation inspection or operation, the buggy is found to be in need of repair or in any way
unsafe, or contributes to an unsafe condition to the operator, the matter shall be reported immediately
to the designated authority, and the buggy shall not be operated until it has been restored to proper
operating condition. DO NOT make repairs or adjustments unless specifically authorized to do so.

056841 - 01/2013 Page xi
Engine Specifications
27 HP Kohler
MODEL CV740-3001
Weight 108.0 lbs
Engine Displacement (cc) 725
Start Type Electric
Engine Type Command Pro V-Twin CV740–OHV
Rated Power (HP) 27
Torque (ft./lbs.) 42
Displacement (cu. in.) 44
Shaft Output Vertical
Shaft Diameter (in.) 1 1/8
Shaft Length (in.) 3 5/32
Shaft End Tapped (Diameter (in.)/Threads per inch) 7/16–20
Shaft Rotation (From PTO Shaft Side) Counterclockwise
Cylinders (qty.) 2
Cylinder Bore Cast iron
Bore x Stroke (in.) 3.30 x 2.60
Compression Ratio 9.0:1
Cooling System Air cooled
Air Cleaner Type Dual element air filter w/ foam pre-cleaner
Fuel Tank Not included
Fuel Type Gasoline
Fuel Pump Pulse
Fuel Filter In line
Oil Capacity (qt.) 2
Lubrication System Full pressure
Ignition System Electronic
Carburetor Fuel injection
Max. RPM 3,600
Charging System Amps 20
Muffler Included Yes
Auto Compression Release Yes
Bolt Circle (in.) 10
Dimensions L x W x H (in.) 21 3/16 x 17 11/16 x 14 5/16
EPA/CARB Approval (California Air Resource Board) Yes

056841 - 01/2013
Page xii
Dimensional Specifications

056841 - 01/2013
SECTION 1
SAFETY
Page 1-1
Section 1
SAFETY

056841 - 01/2013
SECTION 1
SAFETY
Page 1-2
State Regulations
Proposition 65 Warning

056841 - 01/2013
SECTION 1
SAFETY
Page 1-3
Federal Regulations
Respiratory Hazards

056841 - 01/2013
SECTION 1
SAFETY
Page 1-4
1.1 Safety Information
Do not operate or service the equipment before reading the entire manual. Safety precautions should
be followed at all times when operating this equipment. Failure to read and understand the safety mes-
sages and operating instructions could result in injury to yourself and others.
SAFETY NOTES
The four safety notes shown below will inform you about potential hazards that could injure you or oth-
ers. The safety notes specifically address the level of exposure to the operator and are preceded by
one of four words: DANGER, WARNING, CAUTION or NOTICE.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.

056841 - 01/2013
SECTION 1
SAFETY
Page 1-5
1.2 Safety Symbols
Potential hazards associated with the operation of this equipment will be referenced with hazard
symbols which may appear throughout this manual in conjunction with safety notes.

056841 - 01/2013
SECTION 1
SAFETY
Page 1-6
●NEVER operate this equipment without proper protective clothing, shatterproof glasses, respiratory
protection, hearing protection, steel-toed boots and other protective devices required by the job or city
and state regulations.
●ALWAYS avoid wearing jewelry or loose fitting clothes that may snag on the controls or moving parts
as this can cause serious injury.
●NEVER operate this equipment when not feeling
well due to fatigue, illness or when under medication.
●NEVER operate this equipment under the influence of drugs or alcohol.
●ALWAYS clear the work area of any debris, tools, etc. that
would constitute a hazard while the equipment is in operation.
●No one other than the operator is to be in the working area when the equipment is in operation.
●DO NOT use the equipment for any purpose other than its intended purposes or applications.
●This equipment should only be operated by trained and qualified personnel 18 years of age and older.
●Whenever necessary, replace nameplate, operation and safety decals when they become difficult to
read.
●AEC does not assume responsibility for any accident due to equipment
modifications. Unauthorized equipment modification will void all warranties.
●NEVER use accessories or attachments that are not recommended by AEC
for this equipment. Damage to the equipment and/or injury to user may result.
●ALWAYS know the location of the nearest fire extinguisher.
●ALWAYS know the location of the nearest first aid kit.
1.3 General Safety
