Sunwave CrossFire M2 User manual
M2
MID POWER
4T4R Digital Radios
37dBm Output Power
5G NR Compliant
Passive Cooling
Outdoor Rated
COMMISSIONING GUIDE
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 2 of 47
Revision History
Revision Number
Revision Date
Summary of Changes
Author
1.0.0
5th October 2020
Initial Release
Shuochao Zheng
1.0.1
2nd December 2020
Radio CW Function Update; Optical Indicator Change
Shuochao Zheng
1.0.2
14th Decemeber 2020
Add Network Settings; Update wired access to slave device
Shuochao Zheng
1.0.3
25th Decemeber 2020
Add External Alarm of RU
Shuochao Zheng
1.0.4
5th January 2021
Content Minor Edits
Shuochao Zheng
2.0.0
15th November 2021
Upgrade System to Support 800MHz Mode
Shuochao Zheng
2.0.1
9th December 2021
Update Radio Module Test Signal
Shuochao Zheng
2.1.0
7th April 2022
Update External Alarm of E2-O
Update SNMP Community Content
Update Operation Bar Content
Shuochao Zheng
Copyright © 2022 Sunwave All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior
written permission from Sunwave.
All copyright, confidential information, patents, design rights, and all other intellectual property rights of whatsoever
nature contained herein are and shall remain the sole and exclusive property of Sunwave. The information furnished
herein is believed to be accurate and reliable.
However, no responsibility is assumed by Sunwave for its use or any infringements of patents or other rights of third
parties resulting from its use.
The Sunwave and CrossFire names and logos are trademarks or registered trademarks of Sunwave.
All other trademarks are the property of their respective owners.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 3 of 47
Content
Pre-Commissioning .................................................................................................................................................................5
Access Unit (A2) ..............................................................................................................................................................5
Expansion Unit (EU-O/E2-O) ...........................................................................................................................................5
Remote Unit (M2RU).......................................................................................................................................................5
Optical Indicator Descriptions.........................................................................................................................................5
Status Indicator Descriptions..........................................................................................................................................6
System Overview.....................................................................................................................................................................7
System Connection .........................................................................................................................................................7
Operation and Maintenance Terminal ...................................................................................................................................8
Access to the OMT on the Master A2.............................................................................................................................8
Access to the OMT on the Slave Devices ......................................................................................................................10
User Login .....................................................................................................................................................................12
Homepage and Basic Functions ....................................................................................................................................13
System Topology...........................................................................................................................................................14
Operation Bar................................................................................................................................................................15
Network & Communicating Settings.....................................................................................................................................16
NMS Configuration........................................................................................................................................................17
SNMP Configuration......................................................................................................................................................18
Additional Settings........................................................................................................................................................20
Site Info .................................................................................................................................................................20
Time Synchronization............................................................................................................................................20
System Configuration............................................................................................................................................................22
A2 Band Configuration..................................................................................................................................................22
5G TDD Configuration ...................................................................................................................................................23
4G TDD Configuration ...................................................................................................................................................24
Module Gain Adjustment (Attenuation).......................................................................................................................25
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 4 of 47
Gain Adjustment on A2 (Active Combiner)...................................................................................................................25
Gain Adjustment on A2 (Digital Board).........................................................................................................................27
Gain Adjustment on M2RU...........................................................................................................................................27
Alarm.....................................................................................................................................................................................28
Alarm Severity...............................................................................................................................................................28
Alarm Threshold............................................................................................................................................................28
External Alarm...............................................................................................................................................................29
External Alarm of A2 .............................................................................................................................................29
External Alarm of E2-O..........................................................................................................................................31
External Alarm of M2RU .......................................................................................................................................32
Advanced Activities...............................................................................................................................................................35
Mapping Configuration.................................................................................................................................................35
Radio Module Test Signal..............................................................................................................................................37
Master/Slave A2 Transition...........................................................................................................................................38
System Delay Configuration..........................................................................................................................................39
Auto Logout Time..........................................................................................................................................................40
Local Debug Port Control..............................................................................................................................................40
Screenshot ....................................................................................................................................................................41
Backup/Restore Configuration......................................................................................................................................42
Software Upgrade.........................................................................................................................................................43
Local Upgrade .......................................................................................................................................................43
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 5 of 47
Pre-Commissioning
Before starting the commissioning process, verify the status of the equipment as follows:
Access Unit (A2)
1．Verify that the correct band-specific Active Combiner modules are installed.
2．Ensure the RF cables between the BTS and modules are connected as designed.
3．Ensure the fibers are connected to the proper optical ports as designed.
4．Check LED of Status and Optical ports.
Expansion Unit (EU-O/E2-O)
1．Ensure the optical transceivers are inserted and fibers are connected to the proper optical ports as designed.
2．Check LED of Status and Optical ports.
Remote Unit (M2RU)
1．Verify that the correct band-specific PA modules are installed.
2．Ensure the RF cables from each PA module are connected tightly (If using M2RU with external antennas).
3．Ensure the optical transceivers are inserted and fibers are connected to the proper optical ports as designed.
4．Check LED of Status and Optical ports.
Optical Indicator Descriptions
Each pair of optical interface indicators shows the operating status of an optical module, as shown in Figure 2.
Figure 1. Optical Indicator 1
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 6 of 47
Figure 2. Optical Indicators 2
Status Indicator Descriptions
Each element has its own LED STATUS indicator to show its operating status.
Figure 3. Status Indicator
Optical Indicator
Description
Green
Normal
Red
The optical path is not synchronized.
Blank
The Optical module is not plugged in
Status Indicator
Description
Flash Green
Element is working without an alarm
Solid Green
Software is crashed, but it will reboot automatically in 3 mins
Flash Red
Element is working but with alarm
Solid Red
Software is crashed (with alarm), but it will reboot automatically in 3 mins
Flash Orange
Software is upgrading
Solid Orange
Element is booting
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 7 of 47
System Overview
CrossFire M2 (Mid Power Remote Unit 2nd Generation) system is a distributed antenna system (DAS). It consists of
Access Unit (A2), Expansion Unit (E2-O), and Remote Unit (M2). The Expansion Unit is an optional unit that can expand
the system capacity.
System Connection
A typical CrossFire M2 system connection is shown in Figure 4.
Figure 4. System Connection
⚫CrossFire supports 1 Master A2 and 2 Slave A2
⚫Cascading up to 5 levels of E2-O
⚫Cascading up to 6 levels of E2-O + M2RU
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 8 of 47
Operation and Maintenance Terminal
The Operations and Maintenance Terminal (OMT) software runs on all devices in the CrossFire system. WebOMT is the
interface for OMT. WebOMT is based on a web browser and is compatible with most common browsers such as IE and
Google Chrome. WebOMT is customized for CrossFire to query, debug, and configure parameters on devices.
The Master A2 is generally set as the Host of the system. Meanwhile, technicians can access the whole system through
the WebOMT of any device (Master or Slave A2, E2-O and M2RU) connected in the system.
Access to the OMT on the Master A2
In the CrossFire system, the Master A2 is defined as Host. The default IP address of the A2 is https://10.7.3.200.
To set up wired access to the OMT:
1. Connect a PC to the Master A2 with a network cable in the CONSOLE port on the front panel.
2. Change the TCP/IP properties (see Figure 5):
a. Click Network Connections
b. Click Local Area Connection Properties
c. Click TCP/IP Properties
d. Change parameters as indicated:
IP address: 10.7.3.1 (the last number is changeable except for 10.7.3.200)
Subnet mask: 255.0.0.0
Default Gateway: 10.7.3.200 (IP address of Master A2)
3. Check the status of the Local Area Connection and confirm the connection.
4. Open a browser window and enter the default gateway in the navigation bar to access the WebOMT page. Figure 6
shows an example using https://10.7.3.200 as the default gateway.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 9 of 47
Figure 5. Wired Connection to the OMT on the Master A2
Figure 6. Web Browser OMT Connection for Wired Access
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 10 of 47
Access to the OMT on the Slave Devices
In the CrossFire system, E2s and M2RU as well as the Slave A2s, are defined as Slaves. They have no fixed IP address. The IP
addresses are assigned by the host automatically, based on the network topology.
To set up wired access to the OMT:
1. Connect a PC to the slave device with a network cable in the CONSOLE port on the front panel.
2. Change the TCP/IP properties:
a. Enable Obtain an IP address automatically by clicking the check box.
b. Enable Obtain DNS server address automatically by clicking the check box.
3. Check the status of the Local Area Connection and confirm the connection.
4. Open a browser window and enter the default gateway in the navigation bar to access the WebOMT page. The default fixed IP
address is https://12.7.1.1 as the default gateway.
Figure 7. TCP/IP Properties Configuration –Slave devices
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 11 of 47
Figure 8. Wired Connection to the OMT on the Master A2
Figure 9. Web Browser OMT Connection for Wired Access
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 12 of 47
User Login
1. Enter the IP address of the OMT you are trying to access.
2. Type the username and password in the field.
Figure 10. Login Screen
Account
Password
Access Level
admin
admin (default)
Fully administration permissions. (User Management)
Others
(null)
Installer, configuration, monitoring
Note: Only the admin account has the permission of user management, including creating a user profile, changing
password.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 13 of 47
Homepage and Basic Functions

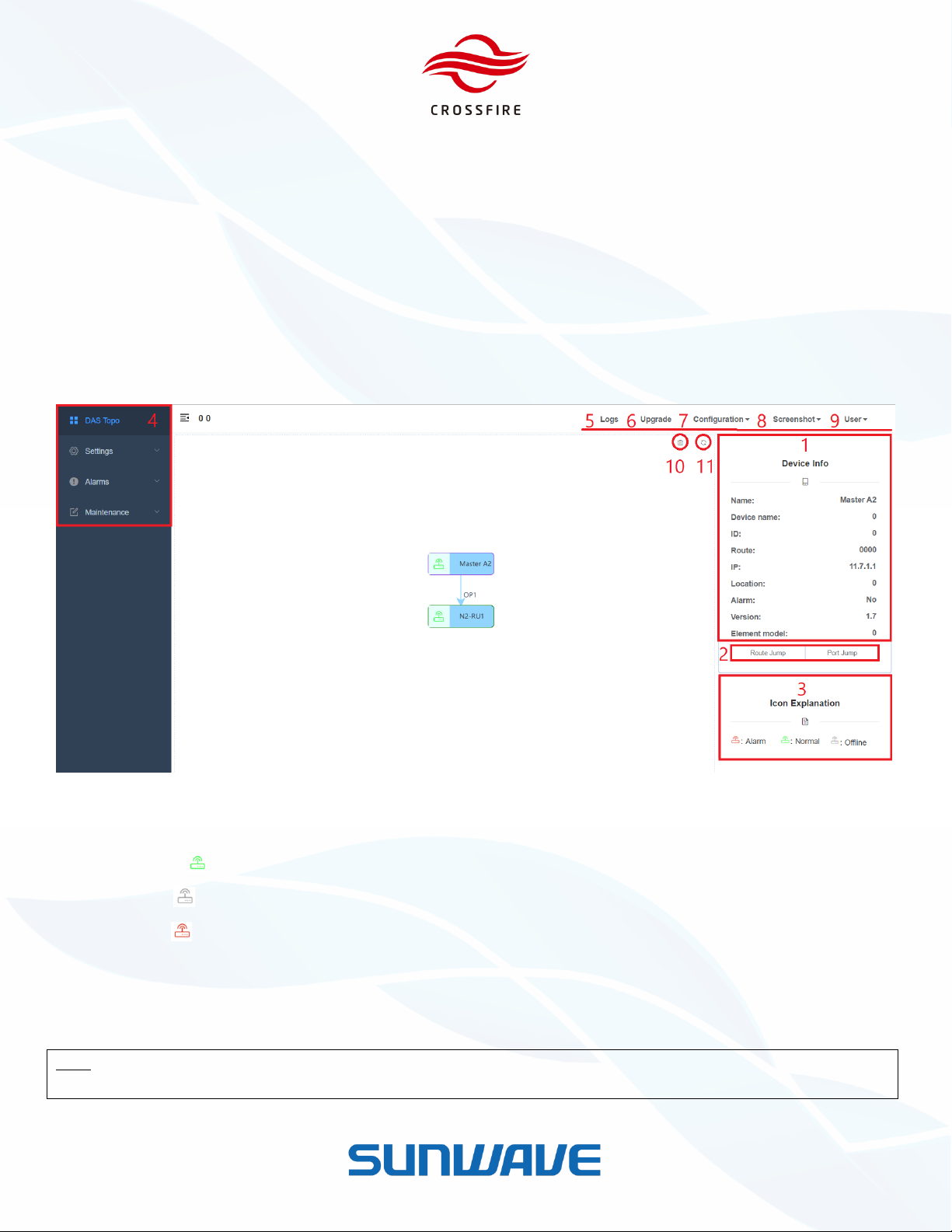

Figure 11. WebOMT Homepage
The OMT homepage includes System Topo, tabs, and fields (refer to corresponding numbers in Figure 11):
1. Device Info: After clicking to select the element’s icon in DAS Topo, it shows Element Type, Element ID, Internal IP
address, Location and status
2. Jump Button: After clicking to select the element’s icon in DAS Topo, click Jump Button to switch to the element’s
OMT in the new tab.
Note: A common issue is that internet browsers cannot transfer to other devices from current OMT when your laptop is
multi-connected to device and wireless network at the same time. Use Port Jump to skip this issue.
3. Icon Explanation: Shows that device icons in the topology have 3 colors to display different statuses.
4. Element Configuration: Tabs that access the page for parameter configuration and query.
5. Logs: Records the operating status of the devices. The logs can be downloaded and deleted on the Logs page.
6. Upgrade: Used to upgrade the software.
7. Configuration: Used to save and load factory or engineering configuration.
8. ScreenShot: One step to download all current parameters, information, and device operating status. When
Sunwave assistance is required to troubleshoot the system, it will be helpful to send the ScreenShot files(.json) to
Sunwave technicians.
9. User: Account management and logout
10. Remove Slave: used to remove all slave devices in Topo.
11. Refresh: refresh DAS Topo
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 14 of 47
System Topology
System Topology is set as the default homepage of OMT. Using the following steps to display the System Topology:
1. Select the DAS Topo tab.
2. Click Refresh to display Topology.
The system topology is shown in Figure 12. The Master A2 icon is on the left of the frame as host. Lower level elements
are placed as a tree structure based on the physical optical connections. Except for the Master A2, all other slaves are
named after the optical port they are connected to.
Figure 12. Displaying the System Topology
Device icons in the topology have 3 colors —green, Grey and red:
Green icon with green box line: indicates this element is connected and online without alarm.
Grey icon with grey box line: indicates this element was once connected but is currently disconnected.
Red icon with red box line: indicates this element has an alarm.
The device icons with purple box line indicates which element’s OMT user is logged in.
When a grey icon shows up, check whether this device exists or not. If the device does not exist anymore, delete the
device in the DAS Topo page.
Note: deleting one device or all slave devices must be under Factory Mode. Access Factory Mode through Maintenance
-> Factory Command -> Factory Mode. Enable the mode and click Set to validate it.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 15 of 47
Operation Bar
OMT has an Operation Bar on each page for configuration and query.
Figure 13. Operation Bar
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 16 of 47
Network & Communicating Settings
The CONSOLE port of the Master A2 is pre-assigned from the factory with the default IP address –10.7.3.200. To enable
local/remote access to the system, you must assign a unique routable address within the domain of the local/wide-area-
network.
Configure the IP address of the CONSOLE port as follows:
1. Log in the Master A2 OMT, and go to the LAN Connectivity section.
2. Go to the IP Settings section and assign the following fields as appropriate:
Protocol - The CrossFire system supports SNMP (Get & Set, Trap, etc.) and SUNWAVE NMS for remote
monitoring.
Device IP Addr - address assigned to the A2 for local and remote access
Subnet Mask
Default gateway
Device Recv Port (UDP) - The Port number assigned for communication with SUNWAVE NMS.
Heartbeat Interval - The interval in which the Master A2 sends a heartbeat to the surveillance server.
3. Click Set to save the setting.
Figure 14. IP Address Configure
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 17 of 47
NMS Configuration
SUNWAVE Network Management System (NMS) is a software system to achieve remote monitoring, alarm reporting,
and remote configuration of all the devices.
Figure 15. NMS System Architecture
Use the following steps to configure NMS IP settings.
1. Log in the Master A2 OMT, and go to the LAN Connectivity section.
2. Go to the IP Settings section and select UDP protocol, as shown in Figure 14.
3. Locate the fields and set the appropriate values:
NMS IP Address (1~2) - The target IP address of NMS Server.
NMS Port Number - The target port of NMS Server (default defined port of 80).
4. Click Set to save the setting.
Figure 16. NMS Configuration
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 18 of 47
SNMP Configuration
The Master A2 generates SNMP traps and delivers them through the CONSOLE Ethernet interface.
The CrossFire system supports SNMP V2 and V3 in this current version.
To configure SNMP settings:
1. Log in the Master A2 OMT, and go to the SNMP Configuration section.
2. Go to the IP Settings section and select the SNMP protocol, as shown in Figure 16.
3. Click Set to save the setting.
4. Go to the SNMP Configuration section and select the appropriate SNMP Trap Protocol.
SNMP Trap Protocol - The trap protocol to send the SNMP trap.
Figure 17. SNMP Trap Protocol
5. Locate the fields and set the appropriate values:
For SNMP V2
Trap IP Address (1~2): Up to 2 target IP address of SNMP trap receiver.
Trap Port: The target port of the SNMP trap (default defined port of 162).
For SNMP V3 (See Figure 17 for details)
Reset USM - USM Reset
Security User Name - Security User Name
Authentication Protocol - Authentication Protocol
Authentication Password - Authentication Password
Privacy Protocol - Privacy Protocol
Privacy Password - Privacy Password
Edit User Confirm - Edit User Confirm
Trap IP Address (1~2) - Up to 2 target IP address of SNMP trap receiver.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 19 of 47
Trap Port - The target port of SNMP trap (default defined port of 162).
Trap IP Addr Security EngineID - The Security EngineID of target Trap IP address.
Figure 18. SNMP V3 Configuration
6. Go to the Trap Resend section at the bottom of the page.
Trap Resend Enable: On / Off to enable / disable trap resend.
Trap Resend Interval: The interval time to resend the SNMP trap.
Community: Community Identifier.
Delete History Alarm: Click Confirm to delete history alarms.
7. Click Save to save the settings.
Figure 19. Trap Resend
Note that the Write/Read Community in SNMP server to communicate with CrossFire Device is ‘Community + Device
Sub ID’. For example, the defaut community is ‘public’ and the Device Sub ID of Master A2 is ‘0’. SNMP Server must use
‘public0’ to communicate with Master A2.
MID POWER
4 x 37dBm Output
5G NR Compliant
© Sunwave CG_CF_M2 v2.1.0 | 20 of 47
Additional Settings
Site Info
1. Log in the Master A2 OMT, and go to the Overview.
2. Locate the fields and set the appropriate values:
Device ID - Unique hexadecimal number used to identify the site, default 00000000.
Device Sub ID - Device number in a single system, auto-assigned by Master A2 or manually set by the user.
Device Location - The detailed device installation location.
Site ID - Indicates the details of the current site.
3. Click Set to save the setting.
Figure 20. Site Info Configuration
Note: The Installed Location and Site Name labels cannot contain the following special characters: %, &, ‘, “, \
Time Synchronization
The Master A2 synchronizes time to NTP time servers when NTP Switch is on .
1. Log in the Master A2 OMT, and go to Settings ->LAN Connectivity
2. Go to the NTP section and Turn on the NTP Switch
3. Input NTP Update Interval in certan time horizon and select the appropriate Time Zone
4. Input NTP IP Adress and Click Set to save the settings.
This manual suits for next models
4
Table of contents
Other Sunwave Radio manuals
