Sunwave PS-R2220708 User manual
MP_PS
MID POWER
Digital Radios
37dBm per Band
MP_PS User Manual
Remote Unit
Model No: PS-R2220708
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 2of 46
Revision History
Revision Number
Revision Date
Summary of Changes
Author
1.0.0
28th June 2020
Draft
WANG XIAN
Copyright © 2020 Sunwave All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without
prior written permission from Sunwave.
All copyright, confidential information, patents, design rights, and all other intellectual property rights of whatsoever
nature contained herein are and shall remain the sole and exclusive property of Sunwave. The information furnished
herein is believed to be accurate and reliable.
However, no responsibility is assumed by Sunwave for its use or any infringements of patents or other rights of third
parties resulting from its use.
The Sunwave and CrossFire names and logos are trademarks or registered trademarks of Sunwave.
All other trademarks are the property of their respective owners.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 3of 46
Content
Preface ....................................................................................................................................................................................5
Warnings.............................................................................................................................................................................5
Site Considerations .............................................................................................................................................................6
Environmental Considerations............................................................................................................................................6
Warning Marks....................................................................................................................................................................7
Installation Preparation ..........................................................................................................................................................8
Unpacking and Inspecting...................................................................................................................................................8
Inspecting the Packing Container ...................................................................................................................................8
Unpacking the Device .....................................................................................................................................................8
Verifying the Contents ....................................................................................................................................................9
Inspecting the Device......................................................................................................................................................9
Installation Preparation ......................................................................................................................................................9
Site Investigation.............................................................................................................................................................9
Installation Tools...........................................................................................................................................................10
Torque Settings.............................................................................................................................................................10
Clearance.......................................................................................................................................................................10
Installing the Access Unit (AU)..............................................................................................................................................11
Accessories List .................................................................................................................................................................12
Rack Installation................................................................................................................................................................12
Wall Installation ................................................................................................................................................................18
AU Mounting Dimension Spacing .....................................................................................................................................21
RF Connection...................................................................................................................................................................22
Installing the Remote Unit (MP_PS) .....................................................................................................................................23
MP_PS Accessories............................................................................................................................................................23
Wall Installation (Back on the Wall)..................................................................................................................................24
Wall Installation (Side on the Wall) ..................................................................................................................................31
MP_PS Wall Mounting Dimension Spacing.......................................................................................................................37
Pole Installation ................................................................................................................................................................38
Rack Installation................................................................................................................................................................39
MP_PS Wall Mounting Dimension Spacing.......................................................................................................................44
Optical Connection................................................................................................................................................................45
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 4of 46
Optical Transceiver Module..............................................................................................................................................45
Single Port Bidirectional SFP Transceiver......................................................................................................................45
Dual Port SFP Transceiver .............................................................................................................................................45
Optical Indicator............................................................................................................................................................46
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 5of 46
Preface
Warnings
All the following “Safety Precautions” must be observed during the entire installation and operation of the CrossFire system.
The CrossFire system components are designed for maximum safety and reliability when they are installed, used, and maintained by
trained and qualified technicians following the procedures and instructions contained in this manual. To assure the safe operation of
your system, always follow the safety and operational recommendations in this manual.
⚫MP_PS is not a consumer product. Please install and use MP_PS in accordance with the instructions.
⚫Before installing or modifying any MP_PS equipment, read and fully understand the entire instructions in this guide.
⚫Only qualified personnel are authorized to install and maintain the MP_PS.
⚫Changes or modifications to the MP_PS equipment not expressly approved by the manufacturer could void the product
warranty and the user’s authority to operate the equipment.
⚫Follow Electro Static Discharge precautions to avoid any damage to PCB, PSU, etc.
⚫Keep equipment powered-off during installing or modifying.
⚫Low path loss cables connected to antennas are highly recommended.
⚫This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have
an FCC LICENSE or express consent of an FCC License to operate this device. Unauthorized use may result in significant
forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
⚫This is NOT a CONSUMER device. It is designed for installation by an installer approved by an ISED licensee. You MUST have an
ISED LICENCE or the express consent of an ISED licensee to operate this device.
⚫Il ne s'agit PAS d'un dispositif CONSOMMATEUR. Il est conçu pour être installé par un installateur agréé par un titulaire de
licence ISED. Vous devez avoir un LICENCE ISED ou le consentement exprès d'un titulaire de licence de l'ISED pour l'utilisation
de cet appareil.
⚫To comply with FCC RF exposure compliance requirements, each individual antenna used for this transmitter must be installed
to provide a separation distance greater than 160cm or more from all persons during normal operation and must not be co-
located with any other antenna for meeting RF exposure requirements.
⚫Pour se conformer aux exigences FCC en matière d’exposition RF, chaque antenne utilisée pour cet émetteur doit être installée
pour assurer une distance de séparation supérieure ou supérieure à 160 cm de toutes les personnes pendant le
fonctionnement normal et ne doit pas être co-localisée avec une autre antenne pour satisfaire aux exigences d’exposition RF.
⚫Antenna gain should not exceed 0dBi.
⚫Le gain d’antenne ne doit pas dépasser 0 dBi
Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 6of 46
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Note: Only authorized person can enter the area where the antenna is installed. And the person is fully aware of the potential for
exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of
the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety
program
NOTE: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Site Considerations
1. The system delay should be taken into consideration when there are neighboring BTS sites overlapping in coverage. Normal use
of the system will not damage the base station; however, with the increase of RU during network coverage for indoor
distribution, the uplink output noise level may affect the sensitivity of the base station, which should be considered during
engineering design. Pick an ideal easy-to-reach location for installation convenience.
2. Pick an ideal easy-to-reach location for installation convenience.
3. Verify that there is a minimum of a 50cm radius of space around CrossFire equipment for the convenience of maintenance and
on-site inspection.
4. Install CrossFire close to the service area for monitor and debugging.
Environmental Considerations
Humidity and temperature can adversely effort the reliability of the CrossFire system. Therefore, it is highly recommended to install
the equipment in locations with stable humidity, temperature and ventilating.
The equipment has to operate at humidity level and temperature range as follow:
Maximum humidity: 85%
AU Operating Temperature range: -10°C to +50°C
MP-PS Operating Temperature range: -40°C to +50°C
Storage Temperature range: -40°C to +70°C
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 7of 46

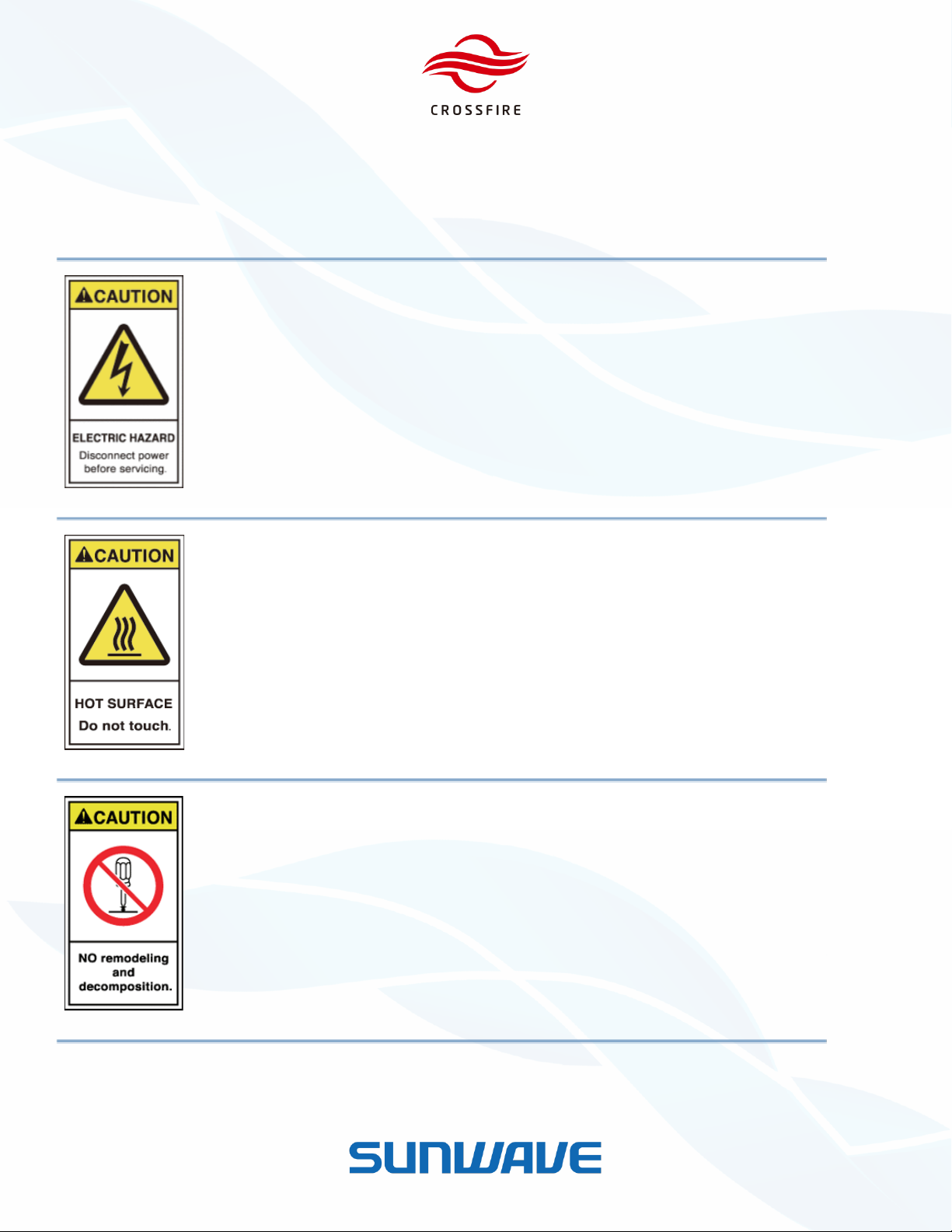

Warning Marks
The warning marks on the CrossFire shell should be kept clean, readable, and identifiable.
ALWAYS disconnect all lines and power connections before servicing or disassembling this
equipment.
NEVER touch the surface after power on the devices.
For performance and safety reasons, NEVER disassemble and remodel the devices.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 8of 46
Installation Preparation
Unpacking and Inspecting
This section discusses the procedures for receiving the shipment, inspecting the packing container, unpacking, and inspecting the
device.
Inspecting the Packing Container
Handle the packing container carefully. Inspect the packing container immediately on arrival at the installation site to verify that no
apparent damage occurred during shipment. Ensure that the container is sound and that the waterproof and vibration warning
notices are still visible. If possible, always inspect the equipment in the presence of the delivery person.
If any damage is observed:
1. Do not open or unpack the container.
2. Immediately contact the transportation carrier and notify them of the damage.
3. File a claim with the carrier once you determine the extent of any damage.
4. Return it to SUNWAVE’s nearest RMA facility and contact SUNWAVE for RMA processing.
Unpacking the Device
If the container appears to be in satisfactory condition:
1. Ensure both user and supplier representatives are in attendance during shipment inspection.
2. Confirm where you will store the device.
3. Ensure procedures are in place to handle the device and other equipment properly.
4. Ensure the following tools are available to unpack the shipment: hammer, paper cutter, and crowbar.
5. Open the packing container carefully. The device is contained in a protective package inside the packing container; however,
caution is still necessary so as not to damage the internal package and device.
6. Remove the internal package from the packing container.
7. Unpack the device from the internal package carefully.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 9of 46
Verifying the Contents
To verify the contents of the package:
1. Verify that the contents and quantities agree with the Delivery Packing List.
2. Check the device model against the Delivery Packing List.
3. Notify SUNWAVE immediately if any discrepancies are discovered, to verify whether the complete and correct shipment has
been received.
Inspecting the Device
After unpacking the device, place the device on solid ground and check the following to ensure the device has not been damaged:
1. Inspect the device’s appearance, overall dimensions, and weight.
2. Check that the device has not been deformed or bent in any way.
3. Check that there are no warps, scratches, bubbles, or dirt marks.
4. Check that there are no loose, missing or incorrectly fastened screws.
5. Check that the installation slots in the cabinet sub-rack are rectangular.
6. Ensure that the guide bar has not been damaged and the fittings and auxiliary parts are intact.
7. Check that the silk-screened images on the device are visible and intact.
Installation Preparation
Site Investigation
Before installation, the installer should contact the project director to ensure that the site is suitable for installation. Details required
include information about the installation site such as whether there is an iron tower or high mast nearby, the surrounding
environmental conditions such as temperature and humidity, the power source, and so on. Installation staff should complete a site
investigation with the project director before construction and conduct field observation of the installation site and the coverage
area of the device, to confirm factors such as signal intensity, signal quality, the required coverage range, device location, antenna-
feeder system, and power supply system.
Note: Only maintenance personnel or users who understand the reason for access and are experienced with restricted area access
and understand the necessary preventive measures should access the installation site.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 10 of 46
Installation Tools
The following equipment and tools are required for a successful installation:
Electric percussion drill / Screwdriver / Wrench
Torque Settings
Type
M3
M6
M10
Specified Torques
0.6Nm
5Nm
50Nm
Clearance
You must ensure the following mounting clearances for mounting within a 19” rack/cabinet:
Convection cooling:
Maintain 3U clearance between the bottom of the device and any other.
Maintain 3U clearance from the top surface of the device to the top of the rack.
FAN Cooling:
You can mount the fan between the bottom of the device and any other.
Maintain 2U clearance between the bottom of the device and any other.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 12 of 46
Accessories List
Rack Installation
The Access Unit is a 19” 1U equipment shelf. When installing the Access Unit in a rack, make sure the mechanical loading of the rack
is even to avoid a hazardous condition. The rack should safely support the combined weight of all the equipment and be securely
anchored. Installing the Access Unit in a climate-controlled room with sufficient air circulation is recommended as the maximum
ambient temperature is +50°C.
To install the Access Unit in the equipment rack.
1. Attach the 19" mounting brackets at the front of the AU, using 4 screws M3×6 per bracket and the Phillips screwdriver. Observe
the orientation of the brackets.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 16 of 46
4. Install the fan for cooling if multiple AUs are installed in the same rack.
It is necessary to allow at least 3 rack units (132mm) of free space below each unit for heat dissipation without fan installed or 1
rack unit (44mm) of free space below each unit with fan occupied in the middle.
Otherwise, the device temperature may rise and affect the service life of the device.
Mid POWER
Digital Radio
© Sunwave MP_PS_User Manual | 19 of 46
2. Mark 4 x ∅6.8mm drilling holes sites for the hanger to be attached to the wall.
3. Drill 4 holes at the marked sites using percussion drill and embed 4×∅10 plastic expansion pipes. Note: H=70mm.
Fasten the case with 4×M6 expansion bolt.
Table of contents
Other Sunwave Radio manuals
