NakiRadio MK100 User manual

MK100 internet Radio
Instruction Manual

Table of content
1 Introduction
1.1 Safety
1.2 Features
1.3 Carton contents
1.4 External resources
1.5 Conventions used in this manual
2 Controls, connectors and display
2.1 Main controls
2.2 Connectors
2.4 Screens
2.5 operation
2.6 Menu Navigation
3 started and setup
3.1 Setup wizard
3.2 Other settings
3.3 Internet radio portal registration
4 Internet radio mode
4.1 Last listened
4.2 Presets
4.3 Favorites
4.4 Browse
4.5 Search
4.6 My added stations
4.7 Now playing information
10. Aux in mode
12 Alarms and sleep
12.1 Alarms
12.2 Sleep

13. Software upgrade and factory reset
13.1 Software upgrade
13.2 Factory reset
14 Troubleshooting and error messages
14.1 Error messages
14.2 Troubleshooting
15 Technical Specification
1. Safety
1.1 Safety Instructions
Please store this instruction manual for future reference.
•WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that objects filled with liquids, such as vases, shall not be placed
on apparatus.
•WARNING: The direct plug-in adapter is used as disconnect device, the
disconnect device shall remain readily operable.
•
•- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product‟s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
•- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
•- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
•Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU. To

prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.
•No naked flame sources, such as lighted candles, should be placed on the
apparatus.
•CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
•WARNING: The battery (battery or batteries or battery pack) shall not be exposed
to excessive heat such as sunshine, fire or the like.
•Do not use this product near water or moisture.
•Clean only with a dry cloth.
•Unplug this product from the wall outlet before cleaning.
•Place the unit on a solid surface.
•Do not put it in a closed bookcase or a cabinet that may keep air from
flowing through its ventilation openings.
•Do not install near any heat sources, such as radiators, heat registers,
stoves or other appliances that produce heat.
•Protect the power cord from being walked on or pinched, particularly
at plugs and the point where they exit from the product.
•Servicing is required when the product has been damaged. Do not attempt to
service this product yourself. Opening or removing covers may expose you to
dangerous voltages or other hazards. Please contact the manufacturer to be
referred to an authorized service center near you.
•To prevent risk of fire or electric shock, avoid over loading wall outlets extension
cords, or integral convenience receptacles.
•Do not let objects or liquids enter the product.
•Use proper power sources. Plug the product into a proper power source as
described in the operating instructions or as marked on the product.
1.2 Features

This manual describes how to use the MK100, an advanced but easy-to-use Wi-Fi
connected audio system with the following modes:
•Internet Radio with access to over 20,000 stations by wifi streaming or Wired
Ethernet connected, „Listen again‟ broadcasts and podcasts
•Aux in for external MP3 music sources from iPod/iPad or other MP3 players
MK100 also provides the following features:
•TFT color display for easy control and clear information display.
•Clock with auto-update capability and dual independent alarms Sleep/snooze
•Multiple network profiles for easy setup and portability
•Multiple languages options.
1.3 Carton contents
After you unpack the box, you will find the following items
• 1 MK100 unit
• 1 DC 9V 1.5A power adapter
• 1 owner‟s manual
1.4 External resources
To operate MK100, the following external resources are needed:
•A power source (100-240 V mains supply)
•A wireless (Wi-Fi) network (provided through a router) with Appropriate permissions
and password if necessary (for Internet radio and Network Music player modes)

•Broadband Internet access (for Internet radio mode and Spotify mode and Internet
Software Update)
•An external audio source (forAux in mode)
1.5 Conventions used in this manual
Button (press) Physical button on the keypad
Option (select) Menu option shown on the display
Name Menu, screen or other name
2. Controls, connectors and display

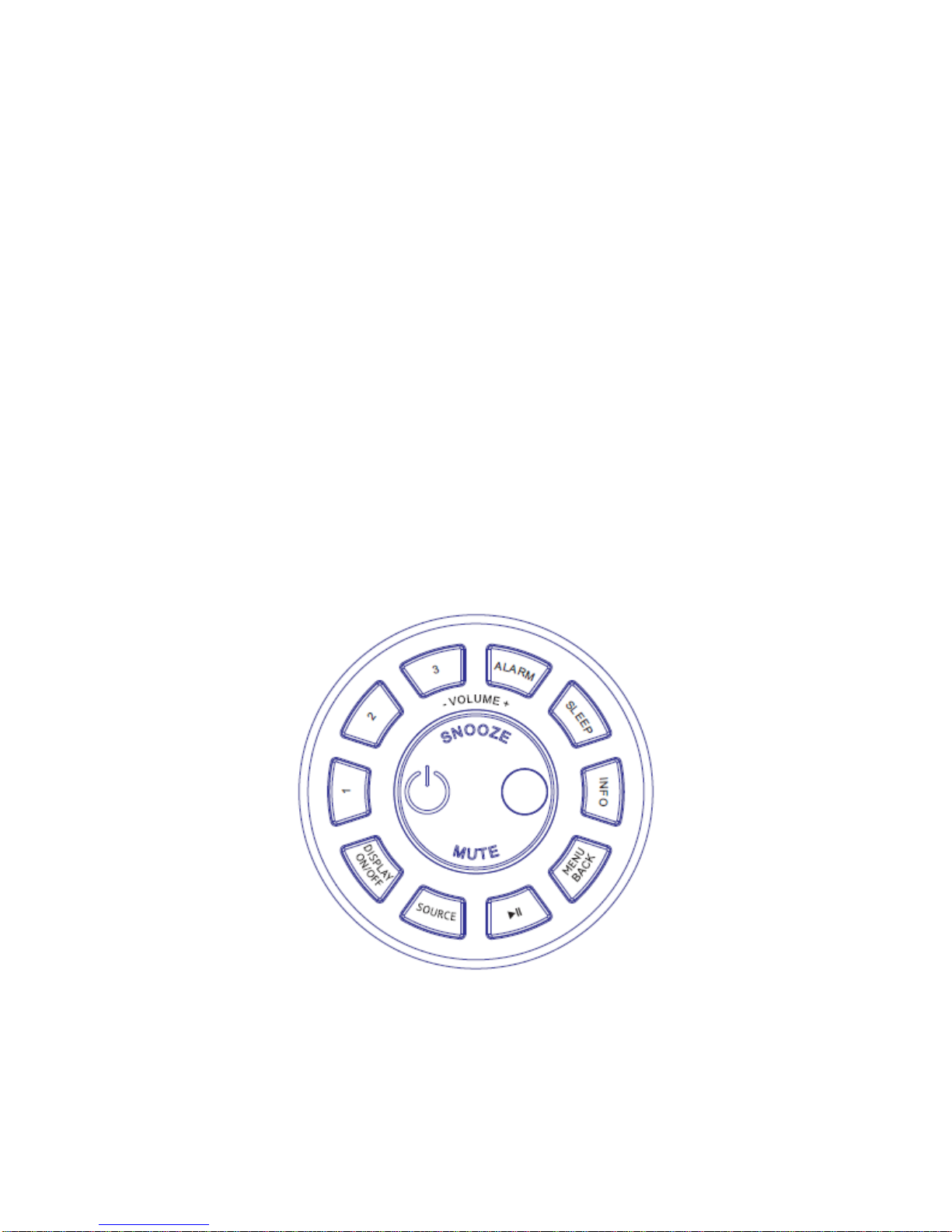

2.1 Main controls
1 SELECT/ VOLUME/MUTE/SNOOZE:
a. SELECT: Turn to scroll through a menu or station list. The chosen option is
highlighted in yellow text), Press to the button to select.

b. VOLUME: Turn to the button to adjust the volume up or down when playback.
c. MUTE: Press to the button to mute the music when playing.
d. SNOOZE: Press the button to snooze a set time when alarm sounding.
e. Power on / off: Turn on or back to standby mode (showing clock and date), or
cancel sleep, or cancel alarm function.
2 SLEEP: When playing, press to Sleep, MK100 will back to set sleep time.
When playing, opens the sleep menu to set the time interval before the unit is set
to Standby mode. When alarm is sounding, allows you to set the snooze interval.
3 SOURCE: Press to Source to select different modes internet radio, Aux.
4 ALARM: Press to Alarm, the screen will displayAlarm 1 andAlarm 2; then Rotate
and press the SELECT tune knob to select alarm 1 or alarm 2 to set up.
5 INFO: View more information about the station or track playing. Press again to
cycle through further information screens then return to the Now playing screen.
6 BACK/MENU:
BACK: press the BACK to return to the previous screen.
MENU: press the MENU to show the MENU for the current mode. Press again to
show now playing screen.
7. DISPLAY ON /OFF
8. PRESET: Long press button 1,2,3 to preset and save your favorite stations save
20 favorite stations); Short Press button 1,2,3 to select the favorite station to play
or Preset recall. You can save 20 stations by press button 3 and by scroll the
preset list to achieve.
9. : Press to select Play/Pause under internet radio, Spotify, My music and WIFI model.

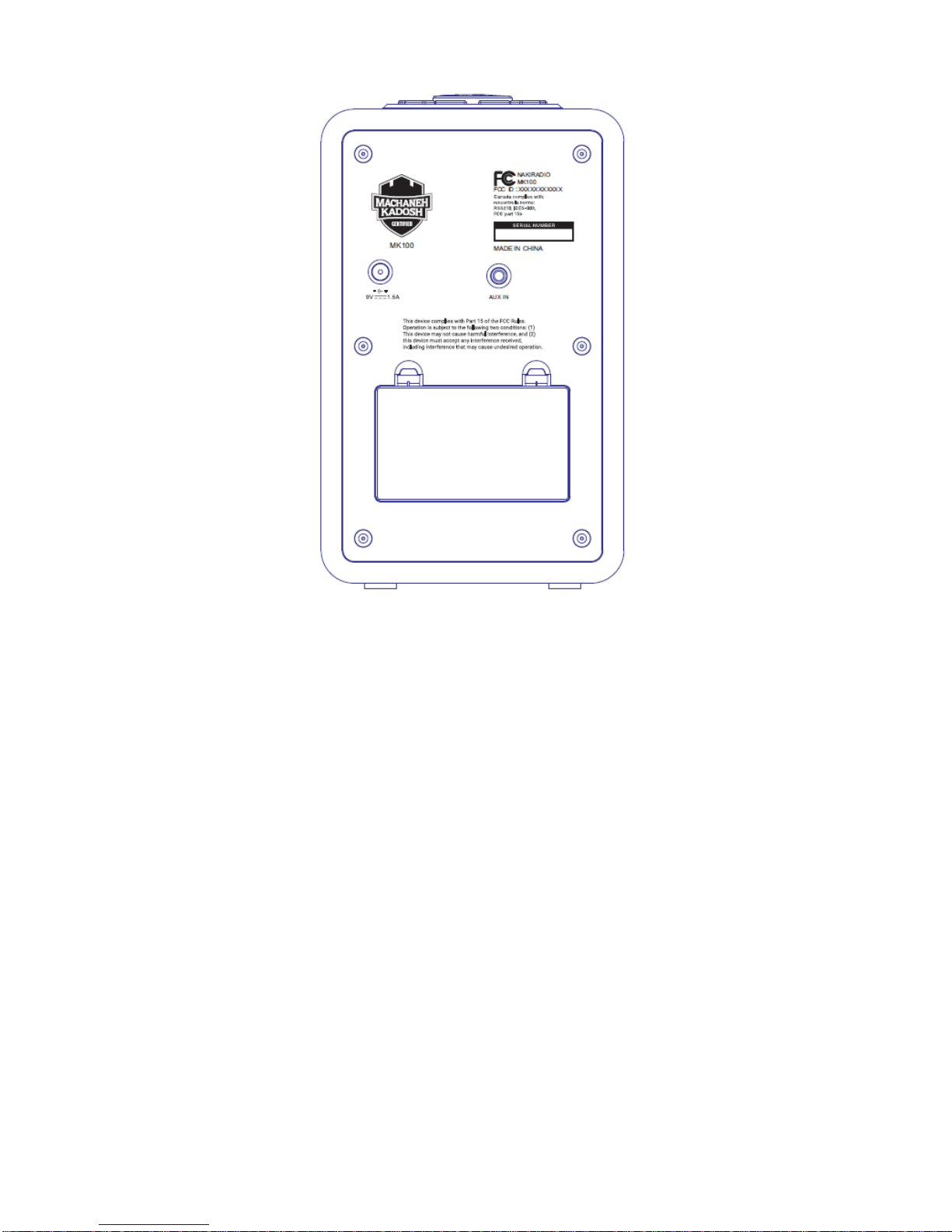

2.2 Connectors

As shown below has connectors (from left to right) for the following:
DC power in (9V)
Aux in (to connect external MP3 music source from the iPod, or Pad other device)

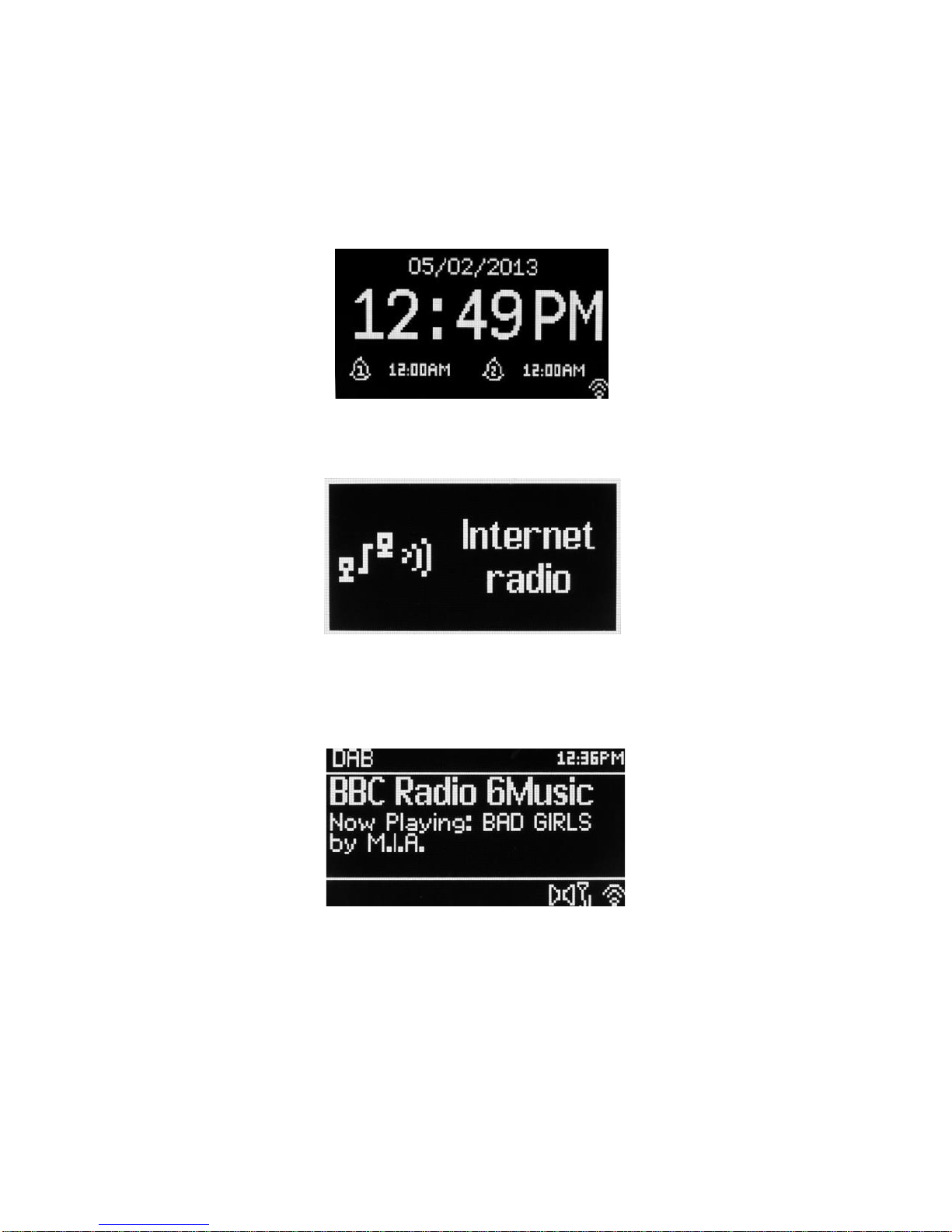

2.4Screens
The screen shows various menus, dialogues and displays as described
below. There are basically six types of screen:
• Standby (clock)
• Splash (mode)
• Now playing
• Dialogue
• Error/Information
• Menu

Where there is more text than can be fitted onto a screen, the text automatically scrolls
right to left after a brief pause.
The Standby screen shows the time, date and any active alarm times.
A splash screen is displayed for each mode. Press source to cycle through the listening
modes.
Now playing screens show information about the audio source and track now playing,
where available.
Dialogue screens are shown to allow the user to change settings. They vary in
complexity from simple Yes/No options up to the scrollable network passphrase input
screen.

The selected option is highlighted with a yellow background. Dialogue screens mark the
currently saved setting with an asterisk (*).
Error/Information screens give specific messages for a few seconds, then change
automatically to the next screen.
Menu Screens –for details of menu screens see under Section 2.7 Menu.
2.5 Operation
After the initial setup, MK100 is ready for operating in most Modes.
To select a Mode, press source until the required Mode splash screen is displayed.
After a brief moment MK100 switches to that mode. The last station or track previously
used in that mode is selected. If this is not possible, MK100 scans for relevant stations,
networks, or prompts the user for appropriate input. See the relevant Mode section for
details of how to use each listening mode.
The Common local controls for sound volume, Mute and Play/Pause are available in all
listening modes.
2.6 Menu navigation

The primary control for moving through menus and options is the Select Control. Rotate
the control to move up or down a menu. Once the required option or value is highlighted
press the Select Control. All menus and lists act as loops such that turning the control to
go beyond the first or last entry in a menu or list takes you to the opposite end of the
menu or list. So going up from the first entry in a menu will take you to the last option in
the menu, etc.
A “>” appears on the right of the screen if there are more options above or below those
visible.
To enter the menu tree in a particular mode press Menu . To move back a menu
level press Back. To exit the menu system, press Menu again. Each mode has a
Mode menu, with options specific to that mode.
For example, the FM mode menu has two mode specific options: Scan setting and
Audio setting.
In addition, each mode menu has two final options: System settings > and Main menu >.
The „>‟ indicates options leading to further menus.

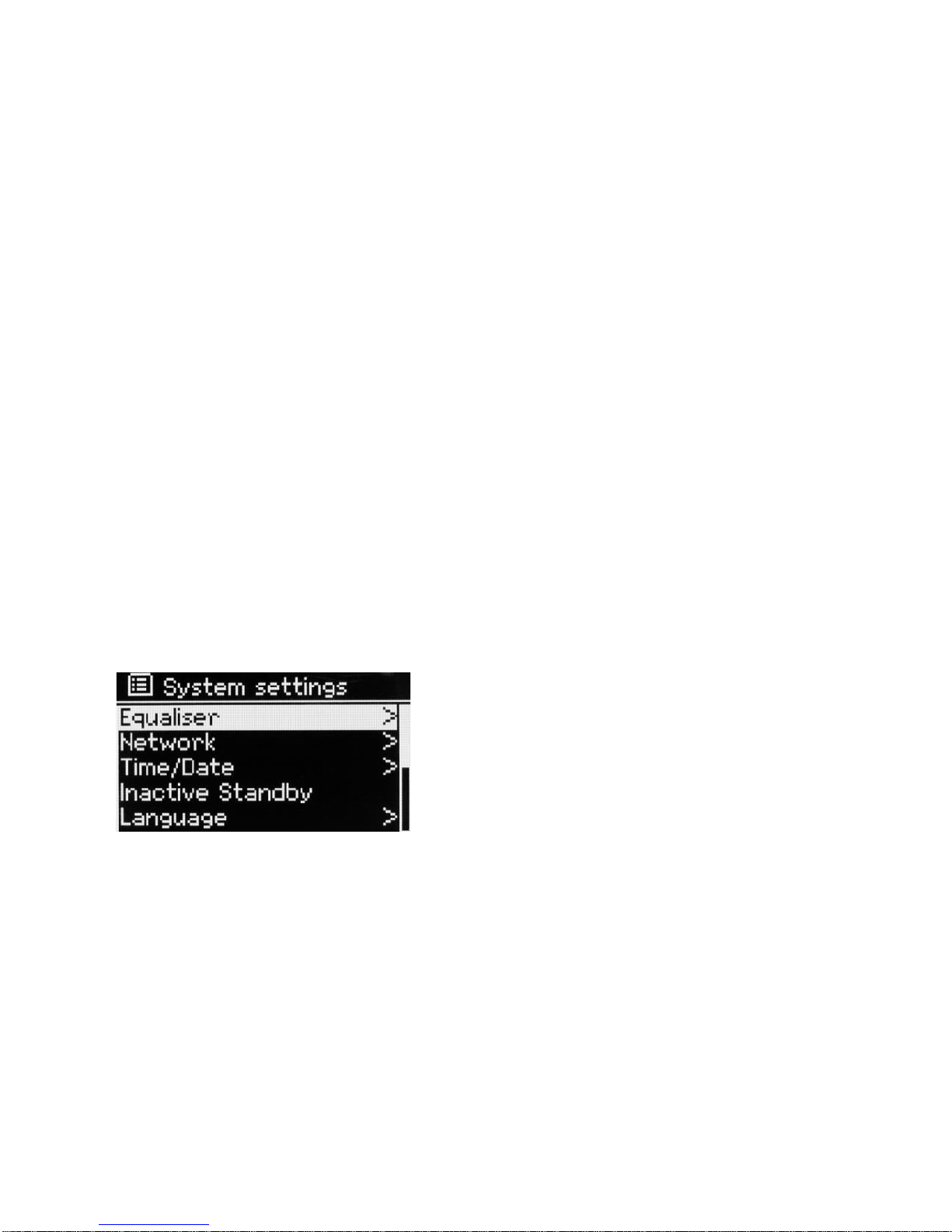

The System settings menu presents system setting functions to allow the user to setup
how the unit behaves. This includes Equalizer, network, time/date, language, factory reset
and software update…….

3. Started and setup
MK100 is easy to use. To play DAB or FM radio, all you need is a power source (a
100-240 V mains supply); For Music Player mode, you need a wired/wireless Ethernet
network and a UPnP music server (e.g. a PC). For Internet-connected modes such as
Internet radio, you also need a broadband Internet connection.
3.1 Setup wizard
When MK100 is started for the first time, it runs through a setup wizard to configure
Settings for date/time and network. Once this has finished, the system is ready to use in
most
modes.
Note: To change these settings later, select Menu > System settings >.
To run the setup wizard again, select Menu > System settings > Setup wizard.
Select Yes to start the setup wizard.
If you choose No, the next screen asks if you would like to run the wizard next time
MK100 is started. The system then starts without configuring time/date and network
settings and enters the Main Menu.
Note: If power is removed while the wizard is in progress, the wizard will run again next
time MK100 is started.
3.1.1 12/24 hour display
To change between 12 and 24 hour display, select Set 12/24 hour and then select your
preference.

3.1.2 Set Time/Date (wizard)
The date and time are displayed as dd-mm-yyyy and hh:mm AM/PM with the first value,
dd, active (flashing).
Adjust each value with the Select control. As each value is set by pressing the Select
control, the next value becomes active ready for adjustment.
Auto-update
Auto-update works with data sent over the Internet. The clock is only updated when in a
corresponding mode, so it is best to select a mode you use regularly.
DAB and FM use time signals broadcast with radio transmissions.
Network uses a time signal sent from the Internet radio portal when in any
network-connected mode.
1.Select Update from DAB, Update from FM, Update from Network or No update.
2. If you are updating from the network, set your time zone.
3. If your country uses daylight saving, the automatically updated time from the network
may be wrong by one hour. When daylight savings are in effect (during the winter), turn
on the Daylight savings option to rectify this.
Note that if you are updating the time from DAB or FM, the Daylight savings option has
no effect on the clock‟s time.
MK100 will auto-update from the selected source when time information is available.
Manual set

If you set No update, the wizard now prompts you to set the time and date manually.
The date and time are displayed as dd-mm-yyyy and hh:mm AM/PM with the first value,
dd, active (flashing).
Adjust each value with the Select control.
As each value is set, the next value becomes active and flashes.
3.1.3 Network
MK100 is compatible with all common network protocols and encryption methods,
including Wi-Fi Protected Setup (WPS).
To connect MK100 to your network, you need a Wi-Fi wireless router, together with
password key if set Select WLAN region/country >Wi-Fi network (SSID), and then select
a network from the list.
If the network is open (non-encrypted), MK100 connects and no further details are
required; see Completion below.
Standard encrypted network

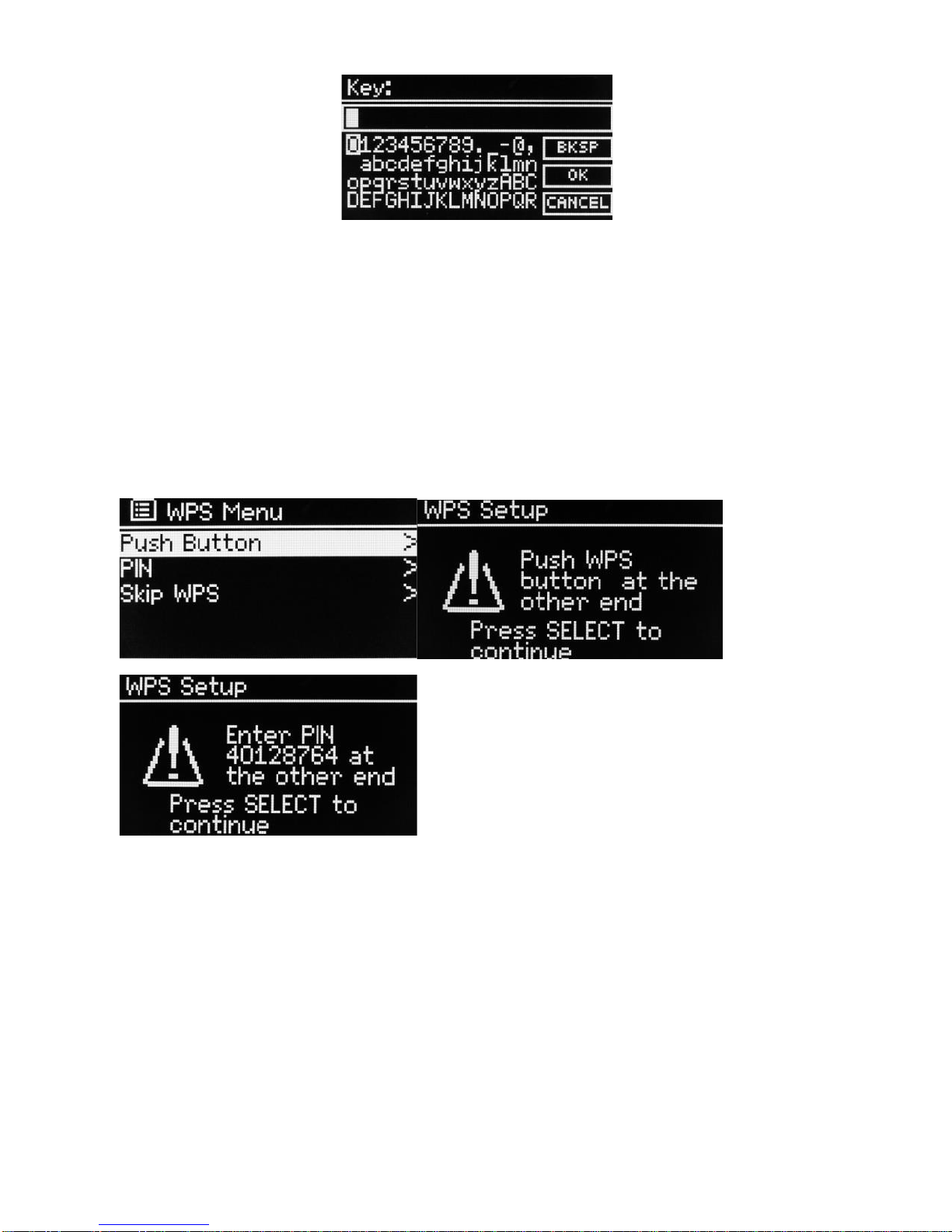

To enter the network‟s key (password), use the Select control to highlight the next
relevant character and press to select each character in turn. As each character is
selected, the key is built up near the top of the display.
The three options –Backspace, OK and Cancel are included in the selection loop.
These can be accessed just using the Select control, or, a short cut is available,
pressing the Info key, which moves the selection highlight to the Back Space option.

WPS setup
WPS encrypted networks are identified by „[WPS]‟ at the start of the network
name, and have two methods of connection. Select one and follow the prompts. When
using the network wizard an additional option to Skip WPS is available.
Select one and follow the prompts:
•Push Button >
MK100 prompts you to press the connect button on the router. It then press the select
control.
• Pin > (code number)
MK100 generates an 8-digit code number which you enter into the wireless router,
access point.
• Skip WPS >

Enter key as for a standard encrypted network, above. For more information
on setting up a WPS encrypted network, see your WPS router‟s instructions.

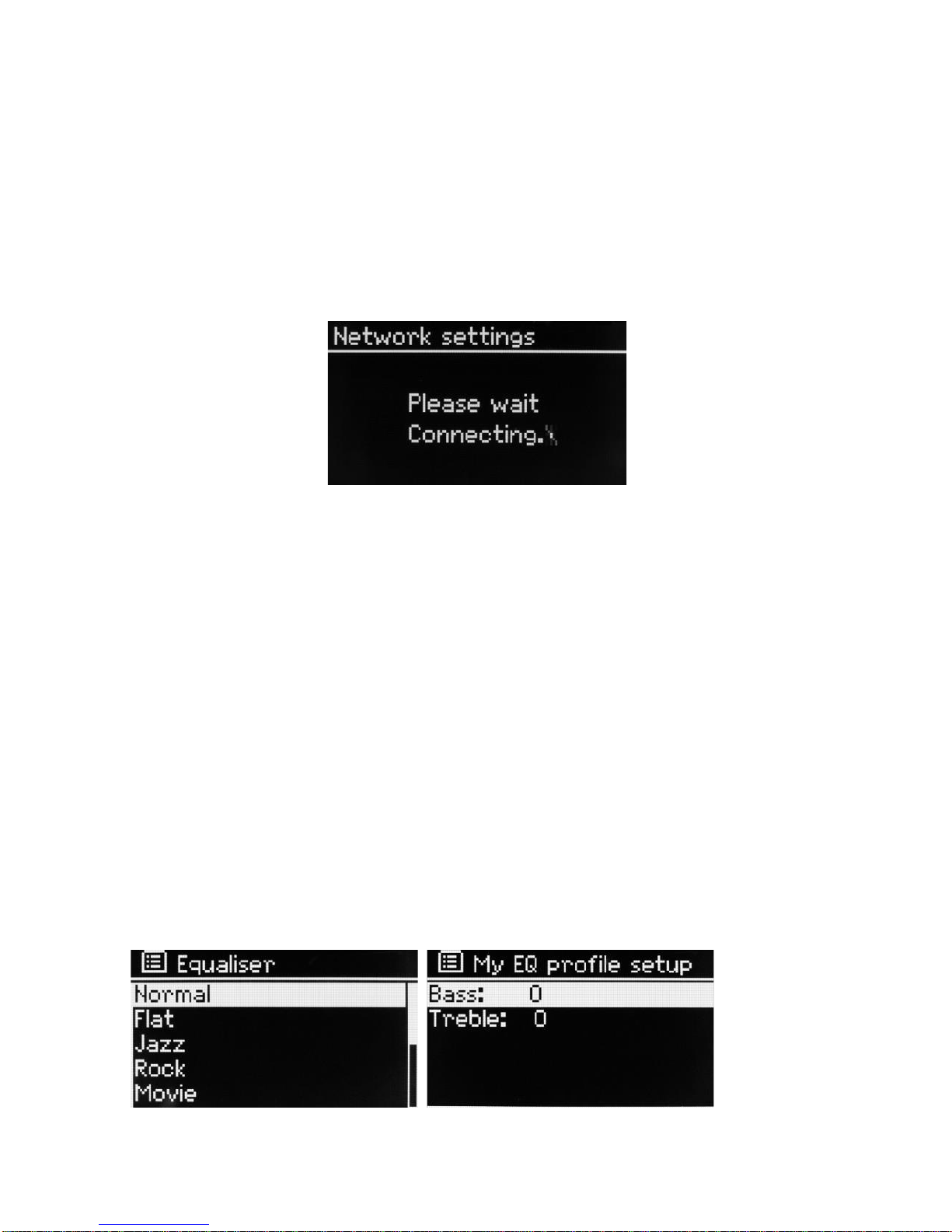

On completion
MK100 connects to the selected network.
If connecting fails, MK100 returns to a previous screen to try again. To exit the process
use the Back/Menu button
3.2 Other settings
Sections for those modes. Common settings are covered below.
3.2.1 Equalizer
Several preset EQ modes are available; also a user-defined setting (My EQ).
To choose an EQ setting, select Menu >System settings > Equaliser.
You can then choose from a variety of preset modes and My EQ

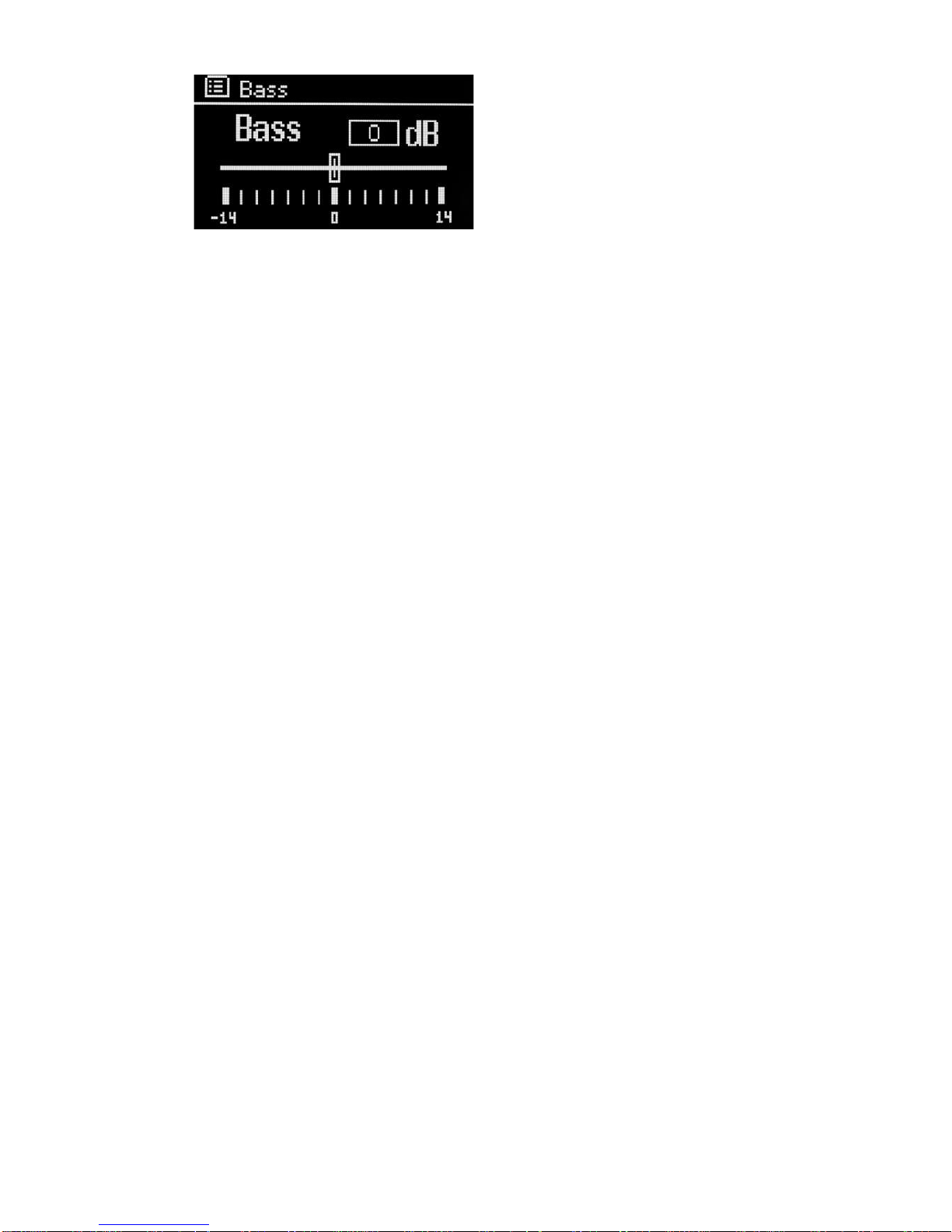

The last option „My EQ profile setup‟ allows you to define your own settings for the „My
EQ‟ option, with custom bass, and treble settings.
.

3.2.2 Network
MK100 remembers the last four wireless networks it has connected to, and
automatically tries to connect to whichever one of them it can find. You can see the list
of registered networks through Menu > System settings >Network > Network
profile >From here you can delete unwanted networks by turning and pressing Select
then confirming delete Yes.
There are also other options for viewing and manually altering network settings from
Menu > System settings > Network > (for example setting up a wired network).
Users experienced with networking may find these options useful for diagnosing and
fixing network problems.
3.2.3 Language
The default language is English. To change, select Menu > System settings
>Language >then select your language.
3.3 Internet radio portal registration
MK100 uses the Frontier Silicon Internet radio portal website that allows you to
organize your favorite‟s lists and also listen to Internet radio on a computer.

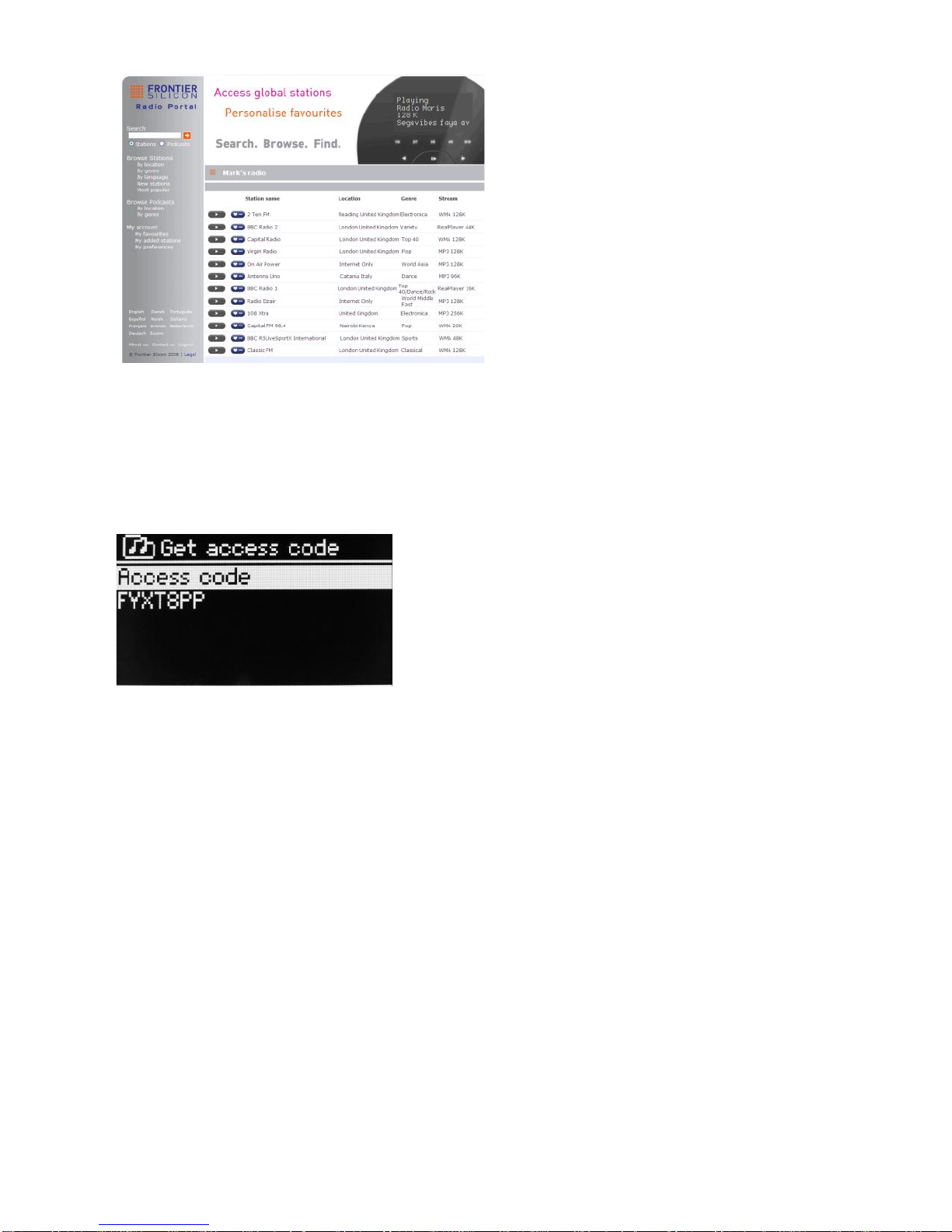

To register your MK100 with the portal, switch to Internet radio mode and then obtain
your radio‟s unique portal access code by selecting Menu >Station list > Help > Get
access code >Write down the access code.
Note: The displayed access code is only valid for a few minutes. If you fail to register
your radio within the time window you will need to repeat the above step to get a new
access code and try again. Do not confuse the portal access code with the Radio ID
(from Menu > System settings > Info.)
Visit the portal website at www.wifiradio-frontier.com.
If this is your first visit to the portal, register for a new account, entering the following
information:
•access code,
•your e-mail address,
•passphrase,
•radio model (MK100).

If you already have an account and wish to add an additional radio, log in to your
account and select My preferences > Add another Wi-Fi radio.
Once your radio is registered with the portal, you can immediately use the Internet radio
favorites and added stations features.
4. Internet radio mode
MK100 can play thousands of radio stations and podcasts from around the world though
a broadband Internet connection.
When you select Internet radio mode, MK100 contacts the Frontier Silicon Internet radio
portal to get a list of stations, organized into different categories like Country, Most
popular and Genre.
Once you select a station, MK100 connects directly to that station.
The portal also enables multiple lists of favourite stations that you can personalise, for
example Andy‟s stations, Jo‟s favourites, Talkshows. To use the favourites feature,
register your radio with the portal website as described on page 29. If you have several
Frontier Silicon radios, you can register them all on the same account so that each radio
has access to your favourite‟s lists. It is possible to add favourites either directly through
MK100 or through any computer with a web browser.
To enter Internet Radio mode, either press Mode until the display shows Internet Radio
or select Menu >Main menu > Internet Radio.
Note: The station list menu is provided from the Internet radio portal, so it is only
accessible when MK100 is connected to the Internet. Station lists and submenus may
change from time to time.
There are several ways of selecting stations.
Directly from the radio:
• Last listened
• Presets
From the portal through the Menu > Station list> menu:
• Favourites lists
• Browse by Country, Genre, Most popular, Newest

• Search by keyword
• My added stations
4.1 Last listened
When Internet radio mode restarts, the last-listened station is selected. To select
another recently used station, select Menu > Last listened then one of the stations listed.
Most recent stations appear at the top of the list.
4.2 Presets
Presets are stored in the radio and cannot be accessed from other radios.
To store an Internet radio preset, press and hold Preset until the display shows the
Save preset screen. Select one of the presets to save the currently playing station.
To select a preset, press Preset briefly, then select one of the listed preset stations.
When a preset station is playing, it shows 1,2,3 etc in the bottom middle of the
screen. Note: Operation of presets is identical for Internet radio, DAB and FM.
4.3 Favourites
Favourites are stored on the Internet radio portal. Before you set up an account on the
portal from its Web interface (www.wifiradio-frontier.com), the favourites are associated
solely with the radio on which you set them. After you set up a portal account, all the
favourites from your different radios are merged into a combined favourites list. This
combined list is available to all the radios on your account.
To store a playing station as a favourite, press and hold Select until the display shows
„Favourite added‟. The station appears in the default favourites list Stations.
To select a favorite, select Menu > Station list > My favorites‟ > [Favorites‟ list] >
[Station].
4.4 Browse
