Eurovac pneumatic vacuum cleaners
Service and user manual

Suomen Imurikeskus Oy
Valtatie 23 1141
29630 Pomarkku
Puh. [phone]
Fax. [phone]
www.suomenimurikeskus.fi
[email protected]
Krnro 346.703
ALV rek.
Y-tunnus / VAT FI0590849
This document consist all the knowledge you
need for proper use of the device. Read this guide
carefully before using the device and note the
warnings.
Store this document carefully
This guide’s content can be modified and changes
can be made without notification .

3
Sisällysluettelo
1. INTRODUCTION..................................................................................................................4
1.1 Field of use......................................................................................................................4
1.1 Knowing your device, Eurovac 53 pneumatic barrel vacuum cleaner..........................4
1.2 Knowing your device, Eurovac 53 pneumatic..............................................................5
1.3 Knowing your device, Eurovac 53 Trolley pneumatic..................................................5
1.4 Knowing your device, Eurovac 53 small pneumatic.....................................................6
2. General safety instructions............................................................................................7
2.1. Getting started...........................................................................................................7
2.2 Using the device .........................................................................................................7
3. Maintenance during use .......................................................................................................7
3.1 Emptying the trash container...........................................................................................8
3.2 Filter maintenance...........................................................................................................8
3.4 Common spare parts.......................................................................................................9
4. Troubleshooting....................................................................................................................9
5. Using cyclone separator.......................................................................................................9
7. Warranty.............................................................................................................................10
8. Compatible standards.........................................................................................................11

4
1. INTRODUCTION
Congratulations, you have bought yourself a good quality industrial vacuum cleaner. We hope it’s
going to serve you long, That’s why we advise you to use and maintenance the device properly.
We ask you to read instructions carefully before use to make sure your industrial vacuum cleaner’s
good operation and safety. This guide suits all pneumatic powered Eurovac 53 industrial vacuum
cleaners, unless stated otherwise. This guide doesn’t suit electric powered Eurovac 53 industrial
vacuum cleaners.
After receiving the device check, that device hasn’t damaged in shipment, and all accessories are
present. If something is missing, we advise you to report the device supplier immediately or at least
in 8 days.
1.1 Field of use
Eurovac 53 industrial vacuum cleaners suit dry and wet trash. If dust is very fine or other way
problematic, external cyclone separator can be used before vacuum cleaner, which prevent actual
vacuum cleaner getting stuck, or protect vacuum cleaner from hot ash or glowing materials.
NOTICE! Device can be used to vacuum hot ash only when using cyclone separator.
The use of pre-separator is in chapter 5
1.1 Knowing your device, Eurovac 53 pneumatic barrel vacuum cleaner
1. Barrel
2. Handle
3. Latch for the filter shaker
4. Suction connector
5. Filtering unit
6. Filter unit’s locking latch
7. Filter unit cover
8. Filter shaker
9. Hose
10. Pneumatic air connector and tap
11. Filter unit handle
12. Suction unit

5

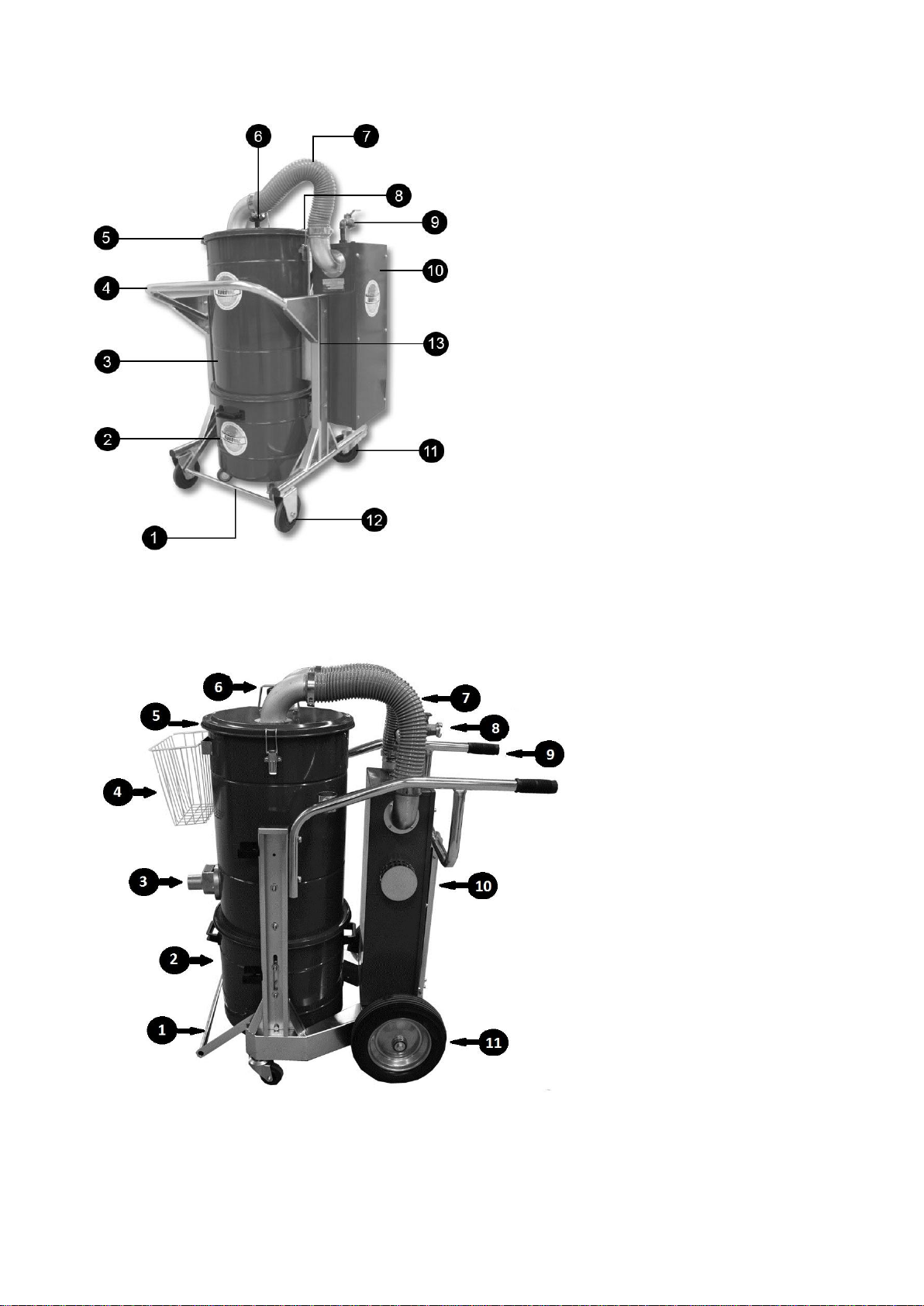

1.2 Knowing your device, Eurovac 53 pneumatic
1. Locking latch
2. Trash container
3. Filtering unit
4. Pushing handlen
5. Filter unit’s cover
6. Filter Shaker
7. Hose
8. Filter unit cover latch
9. Pneumatic air connector and tap
10. Suction unit
11. Wheel
12. Rotating wheel
13. Frame
1.3 Knowing your device, Eurovac 53 Trolley pneumatic
1. Lukituskahva
2. Roskasäiliö
3. Imuyhde
4. Tarvikekori
5. Suodatinyksikön kansi
6. Suodattimen ravistin
7. Letku
8. Suodatinyksikön kannen
salpa
9. Paineilmaliitäntä ja hana
10. Imuyksikkö
11. Rengas

6
1.4 Knowing your device, Eurovac 53 small pneumatic
1. Locking latch
2. Filter shaker
3. Pneumatic air connector and tap
4. Handle
5. Suction connector
6. Wheel
7. Trash container
8. Filter unit cover latch

7
2. General safety instructions
Please follow next safety instructions while using your Eurovac 53 industrial vacuum cleaner:
•Don’t use vacuum-cleaner in places, which might have easily flammable gases or
substances.
•Don’t use vacuum cleaner to vacuum burning liquids, exploding substances or hot ash.
•Before upkeep operations, remove plug from power outlet.
•During vacuuming, be careful, that vacuum tube doesn’t get close to sensitive areas of skin
(eyes, mouth, ears).
•Don’t vacuum in rain, or under splashing water
2.1. Getting started
Before use check:
Connect he unit to air supply:
oat least 6 bar/1800 l/min 1-ejector model.
ovat least 6 bar/3600 l/min 2-ejector modeli
Check that pneumatic hose is intact and properly connected.
Check, that vacuum-cleaners filter is in place, and its clean and in shape after former use.
Also check, that filters rail is locked with clamping device placed in vacuum cleaner’s lid..
2.2 Using the device
When you’re starting the vacuum cleaner, open the tap. You can adjust the vacuum power by
opening and closing the tap.
When you’re vacuuming wet trash or fluids, check often enough that too much water doesn’t
accumulate in trash container, when it would get through filters to motors and break them.
NOTICE! Device must be stored in dry and preferably warm room.
NOTICE! When vacuuming hot ash, always use cyclone separator
Trash container’s fulfillment must be observed time to time depending on vacuumed material.
3. Maintenance during use
Next chapters insist maintenance operations, which should be done often enough to ensure long
life of vacuum unit.
If suction power weakens, clean filter by shaking from filter shaking rod and if necessary change it
to new. Filter’s integrity should be checked always when emptying the trash container.
NOTICE! Never use broken filter!
NOTICE! Remove pneumatic air hose before any maintenance or service

8
3.1 Emptying the trash container
Always remember to check time to time, that trash container hasn’t overfilled.
Eurovac 53 industrial vacuum cleaner’s trash container’s emptying depending on model is
instructed next.
In Eurovac 53 and 53 Trolley the container is emptied by lifting trash container’s holder
handle upwards, when container detaches and is easy to empty. When you’ve emptied
the container, set container to its place back to holder handle clamps and lock the
container by pressing handle downwards.
In 53 barrel or 53 small remove the filter unit
NOTICE! Remove the air supply connected before emptying
the trash container
Some models of Eurovac 53 industrial vacuum cleaner series is
equipped with rod which can be used to lift vacuum cleaner with
for example forklift.
3.2 Filter maintenance
Filter is cleaned by shaking from filter shaking rod or if filter is very dirty, by
brushing, by blowing with pneumatic or by washing with mild water (40℃).
When filter is clean, you acquire best vacuum power and save vacuum
motors same time. Cleaning vacuum cleaner from dust and dirt extends
vacuum motors life significantly.
NOTICE! Don’t use filter which is wet after washing!
NOTICE! Make sure, that filter is set properly to its place
NOTICE! Check, that filter’s shaking rod is locked to bottom with
lock in vacuum cleaners up deck.

9
3.4 Common spare parts
Code
Part
more info
013069
Starfilter 53
013070
Starfilter 53 teflon
optional
013094
Starfilter 53 small
013096
Starfilter 53 small teflon
optional
4. Troubleshooting
Device won’t turn on
check that the tap is open,
Check the pneumatic air supply:
oat least 6 bar/1800 l/min 1-ejector model
oat least 6 bar/3600 l/min 2-ejector model
There’s dust / dirt in output air
Filter might be broken
Filter isn’t in place
Weak vacuum power
Check filter’s cleanliness and integrity
Check if vacuum tube is stuck
.
5.Using cyclone separator
When barrel-vacuum cleaner is equipped with
second 200l container with cyclone separator lid
deck, device works with pre separator principle.
When using cyclone separator, most of the dust
accumulate to first barrel.
NOTICE! Glowing and burning and especially hot and burning material aren’t
recommended to vacuum mixed.
When you’re vacuuming hot ash, vacuuming must be done in sequences to prevent vacuum tubes
from melting. Vacuum ash for about 2 seconds, then give 10 seconds cool air outside ash space to
vacuum cleaner.
NOTICE! Obey fire safety terms when operating with the device.

10
NOTICE! Notice order of tubes going to cyclone separator
7. Warranty
Suomen Imurikeskus Oy gives twelve (12) months warranty to this device with following terms.
Warranty applies to material- and manufacturing flaws. Warranty might end if device is modified it
changes owner or it’s serviced in non-authorized service business.
WARRANTY TERMS
1. Warranty begins when device is delivered to customer and seller’s ticket is enough for
warranty certificate.
2. If device is serviced in warranty service, warranty won’t extend. It begins when vacuum
cleaner is delivered to customer and ends twelve (12) months later.
3. Warranty won’t include following matters:
consuming parts, prickles, motor carbons, bearings, filter etc.
If device is used without following use- and install- instructions or filter.
Warranty won’t include parts broken from lightning or over voltage.
transport-, install-, service-, etc. costs
reckless use, transport damages or other accident’s caused damages.
wrong use or –install caused damages

11
8.Compatible standards
Common agreement terms are being followed unless there are other specific agreements. If device
won’t function as it’s supposed to work, be in contact with seller or manufacturer.
Manufacturer:Suomen Imurikeskus Oy
Valtatie 23 1141
29630 Pomarkku
Puh. 02 5767 00
Fax. [phone]
www.suomenimurikeskus.fi
DECLARATION OF CONFORMITY:
WE
Suomen Imurikeskus Oy
Valtatie 23 1141
29630 Pomarkku
Assure you, that
Eurovac 53 industrial vacuum cleaner
Is designed and manufactured by following specifications :
Machine directive 89/392/EEC
EN 292-1, EN 292-2
Low voltage directive 73/23/EEC
EN 60 335-1
NOTE! Declaration of conformity isn’t valid if:
Device has been modified without manufacturer’s permission.
Device has been serviced with other than genuine spare parts
