Eurovac 53 Industrial vacuum cleaner
Use- and maintenance instructions

Suomen Imurikeskus Oy
Valtatie 23 1141
29630 Pomarkku
Tel. [phone]
www.suomenimurikeskus.fi
[email protected]
Business ID / VAT
FI0590849
This document consist all the knowledge you
need for proper use of the device. Read this guide
carefully before using the device and note the
warnings. Store this document carefully
This guide’s content can be modified and changes
can be made without notification.

3
Table of Contents
1. Introduction...........................................................................................................................4
1.1 Knowing your device, basic model...................................................................................4
1.2 Knowing your device, trolley............................................................................................5
1.3 Use features....................................................................................................................5
1.4 General safety instructions..............................................................................................6
2. Getting started......................................................................................................................6
2.1 Using the device..............................................................................................................6
3. Maintenance during use .......................................................................................................6
3.1 Emptying the trash container...........................................................................................7
3.2 Filter maintenance...........................................................................................................7
3.3 Maintenance of cleaning kit.............................................................................................7
3.4 Regular spare parts.........................................................................................................8
4. Troubleshooting....................................................................................................................8
6. Using cyclone separator.......................................................................................................8
7. Warranty...............................................................................................................................9
8. Compatible standards.........................................................................................................10

4
1. Introduction
Congratulations, you have bought yourself a good quality industrial vacuum cleaner. We hope it’s
going to serve you long, That’s why we advice you to use and maintenance the device properly.
We ask you to read instructions carefully before use to make sure your industrial vacuum cleaner’s
good operation and safety. This guide suits all electric powered Eurovac 53 industrial vacuum
cleaners, unless stated otherwise. This guide doesn’t suit pneumatic powered Eurovac 53
industrial vacuum cleaners.
After receiving the device check, that device hasn’t damaged in shipment, and all accessories are
present. If something is missing, we advice you to report the device supplier immediately, or at
least in 8 days.

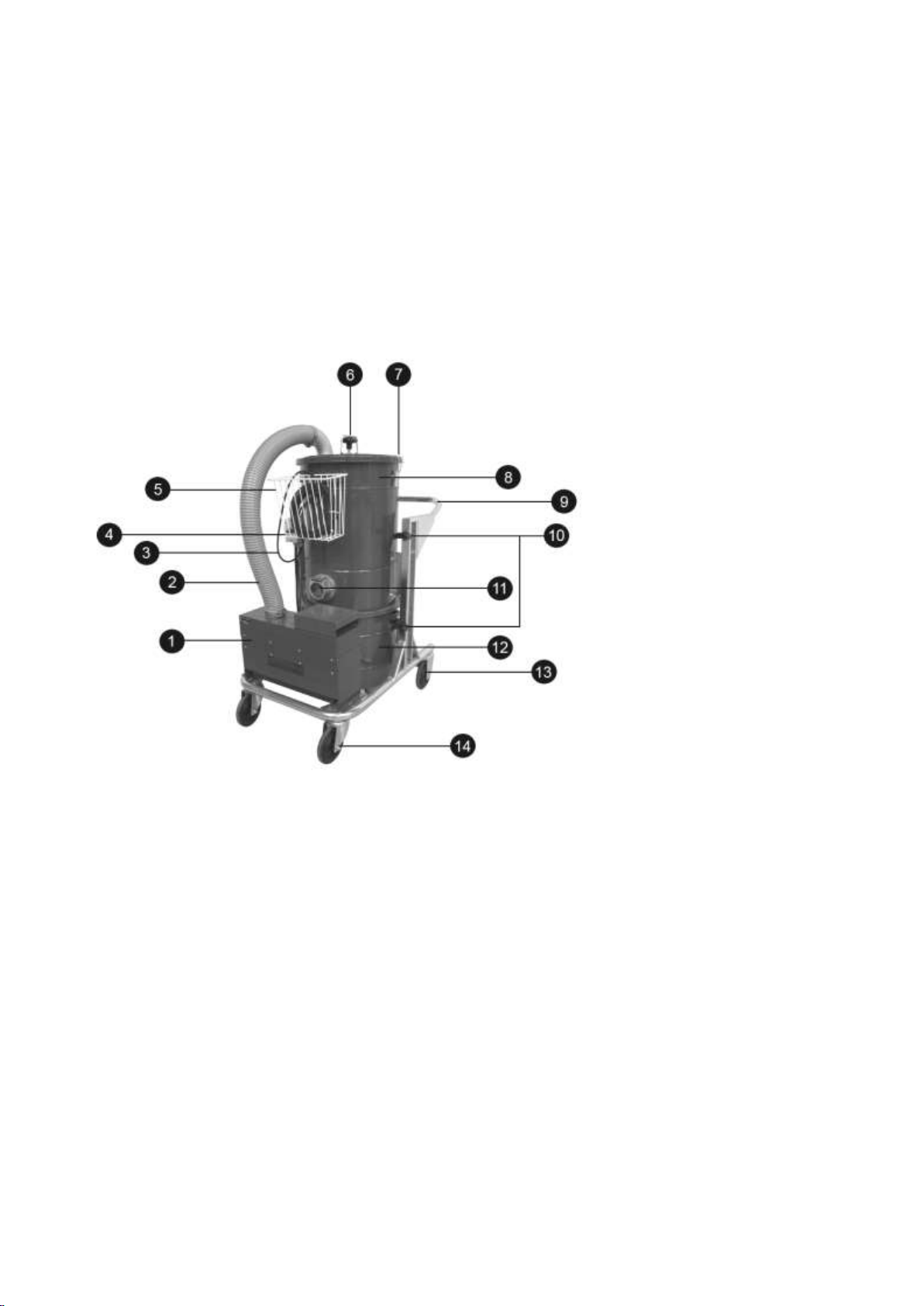

1.1 Knowing your device, basic model
1. Electric unit
2. Tube
3. Electric cable
4. Power switch
5. Accessory basket
6. Filter shaking rod
7. Filter unit’s deck lock hatch
8. Filter
9. Pushing handle
10. Cleaning kit holder
11. Vacuum tube connector
12. Trash container
13. Wheel
14. Turning wheel

5

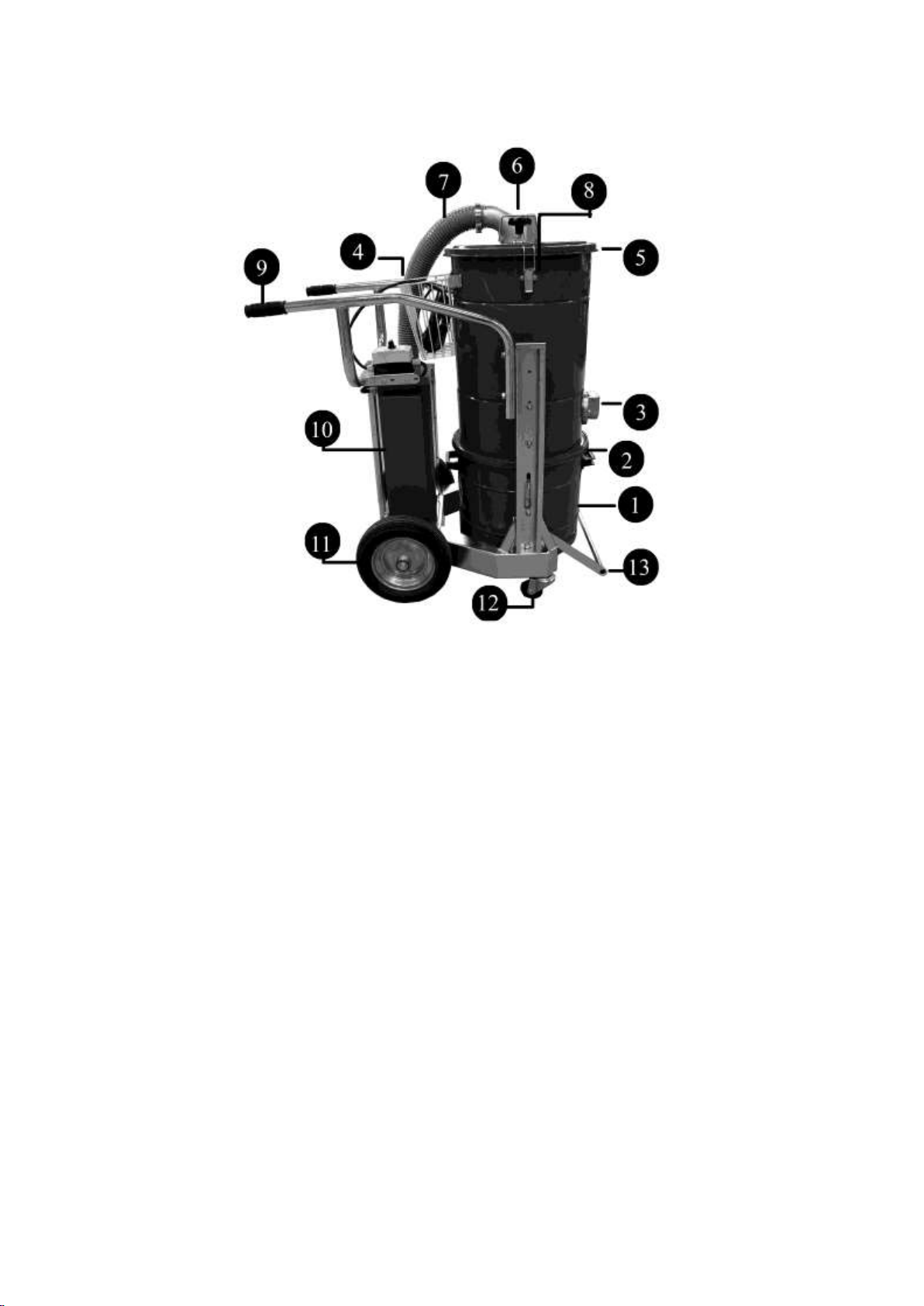

1.2 Knowing your device, 53 trolley
1. Trash container
2. Trash container handle
3. Suction hose connector
4. Equipment basket
5. Filter unit lid
6. Filter Shaking rod
7. Hose
8. Filtering unit’s locking latch
9. Handle
10. Suction unit
11. Wheel
12. Rotating wheel
13. Trash container’s emptying lever
1.3 Use features
Eurovac 53 industrial vacuum cleaners suit dry and wet trash. If dust is very fine or other way
problematic, external cyclone separator can be used before vacuum cleaner, which prevent actual
vacuum cleaner getting stuck, or protect vacuum cleaner from hot ash or glowing materials.
NOTICE! Device can be used to vacuum hot ash only when using cyclone separator.
Use of cyclone separator is detailed in chapter 6.

6
1.4 General safety instructions
Please follow next safety instructions while using your Eurovac 53 industrial vacuum cleaner:
Don’t use vacuum-cleaner in places, which might have easily flammable gases or
substances.
Don’t use vacuum cleaner to vacuum burning liquids, exploding substances or hot ash.
Before upkeep operations, remove plug from power outlet.
During vacuuming, be careful, that vacuum tube doesn’t get close to sensitive areas of skin
(eyes, mouth, ears).
Don’t vacuum in rain, or under splashing water.
2. Getting started
Before using the vacuum cleaner CHECK, that:
Voltage you’re going to use is same as the vacuum cleaner is needs (240V). Power plug
must be safe grounded
Power outlet, power plug and electric wire are intact.
Check, that vacuum-cleaners filter is in place, and its clean and in shape after former use.
Also check, that filters rail is locked with clamping device placed in vacuum cleaner’s lid.
2.1 Using the device
When you’re starting the vacuum cleaner, turn engines on one at the time, by
turning switch first to 1 and then 2 position. When you’re vacuuming wet
trash or fluids, check often enough that too much water doesn’t accumulate
in trash container, when it would get through filters to motors and break
them.
NOTICE! Device must be stored in dry and preferably warm room.
NOTICE! When vacuuming hot ash, always use cyclone separator
NOTICE! Device’s noise level is 84 dB(A).
Trash container’s fulfillment must be observed time to time depending on
vacuumed material.
3. Maintenance during use
Next chapters insist maintenance operations, which should be done often enough to ensure long
life of vacuum motors. If suction power weakens, clean filter by shaking from filter shaking rod and
if necessary change it to new. Filter’s integrity should be checked always when emptying the trash
container.
NOTICE! Never use broken filter!
NOTICE! Remove electric cable from power outlet before maintenance operations.

7
3.1 Emptying the trash container
Always remember to check time to time, that trash container haven’t
overfilled. Eurovac 53 industrial vacuum cleaner’s trash container’s emptying
depending on model is instructed next.
Container is emptied by lifting trash container’s holder handle upwards, when
container detaches and is easy to empty. When you’ve emptied the
container, set container to it’s place back to holder handle clamps and lock
the container by pressing handle downwards.
NOTICE! Aina ennen roskasäiliön irrottamista sammuta laite.
NOTICE! Imuroitaessa kosteaa likaa, tai nesteitä, tarkistakaa
tarpeeksi usein, ettei säiliöön kerry liikaa nestettä, jolloin
se pääsisi suodattimien läpi moottoreihin ja vioittaisi niitä.
Some models of Eurovac 53 industrial vacuum cleaner series is equipped
with rod which can be used to lift vacuum cleaner with for example. forklift.
3.2 Filter maintenance
Filter is cleaned by shaking from filter shaking rod or if filter is very dirty, by
brushing, by blowing with pneumatic or by washing with mild water (40℃).
When filter is clean, you acquire best vacuum power and save vacuum
motors same time. Cleaning vacuum cleaner from dust and dirt extends
vacuum motors life significantly.
NOTICE! Don’t use filter which is wet after washing!
NOTICE! Make sure, that filter is set properly to its place
NOTICE! Check, that filter’s shaking rod is locked to bottom with
lock in vacuum cleaner’s up deck.
3.3 Maintenance of cleaning kit
Also cleaning kit need cleaning time to time. Prickles can be cleaned by simply vacuuming using
for example. slit nozzle.

8
3.4 Regular spare parts
Code
Description
Additional details
013069
Star filter 53
013302
Star filter 53 tetratex
optional
015039
Vacuum motor’s carbon
034337
Twist switch with casing
015004
Vacuum motor 1300 w model F
4. Troubleshooting
Device won’t turn on
Check, that switch/switches are in position ”1”.
Check, that electric cable is plugged (grounded, 230V)
Check fuses 16 A
There’s dust / dirt in output air
Filter might be broken
Filter isn’t in place
Vacuum cleaner sounds weird
Motor carbons are worn out
bearings are worn out
Weak vacuum power
Check filter’s cleanliness and integrity
Check if vacuum tube is stuck
All motors aren’t switched on
Fuse burns
Check, that fuse is right and
Take contact to manufacturer or seller
In problem situations, take contact to manufacturer or seller.
6. Using cyclone separator
When barrel-vacuum cleaner is equipped with
second 200l container with cyclone separator lid
deck, device works with pre separator principle.
When using cyclone separator, most of the dust
accumulate to first barrel.

9
NOTICE! Glowing and burning and especially hot and burning material aren’t
recommended to vacuum mixed.
When you’re vacuuming hot ash, vacuuming must be done in sequences to prevent vacuum tubes
from melting. Vacuum ash for about 3 seconds, then give 5 seconds cool air outside ash space to
vacuum cleaner.
NOTICE! Obey fire safety terms when operating with the device.
NOTICE! Notice order of tubes going to cyclone separator
7.Warranty
Suomen Imurikeskus Oy gives twelve (12) months warranty to this device with following terms.
Warranty applies to material- and manufacturing flaws. Warranty might end if device is modified it
changes owner or it’s serviced in non-authorized service business.
WARRANTY TERMS
1. Warranty begins when device is delivered to customer and seller’s ticket is enough for
warranty certificate.
2. If device is serviced in warranty service, warranty won’t extend. It begins when vacuum
cleaner is delivered to customer and ends twelve (12) months later.
3. Warranty won’t include following matters:
consuming parts, prickles, motor carbons, bearings, filter etc.
If device is used without following use- and install- instructions or filter.
Warranty won’t include parts broken from lightning or over voltage.
transport-, install-, service-, etc. costs
reckless use, transport damages or other accident’s caused damages.
wrong use or –install caused damages

10
8.Compatible standards
Common agreement terms are being followed unless there are other specific agreements. If device
won’t function as it’s supposed to work, be in contact with seller or manufacturer.
Manufacturer:Suomen Imurikeskus Oy
Valtatie 23 1141
28630 Pomarkku
Puh. 02 5767 00
Fax. [phone]
www.suomenimurikeskus.fi
DECLARATION OF CONFORMITY:
WE
Suomen Imurikeskus Oy
Valtatie 23 1141
29630 Pomarkku
Assure you, that
Eurovac 53 industrial vacuum cleaner
Is designed and manufactured by following specifications :
Machine directive 89/392/EEC
EN 292-1, EN 292-2
Low voltage directive 73/23/EEC
EN 60 335-1
NOTE! Declaration of conformity isn’t valid if:
Device has been modified without manufacturer’s permission.
Device has been serviced with other than genuine spare parts
