WELCOME!
Please read this owner’s handbook carefully before using your
Super73 in order to become thoroughly familiar with the correct
operation of your bike’s controls, it’s features, capabilities, and
limitations. This handbook includes safe riding tips, but does not
contain any of the techniques and skills necessary to ride an electric
bicycle safely.
Join the Supersquad community of riders wherever you are!
This is just the beginning of your adventure with us! We look forward
to hearing about your experience and seeing you online on our social
networks:
Instagram.com/super73
Youtube.com/c/super73
Facebook.com/groups/Super73owners/
Tag us! @super73 #Super73
CONTACT SUPER73
This handbook was drafted in the English language (Original instructions) and may
have been translated into other languages as applicable (translation of Original
instructions).
This handbook contains information on the Super73 electric bikes. Always store this
Owner’s Manual with the Super73 and refer to it for information whenever necessary.
The information contained in this publication is based on the latest information
available at the time of printing.
Please note all instructions and notices are subject to change and updates without
notice. Please visit www.super73.com for periodic tech updates.
Feedback: customer[email protected]
This is not to be reproduced wholly or in part without the written permission of
Super73. ©Copyright 2020 Super73, Inc. , V1. Updated 02/2020.
North America:
SUPER73, Inc.
16591 Noyes Ave, Irvine,
California 92606, United States
[phone]
customer[email protected]
www.super73.com
Europe:
SUPER73
Industrieweg 61
1115 AD Duivendrecht, Netherlands
0031 (0)20 30 800 73
customer[email protected]
www.eu.super73.com

3
TABLE OF CONTENTS
2
5
6
8
8
9
10
13
14
15
18
21
22
24
25
26
31
Contact Information
General Information
Diagram of R-Series
Legal Information
Intended use
Unpacking Instructions
Assembly Instructions
Registration
Pre-ride safety check
Operating the bike
Suspension Adjustment Guide
Super73 App
General Warnings
Safety
Maintenance Schedule
Maintenance and Components
Warranty

4
MISSION STATEMENT
+ +
Super73 exists to create adventure and community.
We strive to bolster adventurous exploration through
innovation, create positive and forward-thinking
experiences with integrity, and cultivate enthusiastic
support and vision for the community.

5
WARNING!
Warnings, precautions, and potential risks associated with the use of your Super73.
Danger!
Possible dangers for your life and health if respective calls to action are ignored.
Tip!
Recommendation! Meaningful additional information.
Please perform a safety check before each use, as described on in the “Pre-ride Safety
Check” section on pg. 14 of this handbook.
If you feel uncertain about proper configuration after assembling your Super73 according
to the provided assembly instructions, please contact your specialized retailer or Super73
directly.
TIP
!
!
!
If any of the instructions are beyond your skill set, we recommend taking
your Super73 to a certified E-Bike specialist or professional cycle mechanic for
assembly.
This owner’s handbook includes assembly and maintenance work which may need to
be done at frequent intervals to maintain an operational and safe super73. Never
perform work on your Super73 beyond instructions in this handbook. This handbook
is not intended as a comprehensive use, service, repair or maintenance handbook. Do
NOT ride your Super73 if it has been assembled incorrectly. Maintenance beyond what
the owner’s handbook instructs is to be handled by an E-Bike specialist or professional
cycle mechanic. Riding an incorrectly assembled bike can put your own safety at risk as
well as others.
GENERAL INFORMATION
Please note the following symbols:

6

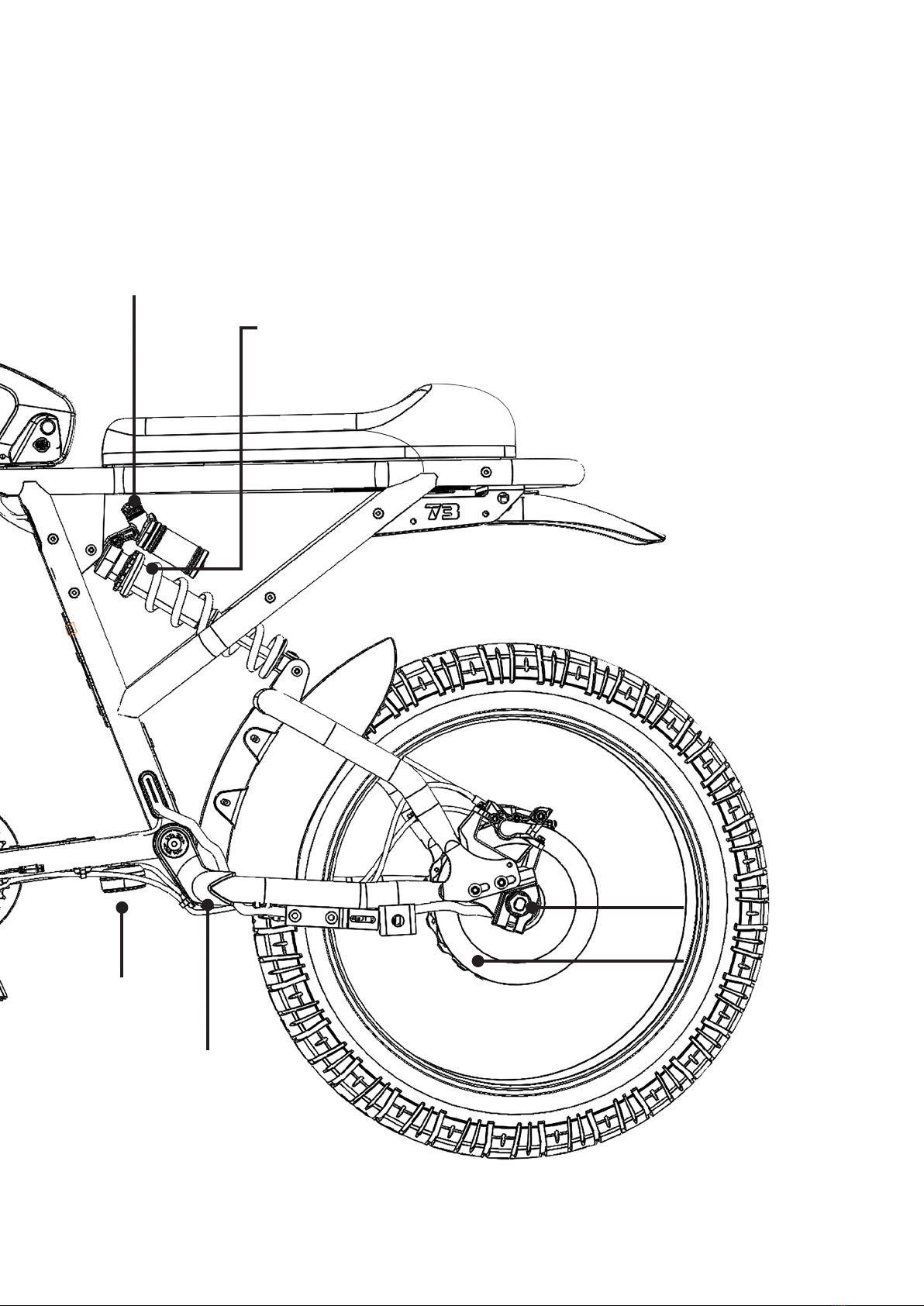

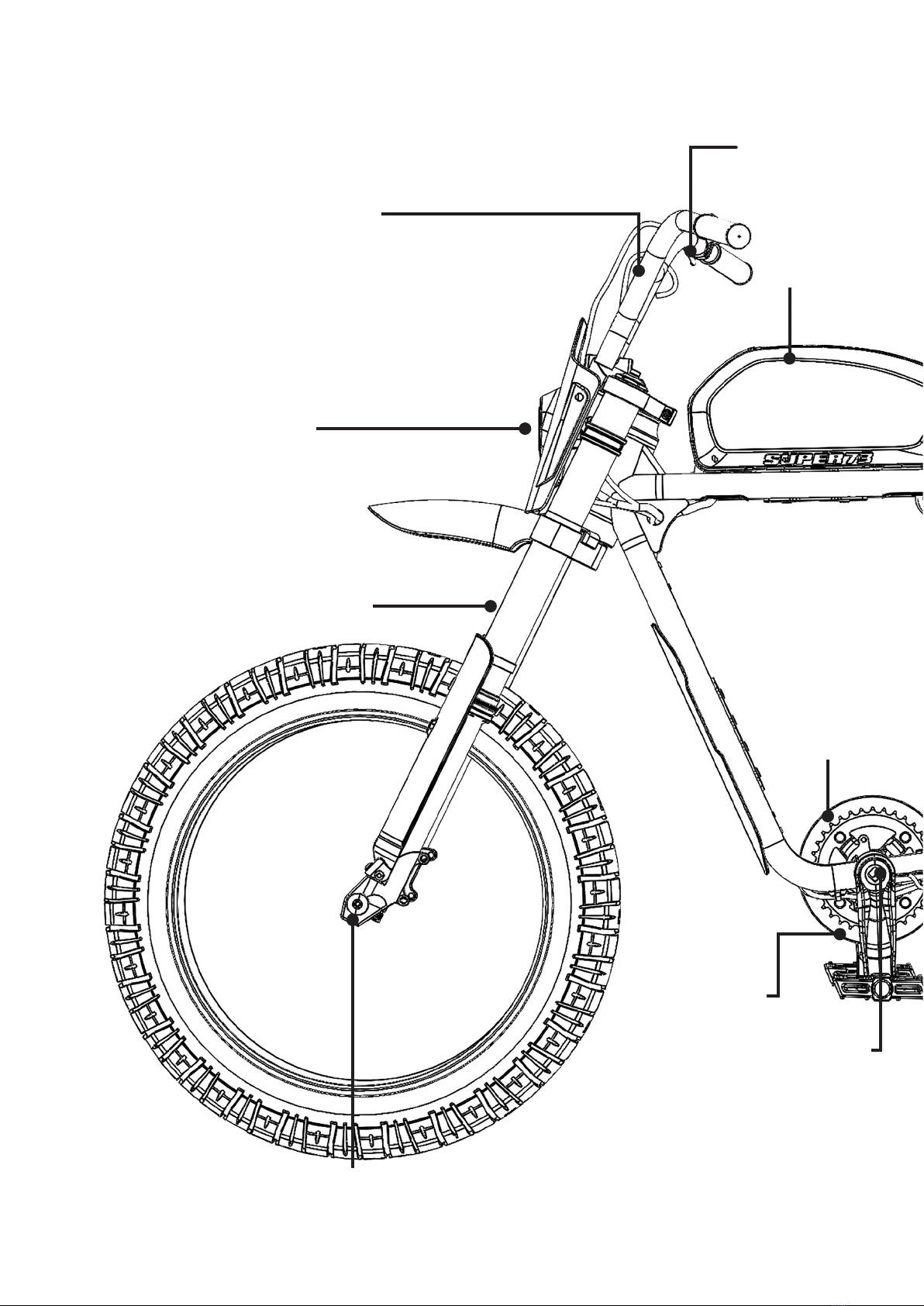

DIAGRAM OF THE SUPER73 R-SERIES
HEADLIGHT (RX)
DISPLAY (LEFT SIDE)
THROTTLE
BATTERY
CRANK SET
BOTTOM BRACKET
CHAIN RING
SUSPENSION FORK
FRONT THRU AXEL DROPOUT

7
HORN
SWINGARM
ROTOR
PIGGY BACK RESERVOIR (RX)
REAR SHOCK
REAR DROPOUT
BOTTOM BRACKET
CHAIN RING

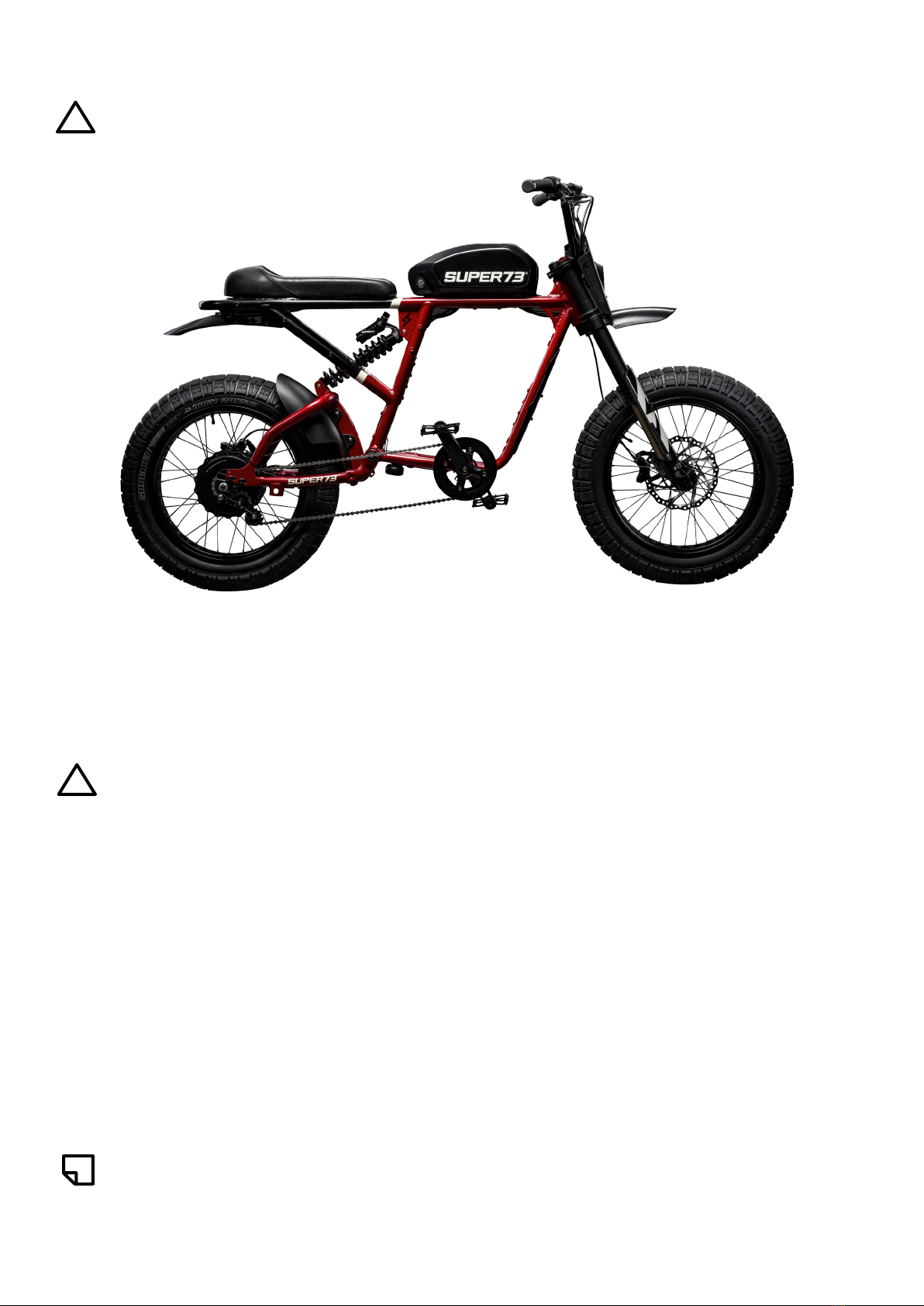

RX model shown. Some options shown may not apply to the R model.

8
!Please check your country or state’s regulations on electric bikes before riding. There
are variations on age limit, speed, motor wattage, and road accessibility. Visit this
website for more information: https://peopleforbikes.org/our-work/e-bikes/policiesand-
laws/
In most European countries and Australia, the rules of public traffic valid for bicycles also
apply to e-bikes traveling up to 25 km/h. However, there are some notable differences
(such as the age limit of the cyclist). More information here:
http://bike-eu.com.s3-eu-central-1.amazonaws.com/app/uploads/2015/09/rules-
regulation-on-electric-cycles-in-the-european-union-may-2017.pdf
For the latest information on
assembly and maintenance, please go to our website: https://
super73support.zendesk.com/hc/en-us
No liability or warranty shall be accepted if the use of the Super73 deviates from this
intended use, if safety instructions are not observed, in the event of overloading, or if
faults are not properly rectified. Similarly, no liability and warranty shall be accepted
in the case of assembly errors, willful intent, accidents, and/or if care and maintenance
specifications are not followed. Any modification or alterations to the electrical system
(tuning) voids all claims under warranty and guarantees.
• Your Super73 electric bike is designed for use on paved paths only. You should
therefore never ride on stairs, jump, or perform wheelies or similar activities.
• Super73 electric bikes are not approved for participation in competitions.
• Commercial use does not form part of the intended use.
• Operation parameters, maintenance, guidelines, and service instructions described in
this manual are part of the intended use.
Please observe the permitted overall weight of 325 lbs (147kg).
!
DANGER!
If the user rides the Super73 beyond its intended use, there may be a risk of an
accident, serious injury, or death and the risk of injury to those around the user.
LEGAL REQUIREMENTS
INTENDED USE

9
• Do not open box from the top
• A second person is recommended to help unpack and assemble your Super73
1. The majority of the assembly will take place while the bike is still in the lower portion of the
cardboard box.
2. Remove the 4 plastic tabs at the bottom of the package by pulling the D ring tab out causing
the entire piece to pull out.
3. Remove the top lid of the box completely off the bike and bottom portion.
4. Do not remove the front or rear cardboard insert until instructed to do so. These will help
stabilize the bike during assembly.
5. Please read all assembly instructions in full before beginning the build of your new bike.
DANGER!
Please read the instructions entirely before assembly to ensure the proper
functioning of the Super73. Failure to do so could result in serious personal injury or
damage to the bike.
TIP VIDEO
View our assembly video to follow step-by-step instructions on our website in the
Support section at www.super73.com
UNPACKING INSTRUCTIONS
!

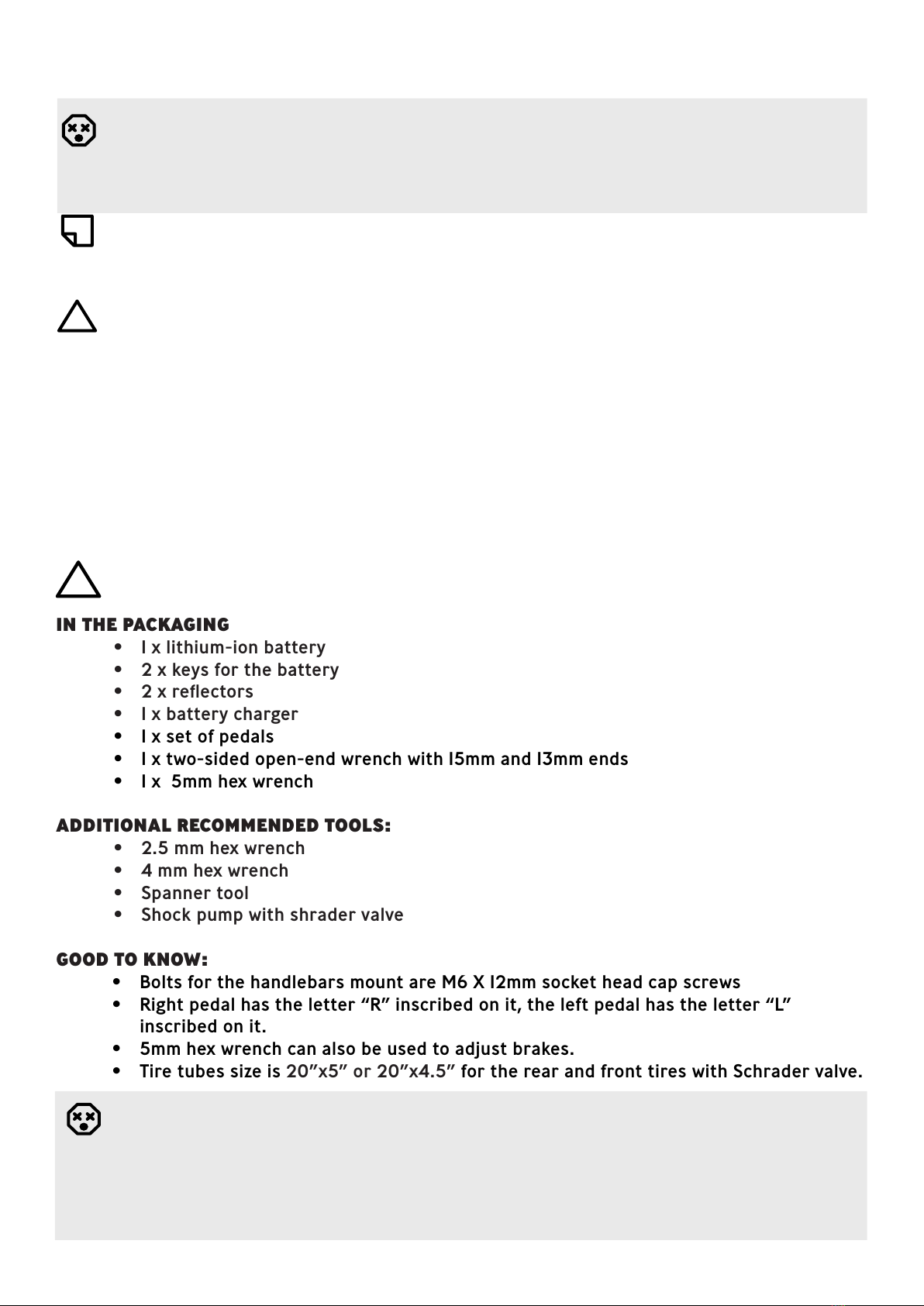

IN THE PACKAGING
• 1 x lithium-ion battery
• 2 x keys for the battery
• 2 x reflectors
• 1 x battery charger
• 1 x set of pedals
• 1 x two-sided open-end wrench with 15mm and 13mm ends
• 1 x 5mm hex wrench
ADDITIONAL RECOMMENDED TOOLS:
• 2.5 mm hex wrench
• 4 mm hex wrench
• Spanner tool
• Shock pump with shrader valve
GOOD TO KNOW:
• Bolts for the handlebars mount are M6 X 12mm socket head cap screws
• Right pedal has the letter “R” inscribed on it, the left pedal has the letter “L”
inscribed on it.
• 5mm hex wrench can also be used to adjust brakes.
• Tire tubes size is 20”x5” or 20”x4.5” for the rear and front tires with Schrader valve.
Before performing any work on your Super73, turn off the power system and remove
the battery. Be sure to also turn off the power system and remove the battery during
transport in a vehicle. Involuntary activation of the electrical assistance system
presents a risk of damage or injury.
DANGER!
!If any serious damage has occured to your Super73 during transit, please submit photos
to Super73 directly by emailing us at customer[email protected]

10
1. HANDLEBAR INSTALLATION
A. Use the 5mm hex wrench to remove the bolts of the handlebar clamp.
B. Once the clamp is open, place the lower crossbar of the handlebar in the groove of
the top crown.
C. Loosely tighten the handlebar clamp with the 5 mm hex wrench, and adjust the angle
of the handlebar to riders comfort.
D. Cross tighten the handlebar clamp from corner to corner making sure the clamp is
tight and handlebars do not move.
ASSEMBLY INSTRUCTIONS
DANGER !
Do not ride with a bike that has not passed 100% safety verification before each ride as
described in the section pre-ride safety check on pg. 14.
A
C D
B

11
2. INSTALL PEDALS
A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter
marking “L” “R” on each respective pedal and make sure you install the left pedal on
the left crank, the right pedal on the right crank.
B. The right pedal is screwed on in a clockwise direction. The left pedal is screwed on by
turning it counter-clockwise.
You may also use a 6mm hex wrench at the tip of the pedal threading.
3. TIRE INFLATION
For transport purposes, tires are packed partially inflated. Tires must be inflated using a
pump with a Schrader valve tip to a recommended 27 - 30 psi (1.86 - 2.06 bar).
A. Inflate the tube to a max pressure of 35 PSI in order to ensure the tire is properly
seated in the rim.
B. Once properly seated, deflate to a recommended 27 - 30 PSI (1.86 - 2.06 bar). PSI
will vary based on the weight of rider and type of terrain.
The inner tube size is 20”x5” or 20”x4.5” for the rear and the front.
TIP
TIP
AB

12
More information on battery care and range in the Maintenance and Components
section on pg. 28 of this handbook.
The battery can be charged both mounted on the bike or separately from the bike. Two keys are
supplied to unlock and lock the battery.
A. Plug in the charger into a 120v wall outlet. (220v EU)
B. Connect the charger cable to the battery charging port.
C. Turn the battery on by pressing the power button. The battery is on when the power
button is illuminated. The battery will not charge unless it is switched on.
D. The throttle is disabled during the charge sequence and a charge icon will show on
the display during the charging process.
When the charging process starts, the charger LED turns red. Once the battery is charged, the
LED turns green.
A. Turn the battery off.
B. Remove the charger cable from the battery charging port.
C. Remember to put the protective cap back onto the battery charging port after
charging to protect it from dirt and moisture.
D. Unplug the charger from the socket.
Always make sure there is plenty of ventilation and a dry, fireproof environment for the
charger and follow these operating instructions.
• Do not leave the battery connected to the active charger for more than 48 hours.
• Do not leave the charger connected to a socket for more than 48 hours.
• Charge the battery and use the bike at least once every 90 days.
• Do not store the bike for more than 24 hours with an empty battery. This prevents a
deep discharge with irreparable consequences from occurring.
• Do not use the charger if the charger, main cable or connector cable have any visible
signs of damage.
• After being charged, if the battery remains connected to the charger, it will turn on
and off again in short spurts of green light. This is not a defect. It simply indicates
that individual battery cells are being slowly charged. Nevertheless, make sure that
the battery is not connected to the charger for more than 48 hours.
5. CHARGE THE BATTERY
We recommend charging the battery for 6-8 hours on the first charge. This will help top-
off the lithium-ion cells for optimal performance.
TIP
TIP
!
Battery Range
Power output will vary depending on battery capacity. If your battery is at 20%, for example, it
won’t have as much power as a fully charged battery. If your Super73 has been shipped to you
along with the battery, please fully charge the battery first. When a battery leaves the factory,
it’s not fully charged as required by international air and sea legislation. Battery is fully charged
when the LED light on the charger is green.
More information on range and performance in Maintenance and Components section of
this manual on pg. 28.
TIP

13
!You’re almost ready to ride. Your Super73 should look like below. Before your first ride,
please verify your bike is safe to ride using the Pre-ride safety check on pg. 14.
ASSEMBLY IS FINISHED!
REGISTER YOUR SUPER73
All original owners must register on our website to validate your warranty.
Please register online at: https://www.super73.com/pages/register
If you can’t register online, please call us at [phone] for assistance in registra-
tion. Write down below the following information for future reference:
Location or website of purchase: __________________________________________
Date of purchase: ______________________________________________________
Model name: R-Series
Bike Serial #: __________________________________________________________
(Engraved on the side of the bottom bracket in between the pedal cranks)
Battery Serial #: _____________________________________________________________
Battery Key #: _________________________________________________
We recommend that you keep your original receipt with this handbook.
TIP
!

7. KICKSTAND
Make sure that the kickstand is tightly secured, and not rubbing against the
ground or tires.
Do not sit on a bike with a kickstand engaged.
3. BRAKES SYSTEM
Pull both brake levers. You should feel an obvious pressure point and the levers
should not be able to touch the handle.
More information on brakes in our Maintenance & Components section on pg.
27 of this handbook.
2. BATTERY
Check that the battery is inserted securely: push the battery into its holder
until it clicks into the lock. Remove the key from the lock and pull the battery
to check if it has indeed locked into place.
Check the charge status of the battery. Familiarize yourself with battery
charging and storage best practices.
More information on battery maintenance in our maintenance & components
section of this handbook on pg. 28.
PRE-RIDE SAFETY CHECK
Make sure the brakes have already been applied before getting on to your bike. If the
assistance mode is turned on, your E-Bike will start moving as soon as you push on the
pedal. The unfamiliar push can otherwise cause a fall, hazard, or accident.
DANGER!
Use the following checklist before each ride to verify your bike is safe to ride.
Never operate your bike and use your app simultaneously.
!
!
TIP
TIP
CHECKLIST:
1. WHEELS
Check the condition of both tires making sure the tread is in good condition
free from punctures, cracks, and deformations.
Maintain proper tire pressure. We recommend a range of 27 - 30 psi (1.86-
2.06 bar) dependent on theweight of rider and type of terrain.
Ensure wheels are true and properly dished.
4. LIGHTING
Check if the front and rear lights are working properly. Do not cover any lighting
or reflectors. (if applicable)
5. CABLES
Look out for any loose cables.
Make sure the male and female plugs are properly connected.
There should be no strain on any wiring near the fork when turning the
handlebars from left to right.
Verify that the wiring on the frame is secure and free from any moving parts
that may damage the wiring. This includes any wires and brake cable lines near
the wheel or other moving parts.
6. DISPLAY
Check that your display turns on and functions properly.
14

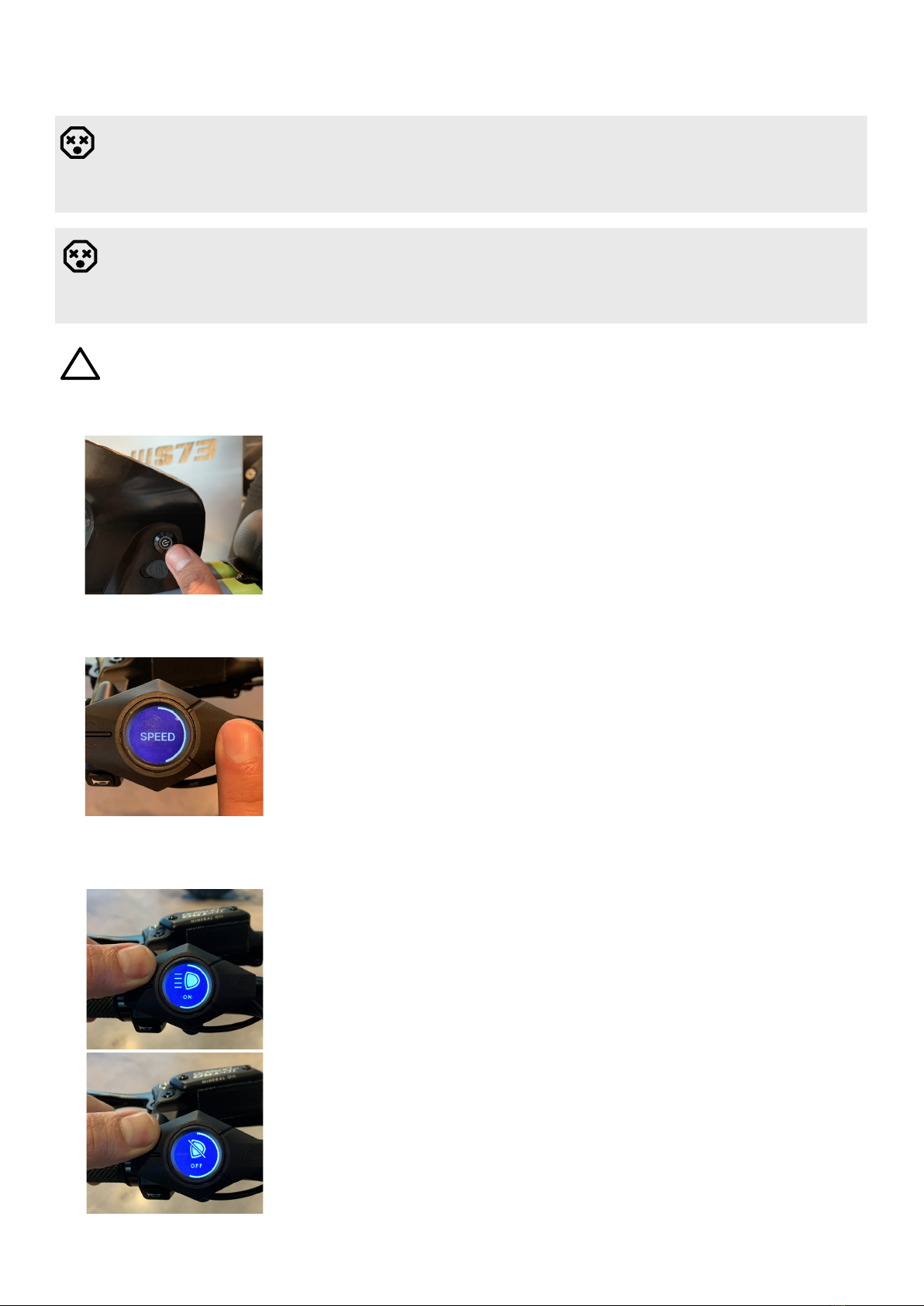

1. POWERING BIKE ON
• Disengage the kickstand, grab the brake handle to engage the
brakes, and seat yourself on the Super73.
• Press the battery power button to turn the bike on.
• Once the display screen is illuminated, the throttle is live and
you’re ready to ride.
15
DANGER! Do not inadvertently place the key or any other metal object into the charging
port as this can result in a short circuit and render your battery nonchargeable and in
need of replacement This will void the warranty.
DANGER!
Batteries that have not been fully inserted and locked can come loose during a ride and
fall out. This can cause a crash and damage the battery.
OPERATING THE BIKE
Do not sit on a bike with a kickstand engaged.
!

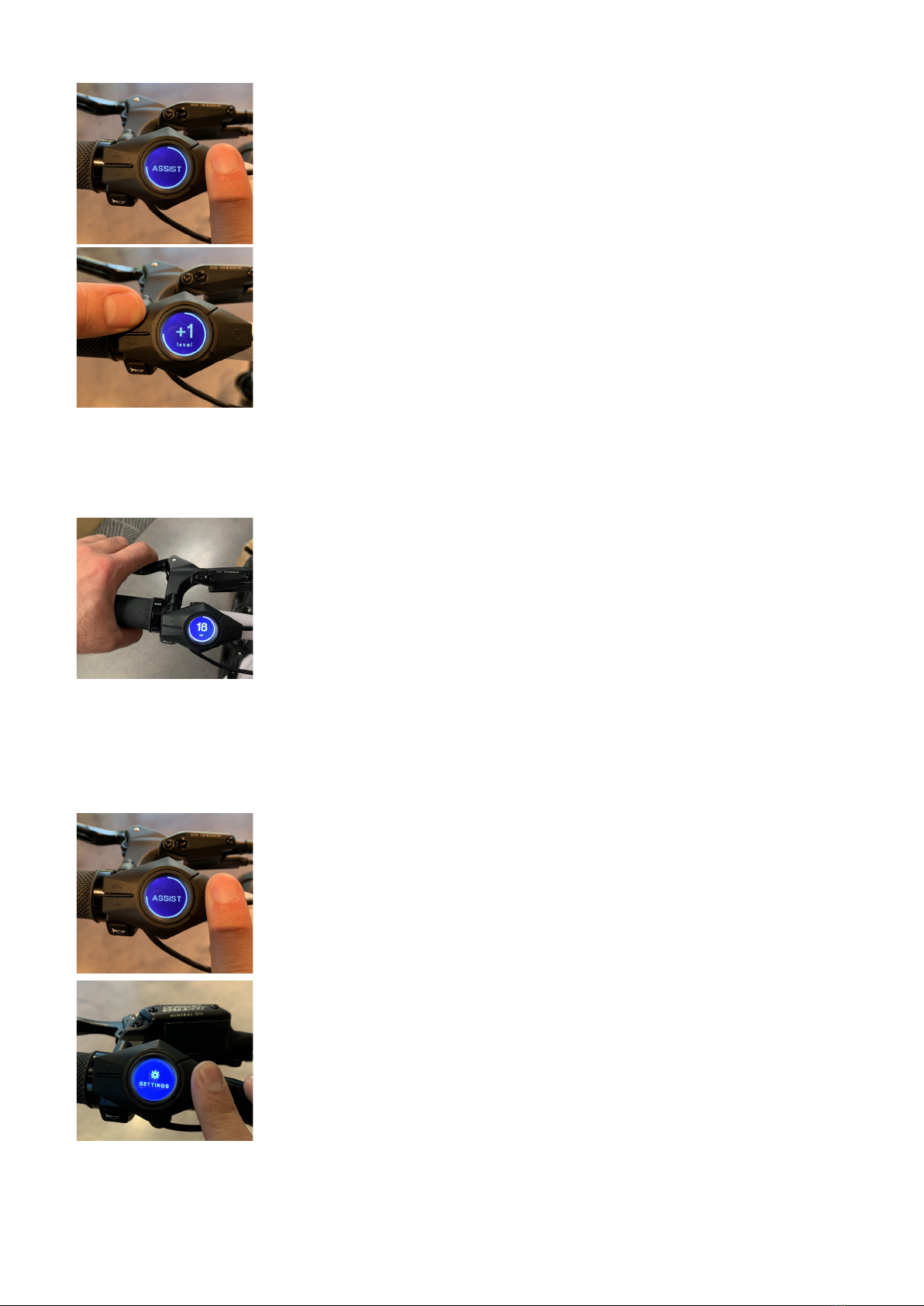

2. CHANGING THE INFORMATION VIEWED ON THE DISPLAY
• Quick press “O” button to toggle the information viewed on the
display.
• Speed (mph)
• Range (miles)
• Assist (0-4)
• Total (miles)
3. OPERATING LIGHTS
• The Super73 RX model comes equipped with a front headlight and
rear brake light.
• To activate the front headlight, press and hold down the upzbutton
on the display until the light illuminates. Follow the same step to
turn off the lights.
• The rear brake light will automatically be illuminated when the
bike is powered on. The rear light will get brighter when the brake
levers are engaged.

16
4. PEDAL ASSIST
• To view your pedal assist mode, follow these steps once the display
has been turned on and you are seated on the Super73:
• Press on the menu “O” button briefly to switch between display
views until “Assist” appears on the screen.
• Press the up “ ^ ” button to increase the pedal-assist level. To
decrease the assist level, press the down “v” button. Pedal assist
ranges from 1-4, with 0 meaning pedal assist is turned off. The
higher the level, the more electric assistance you’ll get, and the
less you’ll have to pedal.
• Level 1 (ECO) - 25% Speed Power
• Level 2 (TOUR) - 50% Speed Power
• Level 3 (SPORT )- 75% Speed Power
• Level 4 (SUPER) - 100% Speed Power
• Once you begin pedaling, the pedal assist sensor will activate the
motor and you will begin to accelerate to the selected assist level.
• The display will revert to previos veiwing mode after desired assit
level is chosen.
5. BRAKING
• The brake levers are equipped with brake sensors that cut power
to the motor when either of the levers are compressed. The RX
employs the Tektro Dorado hydraulic brake systems. The right
lever will activate the rear brakes when compressed and the left
lever will activate the front brakes when compressed.
• The Super73 brake orientation is as follows:
Rear brake = right lever
Front brake = left lever
6. SETTINGS MENU
• Hold down the “O” button on display to activate the settings menu.
• Settings parameters:
• Contrast (display window contrast 0-100)
• Units (standard is set to mi/F)
• Position (changes the orientation of display if it is on the left or
right side of the bike)
• Backlight (display backlight power 0-100)
• Version is the software version of the system.
• Coin is the battery level inside desiplay.

17
8. TURNING OFF THE BIKE
• When you are done riding your Super73 it is important to turn off
the power properly.
• Turn off the bike by pressing the power button on the battery. The
light on the power button should turn off when properly powered
down. The bike is featured with automatic shut off when left idle
for more than 5 minutes.
• You can charge the battery while it’s on the Super73, or by
removing the battery from the mount and charging it separately.
7. CHANGING RIDING MODES
• Your Super73 is equipped with MultiClass Mode Selection. The bike defaults to a
Class 2 mode. It is the rider’s responsibility to follow local E-bike regulations. Be sure
you are up to date with your local motor vehicle codes.
You can find links to more information on E-bike regulations in the Legal
Requirements section on pg. 8 of this handbook.
• To change the riding mode, follow instructions detailed in the mobile app controlling
your display.
• Once in the app, you can change between the following riding modes:
• Class 1 - pedal assist only at 20 mph max speed.
• Class 2 - throttle operation and pedal-assist at 20 mph max speed.
• Class 3 - pedal-assist only, at 28 mph max speed.
• Unlimited - up to 2000 watts of power and throttle speeds above 28mph**This
mode is exclusively for riding off public roads and on private property.
More information on switching through Multi-Class Modes in the App section on pg.
21 of this handbook.
TIP
TIP

18

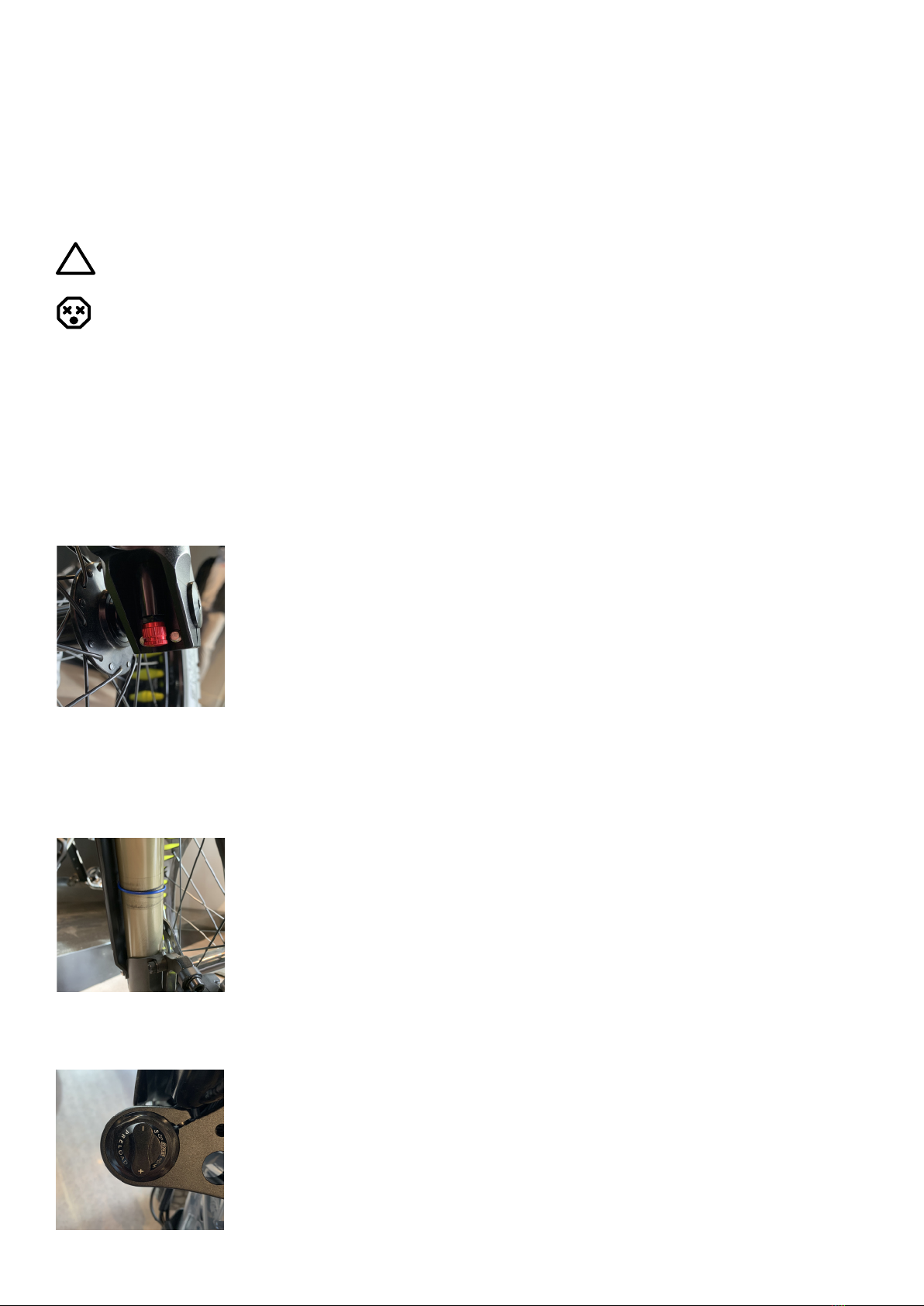

Measuring Sag
The recommended sag of the front fork is 20mm into the travel, which can be measured with
the o-ring found on the lower portion of the right stanchion. To measure sag, place your bike
somewhere level where you can safely put your full weight on the bike while balanced. It is
recommended to have a friend help balance the bike during this portion of adjustment.
• Slide the o-ring all the way up to the bottom of the air chamber.
Then seat yourself on the bike, engage the brakes, and move into an
aggressive standing position with your feet on the pedals.
• Dismount from the bike and measure the amount of travel between
the o-ring and the air chamber. If the measurement is more or less
than 20mm, start with adjusting the air compression appropriately
and then fine-tune by adjusting the preload.
Adjusting Air Compression
Adjustment of air compression will require a shock pump. Use Figure 1 “suggested starting air
pressure” on pg. 20 to find your recommended air pressure.
• Remove the valve cap on the bottom right side of the front fork and
connect your shock pump to the pressure valve.
• Review the current air pressure and adjust according to Figure 1.
finetune the pressure with the shock pump to your desired comfort.
• Be sure you remove the shock pump in between adjustments as
leaving it on can affect the active pressure in the suspension. After
completing adjustment, reinstall the pressure valve cap.
The R-series defaults to a baseline setting. Follow the guides below to adjust the suspension
to your desired comfort level. The RX is equipped with an inverted coil-spring fork with air
assist and the ability to adjust preload and rebound damping. The rear suspension is a coilover
piggyback mono shock with the ability to adjust preload, compression, and rebound damping.
The R is equipped with a standard front coil suspension fork and only allows adjustment to the
rear suspension.
Adjusting Preload
Preload is adjusted with the dial on the top left stanchion.
• Turning the preload dial clockwise (+) will increase pressure on the
spring coil.
• Turning the dial counterclockwise (-) will decrease pressure on the
spring coil.
Suspension Adjustment Guide
Front Suspension Adjustments
If any of the instructions are beyond your skill set, we recommend taking your Super73
to a certified E-Bike specialist or professional cycle mechanic for adjustments.
!
Changing suspension adjustment can change the handling and braking characteristics of
your Super73. Never change suspension adjustment unless you are thoroughly familiar
with the suspension system instructions and recommendations, and always check for
changes in the handling and braking characteristics of the Super73 after a suspension
adjustment by taking a careful test ride in a hazard-free area.

19

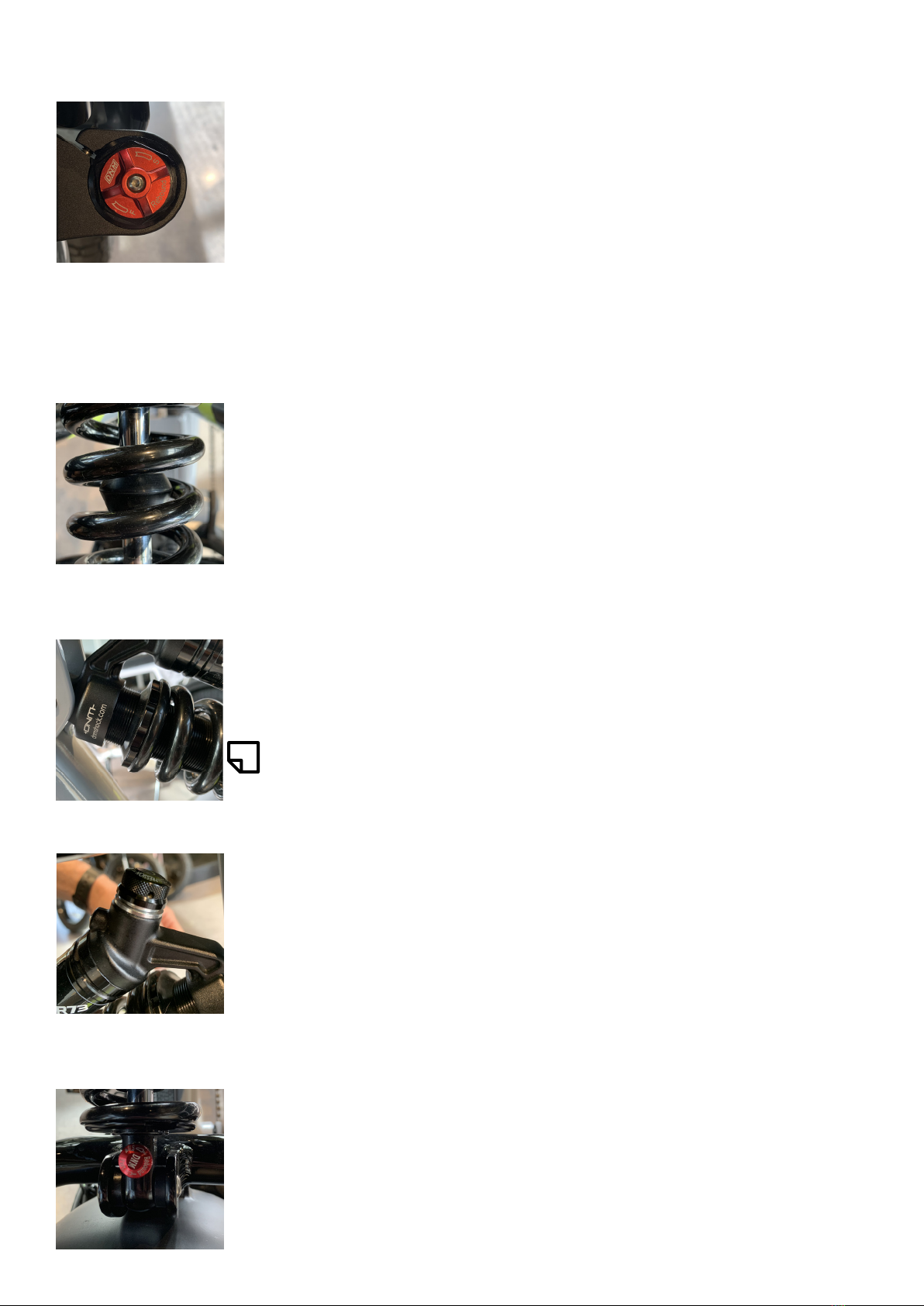

Adjusting Rebound
Rebound is adjusted with the dial on the top right stanchion.
• Turn the rebound dial clockwise to slow your suspension rebound
(damper increase).
• Turn the rebound dial counterclockwise to speed up the rebound
(damper decrease).
Rear Suspension Adjustments
Measuring Sag
To measure sag, place your bike somewhere level where you can safely put your full weight on
the bike while balanced. If you don’t have a way to safely balance the bike during this step,
have a friend help balance the bike during this portion of adjustment.
• Sliding the bumper all the way up to the shock chamber. Then seat
yourself on the bike, engage the brakes, and put your full weight on
the bike. Dismount from the bike and measure the amount of travel
between the bumper and the shock chamber.
• If it is more or less than 20mm, start by adjusting the compression
and then fine-tune with preload adjustment.
Adjusting Compression
To adjust compression, turn the dial at the top of the piggyback reservoir on the rear shock.
• Turn the dial clockwise (+)to increase pressure.
• Turn the dial counterclockwise (-) to decrease the pressure.
Adjusting Preload
Preload is adjusted with the spring nut at the top of the spring coil.
• Turn the spring nut at the top of the spring coil clockwise to
increase pressure on the spring coil.
• Turn the spring nut counterclockwise to decrease pressure on the
spring coil.
When adjusting the pressure on the spring coil, you may need a
spanner tool to adjust if you can not hand tighten to the desired
pressure.
TIP
Adjusting Rebound
Rebound is adjusted using the dial at the base of the mono-shock.
• Turn the rebound dial clockwise to slow your suspension rebound
(damper increase).
• Turn the rebound dial counterclockwise to speed up the rebound
(damper decrease).

20
Fork Suspension Torque Specs (Torque Wrench required for adjustment)
• Axle Clamps - 6 ft/lb (8.14 N m)
• Axle - 5 ft/lb (6.78 N m)
• Upper Stanchion Clamps - 6 ft/lb (8.14 N m)
• Lower Stanchion Clamps - 6 ft/lb (8.14 N m)
• Steer Tube Clamp - 8 ft/lb (10.85 N m)
SUGGESTED STARTING AIR PRESSURE
LBS KG PSI BAR
125 57 100 6.9
145 66 105 7.2
165 75 110 7.6
185 84 115 7.9
205 93 120 8.3
225 102 125 8.6
245 111 130 9
265 120 135 9.3
285 129 140 9.7
305 138 145 10
325 148 150 10.3
Pressure Limits
Minimum: 100 PSI
Maximum: 150 PSI
Figure 1
