VENTILATOR USER GUIDE
MODEL 730WT

2
VentilatorUserGuide-730WT.doc
3-2013
This manual covers the description, cautions, operation and maintenance of the Super Vac Water Powered Positive Pressure Ventilator
Model 730WT
Read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT ................................................................................................................................................ 3
2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................................ 4
3. PRODUCT SAFETY PRECAUTIONS ................................................................................................................................................................ 5
4. BEFORE OPERATING VENTILATOR .............................................................................................................................................................. 5
5. OPERATION............................................................................................................................................................................................... 6
6. PARTS LIST ................................................................................................................................................................................................ 8
7. WARRANTY................................................................................................................................................................................................ 9
8. CONTACT INFORMATION..........................................................................................................................................................................10

3
VentilatorUserGuide-730WT.doc
3-2013
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if
you handle it correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and
have them make a description on the freight or express bill describing the damage and the number of pieces.
Then write us and we will send you the original bill of lading. Get a claim blank from the express or truck
company. Fill the claim form out. Attach the claim blank to the original bill of lading together with a copy of our
invoice. Attach a memo on which you show the value of the damaged goods. Mail or hand these papers to your
local transportation agent. They will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local
freight agent for verification and investigation. This time can be saved by your filing the claim directly. Every
consignee is on the ground floor and in contact with the local agent who inspects the damaged goods, and thus,
each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we
cannot allow deduction from any invoice because of any damage, however, be sure to file your claim promptly.
Our goods are sold F.O.B. factory. We take receipt from the transportation company certifying that the goods
were delivered to them in good order, and our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out
any expense if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may
call on you some time later. These damaged goods, of course, will belong to them, and they will inform you what
to do with them. If you dispose of these damaged goods, your claim may not be paid.

4
VentilatorUserGuide-730WT.doc
3-2013
2. General Description and Specifications
Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super Vac
positive pressure ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.
Specifications1
Model#
Engine
HP
Height x Width x Depth
Weight (lbs.)
730WT
POK
12
39” X 37” X 27.5”
110
1 Specifications are subject to change without notification. Refer to model decal affixed to ventilator to
determine actual specifications.
This ventilator is designed for high powered air movement. Super Vac ’s propeller produces a greater intake of
air and eliminates turbulence at the tips. Each blade is statically balanced for high efficiency and long life.
This document is designed to function as a quick start guide and not an in-depth comprehensive instructional
manual. Please read all accompanying documents shipped with your ventilator. Due to the many features of
powered equipment thorough familiarity with the operating controls is essential to assure safe and trouble free
operation.

5
VentilatorUserGuide-730WT.doc
3-2013
3. Product Safety Precautions
Do not use the ventilator for purposes other than its’ intended use.
Wear eye and ear protection when operating the ventilator.
Never operate ventilator while fatigued.
Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal
injury.
Do not wear loose clothing that could become entangled in the operating ventilator.
Never permit anyone to operate ventilator without proper instruction.
Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged,
contact factory for replacements.
Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter
the ventilator, immediately stop engine. Be certain all mechanical motion has stopped.
Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces.
Do not use chock blocks to increase the angle of the ventilator, severe injury could occur.
4. Before Operating Ventilator
 A complete inspection of the ventilator should be made prior to operation.
Check all threaded fasteners for proper tightness.
 Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing
guards before operating ventilator.

6
VentilatorUserGuide-730WT.doc
3-2013
5. Operation
Check ventilator inlet and outlet guards for obstructions. Check
and remove from immediate surrounding area any objects that
could be drawn into the ventilator intake.
Place ventilator in desired location before starting.
The two graphs allow you to establish with precision the best
utilization of the apparatus.

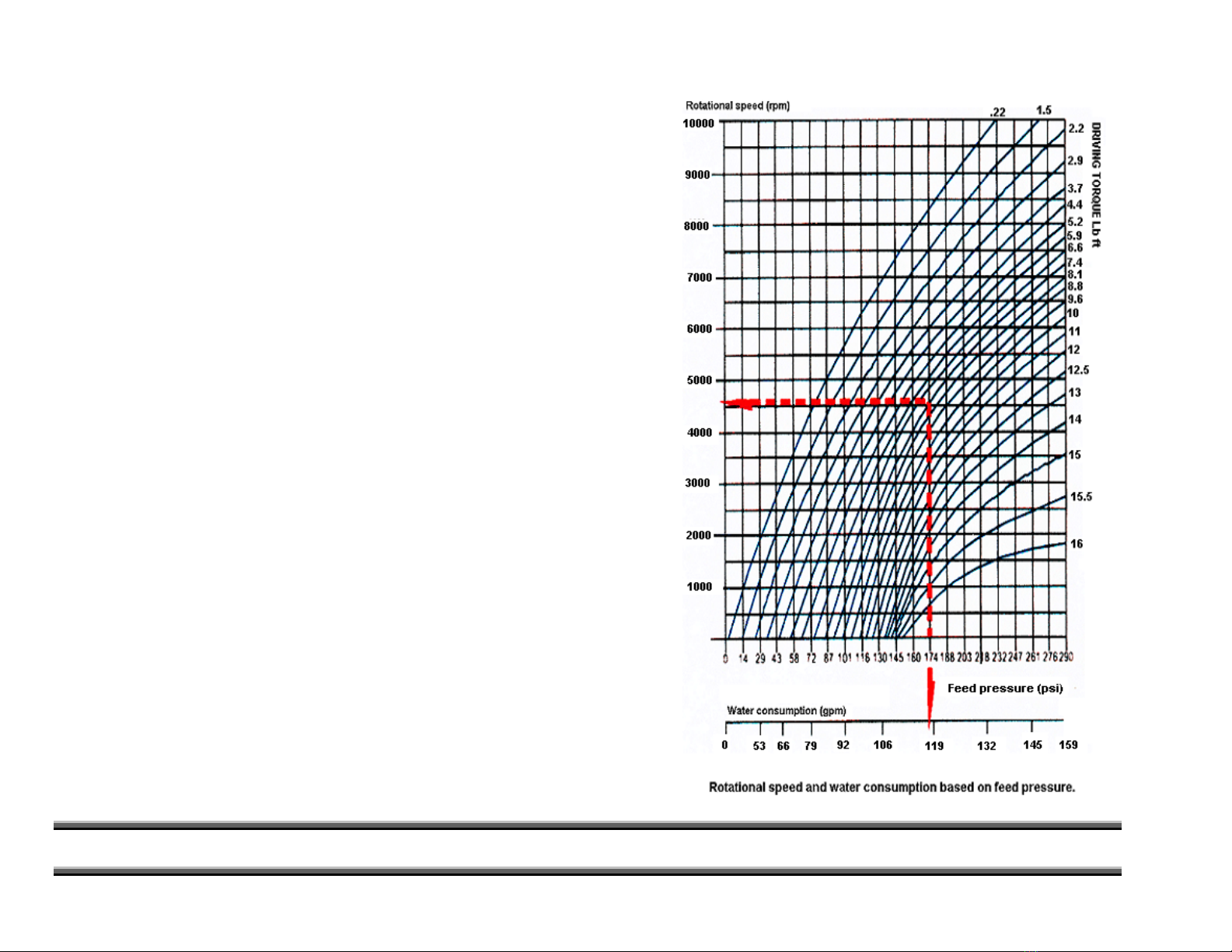

Graph 1 depicts rotational speed and water consumption
depending on input feed pressure.
Graph 2 depicts the usable horsepower depending on the
driving torque.
Example: If the inlet pressure of the water supplied to the motor
is 174 psi, and the resisting torque of the driven machine is 7.4
lb/ft, the rotational speed is 4560 rpm, water consumption is 117
gpm (graph 1) and the usable power is 6.5 HP (graph 2)

7
VentilatorUserGuide-730WT.doc
3-2013
Inlet Pressure
Water Flow
Air Flow
BAR
PSI
GPM
LPM
CFM
CMH
3.3
50
55
208
5980
10160
6.7
100
78
295
12320
20930
10.0
150
98
371
18540
31500
13.3
200
110
416
21800
37040
16.7
250
130
492
24800
42130
The maximum feed pressure is 300 psi (20 bar).

8
VentilatorUserGuide-730WT.doc
3-2013
6. Parts List
MODEL
HP
BLADE
DEPTH X WIDTH X HEIGHT
730WT
12
30” X 7
39” X 37” X 27.5”
ITEM
PART NUMBER
QTY
DESCRIPTION
ITEM
PART NUMBER
QTY
DESCRIPTION
1
012-13702
1
GUARD 730" FRONT-PAINTED
2
032-15540
8
10-24 X 1/2 PHIL PH MS W/TEFLON PATCH BL
3
003-10050
1
BLADE 24" 7 BLADE GAS FINISHED
4
018-10402
1
SHROUD 24" W/GUARD-PAINTED
5
032-10779
4
5/16 -24 X 1 1/4" HEX CS ZINC
6
032-10787
4
5/16” LOCK WASHER ZINC
7
018-15014
1
MOUNT, MOTOR, WATER TURBINE
8
032-14565
2
3/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC
9
032-11133
2
3/8-16 NYLOK HEX NUT ZINC
10
018-10408
1
TUBE FRAME 24" PAINTED
11
024-13473
2
FEET RUBBER CONE SHAPE VBM-4002
12
032-13052
2
5/16-24 NYLOK HEX NUT ZINC
13
008-10189
4
PLUG FINISHING SQ RIBBED, BLACK 1"
14
008-13373
2
WHEEL PNEUMATIC DW414 3" HUB
15
032-14565
2
3/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC
16
005-10136
4
BUSHING REDUCER 3/4” X 1/2”
17
032-11133
2
3/8-16 NYLOK HEX NUT ZINC
18
008-14631
1
724, BRAKE BAR, FINISHED
19
008-14622
1
VENTILATOR BRAKE MOUNT 1
20
008-14623
2
VENTILATOR BRAKE MOUNT 2
21
019-16020
2
SUPPORT, SHROUD, 724
22
032-14563
2
3/8-16X1-3/4 SKT BUTTON HEAD SCREW ZN
23
032-11133
2
3/8-16 NYLOK HEX NUT ZINC
24
032-11129
2
3/8 FLAT WASHERS SAE
25
019-10456
1
724 1/4” X 1” X 12 3/4” TILT LEVER
26
008-10211
1
STOCK CAP 3TG .250” X 1.0” X 4" OAL
27
024-13284
2
SPRING SADDLE ISC #0198 W.DBL GRIND
28
032-11133
2
3/8-16 NYLOK HEX NUT ZINC
29
019-10461
1
HANDLE PAINTED 724
30
032-14568
2
3/8-16 X 2 3/4 SKTHEAD BOLT ZINC
31
032-11129
2
3/8 FLAT WASHERS SAE
32
032-11133
2
3/8-16 NYLOK HEX NUT ZINC
33
008-14536
2
SPRING DUAL SNAP BUTTON ZINC PLATED
34
021-10501
1
MOTOR, POK, WATER TURBINE, 12HP, 1.5 NST
35
025-13368
1
DECAL 730WT YELLOW SAFETY
36
025-13367
1
DECAL 730WT SER# GREY
37
025-15255
2
DECAL SUPERVAC RED LETTER W/WHITE BACK

9
VentilatorUserGuide-730WT.doc
3-2013
7. Warranty
Limited Warranty
Five Years
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used
and operated for a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited warranty is
limited to the repair and replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing
Company at 3842 Remand Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in
writing to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No
parts or equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this
warranty without specific written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and
condition. We therefore extend to the original purchasers the following Limited Warranty for the period of five years from the
original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held
responsible for incidental and consequential expense and loss, nor does this warranty apply to equipment where
alterations have been executed without our knowledge or consent. These conditions are readily discernable when the
equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the
extent that the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all.
Look in your local business phone directory for the nearest repair station for the brand of parts you have or write to us for
the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three
days, as we assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including
any warranties of MERCHANTIBILITY or FITNESS for a particular purpose.

10
VentilatorUserGuide-730WT.doc
3-2013
8. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr
Fort Collins, CO 80524
Phone: [phone]
970-297-7100
FAX: [phone]
Internet: www.supervac.com
