Super Vac V16-BL User manual

READ THIS FIRST
VENTILATOR USER GUIDE MODEL V16-BL

POSITIVE PRESSURE VENTILATOR
V16-BL PPV User Guide Revised 11-2022
USER GUIDE
This manual covers the description, cautions, operation, and maintenance of the Super Vac V16-BL.
Read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT ......................................................................................................... 2
2. GENERAL DESCRIPTION AND SPECIFICATIONS...................................................................................................... 3
3. PRODUCT SAFETY PRECAUTIONS ........................................................................................................................ 3
4. BEFORE OPERATING VENTILATOR ........................................................................................................................ 4
5. OPERATION ........................................................................................................................................................ 5
6. CHARGING THE BATTERY PACKS.......................................................................................................................... 6
7. MAINTENANCE AND REPAIR................................................................................................................................. 6
8. WARRANTY......................................................................................................................................................... 7
9. CONTACT INFORMATION...................................................................................................................................... 8
10. BEST PRACTICES FOR BATTERY LIFE ................................................................................................................... 9
11. PARTS LIST ...................................................................................................................................................... 10
12. EXPLODED VIEW ............................................................................................................................................... 11

POSITIVE PRESSURE VENTILATOR
2
V16-BL PPV User Guide Revised 11-2022
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it
correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a
description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the
original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the
original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail
or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight agent for
verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the ground floor and in
contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow
deduction from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B.
factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and our
responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if
they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some
time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of
these damaged goods, your claim may not be paid.

POSITIVE PRESSURE VENTILATOR
3
V16-BL PPV User GuideRevised 11-2022
2. General Description and Specications
Super Vac ventilators are specically designed to provide a convenient and portable source of air. Super Vac positive pressure
ventilators are tested to AMCA Standard 240-15, for use in extreme conditions.
Model # RPM Motor HxWxD Weight
V16-BL 2400 1 HP Variable Speed DC 22.75” x 23” x 12” 45 lbs
Specications are subject to change without notication. Refer to model decal afxed to ventilator to determine actual specications.
This ventilator is designed for high powered air movement. Each blade is dynamically balanced for high efficiency and long life.
3. Product Safety Precautions
• Do not use the ventilator for purposes other than it’s intended use.
• Wear eye and ear protection when operating the ventilator.
• Never operate ventilator while fatigued.
• Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.
• Do not wear loose clothing that could become entangled in the operating ventilator.
• Never permit anyone to operate ventilator without proper instruction.
• Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for
replacements.
• Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator, immediately stop
motor. Be certain all mechanical motion has stopped. Do not use with any power voltage other than the indicated voltage.
• Never handle energized power cords with wet hands.
• Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in any
explosive environment.
• Never let extension cords or plug connections lay in water. Locate the ventilator so that it cannot fall into water inadvertently.
• Never store or carry the battery pack so that metal objects can contact exposed battery terminals. Transporting batteries can possibly
cause fires if the battery terminals contact loose nails, screws, keys, hand tools and the like.

POSITIVE PRESSURE VENTILATOR
4
V16-BL PPV User Guide Revised 11-2022
4. Before Operating Ventilator
• This ventilator has been designed to work best with either the Milwaukee M18 REDLITHIUM High Output XC8.0Ah or HD12.0
batteries.
• This ventilator will work with any M18 battery from the Milwaukee brand.
• A complete inspection of the ventilator should be made prior to operation.
• Check all threaded fasteners for proper tightness.
• Check ventilator inlet and outlet guards for obstructions. Check and remove from immediate surrounding area any objects
that could be drawn into the ventilator intake.
• Replace damaged or missing guards before operating ventilator.
• If using shore or mains power:
• Never use power cords with frayed, cut, or brittle insulation.
• Inspect power cord plug for proper connections to the ground fault interrupter circuit.

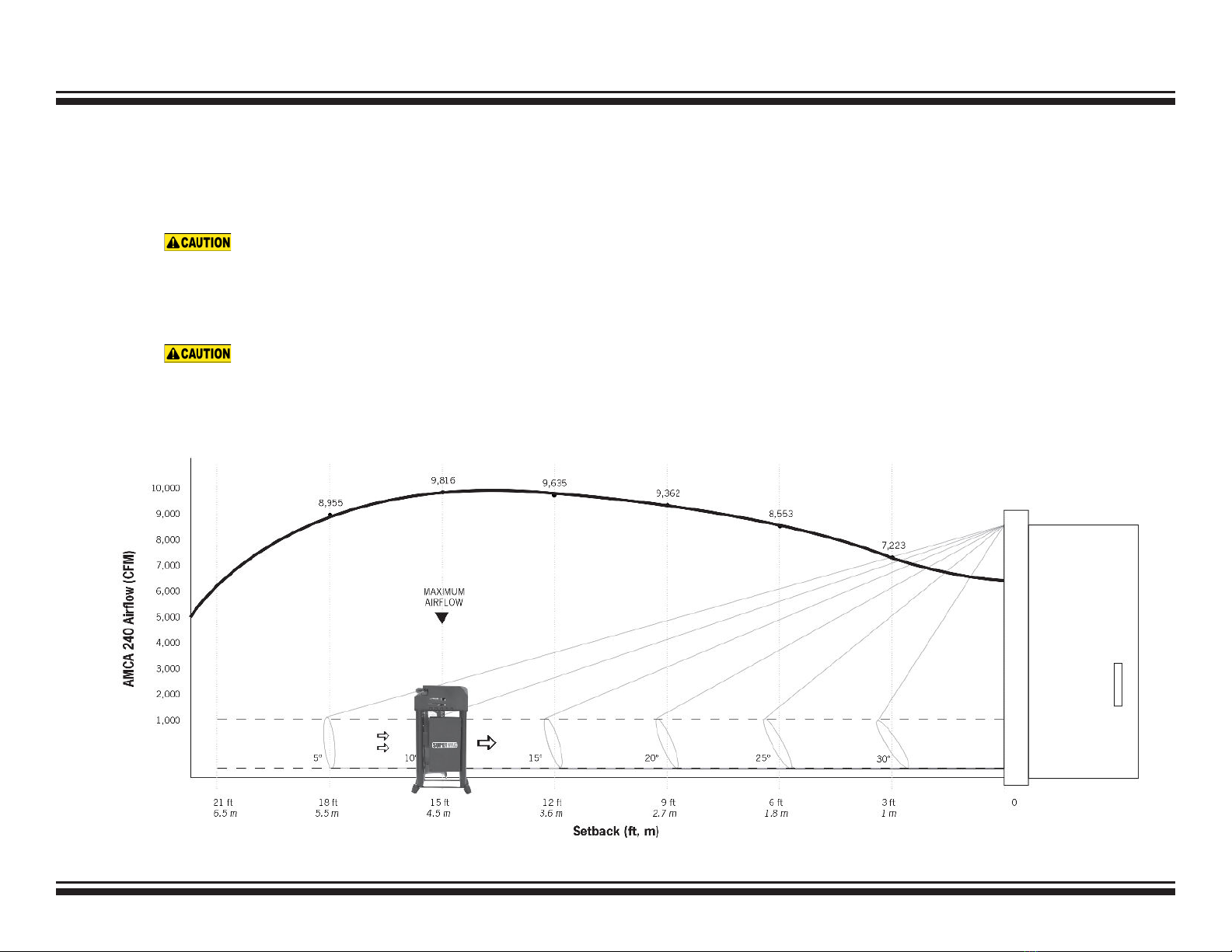

Airow VS Setback

POSITIVE PRESSURE VENTILATOR
5
V16-BL PPV User GuideRevised 11-2022
5. Operation
• Use caution not to direct toxic fumes into confined spaces with the ventilator.
• Insert a Milwaukee M18 battery until it clicks. Only a single battery is necessary for operation.
• Battery removal will get easier with more remove/replace cycles. The Battery Adapter & M18 Battery interface is required by
Milwaukee.
• Fan will need to be reset (turned off & on) if a new battery is inserted.
• If fan is not reset, then the fan will not recognize the new battery and run until previous battery is empty.
• If using shore (mains) power, use an extension cord to connect to 110 – 240V AC.
• Press and hold power button until blue backlight indicates powering up.
• When the fan is on, it will need to run at the minimum speed allowed by Milwaukee. (This feature is to protect the batteries from
small parasitic draws)
• Turn speed control clockwise until desired speed is reached.
• Power button will indicate approximate power left. (It is normal for colors to flicker back and forth if 2 batteries are being used)
• Green: 50 - 100%
• Yellow: 20 - 50%
• Red: 0 - 20% (Low Battery Warning: Front Facing LED will also flash if turned on)
• To turn off, press and hold power button until blue backlight shows.
2,400
2,100
1,800
1,500
1,200
900
600
300
0
0 10 20 30 40 50
Runtime (min)
Blade RPM

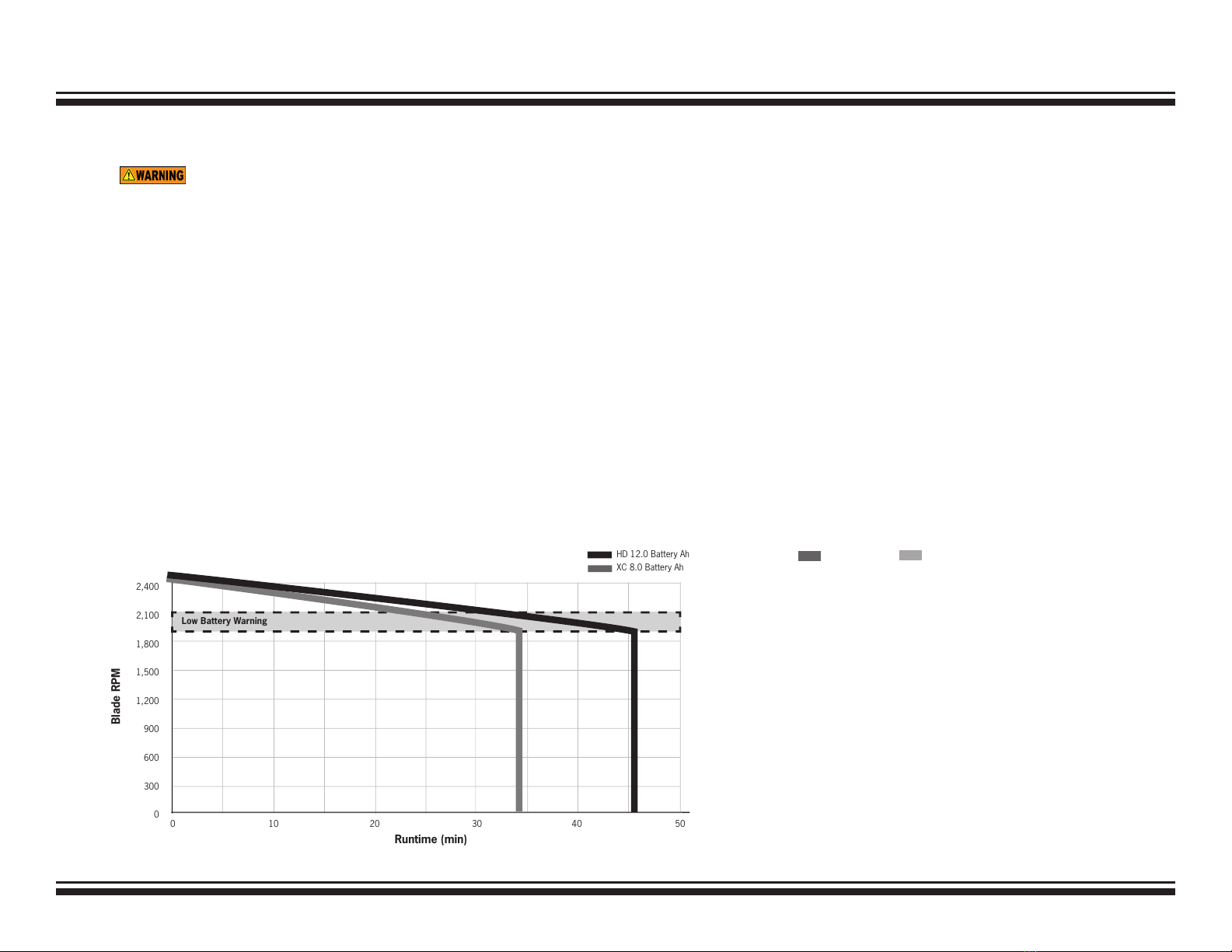

V16-BL Runtimes [at max speed]
Low Battery Warning
HD 12.0 Battery Ah
XC 8.0 Battery Ah
*Runtimes dependent on air density,
and battery condition. Test data shown
taken at 5000ft elevation, 25% RH,
70°F with new batteries.
*Air density is primarily affected by
elevation, humidity and temperature.
*At temperatures below freezing
expect battery life to decrease.
*Other M18 Batteries will operate the
fan, but at reduced runtimes.
(2) x12 Ah (2) x8.0 Ah
V16-BL Runtimes [at max speed]

POSITIVE PRESSURE VENTILATOR
6
V16-BL PPV User Guide Revised 11-2022
6. Charging the Battery Packs
Maintenance should only be performed by experienced and trained personnel. If you
have any questions please contact Super Vac before attempting any maintenance at www.
supervac.com or 1-800-525-5224.
Be sure the ventilator is disconnected from the power source and both batteries have
been removed before performing any maintenance or repair. The motor is of heavy duty ball
bearing construction. The unit is completely sealed and requires no lubrication for the life of the
motor.
The ventilator blade should be specially checked for build-up of material or dirt
which may cause an imbalance. Excessive imbalance can lead to accelerated wear on motor
bearings and vibration. Remove front ventilator guard. Clean blade and inside housing with mild
detergent and water. Do not use abrasives, sharp instruments or caustic solvents that may
scratch or damage the fan blade.
7. Maintenance and Repair
• Remove Milwaukee batteries from fan.
• Insert in Milwaukee Charger. Use only Milwaukee brand battery chargers.
• When the battery pack temperature is outside the charging range (40-105ºF or 5-40ºC), the red light on the charger will flash
and the battery will not charge.
• Once the battery pack is within the acceptable temperature range, normal charging will take place.
• Using the Milwaukee SuperChargerTM, a 12 Amp hour battery will recharge in 60 minutes and an 8 Amp hour battery will
recharge in 45 minutes.
• Other Milwaukee chargers, including units that work with vehicle DC power, may take longer to fully charge the batteries.
• Do not store battery packs or
chargers above 120ºF (50ºC)
or in direct sunlight.
• Never use/store chargers
or batteries in explosive
atmospheres.
• Never attempt to open the
battery pack. If cracked
or damaged, return it to a
service center for recycling.
• Do not splash or immerse
charger in water or other
liquids.

POSITIVE PRESSURE VENTILATOR
7
V16-BL PPV User GuideRevised 11-2022
8. Warranty
Milwaukee products carry a separate 3-year limited warranty for the compatible battery packs, chargers and ODM battery adapter. For
more information contact them at www.milwaukeetool.com or 1-800-729-3878.
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and
operated for a period of five years, excluding the motor which has a 3-year warranty. The responsibility of Super Vacuum Manufacturing
Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned
to Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D.
shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in writing
to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No parts or
equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty without specific
written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant and is shipped in good working order and condition. We
therefore extend to the original purchasers the following Limited Warranty for the period of five years from the original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for
incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed
without our knowledge or consent. These conditions are readily discernible when the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that the
manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your local business
phone directory for the nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we
assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of
MERCHANTABILITY or FITNESS for a particular purpose.

POSITIVE PRESSURE VENTILATOR
8
V16-BL PPV User Guide Revised 11-2022
POSITIVE PRESSURE VENTILATOR
9. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr.
Fort Collins, CO 80524
Phone: [phone]
970-297-7100
Fax: [phone]
Email : [email protected]
Internet: www.supervac.com

POSITIVE PRESSURE VENTILATOR
9
V16-BL PPV User GuideRevised 11-2022

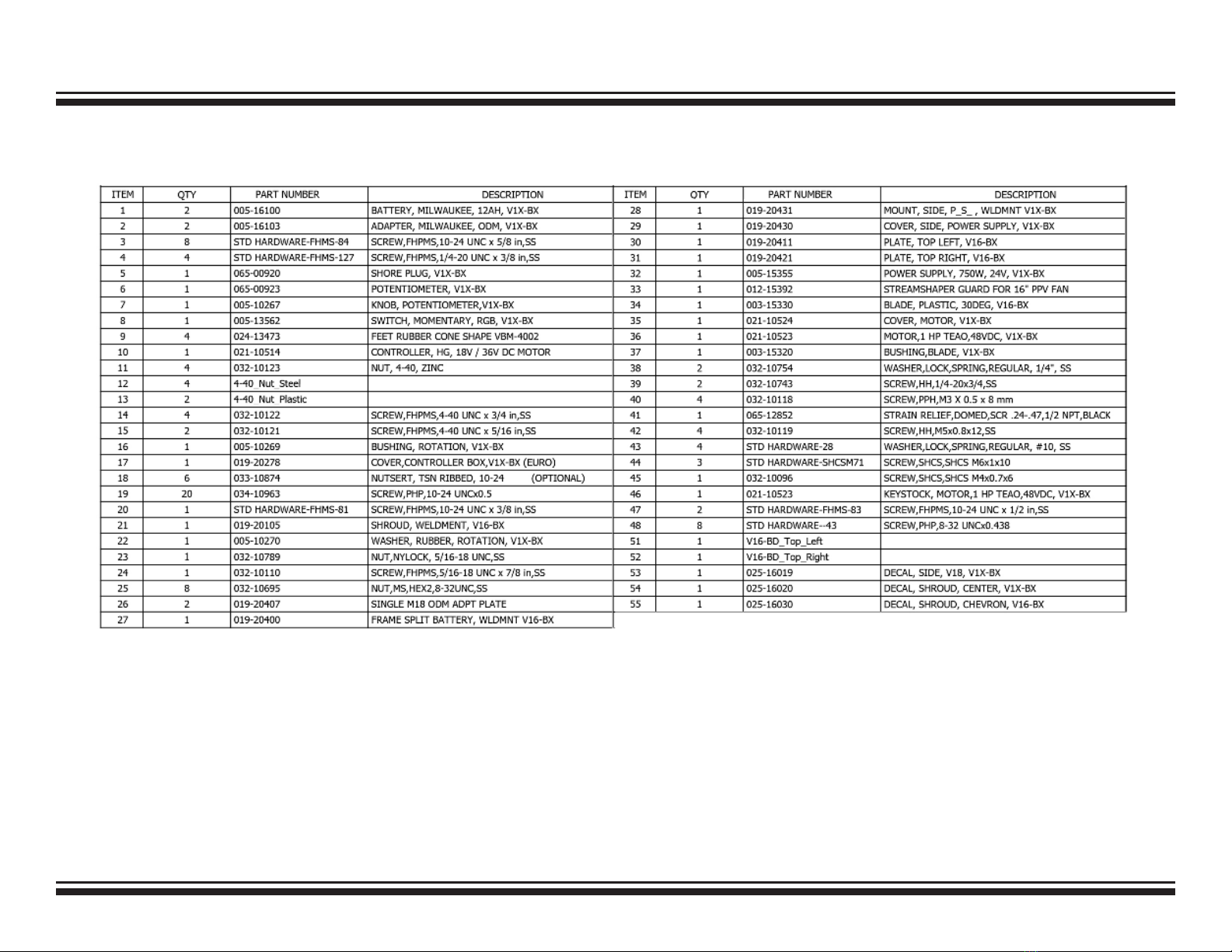

11. Parts List

POSITIVE PRESSURE VENTILATOR
10
V16-BL PPV User Guide Revised 11-2022
12. Exploded View
