Super Vac V20-GB User manual

READ THIS FIRST
VENTILATOR USER GUIDE MODEL V20-GB

POSITIVE PRESSURE VENTILATOR
1V20-GB PPV User Guide Revised 11-2022
USER GUIDE
This manual covers the description, cautions, operation, and maintenance of the Super Vac V20-GB.
Read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT...........................................................................................................
2. GENERAL DESCRIPTION AND SPECIFICATIONS.......................................................................................................
3. PRODUCT SAFETY PRECAUTIONS........................................................................................................................
4. BEFORE OPERATING VENTILATOR.........................................................................................................................
5. OPERATION.........................................................................................................................................................
STARTING THE ENGINE...................................................................................................................................................
STOPPING THE ENGINE..................................................................................................................................................
6. MAINTENANCE AND REPAIR..................................................................................................................................
SCHEDULE OF MAINTENANCE........................................................................................................................................
7. TROUBLESHOOTING.............................................................................................................................................
8. WARRANTY..........................................................................................................................................................
9. CONTACT INFORMATION.......................................................................................................................................
10. PARTS LIST........................................................................................................................................................
11. EXPLODED VIEW................................................................................................................................................
2
3
3
4
4
5
5
6
6
7
8
9
10
11

POSITIVE PRESSURE VENTILATOR
2V20-GB PPV User Guide Revised 11-2022
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it
correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a
description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the
original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the
original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail
or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight agent for
verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the ground floor and
in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow
deduction from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B.
factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and our
responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if
they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some
time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of
these damaged goods, your claim may not be paid.

POSITIVE PRESSURE VENTILATOR
3V20-GB PPV User Guide Revised 11-2022
2. General Description and Specications
Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super Vac positive pressure
ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.
This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and eliminates
turbulence at the tips. Each blade is dynamically balanced for high efficiency and long life.
This document is designed to function as a quick start guide and not an in-depth comprehensive instructional manual. Please read
all accompanying documents shipped with your ventilator. Due to the many features of gasoline powered equipment thorough
familiarity with the engine operating controls is essential to assure safe and trouble free operation.
3. Product Safety Precautions
• Do not use the ventilator for purposes other than its’ intended use.
• Wear eye and ear protection when operating the ventilator.
• Never operate ventilator while fatigued.
• Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.
• Do not wear loose clothing that could become entangled in the operating ventilator.
• Never permit anyone to operate ventilator without proper instruction.
• Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for
replacements.
• Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator,
immediately stop engine. Be certain all mechanical motion has stopped. Disconnect spark plug wire from spark plug and keep
it away from spark plug before removing foreign object.
• Do not use with any fuel supply source other than the provided fuel tank.
• Engine exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. Never run the engine in a closed or
confined area.
• Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in
any explosive environment.
• Do not use chock blocks to increase the angle of the ventilator, severe injury could occur.

POSITIVE PRESSURE VENTILATOR
4V20-GB PPV User Guide Revised 11-2022
4. Before Operating Ventilator
• Engine is shipped without oil. With engine in a level position, remove oil fill plug and dipstick. Fill to outer edge
of the oil filler hole with the recommended oil. See the BRIGGS & STRATTON ENGINE Owner’s Manual for oil viscosity
recommendations and capacity.
• Always operate this ventilator with unleaded gasoline having a pump octane rating of 86 or higher.
• A complete inspection of the ventilator should be made prior to operation.
• Check all threaded fasteners for proper tightness.
• Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating ventilator.
5. Operation
Check ventilator inlet and outlet guards for obstructions. Check and remove from immediate surrounding area any objects
that could be drawn into the ventilator intake.
Check the engine oil level, running the engine with a low oil level can cause engine damage. See the BRIGGS &
STRATTON ENGINE Owner’s Manual. Check the engine air cleaner. A dirty filter will reduce engine performance. See the BRIGGS
& STRATTON ENGINE Owner’s Manual.
Check the fuel level. Do not overfill. Starting with no more than a 3/4 full tank will help reduce operating interruptions for refueling
and avoid fuel spillage when engine is tilted. See the BRIGGS & STRATTON ENGINES Owner’s Manual.
Place ventilator in desired location before starting.
Refer to the BRIGGS & STRATTON ENGINE Owner’s Manual for additional information showing locations of engine control features
and positions.
Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training
Manual for Smoke Ventilation for comprehensive instruction on effective ventilation practices.

POSITIVE PRESSURE VENTILATOR
5V20-GB PPV User Guide Revised 11-2022

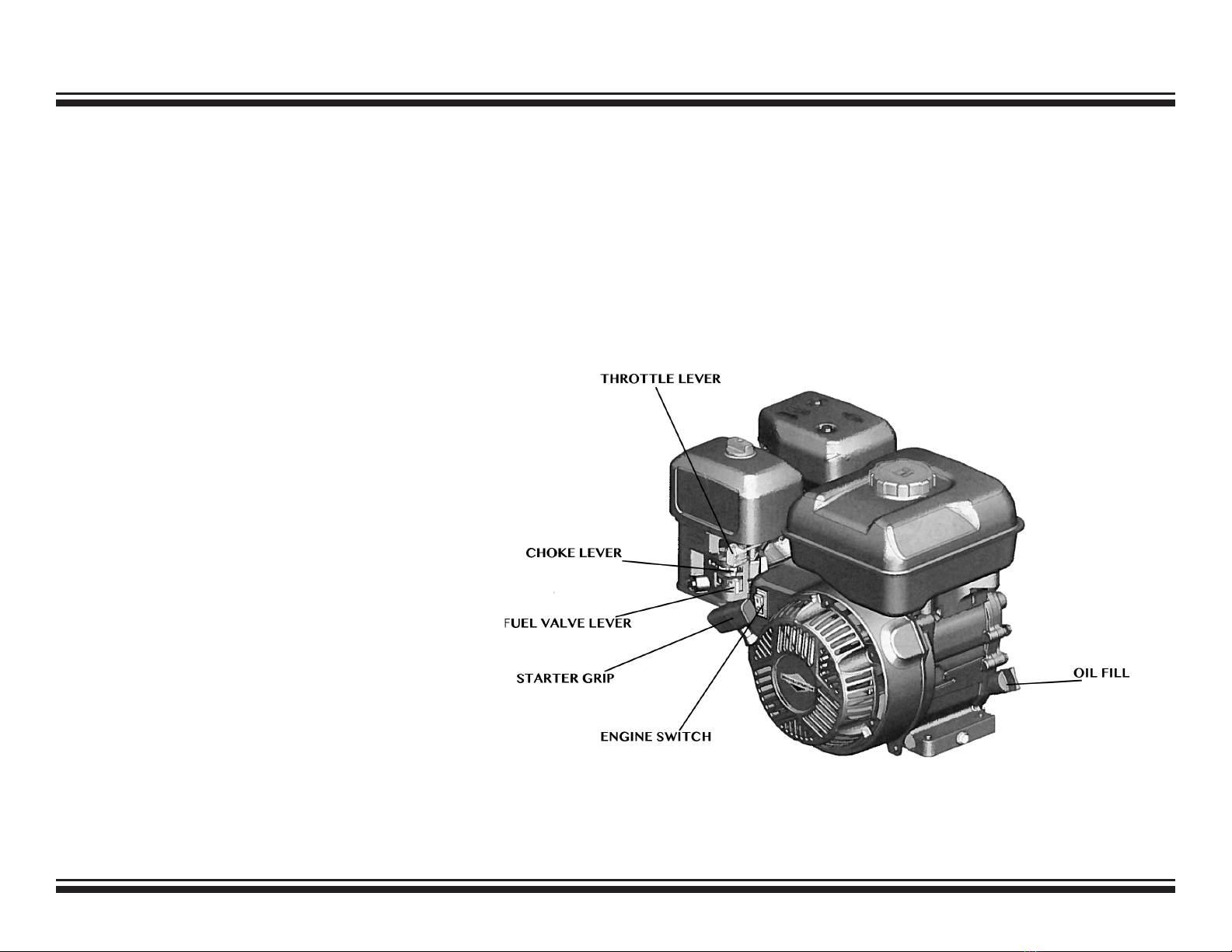

Starting the Engine
1. Move the fuel lever to the ON position.
2. If engine is cold, move choke lever to the CLOSED position.
3. Move throttle lever to 1/3 of the way toward the FAST position.
4. Turn the engine switch to the ON position.
5. Pull the starter grip lightly until resistance is felt, then pull briskly. Do not let the starter grip return by releasing grip. This can
lead to starter cord breakage. Return starter grip gently to the recoiled position.
Stopping the Engine
1. Move throttle lever to the SLOW position.
2. Turn engine switch to the OFF position.
3. Turn the fuel valve lever to the OFF position.

POSITIVE PRESSURE VENTILATOR
6V20-GB PPV User Guide Revised 11-2022
6. Maintenance and Repair
Maintenance should only be performed by experienced and trained personnel.
Be sure the ventilator blade has come to a complete stop before performing any maintenance or repair.
Disconnect spark plug wire from spark plug and keep it away from spark plug.
The ventilator blade should be specially checked for build-up of material or dirt which may cause an imbalance. Excessive
imbalance can lead to accelerated wear on engine bearings and vibration. Remove ventilator guards. Clean blade and inside
housing with mild detergent and water. Do not use abrasives, sharp instruments or caustic solvents that may scratch or damage
the aluminum alloy blade.
Schedule of Maintenance
perform at indicated hour interval Each Use First 5 Hours Every 50 Hours Every 100 Hours Every Year
Engine Oil Check Level X
Change X X
Air Filter Check X X
Clean X
Replace X
Spark Plug
Clean Gap X X
Replace X
Fuel Tank
Sediment Cup
Clean X X X
Fuel Line Check X
See parts list for replacement part numbers.

POSITIVE PRESSURE VENTILATOR
7V20-GB PPV User Guide Revised 11-2022
7. Troubleshooting
ENGINE WILL NOT START Possible Cause Correction
Check Control Positions Fuel Valve OFF Move Lever to ON
Choke is OFF Set choke to FULL on (Unless engine is
warm)
Throttle control is on STOP Move the throttle control to SLOW
Oil Alert System Engine oil is low or engine is being operated
on too steep an incline.
Check Fuel Out of fuel Refuel
Deteriorated fuel Drain fuel tank and carburetor. Refuel with
fresh gasoline.
Contamination in fuel tank blocking fuel line Drain fuel tank and carburetor. Refuel with
fresh gasoline.
Remove and Inspect Spark Plug Spark plug faulty, fouled, or improper gapped Clean, gap, or replace spark plug.
Common causes of engine overheating:
• Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training Manual for Smoke
Ventilation for recommended ventilator placement.
• Incorrect octane fuel - too low octane

POSITIVE PRESSURE VENTILATOR
8V20-GB PPV User Guide Revised 11-2022
8. Warranty
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when
used and operated for a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited
warranty is limited to the repair and replacement of any parts which are found defective and which are returned to Super Vacuum
Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D. shipments will
not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in
writing to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No
parts or equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty
without specific written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and
condition. We therefore extend to the original purchasers the following Limited Warranty for the period of five years from the
original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible
for incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been
executed without our knowledge or consent. These conditions are readily discernible when the equipment is returned to us for
inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that
the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your
local business phone directory for the nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days,
as we assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any
warranties of MERCHANTABILITY or FITNESS for a particular purpose.

POSITIVE PRESSURE VENTILATOR
9V20-GB PPV User Guide Revised 11-2022
9. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr.
Fort Collins, CO 80524
Phone: [phone]
970-297-7100
Fax: [phone]
Email : [email protected]
Internet: www.supervac.com

POSITIVE PRESSURE VENTILATOR
10 V20-GB PPV User Guide Revised 11-2022

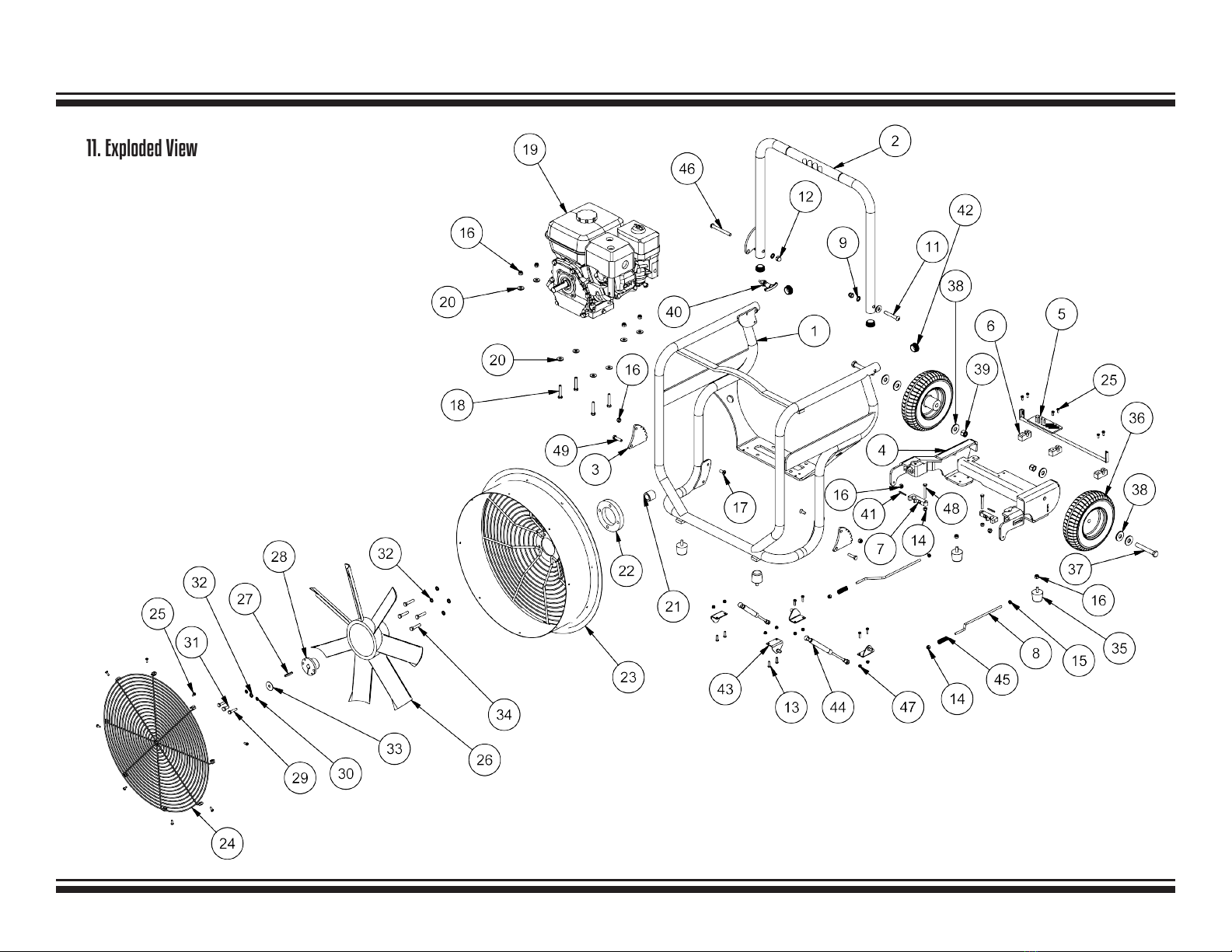

10. Parts List
1 019-20304 1 FRAME, RND 1.25 OD ALUM. VALOR, V-20
2 019-20306 1 HANDLE, V-20
3 019-20217 2 PLATE, ADJUSTMENT LOCK,V-18, V-20
4 019-20312 1 ASSEMBLY,WHEEL,ADJUSTMENT, V-20
5 019-20311 1 ADJUSTMENT, FOOT LEVER, V-20
6 019-20239 3 BLOCK, PEDAL AXLE MOUNT
7 019-20240 2 LEVER, PIVOT LOCK
8 019-20241 2 ROD, PULL, FOOT LEVER
9 STD HARDWARE-IEW-11 2 WASHER,LOCK,18-8SS,INTERNAL,3/8in
10 STD HARDWARE W27 1 WASHER,FLAT,USS, 3/8”, SS
11 STD HARDWARE-BHSH-83b 1 SCREW,BHSH,3/8-16x2-1/2,SS
12 STD HARDWARE-ANUT-06 2 NUT,ACORN, 3/8-16 UNC, SS
13 STD HARDWARE--59 8 SCREW,PHP,10-24 UNCx0.75
14 034-11033 4 NUT,NYLOCK, 1/4-20 UNC,SS
15 034-11116 2 NUT,NYLOCK,THIN, 1/4-20 UNC,SS
16 034-11057 10 NUT,NYLOCK, 5/16-18 UNC,SS
17 STD HARDWARE-FHMS-157 2 SCREW,FHPMS,5/16-18 UNC x 3/4 in,SS
18 STD HARDWARE-HHCS-236 4 SCREW,HH,5/16-24x1-3/4,SS
19 023-15303 1 ENGINE, VANGUARD, B&S 205
20 STD HARDWARE W24 8 WASHER,FLAT,USS, 5/16”, SS
21 017-14999 1 BUSHING,1-1/4 OD,1 INCH,718, V-18
22 008-10174 1 DISC,SHROUD SPACER,718-720, V-18
23 018-10336 1 SHROUD, 20” W/GUARD-PAINTED
24 012-10281 1 GUARD,FRONT,FAN,V-20
25 STD HARDWARE--57 14 SCREW,PHP,10-24 UNCx0.5
26 003-10047 1 20” FAN BLADE
27 008-10193 1 KEYSTOCK,SHAFT,BLADE,718, V-18
28 008-10187 1 BUSHING,BLADE, MAUREY HQ 3/4
29 STD HARDWARE-HHCS-08 2 SCREW,HH,1/4-20x1-1/4,SS
30 STD HARDWARE LW35 2 WASHER,LOCK,SPRING,REGULAR, 1/4”, SS
31 STD HARDWARE-HHCS-30 1 SCREW,HH,5/16-18x3/4,SS
32 STD HARDWARE LW39 5 WASHER,LOCK,SPRING,REGULAR, 5/16”, SS
33 STD HARDWARE W25 1 WASHER,FLAT,FENDER, 5/16”, SS
34 STD HARDWARE-HHCS-35 4 SCREW,HH,5/16-18x1-1/2,SS
35 024-13473 4 FEET RUBBER CONE SHAPE VBM-4002
36 008-13374 2 WHEEL, 8 INCH
37 STD HARDWARE-HHCS-316 2 SCREW,HH,1/2-20x3-1/2,SS
38 STD HARDWARE W34 6 WASHER,FLAT,USS, 1/2”, SS
39 STD HARDWARE-NN16 2 NUT,NYLOCK, 1/2-13 UNC,SS
40 005-10255 1 T-HANDLE, PLUNGER, VALOR
41 034-10125 2 ROLL PIN, 5/32 X 1 1/4 SS, VALOR
42 005-10256 4 PLUG, 1.25, TUBE END ROUND, VALOR
43 024-15161 4 PNEUMATIC MOUNTS 16340 ZN, VALOR FANS
44 024-15160 2 GAS SPRING, 12.00 IN, 40 LB, VALOR SERIES
45 024-13284 2 SPRING, COMPRESSION, TILT LEVER
46 STD HARDWARE-111 1 SCREW,BHSH,3/8-16x3-1/2,SS
47 034-10981 8 NUT,NYLOCK, 10-24 UNC,SS
48 STD HARDWARE-HHCS-11 2 SCREW,HH,1/4-20x2,SS
49 STD HARDWARE-HHCS-234 2 SCREW,HH,5/16-24x1-1/4,SS

POSITIVE PRESSURE VENTILATOR
11 V20-GB PPV User Guide Revised 11-2022
11. Exploded View
26 003-10047 1 20” FAN BLADE
27 008-10193 1 KEYSTOCK,SHAFT,BLADE,718, V-18
28 008-10187 1 BUSHING,BLADE, MAUREY HQ 3/4
29 STD HARDWARE-HHCS-08 2 SCREW,HH,1/4-20x1-1/4,SS
30 STD HARDWARE LW35 2 WASHER,LOCK,SPRING,REGULAR, 1/4”, SS
31 STD HARDWARE-HHCS-30 1 SCREW,HH,5/16-18x3/4,SS
32 STD HARDWARE LW39 5 WASHER,LOCK,SPRING,REGULAR, 5/16”, SS
33 STD HARDWARE W25 1 WASHER,FLAT,FENDER, 5/16”, SS
34 STD HARDWARE-HHCS-35 4 SCREW,HH,5/16-18x1-1/2,SS
35 024-13473 4 FEET RUBBER CONE SHAPE VBM-4002
36 008-13374 2 WHEEL, 8 INCH
37 STD HARDWARE-HHCS-316 2 SCREW,HH,1/2-20x3-1/2,SS
38 STD HARDWARE W34 6 WASHER,FLAT,USS, 1/2”, SS
39 STD HARDWARE-NN16 2 NUT,NYLOCK, 1/2-13 UNC,SS
40 005-10255 1 T-HANDLE, PLUNGER, VALOR
41 034-10125 2 ROLL PIN, 5/32 X 1 1/4 SS, VALOR
42 005-10256 4 PLUG, 1.25, TUBE END ROUND, VALOR
43 024-15161 4 PNEUMATIC MOUNTS 16340 ZN, VALOR FANS
44 024-15160 2 GAS SPRING, 12.00 IN, 40 LB, VALOR SERIES
45 024-13284 2 SPRING, COMPRESSION, TILT LEVER
46 STD HARDWARE-111 1 SCREW,BHSH,3/8-16x3-1/2,SS
47 034-10981 8 NUT,NYLOCK, 10-24 UNC,SS
48 STD HARDWARE-HHCS-11 2 SCREW,HH,1/4-20x2,SS
49 STD HARDWARE-HHCS-234 2 SCREW,HH,5/16-24x1-1/4,SS
