READ THIS FIRST
VENTILATOR USER GUIDE MODEL V20-BH-SP

POSITIVE PRESSURE VENTILATOR
1
V20-BH-SP PPV User GuideRevised 11-2021
USER GUIDE
This manual covers the description, cautions, operation, and maintenance of the Super Vac V20-BH-SP.
Please take the time to read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT ........................................................................................................... 2
2. GENERAL DESCRIPTION AND SPECIFICATIONS......................................................................................................... 3
3. PRODUCT SAFETY PRECAUTIONS ........................................................................................................................... 3
4. BEFORE OPERATING VENTILATOR ........................................................................................................................... 4
5. OPERATION ........................................................................................................................................................... 5
6. CHARGING THE BATTERY PACKS............................................................................................................................. 6
7. MAINTENANCE AND REPAIR.................................................................................................................................... 6
8. WARRANTY............................................................................................................................................................ 7
9. CONTACT INFORMATION......................................................................................................................................... 8
10. PARTS LIST ........................................................................................................................................................... 9
11. EXPLODED VIEW.................................................................................................................................................. 10

POSITIVE PRESSURE VENTILATOR
2V20-BH-SP PPV User Guide Revised 11-2021
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it correctly.
Please read these instructions carefully.
Examine the contents of all shipping cases. If you nd any damage, call your transportation agent at once and have them make a
description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the
original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the
original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail or
hand these papers to your local transportation agent. They will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we led claim here, it would be sent to your local freight agent for
verication and investigation. This time can be saved by your ling the claim directly. Every consignee is on the ground oor and in
contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow deduction
from any invoice because of any damage, however, be sure to le your claim promptly. Our goods are sold F.O.B. factory. We take
receipt from the transportation company certifying that the goods were delivered to them in good order, and our responsibility
ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if they
follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you sometime
later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these
damaged goods, your claim may not be paid.

POSITIVE PRESSURE VENTILATOR
3
V20-BH-SP PPV User GuideRevised 11-2021
2. General Description and Specications
Super Vac ventilators are specically designed to provide a convenient and portable source of air. Super Vac positive pressure
ventilators are tested to AMCA Standard 240-15, for use in extreme conditions.
Model # RPM Motor H x W x D Weight
V20-BH-SP 2000 1 HP Variable Speed DC 28.25" x 28.75" x 12.5" 62 lbs
Specications are subject to change without notication. Refer to model decal afxed to ventilator to determine actual specications.
This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and reduces turbulence at
the tips. Each blade is dynamically balanced for high efciency and long life.
3. Product Safety Precautions
• Wear eye and ear protection when operating the ventilator.
• Never operate ventilator while fatigued.
• Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.
• Do not wear loose clothing that could become entangled in the operating ventilator.
• Never permit anyone to operate ventilator without proper instruction.
• Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for
replacements.
• Do not place ngers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator, immediately stop
motor. Be certain all mechanical motion has stopped. Do not use with any power voltage other than the indicated voltage.
• Never handle energized power cords with wet hands.
• Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in any
explosive environment.
• Never let extension cords or plug connections lay in water. Locate the ventilator so that it cannot fall into water inadvertently.

POSITIVE PRESSURE VENTILATOR
4V20-BH-SP PPV User Guide Revised 11-2021
4. Before Operating Ventilator
4. Before Operating Ventilator
• This ventilator will work with HURST®’s EWXT™/E3™Battery Platforms.
• A complete inspection of the ventilator should be made prior to operation.
• Check all threaded fasteners for proper tightness.
• Check ventilator inlet and outlet guards for obstructions. Check and remove from immediate surrounding area any objects that could be
drawn into the ventilator intake.
• Replace damaged or missing guards before operating ventilator.
• Never store or carry the battery pack so that metal objects can contact exposed battery terminals. Transporting batteries can possibly
cause res if the
• battery terminals contact loose nails, screws, keys, hand tools and the like.
• If using shore or mains power:
o Never use power cords with frayed, cut, or brittle insulation.
o Inspect power cord plug for proper connections to the ground fault interrupter circuit.
21 ft 18 ft 15 ft 12 ft 9 ft 6 ft 3 ft 0
6.4 m 5.5 m 4.6 m 3.7 m 2.7 m 1.8 m 0.9 m
13,000
12,000
11,000
10,000
9,000
8,000
7,000
6,000
5,000
0
AMCA 240 Airow (CFM)
Setback (ft, m)
12,200
q
MAXIMUM
AIRFLOW
25º20º15º5º 10º 30º
a
a
a
11,500
12,000
12,000
12,500
10,500
E
N
T
R
A
I
N
E
D
A
I
R
Airow vs Setback
12,550

POSITIVE PRESSURE VENTILATOR
5
V20-BH-SP PPV User GuideRevised 11-2021
5. Operation
• Use caution not to direct toxic fumes into conned spaces with the ventilator.
• Insert a HURST EWXT/E3 battery until it clicks. Only one battery is necessary for operation.
• Fan will need to be reset (turned off & on) if a new battery is inserted.
• If fan is not reset, then the fan will not recognize the new battery and run until previous battery is empty.
• If using shore (mains) power, use an extension cord to connect to 110 – 240V AC.
• Press and hold power button until blue backlight indicates powering up.
• When the fan is on, it will need to run at the minimum speed. (This feature is to protect the batteries from small parasitic draws)
• Turn speed control clockwise until desired speed is reached.
• Power button will indicate approximate power left. (It is normal for colors to icker back and forth if 2 batteries are being used)
o Green: 50 - 100%
o Yellow: 20 - 50%
o Red: 0 - 20% (Low Battery Warning: Front Facing LED will also ash if turned on)
• To turn off, press and hold power button until blue backlight shows.
Battery Run Times at Max Speed
*Runtimes dependent on air density,
temperature and age of batteries.
Test data shown taken at 5000ft
elevation, 25% RH, 70°F with new
batteries.
*Air density is primarily affected by
elevation, humidity and
temperature.
*At temperatures below freezing
expect battery life to decrease.
*Other HURST®EWXT/E3 Batteries
will operate the fan, but at reduced

POSITIVE PRESSURE VENTILATOR
6V20-BH-SP PPV User Guide Revised 11-2021
6. Charging the Battery Packs
• Remove batteries from fan.
• Insert in HURST brand chargers only.
• When the battery pack temperature is outside the charging range
• (25-105°F or 4-40°C), the red light on the charger will ash and the batterywill not charge.
• Once the battery pack is within the acceptable temperature range, normal
charging will take place.
• Using the HURST charger, a 9Ah battery will recharge in 150 minutes and 5Ah battery will
recharge in 100 minutes.
CAUTION:
• Do not store battery packs or
chargers above 120°F (50°C) or
in direct sunlight.
• Never use charger or batteries in
explosive atmospheres.
• Never attempt to open the battery
pack. If cracked or damaged,
return it to a service center for
recycling.
• Batteries are rated for use in
IP68 environments, however do
not splash or immerse charger in
water or other liquids.
Maintenance should only be performed by experienced and trained personnel.
If you have any questions, contact Super Vac before attempting any maintenance at
[email protected] or 1-800-525-5224.
7. Maintenance and Repair
Daily/After Each Use:
• Charge batteries completely
• Check that Guards are undamaged and
effectively prevent objects from contacting
the blade
• Wheels and feet are in place and tight
• Tilt Mechanism works properly
• If tilt adjust is too loose, tighten knurled
nut on the Tilt Mechanism.
• For larger adjustments, tighten nut with
9/16" (14mm) wrench.
Weekly/Monthly/Quarterly:
• Calibrate Battery
• Fully charging, then fully discharging,
and fully charging once again before
storage
• Replace battery (-ies) if battery shows
signs of damage from dropping or
excessive heat
• Check for loose fasteners
• Check condition of the power cord (if
purchased with Shore Power) (14mm)
wrench.
Yearly:
• Battery Condition
• Check runtime in low wind and average
temperature conditions
• If runtime is below 75% of advertised
runtime, replacing batteries is
recommended
• Excessive vibration
• Blade imbalance due to accumulation of
dirt on blade
• Check Blade interference
• Remove front guard and rotate manually
to check for interference
To-Do Checklists:

POSITIVE PRESSURE VENTILATOR
7
V20-BH-SP PPV User GuideRevised 11-2021
8. Warranty
HURST EWXT/E3 batteries carry a separate 3-year limited warranty for the compatible battery packs and chargers. For more information, contact
them at www.jawsoife.com or 1-800-537-2659.
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and
operated for a period of ve years, excluding the motor which has a 3-year warranty. The responsibility of Super Vacuum Manufacturing
Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned
to Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D. shipments
will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in writing to
SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No parts or
equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty without
specic written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant and is shipped in good working order and condition. We
therefore extend to the original purchasers the following Limited Warranty for the period of ve years from the original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for incidental
and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed without our knowledge or
consent. These conditions are readily discernible when the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that the manufacturer
of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your local business phone directory for the
nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we assume no
responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of
MERCHANTABILITY or FITNESS for a particular purpose.

POSITIVE PRESSURE VENTILATOR
8V20-BH-SP PPV User Guide Revised 11-2021
9. Contact
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr.
Fort Collins, CO 80524
Phone: [phone]
970-297-7100
Fax: [phone]
Email : [email protected]
Internet: www.supervac.com

POSITIVE PRESSURE VENTILATOR
9
V20-BH-SP PPV User GuideRevised 11-2021
10. Parts List

POSITIVE PRESSURE VENTILATOR
10 V20-BH-SP PPV User Guide Revised 11-2021

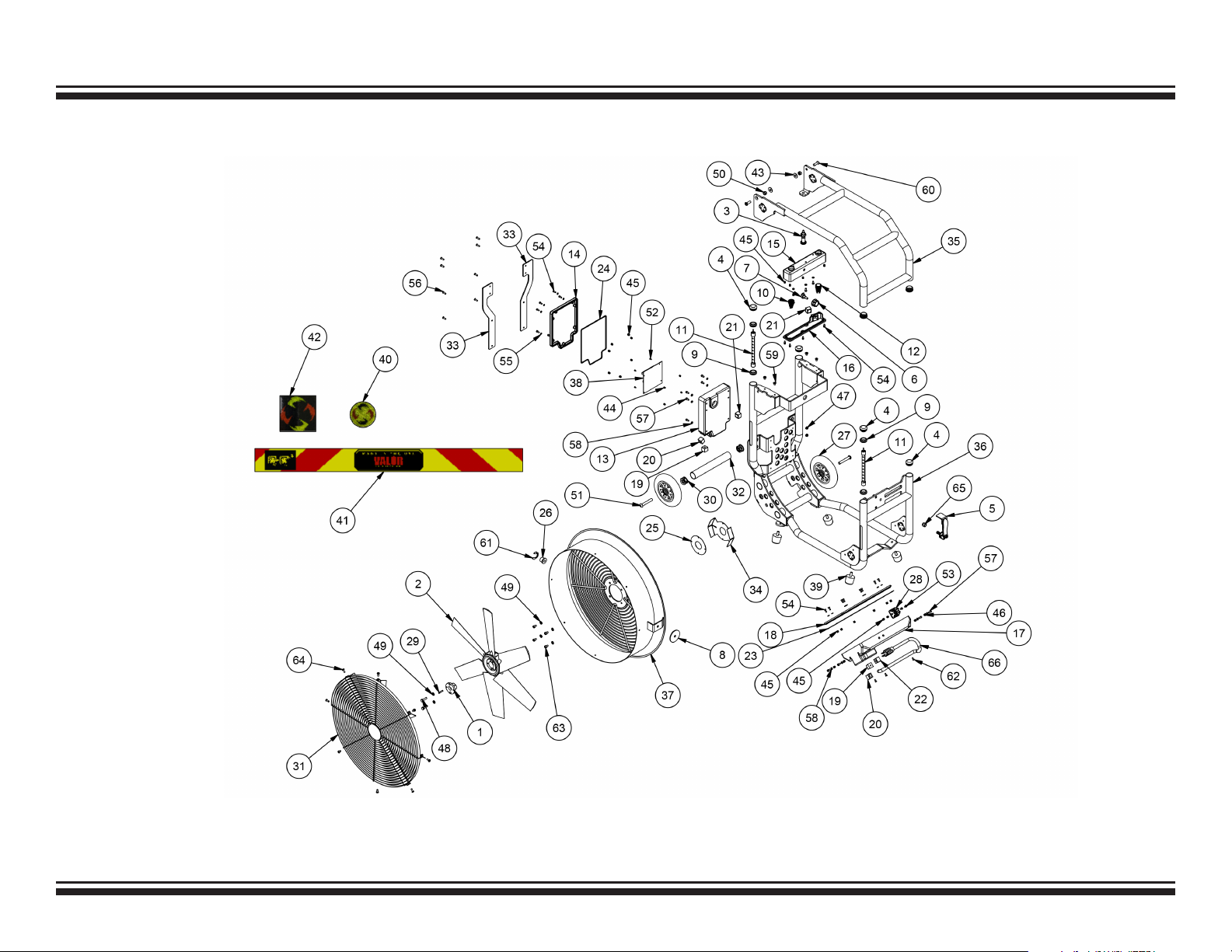

11. Exploded View
