INSTALLATION INSTRUCTIONS

(Kit Contents continue on following page)

Thank You

For Choosing

Power Steering Kit

for Kawasaki Teryx4™

Read instructions and view illustrations before beginning.

Need help with your installation?

www.superatv.com

8:00am - 9:00pm EST M-Th

8:00am - 7:00pm EST Friday

9:00am - 2:00pm EST Saturday

sales@superatv.com

1-855-743-3427

2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427

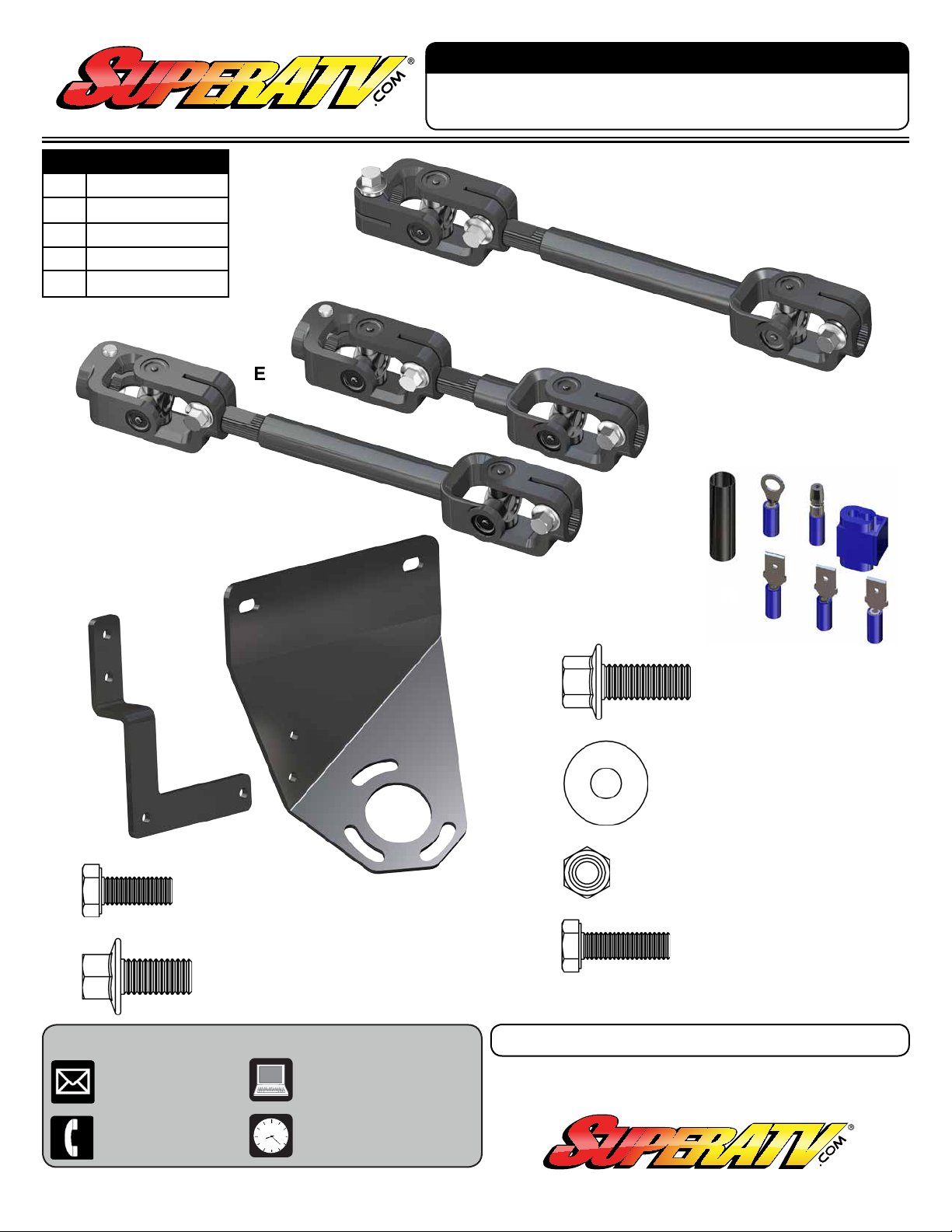

M8 x 20mm Lg. FHCS3x

2x M6 x 16mm Lg. HHCS

-includes washers (not shown)

M6 Flat Washer4x

M6 Nylock Nut2x

2x M6 x 20mm Lg. HHCS

M8 x 16mm Lg. FHCS2x

(PS-K-TRX4-001 Upper Shaft)

(PS-K-TRX4 Upper Shaft)

Item Description

D Upper Shaft

E Lower Shaft

F Motor Bracket

H Wiring Connectors

M ECU Bracket

2IN-PS-K-TRX4 / IN-PS-K-TRX4-001

(Kit Contents continued)

Item Description

A ECU

B Wiring Harness

C Motor

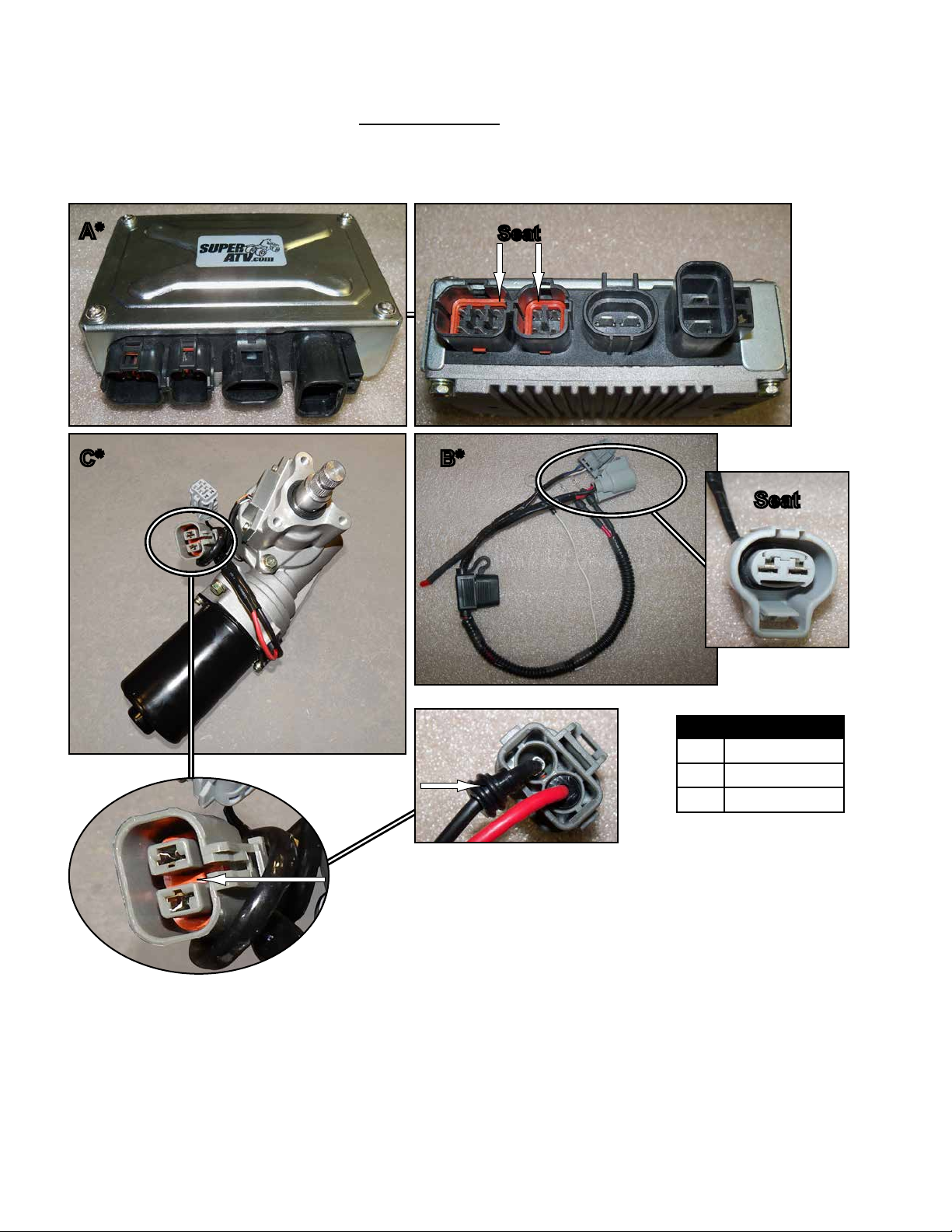

Push in....

Seat

*Connections

- Before installing, ensure that all Gaskets in electrical connections are properly seated.

- If Gaskets are not seated use a Flathead Screwdriver to seat.

....Seat

3IN-PS-K-TRX4 / IN-PS-K-TRX4-001

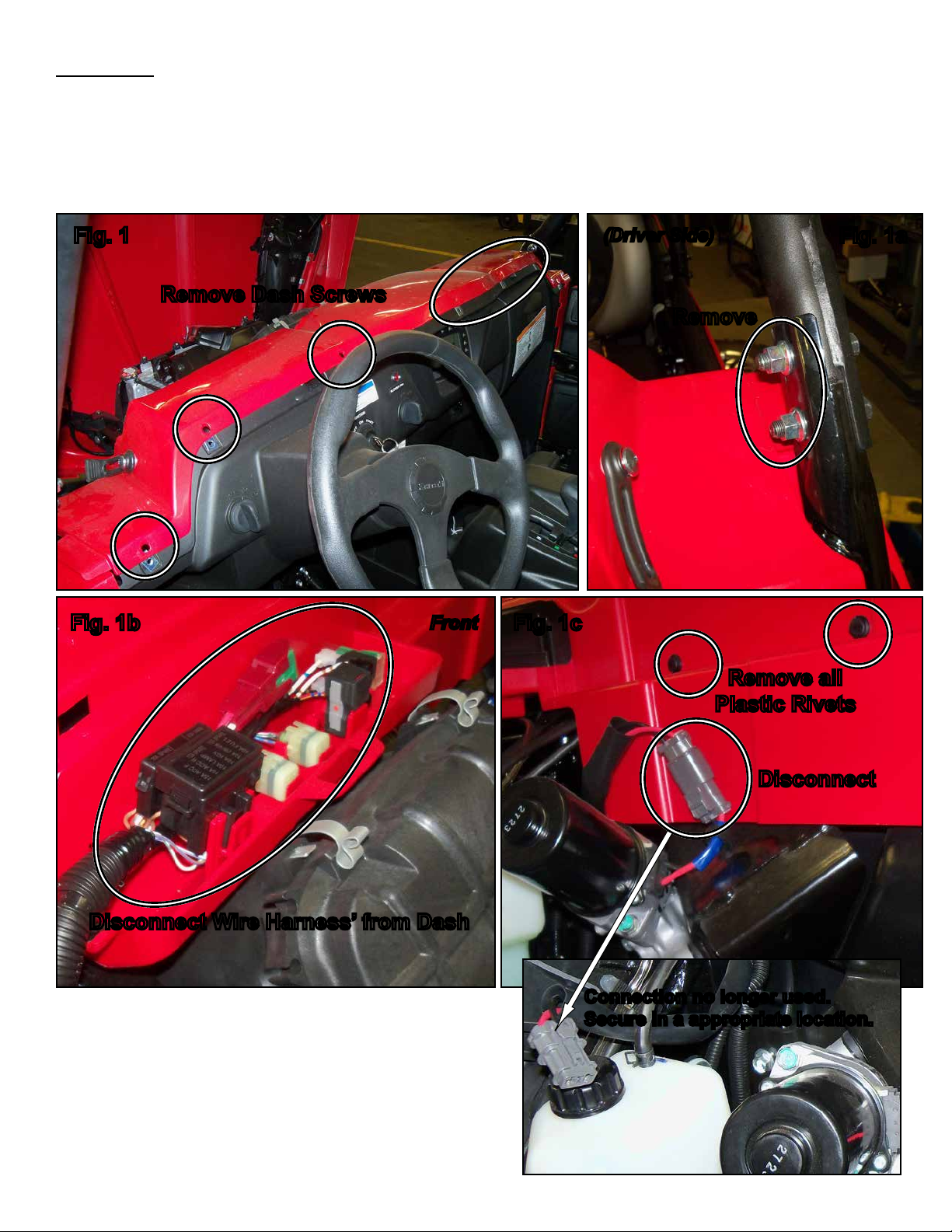

Remove Dash Screws

Fig. 1

Remove

(Driver Side) Fig. 1a

Disconnect Wire Harness’ from Dash

Front

Fig. 1b

(removal illustrations continue on following pages)

Removal: Keep all stock hardware.

1. Remove Screws and Plastic Rivets from Dash. Disconnect Wire Harness’ and remove hardware from

Driver Side of Roll Cage; remove Dash. See Figs. 1 - 1c.

2. Remove hardware from Upper and Lower Shafts. See Figs. 2 - 2a.

3. Remove (4) Bolts from stock Mounting Bracket. See Fig. 3.

4. Remove Upper Shaft, Mounting Bracket, and Lower Shaft from machine. See Figs. 4 - 4a.

Remove all

Plastic Rivets

Disconnect

Fig. 1c

Connection no longer used.

Secure in a appropriate location.

4IN-PS-K-TRX4 / IN-PS-K-TRX4-001

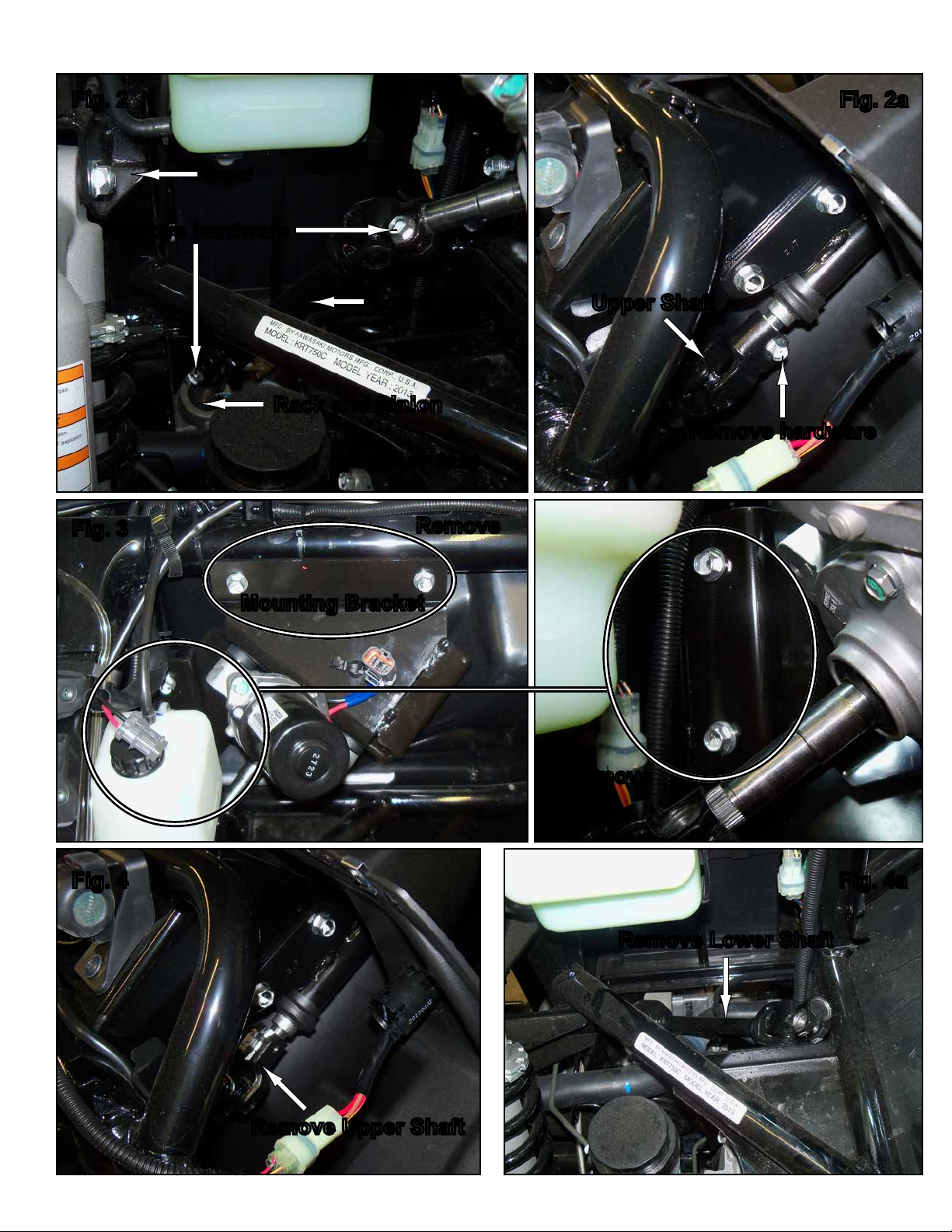

(removal illustrations continued)

(Driver Side)

Front

Remove hardware

Rack and Pinion

Lower Shaft

Fig. 2

Remove hardware

Upper Shaft

Fig. 2a

Remove Lower Shaft

Fig. 4a

Remove Upper Shaft

Fig. 4

Remove

Fig. 3

Mounting Bracket

5IN-PS-K-TRX4 / IN-PS-K-TRX4-001 (illustrations continue on following pages)

Installation: Do not tighten hardware completely unless noted.

1. Install Motor Bracket (F) to Motor (C) with M8-1.25 x 20mm Lg. FHCS. See Fig. 1.

2. Install ECU (A) to ECU Bracket (M) with M6-1.0 x 16mm Lg. HHCS; tighten hardware. See Fig. 2.

3. Install Lower Shaft (E) to Rack and Pinion with supplied hardware. See Figs. 3 - 3a.

4. Install Motor (C) to Lower Shaft (E) with supplied hardware. See Fig. 4.

5. Install Upper Shaft (D) to stock Upper Steering Shaft with supplied hardware. See Figs. 5 - 5a.

6. Join Upper Shaft (D) to Motor (C) with supplied hardware. See Fig. 5a.

7. Locate (2) mounting locations, as shown in Fig. 6, and install Motor Bracket (F) with M8-1.25 x 16mm

Lg. FHCS. See Fig. 6.

8. Install ECU Bracket (M) to Motor Bracket (F) with M6-1.0 x 20mm Lg. HHCS, M6 Flat Washers, and

M6-1.0 Nylock Nuts. See Fig. 6.

9. Plug Wiring Harness (B) into ECU (A) and connect wiring. See Wiring Details, page 8.

10.Ensure no components are binding, rubbing, or causing interference and tighten all hardware

completely.

11. Reinstall necessary compents uninstalled during “Removal”.

Fig. 1

M8 x 20mm

Fig. 2

M6 x 16mm

Fig. 3

(Driver Side)

Rack and Pinion

Front

supplied hardware

Fig. 3a

6IN-PS-K-TRX4 / IN-PS-K-TRX4-001

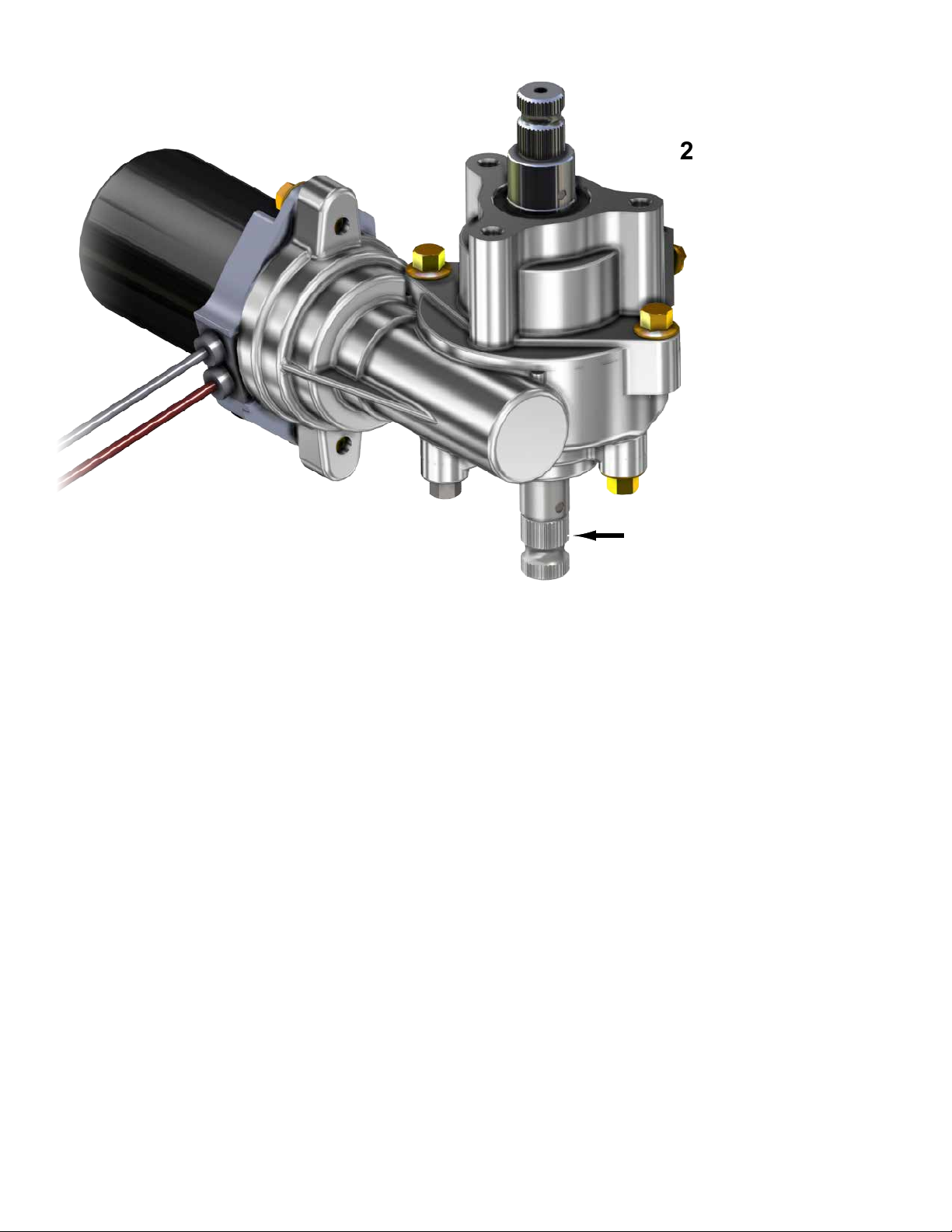

220 Motor

to Rack and Pinion

7IN-PS-K-TRX4 / IN-PS-K-TRX4-001

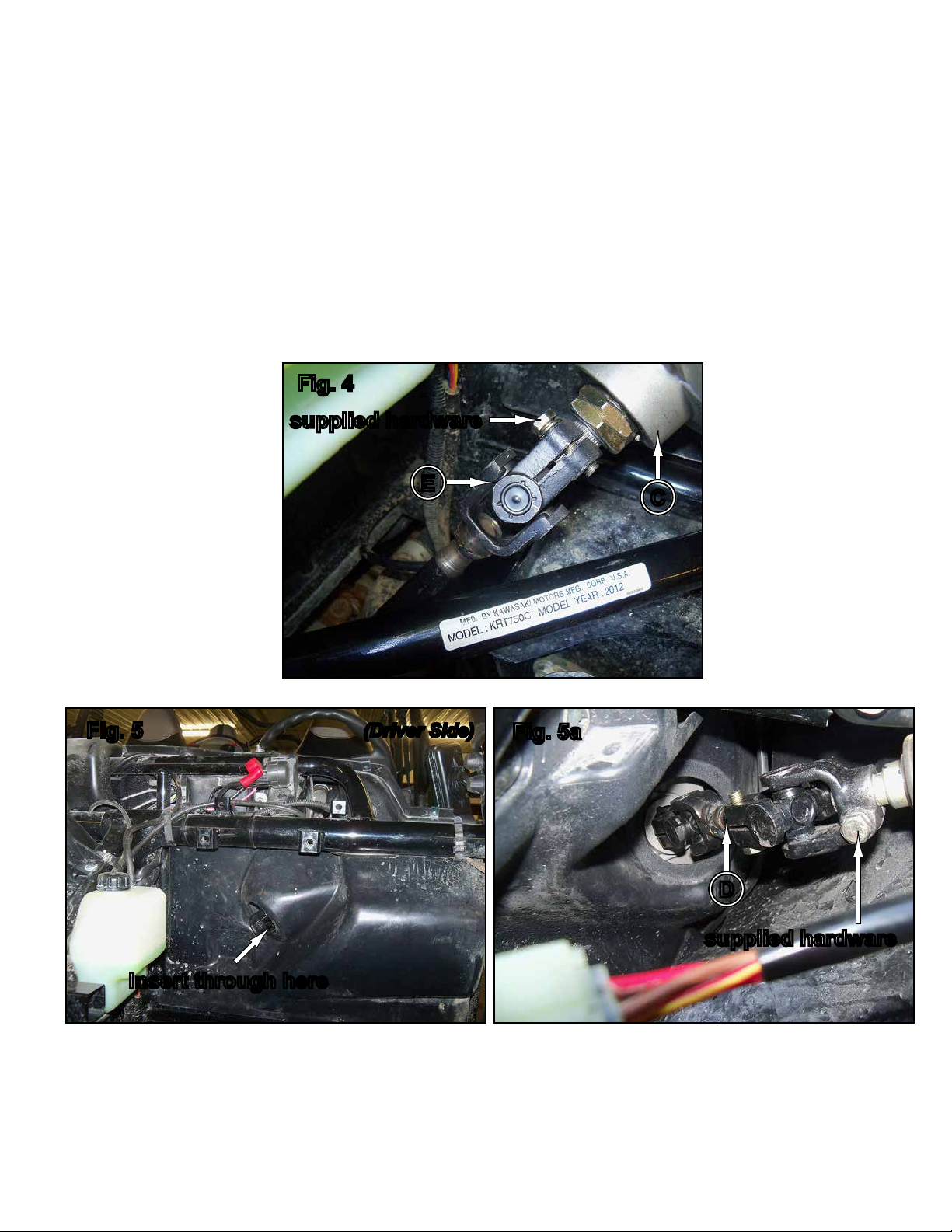

Fig. 4

supplied hardware

Fig. 5a

(Driver Side)

Insert through here

Fig. 5

8IN-PS-K-TRX4 / IN-PS-K-TRX4-001

Bracket Mounting, Fig. 6

Passenger Driver

Orientation

Bracket Mounting Locations

M8 x 16mm

M6 Nut

M6 Washer

M6 x 20mm

9IN-PS-K-TRX4 / IN-PS-K-TRX4-001

Plug Function

A Torque Sensor

B Switched 12V Source

C Power

D Motor Diagnostic Light

Secure Diagnostic Light

in a visible location.

When activated, Diagnostic Light will ash (1) time for about

(1) second before turning off indicating proper function.

Should different patterns occur, contact SuperATV.

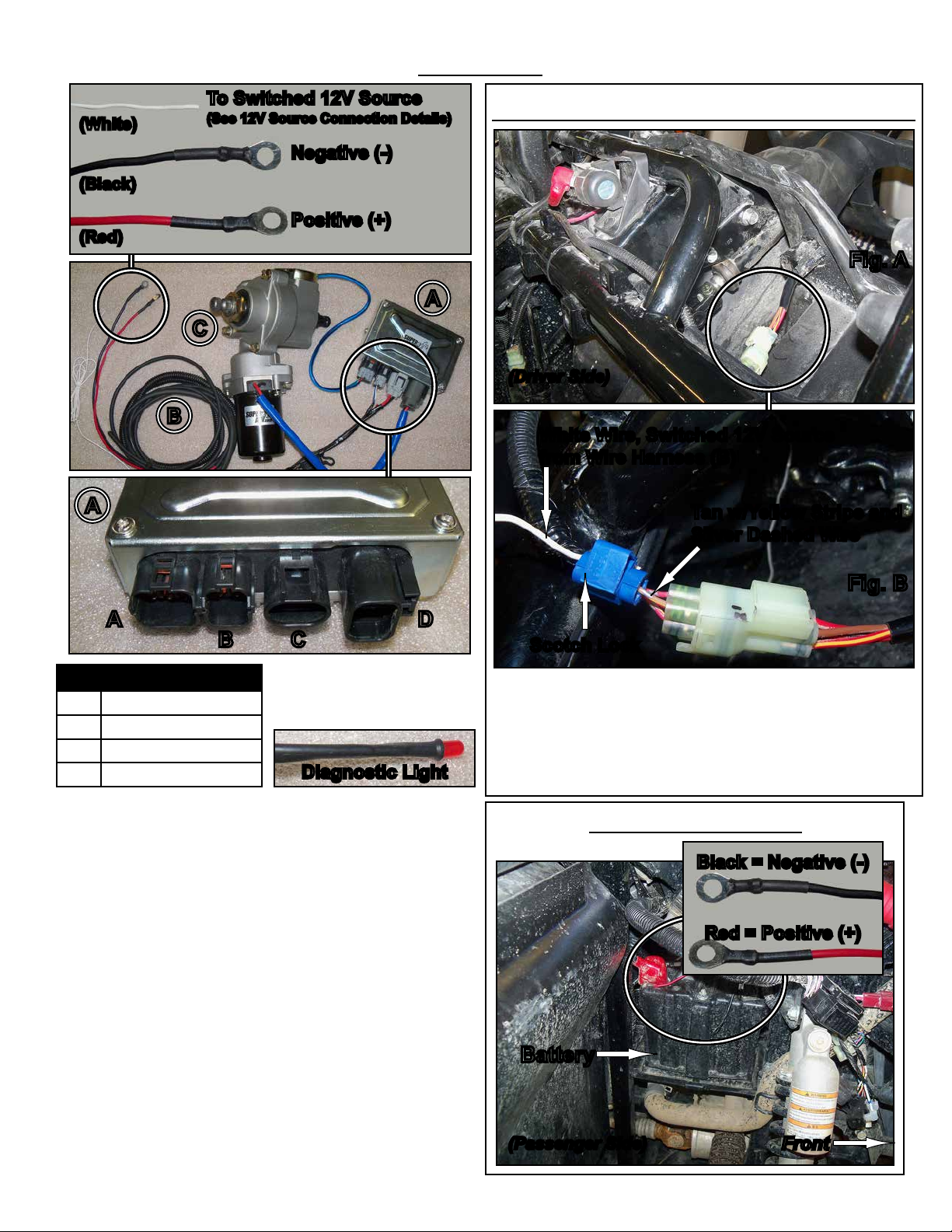

Wiring Details

Negative (-)

To Switched 12V Source

(See 12V Source Connection Details)

(Black)

(White)

(Red)

B C

Positive (+)

Battery Connections

Battery

(Passenger Side) Front

Black = Negative (-)

Red = Positive (+)

Soldering connection is recommended however, installer

may use other forms of connecting.

1. Locate Connector shown in Fig. A.

2. Connect White Wire from Wire Harness (B) to Tan with

Yellow Stripe and Silver Dashed wire. Scotch Lock

(included) or solder. See Fig. B.

Switched 12V Source Connection Details

(Driver Side)

White Wire, Switched 12V Source

from Wire Harness (B)

Scotch Lock

Tan w/Yellow Stripe and

Silver Dashed Wire

Fig. A

Fig. B

10IN-PS-K-TRX4 / IN-PS-K-TRX4-001
