E211EN_03.DOC Safety 3
1. Safety
1.1 General safety information
¾Before starting-up the machine, read the operator's manual
and the safety information (order no. 0373678) in their entirety
and carefully follow the instructions given.
¾Comply with the safety regulations in accordance with DIN
VDE, CEE, AFNOR as well as any other regulations valid in
the individual countries.
Danger
Risk of fatal injury from electric shock.
¾When working with the machine do not touch any electrical
lines. The machine is not insulated.
Warning
Risk of injury due to improper handling.
¾Always detach the compressed air hose from the machine
prior to maintenance work.
¾Check the compressed air hose, connection coupling, and
machine for damage before each use.
¾Wear safety glasses, hearing protection, protective gloves
and work shoes when working at the machine.
¾Only connect compressed air when the machine is switched
off.
¾Always lay the compressed air hose away from the back of
the machine.
1.2 Specific safety information
Warning
Risk of injury to hands.
¾Do not reach into the processing line with your hands.
¾Use both hands to hold the machine.
Warning
Risk of injury from hot and sharp chips!
Hot and sharp chips are discharged from the chip dumping
at high speed.
¾Make sure the chips are discharged downwards.
¾Use a chip bag (optional).

4 Safety E211EN_03.DOC
Warning
Risk of injury due to improper handling.
¾When working with the machine, make sure it is always in a
stable position.
¾Never touch the tool while the machine is running.
¾Always operate the machine away from your body.
¾Do not operate the machine above your head.
Warning
Risk of injury from falling machinery.
The entire weight of the machine must be taken up after
processing of the workpiece.
¾Use suspension bracket (optional) with a balancer or a secu-
ring rope.
Caution
Damage to property due to improper handling.
The machine will be damaged or destroyed.
¾Always position the compressed air hose leading away from
the machine, at back of the machine. Do not pull the cable
over sharp edges.
¾Have servicing and inspections of hand-held compressed air
tools carried out by a qualified technician. Only use original
TRUMPF accessories.

E211EN_03.DOC Description 5
2. Description
38
21
36
37
5
1
9 7 37 345
1 Die
5 Punch guide
7 Die carrier
9 Punch
21 Eccentric shaft
36 Clamping screw for the die
carrier
37 Cap screw (2 pieces) for
fastening the handle
38 Handle (can be mounted in 2
different positions)
345 On/Off switch
Nibbler TruTool N 700
Fig. 9545

6 Description E211EN_03.DOC
2.1 Intended use
Warning
Risk of injury.
¾Only use the machine for the work and materials described
under "Intended use".
The TRUMPF Nibbler N 700 is a hand-held device powered by
compressed air used for the following applications:
•Slitting plate-shaped workpieces made of a punchable material
such as steel, aluminum, non-ferrous heavy metals and plastic.
•Slitting tubes and processing edged sheet profiles and press
brake bendings, e.g. for tanks, crash barriers, troughs, etc.
•Nibbling straight or curved exterior and interior cutouts.
•Nibbling along scribed lines or templates.
Note
The nibbling process produces cutting edges free of deformations.

E211EN_03.DOC Description 7
2.2 Technical data
Other countries USA
Value Value
Max. material thickness:
•Steel 400 N/mm².
•Steel 600 N/mm².
•Steel 800 N/mm².
•Aluminum 250 N/mm².
7.0 mm
5.0 mm
3.5 mm
10.0 mm
0.28 in / Ga
0.20 in / Ga
0.14 in / Ga
0.40 in / Ga
Working speed 1.4 m/min 4.6 ft/min
Smallest radius with curved cuts 135 mm 5.3 in
Sheet profile (90°): inner bend
radius
Min. 10 mm 0.4 in
Start hole diameter for die Min. 60 mm 2.4 in
Cutting track width 11 mm 0.433 in
Nominal power consumption 2900 W 2900 W
Stroke rate with nominal load 400/min 400/min
Weight 12.2 kg 26.9 lbs
Max. operating pressure
(flow pressure)
6 bar 87 psi
Air consumption at 6 bar 3.1 m³/min 110 cubic ft/min
Inside diameter of the
compressed air hose
18 mm 0.7 in (3/4")
Vibration Measured values in accordance
with EN 50144
Hand-arm vibration ≤2.5 m/s²
Values were measured while cutting sheet steel 400 N/mm² with
max. material thickness.
Noise emissions Measured values in accordance
with EN 50144
A-weighted sound pressure level LWA 86 dB
A-weighted sound power level at the
work station LPA
94 dB
The noise emission values given are the sum of the measured
values and the corresponding uncertainties. They represent an
upper limit of the possible measured values.
Table 1
Table 2
Table 3

8 Setting work E211EN_03.DOC
3. Setting work
3.1 Choosing a dieen
One of 3 types of dies can be selected for the machining process
according to material thickness, tensile strength and type of
workpiece.
Make sure that the clearance (X) is as small as possible so that the
machine is well clamped and does not hammer.
(see Fig. 16811, p. 9)

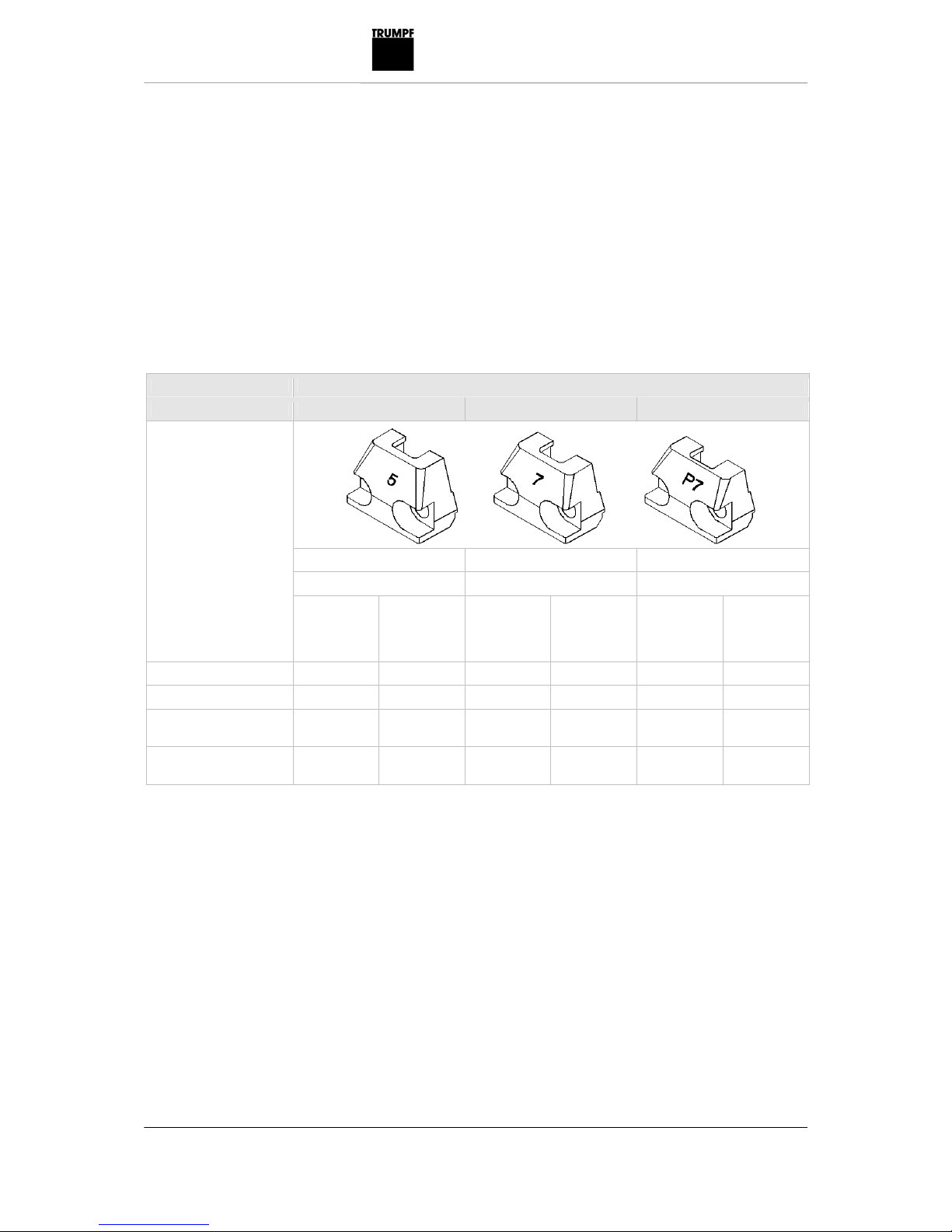

Material Type of die
5 7 P7
Order no. 0098723 Order no. 0098722 Order no. 0098721
Material thickness Material thickness Material thickness
Level
workpieces
Profiles with
press brake
bends of up
to 90°
Level
workpieces
Profiles with
press brake
bends of up
to 90°
Level
workpieces
Profiles with
press brake
bends of up
to 90°
Aluminum 250 N/mm 3-5 mm -3 mm > 5-7 mm > 3-5 mm 7-10 mm 5-7 mm
Mild steel 400 N/mm 3-5 mm -3 mm > 5-7 mm > 3-5 mm - 5-7 mm
Stainless steel
600 N/mm²
3-5 mm -3 mm - > 3-5 mm - -
Stainless steel
800 N/mm²
Max. 2.5 mm -2.5 mm - - - -
Table 4

E211EN_03.DOC Setting work 9
X
5
9
W
1
1 Die
5 Punch guide
9 Punch
W Workpiece

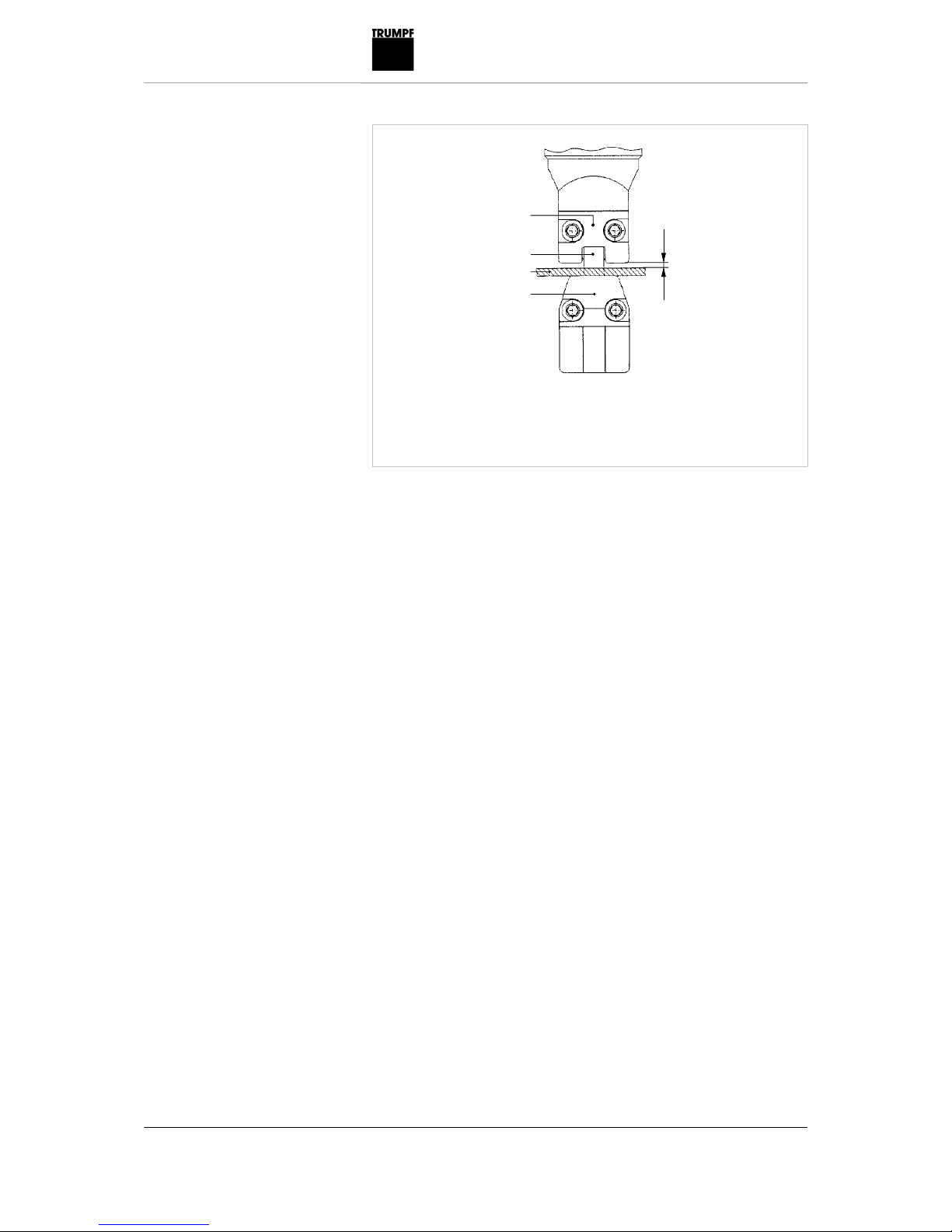

X Clearance between sheet surface
and punch guide
Die clearance for punch guide
Note
The clearance (x) between the sheet surface and the punch must
remain as small as possible.
Does severe back-and-forth movement (hammering) occur
during the cutting process?
This is caused by using an unsuitable die, and can result in
excessive tool wear and increase the load on the machine.
¾Use the die with the greatest available height.
Use the die with the greatest
available height
Fig. 16811

10 Setting work E211EN_03.DOC
3.2 Selecting a punch
There are 2 different punches for machining sheets with different
tensile strengths:
Components Punch
Standard High-tensile
Order no. 104589 104590
Aluminum 250 N/mm +
Mild steel 400 N/mm +
Stainless steel
600 N/mm²
+
Stainless steel
800 N/mm²
+
Table 5

E211EN_03.DOC Setting work 11

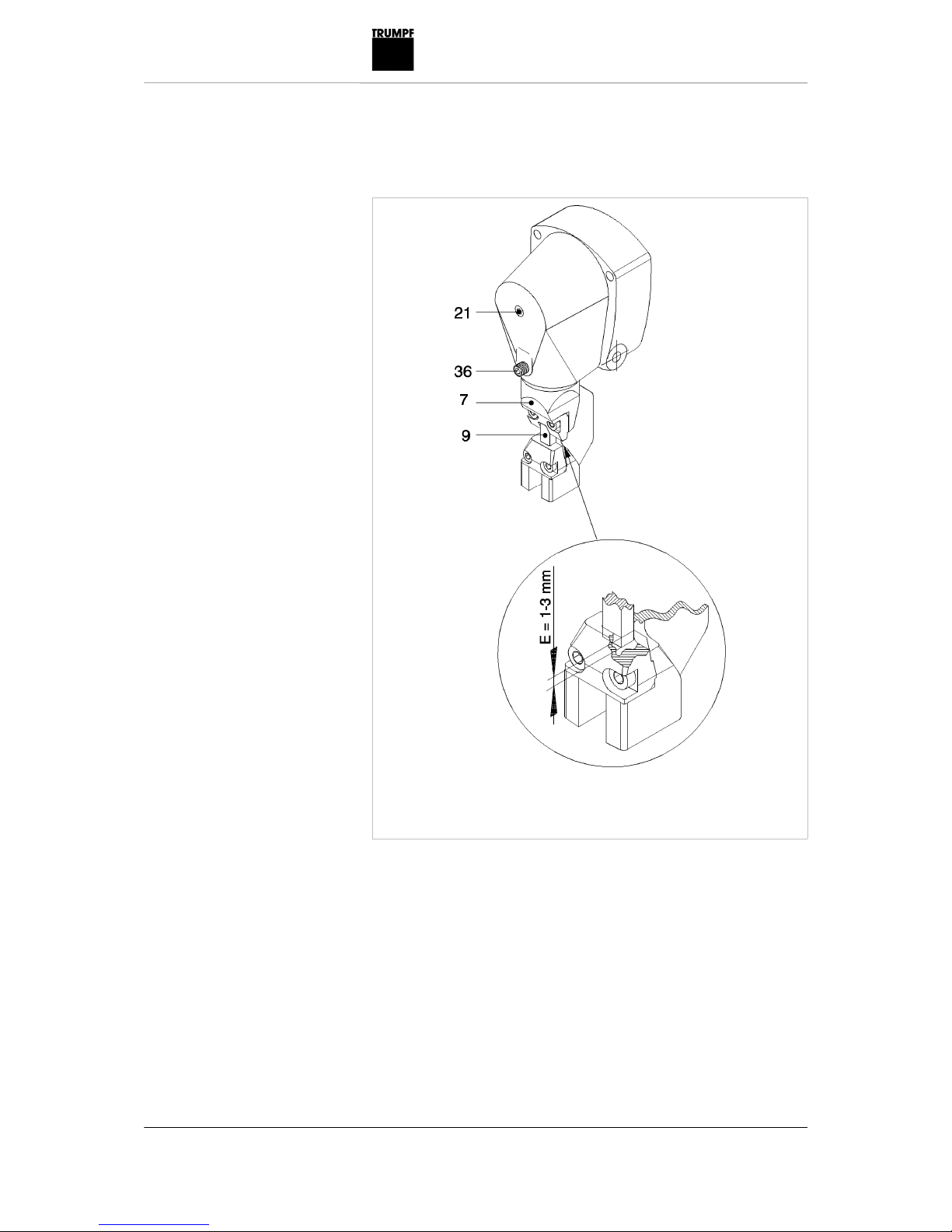

3.3 Checking penetration depth of the
punch
7 Die carrier
9 Punch
21 Eccentric shaft
36 Clamping screw
E Penetration depth
Penetration depth of the punch
The penetration depth of the punch into the die should be 1 to
3 mm.
1. Rotate the eccentric shaft (21) until the punch (9) has reached
its maximum penetration depth.
2. Loosen the clamping screw (36).
3. Rotate the die carrier (7) by 360° as often as needed until the
punch penetration depth of 1-3 mm has been achieved. One
rotation (360°) corresponds to a height adjustment of 1.75 mm.
4. Tighten clamping screw (36).
Fig. 9015

12 Operation E211EN_03.DOC
4. Operation
4.1 Working with TruTool N 700
Warning
Risk of injury due to improper handling.
¾Make sure the machine is always in a stable position when
operating it.
¾Never touch the tool while the machine is running.
¾Always operate the machine away from your body.
¾Do not operate the machine above your head.

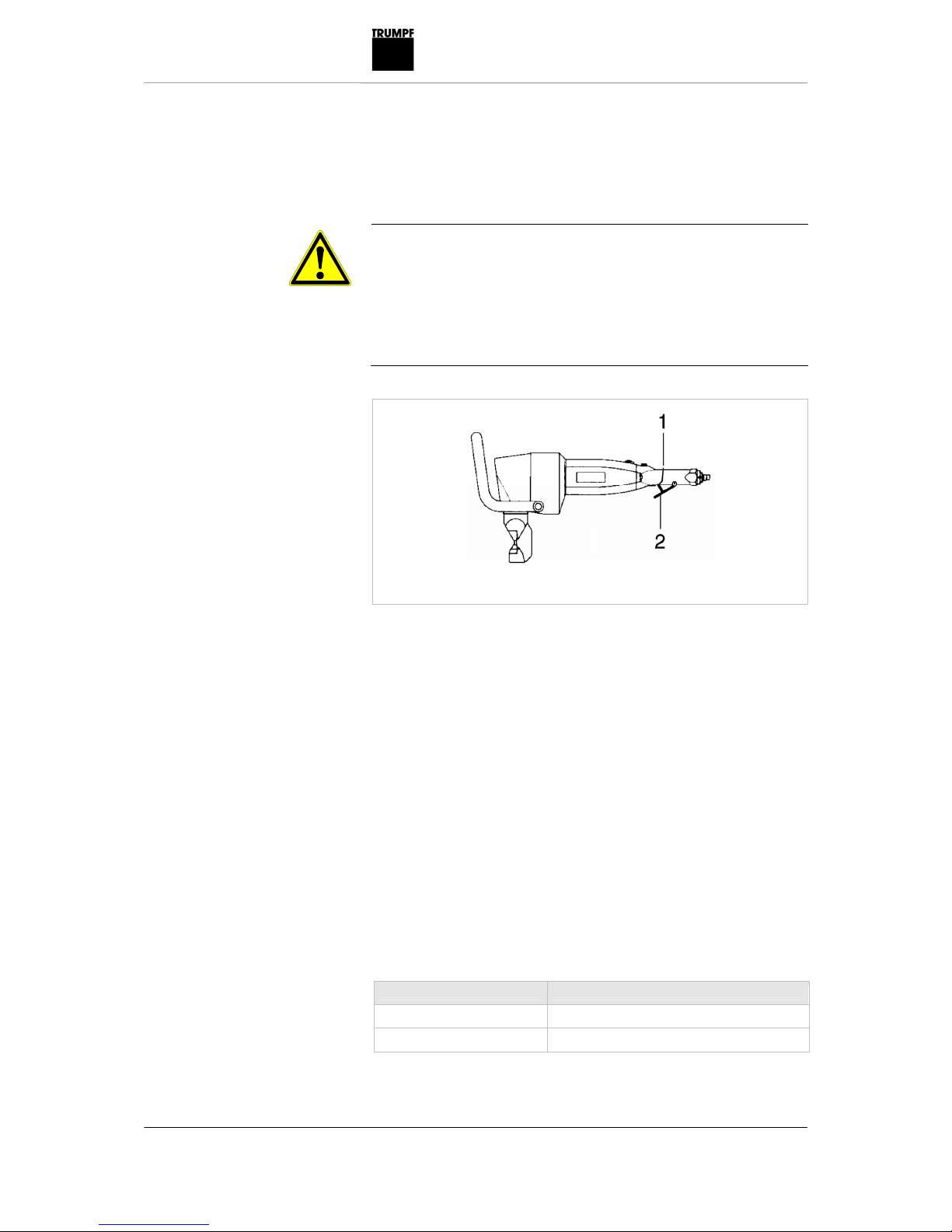

1 Bracket 2 Lever
1. Push the bracket (1) forwards.
2. Push the lever (2) against the motor housing.
1. Do not move the machine towards the workpiece until full
speed has been reached.
2. Machine the material.
–Machine the desired nibbling line
3. If the cutting track accidentally runs into the sheet, keep the
machine running and pull it a few millimeters back towards
where the cutting track has already been cut open.
4. Switch off the machine.
Note
The cutting result is improved and the service life of the punch
increased if the cutting track is coated with oil before machining the
workpiece.
Material Oil
Steel Punching and nibbling oil, order no.103387
Aluminum Wisura oil, order no.125874
Oil recommendations
Switching on the
TruTool N 700
Fig. 54641
Continuous operation
Working with TruTool N 700
Table 6

E211EN_03.DOC Operation 13
¾Release the lever (2).
The lever springs back to the initial position and the compressed
air is interrupted.
4.2 Changing the cutting direction
In situations where space is limited, the tool can be mounted so it
has a different cutting direction:
•Mount the tool at an angle of 90° to the right or to the left
(cutting profiles).
•Mount the tool at a 180° rotation (nibbling backwards).
1. Loosen clamping screw (36).
2. Turn the die carrier (7) in the desired direction.
3. Retighten the clamping screw (36).
4.3 Nibbling with templates
The following requirements must be met when nibbling with tem-
plates:
•The template must be at least 5 mm thick.
•There must be a clearance of 11 mm between the contour of
the template and the contour to be nibbled out.
•Guide the nibbler so that the exterior cutout of the punch guide
(5) rests against the template for the enitirety of the nibbling
process.
•Observe a minimum radius of 135 mm.
4.4 Making interior cutouts
Interior cutouts require a start hole at least 60 mm in diameter.
Switching off the
TruTool N 700

14 Maintenance E211EN_03.DOC
5. Maintenance
Warning
Risk of injury due to uncontrolled machine movements.
¾Remove the compressed air hose when changing tools and
before performing any maintenance work on the machine.
Warning
Risk of injury due to repair work not being carried out
properly.
Machine does not work properly.
¾Repair work may only be carried out by a qualified technician.
Caution
Damage to property caused by blunt tools.
Machine overload.
¾Check the cutting edge of the punch for wear every hour.
Sharp punches provide good cutting performance and are
easier on the machine. Replace punches promptly.
Maintenance point Procedure and interval Recommended lubricant Lubricant
order no.
Punch Change as needed. - -
Punch guide Lubricate upon tool change. Lubricating grease "G1" 0344969
Die Change as needed. - -
Wearing plate Change as needed. - -
Motor bearing Lubricate every 10 operating hours. Lubricating grease "G1" 0139440
Oil mist lubrication
device
Maintain daily in accordance with the
manufacturer's specifications (see
"Supplying with power and guaranteeing
lubrication", p. 18).
- -
Segments Have checked and replaced by a qualified
technician as needed.
- -
Filter Clean every 10 operating hours or if there
is a decline in power.
- -
Gearbox and gear head Have a qualified technician relubricate or
replace the lubricating grease every
300 operating hours.
Lubricating grease "G1" 0139440
Maintenance table
Table 7

E211EN_03.DOC Maintenance 15
5.1 Changing the tool
If the punch and/or die are blunt or the type of operation changes,
the tools must be reground or changed.
1 Die
4 Screws for fastening the die and
punch guide
5 Punch guide
6 Wearing plate
7 Die carrier
9 Punch
36 Clamping screw
F Lubricating grease "S1"
(order no. 121486)
Changing the tool
Changing the punch
1. Loosen clamping screw (36).
2. Rotate the die carrier (7) by 45°.
3. Pull the die carrier (7) out towards the bottom.
4. Remove the punch (9) by rotating it.
5. Lightly lubricate the square part of the punch and the die
carrier bore hole with lubricating grease "G1" (order no.
139440).
Fig. 9016

16 Maintenance E211EN_03.DOC
6. Insert the punch (9) by rotating it
7. Align the punch to 45°.
8. Install the die carrier (7).
9. Check the penetration depth of the punch.
Changing the die and the punch guide
1. To replace the die and the punch guide, unscrew the fixing
screws (4).
2. Clean the support areas on the die carrier (7).
3. Take care to ensure that the replacement parts are clean.
4. Lubricate the guide surfaces of the punch guide with lubricating
grease "G1" (order no. 139440).
5. Screw the fastening screws tightly when mounting the die and
the punch guide (tightening torque 16.5 Nm). Use original
screws only.
5.2 Regrinding tools
Punch
The punch can be reground by a total of approximately 10 mm
•Regrind the grinding surface in accordance with the above
sketch, making sure that it is well-cooled during the process.
Fig. 9432

E211EN_03.DOC Maintenance 17
•Lightly apply fine-grained oil stone to the cutting edge.
•Observe a minimum length of 89 mm Shorter punches must be
replaced (risk of collision).
Dies
Dies can not be resharpened.
5.3 Checking/replacing the wearing plate

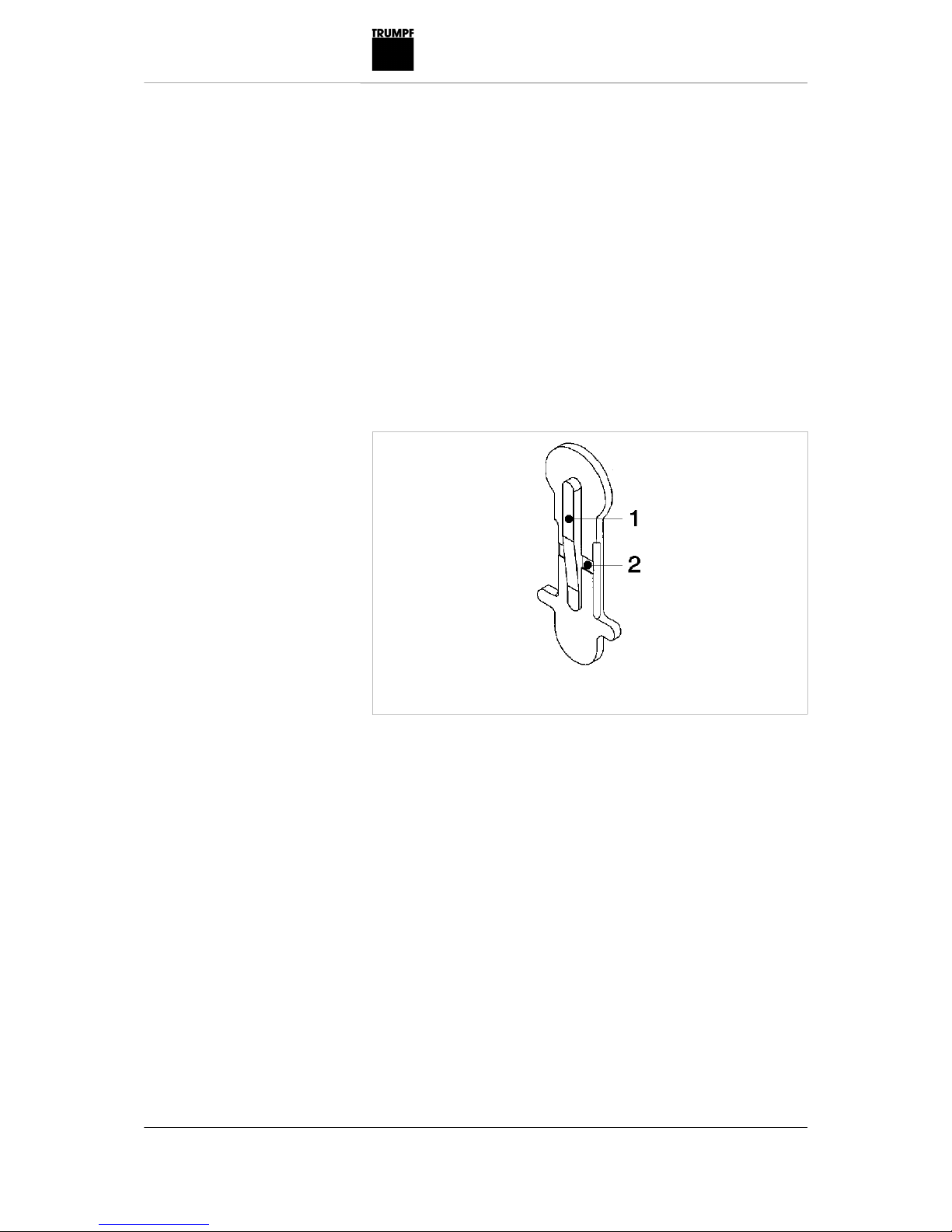

1 Elevation 2 Depression
Wearing plate
The wearing plate protects the die carrier against excessive wear
(order no. 0119173).
1. Replace the wearing plate when the elevation (1) is worn
down.
2. Replace the wearing plate when the depression (2) is no
longer visible.
Note
Excessive wear can overload the machine and lead to a deteriation
in cutting quality.
Fig. 9468

18 Maintenance E211EN_03.DOC
5.4 Supplying with power and
guaranteeing lubrication
Caution
Damage to property due to improper handling.
Failure of the compressed air motor.
¾Do not exceed the maximum operating pressure.
¾Lubricate the compressed air motor regularly. Alternatively,
install an oil mist lubrication device into the compressed air
line.
Prerequisite
•Pressure regulating valve and connecting thread must be
designed accordingly.

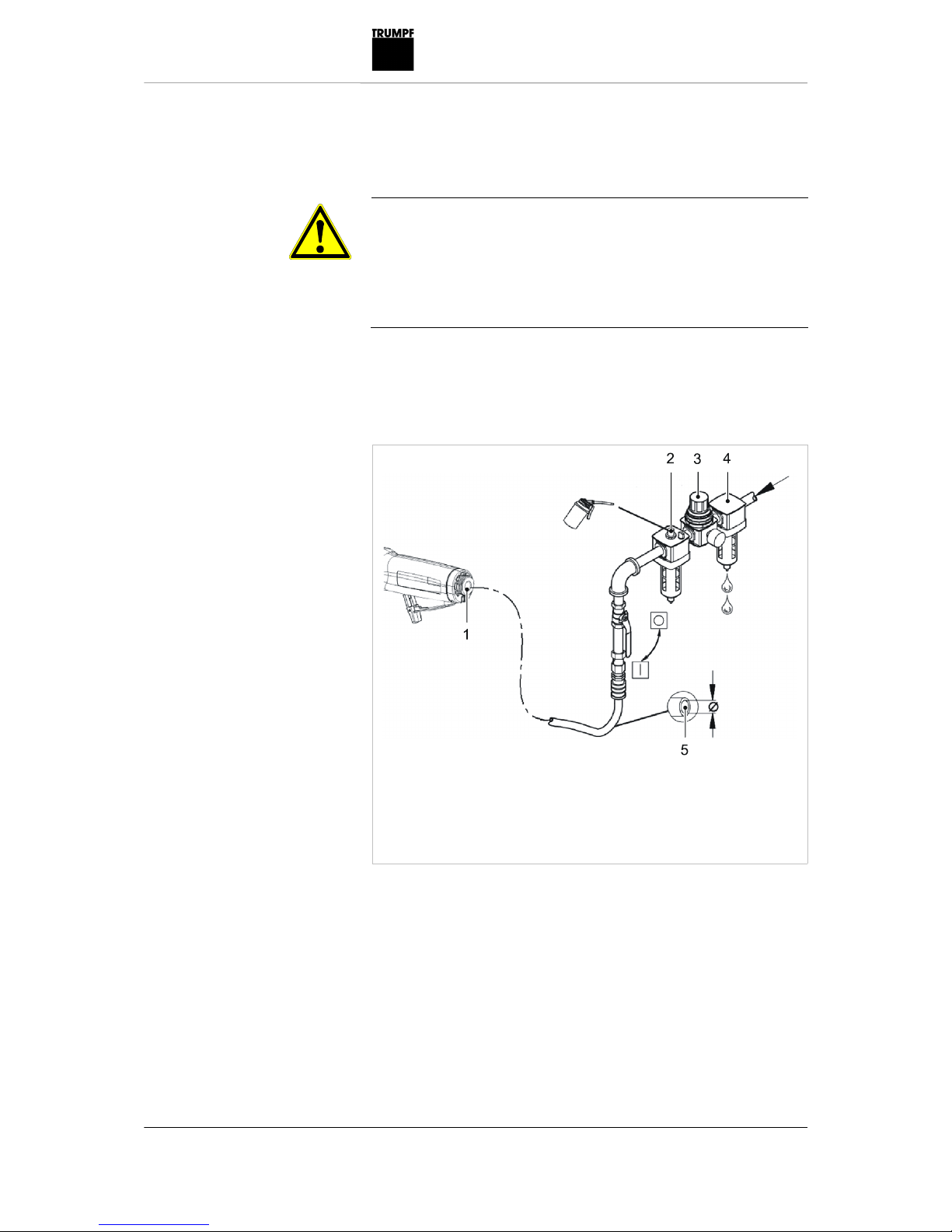

1 Connecting thread
2 Oil mist lubrication device
3 Pressure regulating valve
4 Filter and water separator
5 Inside diameter of the
compressed air hose min.
18 mm or 3/4"
Compressed air supply
1. Install the filter and water separator (4).
2. Drain/check the water separator daily.
Notes
•To ensure a supply of compressed air the tube cross-sections
in the entire line system must be twice to three times the size
of the inside diameter of the compressed air hose.
•Secure the compressed air hose against undesired move-
ments using a compressed air safety device.
Supplying compressed air
Fig. 52385

E211EN_03.DOC Maintenance 19
¾Hold a piece of paper in front of the exhaust air vent in the
motor housing while the machine is running.
The oil supply is sufficient when oil spots appear.
312 max. 15mm M358
355
313
314
312 Grease nipple for lubricating the
motor bearing
313 Oil filling nozzle screw plug
314 O-Ring (9.2 x 1.8) under the
screw plug
355 Filter
358 Quick-release coupling
M Machine middle axis
max. Maximum the oil level when
refilling oil (15 mm below the
filling nozzle when the middle
axis of the machine is horizontal)
There are two ways of lubricating the compressed-air motor:
1. For short operating times or if frequently changing the
operation site, use the internal oil chamber.
–Before start-up, always check whether the oil chamber is
filled to the top (see Fig. 10776, p. 19).
–Refill the oil via the screw plug opening (313) once every
operating hour.
Notes
The oil level in the machine must not exceed the maximum
height (max.).
If the oil level exceeds this height, oil will overflow from the
vent in the motor housing.
2. For long periods of use, install an oil mist lubrication device
in the compressed air line (e. g. Atlas Copco DIM 25).
Checking the oil supply
Lubricating the compressed-
air motor
Fig. 10776

20 Maintenance E211EN_03.DOC
¾Lubricate the speed limiter (324) and ball bearings with
lubricating grease during the regular maintenance of the
machine (see replacement parts list).
Note
Handle the speed limiter (324) especially carefully, as damage can
lead to excessive rotation speed.
¾Relubricate the ball bearings in the motor flange via the grease
nipple (312) every 10 operating hours using a grease gun (see
Fig. 10776, p. 19).
Recommended lubricant:
•BP Energol RD 80 (-15° to +10 °C/+5° to +50°F).
•BP Energol RD-E80 (+10° to +30 °C/+50° to +86°F).
•Shell Tellus Oil 15 (-15° to +10 °C/+5° to +50°F).
•Torculla 33 (+10° to +30 °C/+50° to +86°F).
5.5 Replacing fins
Worn fins decrease machine power.
¾Have the fin set checked and replaced as needed by a
qualified technician.
Note
Only use original replacement parts and observe the information
on the rating plate.
5.6 Cleaning the filter
In order to avoid reduction in speed and power:
¾Clean the filter (355) every 10 operating hours (see Fig. 10776,
p. 19).
Lubricating the speed limiter
and ball bearings
Lubricating the motor
bearings
