Superior VRT4536WS User manual

Installation and Operation Instructions
Unvented (Vent-Free) Universal Firebox
With Refractory Panels
P/N 126700-01 REV. B 01/2017
Models
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: Carefully review the instructions supplied with the decorative type unvented room heater for
the minimum fireplace size requirement.
DO NOT INSTALL THE APPLIANCE IN THIS FIREBOX, UNLESS THIS FIREBOX MEETS THE MINIMUM
DIMENSIONS REQUIRED FOR THE INSTALLATION.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
PFS
®
US
Report No. F09-130
VRT4536WS
VRT4536WH
VRT4542WS
VRT4542WH
VRT4550WS
VRT4550WH
P126700-01
WARNING: FOR USE ONLY WITH A LISTED, GAS-FIRED UNVENTED DECORATIVE ROOM HEATER NOT TO
EXCEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.

SuperiorFireplaces.US.com 126700-01B2
TABLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 4
Product Features................................................. 4
Locating Firebox.................................................. 4
Product Specifications......................................... 5
Air For Combustion and Ventilation..................... 8
Installation ......................................................... 10
Firebrick Wall Installation................................... 14
Gas Line Installation.......................................... 15
Replacement Parts............................................ 16
Service Tips....................................................... 16
Technical Service............................................... 16

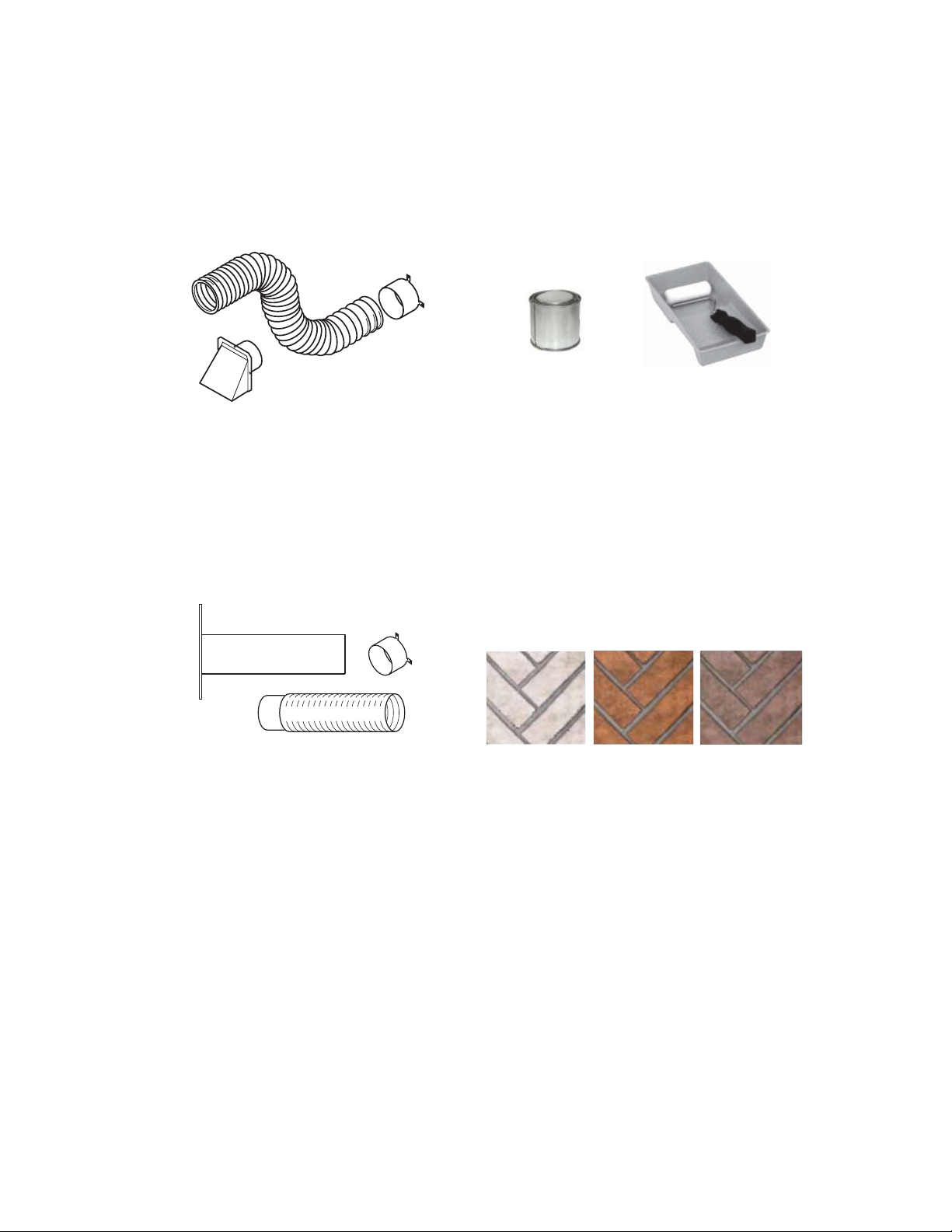

Accessories....................................................... 17
Parts.................................................................. 18
Warranty............................................................ 23
SAFETY
WARNING: Improper installation, adjustment, altera-
tion,serviceormaintenancecancauseinjuryorproperty
damage. Refer to this manual for correct installation and
operational procedures. For assistance or additional
information consult a qualified installer, service agency
or the gas supplier.
IMPORTANT: Read this owner’s
manualcarefullyandcompletely
before trying to assemble, op-
erate or service this fireplace.
Improper use of this fireplace
cancauseseriousinjuryordeath
from burns, fire, explosion,
electrical shock and carbon
monoxide poisoning.
DANGER:Carbonmonoxide
poisoning may lead to death!
WARNING:Donotallowfans
to blow directly into the firebox.
Avoidanydraftsthatalterburner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
This appliance may be installed
in an aftermarket,* permanently
located, manufactured (mobile)
home, where not prohibited by
local codes.
This firebox has been tested
underZ21.91b-2007forusewith
approvedANSIZ21.11.2decora-
tive type unvented room heater.
WARNING: Any change to
this heater or its controls can
be dangerous.”
WARNING: Do not use a
blower insert, heat exchanger
insertorotheraccessorynotap-
provedforusewith this firebox.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
Due to high temperatures, the
applianceshouldbelocatedout
oftrafficandawayfromfurniture
and draperies.
WARNING: If the information
in this manual is not followed
exactly, a fire or explosion may
result causingproperty damage,
personal injury or loss of live

SuperiorFireplaces.US.com
126700-01B 3
SAFETY
Continued
1. Do not use this firebox as a wood burning
fireplace. Use only decorative unvented
room heaters (log sets).
2. Donotaddextralogsorornamentssuchas
pinecones,vermiculiteorrockwool.Using
these added items can cause sooting.
3. Use only the provided hood. See Parts,
Page 18. The firebox canopy (hood)
must not be modified or replaced with a
canopy (hood) that may be provided with
the unvented decorative room heater.
4. Vent-freegaslogheatersinstalledinthese
fireboxes require fresh air ventilation to
run properly. See Air for Combustion and
Ventilation, Page 8.
5. Do not run vent-free heaters installed in
these fireboxes
• where flammable liquids or vapors are
used or stored
• under dusty conditions
6. Do not use this firebox to cook food or
burn paper or other objects.
7. Turn unit off and let cool before servicing.
Only a qualified service person should
service and repair firebox.
8. Operating vent-free heaters installed in
thesefireboxes above elevationsof4,500
feet could cause pilot outage.
9. Do not use the firebox if it has been
under water.
10. Beforeusingfurniture polish, wax, carpet
cleaner or similar products, turn heater
off.If heated, the vapors from these prod-
ucts may create a white powder residue
within burner box or on adjacent walls
and furniture.
11. Provide adequate clearances around air
openings.
Do not place clothing or other
flammable material on or near
the appliance. Never place any
objectsinthefireboxoronlogs.
Keepthefireplaceareaclearand
freefromcombustiblematerials,
gasoline, and other flammable
vapors and liquids.
Children and adults should be
alerted to the hazard of high
surfacetemperatureandshould
stay away to avoid burns or
clothing ignition.
Firebox front and screen be-
comes very hot when running
firebox.Keepchildrenandadults
awayfromhotsurfacestoavoid
burns or clothing ignition. Fire-
box will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.
You must operate this fireplace
with the provided fireplace
screen and hood in place. Make
sure these parts are in place
and screens are closed before
runninginstalledgaslogheater.
ReplacehoodwithINNOVATIVE
HEARTH PRODUCTS cat. no.
J4350 - 50", cat. no. J4351 - 42",
or cat. no. J4352 - 36" only. This
hoodhasbeendesignedtokeep
the operation of your fireplace
safe and efficient.
Young children should be care-
fully supervised when they are
in the same room with the ap-
pliance.

SuperiorFireplaces.US.com 126700-01B4

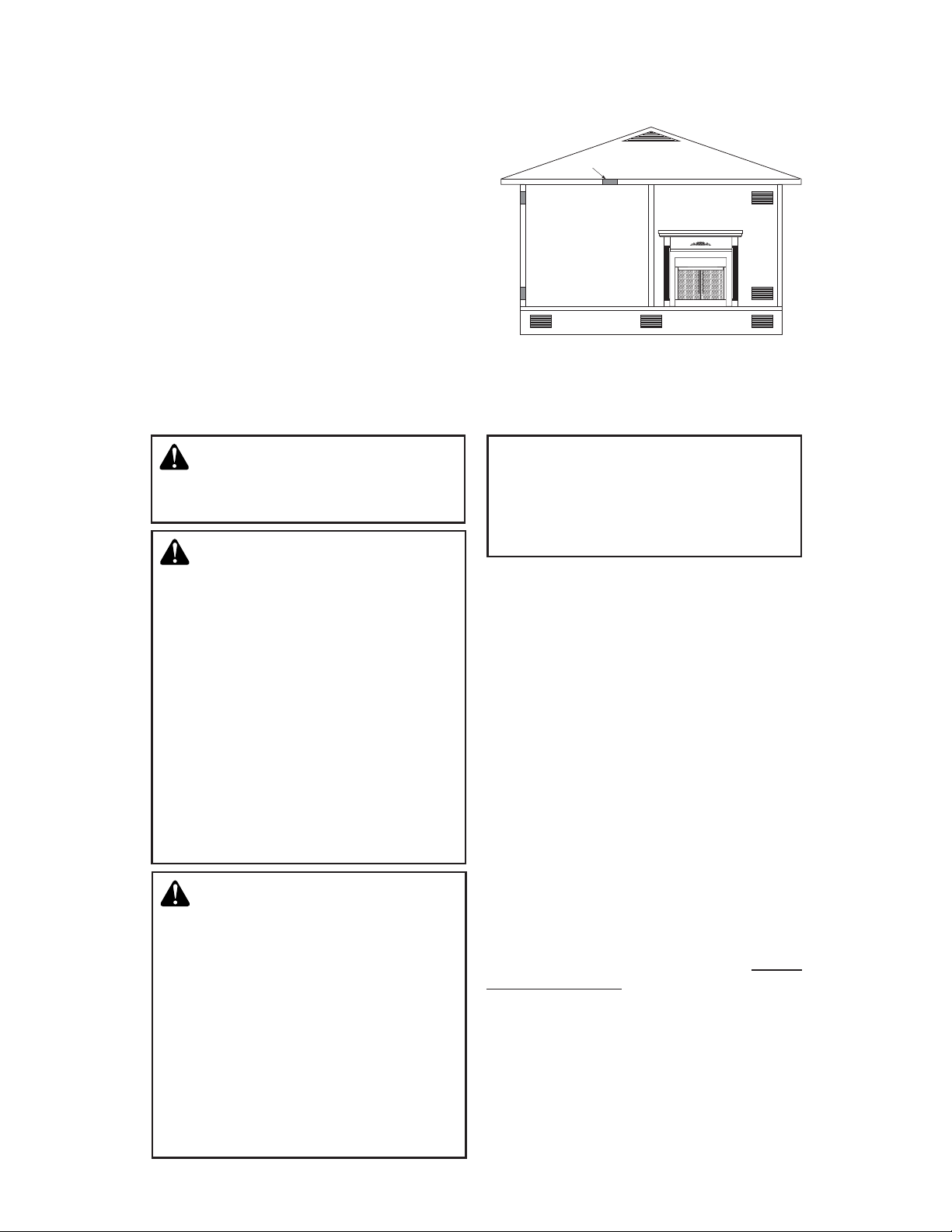

PRODUCT FEATURES
OPERATION
Thisfirebox isdesignedforuse withapproved
ANSIZ21.11.2decorativetypeunventedroom
heaters.(Physical sizelimitationsapply. Refer
to minimum firebox requirements supplied
with log heater.) It requires no outside vent-
ing or chimney making installation easy and
inexpensive.
LOCAL CODES
LOCATING FIREBOX
PLANNING
Planwhere you willinstallthe firebox.This will
save time and money later when you install
the firebox. Before installation, consider the
following:
1. Where firebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, Page 11).
2. Everything needed to complete installation.
3. These models CANNOT be installed in
a bedroom unless maximum Btu rating
of installed vent-free log set is less than
10,000 Btu/hr.
4. Proper air for combustion and ventilation
(Page 8).
Install and use firebox with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code ANSI Z223.1/NFPA 54*; National
Fuel Gas Code (latest edition). Firebox must
be electrically grounded in accordance with
the National Electrical Code, ANSI/NFPA 70
(latest edition).
*Available from:
American National Standards Institute, Inc.
25 West 43rd Street, 4th floor
New York, NY 10036
National Fire Protection Association, Inc.
1 Batterymarch Park
Quincy, MA 02169-7471
COMMONWEALTH OF MASSACHU-
SETTS REQUIREMENTS
Theseappliances areapprovedfor installa-
tion in the US state of Massachusetts if the
following additional requirements are met:
• Un-vented Room Heaters shall be in-
stalled in accordance with 527 CMR 30.
• Installation and repair must be done by
a plumber or gas fitter licensed in the
Commonwealth of Massachusetts.
• Theflexiblegas line connectorusedshall
not exceed 36 inches (92 centimeters)
in length.
• The individual manual shut-off must be
a T-handle type valve.
• Unvented appliances may NOT be in-
stalled in bedrooms or bathrooms.
• A working smoke detector must be
installed in the area where vent-free ap-
pliances are installed.
Seller of unvented propane or natural
gas-fired supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.

SuperiorFireplaces.US.com
126700-01B 5
PRODUCT SPECIFICATIONS
36" MODELS

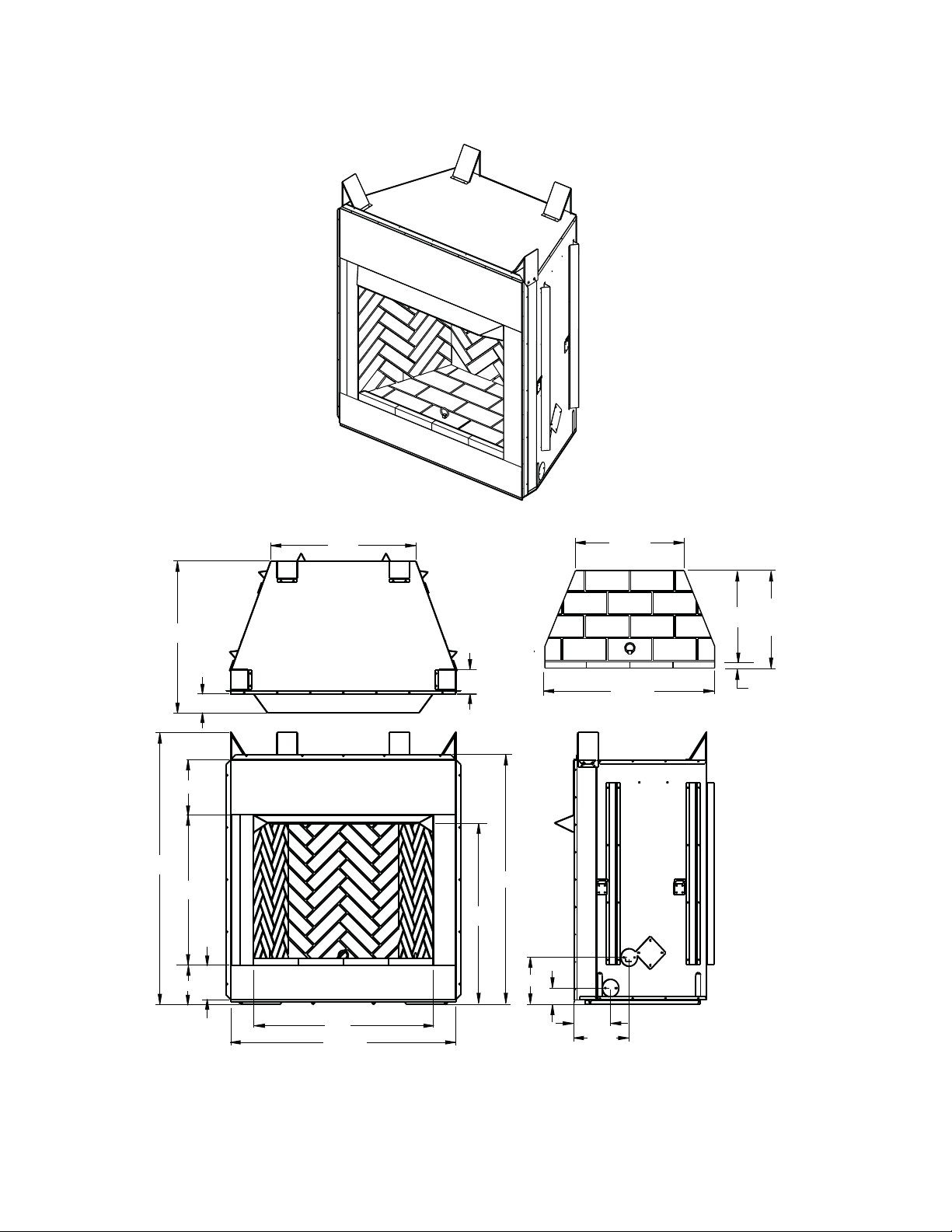

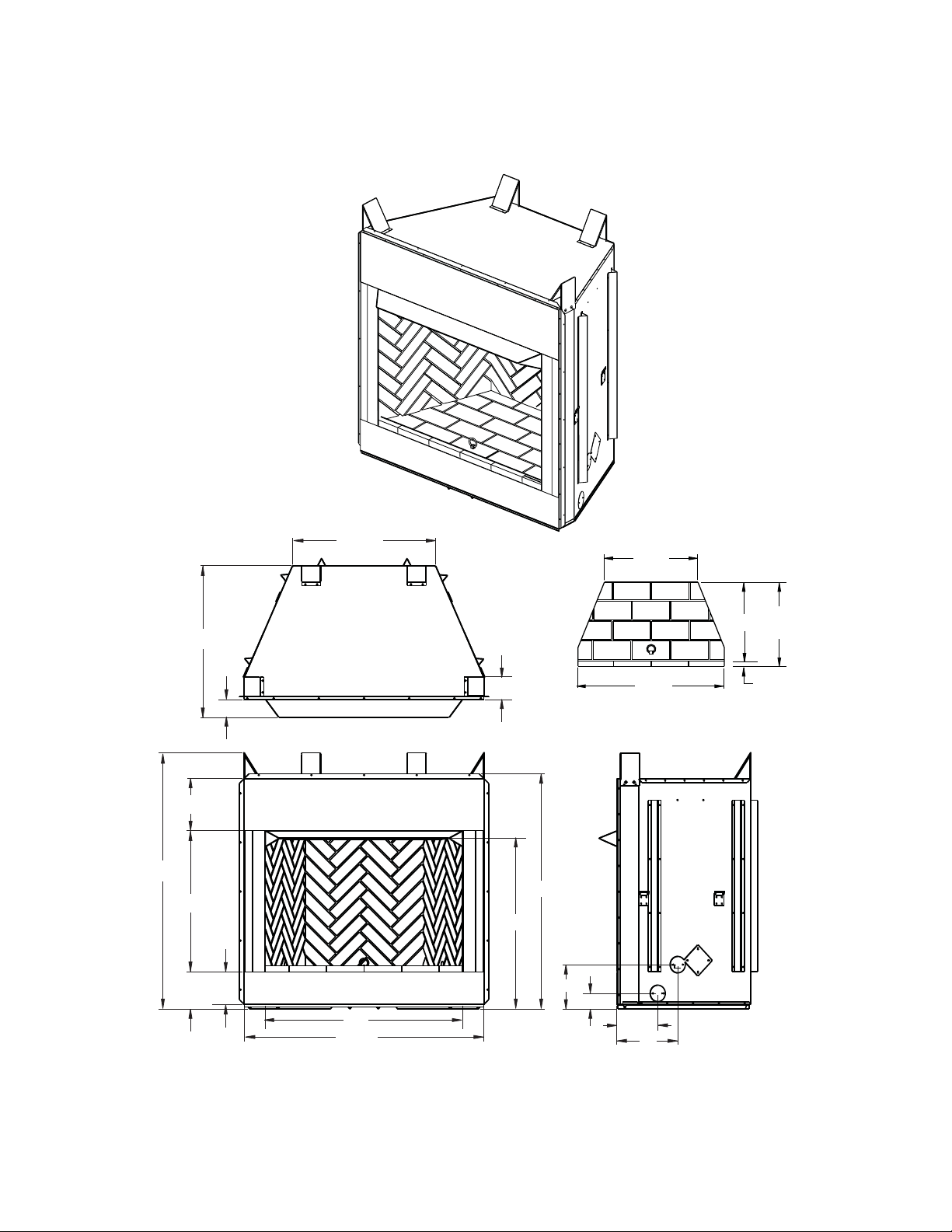

Figure 1 - 36" Models VRT4536WS and VRT4536WH
(Picture may vary from actual fireplace)
30 1/2"
29"
30"
11 1/8"
54 1/2"
7 7/8"7"
36"
45 1/8"
33/8"
91/2"
50"
363/8"
7 3/8"
111/8"
3 3/4"
4 7/8"
36" HEARTH
1 1/4"
20 1/4"
(Ref.)
35 1/4"
19"
22 1/2"

SuperiorFireplaces.US.com 126700-01B6
PRODUCT SPECIFICATIONS
Continued
42" MODELS

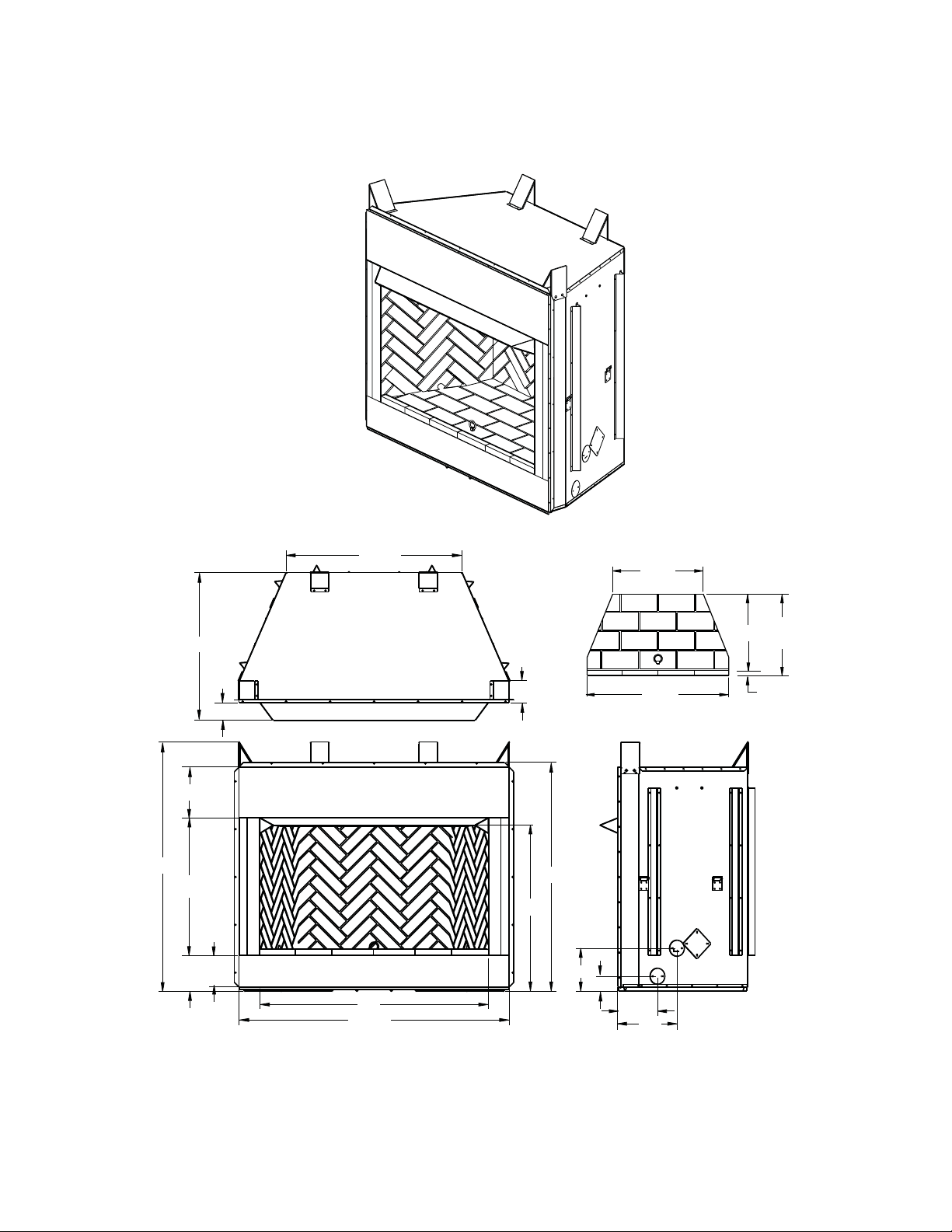

Figure 2 - 42" Models VRT4542WS and VRT4542WH
(Picture may vary from actual fireplace)
4 7/8"
54 1/2"
7 7/8"7"
36 3/8"
50"
42"
51 1/8"
32 3/8"
3 3/4"
30 3/8"
8 3/4"
13"
3 3/8"
9 1/2"
30"
11 1 /8"
42" HEARTH
1 1/4"
23"
(Ref.)
41 3/8"
26 3/8"
21 3/4"

SuperiorFireplaces.US.com
126700-01B 7
PRODUCT SPECIFICATIONS
Continued
50" MODELS
Figure 3 - 50" Models VRT4550WS and VRT4550WH
(Picture may vary from actual fireplace)
363/8"
50"
8 3/4"
13"
33/8"
91/2"
59 1/8"
50"
7 7/8"7"
30"
54 1/2"
11 1/8"
32 3/8"
3 3/4"
38 3/8"
4 7/8"
50" HEARTH
1 1/4"
23"
(Ref.)
49 3/8"
34 3/8"
21 3/4"

SuperiorFireplaces.US.com 126700-01B8
AIR FOR COMBUSTION AND VENTILATION
Unusually tight construction is defined as
construction where:
a. walls and ceilings exposed to the outside
atmosphere have a continuous water
vapor retarder with a rating of one perm
(6 x 10
-11
kg per pa-sec-m
2
) or less with
openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to areas
such as joints around window and door
frames, between sole plates and floors,
between wall-ceiling joints, between
wall panels, at penetrations for plumb-
ing, electrical and gas lines and at other
openings.
If your home meets all of the three criteria
above, you must provide additional fresh air.
See Ventilation Air From Outdoors, Page 10.
If your home does not meet all of the three
criteriaabove, proceedto Determining Fresh-
Air Flow For Firebox Location.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA54 allows two methods for determining
whether the space in which the heater is being
installed is confined or unconfined space. The
standard method defines a confined space as a
space whose volume is less than 50 cubic feet
per1,000Btu per hour (4.8m
3
perkw) of the ag-
gregate input rating of all appliances installed in
that space and an unconfined space as a space
whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m
3
per kw) of the ag-
gregate input rating of all appliances installed in
that space. Rooms communicating directly with
thespace in which theappliancesare installed*,
through openings not furnished with doors, are
considered a part of the unconfined space.
Where the air infiltration rate of a structure is
known, the Known Air Infiltration Rate Method
may be used. Follow The National Fuel Gas
Code, ANSI Z223.1/NFPA 54 to use this
method to determine if the space is confined
or unconfined.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space Using the Standard
Method
Today’s homes are built more energy efficient
than ever. New materials, increased insulation
andnewconstruction methods helpreduceheat
lossinhomes. Homeowners apply weather strip
and caulk around windows and doors to keep
thecoldairout and the warm air in. During heat-
ing months, homeowners want their homes as
airtight as possible.
While it is good to make your home energy
efficient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, some fireplaces, clothes dryers
and some fuel-burning appliances draw air from
thehousetooperate.Youmustprovideadequate
fresh air for these appliances. This will ensure
properventingofventedfuel-burningappliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel
Gas Code,ANSI Z223.1/NFPA 54,Air for Com-
bustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on Pages 8 through 10 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
mayprovideenoughfresh airfor combustionand
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.
WARNING:Thisheatershallnot
beinstalledinaroomorspaceun-
lesstherequiredvolumeofindoor
combustion air is provided by the
method described in the National
FuelGas Code,ANSIZ223.1/NFPA
54, the International Fuel Gas
Code, or applicable local codes.
Read the following instructions
to ensure proper fresh air for this
and otherfuel-burning appliances
in your home.

SuperiorFireplaces.US.com
126700-01B 9
AIR FOR COMBUSTION AND VENTILATION
Continued

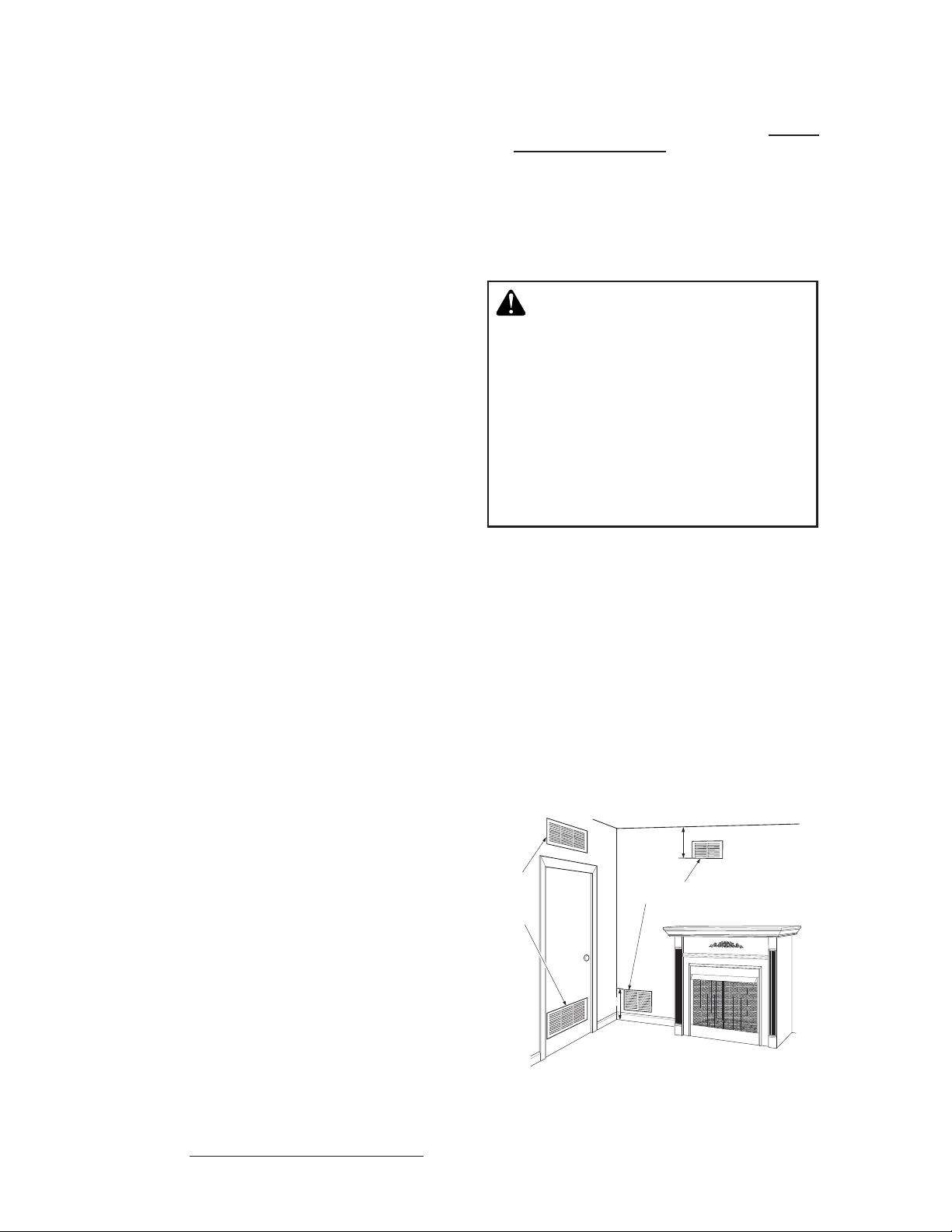

Figure 4 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
Use this work sheet to determine if you have a
confined or unconfined space.
Space:Includes theroom inwhich youwill install
heater plus any adjoining rooms with doorless
passageways or ventilation grills between the
rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example :Space size 22 ft. (length) x 18 ft.
(width) x 8 ft. (ceiling height) = 3,168 cu. ft.
(volume of space)
Ifadditionalventilation to adjoiningroomissup-
plied with grills or openings, add the volume of
these rooms to the total volume of the space.
2. Multiplythespacevolumeby20todeterminethe
maximum Btu/Hr the space can support.
________ (volumeofspace)x20=(Maximum
Btu/Hr the space can support)
Example :3,168 cu. ft. (volume of space) x 20 =
63,360 (maximum Btu/Hr space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free fireplace _________Btu/Hr
Gas water heater* _________Btu/Hr
Gas furnace _________Btu/Hr
Vented gas heater _________Btu/Hr
Gas fireplace logs _________Btu/Hr
Other gas appliances*+ _________ Btu/Hr
Total = _________Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater _________Btu/Hr
Vent-free fireplace + _________Btu/Hr
Total = _________Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
_______ Btu/Hr (maximum the space can
support)
_______ Btu/Hr (actual amount of Btu/Hr
used)
Example :63,360Btu/Hr (maximumthe space
can support)
79,000Btu/Hr(actualamountofBtu/
Hr used)
The space in the example is a confined space
because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support. You must
provide additional fresh air. Your options are as
follows:
A. Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconfined space, remove door to adjoining
room or add ventilation grills between rooms.
See Ventilation Air From Inside Building.
B. Vent roomdirectly tothe outdoors. SeeVentila-
tion Air From Outdoors, Page 10.
C. Install a lower Btu/Hr fireplace, if lower Btu/Hr
size makes room unconfined.
If the actual Btu/Hr used is less than the maxi-
mumBtu/Hrthe space can support, the spaceis
anunconfinedspace.Youwillneed noadditional
fresh air ventilation.
40,000
39,000
79,000
WARNING:Iftheareainwhich
the heater may be operated does
not meet the required volume for
indoor combustion air, combus-
tion and ventilation air shall be
provided by one of the methods
describedintheNationalFuelGas
Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code, or
applicable local codes.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must provide
two permanent openings: one within 12" of the
ceilingandone within 12" of the floor onthewall
connecting the two spaces (see options 1 and
2, Figure 4). You can also remove door into ad-
joining room (see option 3, Figure 4). Follow the
NationalFuelGasCode, ANSIZ223.1/NFPA 54,
Air for Combustion and Ventilation for required
size of ventilation grills or ducts.

SuperiorFireplaces.US.com 126700-01B10
Figure 5 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
andonewithin12"ofthe floor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT:Do not provide openings
for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
INSTALLATION
AIR FOR COMBUSTION AND VENTILATION
Continued
WARNING: Never install
firebox
• in a bedroom or bathroom*
• in a recreational vehicle
• where curtains, furniture,
clothing,orotherflammable
objects are less than 36"
fromfront or 42" from top of
firebox; for side clearances
see Figure 4, Page 11
• in high traffic areas
• in windy or drafty areas
* Unless installed log set is
rated at 10,000 Btu/Hr or less.
WARNING: A qualified ser-
vicepersonmustinstallfirebox.
Follow all local codes.
CAUTION: Log heaters in-
stalled in this firebox create
warmaircurrents.Thesecurrents
move heat to wall surfaces next
to firebox. Installing firebox next
tovinylorclothwallcoveringsor
operating firebox where impuri-
ties(suchas,butnotlimitedto,to-
bacco smoke, aromatic candles,
cleaning fluids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls or cause odors.
IMPORTANT: Vent-free gas log heaters add
moisture to the air.Although this is beneficial,
installing firebox in rooms without enough
ventilationairmaycausemildewtoform from
too much moisture. See, Page 8.
IMPORTANT:Make sure the firebox is level.
If firebox is not level, log set will not work
properly.
NOTE: Your firebox is designed to be used in
zero clearance installations. Wall or framing
material can be placed against any exterior
surface on the rear, sides, top or bottom of
your firebox, except where standoff spacers
areintegrally attached. Ifstandoffspacers are
attached to your firebox, these spacers can
beplaceddirectlyagainstwallorframing ma-
terials. Use the dimensions shown for rough
opening to create the easiest installation.

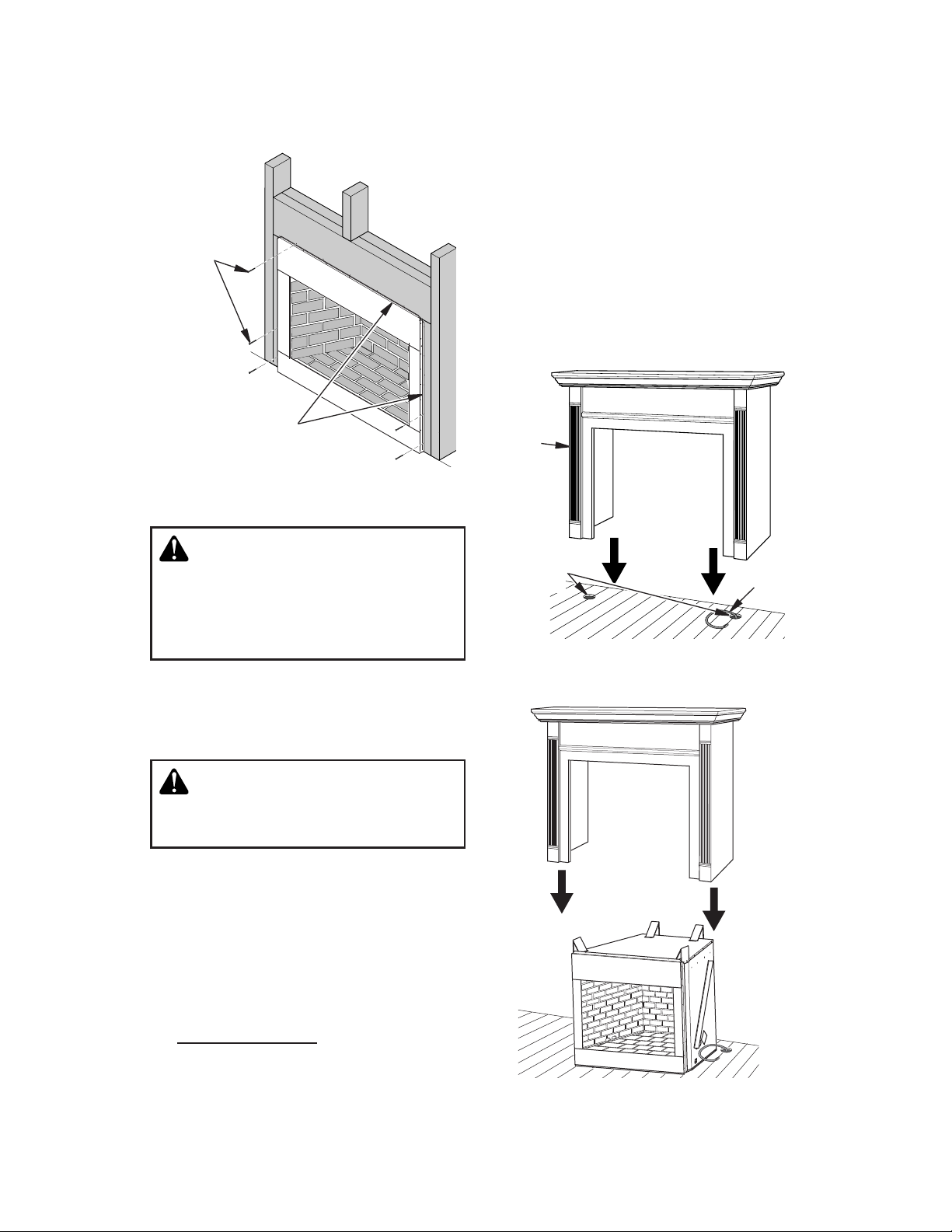

Use dimensions shown for rough openings
to create the easiest installation (see Built-In
Firebox Installation, Page 12).
NOTICE: The firebox identifica-
tionlabel(includingmodelnum-
ber, serial number, clearances,
etc.) is located on a chain under
the bottom refractory.

SuperiorFireplaces.US.com
126700-01B 11
INSTALLATION
Continued

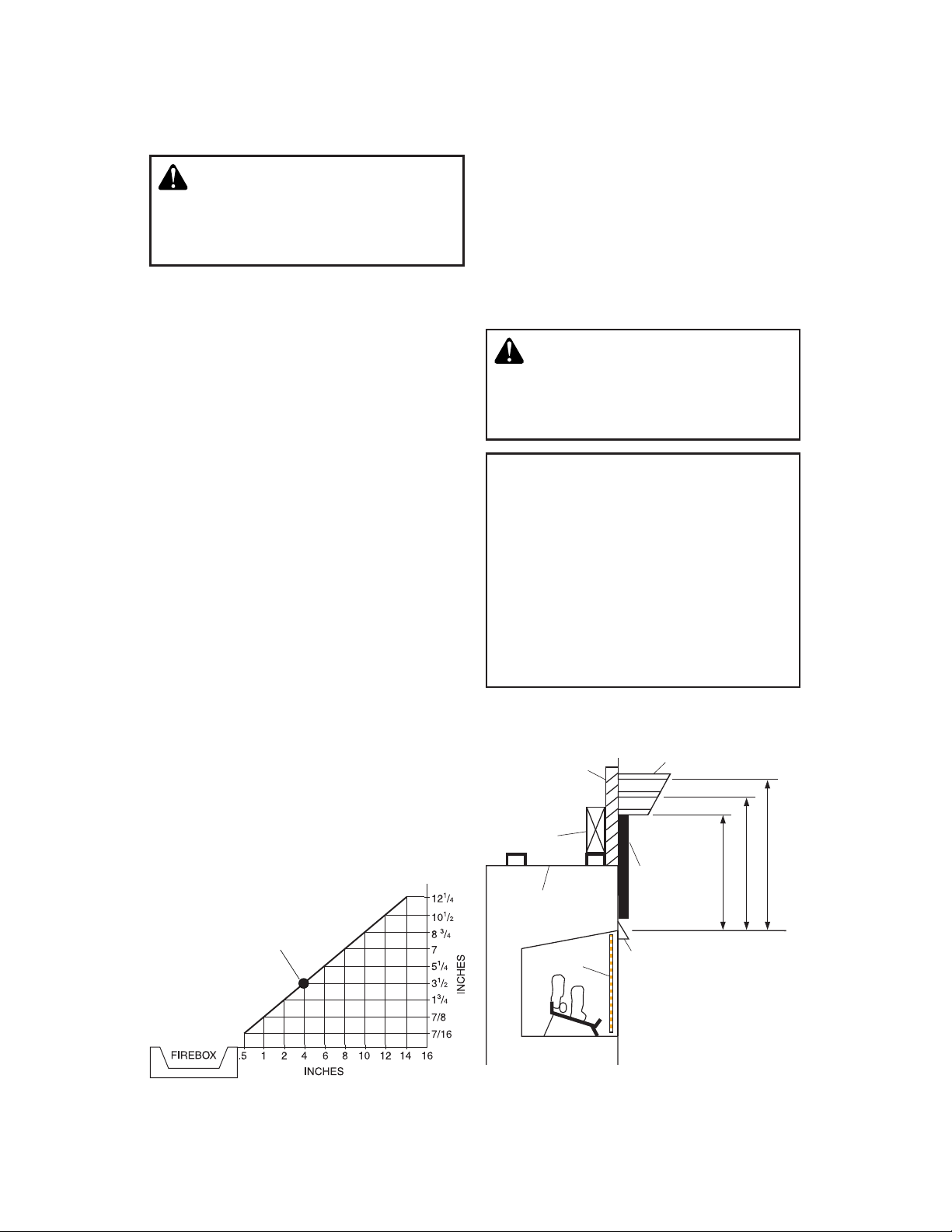

Figure 7 - Minimum Mantel Clearances
for Built-In Installation
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Noncombustible
Material May
Project Off this
Surface above
the Firebox Hood
Mantel Shelf
Note: Any portion of the
mantel shelf must NOT
extend beyond this profile.
12" 16" 20"
1
1
/ 2 "
6
3
/ 4 "
12"
Note: All vertical
measurements are
from top of fireplace
hood opening to
bottom of mantel shelf.
These minimum
clearances replace any
other recommended
clearances supplied
with your ANSI Z21.11.2
approved gas logs.
Wall board or facing
material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments or
other similar projec-
tions off of the facing
material.
Framing
Material
Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Example
*
WARNING: Maintain the
minimum clearances.If you can,
provide greater clearances from
floor, ceiling and adjoining wall.
INSTALLATION CLEARANCES
Carefully follow the instructions below. This
will ensure safe installation.
Minimum Wall and Ceiling Clearances
(see Figure 6)
A. Clearances from the side of the fireplace
cabinet to any combustible material and
wall should follow diagram in Figure 6.
Example:Thefaceofamantel,bookshelf,
etc. is made of combustible material and
protrudes 3-1/2" from the wall. This com-
bustiblematerialmustbe4"fromthe side
of the fireplace cabinet (see Figure 4).
B. Clearances from the top of the firebox
opening to the ceiling should not be less
than 42".
C. Whenfireboxis installed oncarpeting,tile
(vinyl)or othercombustiblematerial, other
than wood flooring, the firebox should
be installed on a metal or wood panel
extending the full width and depth of the
enclosure.
D. Clearances from the bottom of firebox to
the floor is 0".
These fireboxes can be installed as free-
standing units against a wall with approved
cabinet mantels that may be available from
your retailer or supplier, or as a built-in unit.
Theclearancesarethe same for either instal-
lation method.
CAUTION: Do not allow the
vent-free gas log appliance to
touch or extend beyond the
firebox screen.
NOTICE: Surface temperatures
ofadjacentwallsandmantelsbe-
comehotduringoperation.Walls
and mantels above the firebox
may become hot to the touch.
If installed properly, these tem-
peratures meet the requirement
ofthenationalproductstandard.
Follow all minimum clearances
shown in this manual.
Mantel Clearances for Built-In
Installation
If placing custom mantel above built-in fire-
box, you must meet the minimum allowable
clearance between mantel shelf and top of
firebox opening shown in Figure 7. These
arethe minimumallowablemantel clearances
for a safe installation. Use larger clearances
wherever possible to minimize the heating of
objects and materials placed on the mantel.

SuperiorFireplaces.US.com 126700-01B12
Figure 8 - Framing Dimensions
71" (50" Models)
100" (50" Models)
65" (42" Models)
92" (42" Models)
86.5" (36" Models)
61" (36" Models)
Maintain 1 1/2"
Clearance at Sides
and Back of Fireplace
1 1/2" Clearance
Not Required at
Nailing Flanges
Figure 9 - Corner Installation
30.125"
59.375" (50" Models)
54.625"
51.375" (42" Models)
45.375" (36" Models)
28.250"
(36" Models)
INSTALLATION
Continued
NOTICE:Ifyourinstallationdoes
not meet the minimum clear-
ances shown, you must do one
of the following:
• raise the mantel to an ac-
ceptable height
• remove the mantel
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this firebox involves
installing firebox into a framed-in enclosure.
Thismakesthefront of firebox flush with wall.
If installing a mantel above the firebox, you
must follow the clearances shown in Figure
7, Page 11. Follow these instructionstoinstall
the firebox in this manner.
1. Frame in rough opening. The firebox
framing should be constructed of 2 x 4
lumber or heavier. Use dimensions and
rough opening layout in Figure 8. Adjust
framingsothatfireboxflusheswithfinished
wall surface. If installing in a corner, use
dimensionsinFigure9,for roughopening.
2. Install gas piping to firebox location. See
GasLineInstallationonPage16 andCon-
necting to Gas Supply in log set owner’s
manual.
WARNING: Do not allow any
combustiblematerialstooverlap
the firebox front facing.
WARNING:Donotallownon-
combustible materials to cover
any necessary openings.
WARNING: Do not fill the
spaces around the firebox with
insulation or other materials.
WARNING: Do not alter, cut
or modify fireplace spacers.
WARNING: Framing may be
placed or rest against fireplace
spacer, however; framing must
never be notched.
3. Carefully set firebox in front of rough
opening with back of firebox inside wall
opening.
4. Carefully insert firebox into rough opening.
5. Attach firebox to wall studs using nails
or wood screws through holes in nailing
flange (see Figure 10).
6. Install and properly test gas log heater.
Follow installation instructions included
with the vent-free gas log heater that is
being installed.
IMPORTANT:When finishing your firebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc.may bebutted upnext tothesidesandtop
of the firebox. Combustible materials should
never overlap the firebox front facing.
IMPORTANT:Noncombustible materials
such as brick, tile, etc. may overlap the front
facing,butshould never cover any necessary
openings.

SuperiorFireplaces.US.com
126700-01B 13
Figure 10 - Attaching Firebox to Wall
Studs
Nailing
Flanges
Nails or
Wood
Screws
Figure 12 - Inserting Firebox Into Cabinet
Mantel (Mantel May Vary From Illustration)
Figure 11 - Installing Cabinet Mantel
(Mantel May Vary From Illustration)
Cabinet
Mantel
Gas
Piping
Gas Line
Access Hole
(Either Side
of Firebox)
INSTALLATION
Continued
WARNING: Use only non-
combustible mortar or adhe-
siveswhenoverlappingthefront
facing with noncombustible
facing material.
WARNING: A qualified ser-
vicepersonmustinstallfirebox.
Follow all local codes.
INSTALLING FIREBOX USING
OPTIONAL CUSTOM BUILT
MANTELS
This firebox may be installed using a cabinet
mantel against a wall in your home. The
firebox and cabinet mantel can be installed
directly on the floor. Mantels may be avail-
able from your retailer or custom built for
your home.
1. Assemble cabinet mantel as instructed.
2. Install gas piping to firebox location. See
GasLine Installationon Page 16.Youmay
have to cut an access hole in the floor or
wallto rungaslinetofirebox.Makesure to
locate access hole so cabinet mantel will
cover it when installed (see Figure 11).
3. Place firebox on floor in desired location.
Make sure mantel will be flush against
wall when installed.
4. Carefully slide cabinet mantel over fire-
box. Be careful not to scratch firebox,
cabinetmantel, flooring,etc., when install-
ing (see Figure 12).
5. Install and properly test gas log heater.
Follow installation instructions included
with the vent-free gas log heater that is
being installed.

SuperiorFireplaces.US.com 126700-01B14
REFRACTORY PANEL INSTALLATION
1. Remove screen assemblies and all hard-
ware components out of the firebox. The
bottompanelis preinstalled in the firebox.
Makesurethe bottom refractory panels is
centered in the firebox and flush with the
front of the fireplace.
2. Place cardboard on top of bottom refrac-
torypanelasaprotection to prevent ship-
ping and scratching during installation of
the other panels.

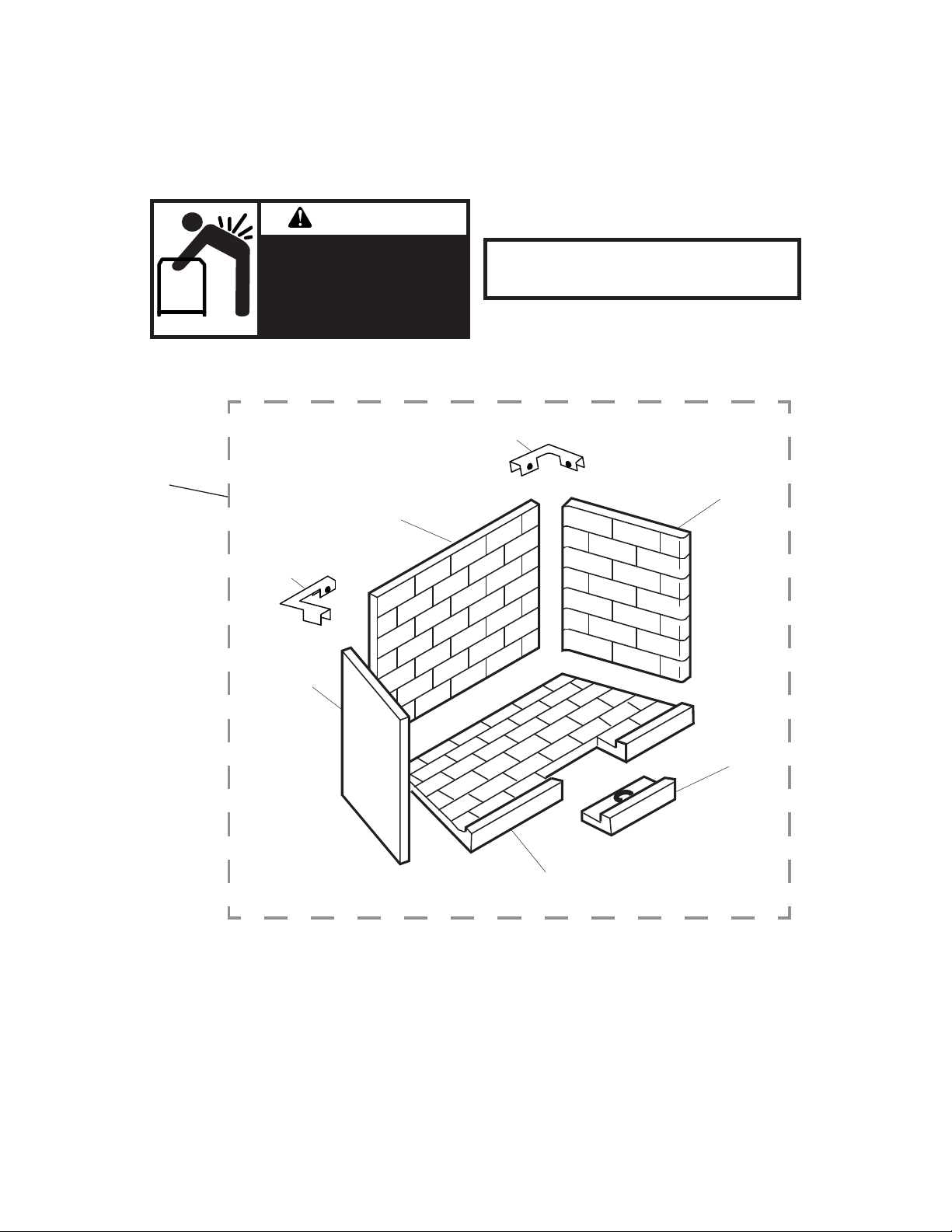

Figure 13 - Installing Refractory Panels
LEFT BRICK
PANEL
PANEL
RIGHT BRIC
K
REAR BRICK
PANEL
BOTTOM
BRICK PANEL
ASH PANEL
UPPER CORNER
BRACKET (2x)
3. Install rear refractory panel. This panel
hasatop and bottom.Todeterminewhich
is which, match up the pattern on the rear
panel with the left and right sides before
installingthe rear panel. Make sure panel
is center before continuing.
4. Install the right and left refractory panels
with the gas line knockouts orientated
down toward the bottom refractory. Align
theleft andrightpanels withthe rearpanel
so the grout lines line up.
5. Install the upper corner brackets and
tighten set screws (Figure 13).
IMPORTANT:Installationofbrick
should be done after the fire-
place is placed in a permanent
location.

SuperiorFireplaces.US.com
126700-01B 15
INSTALLING SCREEN
1. Slide round end of screen rod into rings at
topofscreen.Attachonepush-onnuttoend
of rod before attaching last ring of screen.
2. Insert the round end screen rod into hole
on the left and right side of smoke shelf
(Figure 14).
3. Mountflatendofscreenrodwith#10x5/8"
to center of smoke shelf.
4. Install other screen rod in same manner.
REFRACTORY PANEL INSTALLATION
Continued
Gas line hook up should be done by your
supplier or a qualified service person.
NOTE: Before you proceed, make sure your
gas supply is turned off.
Use only a 1/2" black iron pipe and appropri-
ate fittings.
1. Remove knockout indentation on refrac-
toryor firebrick wall located above refrac-
tory hearth floor. Knockout indentation
mustbe firmlytapped withanysolid object
such as a 1/2" dowel until it is released.
Removefragmented portionsofrefractory
(see Figure 15).
2. Remove gas line cover plate located on
either side of fireplace and pull out insula-
tion from gas line conduit sleeve. Save
insulation for reuse. Replace screws.
3. Run a 1/2" black iron gas line into fireplace
throughtherearatgaslineconduitsleeve(if
usingaraisedplatform,addheight).Provide
sufficientgaslineintofireplacechamberfor
fitting connection (see Figure 16).
NOTE: Secure incoming gas line to wood
framing to provide rigidity for threaded end.
4. Repackinsulationaroundgasline andinto
sleeve opening. Seal any gaps between
gas line and refractory knockout hole with
refractory cement or commercial furnace
cement,Installthe gasapplianceorcap-off
gas line if desired.
Figure 15 - Gas Line Access
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded
End for Fitting
Connection
Figure 16 - Gas Line Installation
Side
Firebrick
Finished
Side
Brick with
Access
Hole
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout
Figure 14 - Installing Fireplace Screen
Rating
Plate
Hole for Screen
Rod
Leading
Bricks
OPTIONAL GAS LINE INSTALLATION

SuperiorFireplaces.US.com 126700-01B16
OPTIONAL GAS LINE INSTALLATION
Continued
CAUTION: All gas piping
andconnectionsmustbetested
for leaks after the installation is
completed. After ensuring that
the gas valve is on, apply soap
and water solution to all con-
nections and joints. Bubbles
forming show a leak. Correct
all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK
TESTING AND DO NOT OPER-
ATEANYAPPLIANCEIFALEAK
IS DETECTED. LEAK TESTING
SHOULDBEDONEBYAQUALI-
FIED SERVICE PERSON.
WARNING: If the fireplace
hasbeenusedforwoodburning,
thefireboxandchimneymustbe
cleaned of soot, creosote and
ashes be a qualified chimney
cleaner. Creosote will ignite if
heavily heated.
WARNING: When using a
decorative vented gas log, the
damper must be removed or
permanently locked in the fully
openpositionandtheglassdoors
mustbeinthefullyopenposition.
WARNING: Do not operate an
unvented gas log set in this fire-
place with the chimney removed.
If you install a decorative gas appliance
(ventedgas log),thedecorative gasappliance
mustcomplywith the Standard forDecorative
Gas Appliance for Installation in Solid Fuel
Burning Fireplaces, ANS Z21.60 or Z21.84
and shall also be installed in accordance with
theNational FuelGas Code,ANSI 7223NFPA
54 latest edition.
If you wish to install an unvented (vent-free)
gas log set, only unvented gas log sets which
have been found to comply with the standard
forunvented roomheaters,ANSIZ21.11.2are
to be installed in this fireplace.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• appliance will not produce specified heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If
so, contact your local propane/LP or natural
gas supplier.
TECHNICAL SERVICE
You may have further questions about instal-
lation, operation, or troubleshooting. Please
contact your IHP dealer for any questions or
concerns. When contacting your dealer please
have your model and serial numbers of your
appliance ready. You can also visit our web site
at SuperiorFireplaces.US.com.
REPLACEMENT PARTS
See Pages 18-22 for a complete replacement parts
list. Use only parts supplied from the manufacturer.
Normally, all parts should be ordered through your
IHP distributor or dealer. Parts will be shipped at
prevailing prices at time of order.
When ordering repair parts, always give the following
information:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
If you encounter any problems or have any ques-
tions concerning the installation or application of
this appliance, please contact your dealer.

SuperiorFireplaces.US.com
126700-01B 17
ACCESSORIES
Purchase these appliance accessories from your local dealer. If they can not supply these
accessories, contact IHP at SuperiorFireplaces.US.com for referral information.You can also
write to the address listed on the back page of this manual.
Only kits supplied by IHP shall be used in the installation of this appliance. Use of
non-approved accessory/part kit(s) can result in poor performance and safety hazards.
OPTIONAL OUTSIDE AIR KIT FOR
FLOOR INSTALLATION
Cat. No. F1093, Model AK4F
Outside Air Kit Collar, Hood & 3' Flex for
Floor Venting
Cat. No. F1094, Model AK4B
50 piece Bulk OutsideAir Kit - Collar Only Kit
OPTIONAL OUTSIDE AIR KIT FOR
SIDEWALL INSTALLATION
Cat. No. F1091, Model AK4
4" Air Kit with Collar, Hood & 3' Flex
Cat. No. F1092, Model AK4X
4" Air Kit, Collar & Hood Only
Creamer H8176 BSK-CR
Rust H8177 BSK-RT
Cappuccino H8178 BSK-CP
REFRACTORY STAIN KITS
Use the Refractory Stain Kits to give white refractory
panels a new look.
Kit includes foam roller, roller handle, paint tray,
and one can of stain. Available stain colors are
Creamer (ivory), Rust (terra cotta), and Cappuc-
cino (rosy taupe).
Creamer Rust Cappuccino
Optional kit provides additional air to reduce
build-up of condensation that occurs in
today's tightly constructed homes.

SuperiorFireplaces.US.com 126700-01B18

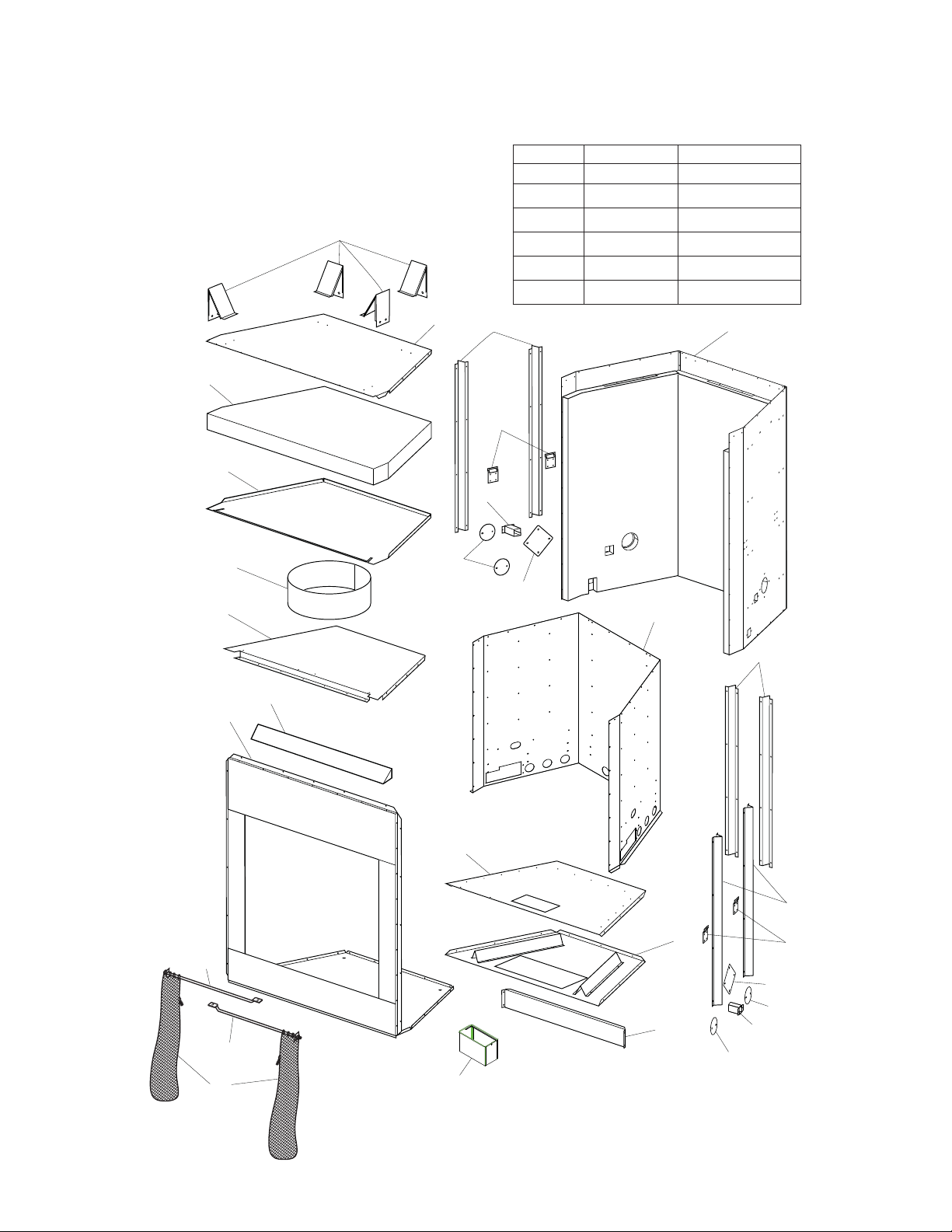

PARTS
36", 42", AND 50" MODELS
11
10
11
13
14
15/16
14
3
22
20
21
20
1
19
514
15/16
13
12
11
9
7
6
8
17
212
18
4
Cat. No. Model Interior
F0277 VRT4536WS White Stack
F0278 VRT4536WH White Herr.
F0279 VRT4542WS White Stack
F0280 VRT4542WH White Herr.
F0281 VRT4550WS White Stack
F0282 VRT4550WH White Herr.

SuperiorFireplaces.US.com
126700-01B 19
KEY
NO. PART NO. DESCRIPTION QTY.
1 ** Face Assembly • • • 1
2 ** Firebox BottomAssembly • • • 1
3 ** Firebox Bottom • • • 1
4 ** Firebox Surround • • • 1
5 ** Insulation Pan Support • • • 1
6 ** Insulation Pan • • • 1
7 ** Top Insulation • • • 1
8 RP110454-03 Fireplace Top 36" • 1
RP110454-02 Fireplace Top 42" • 1
RP110454-01 Fireplace Top 50" • 1
9 J6997 Standoff • • • 4
10 ** Fireplace SurroundAssembly • • • 1
11 J4362 Clearance Spacer • • • 6
12 J5329 Fireplace Handle Bracket • • • 4
13 J6900 Outside Air Cover Plate • • • 2
14 J6934 Gas Conduit Cover • • • 4
15 J4368 Conduit One • • • 2
16 J4369 Conduit Two • • • 2
17 ** Heat Shield Support • • • 1
18 F3234 Ash Box Assembly • • • 1
19 ** Firebox Top • • • 1
20 J4342 Screen 36" • 2
J4341 Screen 42" • 2
J4340 Screen 50" • 2
F3235 Screen 36" Stainless 2
F3236 Screen 42" Stainless 2
F3237 Screen 50" Stainless 2
21 J6928 Screen Rod 36" • 2
J4391 Screen Rod 42" • 2
J4390 Screen Rod 50" • 2
J5310 Screen Rod 36" Stainless 2
J5308 Screen Rod 42" Stainless 2
J5309 Screen Rod 50" Stainless 2
22 J4350 Hood 50" • 1
J4351 Hood 42" • 1
J4352 Hood 36" • 1
J4355 Hood Stainless 36" 1
J4354 Hood Stainless 42" 1
J4353 Hood Stainless 50" 1
PARTS AVAILABLE NOT SHOWN
J4357 Side Firebrick Wall Spacers • • 4
RP114913-01 Rear Firebrick Wall Spacers • • 2
RP114913-01 Rear Firebrick Wall Spacers • 6
** Not a field replaceable part.
36"
42"
50"
PARTS
This list contains replaceable parts used in your firebox. When ordering parts, follow the
instructions listed under Replacement Parts on Page 16 of this manual.

SuperiorFireplaces.US.com 126700-01B20
PARTS
36", 42", AND 50" MODELS
Picture may vary from actual
1
2
5
3
4
6
6
IMPORTANT: Installation of brick panels should be
done after the fireplace is placed in a permanent
location.
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.
1
2
3
4
5
6
7
7
