Superior WRT4542RS User manual

Installation and Operation Instructions
Superior®Indoor Wood Burning Fireplace
Models
WRT4536RS
WRT4536RH
WRT4536WS
WRT4536WH
PFS
®
USC
P/N 126601-01 Rev. B 10/2015 REPORT NO. F09-095
P126601-01
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
WRT4542RS
WRT4542RH
WRT4542WS
WRT4542WH
WRT4550RS
WRT4550RH
WRT4550WS
WRT4550WH

Superiorfireplaces.US.com 126601-01B2
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct
installation and operational procedures. For assis-
tance or additional information consult a qualified
installer, service agency or the gas supplier.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning the installation of the fireplace, read these instruc-
tions through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a
fire hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyre-
sponsibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b.Useofanycomponentpartnotmanufacturedorapprovedby
IHPincombinationwithanIHPreplacesystem.
Proper installation is the most important step in ensuring safe and
continuousoperationofthereplace.Consultthelocalbuildingcodes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
box unless the manufacturer's instructions with the
insert specifically state this fireplace has been tested
for use with this insert.
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING: Use solid wood or processed solid fuel
firelogs only. When processed wood fuel fire logs are
used, do not poke or stir the logs while they are burning.
Use only fire logs that have been evaluated for the ap-
plication in fireplace and refer to fire log warnings and
caution markings on packaging prior to use.
This fireplace is not intended to be used as a substitute
for a furnace to heat an entire home. Use for supple-
mental heat only.
Safety.............................................................................................2
Specications.................................................................................4
FireplaceInstallation ......................................................................7
VentingInstallation ........................................................................9
RefractoryPanelsInstallation ......................................................14
OptionalGasLineInstallation ......................................................15
GlassDoorInstallation.................................................................16
OperationandMaintenanceGuidelines........................................17
Parts ............................................................................................18
Accessories..................................................................................23
TechnicalService .........................................................................26
ReplacementParts.......................................................................26
Warranty ......................................................................................27
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and of-
fers, please take a few moments to register your product online
atSuperiorreplaces.US.com
Please read and understand these instructions before installing
or operating.
TABLE OF CONTENTS

Superiorfireplaces.US.com126601-01B 3
SAFETY Continued
Overfiring of a fireplace is a condition where excessive
temperaturesarereached,beyondthedesigncapabilities
of theappliance. Thedamagethat occursfrom overfiring
isnotcoveredunderthemanufacturer’slimitedwarranty.
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALSOR CHEMICALLY
TREATEDCOMBUSTIBLES.
Disposal of Ashes
Ashes should be placed in a metal container with a tight-
fittinglid. Theclosed containerofashes shouldbe placed
onanoncombustibleoororontheground,wellaway
from all combustible materials, pending final disposal.
If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION.
Never use gasoline, gasoline-type lantern fuel, kero-
sene,charcoallighteruid,orsimilarliquidstostart
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use.
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash, driftwood or woods that have been dipped in
tar,pitch,pinetar,creosote,etc.Woodproductsmade
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
WARNING:BURNINGIMPROPERFUEL(I.E.CHAR-
COAL) CAN RESULT IN CARBON MONOXIDE POISON-
ING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresembletheuwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualifiedservicetechnician. Somepeoplearemoreaf-
fectedbycarbonmonoxidethanothers. Theseinclude
pregnant women, people with heart or lung disease
oranemia,thoseundertheinuenceofalcohol,and
those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
from the heat produced by the appliance). If your local
coderequiresasmoke detector be installedwithinthe
same room, you must follow the requirements of your
local code. Check with your local building department
for requirements in your area.
Creosote – Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled mois-
ture to form creosote. The creosote vapors condense
intherelativelycoolchimneyueofaslow-burning
fire. As a result, creosote residue accumulates on
theuelining.Whenignitedthiscreosotemakesan
extremely hot fire.
The chimney shall be inspected at least twice a year
duringtheheatingseasontodeterminewhenacreosote
builduphasoccurred. Whencreosotehasaccumulated
(1/8" [3 mm] or more) it shall be removed to reduce
the risk of a chimney fire.
WARNING: Children and adults should be alerted
to the hazards of high surface temperatures and to
stay away to avoid burns or clothing ignition. Young
children should be carefully supervised when in the
same room as fireplace.

Superiorfireplaces.US.com 126601-01B4

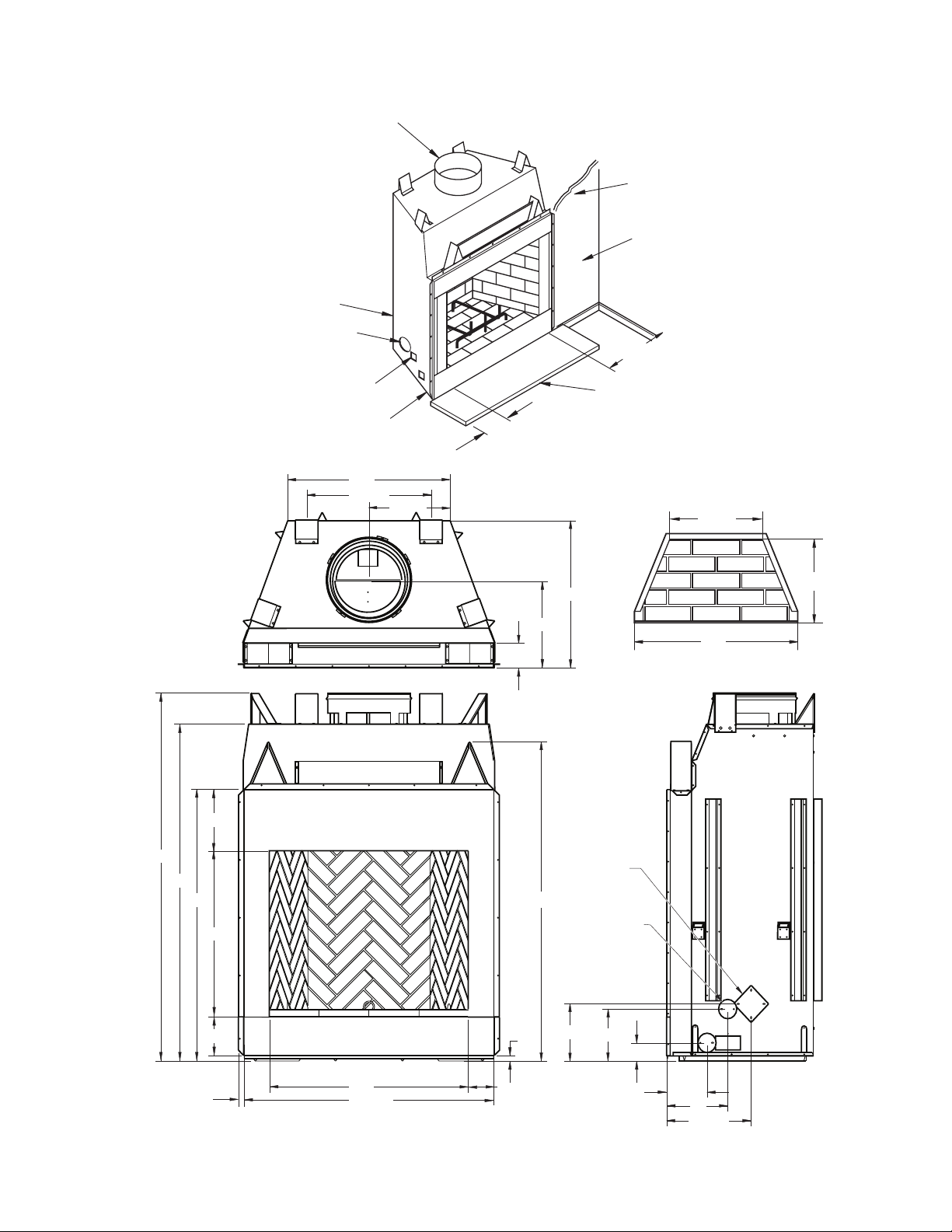

SPECIFICATIONS
36" MODEL
11/2" AIR SPACE
BACK AND SIDES
0" TO
BOTTOM
GAS LINE
KNOCKOUTS
12" EACH SIDE
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
MINIMUM 12" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
74" X 20"
1" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
OUTSIDE AIR
36"
21 1/2"
20"
29"
14 1/2"
22 1/2"
26 5/8"
4 1/2"
15 5/8"
4 1/2"
1"
58"
7 1/4"
11"
15 1/4"
3 1/2"
9 1/2"
10 1/2"
67"
61"
49"
11"
7"
30"
1" 45 1/8"
36"
OUTSIDE AIR
ACCESS
GAS LINE
ACCESS
36" HEARTH
Figure 1 - 36" Models

Superiorfireplaces.US.com126601-01B 5
SPECIFICATIONS Continued

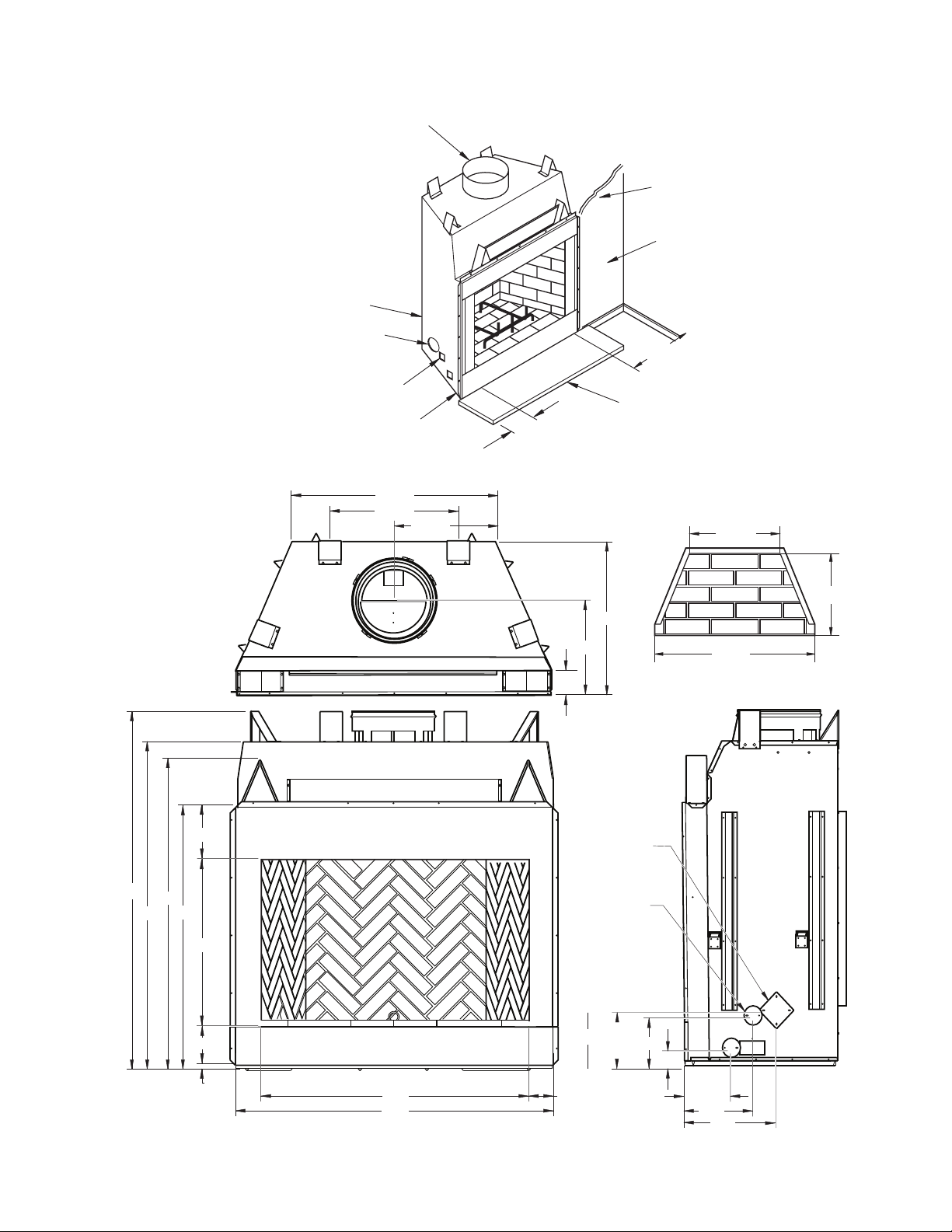

42" MODEL
Figure 2 - 42" Models
OUTSIDE AIR
11/2" AIR SPACE
BACK AND SIDES
0" TO
BOTTOM
GAS LINE
KNOCKOUTS
12" EACH SIDE
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
MINIMUM 18" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
66" X 20"
2" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
42"
23 1/2"
25 1/8"
22 3/4"
30 1/2"
29"
4 3/8"
15 3/4"
5/8"
17 5/8"
67"
61"
49"
7"
1"
30"
11"
58"
42"
51 1/8"
4 1/2"
3 1/2"
9 1/2"
10 1/2"
81/2"
13"
17"
OUTSIDE
AIR
ACCESS
GAS LINE
ACCESS
42" HEARTH

Superiorfireplaces.US.com 126601-01B6
SPECIFICATIONS Continued
50" MODEL
Figure 3 - 50" Models
50"
23 1/4"
33 1/8"
2" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
0" TO
BOTTOM
OUTSIDE AIR
11/2" AIR SPACE
BACK AND SIDES
GAS LINE
KNOCKOUTS
12" EACH SIDE
MINIMUM 18" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
74" X 20"
38 1/2"
28 1/2"
43/8"
17 5/8"
19 1/4"
24"
49"
30"
11"
61"
67" 58"
7"
1"
59"
50" 4 1/2"
3 1/2"
9 1/2"
10 1/2"
8 1/2"
13"
17"
GAS LINE
ACCESS
OUTSIDE
AIR
ACCESS
50" HEARTH

Superiorfireplaces.US.com126601-01B 7
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine the safest and most efficient location for the fireplace,
you must take into consideration the following guidelines:
1. Thelocationmustallowforproperclearances(seeFigures4and
5).
2. Consideralocationwherereplacewillnotbeaffectedbydrafts,
air conditioning ducts, windows or doors.
3. A location that avoids cutting of joists or roof rafters will make
installation easier.
4. An outside air kit is available with this replace (see Optional
OutsideAirKitonpage9).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 1 1/2" min.
Ceiling42"min.
Front of fireplace 48" min.
Floor** 0" min.
Perpendicular wall to opening 18" min.
36" Models 12" min.
Top spacers 0" min.
Mantel clearances see Mantels, page 8
Chimneyouterpipesurface2"min.
36" Model 1" min.
*Notrequiredatnailinganges
**Seestep2ofFraming
WARNING: Do not pack required air spaces with
insulation or other materials.
Minimum/MaximumChimneyHeightforResidentialInstallation
Minimumheightofchimney,measuredfrombaseofreplacetoue
gasoutletoftermination,is16feetforstraightueorauewithone
elbow set. Maximum distance between elbows is 6 feet. For systems
with two elbow sets, minimum height is 22 feet. Maximum height of
any system is 50 feet. This measurement includes fireplace, chimney
sectionsandheightofterminationassemblyatleveloftheuegas
outlet(seeFigure15,page12).
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures 4
and 5.
2. If replace is to be installed directly on carpeting, tile or any
combustiblematerialother than wood ooring,replacemust
be installed upon a metal or wood panel extending full width and
depth of fireplace.
3. Setreplacedirectlyinfrontofthisopeningandslideunitback
untilnailingangestouchsideframing.
4. Checklevelofthereplaceandshimwithsheetmetalifnecessary.
5. Before securing fireplace to prepared framing, ember protector
(provided) must be placed between hearth extension (not sup-
plied)andunderbottomfrontedgeofreplacetoprotectagainst
glowingembersfallingthrough.Ifreplaceistobeinstalledona
raisedplatform,aZ-typeemberprotector(notsupplied)mustbe
fabricated to t your required platform height. Ember protector
should extend under fireplace a minimum of 1 1/2".Emberprotector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimumto
prevent corrosion.
6. Usingscrewsornails,securereplacetoframingthroughanges
located on sides of fireplace.
Note: For outdoor installations, fireplace enclosure must allow for
adequatedrainageandfreshairventilation.Itisrecommendedthat
a sealed, corrosion resistant catch pan with provision for drainage
be installed under fireplace within fireplace enclosure.
59 1/8" (50'' Models)
58 1/8"
30 1/8"
67 1/8"
51 1/4" (42'' Models)
45 1/4" (36'' Models)
28 1/4" (36'' Models)
Figure 4 - Framing Dimensions
71" (50" Models)
100" (50" Models)
65" (42" Models)
92" (42" Models)
86 1/2" (36" Models)
61" (36" Models)
Maintain 1 1/2"
Clearance
at Sides and
Back of Fireplace
1 1/2" Clearance
Not Required at
Nailing Flanges
Figure 5 - Corner Installation

Superiorfireplaces.US.com 126601-01B8
FIREPLACE INSTALLATION Continued
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimum of 12" beyond each side of fireplace opening is required
toprotectcombustibleoorconstructioninfrontofreplace.Fabri-
cate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having a
thermalconductivityofk=0.84BTUIN/FT,HR.F(orless)at1"thick.
For example, if the material selected has a k factor of 0.25, such as
glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manufac-
turerorsupplierofnoncombustiblematerial.Ifhearthextensionis
to be covered, use noncombustible material such as tile, slate, brick,
concrete, metal, glass, marble, stone, etc. Provide a means to prevent
hearth extension from shifting and seal gap between fireplace frame
andhearthextensionwithanoncombustiblematerial(seeFigure6).
WARNING: Hearth extension is to be installed only
as shown in Figure 6.
Figure 6 - Hearth Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Ember Protector
Ember Protector
Seal Gap
Hearth
Extension
MANTELS
Amantelmaybeinstalledifdesired(seeFigure7).Woodworksuchas
wood trims, mantels or any other combustible material projecting from
frontfacemustnotbeplacedwithin12"(36"Models)or18"(42/50"
Models)of replaceopening. Combustible materials above 12"(36"
Models)or18"(42/50"Models)andprojectingmorethan11/2" from
replacemustnotbeplacedlessthan15"(36"Models)or21"(42/50"
Models)fromthetopopeningofthereplace(NFPA211,Section-
ClearancefromCombustibleMaterial).
Mantels or any other combustible material also may come up to side
edge of black metal face of fireplace as long as projections from front
face fall within limit shown in Figure 7.
Figure 7 - Mantel Clearances to Combustible Material
12 1/4" Ref.
6"
Ref.
15" Min. (36" Models)
21" Min. (42/50"
Models)
12" Min.
(36" Models)
18" Min.
(42/50"
Models)
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Upper
Section of
Fireplace
FIREBOX
SAFE ZONE
Top View of Fireplace
3" Max.
4.5"
Min. to
Perpendicular
Side Wall
7.75" (36" Models)
11.5" (42/50" Models)
33° Combustible
Material Must
Not Overlap
Front Face
12" - 36" Models
18" - 42/50" Models

Superiorfireplaces.US.com126601-01B 9
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
The installation of an outside air kit should be performed during
the rough framing of the fireplace due to the nature of it's location.
Outsidecombustionairisaccessedthroughaventedcrawlspace
(AK4F)orthroughasidewall(AK4).
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3feetbelowtheuegasoutletofthetermination.
Figure 8 - Outside Air Kit
CHIMNEY PIPE
WARNING: Label part number 900599-01 must
be applied by the installer to all chimney pipe
sections but is not required on sections that will
be visible after the installation is complete. Label
must wrap around the circumference of the pipe.
See accessories, page 24 for Kit F2659.
TheIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after fitting
overlaps must be taken into consideration (lineal gain) and are
giveninthelinealgainchart(seeFigure9).LinealGainistheactual
measurable length of a part after two or more parts are connected.
ForCanada,usechimneypartsdesignated"HT".
WARNING: The opening in the collar around the
chimney at the top of the fireplace must not be ob-
structed.Neveruseblowninsulationtofillthechimney
enclosure.
Figure 9 - Lineal Gain
LINEAL GAIN
PART NO. DESCRIPTION GAIN
Signature Fireplace 66 1/2 "
12-12DM
12-12HT PipeSection 10 5/8
"
18-12DM
18-12HT PipeSection 16 5/8
"
24-12DM
24-12HT PipeSection 23 5/8
"
36-12DM
36-12HT PipeSection 34 5/8
"
48-12DM
48-12HT PipeSection 46 5/8
"
RLT-12D
RLT-12HT
RoundTermina-
tion 7 3/4
"
*
STL-12D
SquareChase-
TopwithSlip
Section
7 " to 15 " *
* The lineal gain for the terminations is measured to
the ue gas outlet height.
Hemmed
End
12 3/8"
Stainless
Inner Pipe
15" Galvanized
Outer Pipe
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Eachdoublewallchimneysectionconsistsofagalvanizedouterpipe,a
stainlesssteelinneruepipeandawirespacer.Thepipesectionsmust
be assembled independently as the chimney is installed. When connect-
ingchimneydirectlytothereplace,theinneruepipesectionmustbe
installed first with the lanced side up. The outer pipe section can then
beinstalledover5theuepipesectionwiththehemmedendup.Press
down on each pipe section until the lances securely engage the hem on
the fireplace starter. The wire will assure the proper spacing between the
inner and outer pipe sections.
Continuetoassemblechimneysectionsasoutlinedabove,making
sure that both the inner and outer pipe sections are locked together.
When installing double wall snap-lock chimney together, it is impor-
tanttoassurethejointbetweenthechimneysectionsislocked.Check
by pulling chimney upward after locking. The chimney will not come
apartifproperlylocked.Itisnotnecessarytoaddscrewstokeepthe
chimneytogether(exception,seeFigure10,page10).
The height of a vertical chimney pipe supported ONLY by the fire-
place,mustnotexceed20feet.Chimneyheightsabove20feetmust
be supported.
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required
for Wall
Installation
Air Inlet
Eyebrow
Vented
Crawl Space
(Check Local
Codes Before
Installing in a
Vented Crawl
Space)

Superiorfireplaces.US.com 126601-01B10
VENTING INSTALLATION Continued

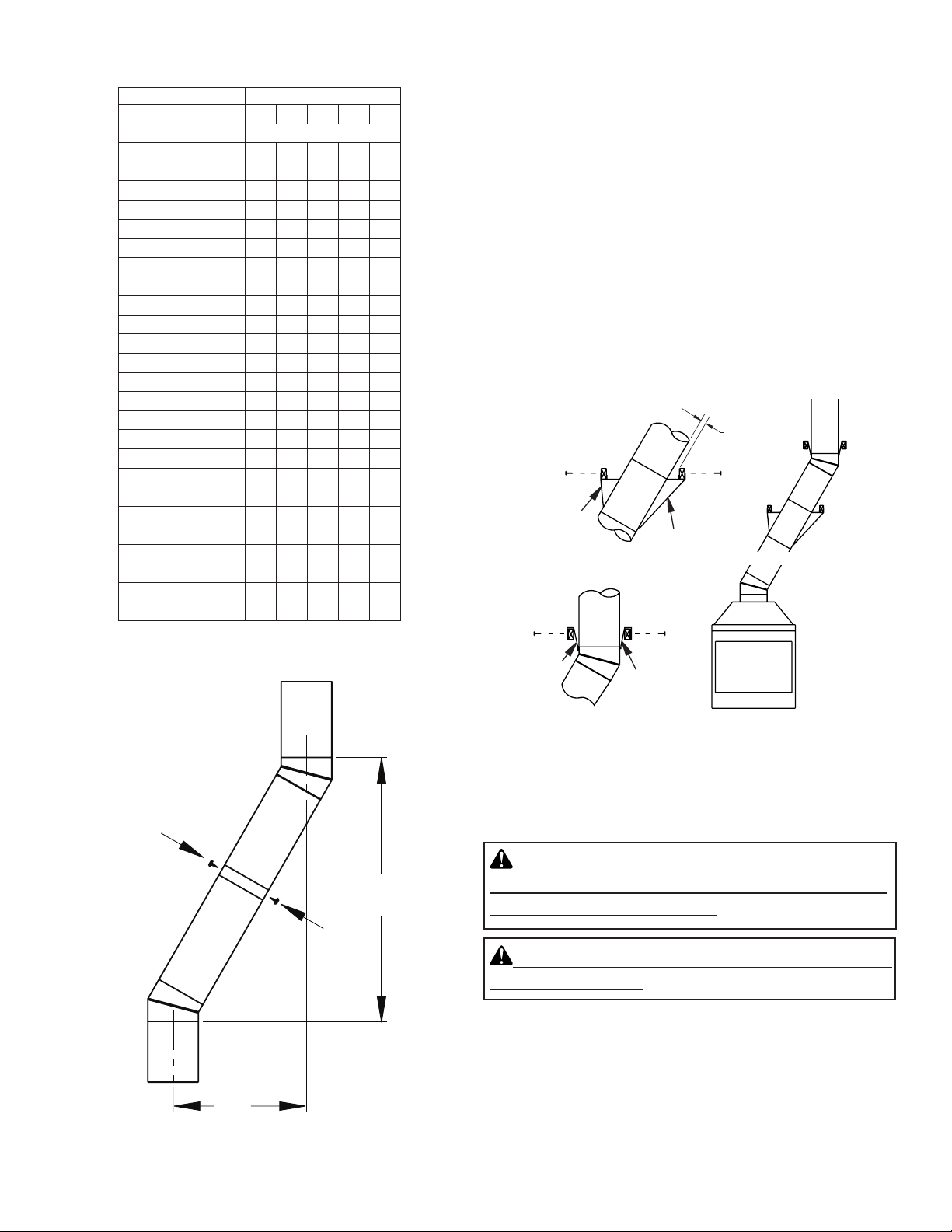

OFFSET RISE CHIMNEY LENGTH
A B 12" 18" 24" 36" 48"
4 3/8" 16 3/8" ELBOWSETONLY
9 3/4" 25 1/2" 1
12 3/4" 30 3/4" 1
15" 34 3/4" 1
18" 40" 1 1
21 1/4" 46 1/4" 1
23 3/4" 49 1/4" 1 1
27 3/4" 56 3/4" 1
30" 60 3/4" 1 1
33" 66" 1
36" 71" 1 1
38 1/4" 75" 2
41 1/4" 80 1/4" 1 1 1
45" 86 3/4" 2
46 3/4" 89 1/2" 1 1 1
51" 97" 1 1
53 1/4" 101" 2
56 1/4" 106 1/4" 2
59 1/4" 111 1/2" 1 1 1
61 3/4" 115 1/2" 1 2
64 3/4" 120 3/4" 1 2
68 1/4" 127" 2 1
70" 130" 1 1 2
74 1/4" 137 1/2" 1 2 1
76 3/4" 141 1/2" 1 2 1
79 3/4" 146 3/4" 4
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
Figure 10 - Elbow Offset
USING ELBOW OFFSETS (30E-12DM)
1. To achieve desired offset, you may install combinations of 12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart
andFigure10).
2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust
besecurelynailedtoraftersorjoists(seeFigure11,detailsAand
B).
3. Maximum length of pipe between supports (return elbow or
12S-12DM)is6'ofanglerun.Maximumoftwo6'anglerun
sectionsperchimneysystem(seeFigure12,page11).
4. All pipe connections between the offset and return must be
securedwithtwoscrewsontheouterpipeonly(seeFigure
10).Donotpenetratetheinnerstainless.

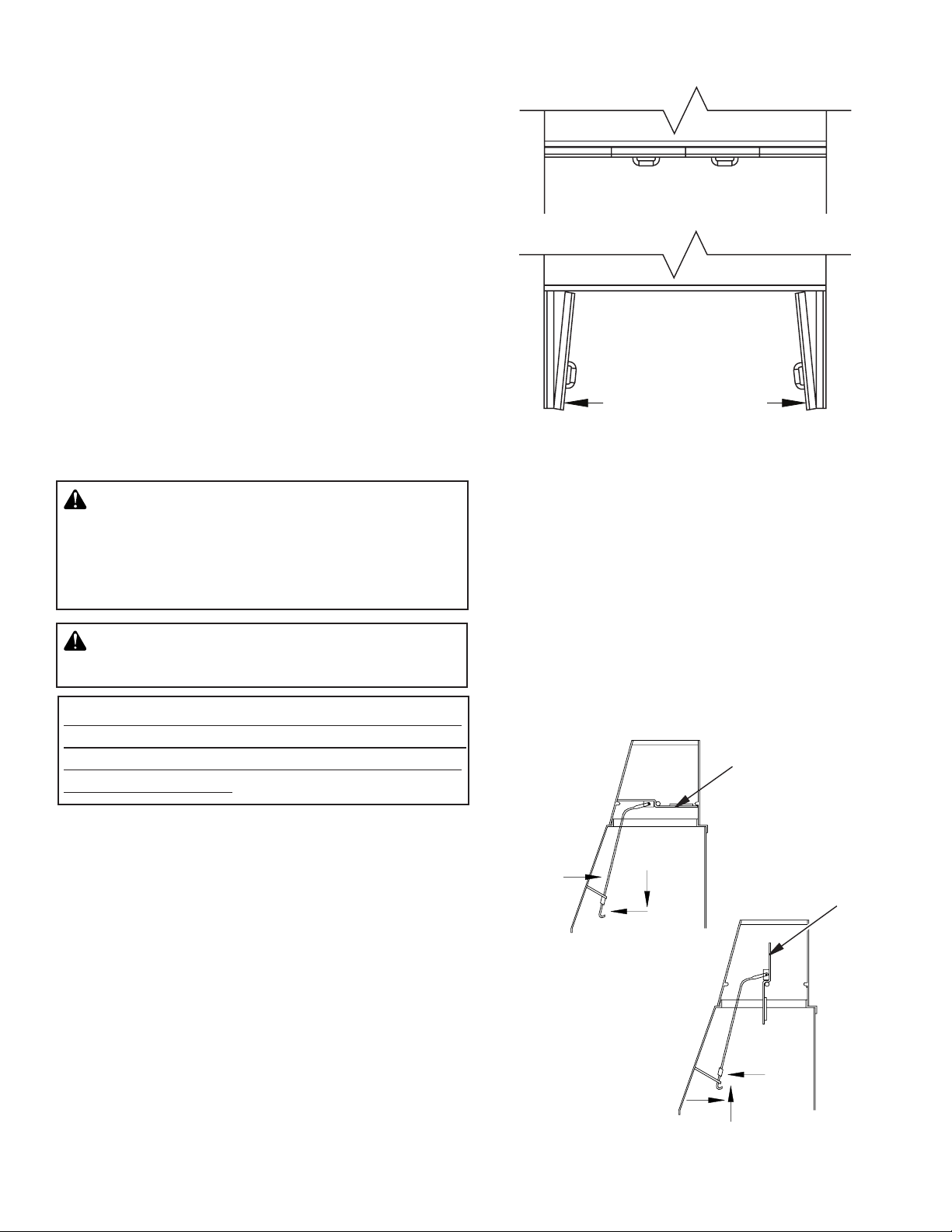

Figure 11 - Ceiling Support Pipe 12S-12DM
2" Min.
Straps
Straps
Straps
Straps
DetailA
Return Elbow
DetailB
Angle Firestop
See Detail A
See Detail B
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MANUFACTUREDHOMEFLOOR,WALL,ANDCEILING/
ROOF MUST BE MAINTAINED.
WARNING: DO NOT INSTALL IN SLEEPING ROOM
OF MOBILE HOMES.
B
A
Screws

Superiorfireplaces.US.com126601-01B 11
VENTING INSTALLATION Continued
FIRESTOP SPACERS (FS-10, 1100EFS-10DM FOR 36" MODELS)
Firestop spacers are required at each point where the chimney penetrates
aoorspace.Theirpurposeistoestablishandmaintaintherequired
clearance between the chimney and the combustible materials. When
the pipe passes through a framed opening into a living space above, the
firestop must be placed onto the ceiling from below as shown in Figure 13.
Theyalsoprovidecompleteseparationfromoneoorspacetoanother
or attic space as required by most codes. When the double wall pipe
passes through a framed opening into an attic space, the firestop must
beplacedintoanatticoorasshowninFigure14.
Figure 12 - Typical Offset Terminations
Return
Elbow
Offset
Elbow
Return
Elbow
Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
ABC
Offset
Elbow
Ceiling
Support Pipe
12S-12DM
Return
Elbow
Figure 13 - Firestop Spacer with Living Space Above Ceiling
Figure 14 - Firestop Spacer with Attic Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Firestop
Spacer
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop
thimble (FST10) is required to avoid intrusion by insu-
lation and recommended to negotiate a joist.
Firestop Thimble FST10
Figure 14a - Firestop Thimble
PENETRATING ROOF
Tomaintaina1"(36"Models)or2"(42/50"Models)clearancetothe
pipe on a roof with a pitch, a rectangular opening must be cut.
1. Determine center point through which pipe will penetrate roof.
2. Determine center point of roof. Pitch is distance the roof drops
over a given span, usually 12". A 6/12 pitch means that roof drops
6" for each 12" measured horizontally down from roof rafters.
3. Useroofopeningchart(Figure15,page12)todeterminecorrect
openinglengthandashingrequired.
4. Removeshinglesaroundopeningmeasured.Cutoutthissection.
5. Addnextsectionsofpipeuntilendpenetratesroofline.Check
toseethatproperclearancesaremaintained.Extendchimneyby
adding sections of double wall pipe until pipe is minimum of 30"
above highest point of roof cutout. Termination and chimney must
extend a minimum of 36" above highest point where it passes
through roof.

Superiorfireplaces.US.com 126601-01B12
VENTING INSTALLATION Continued
17" Min. 30" Min.
1" Min.
1" Min.
1" Min.
Opening "A"
Roof Opening 36" Models
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 17" V6F-10DM
0-6/12 26.6° 19" V6F-10DM
6/12-
12/12 45.0° 24" V12F-10DM
Roof Opening 42" and 50" Models
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 19.5" V6F-10DM
0-6/12 26.6° 22' V6F-10DM
6/12-
12/12 45.0° 27" V12F-10DM
19.5" Min. 30" Min.
2" Min.
2" Min.
2" Min.
Opening "A"
Figure 15 - Roof Opening Measurements
Nail Only
Outer
Perimeter
of Flashing
Storm Collar
Flashing
Cone
Underlap Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 16 - Flashing Installation
Figure 17 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
FLASHING INSTALLATION (V6F-10DM OR V12F-10DM)
Determinetheashingtobeusedwiththeroofopeningchart.Slide
ashingoverpipeuntilbaseisatagainstroof.Replaceasmany
shinglesasneededtocoverexposedareaandashingbase.Secure
inpositionbynailingthroughshingles(seeFigure16).DONOTNAIL
THROUGHFLASHINGCONE.
Installing Flashing on a Metal Roof
Wheninstallingtheashingonametalroof,itisrequiredthatputty
tapebeusedbetweentheashingandtheroof.Theashingmustbe
secured to the roof using #8 x 3/4" screws and then sealed with roof
coating to prevent leakage through the screw holes. A roof coating
mustalsobeappliedaroundtheperimeteroftheashingtoprovide
a proper seal.
Storm Collar Installation (SC2-1)
Place storm collar over pipe and slide down until it is snug against
theopenedgeoftheashing(seeFigure17).Applywaterproofcaulk
around the perimeter of the collar to provide a proper seal.

Superiorfireplaces.US.com126601-01B 13
VENTING INSTALLATION Continued
Terminations/Spark Arrestor
The fireplace system must be terminated with the listed round top or
chaseterminations.Inanycase,refertotheinstallationinstructions
supplied with the termination.
CAUTION: Do not seal openings on the rooftop
ashing.Followtheinstallationinstructionsprovided
with the termination being used.
24" Min.
24" Min.
18"
Min.
Typ.
Figure 19 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 20 - 10 Foot Rule
Figure 18 - Termination
RLT-12D
Level of
Flue Gas
Outlet
Stainless
Inner Flue
Pipe
Waterproof
Caulking
Storm
Collar
Flashing
Underlap
Shingles
Overlap
Shingles (Top
and Sides of
Flashing Base)
Secure
Termination
to Outer
Pipe with 3
Screws
CHASE INSTALLATIONS
Instructionsforchaseinstallationsareincludedwiththechasestyle
terminationchosen.Inamultiplechaseinstallation,besuretoprovide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure19).
Note:Ifadecorativeshroudistobeinstalled,contactthemanufacturer
for specifications.
10 FOOT RULE
Alluegasoutletchimneyterminationsmustextendaminimumof
3 feet in height above the highest point where it passes through the
roof and must be at least 2 feet above the highest point of the roof
thatiswithinahorizontaldistanceof10feet(seeFigure20).
FINISHING FIREPLACE
Combustiblematerials,suchaswallboard,sheetrock,drywall,plywood,
etc. may make direct contact with sides and top around the fireplace
face.Itisimportantthatcombustiblematerialsdonotoverlaptheface
itself. Brick, glass, tile or other noncombustible materials may overlap
the front face provided they do not obstruct essential openings like
louvered slots or any other opening. When overlapping with a noncom-
bustible facing material, use only noncombustible mortar or adhesive.

Superiorfireplaces.US.com 126601-01B14
Figure 21 - Installing Grate Retainers
Figure 23 - Installing Fireplace Screen
RatingPlate HoleforScreenRod
Leading
Bricks
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.
REFRACTORY PANEL INSTALLATION
IMPORTANT: Installation of Refractory panels should
be done after the fireplace is placed in a permanent
location.
1. Removegrate,screenassembliesandallhardwarecomponents
out of the firebox. The bottom panel is preinstalled in the firebox.
Make sure the bottom refractory panels is centered in the firebox
andushwiththefrontofthereplace.
2. Place cardboard on top of bottom refactory panel as a protection
to prevent shipping and scratching during installation of the other
panels.
3. Position "Z" shaped grate retaining brackets on top of the notched
area toward the rear of the bottom refractory. They should be
postioned a distance apart as shown in Figure 21.
4. Installrearrefractorypanel.Thispanelhasatopandbottom.To
determine which is which, match up the pattern on the rear panel
with the left and right sides before installing the rear panel. Make
sure panel is center before continuing.
5. Installtherightandleftrefractorypanelswiththegaslineknock-
outs orientated down toward the bottom refractory. Align the left
and right panels with the rear panel so the grout lines line up.
6. Installtheuppercornerbracketsandtightensetscrews(Figure
22).
7. Installgratebyplacingrearlegsintoslotsinthegrateretainers
(Figure22).
WARNING: Risk of fire! Replace grate with IN-
NOVATIVE HEARTH PRODUCTS grate only (see Parts,
page 19). This grate has been designed to keep the
operation of your fireplace safe and efficient.
INSTALLING SCREEN
1. Slideroundendofscreenrodintoringsattopofscreen.Attachone
push-on nut to end of rod before attaching last ring of screen.
2. Inserttheroundendscreenrodintoholeontheleftandrightside
ofsmokeshelf(Figure23).
3. Mountatendofscreenrodwith#10x5/8"tocenterofsmoke
shelf.
4. Installotherscreenrodinsamemanner.

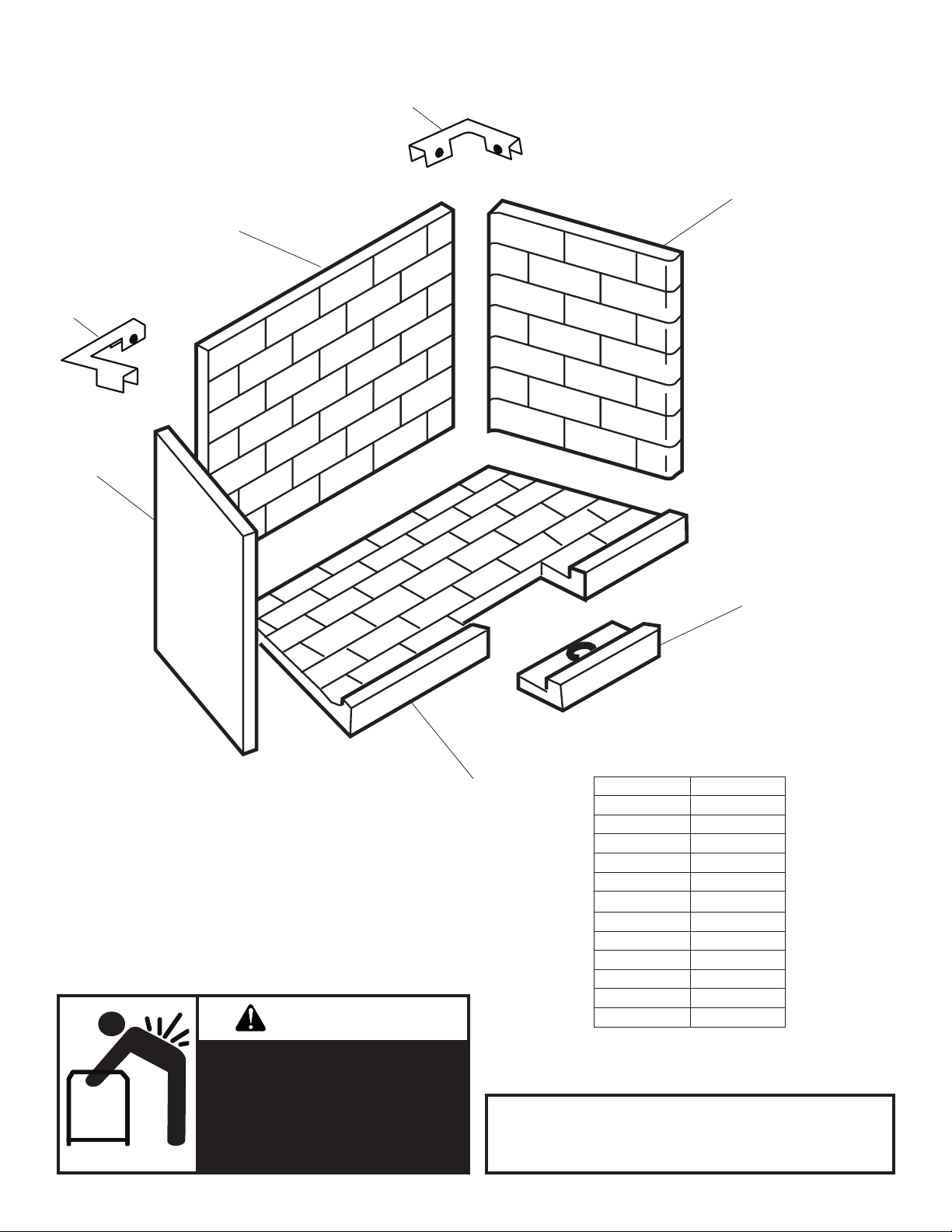

Figure 22 - Installing Refractory Panels
LEFT BRICK
PANEL
PANEL
RIGHT BRICK
REAR BRICK
PANEL
BOTTOM
BRICK PANEL
GRATE GRATE RETAINER
ASH PANEL
BRACKET (2x)
UPPER CORNER
BRACKET (2x)

Superiorfireplaces.US.com126601-01B 15
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded
End for Fitting
Connection
Figure 25 - Gas Line Installation
A gas line or gas log lighter may be installed for the purpose of installing
a vented or vent-free decorative gas appliance incorporating an automatic
shutoffdeviceandcomplyingwiththeStandardforDecorativeGasAp-
pliancesforInstallationinVentedFireplaces,ANSIZ21.60orAmerican
GasAssociationdraftrequirementsforGasFiredLogLightersforWood
BurningFireplaces,DraftNO.4datedAugust,1993.
Ifyouinstalladecorativegasappliance(ventedgaslog),thedeco-
rativegasappliancemustcomplywiththeStandardforDecorative
GasApplianceforInstallationinSolidFuelBurningFireplaces,ANS
Z21.60 or Z21.84 and shall also be installed in accordance with the
NationalFuelGasCode,ANSI7223NFPA54latestedition.
Ifyouwishtoinstallanunvented(vent-free)gaslogset,onlyunvented
gas log sets which have been found to comply with the standard for
unventedroom heaters, ANSI Z21.11.2 are to be installed in this
fireplace.
WARNING: If the fireplace has been used for wood
burning, the firebox and chimney must be cleaned
of soot, creosote and ashes be a qualified chimney
cleaner. Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas log,
the damper must be removed or permanently locked in
the fully open position and the glass doors must be in
the fully open position.
OPTIONAL GAS LINE INSTALLATION
Figure 24 - Gas Line Access
Side
Firebrick
Finished
Side
Brick with
Access
Hole
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout
Gas line hook up should be done by your supplier or a qualied
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Useonlya1/2"blackironpipeandappropriatettings.
1. Removeknockoutindentationonrefractoryorrebrickwalllo-
catedaboverefractoryhearthoor.Knockoutindentationmustbe
firmly tapped with any solid object such as a 1/2" dowel until it is
released.Removefragmentedportionsofrefractory(seeFigure
24).
2. Removegaslinecoverplatelocatedoneithersideofreplaceand
pulloutinsulationfromgaslineconduitsleeve.Saveinsulationfor
reuse.Replacescrews.
3. Runa1/2"blackirongaslineintoreplacethroughtherearatgas
lineconduitsleeve(ifusingaraisedplatform,addheight).Provide
sufcientgaslineintoreplacechamberforttingconnection(see
Figure25).
Note:Secureincominggaslinetowoodframingtoproviderigidityfor
threaded end.
4. Repackinsulationaroundgaslineandintosleeveopening.Sealany
gaps between gas line and refractory knockout hole with refractory
cementorcommercialfurnacecement,Installthegasapplianceor
cap-off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after the installation is completed.
After ensuring that the gas valve is on, apply soap and
water solution to all connections and joints. Bubbles
formingshow aleak. Correctall leaksat once.DONOT
USEANOPEN FLAMEFORLEAK TESTING ANDDONOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
WARNING: Do not operate an unvented gas log set in
this fireplace with the chimney removed.

Superiorfireplaces.US.com 126601-01B16
GLASS DOOR INSTALLATION
IMPORTANT: Installglass doorframe beforeinstallingglass
door.
INSTALLING DOOR FRAMES
1. Removescrewsfromsmokeshelf(seeFigure26).
2. Mount top door frame and secure with screws removed in step 1.
3. Removecenterashrefractorybypullingringhandle(seeFigure
27).
4. Removeashbox.
5. Removethreescrewslocatedatfrontofrebox(seeFigure27).
6. Align bottom rail mounting holes with holes at front of firebox
and secure with screws removed in step 5.
7. Placeashboxinplace.Replacecenterashrefractory.
Figure 26 - Installing Top Door Frame
Top Door
Frame
Smoke
Shelf
INSTALLING GLASS DOORS
Spring clips have been installed but some adjustments may be
needed.Ifdoorsdonotcloseproperlyordonotappearstraight,see
Door Adjustment.
1. With bi-fold doors completely folded, insert bottom pivot pin into
pivot hole located near bottom corner of front face opening and
swing door to vertical position making sure top pins slide into
door track. Door is installed when top door pin snaps into spring
clip.
2. Repeatstep1forremainingdoor.
Ifyounddoors do not closeproperlyordo not appear levelor
straight, proceed with section on door adjustment,
Figure 27 - Installing Bottom Door Frame
Bottom
Door Rail
Ash Box
Center
Brick
Ring
Handle
Screws
DOOR ADJUSTMENT
Removedoorsandslightlyloosenlowerpivotclipsandupperspring
clips.Replacedoorsandfullyclosethem.Use1/8"shims(anymate-
rial)toleveldoors.Oncepropersettingisachieved,carefullyopen
doors enough so that you can access spring clips with a Phillips
screwdriver.Tightenscrews.SeeFigure29.
Figure 28 - Installing Bi-Fold Doors
Spring
Clip
Insert Pin
into Spring
Clip
Pivot
Hole
Insert
Bottom
Pivot Pin
into Hole
Fold Door
and Slide
Top Pins
Into Track
Figure 29 - Adjusting Bi-Fold Doors

Superiorfireplaces.US.com126601-01B 17
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in the upper front face of the fireplace. Pushing the handle
forward and up through the keyway slot will free damper blade to
automatically open. Pushing the handle forward and down will lock
damperbladeclosed(seeFigure31).Damper must be locked in the
full open position before operating fireplace(seeFigure31).
Figure 31 - Operating Damper Handle
Damper
Weight
To Close
Damper
To Open
Damper
Damper
Weight
GLASS DOORS
Glassdoorsareoptionalwiththereplace.Whenreplaceisinoperation,
doors must be fully opened or fully closed position only or a fire hazard
maybecreated(seeFigure30).
A fireplace equipped with glass doors operates much differently than a
fireplace with an open front. A fireplace with glass doors has a limited
amount of air for combustion.
Excessiveheatwithinthereplacecanresultiftoolargeareisbuiltor
if combustion air gate is not completely open. The following tips should
be followed to assure that both the fireplace and glass door retain their
beautyandfunctionproperly.Boththeuedamperandglassdoorsmust
be fully opened before starting fire. This will provide sufficient combustion
air and maintain safe temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
The tempered glass will withstand a gradual temperature rise to 550° F,
whichismorethananormalrewillgenerate.Suchmaterialsaspitch/
wax laden logs, very dry mill end lumber and large amounts of paper or
cardboard boxes can create an excessively hot fire and should not be
burned in this fireplace. Always keep the fire well back from the doors
andneverallowamestocontacttheglass.
WARNING: Fireplaces equipped with glass doors
should be operated only with doors fully opened or
doorsfullyclosed. Doors,ifleft partly open,maydraw
gasandameoutofthereplaceopeningcreating
risks of both fire and smoke.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
WARNING: Discontinue use of the appliance imme-
diately if doors are damaged and contact a qualified
installer for repair. Only doors certified with the ap-
pliance shall be used.
Cleaning Glass
Cleanglasswithanycommercialglasscleanerorsoapandwater.Do
not use any abrasive material to clean glass. Do not clean glass with any
cool water if glass is still hot from the fire and smoke.
Figure 30 - Bi-Fold Glass Doors
Doors Fully Closed
Fireplace Front
Doors
Fully Opened
Fireplace Front
OPERATION AND MAINTENANCE GUIDELINES

Superiorfireplaces.US.com 126601-01B18
PARTS
1
21
20
5
6
7
10
9
11
12
13
16/17
15
14
8
24
23 3
25
18
2
22
19
4
MODEL CATALOG NO.
WRT4536RS F0620
WRT4536RH F0621
WRT4542RS F0622
WRT4542RH F0623
WRT4550RS F0624
WRT4550RH F0625
WRT4536WS F0626
WRT4536WH F0627
WRT4542WS F0628
WRT4542WH F0629
WRT4550WS F0630
WRT4550WH F0631

Superiorfireplaces.US.com126601-01B 19
PARTS
This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under ReplacementParts on
page 26 of this manual.
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
KEY NO. CATALOG NO. DESCRIPTION WRT4536 WRT4542 WRT4550 QTY.
1 ** Face Assembly • • • 1
2 ** Firebox Bottom Assembly • • • 1
3 ** Firebox Bottom • • • 1
4 ** FireboxSurround • • • 1
5 ** OuterDomeAssembly • • • 1
6 ** InsulationPanSupport • • • 1
7 ** InsulationPan • • • 1
8 ** TopInsulation • • • 1
9 ** Fireplace Top Assembly, 36" •1
** Fireplace Top Assembly, 42" •1
** Fireplace Top Assembly, 50" •1
10 J6997 Standoff • • • 4
11 ** FireplaceSurroundAssembly • • • 1
12 J4362 ClearanceSpacer • • • 6
13 J5329 FireplaceHandleBracket • • • 4
14 J6900 OutsideAirCoverPlate • • • 2
15 J6934 GasConduitCover • • • 4
16 J4368 ConduitOne • • • 2
17 J4369 ConduitTwo • • • 2
18 ** HeatShieldSupport • • • 1
19 J6020 Ash Box Assembly • • • 1
20 ** InnerDomeAssembly • • • 1
21 ** SmokeShield • • • 1
22 ** DamperControlBracket • • • 1
23 J4342 Screen36" • 2
J4341 Screen42" • 2
J4340 Screen50" • 2
24 J6928 ScreenRod36" • 2
J4391 ScreenRod42" • 2
J4390 ScreenRod50" • 2
25 J4347 Grate36" • 1
J4346 Grate42" • 1
J4345 Grate50" • 1
PARTS AVAILABLE NOT SHOWN
J3938 GrateRetainer • • • 2
J4357 SideFirebrickWallSpacers • • • 4
114913-01 RearFirebrickWallSpacers • • • 2
**Notaeldreplaceablepart.

Superiorfireplaces.US.com 126601-01B20
IMPORTANT: Installation of refractory panels should
be done after the fireplace is placed in a permanent
location.
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.
PARTS
1
2
5
3
4
6
6
MODEL CATALOG NO.
WRT4536RS F0620
WRT4536RH F0621
WRT4542RS F0622
WRT4542RH F0623
WRT4550RS F0624
WRT4550RH F0625
WRT4536WS F0626
WRT4536WH F0627
WRT4542WS F0628
WRT4542WH F0629
WRT4550WS F0630
WRT4550WH F0631
