INSTALLATION AND OPERATION INSTRUCTIONS
Superior™ Merit Series Wood-Burning Fireplace
MODELS
P/N 126631-01 Rev. B 05/2015
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 18).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
—Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
—Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
—Ne pas entreposer ni utilizer d’essence ni d’autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous
servir des téléphones se trouvant dans le bâtiment
où vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
—L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par
le fournisseur de gaz.
WRT2042WS
WRT2042WSI
WCT2042WS
WCT2042WSI

Superiorfireplaces.US.com 126631-01B
2
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and of-
fers, please take a few moments to register your product online
at www.Superiorfireplaces.US.com (Owner Resources/Product
Registration).
Please read and understand these instructions before installing
or operating.
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
property damage or loss of life. Refer to this manual
for assistance or additional information. Consult a
qualified installer or local distributor.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning installation of this fireplace, read these instructions
through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a fire
hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyrespon-
sibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b. Use of any component part not manufactured or approved by
IHPincombinationwithanIHPreplacesystem.
Proper installation is the most important step in ensuring safe and
continuousoperationofthereplace.Consultthelocalbuildingcodes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
fireplace unless the manufacturer's instructions with
the insert specifically state this fireplace has been
tested for use with this insert.
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING: Use solid wood or processed solid
fuel fire logs only. "Do not poke or stir the logs while
they are burning. Use only firelogs that have been
evaluated for the application in fireplace and refer to
firelog warnings and caution markings on packaging
prior to use."
This fireplace is not intended to be used as a sub-
stitute for a furnace to heat an entire home. Use for
supplemental heat only.
Ovefiring of a fireplace is a condition where exces-
sive temperatures are reached, beyond the design
capabilitiesoftheappliance.Thedamagethatoccurs
fromovefiringisnotcoveredunderthemanufacturer’s
limited warranty.
Safety.............................................................................................2
Specifications.................................................................................4
FireplaceInstallation ......................................................................5
VentingInstallation ........................................................................7
OptionalGasLineInstallation ......................................................13
OperationandMaintenance .........................................................14
Replacement Parts.......................................................................15
Technical Service .........................................................................15
Parts ............................................................................................16
Accessories..................................................................................18
Warranty ......................................................................................23
TABLE OF CONTENTS

Superiorfireplaces.US.com
126631-01B 3
SAFETY Continued
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALSORCHEMICALLY
TREATEDCOMBUSTIBLES.
"Disposal of Ashes
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
be placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending
final disposal. If the ashes are disposed of by burial
in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have
thoroughly cooled."
"WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION."
"Neverusegasoline,gasoline-typelanternfuel,kero-
sene, charcoal lighter fluid, or similar liquids to start
or ’freshen up’ a fire in this fireplace. Keep all such
liquidswell away from the fireplace while it is in use."
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash,driftwoodorwoodsthathavebeendippedintar,
pitch, pine tar, creosote, etc. Wood products made
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
WARNING: BURNING IMPROPER FUEL (I.E.
CHARCOAL) CAN RESULT IN CARBON MONOXIDE
POISONING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresemblethefluwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualified service technician. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or lung
disease or anemia, those under the influence of al-
cohol, and those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
fromtheheatproducedbytheappliance). Ifyourlocal
coderequiresasmokedetectorbeinstalledwithinthe
same room, you must follow the requirements of your
localcode.Checkwith yourlocalbuildingdepartment
for requirements in your area.
"Creosote – Formation and Need for Removal
Whenwoodisburned slowly, it producestarandother
organicvapors,whichcombinewithexpelledmoisture
to form creosote. The creosote vapors condense in
the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on
the flue lining. When ignited this creosote makes an
extremely hot fire.
The chimney shall be inspected at least twice a
year during the heating season to determine when a
creosote buildup has occurred. When creosote has
accumulated(1/8"[3mm]ormore)itshallberemoved
to reduce the risk of a chimney fire."

Superiorfireplaces.US.com 126631-01B
4
SPECIFICATIONS
0" TO
BOTTOM
OUTSIDE AIR
(LEFT SIDE
ONLY)
TOP SPACERS
3/4"AIR
SPACE
BACK
AND
SIDES
HEARTH
EXTENSION
EACH SIDE
1" AIRSPACE
TO COMBUSTIBLE
COMBUSTIBLE
WALL BOARD
0" TO
MATERIAL
NO COMBUSTIBLE
MATERIAL ON FACE
GAS LINE
KNOCK OUT
AIR KIT KNOCK OUTS
ROUND TOP TERMINATION
GAS LINE
KNOCK OUTS
LEFT SIDE
RIGHT SIDE
NOT LESS
THAN 14" TO
PERPENDICULAR
SIDEWALL
SQUARE CHASE-TOP
TERMINATION
8 1/4"
8 1/4"
14 7/16"
10 3/8"
1 3/8"
25 3/8"
38 7/8"
28 1/2"
14"
1"
32"
33"
42"
44"
1"
44"
21 1/8"
21 1/2"
37 1/2"
6 1/2"
1 3/4"
5/8"
7"
13"
12" 66" X 20"
7"

Superiorfireplaces.US.com
126631-01B 5
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine safest and most efficient location for fireplace, you
must take into consideration the following guidelines:
1. Locationmustallowforproperclearances(seeFigures1and2).
2. Consideralocationwherereplacewillnotbeaffectedbydrafts,
air conditioning ducts, windows or doors.
3. Alocationthatavoidscuttingofjoistsorroofrafterswillmake
installation easier.
4. Anoutsideair kitisavailable withthisreplace (seeOptional
OutsideAirKitonpage7).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimneyouterpipesurface1"minimum
* Not required at nailing flanges
** See step 2 of Framing
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.

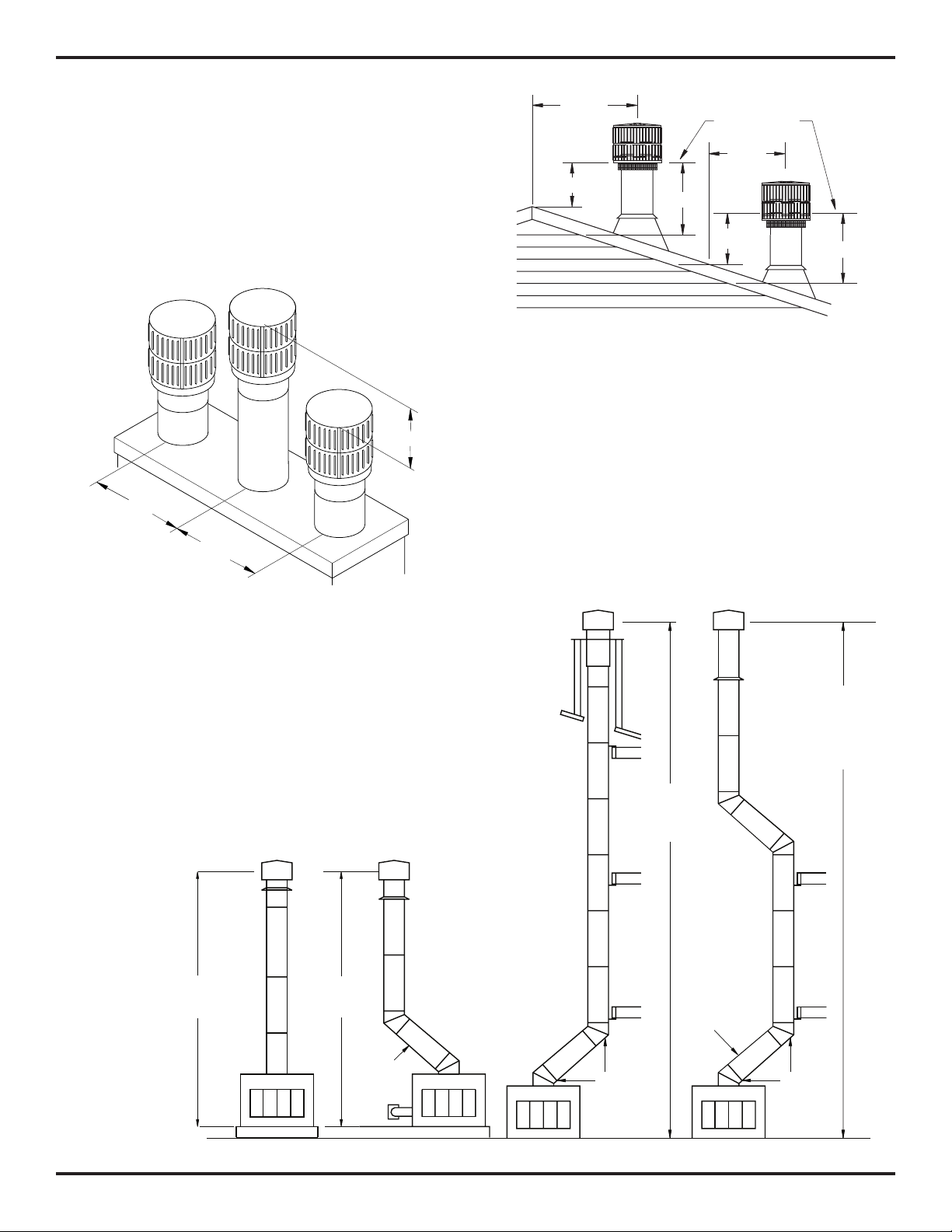

Minimum/Maximum Chimney Height
Minimum height of chimney, measured from base of fireplace to
flue gas outlet of termination, is 14.5 feet for straight flue or a flue
with one elbow set. Maximum distance between elbows is 6 feet. For
systems with two elbow sets, minimum height is 22 feet. Maximum
height of any system is 50 feet. This measurement includes fireplace,
chimney sections and height of termination assembly at level of flue
gasoutlet(seeFigure20,page12).
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures
1 and 2.
2. Ifreplaceistobeinstalleddirectlyoncarpeting,tile(otherthan
ceramic)oranycombustiblematerialotherthanwoodooring,
fireplace must be installed upon a metal or wood panel extending
full width and depth of fireplace.
3. Set fireplace directly in front of this opening and slide unit back
until nailing flanges touch side framing.
4. Checklevelofreplaceandshimwithsheetmetalifnecessary.
5. Before securing fireplace to prepared framing, ember protector
must be placed between hearth extension (not included) and
under bottom front edge of fireplace to protect against glowing
embersfallingthrough.Ifreplaceistobeinstalledonaraised
platform,aZ-typeemberprotector(notincluded)mustbefabri-
catedtotyourrequiredplatformheight.Emberprotectorshould
extend under fireplace a minimum of 1 1/2". Ember protector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimum)
to prevent corrosion.
6. Using screws or nails, secure fireplace to framing through flanges
located on sides of fireplace.
22"
37 5/8"
44 1/4"

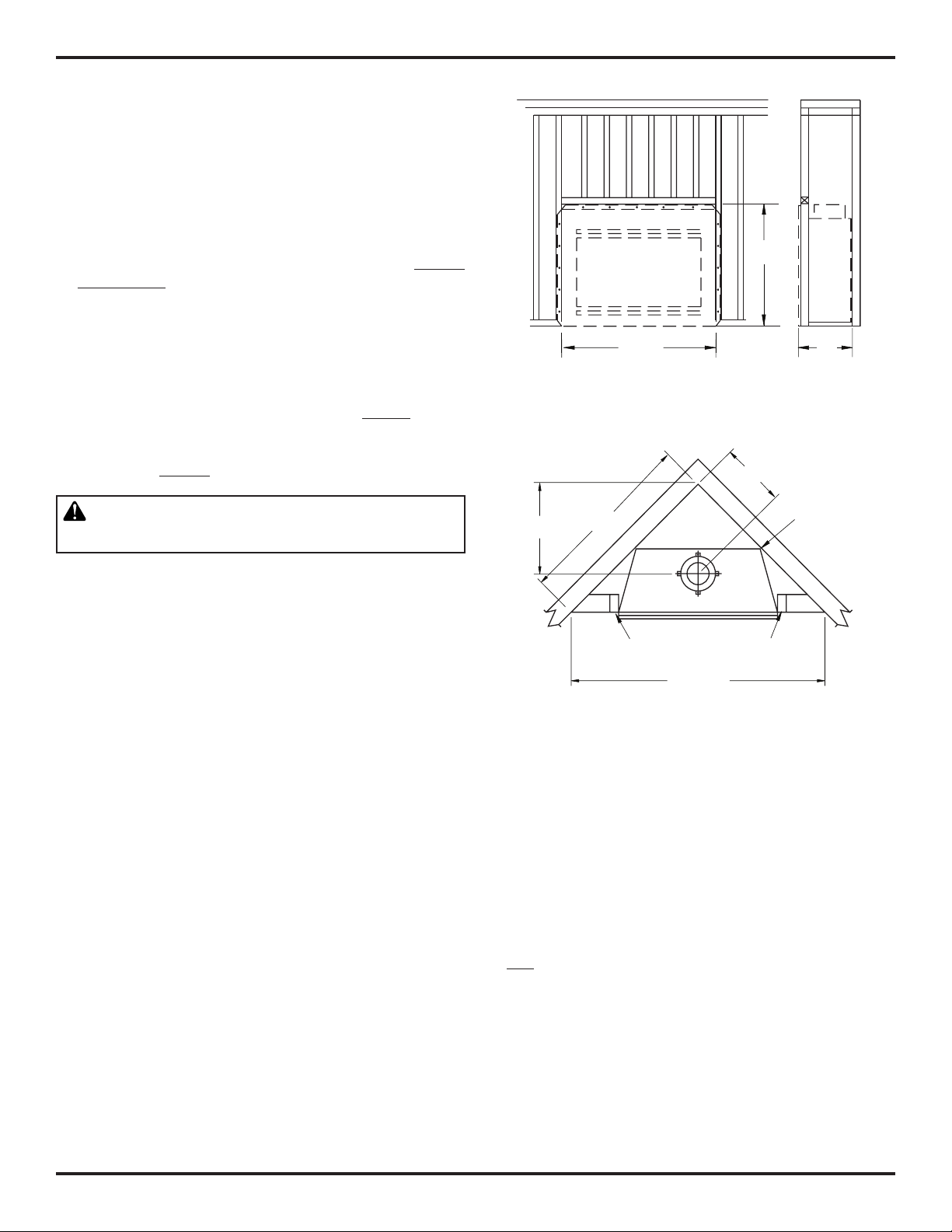

Figure 1 - Framing Dimensions
52 1/2"
15 7/8"
22 1/2"
72 7/8"
Maintain 3/4"
Clearance at
Sides and
Back of
Fireplace
3/4" Clearance Not
Required at Nailing Flanges
Figure 2 - Corner Installation
HEARTH EXTENSION
Ahearthextensionprojectingaminimumof20"infrontofanda
minimum of 12" beyond each side of fireplace opening is required
to protect combustible floor construction in front of fireplace. Fab-
ricate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having
athermalconductivityofk=.84BTUIN/FT2HR°F(orless)at1"
thick. For example, if material selected has a k factor of 0.25, such
as glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manu-
facturerorsupplierofnoncombustiblematerial.Ifhearthextension
is to be covered, use noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Provide a means to
prevent hearth extension from shifting and seal gap between fireplace
frame and hearth extension with a non-combustible material such
assand-cementgrout(seeFigure3,page6).

Superiorfireplaces.US.com 126631-01B
6
FIREPLACE INSTALLATION Continued
Figure 3 - Hearth Extension
Fireplace Front
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Seal Gap
Seal Gap
Seal Gap
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Elevated
Do Not Block Louver
Ember Protector
Ember Protector
Ember Protector
Ember Protector
Hearth
Extension
Hearth
Extension
HearthExtension,CirculatingModes
HearthExtension,NoncirculatingModels
NO
WARNING: Hearth extension is to be installed
only as shown in Figure 3.
Figure 4 - Mantel Clearances to Combustible Material
FIREBOX
SAFE ZONE
Figure 5 - Side Mantel Clearance
Top View of Fireplace
Min. 12" from
Perpendicular Side Wall
1"
0.625" Max.
33°
8"
MANTELS
Amantelmaybeinstalledifdesired(seeFigure4).Woodworksuch
as wood trims, mantels or any other combustible material projecting
fromfrontfacemustnotbeplacedwithin9"ofreplaceopening(and
within9"oftoplouveropening).Combustiblematerialsabove9"and
projecting more than 1 1/2" from fireplace must not be placed less
than12"fromtopopeningofreplace(NFPA211,Section-Clearance
fromCombustibleMaterial).
Mantels or any other combustible material may come up to side edge
of black metal face of fireplace if projection from front face falls within
limits shown in Figure 5.
12 1/4" Ref.
1 1/2"
Max.
Upper Section
of Circulating
Fireplace
6"
Ref.
9"
Min.
33°
3" Nom.
*Note: Drawing Not To Scale
Safe Zone For
Projection of
Combustible
Materials
Combustible
Material
Non Combustible
Materials Below
Top Spacer
15"
Min.
12"
Min.
Fireplace Opening
Top of
Louvered
Opening

Superiorfireplaces.US.com
126631-01B 7
FAN/BLOWER KIT ASSEMBLY
Fanorblowerkitisoptionalwiththisreplace(forcirculatingmodels
only).UseofblowersorfansotherthanthosemanufacturedbyIHP
voidswarranty.Fanisoperatedbypressingrockerswitch(seeFigure
6)inlowerrighthandcornerofreplaceface.Blowerisoperatedby
turningcontrolknob(notshown).
Fan/blower kit electrical connections are made through electrical
cover plate on side of fireplace a shown in Figure 6.
FIREPLACE INSTALLATION Continued
Wiring Instructions
1. Remove electrical cover plate with bushing from fireplace by
removing 2 sheet metal screws as shown in Figure 6.
2. Slide power source wiring through electrical bushing opening
and electrical cover plate and make all necessary connections.
3. Slide all wiring connections in electrical housing as shown in
Figure 6.
4. Secure electrical cover plate with screws previously removed.
Note:Electricalhousingandcover platehavesharpedges.Wear
protective gloves.
Electrical
Bushing
Electrical
Cover
Plate
Rocker
Switch
Figure 6 - Fan Switch-Electrical Bushing
Electrical
Housing
Wire Nut (3x)
(Not Supplied)
Outer Wrapper
of Fireplace
Electrical Cover
Plate and
Electrical Bushing
Fireplace Chassis
Ground
To Power
Source
Receptacle
(Supplied)
Power Source Wiring
(Not Supplied)
Prewired Receptacle
and Ground
Sheet
Metal
Screws

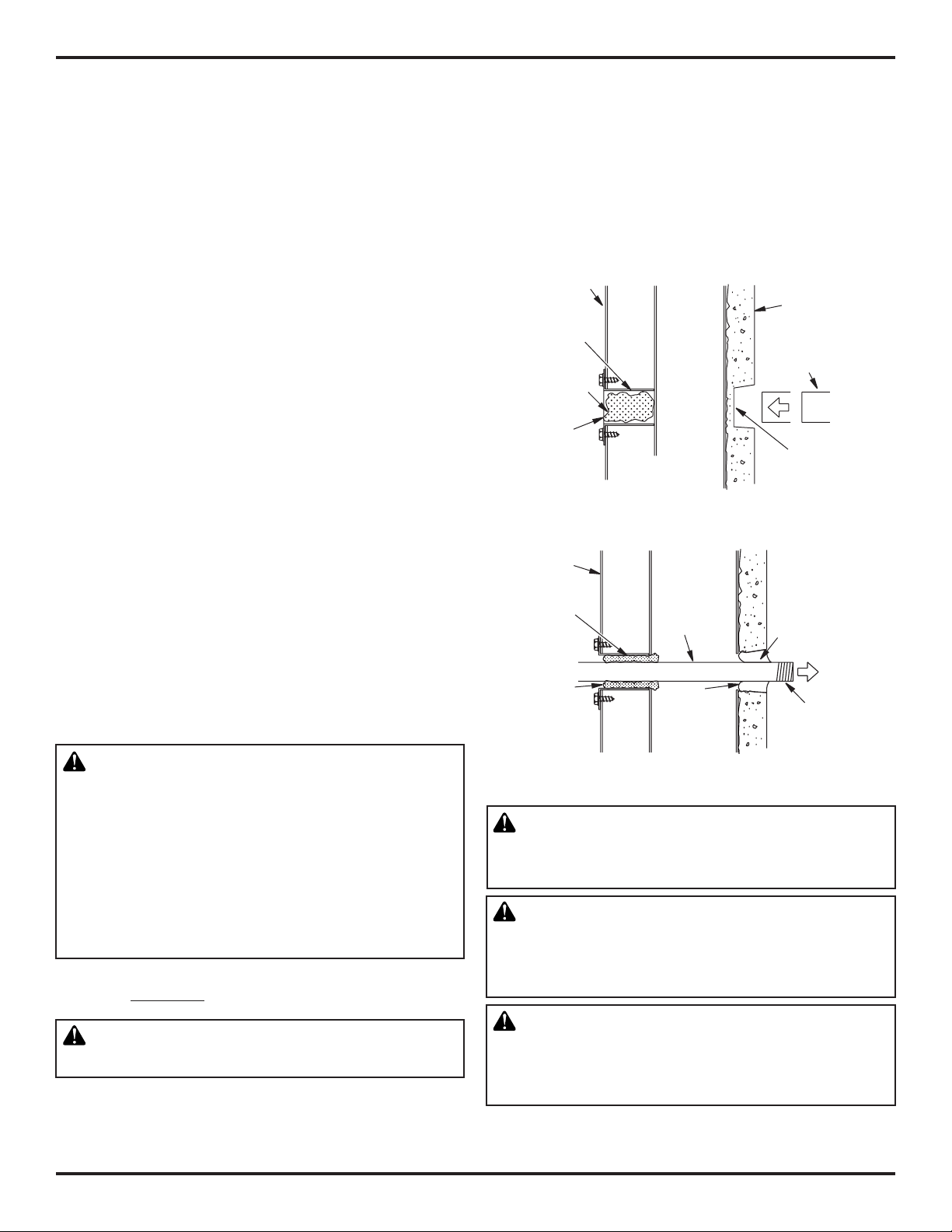

Figure 7 - Outside Air Kit
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
Installationofoutsideairkitshouldbeperformedduringroughfram-
ingofreplaceduetothenatureofit'slocation.Outsidecombustion
airisaccessedthroughaventedcrawlspace(AK4F)orthrougha
sidewall(AK4).SeeFigure7forinstructionofoperatingairkit.
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3 feet below the flue gas outlet of the termination.
CHIMNEY PIPE
AnIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
toindividualsite requirements.Actuallengths gainedaftertting
overlapsmustbetakenintoconsideration(linealgain)andaregiven
inlinealgainchart(seeFigure8,page8).
Linealgainisactualmeasurablelengthofapartaftertwoormore
parts are connected.

Superiorfireplaces.US.com 126631-01B
8
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe
WARNING: The opening in collar around chimney
at top of fireplace must not be obstructed. Never use
blown insulation to fill chimney enclosure.
VENTING INSTALLATION Continued

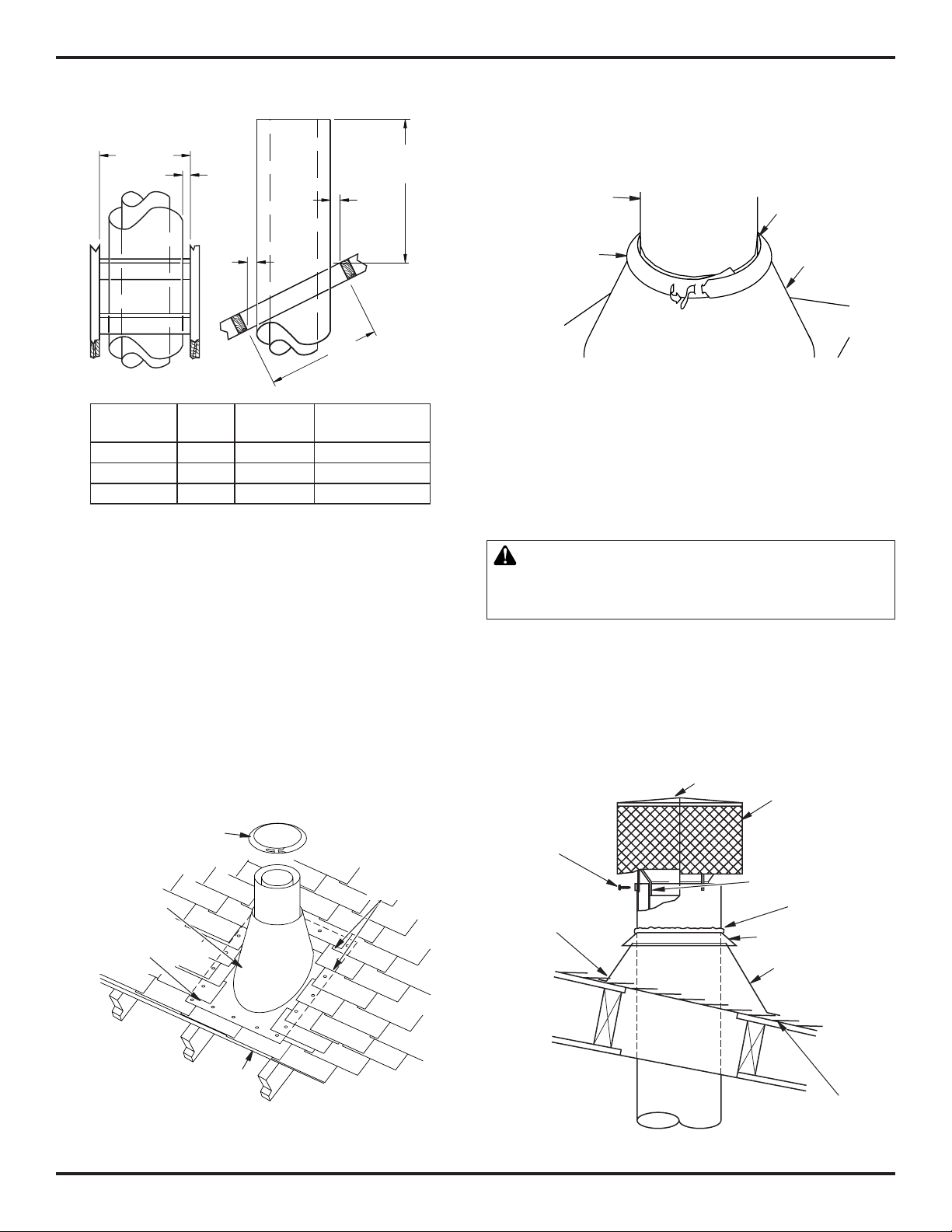

ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Eachdoublewallchimneysectionconsistsofagalvanizedouter
pipe, a stainless steel inner flue pipe and a wire spacer. Pipe sections
must be assembled independently as chimney is installed. When
connecting chimney directly to fireplace, inner flue pipe section
mustbeinstalledrstwithlancedsideup.Outerpipesectioncan
then be installed over flue pipe section with hemmed end up. Press
down on each pipe section until lances securely engage hem on
fireplace starter. Wire will assure proper spacing between inner
and outer pipe sections.
Note:ForCanada,usechimneypartsdesignatedHT.
Opening in collar around chimney at top of
fireplace must not be obstructed. Never use blown
insulation to fill chimney enclosure.
Continuetoassemblechimneysectionsasoutlined,makingsure
that both inner and outer pipe sections are locked together. When
installing double wall snap-lock chimney together, it is important to
assurejointbetweenchimneysectionsislocked.Checkbypulling
chimneyupwardafterlocking.Chimneywillnotcomeapartifproperly
locked.Itisnotnecessarytoaddscrewstokeepchimneytogether
(exception-seeFigure11,page9).
TheheightofaverticalchimneypipesupportedONLYbythereplace,
mustnotexceed20feet.Chimneyheightsabove20feetmustbe
supported.

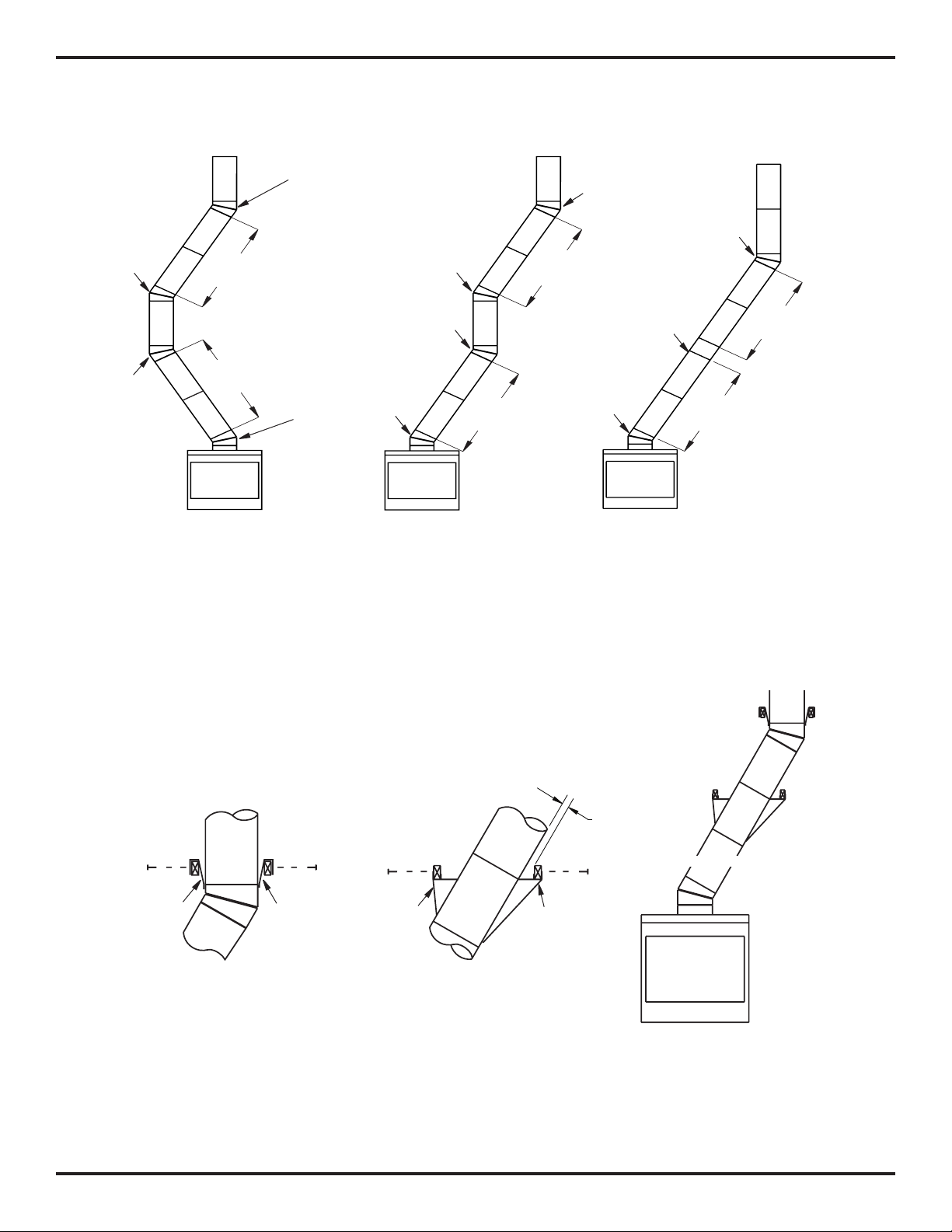

USING ELBOW OFFSETS (30E-8DM)
1. To achieve desired offset, you may install combinations of 12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart,
page9,andFigure9,page8).
Note: For systems with 2 elbow sets, minimum height is 22 feet.
Maximum height for any system is 50 feet.
2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust
besecurelynailedtoraftersorjoists(seeFigure10,detailsAand
B,page8).
3. Maximumlengthofpipebetweensupports(returnelbowor12S-
8DM)is6'ofanglerun.Maximumoftwo6'anglerunsections
perchimneysystem(seeFigure9,page9).
4. Allpipeconnectionsbetweenoffsetandreturnmustbesecured
withtwoscrewsonouterpipeonly(seeFigure11,page10).Do
not penetrate inner stainless.
Figure 8 - Lineal Gain
LINEAL GAIN
CAT. NO. PART NO. DESCRIPTION GAIN
42" Fireplace 37 1/2"
F0895
F0881
12-8DM
12-8HT Pipe Section 10 5/8"
F0896
F0882
18-8DM
18-8HT Pipe Section 16 5/8"
F0897
F0883
24-8DM
24-8HT Pipe Section 23 5/8"
F0898
F0884
36-8DM
36-8HT Pipe Section 34 5/8"
F0899
F0885
48-8DM
48-8HT Pipe Section 46 5/8"
F0916 RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
F0918 RLT-8DM Round Termination 7 1/2"*
F0917 RTT-8DM Round Termination with
Slip Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination with
Slip Section
8 1/2" to
21 1/2"*
F0919 RLTT-8DM Round Termination with
Slip Section
7 1/2" to
21 1/4"*
F0920 ET-8DM SquareChase-Top 12"*
F0922 ETO-8DM SquareChase-Topwith
Mesh 12"*
F0921 ETL-8DM SquareChase-Topwith
Slip Section 7" to 15"*
F0923 ETLO-8DM SquareChase-Topwith
Mesh & Slip Section
12" to
25 1/2"*
* The lineal gain for the terminations is measured to the flue gas
outlet height.

Superiorfireplaces.US.com
126631-01B 9
Figure 9 - Typical Offset Installation
Figure 10 - Ceiling Support Pipe 12S-8DM
2" Min.
Straps Straps
Straps
Straps
Detail A
Return Elbow
Detail B
Angle
Firestop
See Detail A
See Detail B
Ceiling Support
Pipe 12S-8DM
VENTING INSTALLATION Continued
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow Offset
Elbow
6' Max.
6' Max. 6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
ABC
Ceiling
Support Pipe
12S-8DM
Return
Elbow

Superiorfireplaces.US.com 126631-01B
10
VENTING INSTALLATION Continued
Figure 11 - Elbow Offset
FIRESTOP SPACERS (3600FS-8DM-1)
Firestop spacers are required at each point where chimney penetrates
a floor space. Their purpose is to establish and maintain required
clearance between chimney and combustible materials. When pipe
passes through a framed opening into a living space above, firestop
must be placed onto ceiling from below as shown in Figure 12.
They also provide complete separation from one floor space to an-
other or attic space as required by most codes. When double wall
pipe passes through a framed opening into an attic space, firestop
must be placed into an attic floor as shown in Figure 13.
Figure 12 - Firestop Spacer with Living Space Above Ceiling
Figure 13 - Firestop Spacer with Attic Space Above Ceiling
Ifareaaboveisalivingspace,installrestop
below framed hole.
Ifareaaboveisanatticorinsulatedarea,install
firestop above framed hole.
PENETRATING ROOF
To maintain a 2" clearance to pipe on a roof with a pitch, a rectangular
opening must be cut.
1. Determinecenterpointwherepipewillpenetratetheroof.
2. Determinecenterpointoftheroof.Pitchisthedistancetheroof
dropsoveragivenspan,usually12".A6/12pitchmeansthatthe
roof drops 6" for each 12" measure horizontally down from roof
rafters.
3. Useroofopeningchart(Figure14,page11)todeterminecorrect
opening length and flashing required.
4. Removeshinglesaroundopeningmeasured.Cutoutthissection.
5. Addnextsectionsofpipeuntilendpenetratesroofline.Checktosee
thatproperclearancesaremaintained.Extendchimneybyadding
sections of double wall pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination and chimney must extend
a minimum of 36" above highest point where it passes through
roof.
B
A
Screws
OFFSET RISE CHIMNEY LENGTH
A B 48" 36" 24" 18" 12"
4 3/8" 16 3/8"ELBOW SET ONLY
9" 25 3/4" 1
11 7/8" 31" 1
15" 37 3/8" 1
16 3/4" 40 1/2" 1 1
20" 47 1/8" 1
22 5/8" 52 1/8" 1 1
25 1/2" 57 7/8" 1
27 5/8" 62" 1 1
30 3/8" 67 1/4" 1 1
33" 72 5/8" 1 1
35 3/4" 78" 2
37 7/8" 82" 1 1 1
41 1/4" 88 5/8" 1 1
43 3/8" 92 3/4" 2 1
46 5/8" 99 3/8" 2
48 3/4" 103 1/2" 1 1 1
51 1/2" 108 7/8" 2 1
54 1/4" 114 1/8" 2 1
57" 119 1/2" 1 2
59" 123 5/8" 2 1 1
61 3/4" 129" 1 2 1
64 1/2" 134 3/8" 1 2 1
67 1/4" 139 5/8" 4

Superiorfireplaces.US.com
126631-01B 11
VENTING INSTALLATION Continued
Pitch Slope Opening
"A"Max.
UsedFlashing
ModelNo.
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12- 12/12 45.0° 20 3/8" V12F-8DM
Figure 14 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)
Determineashingtobeusedwithroofopeningchart.Slideashing
over pipe until base is flat against roof. Replace as many shingles as
needed to cover exposed area and flashing base. Secure in position
bynailingthroughshingles(seeFigure15).DONOTNAILTHROUGH
FLASHINGCONE.
Installing Flashing on a Metal Roof
When installing flashing on a metal roof, it is required that putty tape
be used between flashing and roof. Flashing must be secured to roof
using #8 x 3/4" screws and then sealed with roof coating to prevent
leakagethroughscrewholes.Aroofcoatingmustalsobeapplied
around perimeter of flashing to provide a proper seal.
Nail Only Outer
Perimeter of
Flashing
Storm Collar
Underlap Shingles
at Bottom
Figure 15 - Flashing Installation
Flashing
Cone
Overlap
Shingles Top
and Sides Only
Storm Collar Installation (SC1)
Place storm collar over pipe and slide down until it is snug against
openedgeofashing(seeFigure16).UseSC1forallroundtermina-
tions.Applywaterproofcaulkaroundperimeterofcollartoprovide
a proper seal.
Figure 16 - Storm Collar
Chimney
Pipe Waterproof
Caulk
Storm
Collar Flashing
Terminations/Spark Arrestor
Fireplace system must be terminated with listed round top or chase
terminations.Inanycase,refertoinstallationinstructionssupplied
with termination. Terminations approved for this fireplace are RT-
8DM,RTL-8DMandRLT-8DMthatcanbeusedforashingorchase
andET-8DM,ETO-8DM,ETL-8DMandETLO-8DMforchasestyleter-
minationonly.Figure17showsanRTL-8DMroundtoptermination.
CAUTION: Do not seal openings on the rooftop
flashing.Followthe installationinstructionsprovided
with the termination being used.
Terminations with 16" slip pipe sections are available. RTT-8DM,
RTTL-8DMandRLTT-8DMareapprovedforashinginstallations.
When needed, these adjustable terminations may be used in combina-
tion with pipe assembly to achieve correct chimney height.
Note:Intherareinstancethereisaproblemwithsidedrivenrainor
windorchimneyisnotdrafting properly, an ADS-8DM(Anti-Draft
Shield)canbeusedwithroundterminations.
Attach Bracket
Tabs to
Outer Pipe
(3 Places)
Secure with
Screws
RTL-8DM Level of Flue
Gas Outlet
Caulk
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 17 - Termination
Overlap
Shingles Top
and Sides
Flue Pipe of
RTL-8DM
Inside Inner
Pipe of
Chimney
30"
(76.2 cm)
Minimum Measurements
Opening "A"
14 3/8"
(48.3 cm)
1"
(2.54
cm)
1"
(2.54
cm)
1"
(2.54 cm)

Superiorfireplaces.US.com 126631-01B
12
30E-8DM
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
MINIMUM
HEIGHT
14.5 FT.
MINIMUM
UP TO
6FT. MAX.
UP TO
6FT. MAX.
HEIGHT
14.5 FT.
MIN. HEIGHT
OF 22 FT. (WITH
2 ELBOW SETS)
MAX. HEIGHT OF
50 FT.
MAX. HEIGHT
50 FT.
(ANY SYSTEM)
30E-8DM
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructionsforchaseinstallationsareincludedwithchasestyleter-
minationchosen.Inamultiplechaseinstallation,besuretoprovide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure18).
Note:Ifadecorativeshroudistobeinstalled,contactmanufacturer
for specifications.
24" Min.
24" Min.
18"
Min.
Typ.
Figure 18 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 19 - 10 Foot Rule
10 FOOT RULE
Alluegasoutletchimneyterminationsmustextendaminimumof
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
ahorizontaldistanceof10feet(seeFigure19).
FINISHING FIREPLACE
Combustible materials, such as wallboard, gypsum board, sheet
rock, drywall, plywood, etc., may make direct contact with sides and
toparoundreplaceface.Itisimportantthatcombustiblematerials
do not overlap face itself. Brick, glass, tile or other noncombustible
materials may overlap front face provided they do not obstruct es-
sential openings such as louvered slots. When overlapping with a
noncombustible facing material, use only noncombustible mortar
or adhesive.
Figure 20 - Typical Residential Installations

Superiorfireplaces.US.com
126631-01B 13
Agaslineor gas log lightermaybeinstalledfor the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
forDecorativeGasAppliancesforInstallationinVentedFireplaces,
ANSIZ21.60orAmericanGasAssociationdraftrequirementsfor
GasFiredLogLightersforWoodBurningFireplaces,DraftNO.4
datedAugust,1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standardforunventedroomheaters,ANSIZ21.11.2aretobeinstalled
in this fireplace.
Gaslinehookup should be donebyyoursupplier or aqualied
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Use only a 1/2" black iron pipe and appropriate fittings.
1. Remove knockout indentation on refractory or firebrick wall
locatedaboverefractoryhearthoor.Knockoutindentationmust
be firmly tapped with any solid object, such as a 1/2" dowel, until
itisreleased.Removefragmented portions of refractory (see
Figure21).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gaslineconduitsleeve(ifusingaraisedplatform,addheight).
Provide sufficient gas line into fireplace chamber for fitting
connection(seeFigure22).
Note: Secure incoming gas line to wood framing to provide rigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercial furnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solutiontoallconnectionsandjoints.Bubblesforming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: AnIHPhoodmustbeinstalledwhenusinganunventedgas
logset(seeAccessoriesonpage18).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.
Figure 22 - Gas Line Installation
OPTIONAL GAS LINE INSTALLATION
Figure 21 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded End for
Fitting Connection
Ifyouinstalladecorativegasappliance(ventedgaslog),decorative
gasappliancemustcomplywiththeStandardforDecorativeGas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA2.26orZ21.84andshallalsobeinstalledinaccordance
withANSIZ223.1/NFPA54NationalFuelGasCodes(USA)andCAN/
CGA-B149.1NationalGasAndPropaneInstallationCode(Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning,fireboxandchimneymustbecleanedofsoot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.

Superiorfireplaces.US.com 126631-01B
14
Figure 23 - Glass Doors
Figure 24 - Damper Handle Location
Cleaning Glass
Cleanglasswithanycommercialglasscleanerorsoapandwater.
Donotuseanyabrasivematerialtocleantheglass.Donotclean
glass with any cool water if glass is still hot from fire and smoke.
DAMPER HANDLE OPERATION
Damperhandle,whichopensandclosesdamperblade,islocated
insidereboxatcentertowardsbackwall(seeFigure24).Pushing
handle back into keyway slot will free damper blade to automatically
open. To close, push handle back into keyhole slot then pull down
andforwardtolockitinplace(seeFigure25).Ventdampermustbe
locked in the full open position before operating fireplace.
OPERATION AND MAINTENANCE
WARNING: Risk of fire! Replace grate with IHP
model107001-02only.Thisgratehasbeendesignedto
keeptheoperationofyourfireplace safe and efficient.
Damper
Handle
Doors Fully Closed
Doors Fully Opened
12
3
12
3
Damper
Weight
To Close Damper To Open Damper
Figure 25 - Damper Rod
Fireplace Front
Fireplace Front
Figure 26 - Locating Access Cover Plate
Access
Panel
LOCATING ACCESS COVER PLATE
Sheet metal cover plates located underneath front hearth refractory may
have shifted or moved out of place while fireplace was in transit. These
cover plates must be kept in the proper location prior to using the fireplace
(SeeFigure26).
For further operating guidelines, instructions and warranty informa-
tion, please refer to your homeowner's guide or contact your dealer.
GLASS DOORS
Glass doors are optional with this replace. When replace is in
operation, doors must be fully opened or fully closed position only
orarehazardmaybecreated(seeFigure23).
Areplaceequippedwithglassdoorsoperatesmuchdifferentlythan
areplacewithanopenfront.Areplacewithglassdoorshasa
limitedamountofairforcombustion.Excessiveheatwithinreplace
can result if too large a fire is built or if combustion air gate is not
completely open.
The following tips should be used to assure that both fireplace and
glass door retain their beauty and function properly. Both the flue
damper and glass doors must be fully opened before starting a
fire. This will provide sufficient combustion air and maintain safe
temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Temperedglasswillwithstandagradualtemperatureriseto550°
F, which is more than a normal fire will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and large amounts
of paper or cardboard boxes can create an excessively hot fire and
shouldnotbeburnedinthisreplace.Alwayskeeprebackfrom
doors and never allow flames to contact glass.
"WARNING:FIREPLACESEQUIPPEDWITHDOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPENORDOORSFULLYCLOSED.IFDOORSARELEFT
PARTLYOPEN,GASAND FLAMEMAYBEDRAWNOUT
OF THE FIREPLACE OPENING, CREATING RISKS OF
BOTH FIRE AND SMOKE".

Superiorfireplaces.US.com
126631-01B 15
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting.PleasecontactyourIHPdealerforanyquestions
or concerns. When contacting your dealer please have your model
andserialnumbersofyourreplaceready.Youcanalsovisitour
web site at Superiorfireplaces.US.com.
REPLACEMENT PARTS
See Pages 16 to 17 for a complete replacement parts list. Use only
parts supplied from the manufacturer.
Normally,allpartsshouldbeorderedthroughyourIHPdistributor
or dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1. The model number of the fireplace.
2. The serial number of the fireplace.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the fireplace.
Ifyouencounteranyproblemsorhaveanyquestionsconcerningthe
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Superiorfireplaces.US.com

Superiorfireplaces.US.com 126631-01B
16

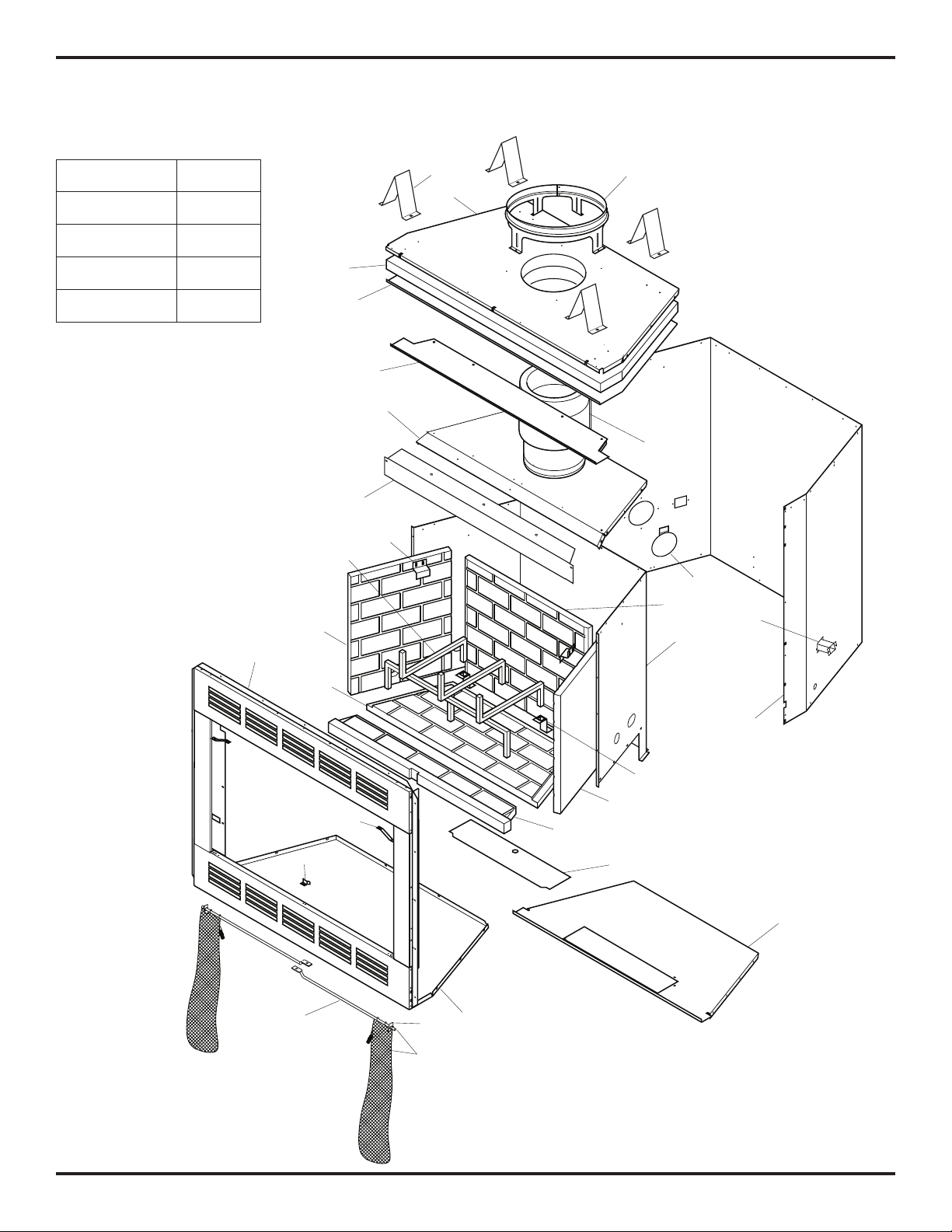

PARTS
WOODBURNINGFIREPLACEMODELSWRT2042WS,WRT2042WSI,WCT2042WS,WCT2042WSI
11
27
30 23
22
24
10
14
25
4
17
3
2
1
18
5
20
28
12
7
15
9
16
13
8
26
6
29
19
21
MODEL CAT NO.
WRT2042WS F0687
WRT2042WSI F0688
WCT2042WS F0689
WCT2042WSI F0690

Superiorfireplaces.US.com
126631-01B 17
PARTS
WOODBURNINGFIREPLACEMODELSWRT2042WS,WRT2042WSI,WCT2042WS,WCT2042WSI
This list contains replaceable parts used in your fireplace.
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
KEY
NO. PART NO. DESCRIPTION
WRT2042WS
(F0687)
WRT2042WSI
(F0688)
WCT2042WS
(F0689)
WCT2042WSI
(F0690) QTY.
1 ** InsulationPan • • 1
2 ** AirSeparator • • 1
3 ** Firebox Top • • 1
4 108302-01 AirDeector • • 1
5 ** Wrapper Top • • 1
6 ** Firebox Wrapper • • 1
7 108304-01 OuterWrapper/InsulationAssembly • • 1
8 ** Firebox Floor • • 1
9 ** Wrapper Bottom • • 1
10 108298-01 Front Face Weldment, Smooth •1
108298-02 FrontFaceWeldment,Louvered • 1
11 106971-01 LeftSideBrickLiner • • 1
12 108310-01 RearBrickLiner • • 1
13 106970-01 RightSideBrickLiner • • 1
14 108312-01 BottomBrickLiner • • 1
15 108311-01 FrontBottomBrickLiner • • 1
16 21198 BlowerAccessPlate • • 1
17 20027 Refractory Retainer • • 2
18 20060 CirculationPlate • • 1
19 21366 InsulationRetainer • • 1
20 106959-01 Top Standoff • • 4
21 20023 ChimneyStarterCollar • • 1
22 20088 DoorStop • • 1
23 11418 PushOnNut • • 2
24 20090 SpringClip • • 2
25 107001-02 WoodBurningGrate • • 1
26 106539-02 GrateRetainers • • 2
27 108424-01 Screen • • 2
28 ** SideDamperWeldment • • 1
29 107128-01 GasConduit • • 4
30 108780-01 Screen Rod • • 2
PARTS AVAILABLE - NOT SHOWN
106685-01 Male Polarized 1.4" Plug • • 1
14607 Rocker Switch • • 1
110037-01 ElectricalDuctAssembly • • 1
20093 EmberProtector • • 1
** Not a field replaceable part


Superiorfireplaces.US.com 126631-01B
18
ACCESSORIES
CAT NO. MODEL DESCRIPTION
BI-FOLD GLASS DOORS
F0975 BDB42 42"-StandardBlackFinish(BungalowOnly)
F0976 BDB42B 42"-StandardBrushedBrassFinish(BungalowOnly)
F0977 BDB42P 42"-StandardPlatinumFinish(BungalowOnly)
DOUBLE WALL PIPE
F0895 12-8DM 12"SectionDoubleWallPipeSnapLock
F0896 18-8DM 18"SectionDoubleWallPipeSnapLock
F0897 24-8DM 24"SectionDoubleWallPipeSnapLock
F0898 36-8DM 36"SectionDoubleWallPipeSnapLock
F0899 48-8DM 48"SectionDoubleWallPipeSnapLock
F0881 12-8HT 12"SectionHi-TempDoubleWallPipeSnapLock
F0882 18-8HT 18"SectionHi-TempDoubleWallPipeSnapLock
F0883 24-8HT 24"SectionHi-TempDoubleWallPipeSnapLock
F0884 36-8HT 36"SectionHi-TempDoubleWallPipeSnapLock
F0885 48-8HT 48"SectionHi-TempDoubleWallPipeSnapLock
30° OFFSET AND RETURN
F0900 30E-8DM 30DegreeOffsetandReturn
F0886 30E-8HT 30DegreeHi-TempOffsetandReturn
OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION
F1091 AK4 CompleteOutsideAirKitw/CollarsHood&3'Flex
OPTIONAL OUTSIDE AIR KIT FOR SIDEWALL INSTALLATION
F1093 AK4F OutsideAirKitCollar,Hood&3'FlexforFloorVenting
STORM COLLAR
F0915 SC1-1 StormCollar
FIRESTOP SPACER
F0907 3600FS-8DM-1 1"ClearanceFirestopSpacer
ROOF FLASHING
F0909 V6F-8DM RoofFlashing0to6/12Pitch(30"Base)
F0910 V12F-8DM Roof Flashing 6/12 to12/12 Pitch

Superiorfireplaces.US.com
126631-01B 19
ACCESSORIES Continued
ANTI-DRAFT SHIELD
(Round Top Termination Only)
F0927 ADS-8DM Anti-DraftShieldforRoundTopOnly
MESH ROUND TOP TERMINATIONS
F0916 RT-8DM Round Top with Mesh Screen
F0888 RT-8HT Hi-TempRoundTopwithMeshScreen
RTL-8DM Round Top Termination 8"
RTL-8HT Hi-TempRoundTopTerminationLG.
MESH ROUND TOP TERMINATIONS WITH SLIP SECTION
F0917 RTT-8DM Round Top with Slip Section & Mesh
F0889 RTT-8HT Hi-TempRoundTopw/MeshScreenandSlipSection
RTTL-8DM Round Top
RTTL-8HT Hi-TempRoundTerminationLG.withSlipSection
ROUND TOP TERMINATIONS WITH LOUVERS
F0918 RLT-8DM RoundTopwithLouveredScreen
F0890 RLT-8HT Hi-TempRoundTopwithLouveredScreen
ROUND TOP TERMINATIONS WITH LOUVERS W/SLIP SECTION
F0919 RLTT-8DM RoundTopwithSlipSection&Louvers
F0891 RLTT-8HT Hi-TempRoundTopw/Lvrd.ScreenandSlipSection
SQUARE TOP TERMINATION WITH LOUVERS
F0920 ET-8DM Square Top
F0892 ET-8HT Hi-TempPyramidTopwithSlipSection
SQUARE TOP TERMINATION WITH LOUVERS AND SLIP SECTION
F0921 ETL-8DM Square Top with Slip Section
F0893 ETL-8HT Hi-TempLargePyramidTopwithSlipSection
MESH SQUARE TOP TERMINATION
F0922 ETO-8DM Square Top with Mesh
MESH SQUARE TOP TERMINATION WITH SLIP SECTION
F0923 ETLO-8DM Square Top with Mesh and Slip Section
ADJUSTABLE HOOD
Required when installing a vent-free gas log in this fireplace.
F1764 GA6050 BlackFireplaceHood
F1766 GA6053 BrushedBrassFireplaceHood
FIRESTOP THIMBLE
F0911 38FST FirestopThimble(Usewhenpenetratingajoist)
F0912 FST30 FirestopThimble(Usewhenoffsettingthroughajoist)

Superiorfireplaces.US.com 126631-01B
20
ACCESSORIES Continued
IMPORTANT NOTICE
A manufactured shroud which
has been approved by a na-
tional testing agency for use
with this fireplace may be used
if installed in accordance with
the instructions by its manu-
facturer. A locally fabricated
shroud may be used with IHP
Shroud Leg Spacer Kit (SLK)
in accordance with instructions
provided with the shroud.
IMPORTANT NOTICE
When penetrating a ceiling
into an attic, a firestop thimble
(38FST or FST30) is required
to avoid intrusion by insulation
and recommended to negotiate
a joist.
Thimble 38FST
or FST 30
Firestop
CanadiancodeCAN/ULC-S610-M87andotherpertinent
codes require stainless steel chimney for the installation
ofthisreplace.AColdAirClimateKitisalsorequired
inCanadaandisrecommendedforcoolerregionsinthe
United States. Below, find a list of approved stainless
steel parts.
Chimney Parts List for Canada
Catalog
No. Model No. 8" Hi-Temp Wood burning Chimney
F0881 12-8HT 12"SectionHi-TempDouble
WallPipeSnapLock
F0882 18-8HT 18"SectionHi-TempDouble
WallPipeSnapLock
F0883 24-8HT 24"SectionHi-TempDouble
WallPipeSnapLock
F0884 36-8HT 36"SectionHi-TempDouble
WallPipeSnapLock
F0885 48-8HT 48"SectionHi-TempDouble
WallPipeSnapLock
F0886 30E-8HT 30DegreeHi-TempOffset
and Return
F0887 12S-8HT Hi-TempChimneySupport
(ForUseWithChimney
HeightsInExcessof30')
F0888 RT-8HT Hi-TempRoundTopwith
Mesh Screen
F0889 RTT-8HT Hi-TempRoundTopwith
Mesh Screen and Slip Sec-
tion
F0890 RLT-8HT Hi-TempRoundTopwith
LouveredScreen
F0891 RLTT-8HT Hi-TempRoundTopwith
LouveredScreenandSlip
Section
F0892 ET-8HT Hi-TempPyramidTopwith
Slip Section
F0893 ETL-8HT Hi-TempLargePyramidTop
withSlipSection(usewithall
8"systems)
F0894 AP-8HT Hi-TempAnchorPlate/Col-
larAssembly(formasonry
replaces)
F0929 CAK-8 ColdAirCollarKit-8"
Chimney
*When ordered alone, this part cannot ship via parcel
delivery services.
NOTICE: The firebox canopy (hood)
must not be modified or replaced with
a canopy that may be provided with
the unvented decorative room heater.
CAUTION: THE STRUCTURAL INTEG-
RITY OF THE MANUFACTURED HOME
FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
WARNING: DO NOT INSTALL
IN SLEEPING ROOM OF MOBILE
HOMES.
WARNING: Discontinue use
of the appliance immediately if
doors are damaged and contact
a qualified installer for repair.
Only doors certified with the
appliance shall be used.
WARNING: Do not slam or
strike doors. Damage can result
in a hazardous condition.
FAN KIT
F1083 BK3 3-Blade Fan
BLOWER KIT
F1081 BK ManualFan,VariableSpeed
