Superior WRT6036RS User manual

For more information, visit Superiorfireplaces.US.com
Installation and Operation Instructions
Superior™ Indoor Wood Burning Fireplace
Models
WRT6036RS
WRT6036IS
WRT6036RH
WRT6036IH
WRT6042RS
WRT6042IS
WRT6042RH
WRT6042IH
WRT6050RS
WRT6050IS
WRT6050RH
WRT6050IH
PFS
®
USC
P/N 126595-01 Rev. C 03/2015
REPORT NO. F09-095
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains
information that will enable you to obtain replacement parts or accessory items when needed. Keep it with your other
important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with
UL127 CAN/ULC-S610-M87 standard as a
FACTORY BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard.
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a
permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
—Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
—Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
—Ne pas entreposer ni utilizer d’essence ni d’autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous
servir des téléphones se trouvant dans le bâtiment
où vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
—L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par
le fournisseur de gaz.
P126595-01

Superiorfireplaces.US.com 126595-01C2
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct
installation and operational procedures. For assis-
tance or additional information consult a qualified
installer, service agency or the gas supplier.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning the installation of the fireplace, read these instruc-
tions through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a
fire hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyre-
sponsibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b.Useofanycomponentpartnotmanufacturedorapprovedby
IHPincombinationwithanIHPreplacesystem.
Properinstallationisthemostimportantstepinensuringsafeand
continuousoperationofthereplace.Consultthelocalbuildingcodes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Always leave glass doors fully opened
or fully closed when operating fireplace.
WARNING: Do not install a fireplace insert in this
box unless the manufacturer's instructions with the
insert specifically state this fireplace has been tested
for use with this insert.
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING:Use solid wood or processed solid fuel
firelogs only. When processed wood fuel fire logs are
used, do not poke or stir the logs while they are burning.
Use only fire logs that have been evaluated for the ap-
plication in fireplace and refer to fire log warnings and
caution markings on packaging prior to use.
This fireplace is not intended to be used as a substitute
for a furnace to heat an entire home. Use for supple-
mental heat only.
Safety.............................................................................................2
Specications.................................................................................4
FireplaceInstallation ......................................................................7
VentingInstallation ........................................................................9
FirebrickWallInstallation..............................................................14
OptionalGasLineInstallation ......................................................16
GlassDoorInstallation.................................................................17
OperationandMaintenanceGuidelines........................................18
TechnicalService .........................................................................19
ReplacementParts.......................................................................19
Parts ............................................................................................20
Accessories..................................................................................25
Warranty ......................................................................................29
Thank you for your purchase. We appreciate your
business!
Pleasecarefullyreadandfollowallinstructionsinthismanual.Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensuremanyyearsofdependableandenjoyableservicefromyour
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and
offers, please take a few moments to register your product on-
line at Superiorfireplaces.US.com (Owner Resources/Product
Registration).
Please read and understand these instructions before installing
or operating.
TABLE OF CONTENTS

Superiorfireplaces.US.com126595-01C 3
SAFETY Continued
Ovefiring of a fireplace is a condition where excessive
temperaturesarereached,beyondthedesigncapabilities
of the appliance. The damage that occurs from ovefiring
isnotcoveredunderthemanufacturer’slimitedwarranty.
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALS ORCHEMICALLY
TREATEDCOMBUSTIBLES.
"Disposal of Ashes
Ashes should be placed in a metal container with a tight-
fittinglid. Theclosed containerofashes shouldbe placed
on a noncombustible floor or on the ground, well away
from all combustible materials, pending final disposal.
If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled."
"WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION."
"Never use gasoline, gasoline-type lantern fuel, kero-
sene, charcoal lighter fluid, or similar liquids to start
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use."
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash, driftwood or woods that have been dipped in
tar,pitch,pinetar,creosote,etc.Woodproductsmade
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
WARNING:BURNINGIMPROPERFUEL(I.E.CHAR-
COAL) CAN RESULT IN CARBON MONOXIDE POISON-
ING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresemblethefluwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualifiedservicetechnician. Somepeoplearemoreaf-
fectedbycarbonmonoxidethanothers. Theseinclude
pregnant women, people with heart or lung disease
or anemia, those under the influence of alcohol, and
those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
from the heat produced by the appliance). If your local
coderequiresasmokedetectorbeinstalledwithinthe
same room, you must follow the requirements of your
local code. Check with your local building department
for requirements in your area.
"Creosote – Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled mois-
ture to form creosote. The creosote vapors condense
in the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on
the flue lining. When ignited this creosote makes an
extremely hot fire.
The chimney shall be inspected at least twice a year
duringtheheatingseasontodeterminewhenacreosote
builduphasoccurred. Whencreosotehasaccumulated
(1/8" [3 mm] or more) it shall be removed to reduce
the risk of a chimney fire."
WARNING: Children and adults should be alerted
to the hazards of high surface temperatures and to
stay away to avoid burns or clothing ignition. Young
children should be carefully supervised when in the
same room as fireplace.

Superiorfireplaces.US.com 126595-01C4

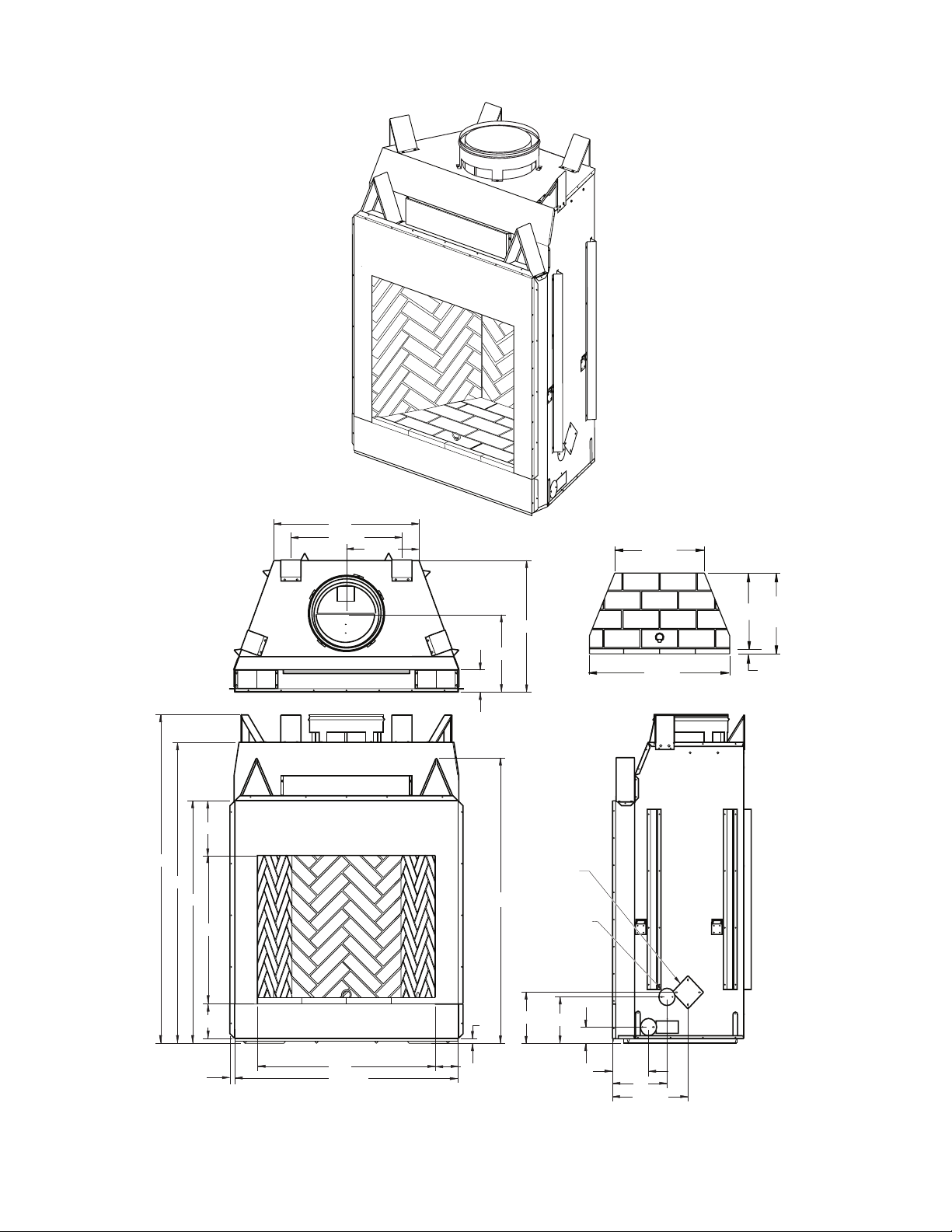

SPECIFICATIONS
36" MODEL
29"
14 1/2"
22 1/2"
26 5/8"
4 1/2"
15 5/8"
4 1/2"
1"
58"
7 1/4"
11"
15 1/4"
3 1/2"
9 1/2"
10 1/2"
67"
61"
49"
11"
7"
30"
1" 45 1/8"
36"
OUTSIDE AIR
ACCESS
GAS LINE
ACCESS
36" HEARTH
1 1/4"
20 1/4"
(Ref.)
35 1/4"
19"
22 1/2"
Figure 1 - 36" WRT6036RS, WRT6036IS, WRT6036RH and WRT6036IH

Superiorfireplaces.US.com126595-01C 5
SPECIFICATIONS Continued
42" MODEL
22 3/4"
30 1/2"
29"
4 3/8"
15 3/4"
5/8"
17 5/8"
67"
61"
49"
7"
1"
30"
11"
58"
42"
51
1
/
8
"
4 1/2"
3 1/2"
9 1/2"
10 1/2"
81/2"
13"
17"
OUTSIDE
AIR
ACCESS
GAS LINE
ACCESS
42" HEARTH
1 1/4"
23"
(Ref.)
41 3/8"
26 3/8"
21 3/4"
Figure 2 - 42" WRT6042RS, WRT6042IS, WRT6042RH and WRT6042IH

Superiorfireplaces.US.com 126595-01C6
SPECIFICATIONS Continued
50" MODEL
38 1/2"
28 1/2"
43/8"
17 5/8"
19 1/4"
24"
49"
30"
11"
61"
67" 58"
7"
1"
59"
50" 4 1/2"
3 1/2"
9 1/2"
10 1/2"
8 1/2"
13"
17"
GAS LINE
ACCESS
OUTSIDE
AIR
ACCESS
50" HEARTH
1 1/4"
23"
(Ref.)
49 3/8"
34 3/8"
21 3/4"
Figure 3 - 50" Models WRT6050RS, WRT6050IS, WRT6050RH and WRT6050IH

Superiorfireplaces.US.com126595-01C 7
FIREPLACE INSTALLATION
SELECTING LOCATION
Todeterminethesafestandmostefcientlocationforthereplace,
you must take into consideration the following guidelines:
1. Thelocationmustallowforproperclearances(seeFigures4and
5).
2. Consideralocationwherereplacewillnotbeaffectedbydrafts,
air conditioning ducts, windows or doors.
3. Alocationthatavoidscuttingofjoistsorroofrafterswillmake
installation easier.
4. An outside air kit is available with this replace (see Optional
OutsideAirKitonpage9).
MINIMUM CLEARANCE TO COMBUSTIBLES
Backandsidesofreplace11/2" min.
Ceiling42"min.
Frontofreplace48"min.
Floor** 0" min.
Perpendicularwalltoopening18"min.
36"Models12"min.
Topspacers0"min.
Mantel clearances see Mantels,page8
Chimneyouterpipesurface2"min.
36"Model1"min.
*Notrequiredatnailinganges
**Seestep2ofFraming
WARNING: Do not pack required air spaces with
insulation or other materials.
Minimum/MaximumChimneyHeightforResidentialInstallation
Minimumheightofchimney,measuredfrombaseofreplacetoue
gasoutletoftermination,is16feetforstraightueorauewithone
elbowset.Maximumdistancebetweenelbowsis6feet.Forsystems
with two elbow sets, minimum height is 22 feet. Maximum height of
anysystemis50feet.Thismeasurementincludesreplace,chimney
sectionsandheightofterminationassemblyatleveloftheuegas
outlet(seeFigure15,page12).
FRAMING
1. FrameopeningforreplaceusingdimensionsshowninFigures4
and 5.
2. Ifreplaceistobeinstalleddirectlyoncarpeting,tile(otherthan
ceramic)oranycombustiblematerialotherthanwoodooring,
fireplace must be installed upon a metal or wood panel extending
full width and depth of fireplace.
3. Setreplacedirectlyinfrontofthisopeningandslideunitback
untilnailingangestouchsideframing.
4. Checklevelofthereplaceandshimwithsheetmetalifnecessary.
5. Before securing fireplace to prepared framing, ember protector
(provided) must be placed between hearth extension (not sup-
plied)andunderbottomfrontedgeofreplacetoprotectagainst
glowingembersfallingthrough.Ifreplaceistobeinstalledona
raisedplatform,aZ-typeemberprotector(notsupplied)mustbe
fabricated to t your required platform height. Ember protector
shouldextendunderreplaceaminimumof11/2".Emberprotector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimumto
preventcorrosion.
6. Usingscrewsornails,securereplacetoframingthroughanges
located on sides of fireplace.
Note: For outdoor installations, fireplace enclosure must allow for
adequatedrainageandfreshairventilation.Itisrecommendedthat
asealed,corrosionresistantcatchpanwithprovisionfordrainage
be installed under fireplace within fireplace enclosure.
30.125"
59" (50" Models)
58.125"
67.125"
51.25" (42" Models)
45.25" (36" Models)
28.250" (36" Models)
71" (50" Models)
100" (50" Models)
65" (42" Models)
92" (42" Models)
86.5" (36" Models)
61" (36" Models)
Maintain 1 1/2"
Clearance
at Sides and
Back of Fireplace
1 1/2" Clearance
Not Required at
Nailing Flanges
Figure 5 - Corner Installation
Figure 4 - Framing Dimensions

Superiorfireplaces.US.com 126595-01C8
FIREPLACE INSTALLATION Continued
HEARTH EXTENSION
Ahearthextensionprojectingaminimumof20"infrontofanda
minimumof12"beyondeachsideofreplaceopeningisrequired
toprotectcombustibleoorconstructioninfrontofreplace.Fabri-
cate a hearth extension using a material which meets the following
specications:alayerofnoncombustible,inorganicmaterialhavinga
thermalconductivityofK=0.84BTUIN/FT,HR.F(orless)at1"thick.
Forexample,ifthematerialselectedhasaKfactorof0.25,suchas
glass fiber, the following formula would apply:
0.25x1.0"=0.30"thicknessrequired
 0.84
Thermalconductivity"K"ofmaterialscanbeobtainedfrommanufac-
turerorsupplierofnoncombustiblematerial.Ifhearthextensionis
tobecovered,usenoncombustiblematerialsuchastile,slate,brick,
concrete,metal,glass,marble,stone,etc.Provideameanstoprevent
hearth extension from shifting and seal gap between fireplace frame
andhearthextensionwithanoncombustiblematerial(seeFigure6).
WARNING: Hearth extension is to be installed only
as shown in Figure 6.
Figure 6 - Hearth Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Ember Protector
Ember Protector
Seal Gap
Hearth
Extension
MANTELS
Amantelmaybeinstalledifdesired(seeFigure7).Woodworksuchas
wood trims, mantels or any other combustible material projecting from
frontfacemustnotbeplacedwithin12"(36"Models)or18"(42/50"Mod-
els)ofreplaceopening.Combustiblematerialsabove12"(36"Models)
or18"(42/50"Models)andprojectingmorethan11/2" from fireplace
mustnotbeplacedlessthan15"(36"Models)or21"(42/50"Models)
fromthetopopeningofthereplace(NFPASTD211,Sec.7-3.3.3).
Mantels or any other combustible material also may come up to side
edge of black metal face of fireplace as long as projections from front
face fall within limit shown in Figure 7.
Figure 7 - Mantel Clearances to Combustible Material
12 1/4" Ref.
6"
Ref.
15" Min. (36" Models)
21" Min. (42/50"
Models)
12" Min.
(36" Models)
18" Min.
(42/50"
Models)
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Upper
Section of
Fireplace
FIREBOX
SAFE ZONE
Top View of Fireplace
3" Max.
4.5"
Min. to
Perpendicular
Side Wall
7.75" (36" Models)
11.5" (42/50" Models)
33° Combustible
Material Must
Not Overlap
Front Face
12" - 36" Models
18" - 42/50" Models

Superiorfireplaces.US.com126595-01C 9
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
The installation of an outside air kit should be performed during
the rough framing of the fireplace due to the nature of it's location.
Outsidecombustionairisaccessedthroughaventedcrawlspace
(AK4F)orthroughasidewall(AK4).
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3 feet below the flue gas outlet of the termination.
Figure 8 - Outside Air Kit
Secure to Collars with Metal Tape,
Screws or Straps (Min. of 1/4" x 20"
in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
CHIMNEY PIPE
TheIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after tting
overlaps must be taken into consideration (lineal gain) and are
giveninthelinealgainchart(seeFigure9).LinealGainistheactual
measurable length of a part after two or more parts are connected.
ForCanada,usechimneypartsdesignated"HT".
WARNING: The opening in the collar around the
chimney at the top of the fireplace must not be ob-
structed.Neveruseblowninsulationtofillthechimney
enclosure.
Figure 9 - Lineal Gain
LINEAL GAIN
PART NO. DESCRIPTION GAIN
Signature Fireplace 661/2 "
12-12DM
12-12HT PipeSection 105/8
"
18-12DM
18-12HT PipeSection 165/8
"
24-12DM
24-12HT PipeSection 23 5/8
"
36-12DM
36-12HT PipeSection 34 5/8
"
48-12DM
48-12HT PipeSection 465/8
"
RLT-12D
RLT-12HT
RoundTermina-
tion 7 3/4
"
*
STL-12D
SquareChase-
TopwithSlip
Section
7 " to15 " *
* The lineal gain for the terminations is measured to
the ue gas outlet height.
Hemmed
End
12 3/8"
Stainless
Inner Pipe
15" Galvanized
Outer Pipe
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Eachdoublewallchimneysectionconsistsofagalvanizedouterpipe,a
stainlesssteelinneruepipeandawirespacer.Thepipesectionsmust
be assembled independently as the chimney is installed. When connect-
ingchimneydirectlytothereplace,theinneruepipesectionmustbe
installedrstwiththelancedsideup.Theouterpipesectioncanthen
beinstalledover5theuepipesectionwiththehemmedendup.Press
down on each pipe section until the lances securely engage the hem on
thereplacestarter.Thewirewillassuretheproperspacingbetweenthe
inner and outer pipe sections.
Continuetoassemblechimneysectionsasoutlinedabove,making
sure that both the inner and outer pipe sections are locked together.
When installing double wall snap-lock chimney together, it is impor-
tanttoassurethejointbetweenthechimneysectionsislocked.Check
bypullingchimneyupwardafterlocking.Thechimneywillnotcome
apartifproperlylocked.Itisnotnecessarytoaddscrewstokeepthe
chimneytogether(exception,seeFigure10,page10).
TheheightofaverticalchimneypipesupportedONLYbythere-
place,mustnotexceed20feet.Chimneyheightsabove20feetmust
be supported.

Superiorfireplaces.US.com 126595-01C10
VENTING INSTALLATION Continued
OFFSET RISE CHIMNEY LENGTH
A B 12" 18" 24" 36" 48"
4 3/8"163/8" ELBOWSETONLY
9 3/4" 25 1/2" 1
123/4" 30 3/4" 1
15" 34 3/4" 1
18" 40" 1 1
211/4"461/4" 1
23 3/4" 49 1/4" 1 1
27 3/4"563/4" 1
30" 603/4" 1 1
33" 66" 1
36" 71" 1 1
381/4" 75" 2
411/4"801/4" 1 1 1
45" 863/4" 2
463/4"891/2" 1 1 1
51" 97" 1 1
53 1/4"101" 2
561/4"1061/4" 2
59 1/4"1111/2" 1 1 1
613/4"1151/2" 12
643/4"1203/4" 12
681/4"127" 21
70" 130" 1 1 2
74 1/4"1371/2" 121
763/4"1411/2" 121
79 3/4"1463/4" 4

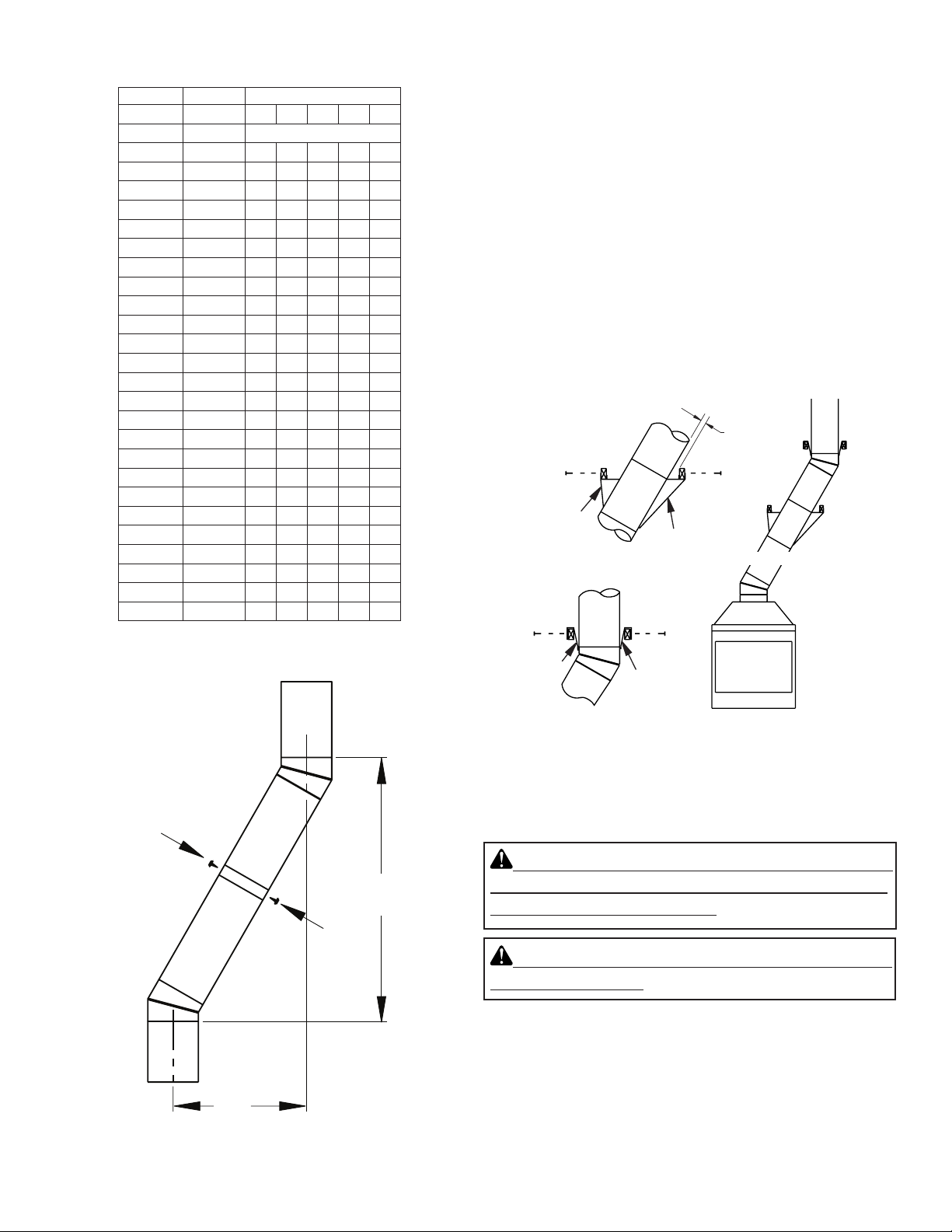

OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
Figure 10 - Elbow Offset
USING ELBOW OFFSETS (30E-12DM)
1. Toachievedesiredoffset,youmayinstallcombinationsof12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart
andFigure10).
2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust
besecurelynailedtoraftersorjoists(seeFigure11,detailsAand
B).
3. Maximum length of pipe between supports (return elbow or
12S-12DM)is6'ofanglerun.Maximumoftwo6'anglerun
sectionsperchimneysystem(seeFigure12,page11).
4. Allpipeconnectionsbetweentheoffsetandreturnmustbe
securedwithtwoscrewsontheouterpipeonly(seeFigure
10).Donotpenetratetheinnerstainless.
Figure 11 - Ceiling Support Pipe 12S-12DM
2" Min.
Straps
Straps
Straps
Straps
DetailA
Return Elbow
DetailB
Angle Firestop
See Detail A
See Detail B
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MANUFACTUREDHOMEFLOOR,WALL,ANDCEILING/
ROOF MUST BE MAINTAINED.
WARNING: DO NOT INSTALL IN SLEEPING ROOM
OF MOBILE HOMES.
B
A
Screws

Superiorfireplaces.US.com126595-01C 11
VENTING INSTALLATION Continued
FIRESTOP SPACERS (FS-10, 1100EFS-10DM FOR 36" MODELS)
Firestop spacers are required at each point where the chimney penetrates
aoorspace.Theirpurposeistoestablishandmaintaintherequired
clearance between the chimney and the combustible materials. When
thepipepassesthroughaframedopeningintoalivingspaceabove,the
restopmustbeplacedontotheceilingfrombelowasshowninFigure13.
Theyalsoprovidecompleteseparationfromoneoorspacetoanother
or attic space as required by most codes. When the double wall pipe
passes through a framed opening into an attic space, the firestop must
beplacedintoanatticoorasshowninFigure14.

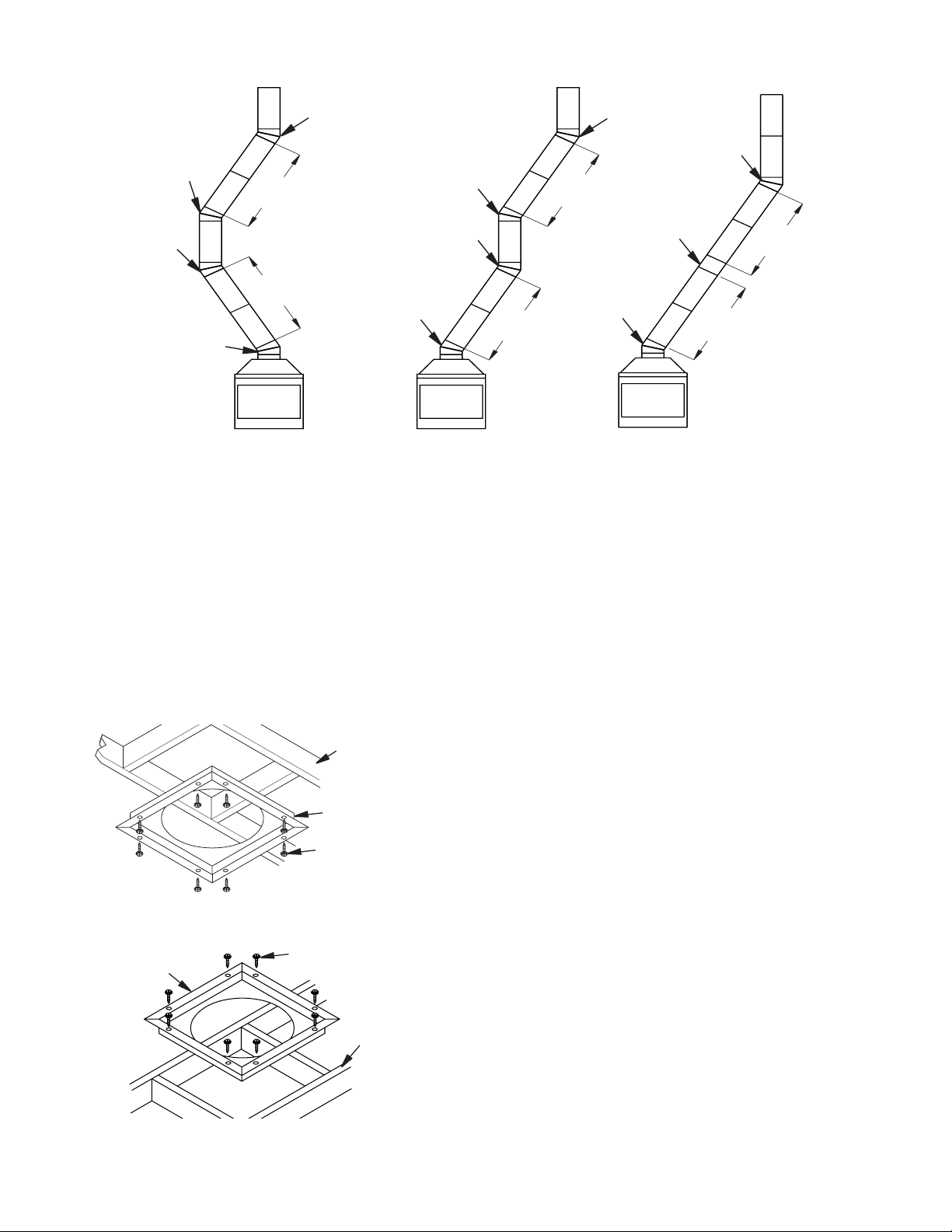

Figure 12 - Typical Offset Terminations
Return
Elbow
Offset
Elbow
Return
Elbow
Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
ABC
Offset
Elbow
Ceiling
Support Pipe
12S-12DM
Return
Elbow
Figure 13 - Firestop Spacer with Living Space Above Ceiling
Figure 14 - Firestop Spacer with Attic Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Firestop
Spacer
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
PENETRATING ROOF
Tomaintaina1"(36"Models)or2"(42/50"Models)clearancetothe
pipe on a roof with a pitch, a rectangular opening must be cut.
1. Determinecenterpointthroughwhichpipewillpenetrateroof.
2. Determinecenterpointofroof.Pitchisdistancetheroofdrops
overagivenspan,usually12".A6/12pitchmeansthatroofdrops
6"foreach12"measuredhorizontallydownfromroofrafters.
3. Useroofopeningchart(Figure15,page12)todeterminecorrect
openinglengthandashingrequired.
4. Removeshinglesaroundopeningmeasured.Cutoutthissection.
5. Addnextsectionsofpipeuntilendpenetratesroofline.Check
toseethatproperclearancesaremaintained.Extendchimneyby
adding sections of double wall pipe until pipe is minimum of 30"
abovehighestpointofroofcutout.Terminationandchimneymust
extendaminimumof36"abovehighestpointwhereitpasses
through roof.

Superiorfireplaces.US.com 126595-01C12
VENTING INSTALLATION Continued
17" Min. 30" Min.
1" Min.
1" Min.
1" Min.
Opening "A"
Roof Opening 36" Models
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 17" V6F-10DM
0-6/12 26.6° 19" V6F-10DM
6/12-
12/12 45.0° 24" V12F-10DM
Roof Opening 42" and 50" Models
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 19.5" V6F-10DM
0-6/12 26.6° 22' V6F-10DM
6/12-
12/12 45.0° 27" V12F-10DM
19.5" Min. 30" Min.
2" Min.
2" Min.
2" Min.
Opening "A"
Figure 15 - Roof Opening Measurements
Nail Only
Outer
Perimeter
of Flashing
Storm Collar
Flashing
Cone
Underlap Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 16 - Flashing Installation
Figure 17 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
FLASHING INSTALLATION (V6F-10DM OR V12F-10DM)
Determinetheashingtobeusedwiththeroofopeningchart.Slide
ashingoverpipeuntilbaseisatagainstroof.Replaceasmany
shinglesasneededtocoverexposedareaandashingbase.Secure
inpositionbynailingthroughshingles(seeFigure16).DONOTNAIL
THROUGHFLASHINGCONE.
Installing Flashing on a Metal Roof
Wheninstallingtheashingonametalroof,itisrequiredthatputty
tapebeusedbetweentheashingandtheroof.Theashingmustbe
securedtotheroofusing#8x3/4"screwsandthensealedwithroof
coatingtopreventleakagethroughthescrewholes.Aroofcoating
mustalsobeappliedaroundtheperimeteroftheashingtoprovide
a proper seal.
Storm Collar Installation (SC2-1)
Placestormcollaroverpipeandslidedownuntilitissnugagainst
theopenedgeoftheashing(seeFigure17).Applywaterproofcaulk
aroundtheperimeterofthecollartoprovideaproperseal.

Superiorfireplaces.US.com126595-01C 13
VENTING INSTALLATION Continued
Terminations/Spark Arrestor
Thereplacesystemmustbeterminatedwiththelistedroundtopor
chaseterminations.Inanycase,refertotheinstallationinstructions
supplied with the termination.
CAUTION: Do not seal openings on the rooftop
flashing. Follow the installation instructions provided
with the termination being used.
24" Min.
24" Min.
18"
Min.
Typ.

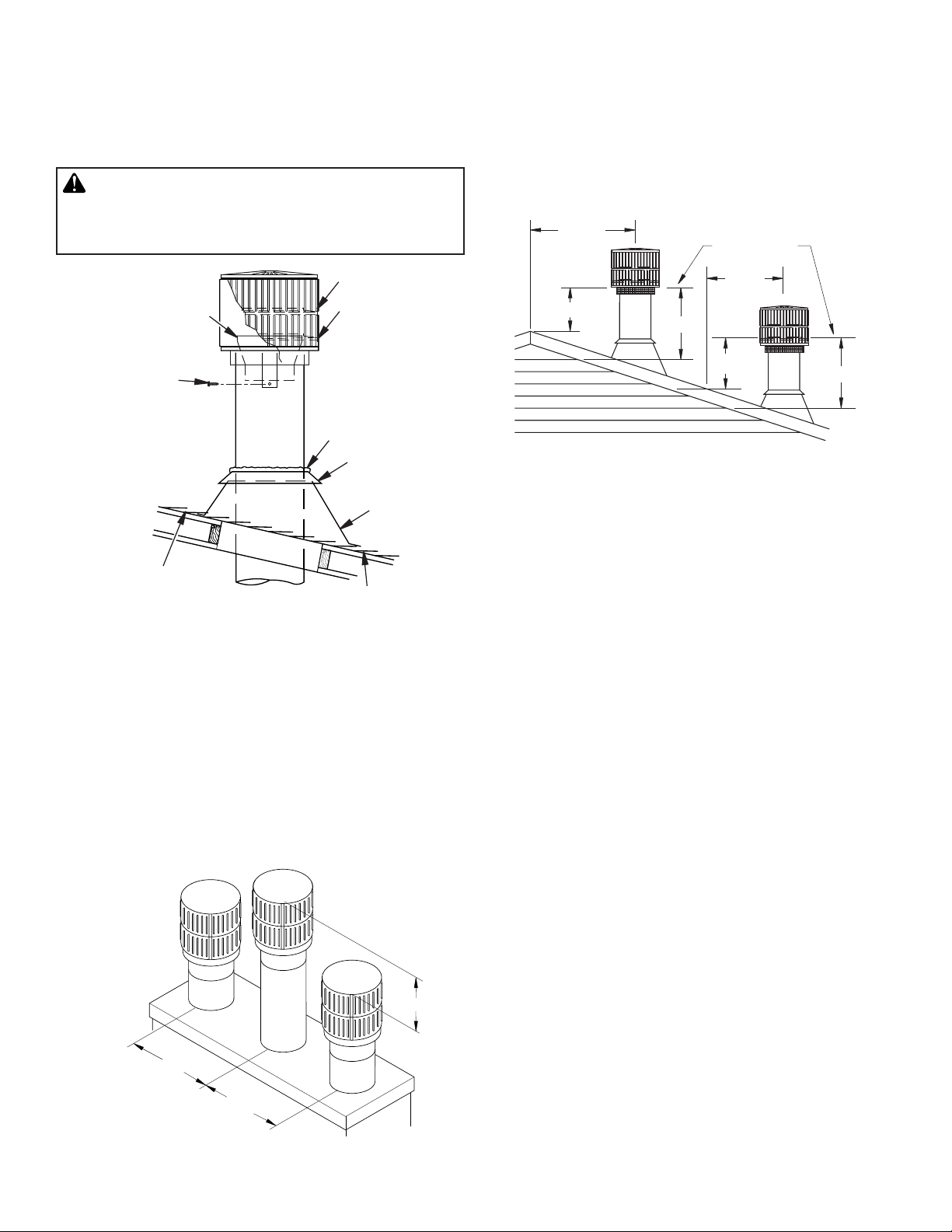

Figure 19 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 20 - 10 Foot Rule
Figure 18 - Termination
RLT-12D
Level of
Flue Gas
Outlet
Stainless
Inner Flue
Pipe
Waterproof
Caulking
Storm
Collar
Flashing
Underlap
Shingles
Overlap
Shingles (Top
and Sides of
Flashing Base)
Secure
Termination
to Outer
Pipe with 3
Screws
CHASE INSTALLATIONS
Instructionsforchaseinstallationsareincludedwiththechasestyle
terminationchosen.Inamultiplechaseinstallation,besuretoprovide
adequatedistancebetweenterminationstopreventsmokespillage
from one termination to another. We suggest that terminations be
separatedatleast24",centertocenterandstackedataverticalheight
differenceof18"(seeFigure19).
Note:Ifadecorativeshroudistobeinstalled,contactthemanufacturer
for specifications.
10 FOOT RULE
Alluegasoutletchimneyterminationsmustextendaminimumof
3feetinheightabovethehighestpointwhereitpassesthroughthe
roofandmustbeatleast2feetabovethehighestpointoftheroof
thatiswithinahorizontaldistanceof10feet(seeFigure20).
FINISHING FIREPLACE
Combustiblematerials,suchaswallboard,gypsumboard,sheetrock,
drywall, plywood, etc. may make direct contact with sides and top
aroundthereplaceface.Itisimportantthatcombustiblematerials
donotoverlapthefaceitself.Brick,glass,tileorothernoncombustible
materialsmayoverlapthefrontfaceprovidedtheydonotobstruct
essential openings like louvered slots or any other opening. When
overlappingwithanoncombustiblefacingmaterial,useonlynoncom-
bustiblemortaroradhesive.

Superiorfireplaces.US.com 126595-01C14
FIREBRICK WALL INSTALLATION
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.

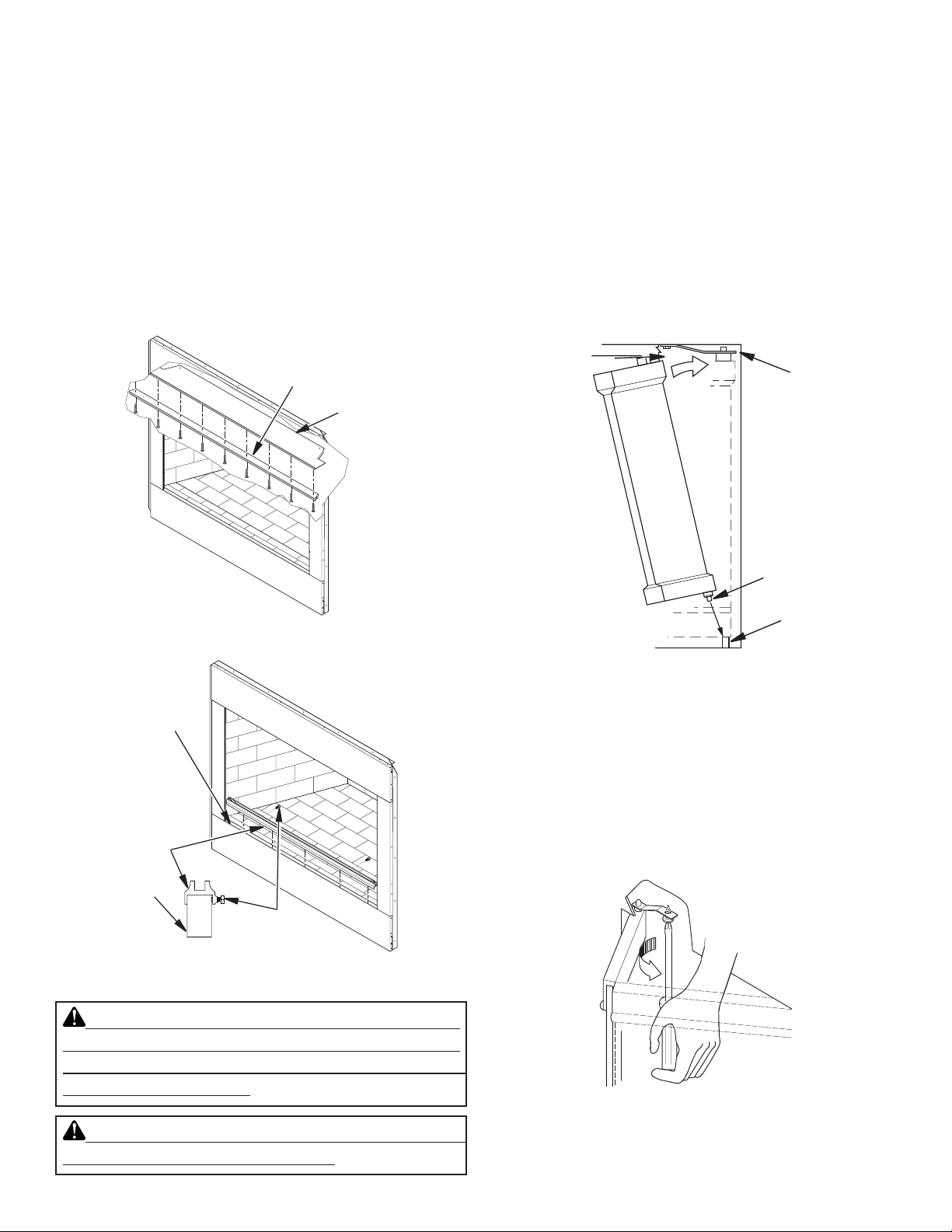

Figure 21 - Removing Shipping Brackets
Figure 22 - Slots for Firebrick Walls
Figure 23 - Installing Side Walls
Retaining
Bracket
Leading
Brick
RightWall
Slot RightFace
Hearth
FIREBRICK WALL INSTALLATION
IMPORTANT: Installation of brick should be done
afterthefireplaceis placed in a permanent location.
1. Thereplaceisshippedwiththehearthpreinstalled.Itisheldin
placeforshippingwith3shippingbrackets(Figure21).Remove
these brackets before installing any of the other firebrick walls.
2. Installtheleftandrightrebrickwalls.Thereisabracketwith
2tabsonthebottomofeachrebrickwall.Anglethewallinto
the fireplace opening and into the slots on the side of the hearth
(Figure22),thentiltthetopofthepaneltowardthereboxsur-
round.
3. Securetherebrickwallusing2oftheretainersprovided.The
bracket will slip underneath the metal lip on the top of the wall
andscrewintotheinnerdomeofthereplace(Figure23).
4. Installtherearrebrickwalllast.Placethewallfacesidedown
on the hearth with the bottom of the wall toward the rear of the
reboxandthetoptowardthefrontofthereplace.Tiltthewall
uptowardthebackoftherebox.Securewith2rearretaining
bracketsprovided(Figure24).
Figure 24 - Installing Rear Wall
RetainingBracket
5. Itisrecommendedthatthejointsbetweenallrebrickwallsbe
grouted for a more finished look, see grouting instructions.
FormoreinformationandtowatchahowtovideogotoIHP.US.com
andselectTechnicalSupport.
Shipping
Brackets

Superiorfireplaces.US.com126595-01C 15
Figure 26 - Installing Grate Retainers
Figure 25 - Installing Fireplace Screen
RatingPlate HoleforScreenRod
Leading
Bricks
FIREBRICK WALL INSTALLATION Continued
GROUTING INSTRUCTIONS
Materialprovided:
Bag of cement
Bag of sand
Material required:
Pipingbag
Joints striker
Heavydutymixingbucket
SpongeorWetCloth
1. Moistenbricksurfacewithdampspongeorspraybottlejustprior
to application. When bricks are wet, any excess grout mixture on
bricks will easily wipe off.
2. Inaheavydutymixingbucket,addequalpartscementandsand.
Addenoughwaterandmixtogetherwellusingapowerdrillwith
mixingwandattachmenttoayogurtlikeconsistency.Notadding
enough water can lead to grout falling out after burning.
3. Theoveralllengthofpipingbagshouldbeabout16".Ifthebagis
longerthan16",cutitdowntosizebyremovingendwithlarger
opening.Thiswillmakethebageasiertohandle.
4. Putgroutmixtureintopipingbagmakingsurethesmalleropening
isdownwardandoveramoisttoweltoavoidspilling.Placeawet
toweloverthebucketmakingsureitisdirectlyonthesurfaceof
groutmixture.Thiswillkeepthemixturemoistanditwillnotdry
out before use.
5. Groutalljointswheretworebrickwallscometogether.
6. Usingatrowel,removeexcessgroutmixturebymovingtrowelin
thedirectionofthejoint.Groutmixtureinthejointshouldnowbe
ushwithbricksurface.Ifnotenoughgroutisappliedintoeach
space, grout may fall out after burning.
7. Usingajointstriker,smoothoutgroutline.
Allow 72 hours before operating fireplace.
INSTALLING SCREEN
1. Slideroundendofscreenrodintoringsattopofscreen.Attachone
push-on nut to end of rod before attaching last ring of screen.
2. Inserttheroundendscreenrodintoholeontheleftandrightside
ofsmokeshelf(Figure25).
3. Mountatendofscreenrodwith#10x5/8"tocenterofsmoke
shelf.
4. Installotherscreenrodinsamemanner.
INSTALLING GRATE RETAINERS
1. PlacetheprovidedgrateretainersonthehearthasshowninFigure
26.Thebackoftheretainerwillbeushwiththerearrebrickwall.
Mark the center of the hole on the hearth with a marker.
2. Drilltwoholesinthehearthinthemarkedlocationsusingamasonry
3/16"drillbit.
3. Securegrateretainerwithmasonryscrewsprovided.
WARNING: Risk of fire! Replace grate with an IHP
grate only (see Parts, page 20). This grate has been
designed to keep the operation of your fireplace safe
and efficient.

Superiorfireplaces.US.com 126595-01C16
OPTIONAL GAS LINE INSTALLATION
Gas line hook up should be done by your supplier or a qualied
serviceperson.
Note: Before you proceed, make sure your gas supply is turned off.
Useonlya1/2"blackironpipeandappropriatettings.
1. Removeknockoutindentationonrefractoryorrebrickwalllo-
catedaboverefractoryhearthoor.Knockoutindentationmustbe
rmlytappedwithanysolidobjectsuchasa1/2"doweluntilitis
released.Removefragmentedportionsofrefractory(seeFigure
27).
2. Removegaslinecoverplatelocatedoneithersideofreplaceand
pulloutinsulationfromgaslineconduitsleeve.Saveinsulationfor
reuse.Replacescrews.
3. Runa1/2"blackirongaslineintoreplacethroughtherearatgas
lineconduitsleeve(ifusingaraisedplatform,addheight).Provide
sufcientgaslineintoreplacechamberforttingconnection(see
Figure28).
Note:Secureincominggaslinetowoodframingtoproviderigidityfor
threaded end.
4. Repackinsulationaroundgaslineandintosleeveopening.Sealany
gaps between gas line and refractory knockout hole with refractory
cementorcommercialfurnacecement,Installthegasapplianceor
cap-off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after the installation is completed.
After ensuring that the gas valve is on, apply soap and
water solution to all connections and joints. Bubbles
formingshow aleak. Correctallleaksatonce. DONOT
USEANOPEN FLAME FOR LEAK TESTINGANDDONOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
WARNING: Do not operate an unvented gas log set in
this fireplace with the chimney removed.

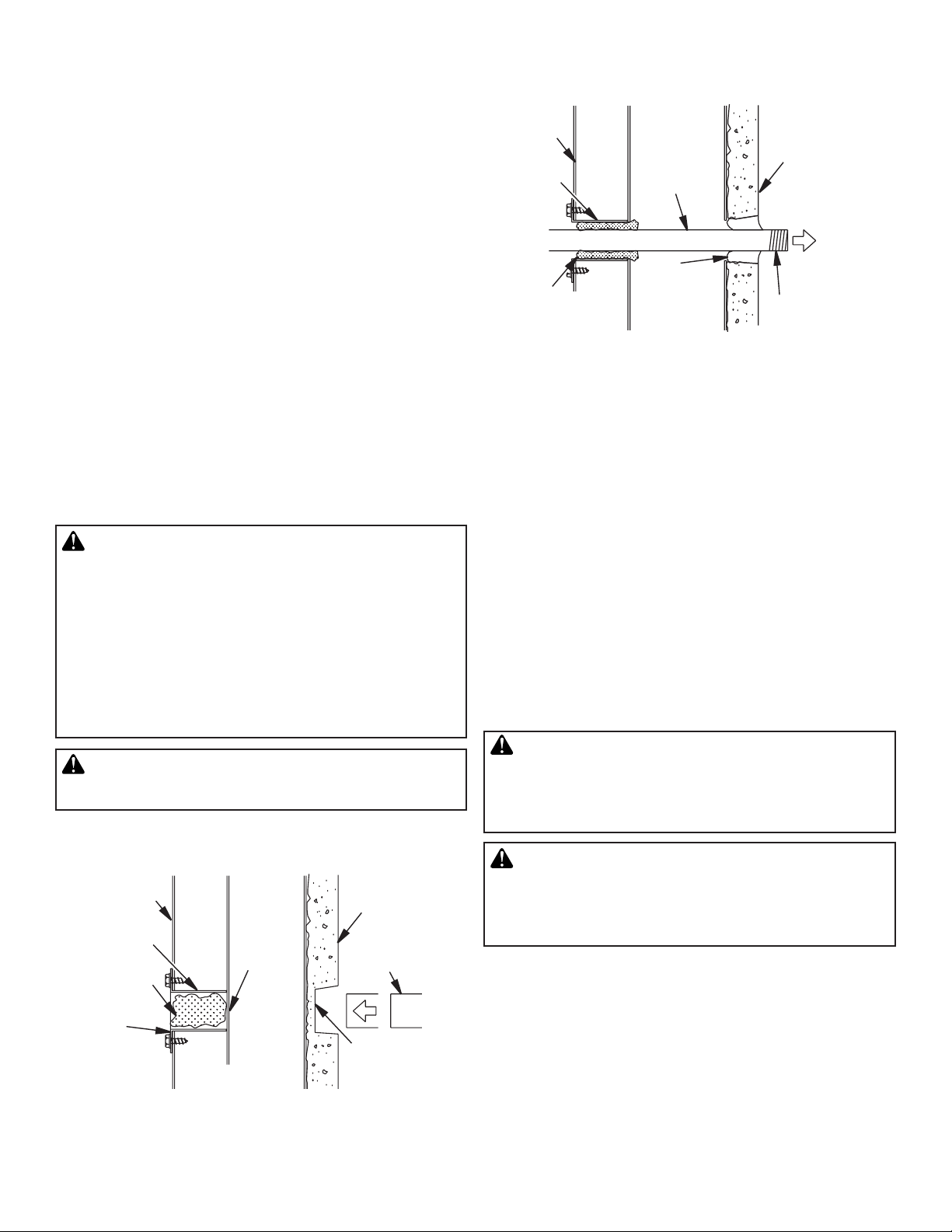

Figure 27 - Gas Line Access
Side
Firebrick
Finished
Side
Brick with
Access
Hole
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded
End for Fitting
Connection
Figure 28 - Gas Line Installation
Agaslineorgasloglightermaybeinstalledforthepurposeofinstalling
aventedorvent-freedecorativegasapplianceincorporatinganautomatic
shutoffdeviceandcomplyingwiththeStandardforDecorativeGasAp-
pliancesforInstallationinVentedFireplaces,ANSIZ21.60orAmerican
GasAssociationdraftrequirementsforGasFiredLogLightersforWood
BurningFireplaces,DraftNO.4datedAugust,1993.
Ifyouinstalladecorativegasappliance(ventedgaslog),thedeco-
rativegasappliancemustcomplywiththeStandardforDecorative
GasApplianceforInstallationinSolidFuelBurningFireplaces,ANS
Z21.60orZ21.84andshallalsobeinstalledinaccordancewiththe
NationalFuelGasCode,ANSI7223NFPA54latestedition.
Ifyouwishtoinstallanunvented(vent-free)gaslogset,onlyunvented
gaslogsetswhichhavebeenfoundtocomplywiththestandardfor
unventedroom heaters, ANSI Z21.11.2 are to be installed in this
fireplace.
WARNING: If the fireplace has been used for wood
burning, the firebox and chimney must be cleaned
of soot, creosote and ashes be a qualified chimney
cleaner. Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas log,
the damper must be removed or permanently locked in
the fully open position and the glass doors must be in
the fully open position.

Superiorfireplaces.US.com126595-01C 17
GLASS DOOR INSTALLATION
DOOR FRAME MODELS
BDMO36E/G/C, BDMO42E/G/C AND BDMO50E/G/C
Installation
1. Removescrewsfromsmokeshelf(seeFigure29).
2. Mount top door frame and secure with screws provided (see
Figure29).
3. Placebottomdoorframeontopofashlipatfrontofreplace
(seeFigure30).
4. Securebottomdoorframetobrickwithtwohexscrewsprovided
as shown in Figure 30 using a 7/16" open end or adjustable
wrench.
Figure 30 - Installing Bottom Door Frame
Figure 29 - Installing Top Door Frame
Top Door
Frame
Smoke
Shelf
Hex
Screw
Bottom
Door
Frame
Ash Lip
Ash Lip
WARNING: Discontinue use of the appliance im-
mediately if doors are damaged and contact a quali-
fied installer for repair. Only doors certified with the
appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
INSTALLING GLASS DOORS
Spring clips have been installed but some adjustments may be
needed.Installthedoorsusingthefollowingsteps:
1. Withbifolddoorscompletelyfolded,insertbottompivotpininto
pivotholelocatednearbottomcorneroffrontfaceopeningand
swingdoortoverticalpositionmakingsuretoppinsslideinto
doortrack.Doorisinstalledwhentopdoorpinsnapsintospring
clip.
2. Repeatstep1forremainingdoor.
Ifyoundthedoorsdonotcloseproperlyordonotappearlevelor
straight, proceed with section on door adjustment,
DOOR ADJUSTMENT
Removedoorsandslightlyloosenlowerpivotclipsandupperspring
clips.Replacedoorsandfullyclosethem.Use1/8"shims(anymate-
rial)toleveldoors.Oncepropersettingisachieved,carefullyopen
doors enough so that you can access spring clips with a phillips
screwdriver.Tightenscrews.SeeFigure32.

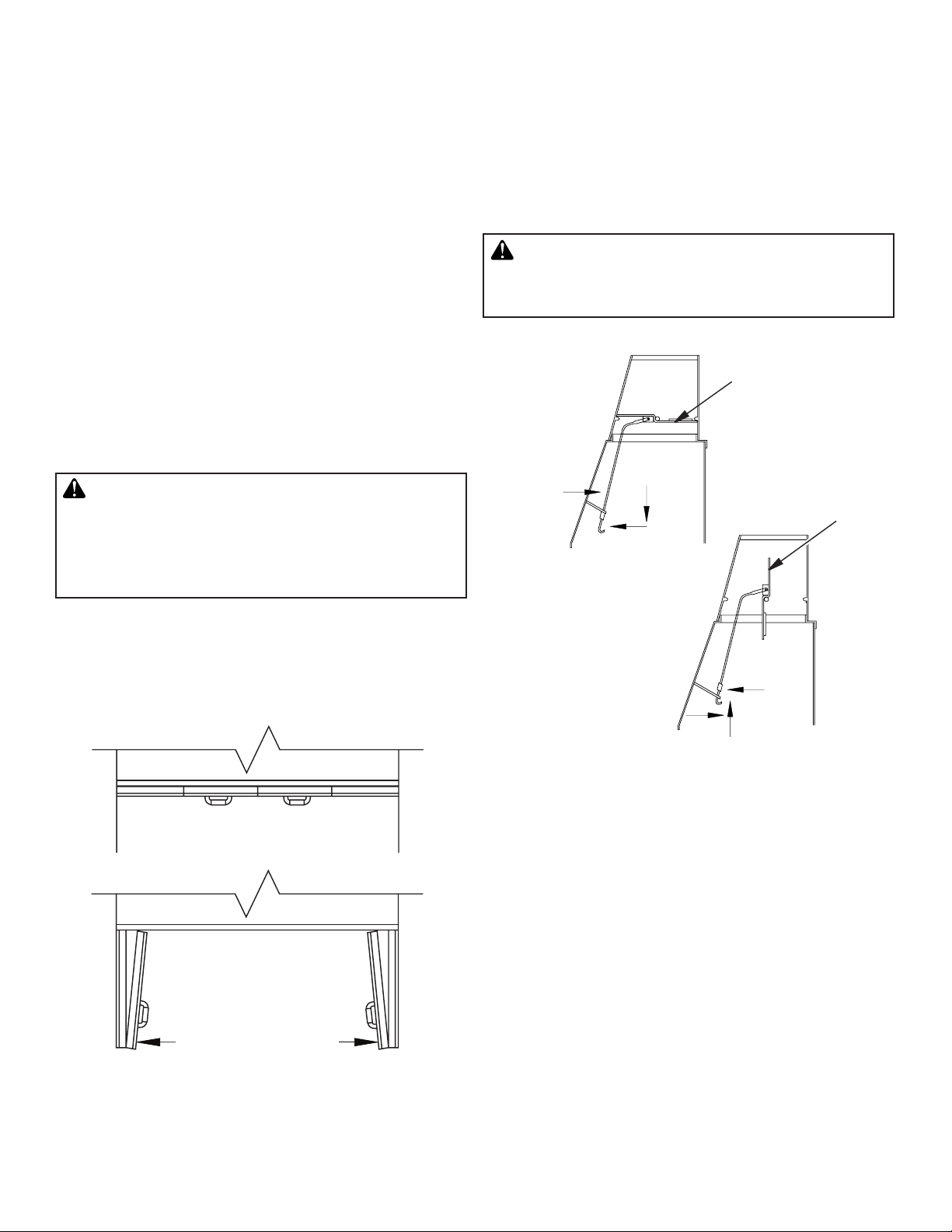

Figure 31 - Installing Bi-Fold Doors
Spring
Clip
Insert Pin
into Spring
Clip
Pivot
Hole
Insert
Bottom
Pivot Pin
into Hole
Fold Door
and Slide
Top Pins
Into Track
Figure 32 - Adjusting Bi-Fold Doors

Superiorfireplaces.US.com 126595-01C18
OPERATION AND MAINTENANCE GUIDELINES
Figure 33 - Bi-Fold Glass Doors
Doors Fully Closed
Fireplace Front
Doors
Fully Opened
Fireplace Front
GLASS DOORS
Glassdoorsareoptionalwiththereplace.Whenreplaceisinoperation,
doors must be fully opened or fully closed position only or a fire hazard
maybecreated(seeFigure33).
Areplaceequippedwithglassdoorsoperatesmuchdifferentlythana
replacewithanopenfront.Areplacewithglassdoorshasalimited
amount of air for combustion.
Excessiveheatwithinthereplacecanresultiftoolargeareisbuiltor
ifcombustionairgateisnotcompletelyopen.Thefollowingtipsshould
be followed to assure that both the fireplace and glass door retain their
beautyandfunctionproperly.Boththeuedamperandglassdoorsmust
befullyopenedbeforestartingre.Thiswillprovidesufcientcombustion
air and maintain safe temperatures in firebox.
IMPORTANT:Theglassmustbeallowedtowarmslowlyandevenly.
Thetemperedglasswillwithstandagradualtemperatureriseto550°F,
whichismorethananormalrewillgenerate.Suchmaterialsaspitch/
waxladenlogs,verydrymillendlumberandlargeamountsofpaperor
cardboardboxescancreateanexcessivelyhotreandshouldnotbe
burnedinthisreplace.Alwayskeeptherewellbackfromthedoors
andneverallowamestocontacttheglass.
WARNING: Fireplaces equipped with glass doors
should be operated only with doors fully opened or
doorsfullyclosed. Doors, if left partlyopen,maydraw
gas and flame out of the fireplace opening creating
risks of both fire and smoke.
Cleaning Glass
Cleanglasswithanycommercialglasscleanerorsoapandwater.Do
notuseanyabrasivematerialtocleanglass.Donotcleanglasswithany
cool water if glass is still hot from the fire and smoke.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
Thedamperhandle,whichopensandclosesthedamperblade,is
locatedintheupperfrontfaceofthereplace.Pushingthehandle
forward and up through the keyway slot will free damper blade to
automaticallyopen.Pushingthehandleforwardanddownwilllock
damperbladeclosed(seeFigure34).Dampermustbelockedinthe
fullopenpositionbeforeoperatingreplace(seeFigure34).
CAUTION: When operating damper door, please
be aware of sharp edges and corners. Open and close
damper door slowly to avoid injury.
Figure 34 - Operating Damper Handle
Damper
Weight
To Close
Damper
To Open
Damper
Damper
Weight

Superiorfireplaces.US.com126595-01C 19
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting.PleasecontactyourIHPdealerforanyquestions
orconcernsa.Whencontactingyourdealerpleasehaveyourmodel
andserialnumbersofyourreplaceready.Youcanalsovisitourweb
siteatSuperiorreplaces.US.com.
REPLACEMENT PARTS
SeePage20foracompletereplacementpartslist.Useonlyparts
supplied from the manufacturer.
Normally,allpartsshouldbeorderedthroughyourIHPdistributor
ordealer.Partswillbeshippedatprevailingpricesattimeoforder.
Whenorderingrepairparts,alwaysgivethefollowinginformation:
1.Themodelnumberofthereplace.
2.Theserialnumberofthereplace.
3.Thepartnumber.
4.Thedescriptionofthepart.
5.Thequantityrequired.
6.Theinstallationdateofthereplace.
Ifyouencounteranyproblemsorhaveanyquestionsconcerningthe
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Superiorfireplaces.US.com.

Superiorfireplaces.US.com 126595-01C20
PARTS
MODELS 36", 42", AND 50" Catalognumbersareincludedforconvenience.
1
21
20
5
6
7
10
9
11
12
13
16/17
15
14
8
24
23 3
25
18
2
22
19
4
MODEL CATALOG NO.
WRT6036RS F0600
WRT6036IS F0601
WRT6036RH F0602
WRT6036IH F0603
WRT6042RS F0604
WRT6042IS F0605
WRT6042RH F0606
WRT6042IH F0607
WRT6050RS F0608
WRT6050IS F0609
WRT6050RH F0610
WRT6050IH F0611
